Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#72814) — 255 parça

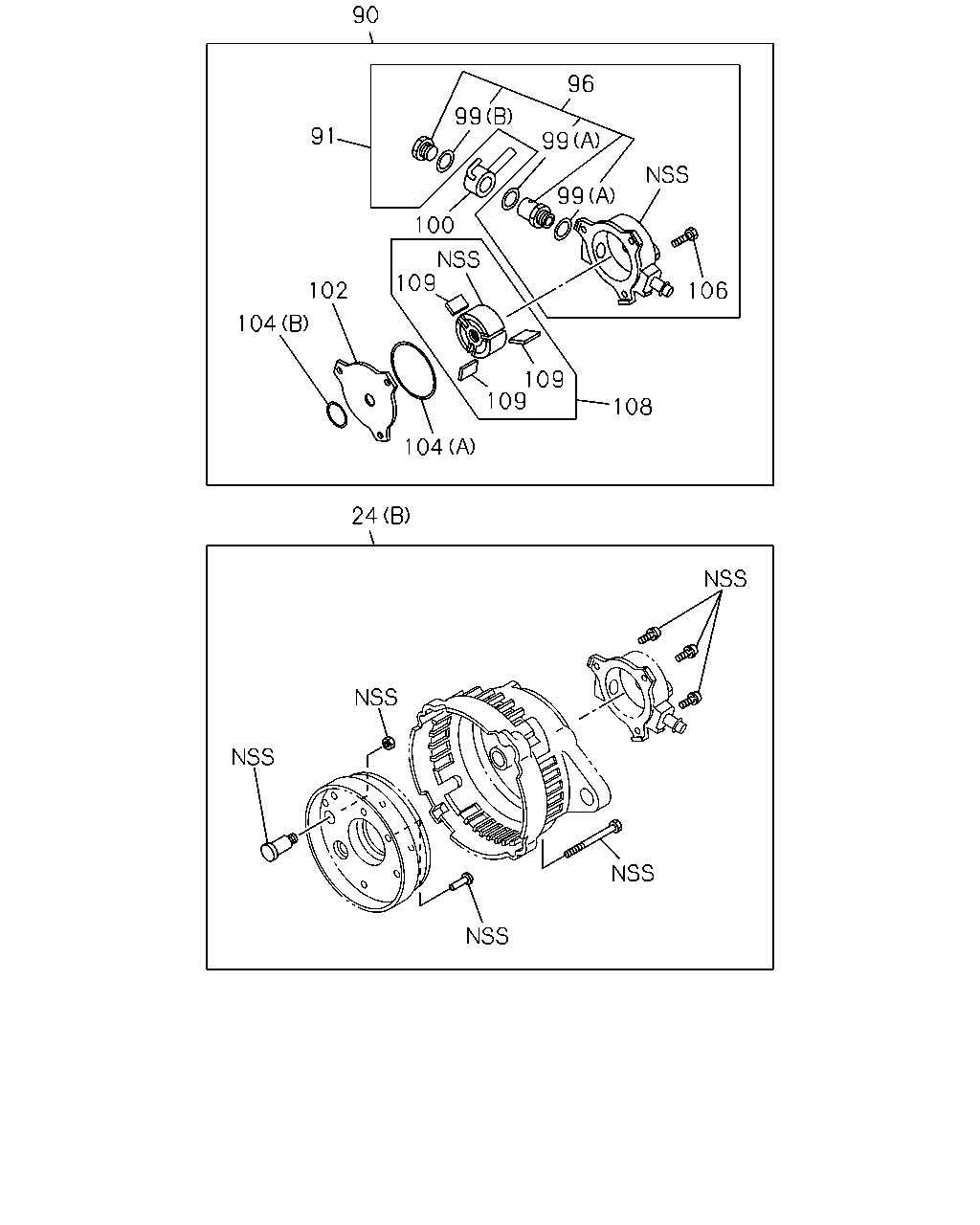

90 96 99 91 99 99 100 109 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN (D), THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), IMA ASM PART: C = 8-97369-716-1, D = 8-97942-628-2, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (C), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: D = 8-97942-628-2	8-97333-392-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97245-850-2	8-97381-613-0	01	1	-
91	BODY; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-937-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-948-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-615-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-936-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: D = 8-97942-628-2	8-94456-605-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-614-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-935-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-398-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-94462-883-0	03	1	-
109	VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-393-0	04	1	-

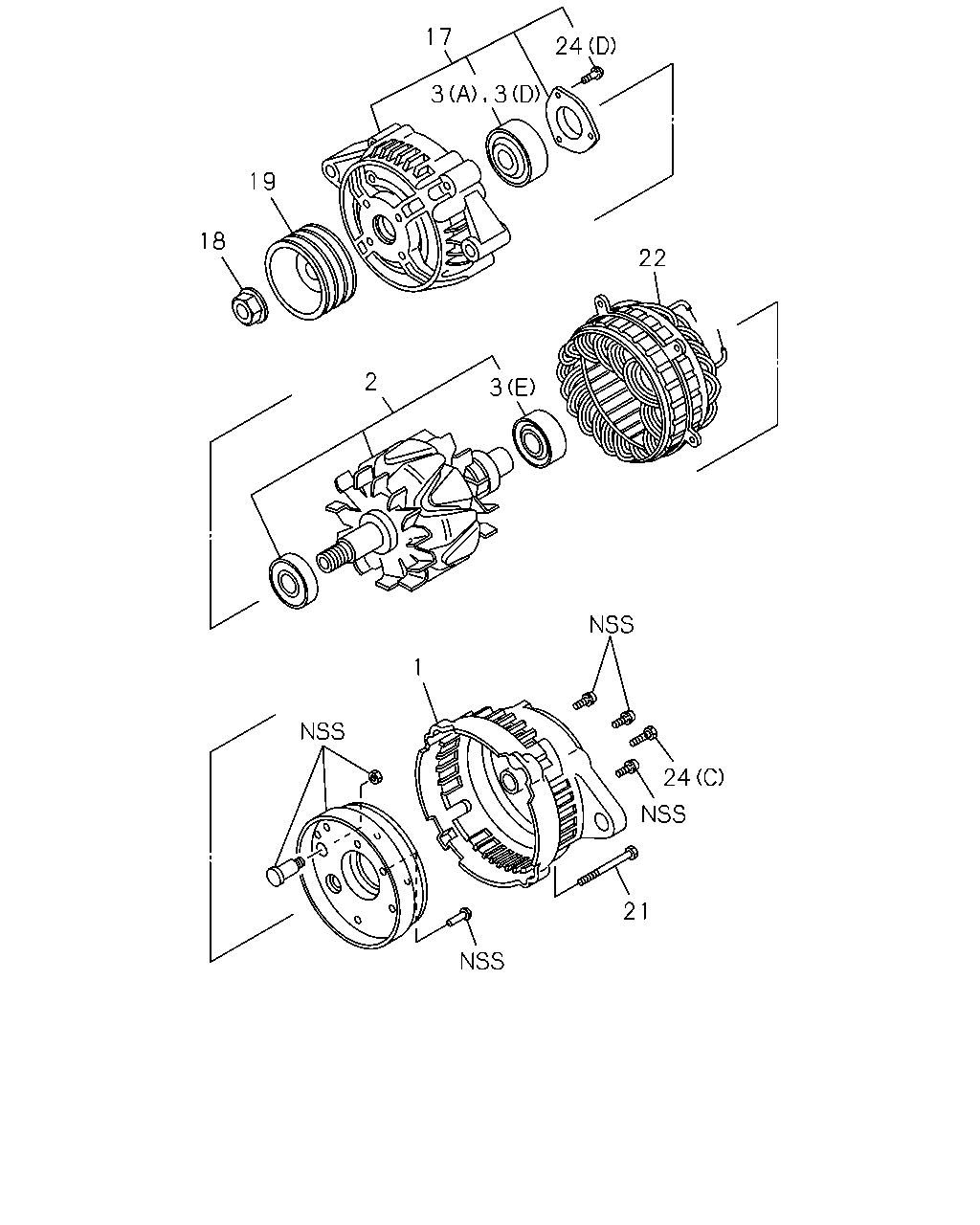

17 24 3 3 19 18 22 2 3 1 24 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2	8-97288-962-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98014-274-0	01	1	-1209
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0	8-98014-277-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0	8-98036-867-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98232-047-0	01	1	1210-
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: D = 8-97942-628-2	8-97333-390-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (D), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (E), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, E = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1	8-98228-965-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1	8-98229-789-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97074-927-0	01	1	-
19	PULLEY; GEN THA ASM PART: D = 8-97942-628-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-98000-022-0	01	1	-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	1-81229-031-0	03	1	-0406
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97182-960-0	04	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97319-752-0	04	1	-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	8-97942-840-0	03	1	0407-
22	STATOR; GEN IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97205-067-0	01	1	-
22	STATOR; GEN THA ASM PART: D = 8-97942-628-2	8-97288-969-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97245-850-2	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN (D), THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), IMA ASM PART: C = 8-97369-716-1, D = 8-97942-628-2, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (C), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-

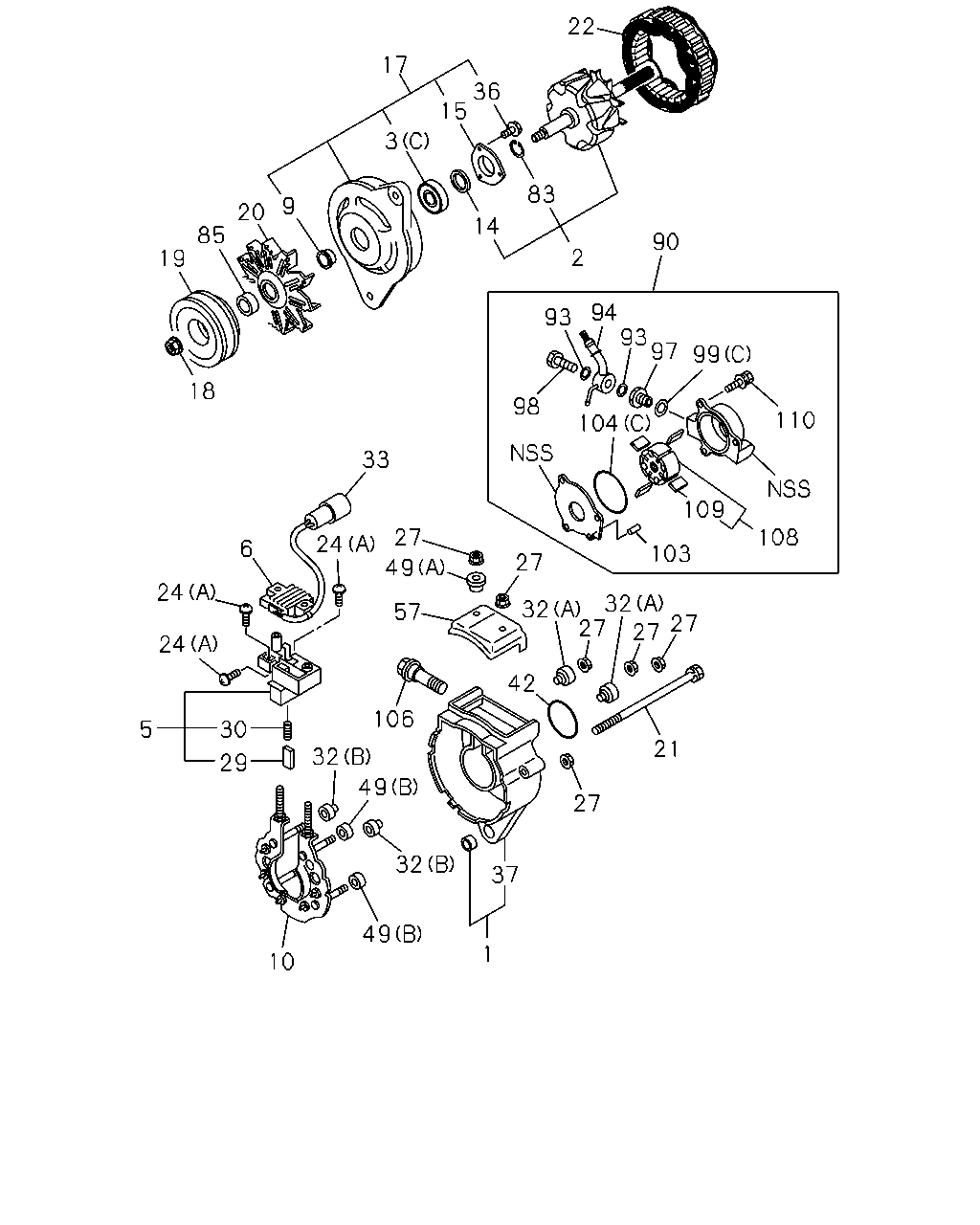

22 17 36 15 3 83 9 20 14 85 90 2 19 94 93 97 93 99 18 98 104 110 33 109 27 108 24 49 6 103 27 24 32 27 27 27 32 57 24 42 106 5 30 21 32 29 49 27 32 37 49 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2	8-97288-962-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98014-274-0	01	1	-1209
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0	8-98014-277-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0	8-98036-867-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98232-047-0	01	1	1210-
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: D = 8-97942-628-2	8-97333-390-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (D), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (E), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, E = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1	8-98228-965-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-926-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN THA ASM PART: D = 8-97942-628-2	8-97288-978-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN THA ASM PART: D = 8-97942-628-2	8-94453-231-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: D = 8-97942-628-2	8-97288-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98014-279-0	01	1	-1209
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98232-051-0	01	1	1210-
14	COLLAR; STEEL THA ASM PART: D = 8-97942-628-2	8-94453-225-0	01	1	-
15	RETAINER; ROTOR,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN THA ASM PART: D = 8-97942-628-2	8-94453-229-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1	8-98229-789-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97074-927-0	01	1	-
19	PULLEY; GEN THA ASM PART: D = 8-97942-628-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-98000-022-0	01	1	-
20	FAN; GEN THA ASM PART: D = 8-97942-628-2	8-97288-959-0	01	1	-0406
20	FAN; GEN THA ASM PART: D = 8-97942-628-2	8-97942-841-0	01	1	0407-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	1-81229-031-0	03	1	-0406
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97182-960-0	04	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97319-752-0	04	1	-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	8-97942-840-0	03	1	0407-
22	STATOR; GEN IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97205-067-0	01	1	-
22	STATOR; GEN THA ASM PART: D = 8-97942-628-2	8-97288-969-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97245-850-2	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN (D), THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), IMA ASM PART: C = 8-97369-716-1, D = 8-97942-628-2, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (C), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: D = 8-97942-628-2	8-94206-188-0	07	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97319-772-0	03	1	-
29	BRUSH; GEN THA ASM PART: D = 8-97942-628-2	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN THA ASM PART: D = 8-97942-628-2	5-81216-002-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (A), THA ASM PART: D = 8-97942-628-2	1-81229-410-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (B), THA ASM PART: D = 8-97942-628-2	1-81229-411-0	02	1	-
33	WIRE; LEAD,GEN THA ASM PART: D = 8-97942-628-2	8-97333-391-0	01	1	-
36	SCREW; FRT COVER THA ASM PART: D = 8-97942-628-2	8-94453-227-0	03	1	-
36	SCREW; FRT COVER IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97142-562-0	04	1	-
37	BUSHING; RR COVER,GEN THA ASM PART: D = 8-97942-628-2	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN THA ASM PART: D = 8-97942-628-2	8-94456-608-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A), THA ASM PART: D = 8-97942-628-2	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B), THA ASM PART: D = 8-97942-628-2	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2	8-94342-674-0	01	1	-
83	RING; SLIP,ROTOR,GEN THA ASM PART: D = 8-97942-628-2	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: D = 8-97942-628-2	8-97288-958-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: D = 8-97942-628-2	8-97333-392-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97245-850-2	8-97381-613-0	01	1	-
93	GASKET; CONN,VAC PUMP THA ASM PART: D = 8-97942-628-2	9-88130-081-0	02	1	-
94	CONNECTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-397-0	01	1	-
97	VALVE; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP THA ASM PART: D = 8-97942-628-2	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	9-88130-126-0	01	1	-
103	PIN; VAC PUMP THA ASM PART: D = 8-97942-628-2	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: D = 8-97942-628-2	8-94456-605-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-614-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-935-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-398-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-94462-883-0	03	1	-
109	VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-393-0	04	1	-
110	BOLT; THROUGH THA ASM PART: D = 8-97942-628-2	8-94456-611-0	03	1	-

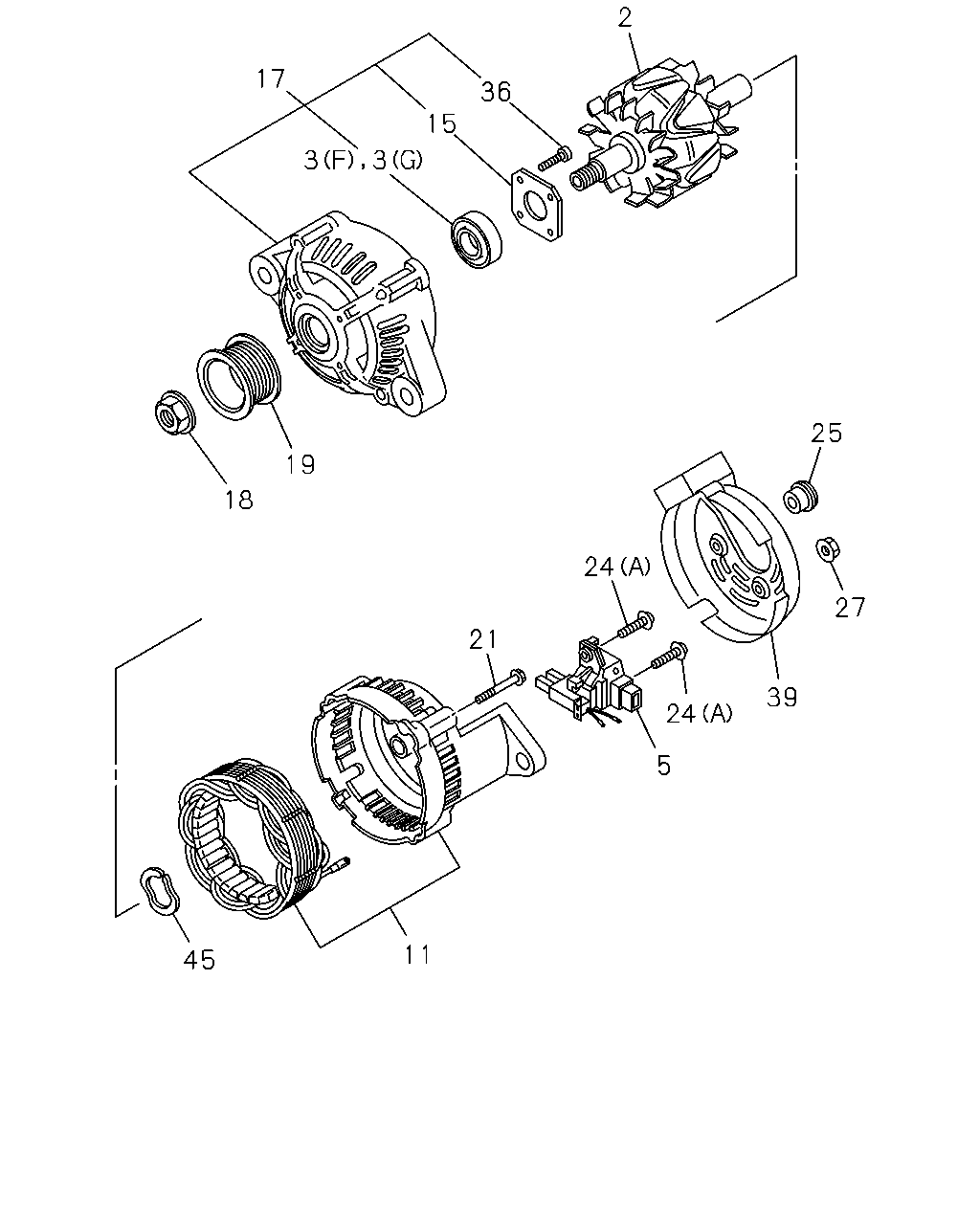

2 25 27 24 36 15 3 3 17 19 18 21 5 24 39 11 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: D = 8-97942-628-2	8-97333-390-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (D), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (E), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, E = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1	8-98228-965-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: D = 8-97942-628-2	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-926-0	01	1	-
11	COVER; RR,GEN THA ASM PART: C = 8-97369-716-1	8-97378-925-0	01	1	-
11	COVER; RR,GEN THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-086-0	01	1	-
11	COVER; RR,GEN THA ASM PART: H = 8-98229-071-1	8-98159-086-0	01	1	-1302
11	COVER; RR,GEN THA ASM PART: H = 8-98229-071-1	8-98242-367-0	01	1	1303-
15	RETAINER; ROTOR,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-94406-982-0	01	1	-
15	RETAINER; ROTOR,GEN THA ASM PART: D = 8-97942-628-2	8-94453-229-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1	8-98229-789-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: D = 8-97942-628-2	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97074-927-0	01	1	-
19	PULLEY; GEN THA ASM PART: D = 8-97942-628-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-98000-022-0	01	1	-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	1-81229-031-0	03	1	-0406
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97182-960-0	04	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97319-752-0	04	1	-
21	BOLT; THROUGH,GEN THA ASM PART: D = 8-97942-628-2	8-97942-840-0	03	1	0407-
24	SCREW; RECTIFIER,GEN (D), THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), IMA ASM PART: C = 8-97369-716-1, D = 8-97942-628-2, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (C), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0	8-97378-930-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: G = 8-98196-585-0, H = 8-98229-071-1	8-98196-584-0	01	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: D = 8-97942-628-2	8-94206-188-0	07	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97319-772-0	03	1	-
36	SCREW; FRT COVER THA ASM PART: D = 8-97942-628-2	8-94453-227-0	03	1	-
36	SCREW; FRT COVER IMA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97142-562-0	04	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-928-0	01	1	-
45	WASHER; INSULATE,RR COVER,GEN THA ASM PART: H = 8-98229-071-1	8-97142-570-0	01	1	-1302
45	WASHER; INSULATE,RR COVER,GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0	8-97142-570-0	01	1	-

17 3 22 19 2 3 96 44 99 99 99 1 100 109 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: D = 8-97942-628-2	8-97288-962-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98014-274-0	01	1	-1209
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0	8-98014-277-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: E = 8-98006-084-0	8-98036-867-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98232-047-0	01	1	1210-
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: D = 8-97942-628-2	8-97333-390-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: D = 8-97942-628-2	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (D), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (E), IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (F), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, E = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (G), THA ASM PART: H = 8-98229-071-1	8-98228-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: D = 8-97942-628-2	8-97288-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98014-279-0	01	1	-1209
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98232-051-0	01	1	1210-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: D = 8-97942-628-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: F = 8-98153-004-0, G = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: H = 8-98229-071-1	8-98229-789-0	01	1	-
19	PULLEY; GEN THA ASM PART: D = 8-97942-628-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, F = 8-98153-004-0, G = 8-98196-585-0, H = 8-98229-071-1	8-98000-022-0	01	1	-
22	STATOR; GEN IMA ASM PART: B = 8-97361-871-0, E = 8-98006-084-0	8-97205-067-0	01	1	-
22	STATOR; GEN THA ASM PART: D = 8-97942-628-2	8-97288-969-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97245-850-2	8-97313-437-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97245-850-2	8-97941-674-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-948-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-615-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-936-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C), THA ASM PART: D = 8-97942-628-2	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: D = 8-97942-628-2	8-94456-605-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-614-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-935-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-398-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-94462-883-0	03	1	-
109	VANE; VAC PUMP THA ASM PART: D = 8-97942-628-2	8-97333-393-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
