0-65 — STARTER (#72813) — 97 parça

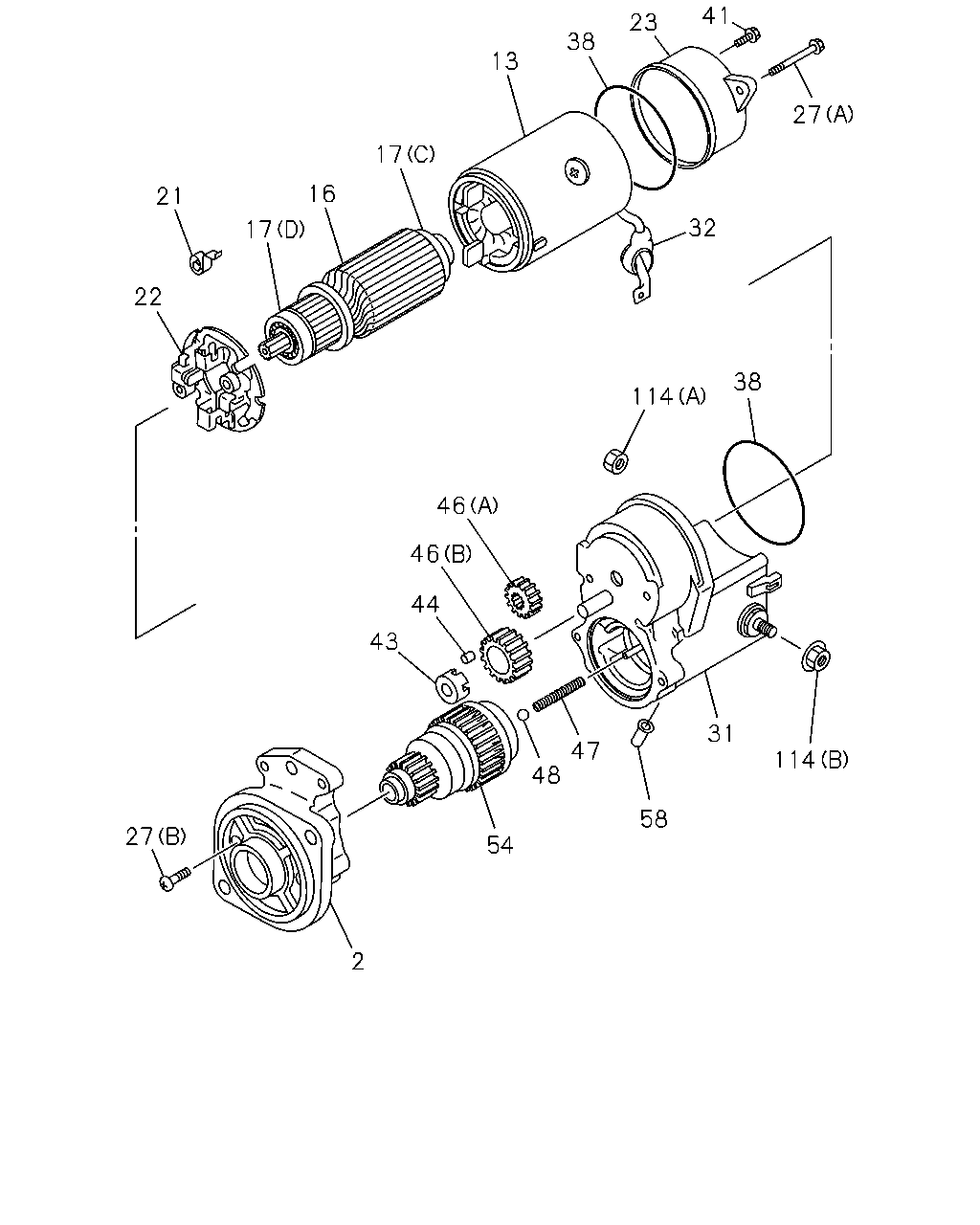

41 23 38 13 27 17 16 21 32 17 22 38 114 46 46 44 43 31 47 48 114 58 27 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER IMA ASM PART: C = 8-97941-023-0	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97368-562-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-668-0	01	1	-
13	YOKE; STARTER THA ASM PART: C = 8-97941-023-0	8-97941-438-0	01	1	-
16	ARMATURE; STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-869-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97262-027-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: B = 8-97941-018-2	8-97941-656-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), THA ASM PART: C = 8-97941-023-0	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (D), IMA ASM PART: C = 8-97941-023-0	8-97112-954-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-97941-018-2	8-97941-657-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-97941-018-2	8-97941-658-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER IMA ASM PART: A = 8-97357-756-1, B = 8-97941-018-2, D = 8-98028-199-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: C = 8-97941-023-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97112-559-1	01	1	-
22	HOLDER; BRUSH STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: B = 8-97941-018-2	8-97941-663-0	01	1	-
23	COVER; RR COVER STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: B = 8-97941-018-2	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97319-418-0	01	1	-
27	BOLT; THROUGH,STARTER (B), IMA ASM PART: C = 8-97941-023-0	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (A), IMA ASM PART: C = 8-97941-023-0	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-97941-018-2	8-97262-497-0	02	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97319-423-0	02	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: C = 8-97941-023-0	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97368-561-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-018-2	8-97941-667-0	01	1	-
32	COVER; RUBBER,STARTER THA ASM PART: C = 8-97941-023-0	5-81119-029-0	01	1	-
38	GASKET; RR COVER,STARTER THA ASM PART: C = 8-97941-023-0	8-94170-214-0	02	1	-
41	SCREW; RR COVER,STARTER IMA ASM PART: C = 8-97941-023-0	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER THA ASM PART: C = 8-97941-023-0	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: B = 8-97941-018-2	8-97941-669-0	01	1	-
44	ROLLER; PINION STARTER THA ASM PART: C = 8-97941-023-0	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B), IMA ASM PART: C = 8-97941-023-0	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A), THA ASM PART: C = 8-97941-023-0	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER THA ASM PART: C = 8-97941-023-0	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER THA ASM PART: C = 8-97941-023-0	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER IMA ASM PART: C = 8-97941-023-0	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97229-911-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-665-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER THA ASM PART: C = 8-97941-023-0	8-97041-421-0	01	1	-
114	NUT; TERMINAL (B), THA ASM PART: C = 8-97941-023-0	8-94109-763-0	01	1	-
114	NUT; TERMINAL (A), THA ASM PART: C = 8-97941-023-0	8-94377-238-0	01	1	-

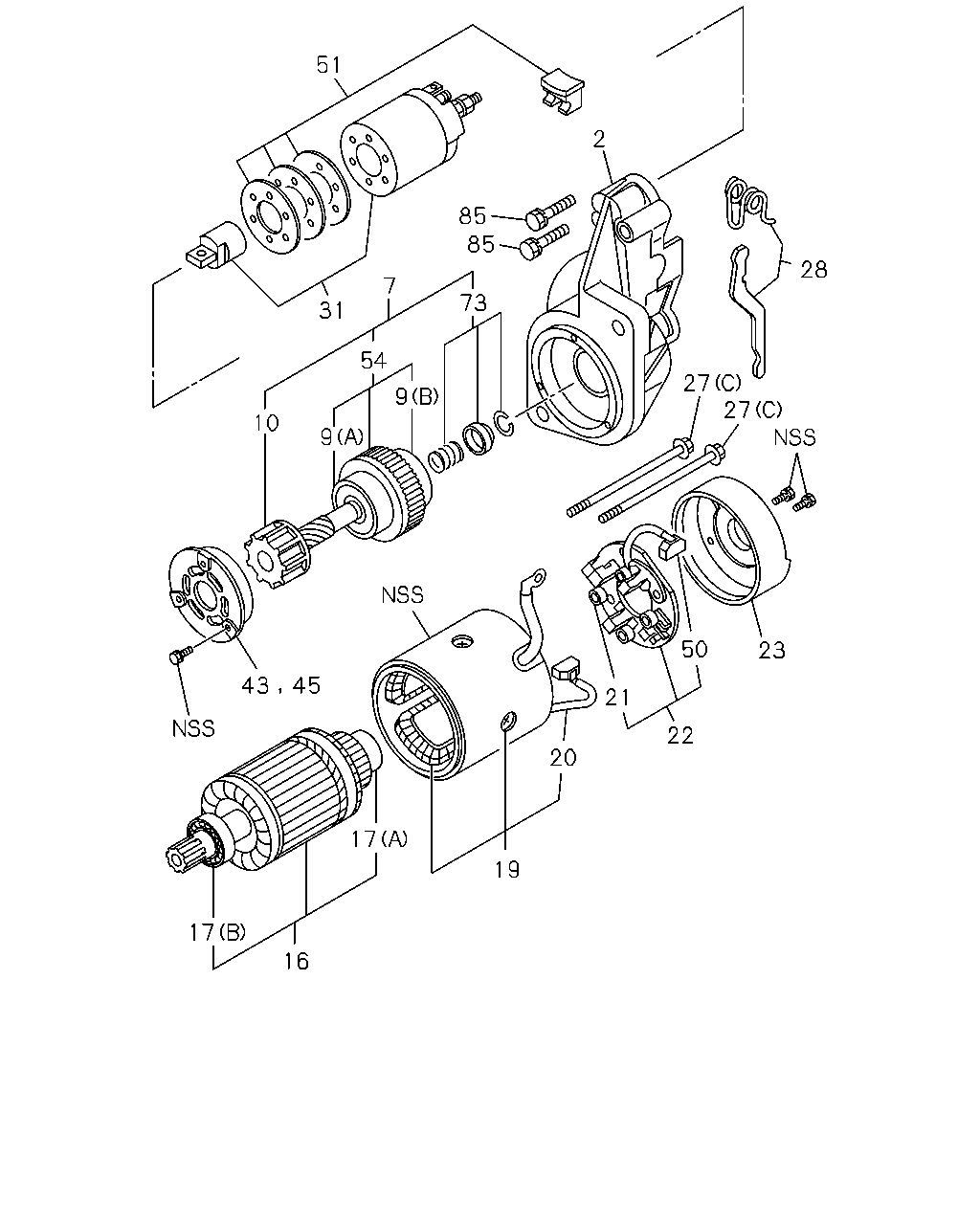

51 31 10 7 85 85 73 54 9 9 43 45 17 16 17 2 19 20 21 22 50 23 27 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER IMA ASM PART: C = 8-97941-023-0	8-97142-908-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97368-562-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-668-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97229-910-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-664-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97047-550-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: B = 8-97941-018-2	8-97941-659-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: B = 8-97941-018-2	8-97941-660-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97357-756-1, B = 8-97941-018-2, D = 8-98028-199-0	8-97130-189-1	01	1	-
16	ARMATURE; STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-869-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97262-027-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: B = 8-97941-018-2	8-97941-656-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (C), THA ASM PART: C = 8-97941-023-0	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (D), IMA ASM PART: C = 8-97941-023-0	8-97112-954-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: B = 8-97941-018-2	8-97941-657-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: B = 8-97941-018-2	8-97941-658-0	01	1	-
19	COIL; FIELD,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97376-957-1	01	1	-
19	COIL; FIELD,STARTER THA ASM PART: B = 8-97941-018-2	8-97942-825-0	01	1	-
20	BRUSH; (+),STARTER THA ASM PART: B = 8-97941-018-2	8-97112-557-0	02	1	-
20	BRUSH; (+),STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97113-286-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER IMA ASM PART: A = 8-97357-756-1, B = 8-97941-018-2, D = 8-98028-199-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: C = 8-97941-023-0	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97112-559-1	01	1	-
22	HOLDER; BRUSH STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: B = 8-97941-018-2	8-97941-663-0	01	1	-
23	COVER; RR COVER STARTER IMA ASM PART: C = 8-97941-023-0	8-97112-875-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: B = 8-97941-018-2	8-97227-901-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97319-418-0	01	1	-
27	BOLT; THROUGH,STARTER (B), IMA ASM PART: C = 8-97941-023-0	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (A), IMA ASM PART: C = 8-97941-023-0	8-97112-957-0	02	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: B = 8-97941-018-2	8-97262-497-0	02	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97319-423-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97351-967-0	01	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-670-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: C = 8-97941-023-0	8-97142-907-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97368-561-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-97941-018-2	8-97941-667-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: C = 8-97941-023-0	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER THA ASM PART: B = 8-97941-018-2	8-97941-669-0	01	1	-
45	RETAINER; BEARING,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94435-570-0	01	1	-
50	BRUSH; (-),STARTER THA ASM PART: B = 8-97941-018-2	8-97112-557-0	02	1	-
50	BRUSH; (-),STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97113-286-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97368-563-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER THA ASM PART: B = 8-97941-018-2	8-97941-671-0	01	1	-
54	CLUTCH; PINION,STARTER IMA ASM PART: C = 8-97941-023-0	8-97148-687-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-97229-911-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-665-0	01	1	-
73	STOPPER SET; PINION IMA ASM PART: A = 8-97357-756-1, B = 8-97941-018-2, D = 8-98028-199-0	8-94228-450-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-97357-756-1, D = 8-98028-199-0	8-94408-500-0	02	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: B = 8-97941-018-2	8-97941-672-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
