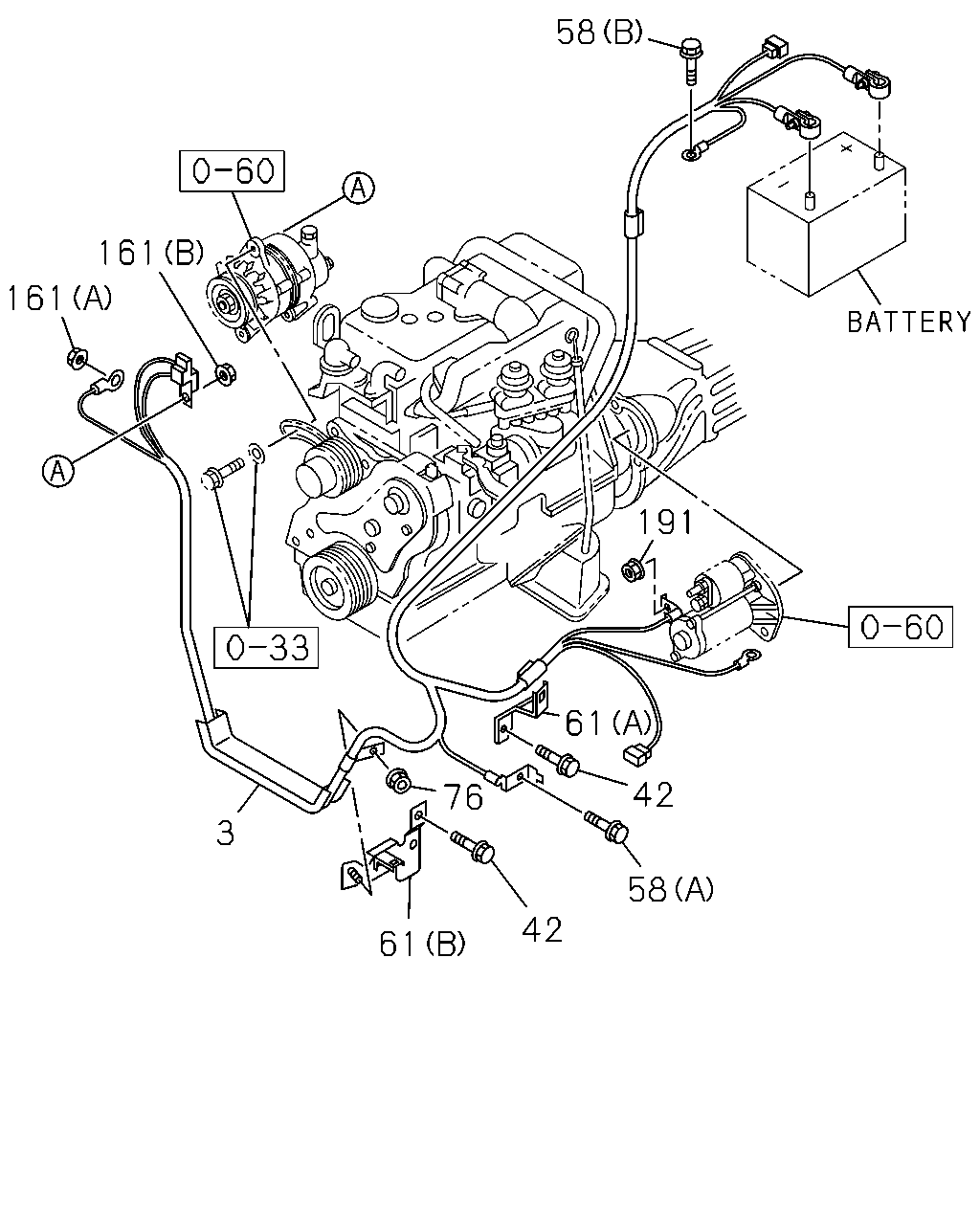

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#72812) — 48 parça

58 161 161 191 61 42 76 3 58 42 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-97249-293-2	01	1	0204-0402	●
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-97374-454-0	01	1	0403-0408	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 65D31L<TQ4> THA	8-97374-454-0	01	1	0409-0412		●
3	HARNESS; CABLE,BATTERY TO STARTER A/T 4 SPEED-JATCO<RMK> SHIFT ON THE FLY<7EX> THA	8-97237-007-3	01	1	0204-0402			●
3	HARNESS; CABLE,BATTERY TO STARTER A/T 4 SPEED-JATCO<RMK> SHIFT ON THE FLY<7EX> THA	8-97374-458-0	01	1	0403-0408			●
3	HARNESS; CABLE,BATTERY TO STARTER A/T 4 SPEED-JATCO<RMK> EXC. SHIFT ON THE FLY<7EX> THA	8-97237-006-3	01	1	0204-0402			●
3	HARNESS; CABLE,BATTERY TO STARTER A/T 4 SPEED-JATCO<RMK> EXC. SHIFT ON THE FLY<7EX> THA	8-97374-457-0	01	1	0403-0408			●
3	HARNESS; CABLE,BATTERY TO STARTER M/T MUA 5 SPEED<RMN> EXC. SHIFT ON THE FLY<7EX> THA	8-97259-841-3	01	1	0204-0402			●
3	HARNESS; CABLE,BATTERY TO STARTER M/T MUA 5 SPEED<RMN> EXC. SHIFT ON THE FLY<7EX> THA	8-97374-455-0	01	1	0403-0408			●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. SHIFT ON THE FLY<NR4> THA	8-97371-019-4	01	1	0409-0412				●
3	HARNESS; CABLE,BATTERY TO STARTER EXC. SHIFT ON THE FLY<NR4> THA	8-97371-019-4	01	1	0501-0507				●	●
3	HARNESS; CABLE,BATTERY TO STARTER 4X2<TFB***> THA	8-97371-019-4	01	1	0508-0606				●	●
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-98007-622-1	01	1	0607-0608				●	●
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-98007-622-1	01	1	0609-0708				●	●	●
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-98007-622-1	01	1	0709-0709				●	●
3	HARNESS; CABLE,BATTERY TO STARTER THA	8-98007-622-1	01	1	0710-				●	●	●
3	HARNESS; CABLE,BATTERY TO STARTER 4X4<TFS***> M/T MUA 5 SPEED<RMN> SHIFT ON THE FLY<7EX> THA	8-97259-842-3	01	1	0204-0402			●
3	HARNESS; CABLE,BATTERY TO STARTER 4X4<TFS***> M/T MUA 5 SPEED<RMN> SHIFT ON THE FLY<7EX> THA	8-97374-456-0	01	1	0403-0408			●
3	HARNESS; CABLE,BATTERY TO STARTER SHIFT ON THE FLY<NR4> THA	8-97371-020-4	01	1	0409-0606				●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	02	1	0204-0408	●		●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0409-0412				●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0501-0608				●	●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0609-0708				●	●	●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0709-0709				●	●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	01	1	0710-				●	●	●
42	BOLT; BRKT,BATTERY CABLE M6X16 FLANGE THA	0-28650-616-0	02	1	0409-0412		●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0204-0408	●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0409-0412		●		●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0501-0608				●	●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0609-0708				●	●	●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0709-0709				●	●
58	BOLT; CABLE,BATTERY (A) M10X20 FLANGE THA	0-28651-020-0	01	1	0710-				●	●	●
58	BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER IMA	8-97086-823-0	01	1	0204-0408	●		●
58	BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER IMA	8-97086-823-0	01	1	0409-0606		●		●	●
58	BOLT; CABLE,BATTERY (B) M6X16 W/LK&PL WASHER IMA	8-97086-823-0	01	1	0607-				●	●	●
61	BRACKET; BATTERY CABLE (A) THA	8-97241-143-1	01	1	0204-0408	●		●
61	BRACKET; BATTERY CABLE (B) THA	8-97260-935-2	01	1	0204-0408	●		●
61	BRACKET; BATTERY CABLE (B) THA	8-97260-935-2	01	1	0409-0412		●
76	NUT; BATTERY CABLE M6 FLANGE THA	0-91150-106-0	01	1	0204-0408	●		●
76	NUT; BATTERY CABLE M5 W/LK WASHER THA	8-94424-178-0	01	1	0409-0412		●
161	NUT; BATTERY CABLE (A) M5 W/LK WASHER THA	8-94424-178-0	01	1	0204-0408	●
161	NUT; BATTERY CABLE (B) M8 FLANGE THA	0-91180-108-0	01	1	0204-0408			●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0204-0408	●		●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0409-0412		●		●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0501-0608				●	●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0609-0708				●	●	●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0709-0709				●	●
191	NUT; STARTER M8 FLANGE THA	0-91180-108-0	01	1	0710-				●	●	●
