0-60 — ENGINE ELECTRICAL CONTROL PARTS (#72811) — 421 parça
çizim 116324
748 601 606 613 748 606 748 748 606 601 748 748 606 613
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0409-0412 ●
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0501-0608 ● ●
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0609-0708 ● ● ●
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0709-0709 ● ●
601 NUT; UNIT
M6 FLANGE THA 		0-91180-106-0 03 1 0710- ● ● ●
606 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) THA 		8-97364-729-2 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-97364-731-2 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
(A) THA 		8-97921-240-0 01 1 0204-0408 ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0409-0412 ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0501-0608 ● ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0609-0708 ● ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98064-201-2 01 1 0709-0709 ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98064-201-2 01 1 0710-0808 ● ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98113-306-0 01 1 0809-1106 ● ● ●
606 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) THA 		8-98113-306-0 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0409-0412 ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0501-0608 ● ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0609-0708 ● ● ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0709-0709 ● ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0710-1106 ● ● ●
606 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) THA 		8-98064-202-0 01 1 1107- ● ● ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRONIC CONTROL<K20>,IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98195-237-0 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC CONTROL<K20>,IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98194-778-0 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-98195-238-0 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. ELECTRONIC CONTROL<K20>,IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98195-239-0 01 1 1107- ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. ELECTRONIC CONTROL<K20>,IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98195-241-0 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-98195-240-0 01 1 1107- ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-98195-242-0 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-98160-156-0 01 1 1107- ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-98160-157-0 01 1 1107- ●
613 CONTROL UNIT; ENG
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) THA 		8-98160-161-2 01 1 1009- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98134-449-0 01 1 0811-0901 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98102-102-0 01 1 0711-0808 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-984-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-355-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-112-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-151-2 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC CONTROL<K20> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-151-2 01 1 1107- ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98002-452-0 01 1 0409-0412 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> (A) THA 		8-98006-349-0 01 1 0501-0507 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-349-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-981-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-338-8 01 1 0607-0704 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-708-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-398-3 01 1 0709-0808 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-954-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-353-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-082-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-812-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> ELECTRONIC CONTROL<K20> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-812-1 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-98002-451-0 01 1 0409-0412 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> (A) THA 		8-98006-345-0 01 1 0501-0507 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-345-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G<RSP> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-980-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98017-336-8 01 1 0607-0608 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-336-8 01 1 0607-0608 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-336-8 01 1 0609-0704 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-706-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-396-3 01 1 0709-0709 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98057-396-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-396-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98126-952-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-952-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98135-351-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-351-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98152-080-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-080-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98170-810-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-810-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> ELECTRONIC CONTROL<K20> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-810-1 01 1 1107- ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-353-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-983-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-337-8 01 1 0607-0704 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-707-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-397-3 01 1 0709-0808 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-953-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-352-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-081-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> A/T 4 SPEED-JATCO<RMK> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-811-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO<RMK> ELECTRONIC CONTROL<K20> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-811-1 01 1 1107- ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5G<RSP> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-351-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5G<RSP> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-982-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-335-8 01 1 0607-0608 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98017-335-8 01 1 0607-0608 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-335-8 01 1 0609-0704 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-705-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
DOUBLE CAB<TF**W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-395-3 01 1 0709-0709 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-395-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98057-395-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-951-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98126-951-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-350-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98135-350-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-079-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98152-079-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-809-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
4X4 DOUBLE CAB<TFS*W*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98170-809-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> ELECTRONIC CONTROL<K20> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-809-1 01 1 1107- ●
613 CONTROL UNIT; ENG
(A) THA 		8-98006-354-0 01 1 0501-0507 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-354-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-984-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-341-8 01 1 0607-0704 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-711-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-403-3 01 1 0709-0802 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98097-106-0 01 1 0803-0808 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-976-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-360-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-104-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98170-814-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-814-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> ELECTRONIC CONTROL<K20> (B) THA 		8-98170-814-1 01 1 1107- ●
613 CONTROL UNIT; ENG
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> ELECTRONIC CONTROL<K20> EXC. IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-814-1 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98006-355-0 01 1 0508-0603 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98029-986-0 01 1 0604-0606 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-342-8 01 1 0607-0704 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-712-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-404-3 01 1 0709-0802 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98097-107-0 01 1 0803-0808 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-977-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-362-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-105-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-816-1 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H<MWQ> ELECTRONIC CONTROL<K20> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98170-816-1 01 1 1107- ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-340-8 01 1 0609-0704 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-710-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-401-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-957-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-357-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-085-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-139-2 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
A/T AISIN<RMD> ELECTRONIC CONTROL<K20> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-139-2 01 1 1107- ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98017-339-8 01 1 0609-0704 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (A) THA 		8-98079-709-0 01 1 0705-0708 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98057-399-3 01 1 0710-0808 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98126-955-0 01 1 0809-0901 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98135-354-0 01 1 0902-0909 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98152-083-1 01 1 0910-1008 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-137-2 01 1 1009-1106 ●
613 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S<MZJ> ELECTRONIC CONTROL<K20> IMMOBILIZER SYSTEM<7KC> (B) THA 		8-98160-137-2 01 1 1107- ●
748 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 1107- ● ● ●
748 BOLT; CONT UNIT
(A) M6X20 HEX SOCKET THA 		9-05820-620-0 04 1 0204-0408 ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0409-0412 ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0501-0608 ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0609-0708 ● ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0709-0709 ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0710- ● ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58310-625-0 04 1 0409-0412 ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58310-625-0 04 1 0501-0601 ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0602-0608 ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0609-0708 ● ● ●
748 BOLT; CONT UNIT
(D) M6X16 FLANGE THA 		0-28650-616-0 03 1 0709-0709 ● ●
748 BOLT; CONT UNIT
(D) M6X16 FLANGE THA 		0-28650-616-0 03 1 0710-1106 ● ● ●
748 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> (D) M6X16 FLANGE THA 		0-28650-616-0 03 1 1107- ● ● ●
çizim 116325
424 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 0909- ● ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0204-0408 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0409-0412 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0501-0608 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0609-0708 ● ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0709-0709 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0710-0908 ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 1107- ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0311-0408 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0409-0412 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0501-0608 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0609-0708 ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 02 1 0709-0709 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 02 1 0710-0808 ● ● ●
çizim 116326
46 46 46 424 424 10 10 10 991 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
12V YAZAKI THA 		8-98146-837-0 01 1 0909- ● ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0204-0408 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0409-0412 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0501-0608 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0609-0708 ● ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0709-0709 ● ●
10 RELAY; STARTER
12V YAZAKI THA 		8-97309-295-0 01 1 0710-0908 ● ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-98146-837-0 01 1 0909- ● ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0409-0412 ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0501-0608 ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0609-0708 ● ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0709-0709 ● ●
46 RELAY; GLOW PLUG
12V YAZAKI THA 		8-97309-295-0 01 1 0710-0908 ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 1107- ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0311-0408 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0409-0412 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0501-0608 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 01 1 0609-0708 ● ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 02 1 0709-0709 ● ●
424 RELAY; SAFETY,STARTER
12V YAZAKI THA 		8-97309-292-0 02 1 0710-0808 ● ● ●
991 RELAY; STARTER CUT
12V YAZAKI THA 		8-97309-292-0 01 1 1107- ● ● ●

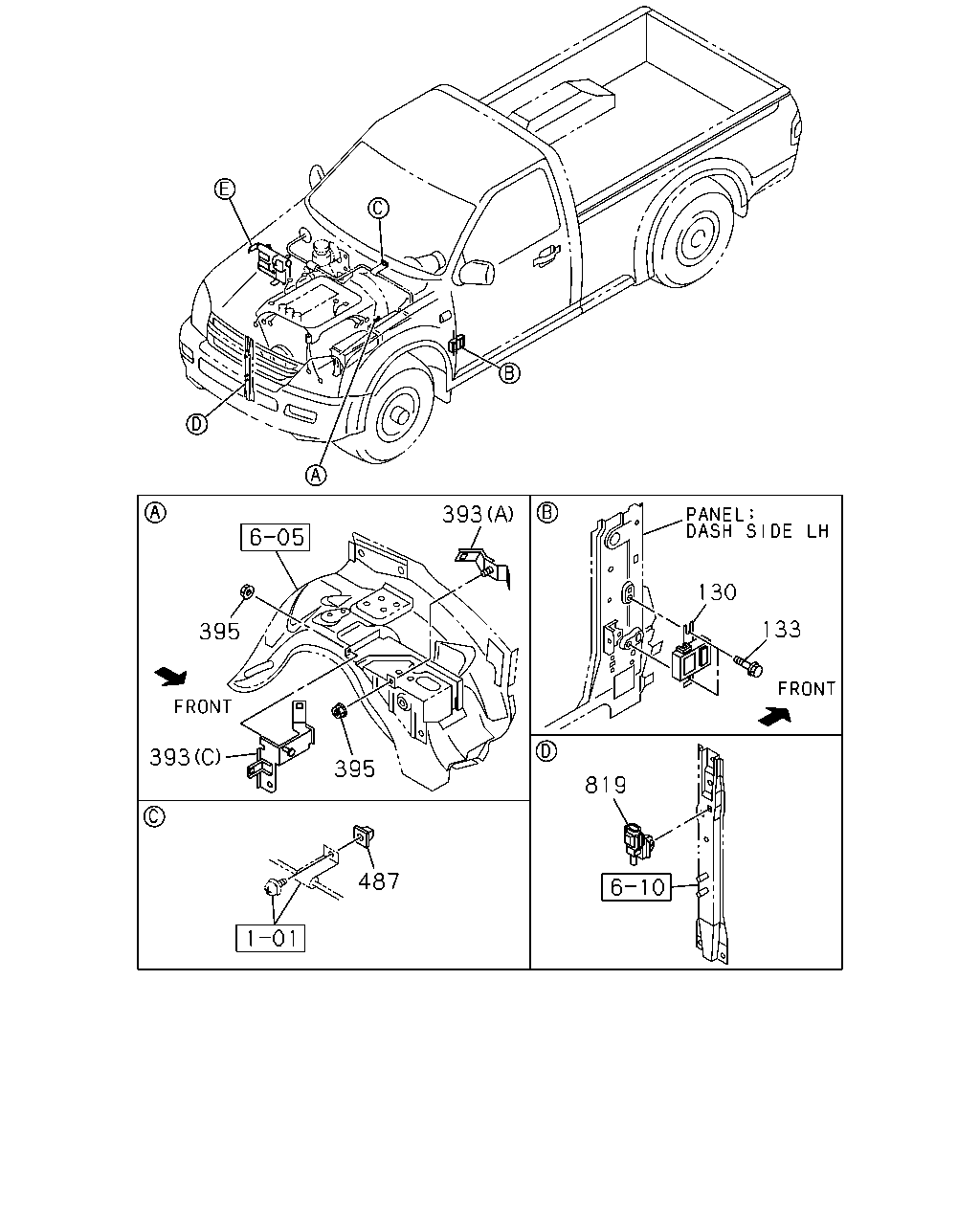

çizim 116333
393 130 133 395 393 395 819 487
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 CONTROLLER; EGR
THA 		8-97326-750-0 01 1 0204-0303 ●
130 CONTROLLER; EGR
THA 		8-97359-225-0 01 1 0304-0405 ●
130 CONTROLLER; EGR
THA 		8-97381-425-0 01 1 0406-0408 ●
130 CONTROLLER; EGR
THA 		8-97381-425-0 01 1 0409-0412 ●
133 BOLT; EGR CONTROLLER
M6X16 FLANGE THA 		0-28450-616-0 02 1 0204-0408 ●
133 BOLT; EGR CONTROLLER
EURO2 SPECIFICATION<NT2> M6X16 FLANGE THA 		0-28450-616-0 02 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0204-0408 ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97241-143-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0501-0608 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609-0609 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609-0708 ● ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0709-0709 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0710- ● ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0501-0608 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0609-0609 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0609-0708 ● ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0709-0709 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0710- ● ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91150-106-0 01 1 0204-0408 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91150-106-0 01 1 0409-0412 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91150-106-0 01 1 0501-0603 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0604-0608 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0609-0708 ● ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0709-0709 ● ●
395 NUT; BRKT FIX
M6 FLANGE THA 		0-91180-106-0 01 1 0710- ● ● ●
487 NUT
D=9.7X9.7 L=8 THA 		8-94222-314-0 01 1 0204-0408 ● ●
819 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> IMA 		8-98008-687-0 01 1 0607- ● ●

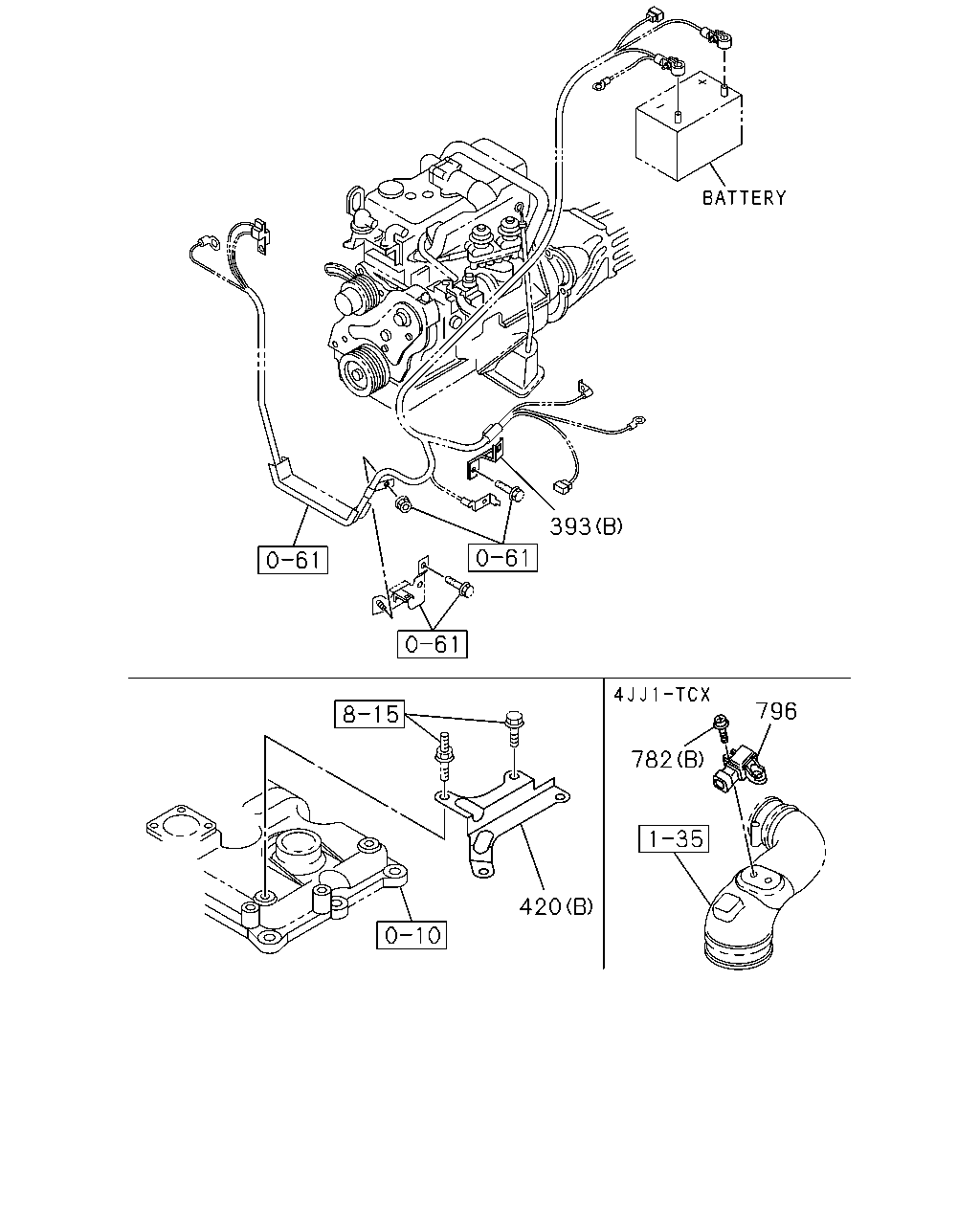

çizim 116336
393 796 782 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0204-0408 ● ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-97236-163-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97241-143-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-97363-410-1 01 1 0501-0608 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609-0609 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0609-0708 ● ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0709-0709 ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98050-833-0 01 1 0710- ● ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0409-0412 ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-97378-730-0 01 1 0501-0608 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0609-0609 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0609-0708 ● ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0709-0709 ● ●
393 BRACKET; HARNESS TO BODY
(C) THA 		8-98050-884-0 01 1 0710- ● ● ●
420 BRACKET; HARNESS
(A) THA 		8-97920-750-3 01 1 0204-0408 ●
420 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0409-0412 ●
420 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0501-0606 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0607-0608 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0609-0708 ● ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0709-0709 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0710- ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0204-0408 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0409-0412 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0501-0608 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0609-0708 ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0709-0709 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0710- ● ● ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0609-0708 ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0710- ●
796 SENSOR; MAP
IMA 		8-97180-655-0 01 1 0204-0408 ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0609-0708 ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0710- ●

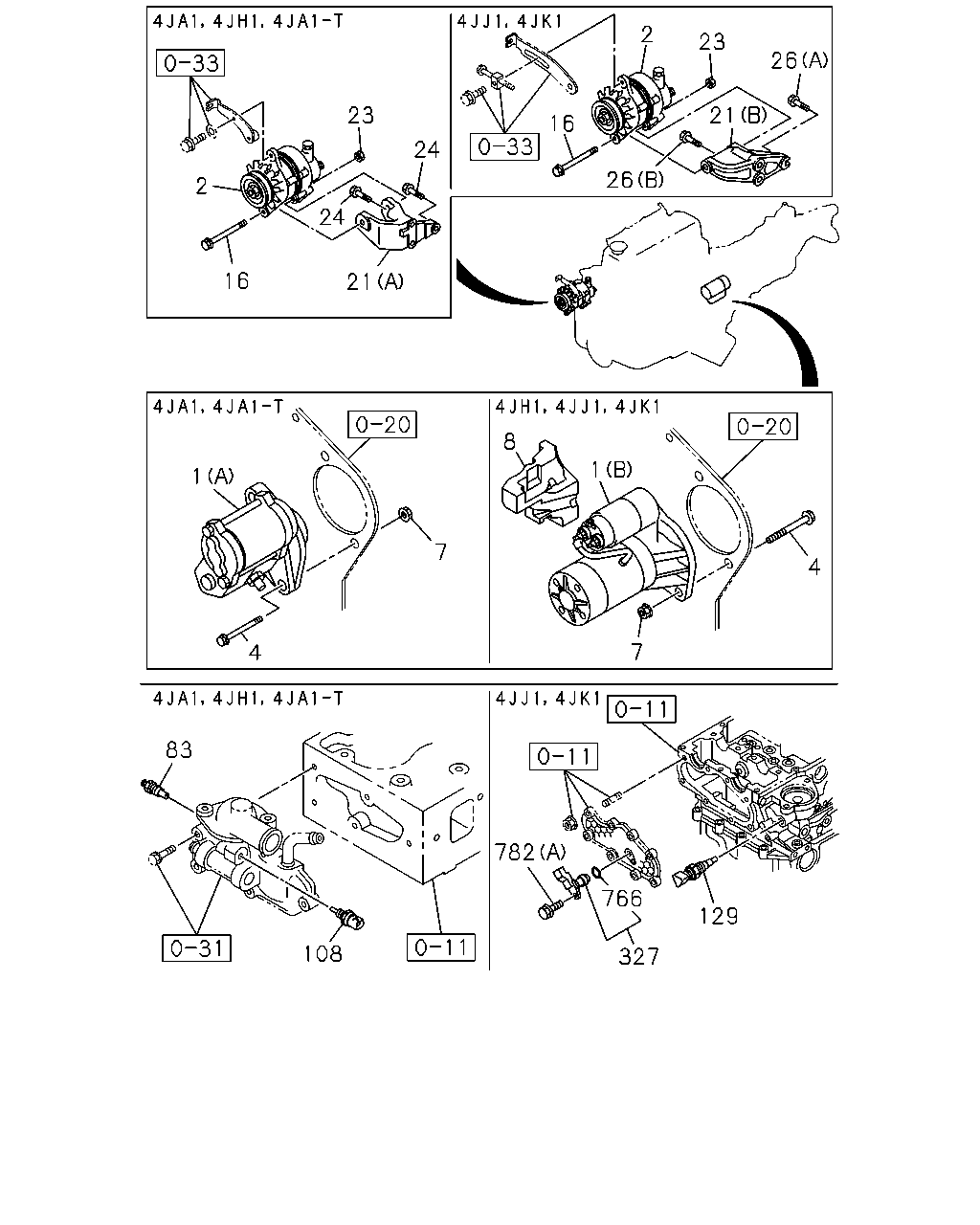

çizim 116337
2 23 26 23 21 16 24 26 2 24 16 21 8 1 1 7 4 7 4 83 782 766 129 108 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0204-0408 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.0KW DENSO THA 		8-97941-023-0 01 1 0409-0412 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.0KW HITACHI THA 		8-97941-018-2 01 1 0204-0408 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-97357-756-1 01 1 0409-0412 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-97357-756-1 01 1 0501-0511 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0512-0608 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0609-0708 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0709-0709 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. (B) 12V 2.3KW THA 		8-98028-199-0 01 1 0710- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA 		8-97942-628-2 01 1 0204-0408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA 		8-97942-628-2 01 1 0409-0412 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-97369-716-1 01 1 0501-1004 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98153-004-0 01 1 1005-1012 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98196-585-0 01 1 1107-1211 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98229-071-1 01 1 1212- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A THA 		8-97245-850-2 01 1 0204-0408 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-97361-871-0 01 1 0409-0606 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98006-084-0 01 1 0607-0608 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98006-084-0 01 1 0609-0708 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98006-084-0 01 1 0709-0709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98006-084-0 01 1 0710-1012 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0204-0408 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0409-0412 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-0 02 1 0501-0608 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0609-0708 ● ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0709-0709 ● ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 0710- ● ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0204-0408 ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0409-0412 ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0501-0608 ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0609-0708 ● ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0709-0709 ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 0710- ● ● ●
8 SPACER; STARTER
THA 		8-97942-635-0 01 1 0204-0308 ●
8 SPACER; STARTER
THA 		8-97943-635-0 01 1 0309-0408 ●
16 BOLT; GEN
M10X130 FLANGE IMA 		0-28056-013-0 01 1 0204-0408 ● ●
16 BOLT; GEN
M10X130 FLANGE IMA 		0-28056-013-0 01 1 0409-0412 ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-0 01 1 0409-0412 ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-0 01 1 0501-0608 ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0609-0708 ● ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0709-0709 ● ●
16 BOLT; GEN
M10X125 FLANGE THA 		8-97226-470-1 01 1 0710- ● ● ●
21 BRACKET; GEN
(A) THA 		8-97912-659-0 01 1 0204-0408 ● ●
21 BRACKET; GEN
(A) THA 		8-97912-659-0 01 1 0409-0412 ●
21 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0409-0412 ●
21 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0501-0608 ● ●
21 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0609-0708 ● ● ●
21 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0709-0709 ● ●
21 BRACKET; GEN
(B) THA 		8-97356-020-1 01 1 0710- ● ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0204-0408 ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0409-0412 ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0501-0608 ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0609-0708 ● ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0709-0709 ● ●
23 NUT; GEN
M10 FLANGE THA 		0-91180-210-0 01 1 0710- ● ● ●
24 BOLT; GEN BRKT
M10X70 W/LK WASHER THA 		0-50041-070-0 02 1 0204-0408 ● ●
24 BOLT; GEN BRKT
M10X70 W/LK WASHER THA 		0-50041-070-0 02 1 0409-0412 ●
24 BOLT; GEN BRKT
M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0204-0408 ● ●
24 BOLT; GEN BRKT
M10X35 W/LK WASHER THA 		0-50541-035-0 01 1 0409-0412 ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0409-0412 ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0501-0608 ● ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0609-0708 ● ● ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0709-0709 ● ●
26 BOLT; GEN BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 01 1 0710- ● ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0409-0412 ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0501-0608 ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0609-0708 ● ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0709-0709 ● ●
26 BOLT; GEN BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 0710- ● ● ●
83 THERMOMETER UNIT
DENSO THA 		8-94235-691-0 01 1 0204-0408 ● ●
83 THERMOMETER UNIT
DENSO THA 		8-94235-691-0 01 1 0409-0412 ●
83 THERMOMETER UNIT
YAZAKI THA 		8-94237-861-0 01 1 0204-0408 ● ●
83 THERMOMETER UNIT
YAZAKI THA 		8-94237-861-0 01 1 0409-0412 ●
108 SWITCH; THERMO
THA 		8-15326-386-0 01 1 0204-0408 ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON THA 		8-97170-327-0 01 1 0409-0412 ●
129 SENSOR; GLOW PLUG,THERMO
TRANSTRON THA 		8-97170-327-0 01 1 0501-0606 ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0607-0608 ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0609-0708 ● ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0709-0709 ● ●
129 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA 		8-98023-717-0 01 1 0710- ● ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0409-0412 ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0501-0608 ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0609-0708 ● ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0709-0709 ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-97312-108-1 01 1 0710- ● ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0409-0412 ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0501-0608 ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0609-0708 ● ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0709-0709 ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 0710- ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0204-0408 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0409-0412 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0501-0608 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0609-0708 ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0709-0709 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0710- ● ● ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0609-0708 ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0710- ●

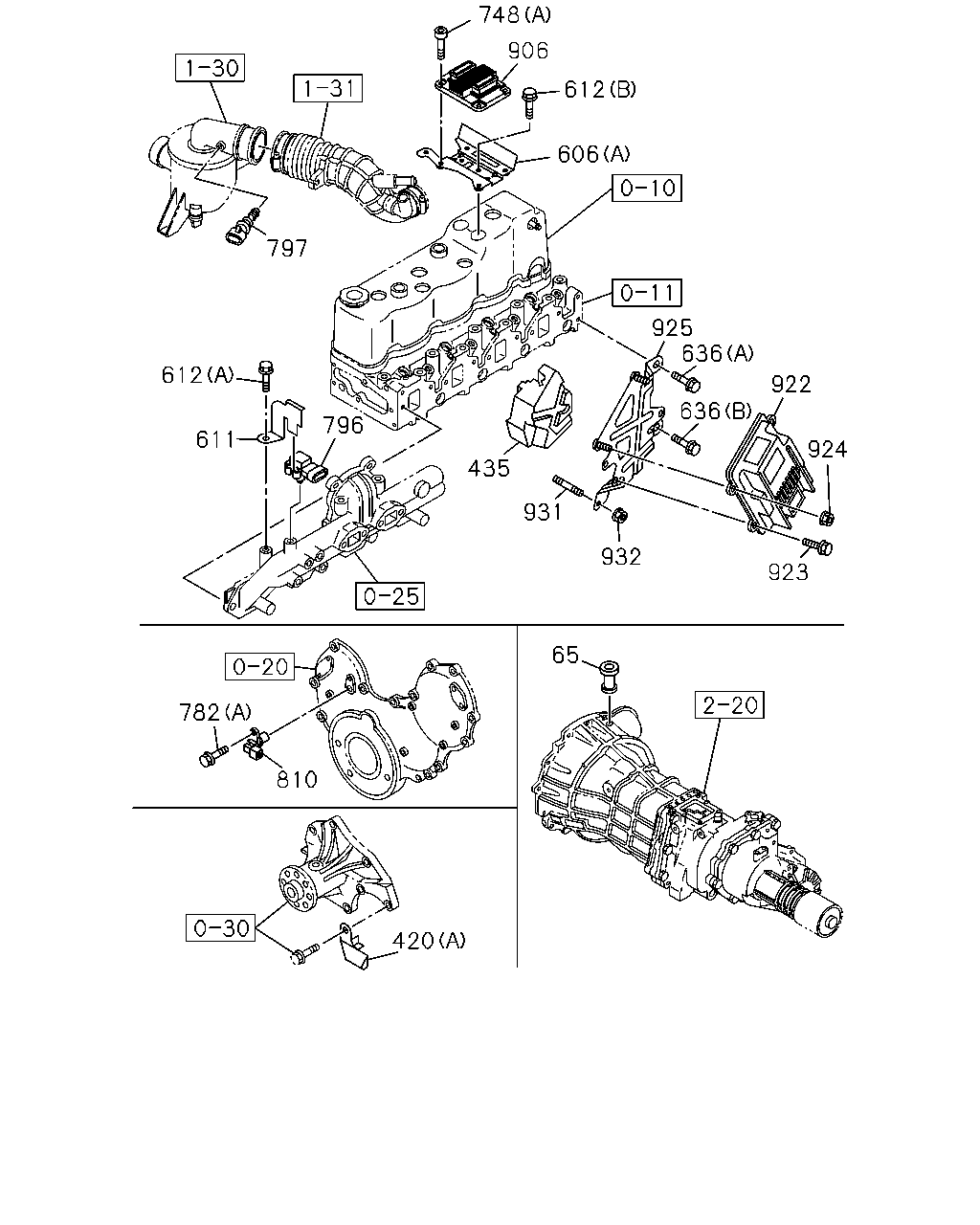

çizim 116345
748 906 612 606 797 796 925 636 612 922 636 611 924 435 931 932 923 65 782 810 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
65 PLUG; SENSOR HOLE
THA 		8-97318-961-0 01 1 0204-0306 ●
65 PLUG; SENSOR HOLE
A/T 4 SPEED-JATCO<RMK> THA 		8-97318-961-0 01 1 0307-0408 ●
420 BRACKET; HARNESS
(A) THA 		8-97920-750-3 01 1 0204-0408 ●
420 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0409-0412 ●
420 BRACKET; HARNESS
(B) THA 		8-97370-591-1 01 1 0501-0606 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0607-0608 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0609-0708 ● ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0709-0709 ● ●
420 BRACKET; HARNESS
(B) THA 		8-98011-538-0 01 1 0710- ● ● ●
435 RUBBER; CUSHION
THA 		8-97942-630-0 01 1 0204-0308 ●
435 RUBBER; CUSHION
THA 		8-97943-636-0 01 1 0309-0408 ●
606 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) THA 		8-97364-729-2 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (B) THA 		8-97364-731-2 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
(A) THA 		8-97921-240-0 01 1 0204-0408 ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0409-0412 ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0501-0608 ● ●
606 BRACKET; CONT UNIT
(C) THA 		8-97364-729-2 01 1 0609-0708 ● ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98064-201-2 01 1 0709-0709 ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98064-201-2 01 1 0710-0808 ● ● ●
606 BRACKET; CONT UNIT
(E) THA 		8-98113-306-0 01 1 0809-1106 ● ● ●
606 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) THA 		8-98113-306-0 01 1 1107- ● ● ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0409-0412 ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0501-0608 ● ●
606 BRACKET; CONT UNIT
(B) THA 		8-97364-731-2 01 1 0609-0708 ● ● ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0709-0709 ● ●
606 BRACKET; CONT UNIT
(D) THA 		8-98064-202-0 01 1 0710-1106 ● ● ●
606 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) THA 		8-98064-202-0 01 1 1107- ● ● ●
611 BRACKET; SENSOR
THA 		8-97327-708-1 01 1 0204-0210 ●
611 BRACKET; SENSOR
THA 		8-97943-116-0 01 1 0211-0408 ●
612 BOLT; BRKT
(A) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0408 ●
612 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0204-0408 ●
636 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0204-0408 ●
636 BOLT; BRKT
(B) M14X25 FLANGE THA 		0-28651-425-0 01 1 0204-0408 ●
748 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 1107- ● ● ●
748 BOLT; CONT UNIT
(A) M6X20 HEX SOCKET THA 		9-05820-620-0 04 1 0204-0408 ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0409-0412 ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0501-0608 ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0609-0708 ● ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0709-0709 ● ●
748 BOLT; CONT UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 03 1 0710- ● ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58310-625-0 04 1 0409-0412 ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58310-625-0 04 1 0501-0601 ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0602-0608 ● ●
748 BOLT; CONT UNIT
(C) M6X25 HEX SOCKET THA 		0-58330-625-0 04 1 0609-0708 ● ● ●
748 BOLT; CONT UNIT
(D) M6X16 FLANGE THA 		0-28650-616-0 03 1 0709-0709 ● ●
748 BOLT; CONT UNIT
(D) M6X16 FLANGE THA 		0-28650-616-0 03 1 0710-1106 ● ● ●
748 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> (D) M6X16 FLANGE THA 		0-28650-616-0 03 1 1107- ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0204-0408 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0409-0412 ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0501-0608 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0609-0708 ● ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0709-0709 ● ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 0710- ● ● ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0609-0708 ●
782 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 0710- ●
796 SENSOR; MAP
IMA 		8-97180-655-0 01 1 0204-0408 ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0609-0708 ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 0710- ●
797 SENSOR; MAT
THA 		8-12160-244-0 01 1 0204-0408 ●
810 SENSOR; CRANK ANGLE
IMA 		8-97180-388-0 01 1 0204-0408 ●
906 CONTROL UNIT; FUEL INJ
A/T 4 SPEED-JATCO<RMK> THA 		8-97325-394-0 01 1 0204-0207 ●
906 CONTROL UNIT; FUEL INJ
A/T 4 SPEED-JATCO<RMK> THA 		8-97352-569-3 01 1 0208-0408 ●
906 CONTROL UNIT; FUEL INJ
M/T MUA 5 SPEED<RMN> THA 		8-97306-549-4 01 1 0204-0207 ●
906 CONTROL UNIT; FUEL INJ
M/T MUA 5 SPEED<RMN> THA 		8-97352-568-3 01 1 0208-0408 ●
922 DRIVE UNIT; INJ PUMP
THA 		8-97189-136-3 01 1 0204-0408 ●
923 BOLT; DRIVE UNIT
M6X25 FLANGE THA 		0-28650-625-0 02 1 0204-0408 ●
924 NUT; DRIVE UNIT
M6 FLANGE THA 		0-91180-106-0 02 1 0204-0408 ●
925 BRACKET; DRIVE UNIT
THA 		8-97920-067-1 01 1 0204-0305 ●
925 BRACKET; DRIVE UNIT
THA 		8-97943-777-0 01 1 0306-0408 ●
931 STUD; BRKT,EDU
M8X20 L=32 THA 		0-41010-820-0 01 1 0204-0408 ●
932 NUT; BRKT,EDU
M8 FLANGE THA 		0-91180-208-0 01 1 0204-0408 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
