◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#72810) — 987 parça

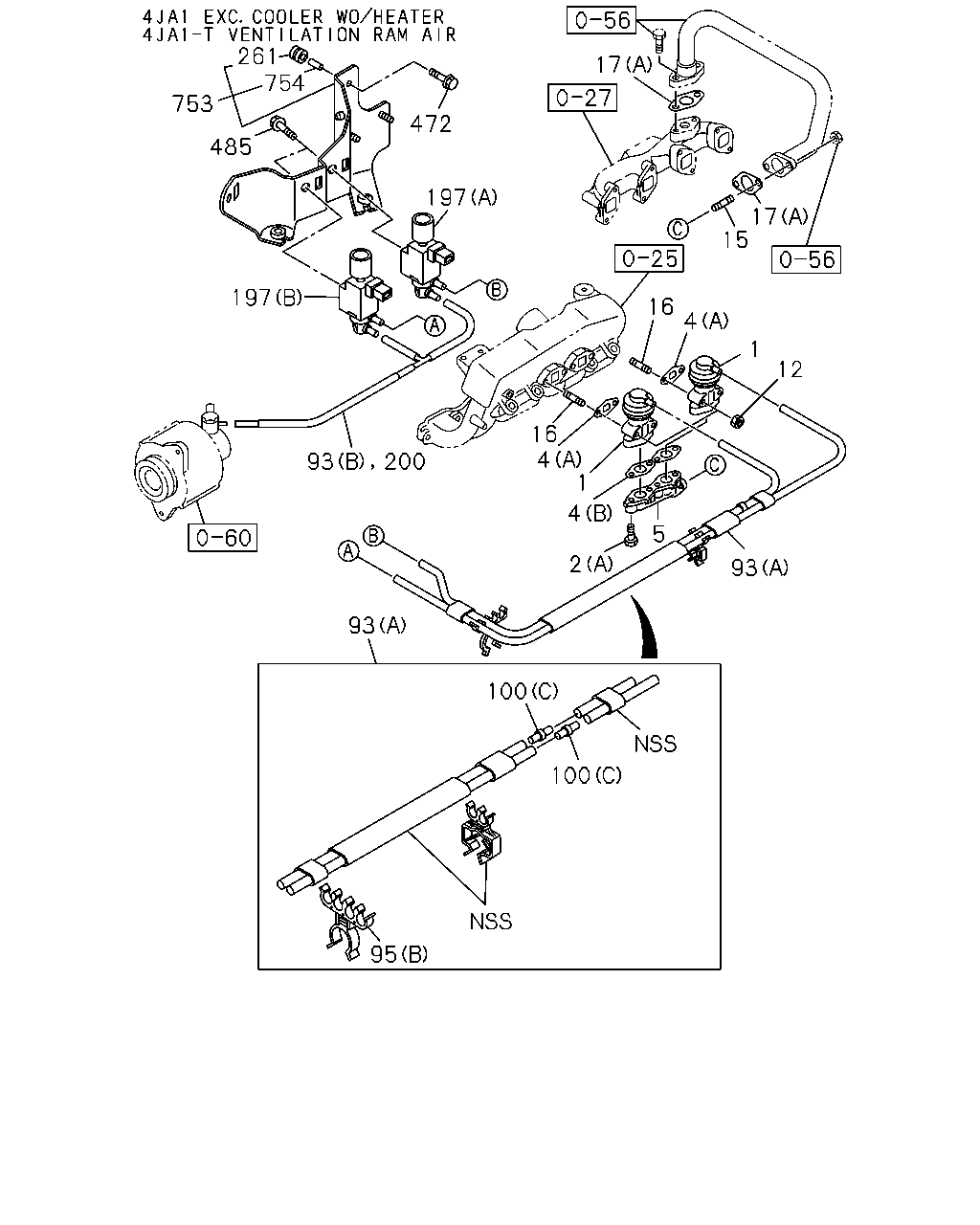

çizim 116323
261 754 17 753 472 485 197 17 15 197 16 4 1 12 16 4 1 4 5 2 93 93 100 100 95 93 200
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0204-0408 ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0409-0412 ●
5 ADAPTER ASM
THA 		8-97248-233-1 01 1 0204-0302 ●
5 ADAPTER ASM
IMA 		8-97943-013-0 01 1 0303-0408 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
93 HOSE ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97260-312-4 01 1 0204-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (A) THA 		8-97260-312-4 01 1 0409-0412 ●
93 HOSE ASM
EXC. COOLER WO/HEATER<YL1> (A) THA 		8-97260-313-4 01 1 0204-0408 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (A) THA 		8-97260-313-4 01 1 0409-0412 ●
93 HOSE ASM
(A) THA 		8-97251-361-5 01 1 0204-0302 ●
93 HOSE ASM
(A) THA 		8-97943-487-0 01 1 0303-0305 ●
93 HOSE ASM
(A) THA 		8-97943-811-0 01 1 0306-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (B) THA 		8-97260-309-4 01 1 0409-0412 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97260-310-4 01 1 0409-0412 ●
95 CLIP; HOSE
(B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0204-0408 ● ●
95 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0409-0412 ●
95 CLIP; HOSE
(A) ID=20 & 7X4 THA 		8-94368-500-0 01 1 0204-0302 ●
100 JOINT; HOSE
COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 03 1 0204-0408 ●
100 JOINT; HOSE
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (C) 2WAY THA 		8-97165-694-0 03 1 0409-0412 ●
100 JOINT; HOSE
EXC. COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 02 1 0204-0408 ●
100 JOINT; HOSE
VENTILATION RAM AIR<6TN> (C) 2WAY THA 		8-97165-694-0 02 1 0409-0412 ●
100 JOINT; HOSE
(A) 3WAY THA 		8-94210-631-0 01 1 0204-0408 ●
100 JOINT; HOSE
(B) 2WAY THA 		8-94426-435-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<YL1> (D) THA 		8-94384-336-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<C65> (D) THA 		8-94384-336-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(A) THA 		8-97043-750-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) THA 		8-97043-750-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(B) THA 		8-97171-030-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (B) THA 		8-97171-030-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(C) THA 		8-97070-554-0 01 1 0204-0408 ●
200 HOSE; VAC
COOLER WO/HEATER<YL1> THA 		8-97260-309-4 01 1 0204-0408 ●
200 HOSE; VAC
EXC. COOLER WO/HEATER<YL1> THA 		8-97260-310-4 01 1 0204-0408 ●
200 HOSE; VAC
THA 		8-97235-562-4 01 1 0204-0408 ●
261 GROMMET
THA 		5-19389-002-0 03 1 0204-0408 ● ●
261 GROMMET
EURO2 SPECIFICATION<NT2> THA 		5-19389-002-0 03 1 0409-0412 ●
472 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0204-0408 ● ●
472 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M6X16 FLANGE THA 		0-28650-616-0 03 1 0409-0412 ●
485 BOLT; VSV
COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
EURO2 SPECIFICATION<NT2> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0409-0412 ●
485 BOLT; VSV
EXC. COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0204-0408 ●
485 BOLT; VSV
COOLER WO/HEATER<C65> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 01 1 0409-0412 ●
753 BRACKET; VALVE
THA 		8-97307-069-2 01 1 0204-0403 ● ●
753 BRACKET; VALVE
THA 		8-97943-948-0 01 1 0404-0408 ● ●
753 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> THA 		8-97943-948-0 01 1 0409-0412 ●
754 BUSHING; RUBBER
THA 		5-19389-009-0 03 1 0204-0408 ● ●
754 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> THA 		5-19389-009-0 03 1 0409-0412 ●

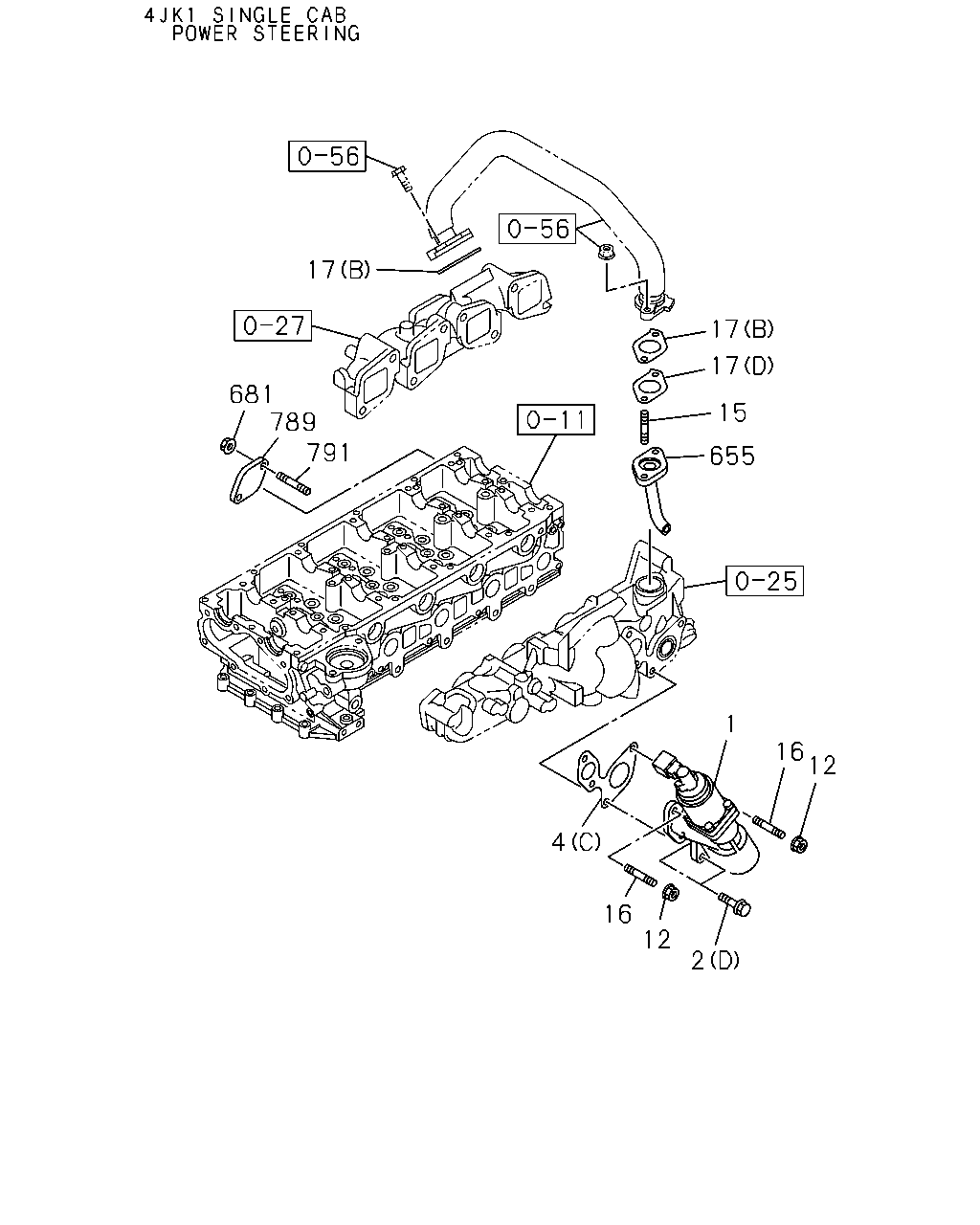

çizim 116328
17 17 17 681 789 791 15 655 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
655 PIPE; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-267-1 01 1 1009-1106 ●
655 PIPE; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-267-1 01 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0501-1008 ● ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 02 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA 		0-91180-208-0 02 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ● ●
681 NUT; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1107- ● ●
681 NUT; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1107- ●
789 COVER; COOLER,EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98105-261-0 01 1 1009-1106 ●
789 COVER; COOLER,EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98105-261-0 01 1 1107- ●
791 STUD; COVER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 02 1 1009-1106 ●
791 STUD; COVER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X22 L=33 THA 		8-94257-319-0 02 1 1107- ●

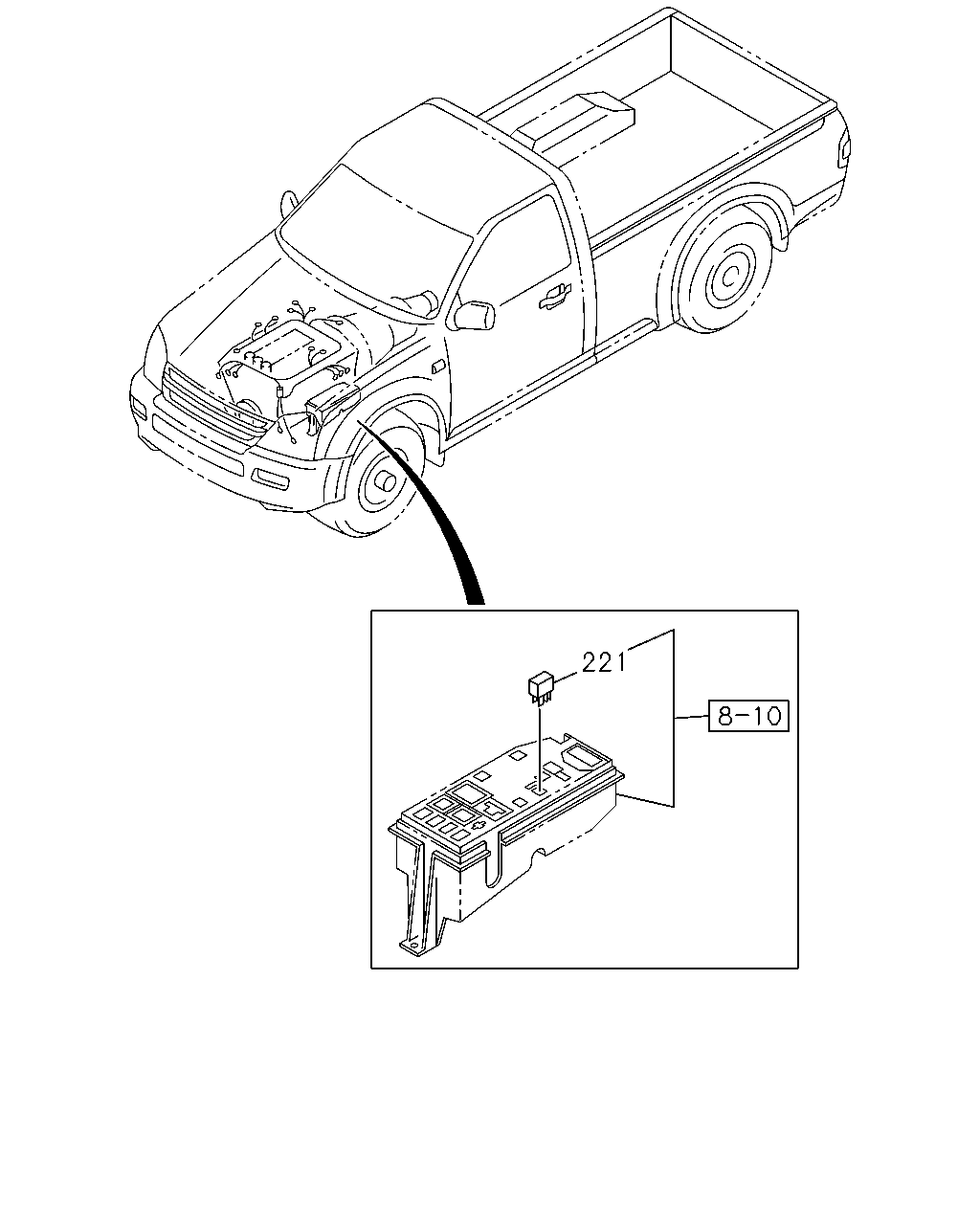

çizim 116329
221
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-293-0 01 1 0204-0408 ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0409-0412 ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0501-0606 ● ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0508-0608 ● ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0609-0708 ● ● ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0709-0709 ● ●
221 RELAY; MAIN
12V OMRON THA 		8-97125-441-1 01 1 0710-0908 ● ● ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0709-0709 ● ●
221 RELAY; MAIN
12V YAZAKI THA 		8-97309-294-0 01 1 0710-0908 ● ● ●
221 RELAY; MAIN
12V YAZAKI THA 		8-98146-834-0 01 1 0909- ● ● ●

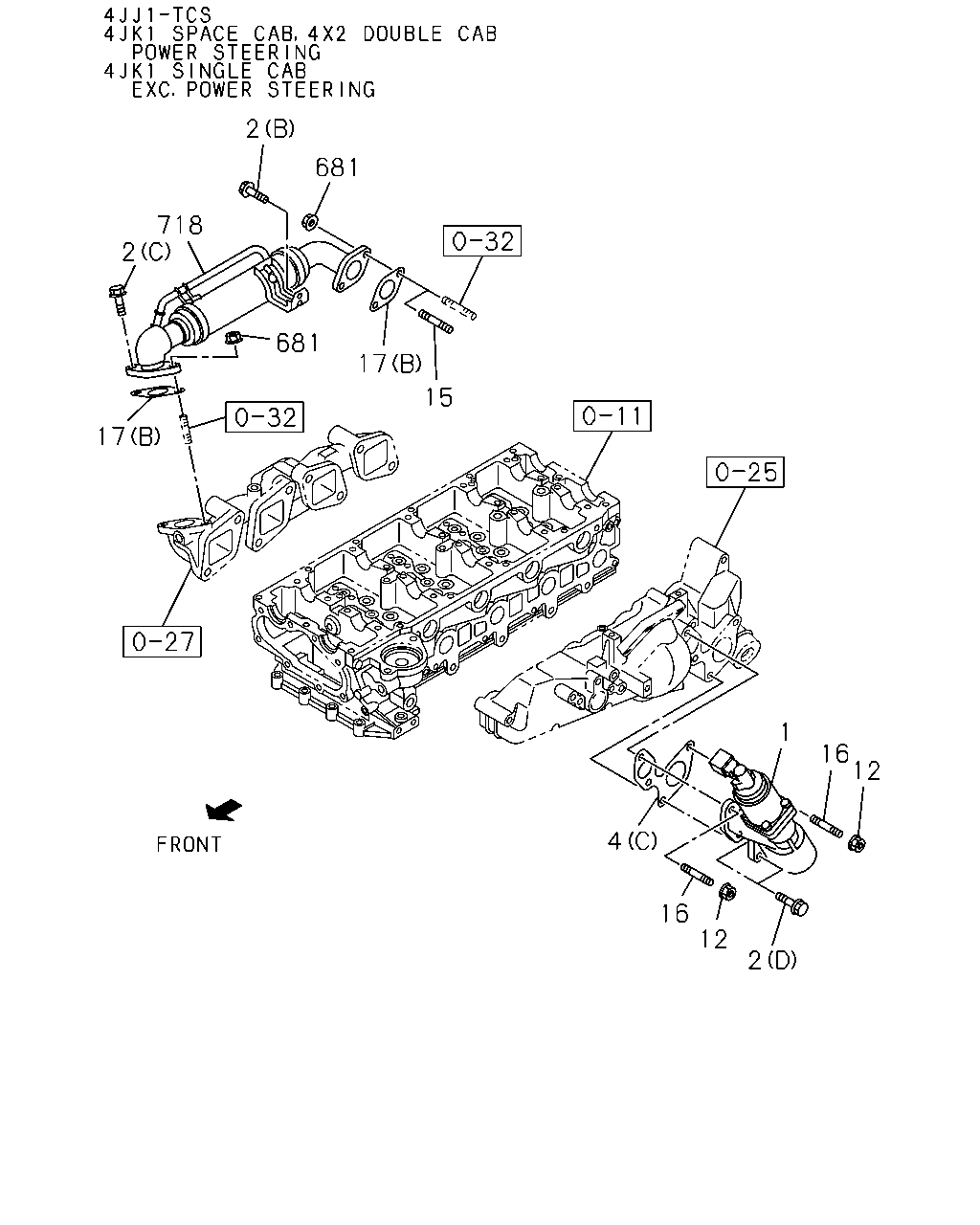

çizim 116330
2 681 718 2 681 17 15 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0501-1008 ● ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 02 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA 		0-91180-208-0 02 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ● ●
681 NUT; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1107- ● ●
681 NUT; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1107- ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0409-0412 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0501-0510 ● ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0907 ● ●
718 COOLER; EGR
THA 		8-98150-750-0 01 1 0908-1008 ● ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0609-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●

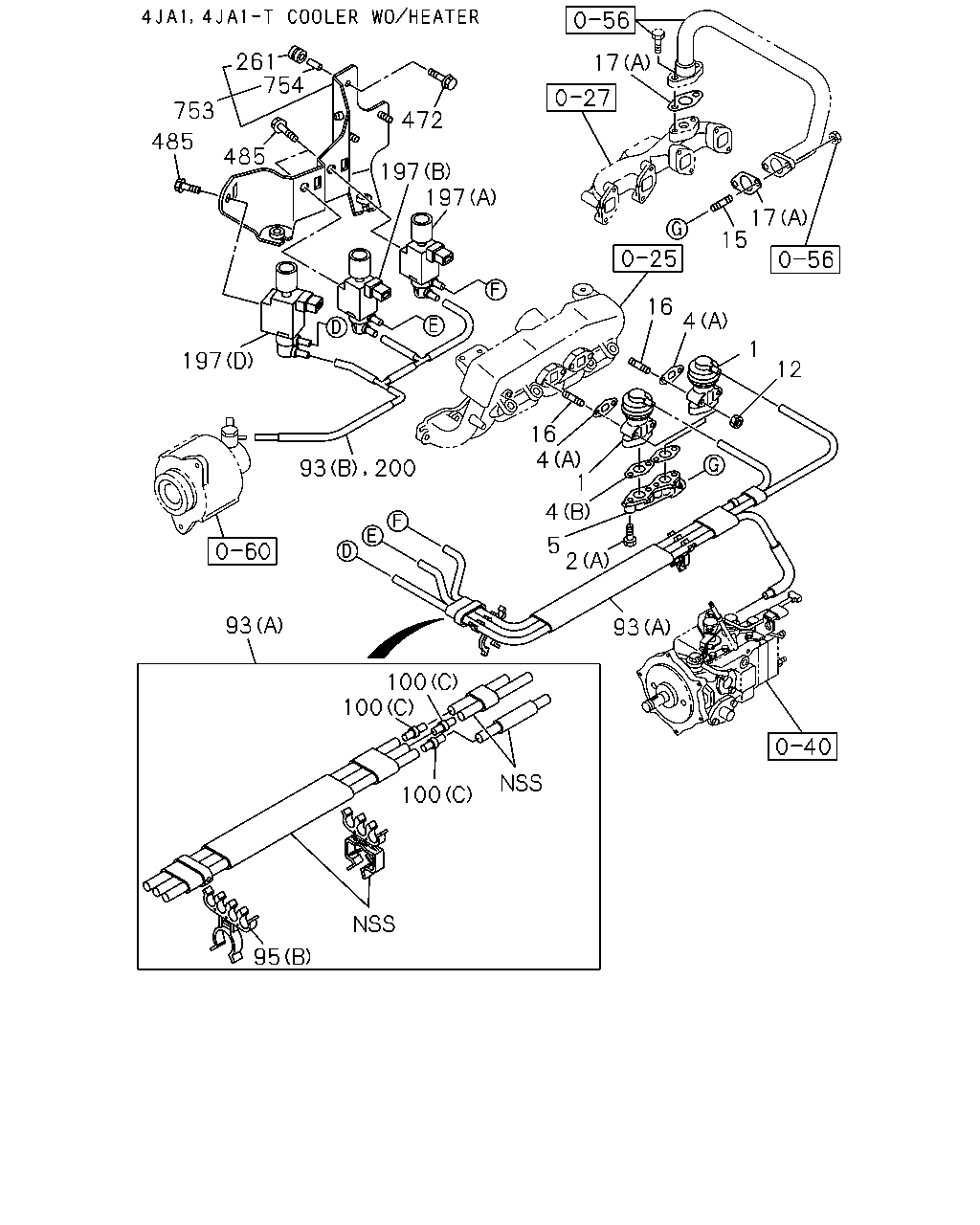

çizim 116331
261 754 17 753 472 485 485 197 197 17 15 16 4 1 197 12 16 4 1 4 5 2 93 93 100 100 100 95 93 200
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0204-0408 ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0409-0412 ●
5 ADAPTER ASM
THA 		8-97248-233-1 01 1 0204-0302 ●
5 ADAPTER ASM
IMA 		8-97943-013-0 01 1 0303-0408 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
93 HOSE ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97260-312-4 01 1 0204-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (A) THA 		8-97260-312-4 01 1 0409-0412 ●
93 HOSE ASM
EXC. COOLER WO/HEATER<YL1> (A) THA 		8-97260-313-4 01 1 0204-0408 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (A) THA 		8-97260-313-4 01 1 0409-0412 ●
93 HOSE ASM
(A) THA 		8-97251-361-5 01 1 0204-0302 ●
93 HOSE ASM
(A) THA 		8-97943-487-0 01 1 0303-0305 ●
93 HOSE ASM
(A) THA 		8-97943-811-0 01 1 0306-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (B) THA 		8-97260-309-4 01 1 0409-0412 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97260-310-4 01 1 0409-0412 ●
95 CLIP; HOSE
(B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0204-0408 ● ●
95 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0409-0412 ●
95 CLIP; HOSE
(A) ID=20 & 7X4 THA 		8-94368-500-0 01 1 0204-0302 ●
100 JOINT; HOSE
COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 03 1 0204-0408 ●
100 JOINT; HOSE
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (C) 2WAY THA 		8-97165-694-0 03 1 0409-0412 ●
100 JOINT; HOSE
EXC. COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 02 1 0204-0408 ●
100 JOINT; HOSE
VENTILATION RAM AIR<6TN> (C) 2WAY THA 		8-97165-694-0 02 1 0409-0412 ●
100 JOINT; HOSE
(A) 3WAY THA 		8-94210-631-0 01 1 0204-0408 ●
100 JOINT; HOSE
(B) 2WAY THA 		8-94426-435-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<YL1> (D) THA 		8-94384-336-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<C65> (D) THA 		8-94384-336-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(A) THA 		8-97043-750-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) THA 		8-97043-750-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(B) THA 		8-97171-030-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (B) THA 		8-97171-030-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(C) THA 		8-97070-554-0 01 1 0204-0408 ●
200 HOSE; VAC
COOLER WO/HEATER<YL1> THA 		8-97260-309-4 01 1 0204-0408 ●
200 HOSE; VAC
EXC. COOLER WO/HEATER<YL1> THA 		8-97260-310-4 01 1 0204-0408 ●
200 HOSE; VAC
THA 		8-97235-562-4 01 1 0204-0408 ●
261 GROMMET
THA 		5-19389-002-0 03 1 0204-0408 ● ●
261 GROMMET
EURO2 SPECIFICATION<NT2> THA 		5-19389-002-0 03 1 0409-0412 ●
472 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0204-0408 ● ●
472 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M6X16 FLANGE THA 		0-28650-616-0 03 1 0409-0412 ●
485 BOLT; VSV
COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
EURO2 SPECIFICATION<NT2> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0409-0412 ●
485 BOLT; VSV
EXC. COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0204-0408 ●
485 BOLT; VSV
COOLER WO/HEATER<C65> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 01 1 0409-0412 ●
753 BRACKET; VALVE
THA 		8-97307-069-2 01 1 0204-0403 ● ●
753 BRACKET; VALVE
THA 		8-97943-948-0 01 1 0404-0408 ● ●
753 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> THA 		8-97943-948-0 01 1 0409-0412 ●
754 BUSHING; RUBBER
THA 		5-19389-009-0 03 1 0204-0408 ● ●
754 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> THA 		5-19389-009-0 03 1 0409-0412 ●

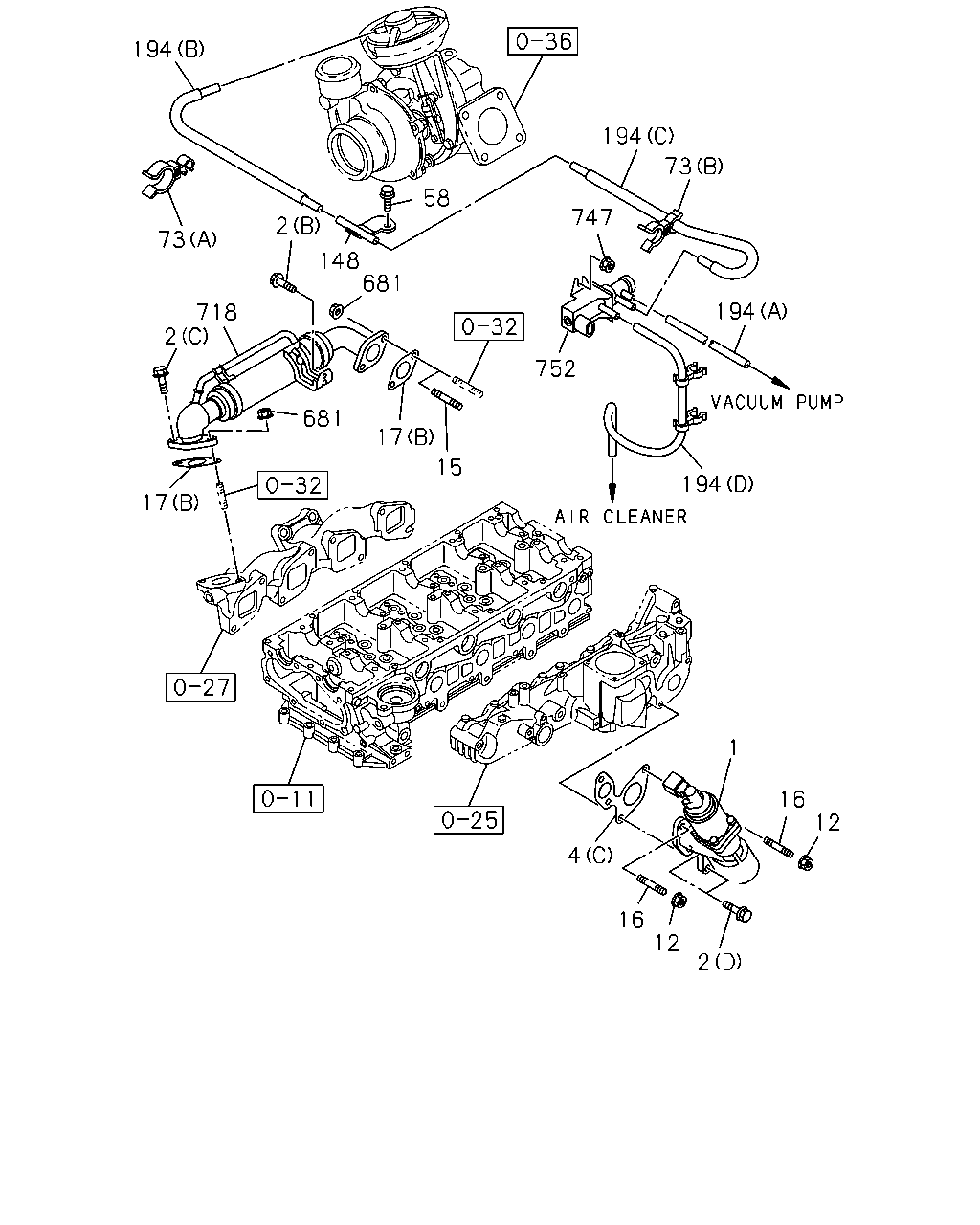

çizim 116334
194 194 73 58 747 2 73 148 681 194 718 2 752 681 17 15 194 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0609-0708 ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0609-0708 ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0710- ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0710- ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0609-0708 ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0710- ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0609-0708 ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0609-0708 ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0609-0708 ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0609-0708 ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0710- ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0710- ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0710- ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0710- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0501-1008 ● ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 02 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA 		0-91180-208-0 02 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ● ●
681 NUT; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1107- ● ●
681 NUT; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1107- ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0409-0412 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0501-0510 ● ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0907 ● ●
718 COOLER; EGR
THA 		8-98150-750-0 01 1 0908-1008 ● ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0609-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
752 VALVE; EVRV
THA 		8-97137-812-0 01 1 0204-0408 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0609-0708 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0710-0803 ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 0804- ●
çizim 116335
472 753 738 739 261 754 667 86 485 86 485 752 201 197 747 197 16 4 1 12 197 16 4 1 200 4 5 2 93 93 100 100 95 17 17 15 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0204-0408 ●
5 ADAPTER ASM
THA 		8-97306-490-0 01 1 0409-0412 ●
5 ADAPTER ASM
THA 		8-97248-233-1 01 1 0204-0302 ●
5 ADAPTER ASM
IMA 		8-97943-013-0 01 1 0303-0408 ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
86 CLIP
L=15 IMA 		8-94315-436-1 01 1 0204-0408 ●
93 HOSE ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97260-312-4 01 1 0204-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (A) THA 		8-97260-312-4 01 1 0409-0412 ●
93 HOSE ASM
EXC. COOLER WO/HEATER<YL1> (A) THA 		8-97260-313-4 01 1 0204-0408 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (A) THA 		8-97260-313-4 01 1 0409-0412 ●
93 HOSE ASM
(A) THA 		8-97251-361-5 01 1 0204-0302 ●
93 HOSE ASM
(A) THA 		8-97943-487-0 01 1 0303-0305 ●
93 HOSE ASM
(A) THA 		8-97943-811-0 01 1 0306-0408 ●
93 HOSE ASM
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (B) THA 		8-97260-309-4 01 1 0409-0412 ●
93 HOSE ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97260-310-4 01 1 0409-0412 ●
95 CLIP; HOSE
(B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0204-0408 ● ●
95 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) ID=14.5 & 7X4 THA 		8-94368-499-0 01 1 0409-0412 ●
95 CLIP; HOSE
(A) ID=20 & 7X4 THA 		8-94368-500-0 01 1 0204-0302 ●
100 JOINT; HOSE
COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 03 1 0204-0408 ●
100 JOINT; HOSE
EURO2 SPECIFICATION<NT2> COOLER WO/HEATER<C65> (C) 2WAY THA 		8-97165-694-0 03 1 0409-0412 ●
100 JOINT; HOSE
EXC. COOLER WO/HEATER<YL1> (C) 2WAY THA 		8-97165-694-0 02 1 0204-0408 ●
100 JOINT; HOSE
VENTILATION RAM AIR<6TN> (C) 2WAY THA 		8-97165-694-0 02 1 0409-0412 ●
100 JOINT; HOSE
(A) 3WAY THA 		8-94210-631-0 01 1 0204-0408 ●
100 JOINT; HOSE
(B) 2WAY THA 		8-94426-435-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<YL1> (D) THA 		8-94384-336-0 01 1 0204-0408 ●
197 VALVE; VAC SWITCHING
COOLER WO/HEATER<C65> (D) THA 		8-94384-336-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(A) THA 		8-97043-750-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (A) THA 		8-97043-750-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(B) THA 		8-97171-030-0 01 1 0204-0408 ● ●
197 VALVE; VAC SWITCHING
EURO2 SPECIFICATION<NT2> (B) THA 		8-97171-030-0 01 1 0409-0412 ●
197 VALVE; VAC SWITCHING
(C) THA 		8-97070-554-0 01 1 0204-0408 ●
200 HOSE; VAC
COOLER WO/HEATER<YL1> THA 		8-97260-309-4 01 1 0204-0408 ●
200 HOSE; VAC
EXC. COOLER WO/HEATER<YL1> THA 		8-97260-310-4 01 1 0204-0408 ●
200 HOSE; VAC
THA 		8-97235-562-4 01 1 0204-0408 ●
201 HOSE; VSV
THA 		8-97322-312-0 01 1 0204-0302 ●
261 GROMMET
THA 		5-19389-002-0 03 1 0204-0408 ● ●
261 GROMMET
EURO2 SPECIFICATION<NT2> THA 		5-19389-002-0 03 1 0409-0412 ●
472 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 03 1 0204-0408 ● ●
472 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M6X16 FLANGE THA 		0-28650-616-0 03 1 0409-0412 ●
485 BOLT; VSV
COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
M5X10 W/LK+PL WASHER THA 		9-03920-510-0 03 1 0204-0408 ●
485 BOLT; VSV
EURO2 SPECIFICATION<NT2> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0409-0412 ●
485 BOLT; VSV
EXC. COOLER WO/HEATER<YL1> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 02 1 0204-0408 ●
485 BOLT; VSV
COOLER WO/HEATER<C65> M5X10 W/LK+PL WASHER THA 		9-03920-510-0 01 1 0409-0412 ●
667 SENSOR; VAC
IMA 		8-16258-659-0 01 1 0204-0408 ●
738 BRACKET; SENSOR,VAC
THA 		8-97322-263-1 01 1 0204-0408 ●
739 BOLT; BRKT,SENSOR
M8X12 FLANGE THA 		0-28050-812-0 01 1 0204-0408 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
752 VALVE; EVRV
THA 		8-97137-812-0 01 1 0204-0408 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0609-0708 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0710-0803 ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 0804- ●
753 BRACKET; VALVE
THA 		8-97307-069-2 01 1 0204-0403 ● ●
753 BRACKET; VALVE
THA 		8-97943-948-0 01 1 0404-0408 ● ●
753 BRACKET; VALVE
EURO2 SPECIFICATION<NT2> THA 		8-97943-948-0 01 1 0409-0412 ●
754 BUSHING; RUBBER
THA 		5-19389-009-0 03 1 0204-0408 ● ●
754 BUSHING; RUBBER
EURO2 SPECIFICATION<NT2> THA 		5-19389-009-0 03 1 0409-0412 ●
çizim 116338
194 194 73 58 747 73 752 148 681 194 2 718 15 17 2 194 17 1 16 12 4 16 12 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0204-0408 ● ●
1 VALVE; EGR
IMA 		8-97124-164-6 02 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0409-0412 ●
1 VALVE; EGR
THA 		8-97312-282-4 01 1 0501-0503 ● ●
1 VALVE; EGR
THA 		8-98012-302-0 01 1 0504-0505 ● ●
1 VALVE; EGR
THA 		8-98013-702-0 01 1 0506-0606 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0607-0608 ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0609-0708 ● ● ●
1 VALVE; EGR
THA 		8-98013-911-0 01 1 0709-0709 ● ●
1 VALVE; EGR
THA 		8-98013-911-1 01 1 0710- ● ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0204-0408 ● ●
2 BOLT; EGR VLV
(A) M8X40 FLANGE THA 		0-28050-840-0 04 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1107- ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE THA 		8-94103-629-2 01 1 0409-0409 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0410-0412 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 0501-1008 ● ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ● ●
2 BOLT; EGR VLV
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1009-1106 ●
2 BOLT; EGR VLV
(C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ● ●
2 BOLT; EGR VLV
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (C) M8X23 FLANGE IMA 		8-97378-077-0 01 1 1107- ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0508-0608 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
2 BOLT; EGR VLV
(D) M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0609-0708 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0609-0708 ●
2 BOLT; EGR VLV
(E) M10X45 FLANGE THA 		0-28151-045-0 01 1 0710-1008 ●
2 BOLT; EGR VLV
(F) M8X23 FLANGE IMA 		8-97378-077-0 03 1 0710-1008 ●
4 GASKET; EGR VLV
(B) THA 		8-94379-754-0 01 1 0204-0308 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0309-0408 ● ●
4 GASKET; EGR VLV
(B) THA 		8-97943-117-0 01 1 0409-0412 ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0204-0408 ● ●
4 GASKET; EGR VLV
(A) THA 		8-97910-300-0 02 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0409-0412 ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0501-0608 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0609-0708 ● ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-2 01 1 0709-0709 ● ●
4 GASKET; EGR VLV
(C) THA 		8-97356-711-3 01 1 0710- ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0204-0408 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0409-0412 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 04 1 0501-0507 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0508-0608 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
12 NUT; EGR VLV
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
15 STUD; EGR PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0710-1008 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X40 L=52 IMA 		0-41010-840-0 02 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X40 L=52 IMA 		0-41010-840-0 02 1 1107- ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0709-1008 ● ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ● ●
15 STUD; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8X22 L=33 THA 		8-94257-319-0 03 1 1009-1106 ●
15 STUD; EGR PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ● ●
15 STUD; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8X22 L=33 THA 		8-94257-319-0 03 1 1107- ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
15 STUD; EGR PIPE
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0204-0408 ● ●
16 STUD; EGR VLV
M8X45 L=57 IMA 		8-94105-162-1 04 1 0409-0410 ●
16 STUD; EGR VLV
M8X49 L=63 IMA 		8-97019-478-0 04 1 0411-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0409-0412 ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 04 1 0501-0507 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0508-0608 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0609-0708 ● ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0709-0709 ● ●
16 STUD; EGR VLV
M8X22 L=40 THA 		0-49140-822-0 02 1 0710- ● ● ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97942-749-0 02 1 1107- ●
17 GASKET; EGR PIPE
(A) THA 		8-97912-689-0 02 1 0204-0301 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0302-0408 ● ●
17 GASKET; EGR PIPE
(A) THA 		8-97942-749-0 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0409-0412 ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0501-0608 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0609-0708 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 02 1 0709-0709 ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ● ●
17 GASKET; EGR PIPE
(B) THA 		8-97357-684-2 01 1 0710-1008 ● ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1009-1106 ● ●
17 GASKET; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40>. THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1009-1106 ●
17 GASKET; EGR PIPE
. THA 		8-97357-684-3 02 1 1107- ● ●
17 GASKET; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-97357-684-3 02 1 1107- ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0609-0708 ●
17 GASKET; EGR PIPE
(C) THA 		8-98017-551-0 01 1 0710-1008 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1009-1106 ●
17 GASKET; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (D) ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97375-980-1 01 1 1107- ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ●
58 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0609-0708 ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0609-0708 ●
73 CLIP; VAC HOSE
(A) ID=16.5 & 7 THA 		8-97226-171-0 01 1 0710- ●
73 CLIP; VAC HOSE
(B) ID=21 & 7.5 THA 		8-97309-946-0 01 1 0710- ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0609-0708 ●
148 PIPE; VAC
THA 		8-98011-533-0 01 1 0710- ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0609-0708 ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0609-0708 ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0609-0708 ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0609-0708 ●
194 HOSE; VAC
(A) THA 		0-04420-430-0 01 1 0710- ●
194 HOSE; VAC
(B) THA 		8-98011-635-1 01 1 0710- ●
194 HOSE; VAC
(C) THA 		8-98011-637-1 01 1 0710- ●
194 HOSE; VAC
(D) THA 		8-98037-352-1 01 1 0710- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 0501-1008 ● ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 02 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA 		0-91180-208-0 02 1 1107- ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710-1008 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ● ●
681 NUT; EGR PIPE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> M8 FLANGE THA 		0-91180-208-0 03 1 1009-1106 ●
681 NUT; EGR PIPE
M8 FLANGE THA 		0-91180-208-0 03 1 1107- ● ●
681 NUT; EGR PIPE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA 		0-91180-208-0 03 1 1107- ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0409-0412 ●
718 COOLER; EGR
THA 		8-97312-095-2 01 1 0501-0510 ● ●
718 COOLER; EGR
THA 		8-98031-836-0 01 1 0511-0907 ● ●
718 COOLER; EGR
THA 		8-98150-750-0 01 1 0908-1008 ● ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-98150-750-0 01 1 1009-1106 ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98150-750-2 01 1 1107- ●
718 COOLER; EGR
THA 		8-98011-524-2 01 1 0609-0708 ●
718 COOLER; EGR
THA 		8-98011-524-3 01 1 0710-0907 ●
718 COOLER; EGR
THA 		8-98150-749-1 01 1 0908-1008 ●
718 COOLER; EGR
THA 		8-98132-052-3 01 1 1009- ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0609-0708 ●
747 NUT; VAC REG VALVE
M8 FLANGE THA 		0-91180-108-0 02 1 0710- ●
752 VALVE; EVRV
THA 		8-97137-812-0 01 1 0204-0408 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0609-0708 ●
752 VALVE; EVRV
THA 		8-98033-927-0 01 1 0710-0803 ●
752 VALVE; EVRV
IMA 		8-98116-260-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
