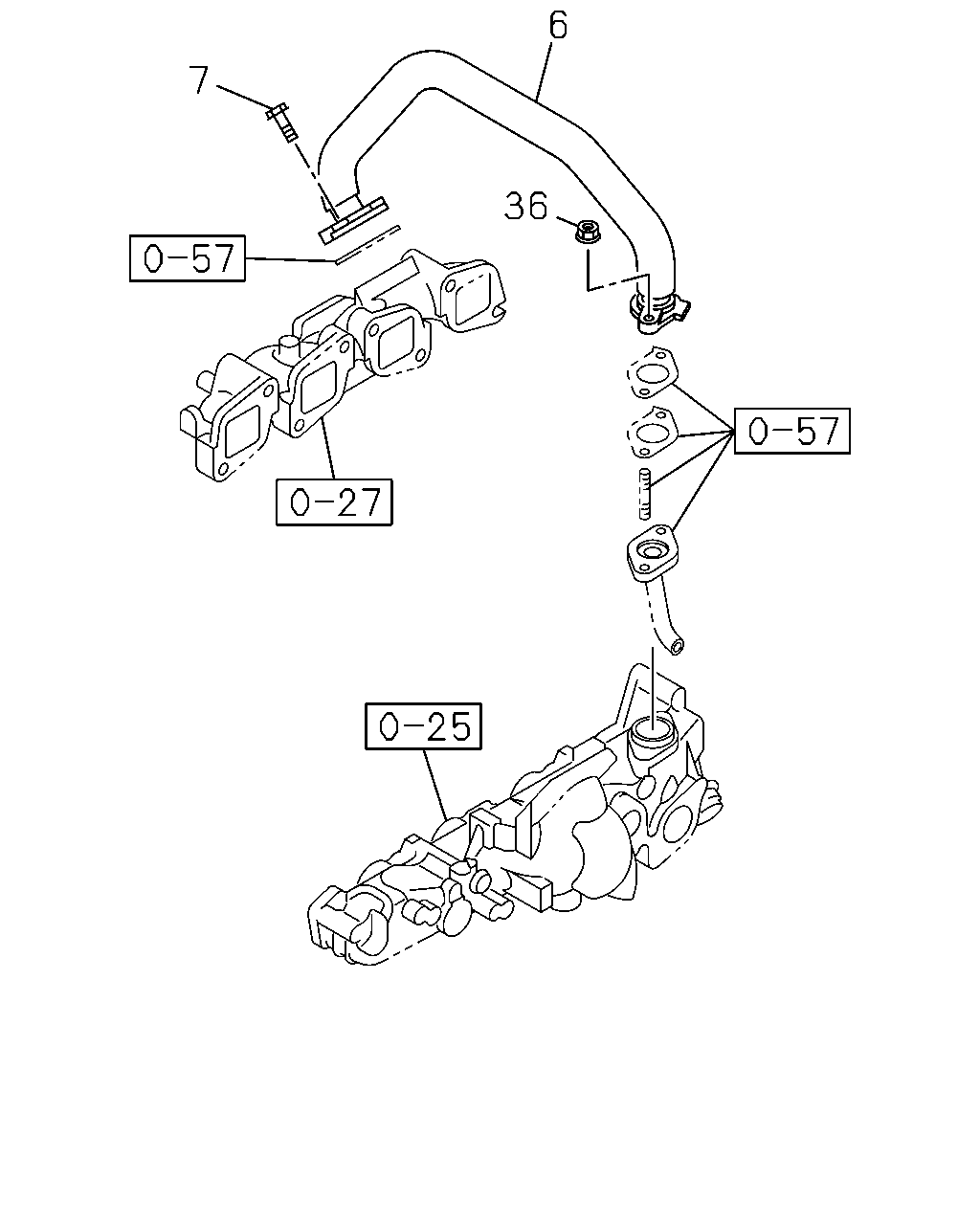

0-56 — EMISSION SYSTEM
(#72809) — 30 parça
Tümü
A - 4JK1 ENG
B - 4JA1 ENG
C - 4JA1-T ENG
D - 4JH1 ENG
◀
[056A] 4JA1,4JA1-T,4JH1 (15 parça)
[056A] 4JK1 (15 parça)
▶
7
6
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
PIPE; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA
8-98108-032-0
01
1
1009-1106
●
6
PIPE; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA
8-98108-032-0
01
1
1107-
●
6
PIPE; EGR
THA
8-97300-462-2
01
1
0204-0307
●
6
PIPE; EGR
THA
8-97371-321-1
01
1
0308-0408
●
6
PIPE; EGR
THA
8-97371-321-1
01
1
0409-0412
●
6
PIPE; EGR
THA
8-97307-690-3
01
1
0204-0309
●
6
PIPE; EGR
IMA
8-97371-966-0
01
1
0310-0408
●
7
BOLT; BRKT,EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X23 FLANGE THA
8-98048-437-0
02
1
1009-1106
●
7
BOLT; BRKT,EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X23 FLANGE THA
8-98048-437-0
02
1
1107-
●
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE THA
8-97189-522-0
02
1
0204-0408
●
●
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE THA
8-97189-522-0
02
1
0409-0412
●
36
NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA
0-91180-208-0
02
1
1009-1106
●
36
NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA
0-91180-208-0
02
1
1107-
●
36
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
02
1
0204-0408
●
●
36
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
02
1
0409-0412
●
6
7
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
PIPE; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA
8-98108-032-0
01
1
1009-1106
●
6
PIPE; EGR
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA
8-98108-032-0
01
1
1107-
●
6
PIPE; EGR
THA
8-97300-462-2
01
1
0204-0307
●
6
PIPE; EGR
THA
8-97371-321-1
01
1
0308-0408
●
6
PIPE; EGR
THA
8-97371-321-1
01
1
0409-0412
●
6
PIPE; EGR
THA
8-97307-690-3
01
1
0204-0309
●
6
PIPE; EGR
IMA
8-97371-966-0
01
1
0310-0408
●
7
BOLT; BRKT,EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8X23 FLANGE THA
8-98048-437-0
02
1
1009-1106
●
7
BOLT; BRKT,EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8X23 FLANGE THA
8-98048-437-0
02
1
1107-
●
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE THA
8-97189-522-0
02
1
0204-0408
●
●
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE THA
8-97189-522-0
02
1
0409-0412
●
36
NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> M8 FLANGE THA
0-91180-208-0
02
1
1009-1106
●
36
NUT; EGR PIPE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> M8 FLANGE THA
0-91180-208-0
02
1
1107-
●
36
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
02
1
0204-0408
●
●
36
NUT; EGR PIPE
M8 FLANGE THA
0-91180-208-0
02
1
0409-0412
●
