0-52 — OIL AND VACUUM PIPING; ENGINE (#72808) — 636 parça

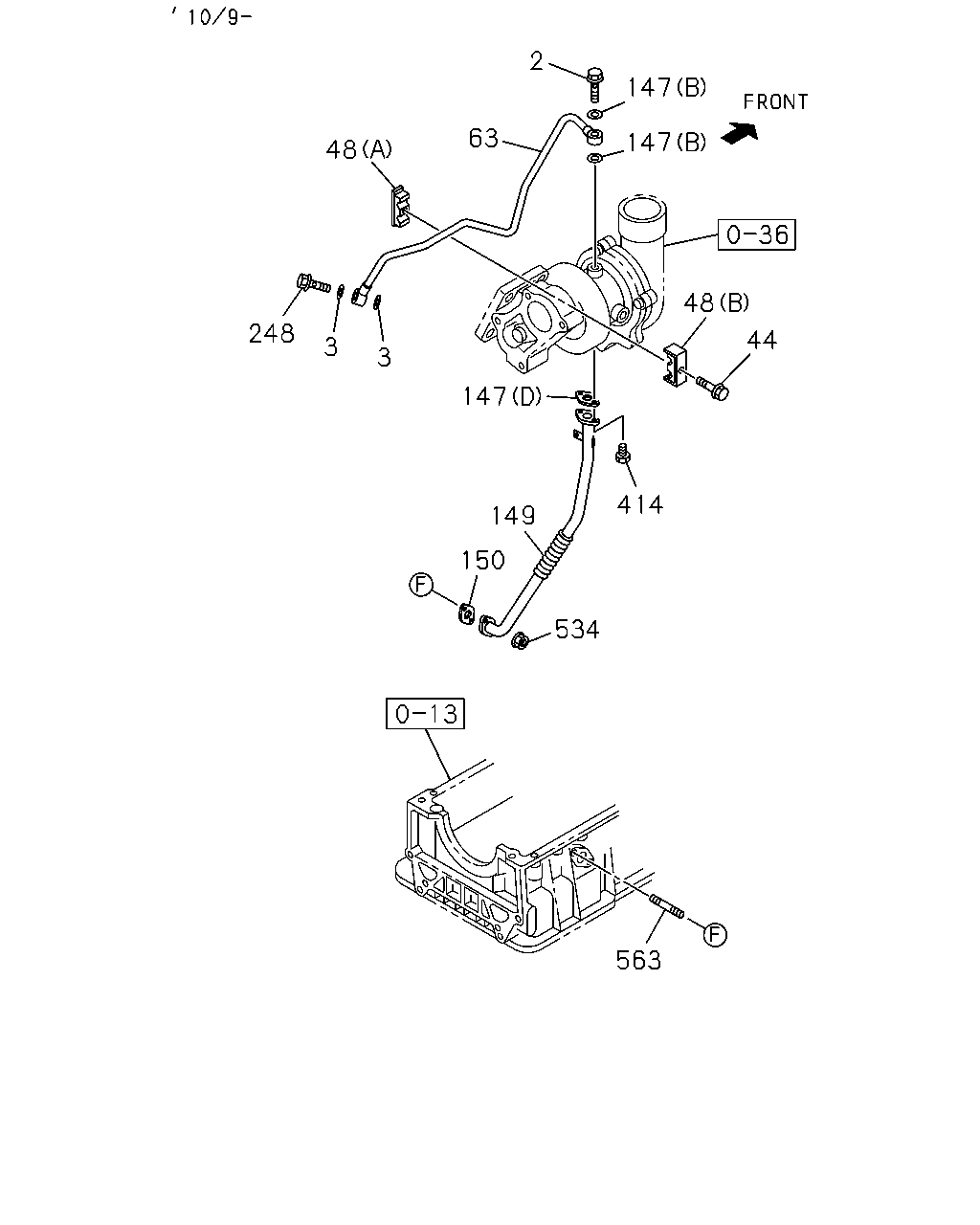

çizim 116313
2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
M10X25 FLANGE THA 		8-98151-063-1 01 1 1009- ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0204-0408 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
2 BOLT; EYE,OIL PIPE
M10X24 THA 		8-97944-505-0 01 1 0507-0606 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0607- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0204-0408 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-0608 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0609-0708 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0204-0408 ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0501-0601 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0602-0608 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0609-0708 ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0709-0709 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0710- ● ● ●
48 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 THA 		1-09701-228-2 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(B) ID=7 & 9 L=25 THA 		1-09701-229-1 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 IMA 		8-97603-522-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0710-1008 ●
48 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 IMA 		8-97603-523-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
IMA 		8-97086-341-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0501-0606 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-899-0 01 1 0607- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0609-0708 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98156-380-0 01 1 1009- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-1008 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1009- ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 THA 		8-97910-643-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0609-0708 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0710-1008 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-017-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98156-381-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97245-772-2 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0501-0606 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98011-900-0 01 1 0607- ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0204-0408 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0409-0412 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0501-0608 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0609-0708 ● ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0709-0709 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0710-1008 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-018-1 01 1 1009- ● ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0204-0408 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 0507- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0609-0708 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0710- ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1202- ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0409-0412 ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0501-0608 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1201 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 1202- ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0409-0412 ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0501-0608 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0609-0708 ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0709-0709 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0710- ● ● ●

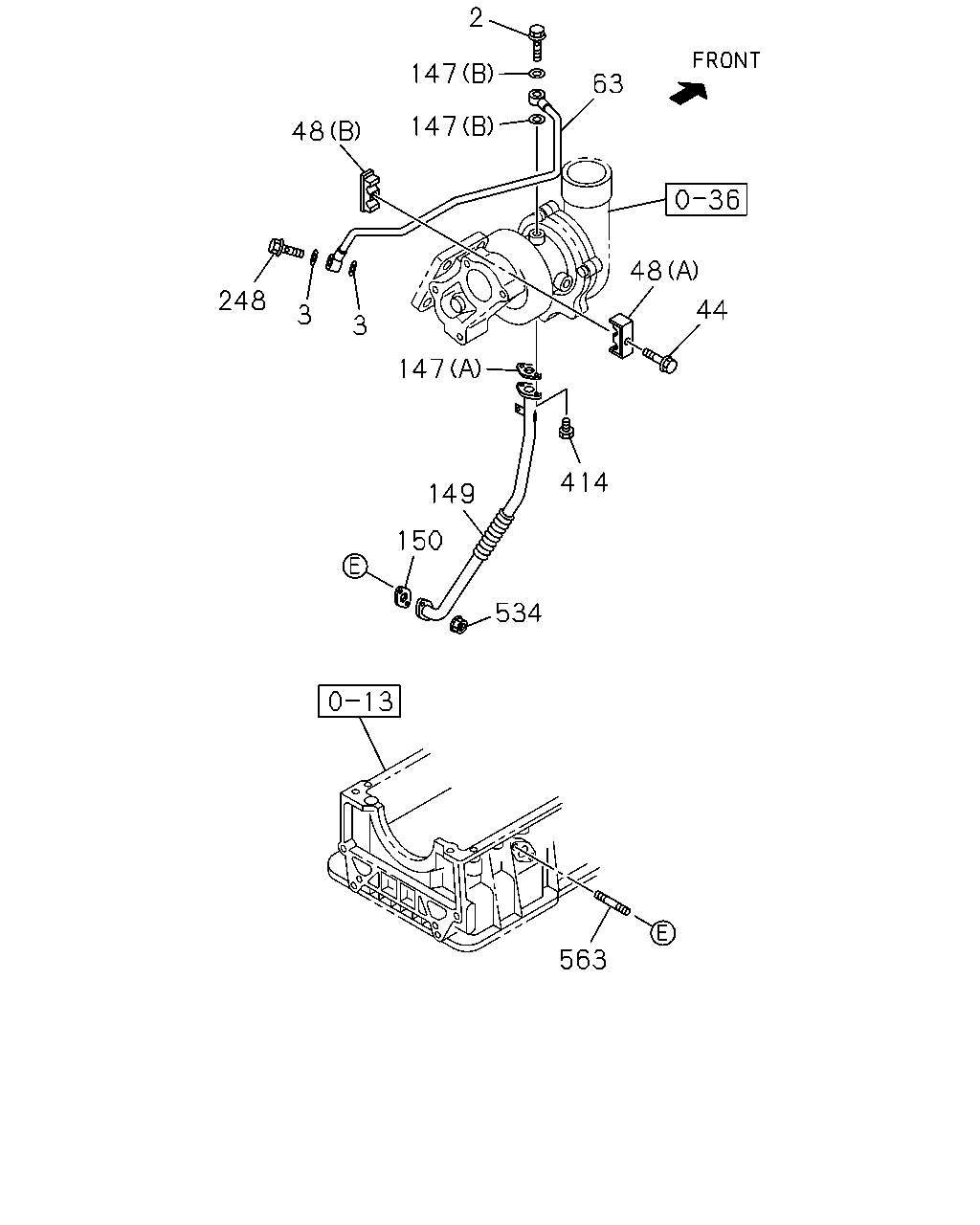

çizim 116317
2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
M10X25 FLANGE THA 		8-98151-063-1 01 1 1009- ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0204-0408 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
2 BOLT; EYE,OIL PIPE
M10X24 THA 		8-97944-505-0 01 1 0507-0606 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0607- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0204-0408 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-0608 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0609-0708 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0204-0408 ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0501-0601 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0602-0608 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0609-0708 ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0709-0709 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0710- ● ● ●
48 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 THA 		1-09701-228-2 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(B) ID=7 & 9 L=25 THA 		1-09701-229-1 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 IMA 		8-97603-522-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0710-1008 ●
48 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 IMA 		8-97603-523-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
IMA 		8-97086-341-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0501-0606 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-899-0 01 1 0607- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0609-0708 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98156-380-0 01 1 1009- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-1008 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1009- ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 THA 		8-97910-643-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0609-0708 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0710-1008 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-017-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98156-381-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97245-772-2 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0501-0606 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98011-900-0 01 1 0607- ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0204-0408 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0409-0412 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0501-0608 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0609-0708 ● ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0709-0709 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0710-1008 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-018-1 01 1 1009- ● ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0204-0408 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 0507- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0609-0708 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0710- ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1202- ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0409-0412 ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0501-0608 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1201 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 1202- ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0409-0412 ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0501-0608 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0609-0708 ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0709-0709 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0710- ● ● ●

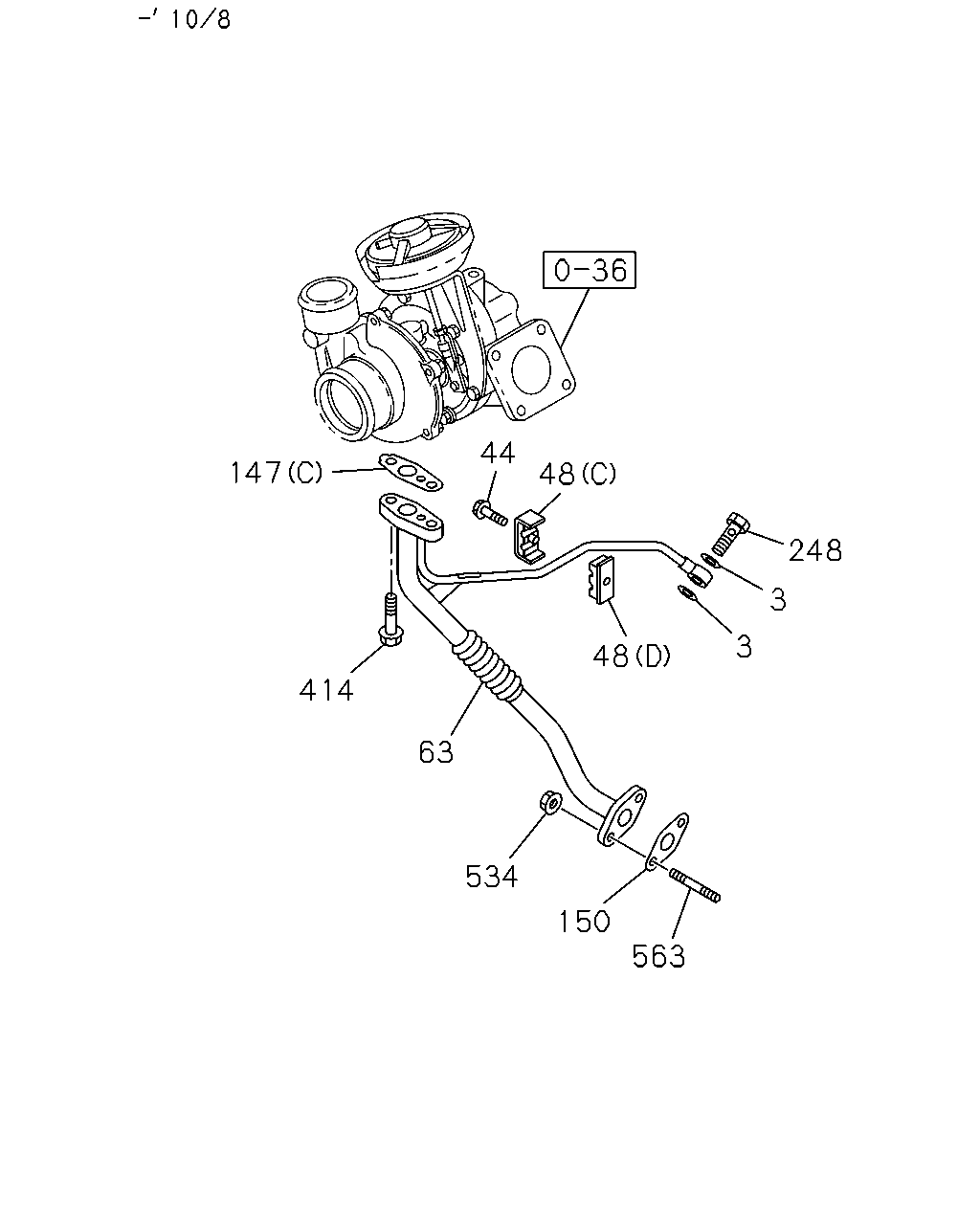

çizim 116318
44 147 48 248 3 3 48 414 63 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0204-0408 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-0608 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0609-0708 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0204-0408 ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0501-0601 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0602-0608 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0609-0708 ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0709-0709 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0710- ● ● ●
48 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 THA 		1-09701-228-2 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(A) THA 		8-97389-843-1 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(B) ID=7 & 9 L=25 THA 		1-09701-229-1 01 1 0409-0411 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0412-0412 ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 0501-1008 ● ●
48 CLIP; OIL PIPE
(B) THA 		8-97389-844-0 01 1 1009- ● ● ●
48 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 IMA 		8-97603-522-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(C) THA 		8-97946-175-0 01 1 0710-1008 ●
48 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 IMA 		8-97603-523-0 01 1 0609-0707 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0708-0708 ●
48 CLIP; OIL PIPE
(D) THA 		8-97946-176-0 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
IMA 		8-97086-341-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0501-0606 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-899-0 01 1 0607- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0609-0708 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98156-380-0 01 1 1009- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-1008 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1009- ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 THA 		8-97910-643-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0609-0708 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0710-1008 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-017-0 01 1 1009- ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0204-0408 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0409-0412 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0501-0608 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0609-0708 ● ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0709-0709 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0710-1008 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-018-1 01 1 1009- ● ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0204-0408 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 0507- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0609-0708 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0710- ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1202- ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0409-0412 ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0501-0608 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1201 ● ● ●
414 BOLT; OIL PIPE
M6X20 FLANGE THA 		0-28650-620-0 02 1 1202- ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0409-0412 ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0501-0608 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0609-0708 ● ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0709-0709 ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 0710- ● ● ●

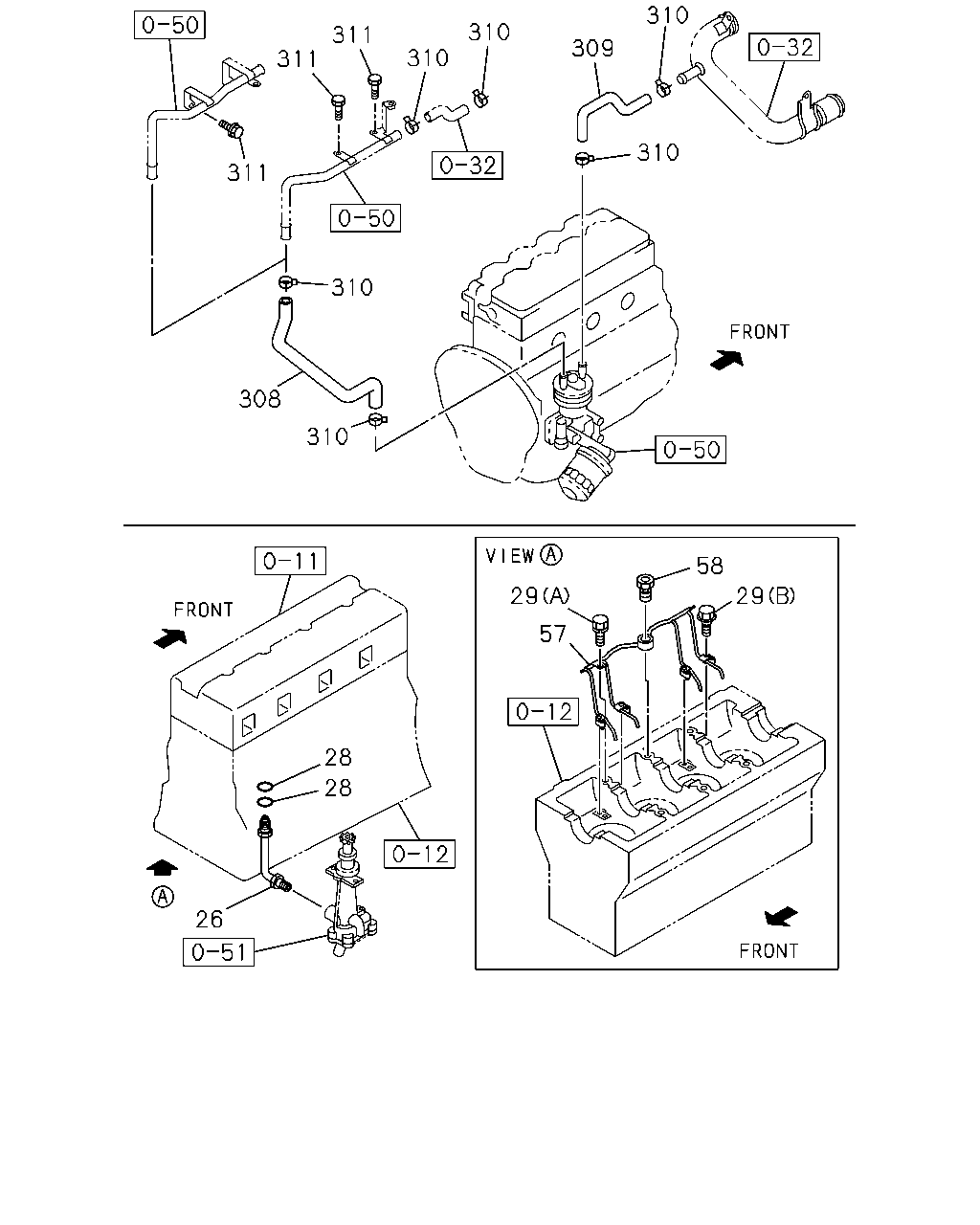

çizim 116321
310 310 311 309 310 311 310 311 310 308 310 58 29 29 57 28 28 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 PIPE; OIL,PUMP TO C/BL
THA 		8-97920-470-0 01 1 0204-0408 ● ●
26 PIPE; OIL,PUMP TO C/BL
THA 		8-97920-470-0 01 1 0409-0412 ●
28 GASKET; OIL PIPE
THA 		8-97912-535-0 02 1 0204-0408 ● ●
28 GASKET; OIL PIPE
THA 		8-97912-535-0 02 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 02 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0207-0408 ● ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 THA 		8-97920-485-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0710- ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0710- ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97920-033-3 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0501-0608 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0609-0708 ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0709-0709 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0710- ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97920-423-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0501-0608 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0609-0708 ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0709-0709 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0710- ● ● ●
308 HOSE; OIL COOLER FEED
THA 		8-97328-388-0 01 1 0204-0210 ● ●
308 HOSE; OIL COOLER FEED
THA 		8-97943-163-0 01 1 0211-0408 ● ●
308 HOSE; OIL COOLER FEED
THA 		8-97943-163-1 01 1 0409-0412 ●
309 HOSE; OIL COOLER RETURN
THA 		8-97920-080-1 01 1 0204-0408 ● ●
309 HOSE; OIL COOLER RETURN
THA 		8-97920-080-2 01 1 0409-0412 ●
310 CLIP; WATER HOSE FIX
ID=20.8 IMA 		8-94125-862-1 06 1 0204-0408 ● ●
310 CLIP; WATER HOSE FIX
ID=20.8 IMA 		8-94125-862-1 06 1 0409-0412 ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0606 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0607-0608 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0609-0708 ● ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0709-0709 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0710- ● ● ●

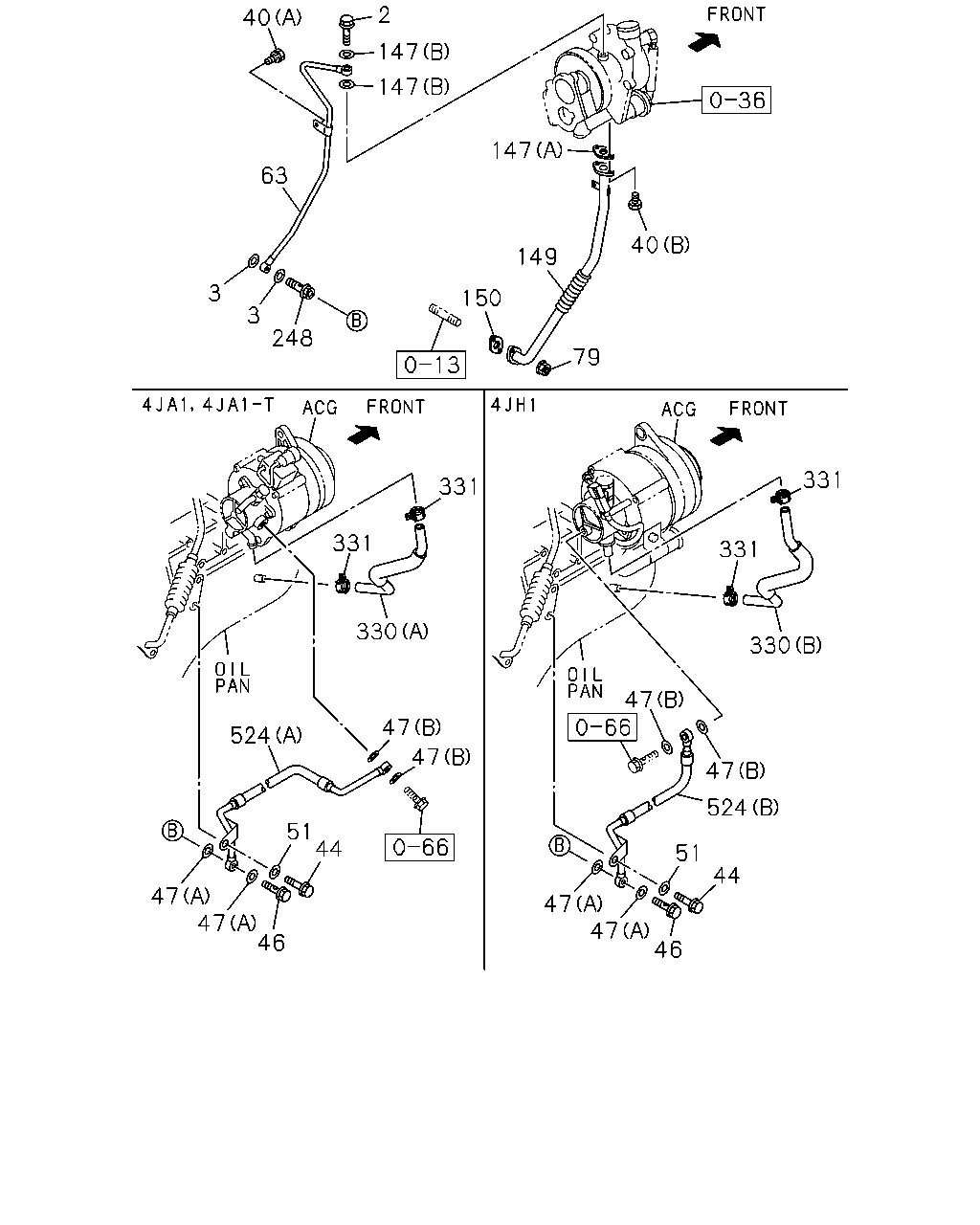

çizim 116322
2 40 147 147 147 63 40 149 3 150 3 248 79 331 331 331 331 330 330 47 47 524 47 47 524 51 44 51 44 47 47 47 47 46 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
M10X25 FLANGE THA 		8-98151-063-1 01 1 1009- ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0204-0408 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
2 BOLT; EYE,OIL PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
2 BOLT; EYE,OIL PIPE
M10X24 THA 		8-97944-505-0 01 1 0507-0606 ● ●
2 BOLT; EYE,OIL PIPE
M10X27 FLANGE IMA 		8-94443-535-0 01 1 0607- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0204-0408 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-0608 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0609-0708 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0709-0709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0710- ● ● ●
40 BOLT; OIL PIPE
(A) M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ● ●
40 BOLT; OIL PIPE
(A) M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
40 BOLT; OIL PIPE
(B) M6X20 W/LK&PL WASHER THA 		0-50640-620-0 02 1 0204-0408 ● ●
40 BOLT; OIL PIPE
(B) M6X20 W/LK&PL WASHER THA 		0-50640-620-0 02 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0204-0408 ● ●
44 BOLT; CLIP,OIL PIPE
M8X16 W/LK WASHER IMA 		0-50540-816-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0409-0412 ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28680-630-0 01 1 0501-0601 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0602-0608 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0609-0708 ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0709-0709 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28650-630-0 01 1 0710- ● ● ●
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
M8X20 EYE-BOLT THA 		8-97910-296-0 01 1 0204-0408 ● ●
46 BOLT; JOINT,OIL FEED PIPE,VAC PUMP
M8X20 EYE-BOLT THA 		8-97910-296-0 01 1 0409-0412 ●
47 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 02 1 0204-0408 ● ●
47 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 02 1 0409-0412 ●
47 GASKET; OIL PIPE
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
47 GASKET; OIL PIPE
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ●
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 THA 		9-09164-608-0 01 1 0204-0408 ● ●
51 WASHER; PL,OIL PIPE,VAC PUMP
ID=8.4 OD=18 THA 		9-09164-608-0 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97161-201-0 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
IMA 		8-97086-341-0 01 1 0204-0408 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0409-0412 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-97355-452-1 01 1 0501-0606 ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-899-0 01 1 0607- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0609-0708 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98011-504-1 01 1 0710-1008 ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98156-380-0 01 1 1009- ●
79 NUT; OIL DRAIN PIPE
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
79 NUT; OIL DRAIN PIPE
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
79 NUT; OIL DRAIN PIPE
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97910-642-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0501-1008 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1009- ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0204-0408 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 0409-0412 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) ID=14 THA 		8-97910-643-0 01 1 0204-0408 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0409-0412 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-97354-056-0 01 1 0501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0609-0708 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(C) THA 		8-98011-505-1 01 1 0710-1008 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(D) ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-017-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98156-381-0 01 1 1009- ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97333-749-0 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97245-772-2 01 1 0204-0408 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0409-0412 ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-97355-431-4 01 1 0501-0606 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98011-900-0 01 1 0607- ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0204-0408 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0409-0412 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0501-0608 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0609-0708 ● ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0709-0709 ● ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-97920-587-0 01 1 0710-1008 ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-98132-018-1 01 1 1009- ● ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0204-0408 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X25 THA 		8-94315-336-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0409-0412 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 IMA 		9-09906-205-1 01 1 0501-0506 ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 0507- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0609-0708 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 IMA 		1-09675-028-0 01 1 0710- ●
330 HOSE; VAC PUMP,RETURN
(A) THA 		8-97306-434-1 01 1 0204-0408 ●
330 HOSE; VAC PUMP,RETURN
(A) THA 		8-97306-434-1 01 1 0409-0412 ●
330 HOSE; VAC PUMP,RETURN
(B) THA 		8-97322-311-2 01 1 0204-0408 ●
331 CLAMP; VAC HOSE,PUMP RETURN
THA 		8-97108-102-0 02 1 0204-0408 ● ●
331 CLAMP; VAC HOSE,PUMP RETURN
THA 		8-97108-102-0 02 1 0409-0412 ●
524 PIPE; OIL,VAC PUMP FEED
(A) THA 		8-97942-809-0 01 1 0204-0408 ●
524 PIPE; OIL,VAC PUMP FEED
(A) THA 		8-97942-809-0 01 1 0409-0412 ●
524 PIPE; OIL,VAC PUMP FEED
(B) THA 		8-97942-810-0 01 1 0204-0408 ●

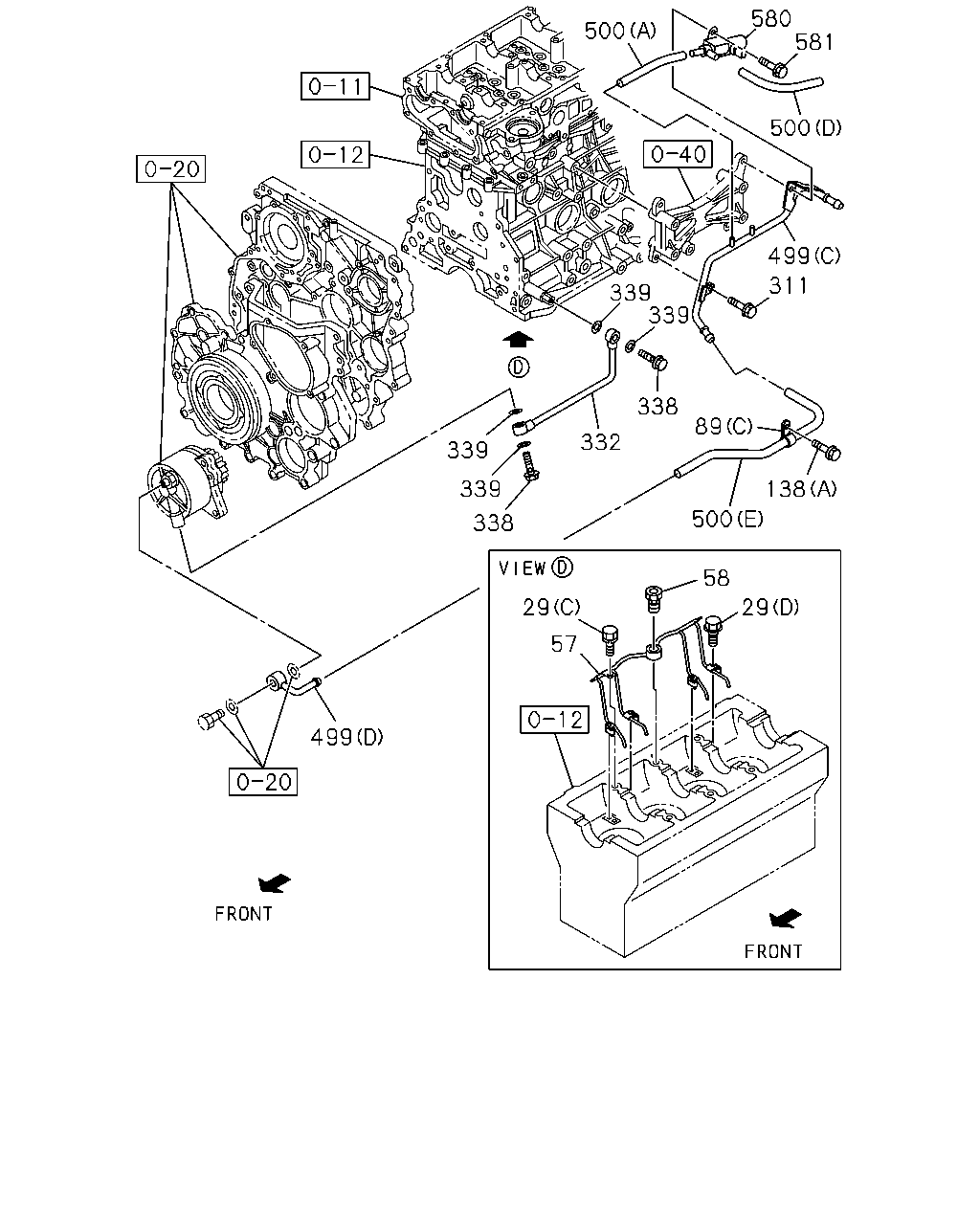

çizim 116327
499 57 58 29 29 500 89 138 338 339 339 332 338 339 339 311 499 500 581 580 500
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 02 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0207-0408 ● ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 THA 		8-97920-485-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0710- ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0710- ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97920-033-3 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0501-0608 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0609-0708 ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0709-0709 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0710- ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97920-423-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0501-0608 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0609-0708 ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0709-0709 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0710- ● ● ●
89 CLIP; VAC HOSE
(A) ID=12 L=20 IMA 		1-09700-911-1 02 1 0409-0412 ●
89 CLIP; VAC HOSE
(A) ID=12 L=20 IMA 		1-09700-911-1 02 1 0501-0606 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0607-0608 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0609-0708 ● ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0709-0709 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0710- ● ● ●
89 CLIP; VAC HOSE
(B) THA 		9-09520-835-0 01 1 0409-0412 ●
89 CLIP; VAC HOSE
(B) THA 		9-09520-835-0 01 1 0501-0606 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
138 BOLT; CLIP FIX
(B) M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
138 BOLT; CLIP FIX
(B) M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0606 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0607-0608 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0609-0708 ● ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0709-0709 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0710- ● ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-97312-302-1 01 1 0409-0412 ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-97312-302-1 01 1 0501-0606 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0607-0608 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0609-0708 ● ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0709-0709 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0710- ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0909- ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-0 02 1 0409-0412 ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-0 02 1 0501-0608 ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0609-0708 ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0709-0709 ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0710-0908 ● ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0409-0412 ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0501-0608 ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0609-0708 ● ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0709-0709 ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0710- ● ● ●
499 PIPE; VACUUM
(B) THA 		8-97357-846-2 01 1 0409-0412 ●
499 PIPE; VACUUM
(B) THA 		8-97357-846-2 01 1 0501-0606 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0607-0608 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0609-0708 ● ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0709-0709 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0710- ● ● ●
499 PIPE; VACUUM
(A) THA 		8-97369-442-2 01 1 0409-0412 ●
499 PIPE; VACUUM
(A) THA 		8-97369-442-2 01 1 0501-0606 ● ●
499 PIPE; VACUUM
(C) THA 		8-98013-802-1 01 1 0607- ● ●
499 PIPE; VACUUM
(C) THA 		8-98011-526-1 01 1 0609-0708 ●
499 PIPE; VACUUM
(C) THA 		8-98011-526-1 01 1 0710- ●
500 HOSE; VACUUM
(A) THA 		0-04320-160-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(A) THA 		0-04320-160-0 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0607-0608 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0710- ● ● ●
500 HOSE; VACUUM
(B) THA 		8-97358-019-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(B) THA 		8-97358-019-0 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0607-0608 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0710- ● ● ●
500 HOSE; VACUUM
(C) THA 		8-97369-587-1 01 1 0409-0412 ●
500 HOSE; VACUUM
(C) THA 		8-97369-587-1 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0501-0608 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0710- ● ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0409-0412 ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0501-0608 ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0609-0708 ● ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0709-0709 ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0710- ● ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●

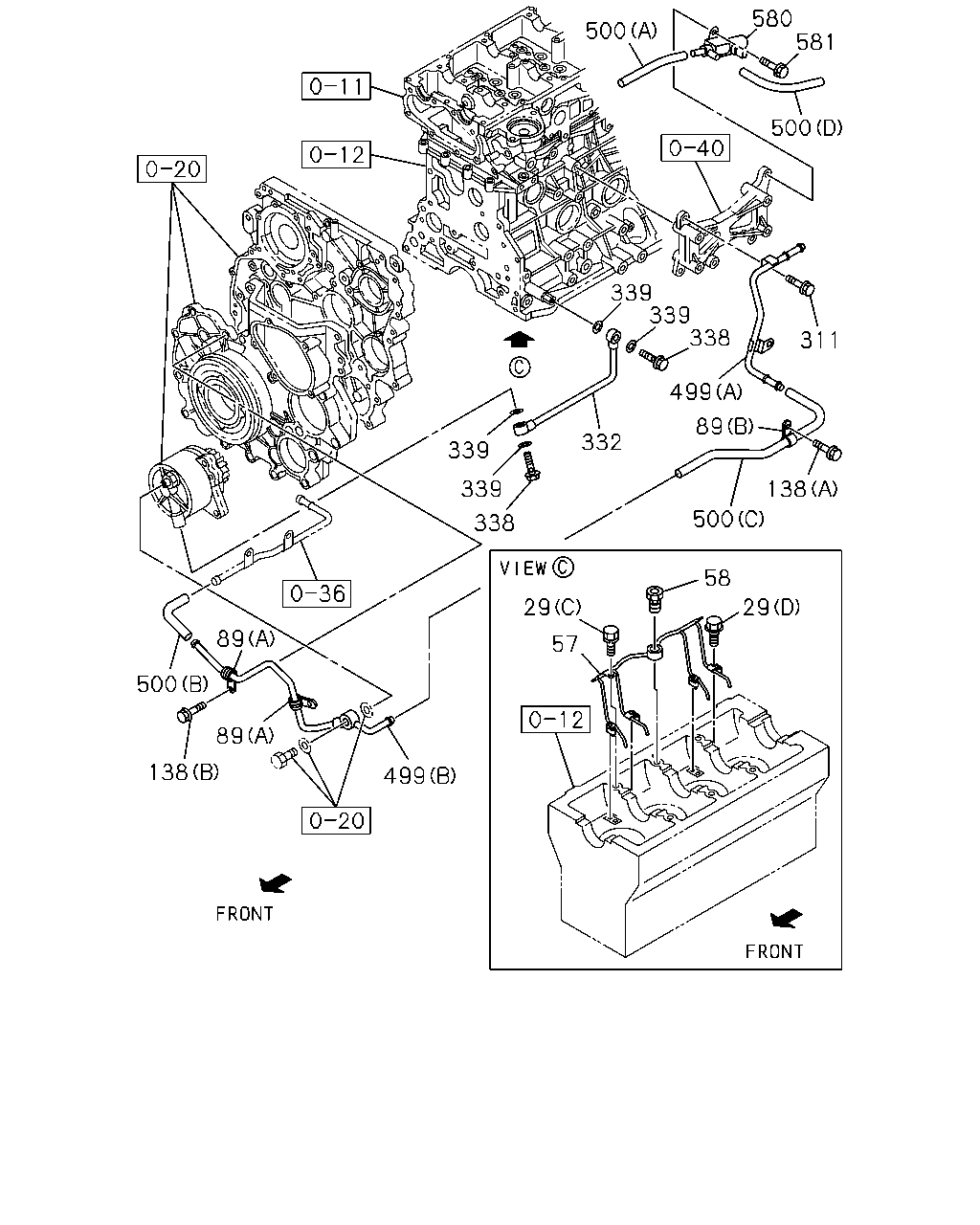

çizim 116332
500 581 580 500 311 338 339 339 499 89 138 500 58 29 29 57 499 89 138 500 332 339 339 338 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 02 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0204-0206 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0207-0408 ● ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X12 W/LK WASHER THA 		0-50540-812-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 THA 		8-97920-485-0 04 1 0204-0408 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(C) M8X10 FLANGE THA 		0-28050-810-0 01 1 0710- ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0409-0412 ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-0 04 1 0501-0608 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0609-0708 ● ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0709-0709 ● ●
29 BOLT; OIL PIPE,OIL JET
(D) M6X20 FLANGE THA 		8-97380-673-1 04 1 0710- ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97912-536-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97920-033-3 01 1 0204-0408 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0409-0412 ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0501-0608 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0609-0708 ● ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0709-0709 ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-2 01 1 0710- ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97912-540-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97920-423-0 01 1 0204-0408 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0409-0412 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0501-0608 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0609-0708 ● ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0709-0709 ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 0710- ● ● ●
89 CLIP; VAC HOSE
(A) ID=12 L=20 IMA 		1-09700-911-1 02 1 0409-0412 ●
89 CLIP; VAC HOSE
(A) ID=12 L=20 IMA 		1-09700-911-1 02 1 0501-0606 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0607-0608 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0609-0708 ● ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0709-0709 ● ●
89 CLIP; VAC HOSE
(C) ID=16 L=20 THA 		0-95235-536-0 01 1 0710- ● ● ●
89 CLIP; VAC HOSE
(B) THA 		9-09520-835-0 01 1 0409-0412 ●
89 CLIP; VAC HOSE
(B) THA 		9-09520-835-0 01 1 0501-0606 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
138 BOLT; CLIP FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
138 BOLT; CLIP FIX
(B) M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
138 BOLT; CLIP FIX
(B) M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
311 BOLT; PIPE FIX
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0606 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0607-0608 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0609-0708 ● ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0709-0709 ● ●
311 BOLT; PIPE FIX
M6X12 FLANGE THA 		0-28050-612-0 01 1 0710- ● ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-97312-302-1 01 1 0409-0412 ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-97312-302-1 01 1 0501-0606 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0607-0608 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0609-0708 ● ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0709-0709 ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98038-929-0 01 1 0710- ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0909- ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-0 02 1 0409-0412 ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-0 02 1 0501-0608 ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0609-0708 ● ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0709-0709 ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 0710-0908 ● ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0409-0412 ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0501-0608 ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0609-0708 ● ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0709-0709 ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 0710- ● ● ●
499 PIPE; VACUUM
(B) THA 		8-97357-846-2 01 1 0409-0412 ●
499 PIPE; VACUUM
(B) THA 		8-97357-846-2 01 1 0501-0606 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0607-0608 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0609-0708 ● ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0709-0709 ● ●
499 PIPE; VACUUM
(D) THA 		8-98011-527-1 01 1 0710- ● ● ●
499 PIPE; VACUUM
(A) THA 		8-97369-442-2 01 1 0409-0412 ●
499 PIPE; VACUUM
(A) THA 		8-97369-442-2 01 1 0501-0606 ● ●
499 PIPE; VACUUM
(C) THA 		8-98013-802-1 01 1 0607- ● ●
499 PIPE; VACUUM
(C) THA 		8-98011-526-1 01 1 0609-0708 ●
499 PIPE; VACUUM
(C) THA 		8-98011-526-1 01 1 0710- ●
500 HOSE; VACUUM
(A) THA 		0-04320-160-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(A) THA 		0-04320-160-0 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0607-0608 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(A) THA 		0-04420-110-0 01 1 0710- ● ● ●
500 HOSE; VACUUM
(B) THA 		8-97358-019-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(B) THA 		8-97358-019-0 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0607-0608 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(E) THA 		0-08508-230-0 01 1 0710- ● ● ●
500 HOSE; VACUUM
(C) THA 		8-97369-587-1 01 1 0409-0412 ●
500 HOSE; VACUUM
(C) THA 		8-97369-587-1 01 1 0501-0606 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0409-0412 ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0501-0608 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0609-0708 ● ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0709-0709 ● ●
500 HOSE; VACUUM
(D) THA 		8-97369-589-0 01 1 0710- ● ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0409-0412 ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0501-0608 ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0609-0708 ● ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0709-0709 ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 0710- ● ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
