0-51 — OIL PUMP AND OIL STRAINER (#72807) — 102 parça
çizim 116311
21 1 21 29 1 45 2 5 121 19 35 49 42 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL
4X2<TFB***> THA 		8-97942-466-3 01 1 0204-0408 ● ●
1 PUMP ASM; OIL
THA 		8-97942-466-3 01 1 0409-0412 ●
1 PUMP ASM; OIL
4X4<TFS***> THA 		8-97941-852-2 01 1 0204-0408 ●
1 PUMP ASM; OIL
THA 		8-97376-687-1 01 1 0409-0412 ●
1 PUMP ASM; OIL
THA 		8-97376-687-2 01 1 0501-0506 ● ●
1 PUMP ASM; OIL
THA 		8-98013-966-1 01 1 0507-0606 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0607-0608 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0609-0708 ● ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0709-0709 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0710-0905 ● ● ●
1 PUMP ASM; OIL
THA 		8-98128-134-0 01 1 0906-1303 ● ● ●
1 PUMP ASM; OIL
THA 		8-98232-624-1 01 1 1304- ● ● ●
2 SEAT; SPR
IMA 		5-13165-004-0 01 1 0204-0408 ● ●
2 SEAT; SPR
IMA 		5-13165-004-0 01 1 0409-0412 ●
5 SPRING; COIL
THA 		8-97036-834-0 01 1 0204-0408 ● ●
5 SPRING; COIL
THA 		8-97036-834-0 01 1 0409-0412 ●
19 GEAR SET; OIL PUMP
THA 		8-94384-778-1 01 1 0204-0408 ● ●
19 GEAR SET; OIL PUMP
THA 		8-94384-778-1 01 1 0409-0412 ●
21 GASKET; OIL PUMP
(A) ID=27.7 THA 		1-09623-170-0 01 1 0204-0408 ● ●
21 GASKET; OIL PUMP
(A) ID=27.7 THA 		1-09623-170-0 01 1 0409-0412 ●
21 GASKET; OIL PUMP
(B) ID=31.2 THA 		1-09623-220-0 01 1 0204-0408 ● ●
21 GASKET; OIL PUMP
(B) ID=31.2 THA 		1-09623-220-0 01 1 0409-0412 ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE THA 		0-28050-825-0 02 1 0204-0408 ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE THA 		0-28050-825-0 02 1 0409-0412 ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0409-0412 ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0501-0608 ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0609-0708 ● ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0709-0709 ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0710- ● ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501-0608 ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0609-0708 ● ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ● ●
35 COVER; OIL PUMP
THA 		8-97203-876-0 01 1 0204-0408 ● ●
35 COVER; OIL PUMP
THA 		8-97203-876-0 01 1 0409-0412 ●
42 STRAINER; OIL,OIL PUMP
4X2<TFB***> THA 		8-97942-829-0 01 1 0204-0408 ● ●
42 STRAINER; OIL,OIL PUMP
THA 		8-97942-829-0 01 1 0409-0412 ●
42 STRAINER; OIL,OIL PUMP
4X4<TFS***> THA 		8-97036-839-0 01 1 0204-0408 ●
45 PIN; SPLIT,RELIEF VLV
L=30 IMA 		9-08104-030-0 01 1 0204-0408 ● ●
45 PIN; SPLIT,RELIEF VLV
L=30 IMA 		9-08104-030-0 01 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(A) M8X25 FLANGE IMA 		0-28080-825-0 02 1 0204-0408 ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M8X25 FLANGE IMA 		0-28080-825-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X35 FLANGE THA 		0-28080-835-0 02 1 0204-0408 ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X35 FLANGE THA 		0-28080-835-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0501-0608 ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0609-0708 ● ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0709-0709 ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0710-1405 ● ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ● ● ●
121 VALVE; RELIEF,OIL PUMP
THA 		8-94235-567-1 01 1 0204-0408 ● ●
121 VALVE; RELIEF,OIL PUMP
THA 		8-94235-567-1 01 1 0409-0412 ●

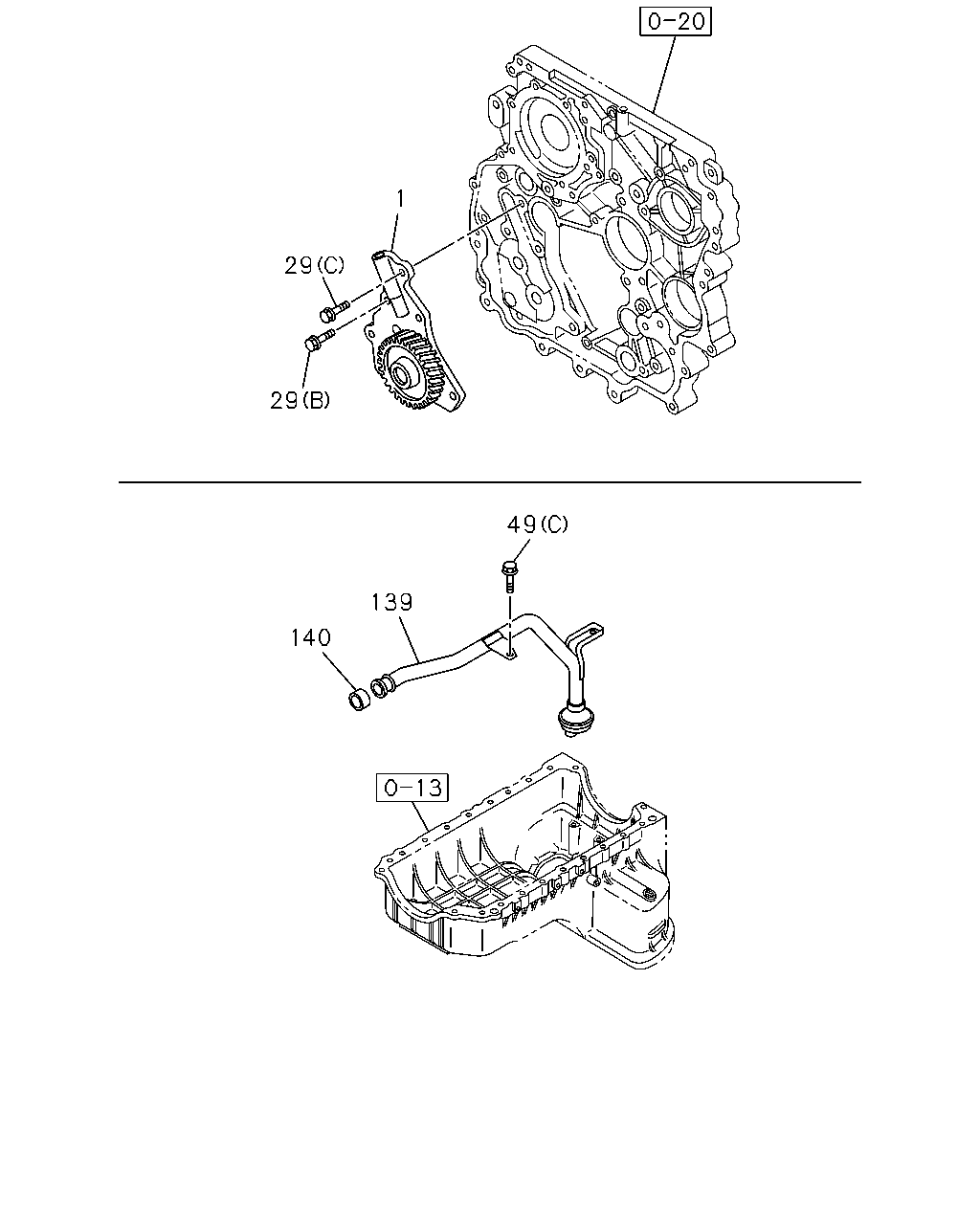

çizim 116319
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; OIL
4X2<TFB***> THA 		8-97942-466-3 01 1 0204-0408 ● ●
1 PUMP ASM; OIL
THA 		8-97942-466-3 01 1 0409-0412 ●
1 PUMP ASM; OIL
4X4<TFS***> THA 		8-97941-852-2 01 1 0204-0408 ●
1 PUMP ASM; OIL
THA 		8-97376-687-1 01 1 0409-0412 ●
1 PUMP ASM; OIL
THA 		8-97376-687-2 01 1 0501-0506 ● ●
1 PUMP ASM; OIL
THA 		8-98013-966-1 01 1 0507-0606 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0607-0608 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0609-0708 ● ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0709-0709 ● ●
1 PUMP ASM; OIL
THA 		8-98011-503-3 01 1 0710-0905 ● ● ●
1 PUMP ASM; OIL
THA 		8-98128-134-0 01 1 0906-1303 ● ● ●
1 PUMP ASM; OIL
THA 		8-98232-624-1 01 1 1304- ● ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE THA 		0-28050-825-0 02 1 0204-0408 ● ●
29 BOLT; OIL PUMP
(A) M8X25 FLANGE THA 		0-28050-825-0 02 1 0409-0412 ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0409-0412 ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0501-0608 ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0609-0708 ● ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0709-0709 ● ●
29 BOLT; OIL PUMP
(B) M8X30 FLANGE THA 		0-28050-830-0 04 1 0710- ● ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501-0608 ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0609-0708 ● ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ● ●
29 BOLT; OIL PUMP
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M8X25 FLANGE IMA 		0-28080-825-0 02 1 0204-0408 ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M8X25 FLANGE IMA 		0-28080-825-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X35 FLANGE THA 		0-28080-835-0 02 1 0204-0408 ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X35 FLANGE THA 		0-28080-835-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0501-0608 ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0609-0708 ● ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0709-0709 ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X12 FLANGE THA 		0-28050-812-0 02 1 0710-1405 ● ● ●
49 BOLT; STRAINER,OIL PUMP
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ● ● ●
139 PIPE; OIL STRAINER
4X2<TFB***> THA 		8-97312-134-3 01 1 0409-0412 ●
139 PIPE; OIL STRAINER
4X2<TFB***> THA 		8-97312-134-3 01 1 0501-0709 ● ●
139 PIPE; OIL STRAINER
4X2<TFB***> THA 		8-97312-134-3 01 1 0710-0809 ● ● ●
139 PIPE; OIL STRAINER
4X2<TFB***> THA 		8-98127-247-0 01 1 0810- ● ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-97354-753-3 01 1 0409-0606 ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-97354-753-3 01 1 0607-0608 ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-97354-753-3 01 1 0609-0708 ● ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-97354-753-3 01 1 0709-0709 ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-97354-753-3 01 1 0710-0809 ● ● ●
139 PIPE; OIL STRAINER
4X4<TFS***> THA 		8-98127-248-0 01 1 0810- ● ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0409-0412 ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0501-0608 ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0609-0708 ● ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0709-0709 ● ●
140 GASKET; OIL STRAINER
THA 		8-97356-150-0 01 1 0710- ● ● ●
