Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

0-50 — OIL COOLER AND OIL FILTER (#72806) — 107 parça

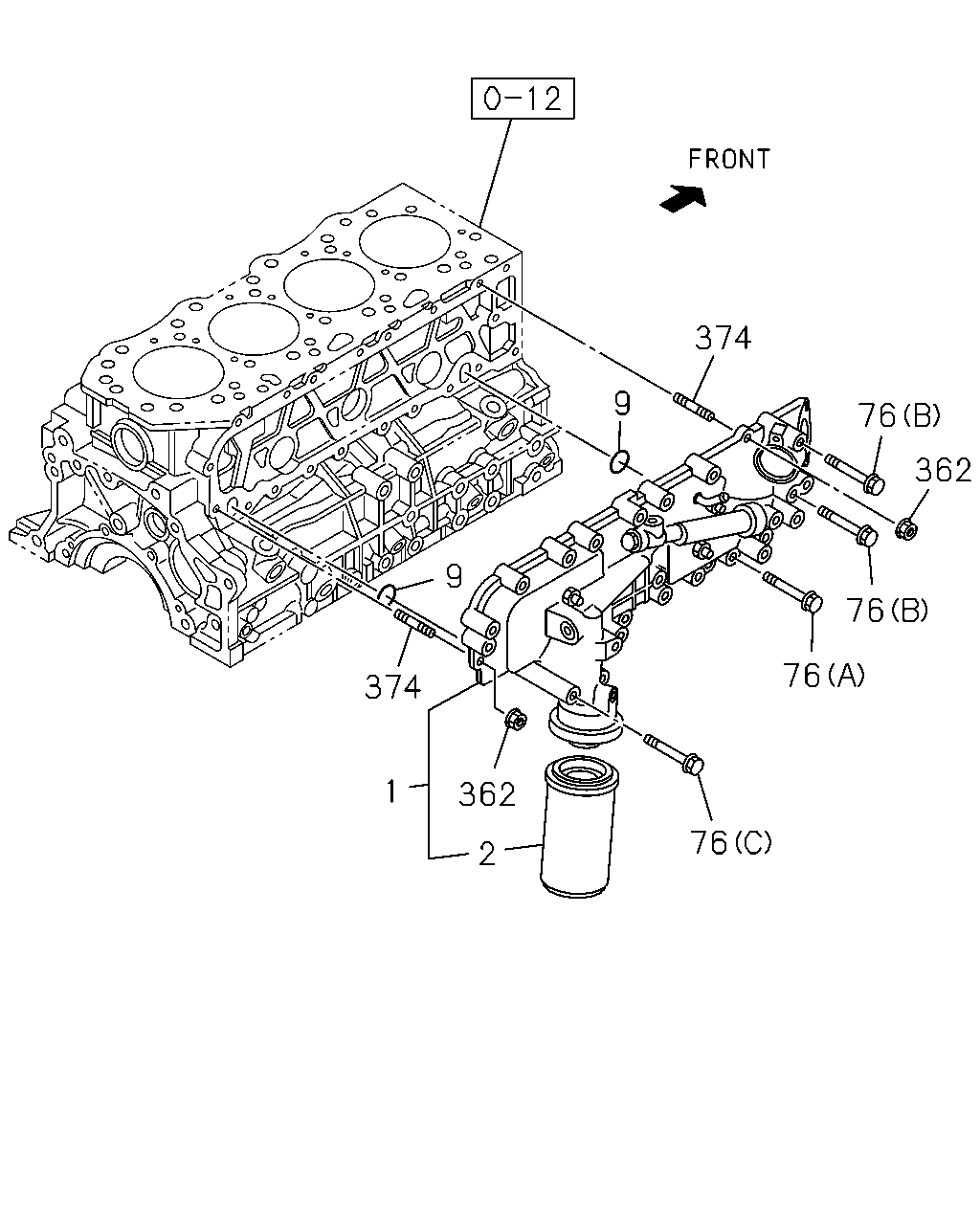

374 9 76 362 9 76 76 374 1 362 76 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0204-0408	●	●
1	FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0409-0412			●
1	FILTER & COOLER ASM; OIL THA	8-97355-454-2	01	1	0409-0412				●
1	FILTER & COOLER ASM; OIL THA	8-97355-454-3	01	1	0501-0507				●	●
1	FILTER & COOLER ASM; OIL THA	8-98011-680-1	01	1	0508-0606				●	●
1	FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	0607-1008				●	●
1	FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	1009-				●	●	●
1	FILTER & COOLER ASM; OIL THA	8-98011-506-3	01	1	0609-0708						●
1	FILTER & COOLER ASM; OIL THA	8-98011-506-4	01	1	0710-1008						●
2	ELEMENT; OIL FILTER THA	8-97309-927-0	01	1	0204-0408	●	●
2	ELEMENT; OIL FILTER THA	8-97309-927-0	01	1	0409-0412			●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0409-0412				●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0501-0608				●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0609-0708				●	●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0709-0709				●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0710-				●	●	●
9	GASKET; CENTER BOLT THA	8-97288-938-0	01	1	0204-0408	●	●
9	GASKET; CENTER BOLT THA	8-97288-938-0	01	1	0409-0412			●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0409-0412				●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0501-0608				●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0609-0708				●	●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0709-0709				●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0710-				●	●	●
76	BOLT; OIL FILTER (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0409-0412				●
76	BOLT; OIL FILTER (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0501-0608				●	●
76	BOLT; OIL FILTER (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0609-0708				●	●	●
76	BOLT; OIL FILTER (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0709-0709				●	●
76	BOLT; OIL FILTER (A) M8X45 FLANGE THA	0-28050-845-0	14	1	0710-				●	●	●
76	BOLT; OIL FILTER (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0409-0412				●
76	BOLT; OIL FILTER (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0501-0608				●	●
76	BOLT; OIL FILTER (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0609-0708				●	●	●
76	BOLT; OIL FILTER (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0709-0709				●	●
76	BOLT; OIL FILTER (B) M8X70 FLANGE THA	0-28050-870-0	02	1	0710-				●	●	●
76	BOLT; OIL FILTER (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0409-0412				●
76	BOLT; OIL FILTER (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0501-0608				●	●
76	BOLT; OIL FILTER (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0609-0708				●	●	●
76	BOLT; OIL FILTER (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0709-0709				●	●
76	BOLT; OIL FILTER (C) M8X110 FLANGE THA	0-28055-811-0	02	1	0710-				●	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-108-0	02	1	0204-0408	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-108-0	02	1	0409-0412			●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0409-0412				●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0501-0608				●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0609-0708				●	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0709-0709				●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0710-				●	●	●
374	STUD; OIL FILTER M8X25 L=37 THA	0-41010-825-0	02	1	0204-0408	●	●
374	STUD; OIL FILTER M8X25 L=37 THA	0-41010-825-0	02	1	0409-0412			●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0409-0412				●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0501-0608				●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0609-0708				●	●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0709-0709				●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0710-				●	●	●

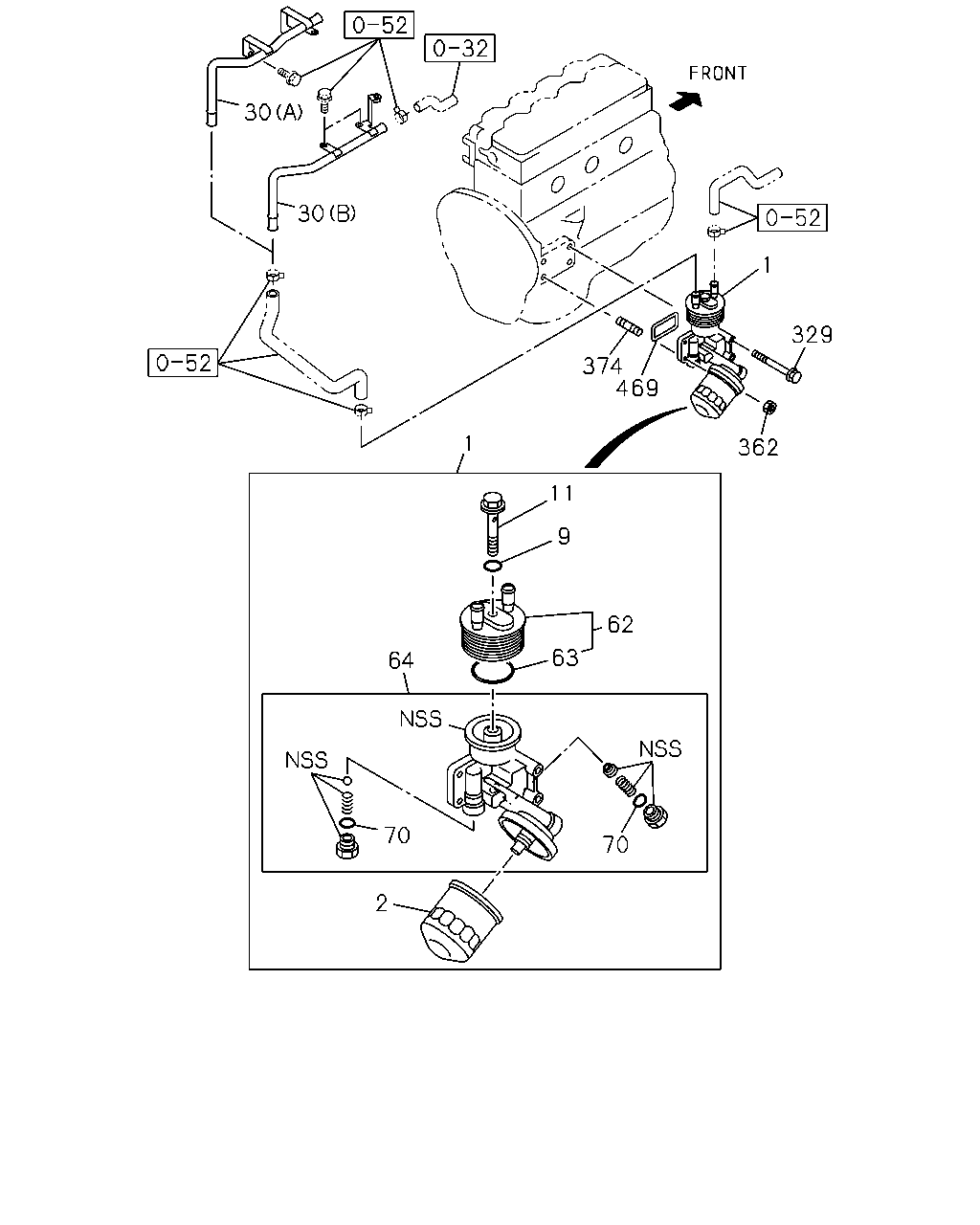

30 30 1 329 374 469 1 362 11 9 62 63 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0204-0408	●	●
1	FILTER & COOLER ASM; OIL THA	8-97287-474-1	01	1	0409-0412			●
1	FILTER & COOLER ASM; OIL THA	8-97355-454-2	01	1	0409-0412				●
1	FILTER & COOLER ASM; OIL THA	8-97355-454-3	01	1	0501-0507				●	●
1	FILTER & COOLER ASM; OIL THA	8-98011-680-1	01	1	0508-0606				●	●
1	FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	0607-1008				●	●
1	FILTER & COOLER ASM; OIL THA	8-98025-403-4	01	1	1009-				●	●	●
1	FILTER & COOLER ASM; OIL THA	8-98011-506-3	01	1	0609-0708						●
1	FILTER & COOLER ASM; OIL THA	8-98011-506-4	01	1	0710-1008						●
2	ELEMENT; OIL FILTER THA	8-97309-927-0	01	1	0204-0408	●	●
2	ELEMENT; OIL FILTER THA	8-97309-927-0	01	1	0409-0412			●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0409-0412				●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0501-0608				●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0609-0708				●	●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0709-0709				●	●
2	ELEMENT; OIL FILTER THA	8-97358-720-0	01	1	0710-				●	●	●
9	GASKET; CENTER BOLT THA	8-97288-938-0	01	1	0204-0408	●	●
9	GASKET; CENTER BOLT THA	8-97288-938-0	01	1	0409-0412			●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0409-0412				●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0501-0608				●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0609-0708				●	●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0709-0709				●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	0710-				●	●	●
11	BOLT; CENTER THA	8-97288-935-0	01	1	0204-0408	●	●
11	BOLT; CENTER THA	8-97288-935-0	01	1	0409-0412			●
30	PIPE ASM; OIL COOLER (A) THA	8-97328-475-0	01	1	0204-0408		●
30	PIPE ASM; OIL COOLER (A) THA	8-97328-475-0	01	1	0409-0412			●
30	PIPE ASM; OIL COOLER (B) THA	8-97920-059-2	01	1	0204-0408	●
62	COOLER ASM; OIL THA	8-97288-930-0	01	1	0204-0402	●	●
62	COOLER ASM; OIL THA	8-97943-622-0	01	1	0403-0408	●	●
62	COOLER ASM; OIL THA	8-97943-622-0	01	1	0409-0412			●
63	GASKET; COOLER TO BRKT THA	8-94450-917-0	01	1	0204-0408	●	●
63	GASKET; COOLER TO BRKT THA	8-94450-917-0	01	1	0409-0412			●
64	BODY; OIL FILTER & OIL COOLER THA	8-97942-933-0	01	1	0204-0408	●	●
64	BODY; OIL FILTER & OIL COOLER THA	8-97942-933-0	01	1	0409-0412			●
70	GASKET; PLUG,OIL FILTER THA	8-97914-706-0	02	1	0204-0408	●	●
70	GASKET; PLUG,OIL FILTER THA	8-97914-706-0	02	1	0409-0412			●
329	BOLT; OIL FILTER M8X95 FLANGE THA	8-97920-201-0	02	1	0204-0408	●	●
329	BOLT; OIL FILTER M8X95 FLANGE THA	8-97920-201-0	02	1	0409-0412			●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-108-0	02	1	0204-0408	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-108-0	02	1	0409-0412			●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0409-0412				●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0501-0608				●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0609-0708				●	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0709-0709				●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	0710-				●	●	●
374	STUD; OIL FILTER M8X25 L=37 THA	0-41010-825-0	02	1	0204-0408	●	●
374	STUD; OIL FILTER M8X25 L=37 THA	0-41010-825-0	02	1	0409-0412			●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0409-0412				●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0501-0608				●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0609-0708				●	●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0709-0709				●	●
374	STUD; OIL FILTER M8X20 L=32 THA	0-41010-820-0	02	1	0710-				●	●	●
469	GASKET; OIL COOLER TO C/BL THA	8-97912-548-0	01	1	0204-0408	●	●
469	GASKET; OIL COOLER TO C/BL THA	8-97912-548-0	01	1	0409-0412			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
