Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#72805) — 229 parça

1 1 5 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0204-0408	●
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0409-0412		●
1	FILTER ASM; FUEL THA	8-97287-518-1	01	1	0204-0408			●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0409-0412				●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0501-0606				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0608				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0609-0708				●	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907				●	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0204-0408	●		●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0409-0412		●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0409-0412				●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0501-0606				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0607-0608				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0609-0708				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0709-0709				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0710-0907				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-				●	●	●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0204-0408	●		●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0409-0412		●
5	BOLT; FUEL FILTER EURO3 SPECIFICATION<NT3> M8X30 FLANGE THA	0-28650-830-0	02	1	0409-0412				●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0501-0608				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0609-0708				●	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0709-0709				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0710-				●	●	●
6	GASKET; FUEL FILTER THA	8-97942-938-0	01	1	0204-0408	●		●
6	GASKET; FUEL FILTER THA	8-97942-938-0	01	1	0409-0412		●

5 1 119 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0204-0408	●
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0409-0412		●
1	FILTER ASM; FUEL THA	8-97287-518-1	01	1	0204-0408			●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0409-0412				●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0501-0606				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0608				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0609-0708				●	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907				●	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0204-0408	●		●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0409-0412		●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0409-0412				●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0501-0606				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0607-0608				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0609-0708				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0709-0709				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0710-0907				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-				●	●	●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0409-0412				●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0501-0606				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0607-0608				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0609-0708				●	●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0709-0709				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0710-				●	●	●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0204-0408	●		●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0409-0412		●
5	BOLT; FUEL FILTER EURO3 SPECIFICATION<NT3> M8X30 FLANGE THA	0-28650-830-0	02	1	0409-0412				●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0501-0608				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0609-0708				●	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0709-0709				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0710-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0409-0412				●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0501-0606				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-				●	●	●

5 1 124 119 2 105 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0204-0408	●
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0409-0412		●
1	FILTER ASM; FUEL THA	8-97287-518-1	01	1	0204-0408			●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0409-0412				●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0501-0606				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0608				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0609-0708				●	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907				●	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0204-0408	●		●
2	ELEMENT KIT; FUEL FILTER THA	8-97916-993-1	01	1	0409-0412		●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0409-0412				●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-983-0	01	1	0501-0606				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0607-0608				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0609-0708				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0709-0709				●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98036-321-0	01	1	0710-0907				●	●	●
2	ELEMENT KIT; FUEL FILTER THA	8-98149-982-0	01	1	0908-				●	●	●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0409-0412				●
3	SENSOR ASM; FUEL FILTER THA	8-97388-827-0	01	1	0501-0606				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0607-0608				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0609-0708				●	●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0709-0709				●	●
3	SENSOR ASM; FUEL FILTER THA	8-98047-661-0	01	1	0710-				●	●	●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0204-0408	●		●
5	BOLT; FUEL FILTER THA	8-97942-945-0	01	1	0409-0412		●
5	BOLT; FUEL FILTER EURO3 SPECIFICATION<NT3> M8X30 FLANGE THA	0-28650-830-0	02	1	0409-0412				●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0501-0608				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0609-0708				●	●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0709-0709				●	●
5	BOLT; FUEL FILTER M8X30 FLANGE THA	0-28650-830-0	02	1	0710-				●	●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0607-0608				●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0609-0708				●	●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0709-0709				●	●
105	CASE; FUEL FILTER THA	8-98048-537-0	01	1	0710-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0409-0412				●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0501-0606				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-				●	●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0607-0608				●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0609-0708				●	●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0709-0709				●	●
124	SWITCH; PRESSURE,FUEL FILTER THA	8-98036-319-0	01	1	0710-				●	●	●

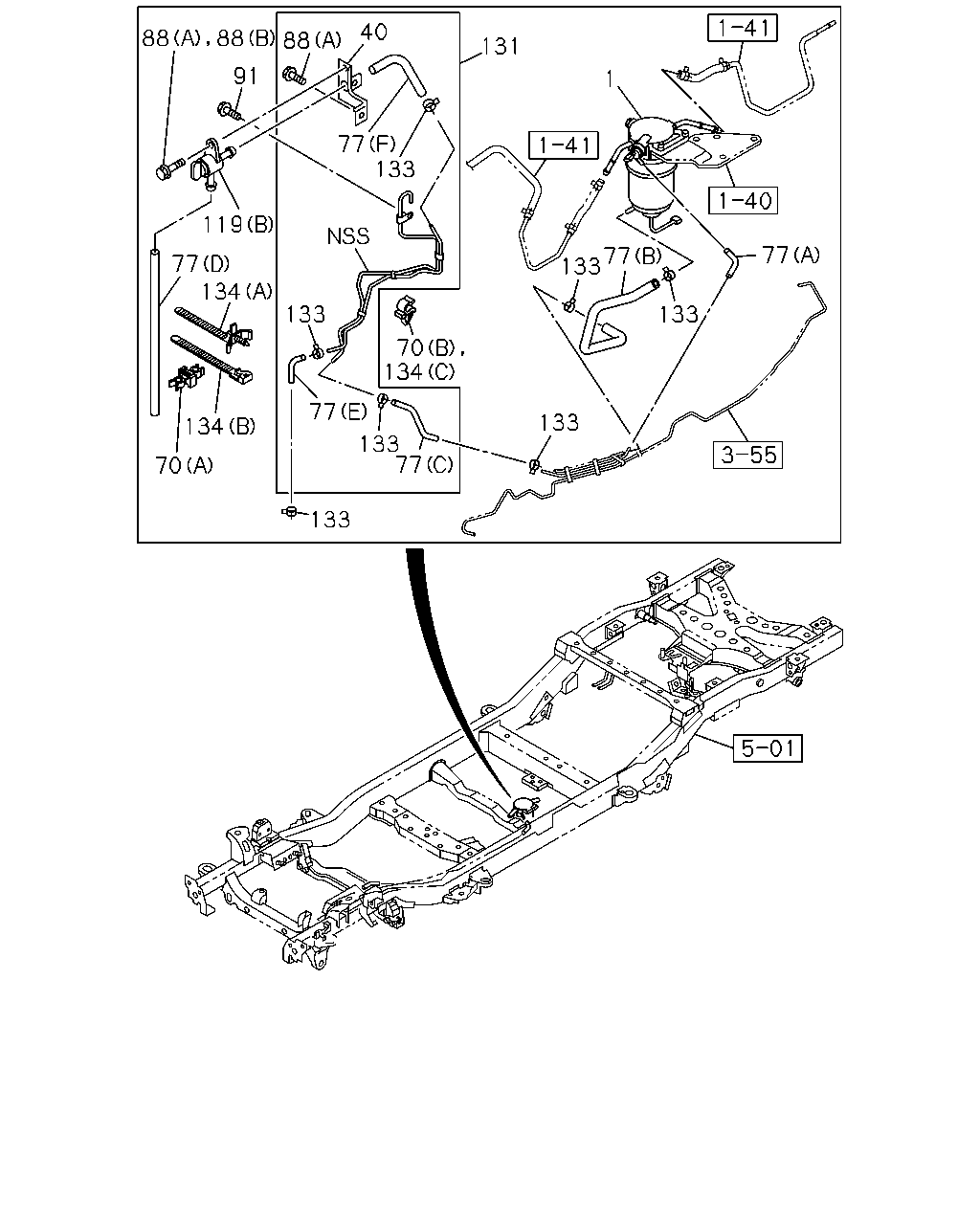

40 88 88 88 131 91 1 77 133 119 77 133 77 77 134 133 133 70 134 77 133 134 133 77 70 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0204-0408	●
1	FILTER ASM; FUEL THA	8-97287-517-2	01	1	0409-0412		●
1	FILTER ASM; FUEL THA	8-97287-518-1	01	1	0204-0408			●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0409-0412				●
1	FILTER ASM; FUEL THA	8-98150-028-0	01	1	0501-0606				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0607-0608				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0609-0708				●	●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0709-0709				●	●
1	FILTER ASM; FUEL THA	8-98048-333-0	01	1	0710-0907				●	●	●
1	FILTER ASM; FUEL THA	8-98150-029-0	01	1	0908-				●	●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0607-0608				●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0609-0708				●	●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0709-0709				●	●
40	BRACKET; FUEL FILTER THA	8-98043-611-1	01	1	0710-				●	●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0607-0608				●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0609-0708				●	●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0709-0709				●	●
70	CLIP; FUEL PIPE (A) ID=7.5 & 7.5 THA	8-97019-084-0	01	1	0710-				●	●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0607-0608				●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0609-0708				●	●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0709-0709				●	●
70	CLIP; FUEL PIPE (B) ID=6.8 THA	8-97134-154-0	01	1	0710-				●	●	●
77	HOSE; FUEL FILTER IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (C) L=249 THA	8-98165-271-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (C) L=249 THA	8-98165-271-0	01	1	1005-				●	●	●
77	HOSE; FUEL FILTER IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (F) L=120 THA	8-98165-853-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (F) L=120 THA	8-98165-853-0	01	1	1005-				●	●	●
77	HOSE; FUEL FILTER IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> (B) L=220 THA	8-98165-854-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (B) L=220 THA	8-98165-854-0	01	1	1005-				●	●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0710-1002				●	●	●
77	HOSE; FUEL FILTER EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> (F) L=120 SERVICED BY L=3000 THA	0-01755-300-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	0710-1002				●	●	●
77	HOSE; FUEL FILTER EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> (E) L=220 SERVICED BY L=3000 THA	0-01755-300-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (C) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (C) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (C) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (C) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	0710-				●	●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (A) L=78.7 THA	8-98034-993-0	01	1	0710-				●	●	●
77	HOSE; FUEL FILTER (B) L=249 THA	8-98048-455-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (B) L=249 THA	8-98048-455-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (B) L=249 THA	8-98048-455-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (B) L=249 THA	8-98048-455-0	01	1	0710-1002				●	●	●
77	HOSE; FUEL FILTER EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> (B) L=249 THA	8-98048-455-0	01	1	1003-1004				●	●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0607-0608				●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0609-0708				●	●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0709-0709				●	●
77	HOSE; FUEL FILTER (D) L=940 THA	8-98049-047-0	01	1	0710-				●	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0607-0608				●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	02	1	0609-0611				●	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0612-0708				●	●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0709-0709				●	●
88	BOLT; BRKT,FUEL FILTER (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0710-				●	●	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0612-0708				●	●	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0709-0709				●	●
88	BOLT; BRKT,FUEL FILTER (B) M6X16 FLANGE THA	8-98049-357-0	01	1	0710-				●	●	●
91	BOLT; FUEL FILTER 4X2<TFB***> M6X20 FLANGE THA	0-28650-620-0	01	1	0607-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0409-0412				●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-97375-983-0	01	1	0501-0606				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (A) THA	8-98048-185-0	01	1	0710-				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0607-0608				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0609-0708				●	●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0709-0709				●	●
119	PLUG; DRAIN,FUEL FILTER (B) THA	8-98048-635-0	01	1	0710-				●	●	●
131	PIPE; FILTER IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> THA	8-98165-820-0	01	1	1003-1004				●	●	●
131	PIPE; FILTER THA	8-98165-820-0	01	1	1005-				●	●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0607-0608				●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0609-0708				●	●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0709-0709				●	●
131	PIPE; FILTER THA	8-98049-527-0	01	1	0710-1002				●	●	●
131	PIPE; FILTER EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> THA	8-98049-527-0	01	1	1003-1004				●	●	●
133	CLAMP; HOSE EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> ID=11.5 THA	8-98051-892-0	01	1	1003-1004				●	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	06	1	0607-0608				●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	06	1	0609-0708				●	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	06	1	0709-0709				●	●
133	CLAMP; HOSE ID=11.5 THA	8-98008-096-0	06	1	0710-1002				●	●	●
133	CLAMP; HOSE EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y. <BSO> ID=11.5 THA	8-98008-096-0	06	1	1003-1004				●	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0607-0608				●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0609-0708				●	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0709-0709				●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	01	1	0710-1002				●	●	●
133	CLAMP; HOSE IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> ID=11.5 THA	8-98051-892-0	07	1	1003-1004				●	●	●
133	CLAMP; HOSE ID=11.5 THA	8-98051-892-0	07	1	1005-				●	●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0607-0608				●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0609-0708				●	●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0709-0709				●	●
134	CLIP; FUEL HOSE (A) L=135 IMA	8-94473-399-0	01	1	0710-				●	●	●
134	CLIP; FUEL HOSE EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA	8-97134-154-0	01	1	0607-0608				●	●
134	CLIP; FUEL HOSE EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA	8-97134-154-0	01	1	0609-0708				●	●	●
134	CLIP; FUEL HOSE 4X2<TFB***> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA	8-97134-154-0	01	1	0709-0709				●	●
134	CLIP; FUEL HOSE 4X2<TFB***> EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=6.8 THA	8-97134-154-0	01	1	0710-				●	●	●
134	CLIP; FUEL HOSE 4X2<TFB***> ANTI LOCK BRAKE SYSTEM<JE5> (B) L=158.7 THA	8-97922-209-0	01	1	0607-0608				●	●
134	CLIP; FUEL HOSE 4X4<TFS***> (B) L=158.7 THA	8-97922-209-0	01	1	0607-0608				●	●
134	CLIP; FUEL HOSE 4X4<TFS***> (B) L=158.7 THA	8-97922-209-0	01	1	0609-0708				●	●	●
134	CLIP; FUEL HOSE 4X2<TFB***> ANTI LOCK BRAKE SYSTEM<JE5> (B) L=158.7 THA	8-97922-209-0	01	1	0609-0708				●	●
134	CLIP; FUEL HOSE 4X2<TFB***> ANTI LOCK BRAKE SYSTEM<JE5> (B) L=158.7 THA	8-97922-209-0	01	1	0709-0709				●	●
134	CLIP; FUEL HOSE 4X4<TFS***> (B) L=158.7 THA	8-97922-209-0	01	1	0709-0709				●	●
134	CLIP; FUEL HOSE 4X2<TFB***> ANTI LOCK BRAKE SYSTEM<JE5> (B) L=158.7 THA	8-97922-209-0	01	1	0710-				●	●	●
134	CLIP; FUEL HOSE 4X4<TFS***> (B) L=158.7 THA	8-97922-209-0	01	1	0710-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
