◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#72804) — 1424 parça

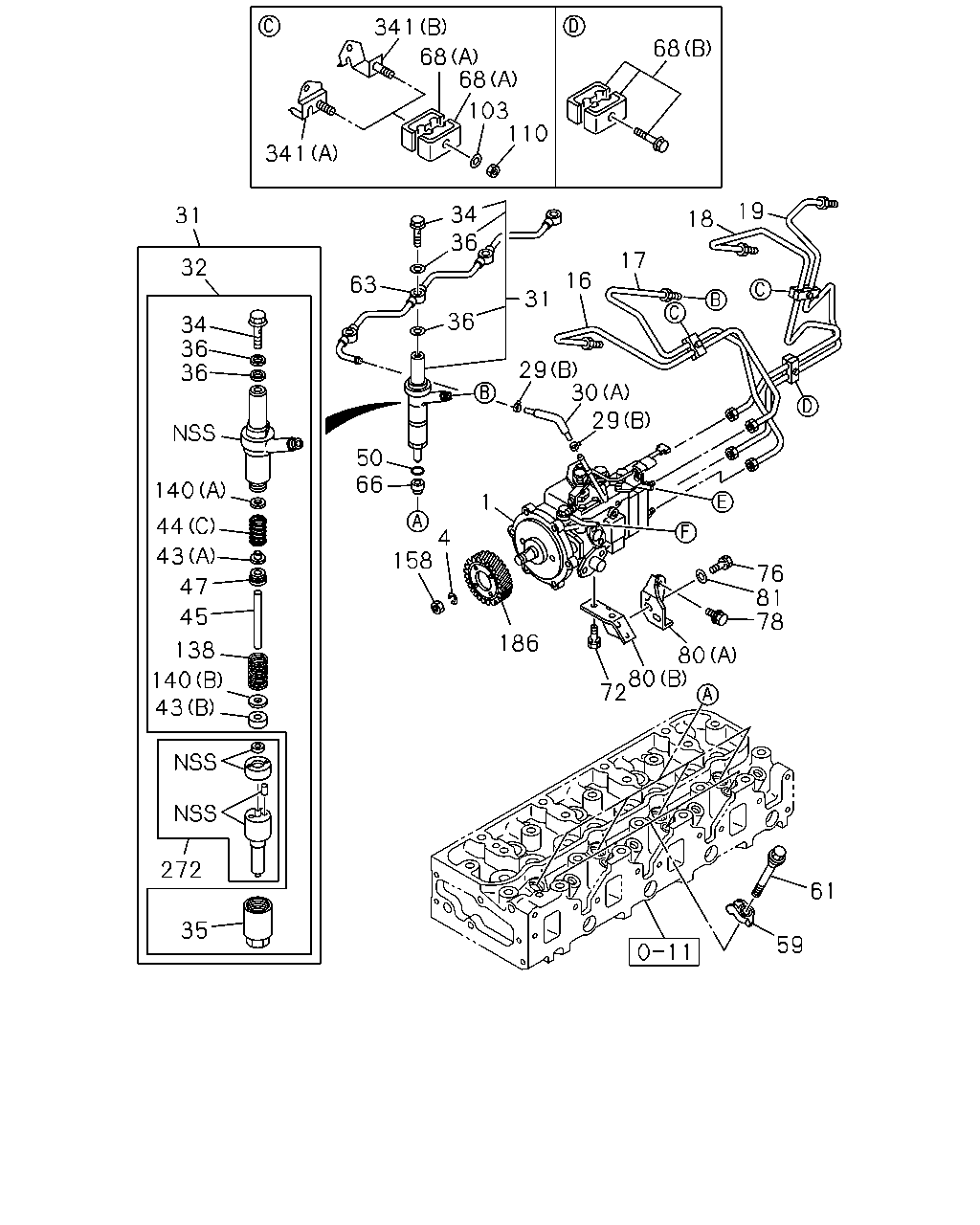

çizim 116301
341 68 68 68 103 110 341 19 34 36 31 18 17 32 16 63 31 36 34 36 36 29 30 29 50 66 140 1 44 4 158 43 76 81 78 47 45 186 138 80 80 72 140 43 272 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
COOLER WO/HEATER<YL1> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97288-268-4 01 1 0204-0408 ●
1 PUMP ASM; INJ
COOLER WO/HEATER<C65> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97288-268-4 01 1 0409-0412 ●
1 PUMP ASM; INJ
EXC. COOLER WO/HEATER<YL1> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97287-505-4 01 1 0204-0408 ●
1 PUMP ASM; INJ
VENTILATION RAM AIR<6TN> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97287-505-4 01 1 0409-0412 ●
1 PUMP ASM; INJ
IMA 		8-97214-093-5 01 1 0204-0408 ●
4 WASHER; INJ PUMP
THA 		8-94226-554-0 01 1 0204-0408 ●
4 WASHER; INJ PUMP
THA 		8-94226-554-0 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607-0608 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0609-0708 ● ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ● ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607-0608 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0609-0708 ● ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ● ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607-0608 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0609-0708 ● ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ● ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607-0608 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0609-0708 ● ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ● ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0204-0408 ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0409-0412 ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0204-0408 ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0409-0412 ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0204-0302 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501-0608 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0609-0708 ● ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0609-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0409-0412 ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0608 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0609-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0710-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
32 HOLDER ASM; NOZZLE
THA 		8-97217-835-0 04 1 0204-0408 ●
32 HOLDER ASM; NOZZLE
THA 		8-97217-835-0 04 1 0409-0412 ●
32 HOLDER ASM; NOZZLE
IMA 		8-97289-581-0 04 1 0204-0408 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-94320-307-0 04 1 0204-0408 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-94320-307-0 04 1 0409-0412 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-97238-601-0 04 1 0204-0408 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
THA 		1-15349-041-0 04 1 0204-0408 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
THA 		1-15349-041-0 04 1 0409-0412 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
IMA 		8-97300-529-0 04 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97084-347-0 08 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97238-599-0 08 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97084-347-0 08 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 THA 		8-97223-343-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 THA 		8-97223-343-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 THA 		8-97223-344-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 THA 		8-97223-344-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 THA 		8-97223-345-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 THA 		8-97223-345-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 THA 		8-97223-346-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 THA 		8-97223-346-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 THA 		8-97223-347-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 THA 		8-97223-347-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 THA 		8-97223-348-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 THA 		8-97223-348-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 THA 		8-97223-349-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 THA 		8-97223-349-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 THA 		8-97223-350-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 THA 		8-97223-350-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 THA 		8-97223-351-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 THA 		8-97223-351-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 THA 		8-97223-352-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 THA 		8-97223-352-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 THA 		8-97223-353-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 THA 		8-97223-353-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 THA 		8-97223-354-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 THA 		8-97223-354-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 THA 		8-97223-355-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 THA 		8-97223-355-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 THA 		8-97223-356-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 THA 		8-97223-356-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 THA 		8-97223-357-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 THA 		8-97223-357-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 THA 		8-97223-358-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 THA 		8-97223-358-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 THA 		8-97223-359-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 THA 		8-97223-359-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 THA 		8-97223-360-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 THA 		8-97223-360-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 THA 		8-97223-361-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 THA 		8-97223-361-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 THA 		8-97223-362-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 THA 		8-97223-362-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 THA 		8-97223-363-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 THA 		8-97223-363-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 THA 		8-97223-364-0 04 1 0204-0408 ●

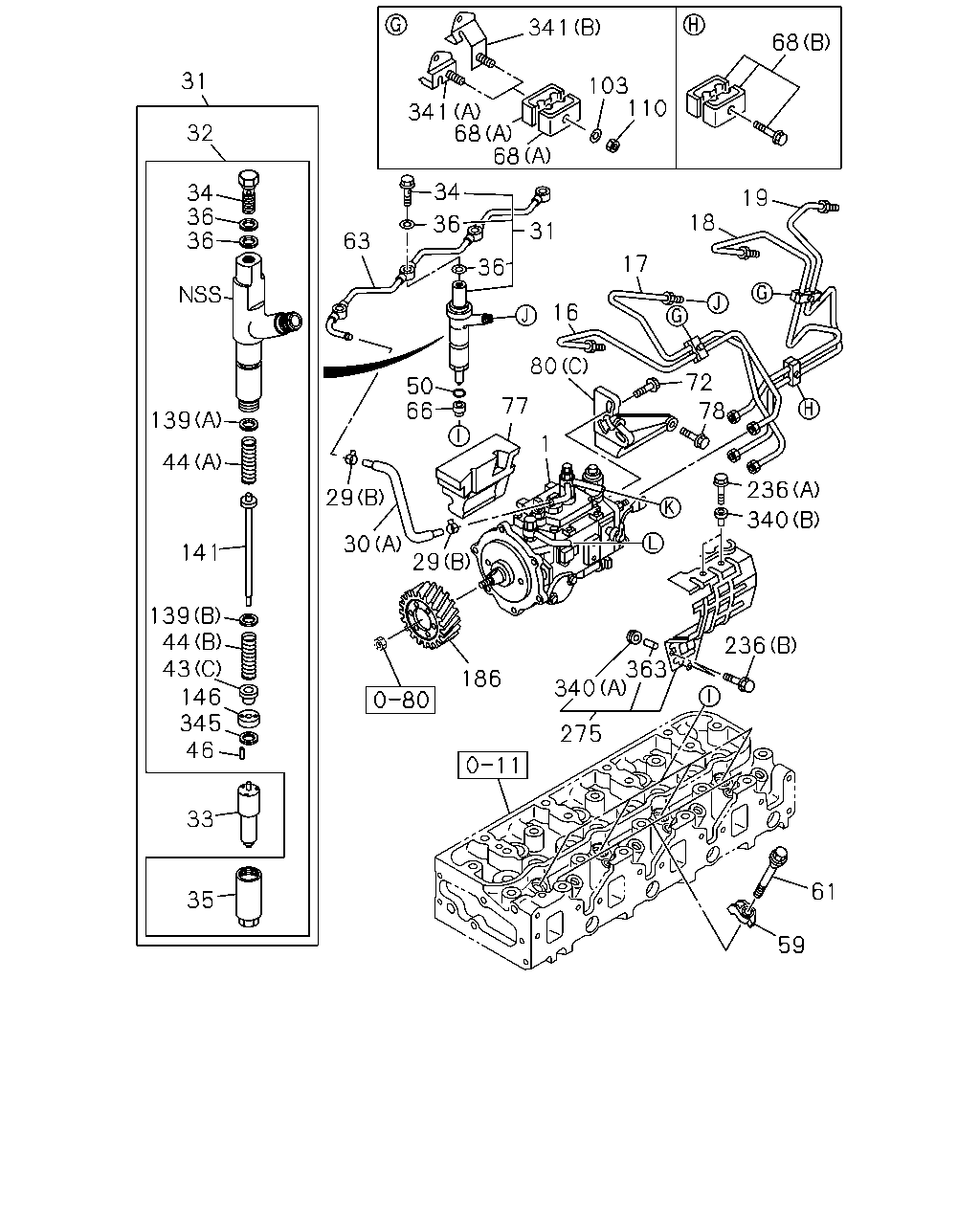

43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 THA 		8-97223-364-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 THA 		8-97223-365-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 THA 		8-97223-365-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 THA 		8-97223-366-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 THA 		8-97223-366-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 THA 		8-97223-367-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 THA 		8-97223-367-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 THA 		8-97223-368-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 THA 		8-97223-368-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 THA 		8-97223-369-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 THA 		8-97223-369-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 THA 		8-97223-370-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 THA 		8-97223-370-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 THA 		8-97223-371-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 THA 		8-97223-371-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 THA 		8-97223-372-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 THA 		8-97223-372-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 THA 		8-97223-373-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 THA 		8-97223-373-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 THA 		8-97223-374-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 THA 		8-97223-374-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 THA 		8-97223-375-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 THA 		8-97223-375-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 THA 		8-97223-376-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 THA 		8-97223-376-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 THA 		8-97223-377-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 THA 		8-97223-377-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 THA 		8-97223-378-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 THA 		8-97223-378-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 THA 		8-97223-379-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 THA 		8-97223-379-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 THA 		8-97223-380-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 THA 		8-97223-380-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 THA 		8-97223-381-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 THA 		8-97223-381-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 THA 		8-97223-382-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 THA 		8-97223-382-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 THA 		8-97223-383-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 THA 		8-97223-383-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 THA 		8-97223-384-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 THA 		8-97223-384-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 THA 		8-97223-385-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 THA 		8-97223-385-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 THA 		8-97223-386-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 THA 		8-97223-386-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 THA 		8-97223-387-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 THA 		8-97223-387-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 THA 		8-97223-388-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 THA 		8-97223-388-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 THA 		8-97223-389-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 THA 		8-97223-389-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 THA 		8-97223-390-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 THA 		8-97223-390-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 THA 		8-97223-391-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 THA 		8-97223-391-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 THA 		8-97223-392-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 THA 		8-97223-392-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 THA 		8-97223-393-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 THA 		8-97223-393-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) THA 		8-97361-697-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) THA 		8-97361-697-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.66 IMA 		8-97288-027-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.67 IMA 		8-97288-028-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.68 IMA 		8-97288-029-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.69 IMA 		8-97288-031-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.70 IMA 		8-97288-032-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.71 IMA 		8-97288-033-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.72 IMA 		8-97288-034-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.73 IMA 		8-97288-035-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.74 IMA 		8-97288-036-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.75 IMA 		8-97288-037-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.76 IMA 		8-97288-038-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(C) THA 		1-15343-003-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(C) THA 		1-15343-003-0 04 1 0409-0412 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(B) IMA 		8-97300-503-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(A) IMA 		8-97300-504-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 THA 		8-97355-112-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.25 THA 		8-97355-112-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 THA 		8-97355-113-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.26 THA 		8-97355-113-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 THA 		8-97355-114-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.27 THA 		8-97355-114-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 THA 		8-97355-115-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.28 THA 		8-97355-115-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 THA 		8-97355-116-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.29 THA 		8-97355-116-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 THA 		8-97355-117-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.30 THA 		8-97355-117-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 THA 		8-97355-118-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.31 THA 		8-97355-118-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 THA 		8-97355-119-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.32 THA 		8-97355-119-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 THA 		8-97355-120-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.33 THA 		8-97355-120-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 THA 		8-97355-121-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.34 THA 		8-97355-121-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 THA 		8-97355-122-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.35 THA 		8-97355-122-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 THA 		8-97355-123-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.36 THA 		8-97355-123-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 THA 		8-97355-124-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.37 THA 		8-97355-124-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 THA 		8-97355-125-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.38 THA 		8-97355-125-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 THA 		8-97355-126-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.39 THA 		8-97355-126-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 THA 		8-97355-127-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.40 THA 		8-97355-127-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 THA 		8-97355-128-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.41 THA 		8-97355-128-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 THA 		8-97355-129-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.42 THA 		8-97355-129-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 THA 		8-97355-130-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.43 THA 		8-97355-130-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 THA 		8-97355-131-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.44 THA 		8-97355-131-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 THA 		8-97355-132-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.45 THA 		8-97355-132-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 THA 		8-97355-133-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.46 THA 		8-97355-133-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 THA 		8-97355-134-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.47 THA 		8-97355-134-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 THA 		8-97355-135-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.48 THA 		8-97355-135-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 THA 		8-97355-136-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.49 THA 		8-97355-136-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 THA 		8-97355-137-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.50 THA 		8-97355-137-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 THA 		8-97355-138-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.51 THA 		8-97355-138-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 THA 		8-97355-139-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.52 THA 		8-97355-139-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 THA 		8-97355-140-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.53 THA 		8-97355-140-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 THA 		8-97355-141-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.54 THA 		8-97355-141-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 THA 		8-97355-142-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.55 THA 		8-97355-142-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 THA 		8-97355-143-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.56 THA 		8-97355-143-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 THA 		8-97355-144-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.57 THA 		8-97355-144-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 THA 		8-97355-145-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.58 THA 		8-97355-145-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 THA 		8-97355-146-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.59 THA 		8-97355-146-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 THA 		8-97355-147-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.60 THA 		8-97355-147-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 THA 		8-97355-148-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.61 THA 		8-97355-148-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 THA 		8-97355-149-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.62 THA 		8-97355-149-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 THA 		8-97355-150-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.63 THA 		8-97355-150-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 THA 		8-97355-151-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.64 THA 		8-97355-151-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 THA 		8-97355-152-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.65 THA 		8-97355-152-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 THA 		8-97355-153-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.66 THA 		8-97355-153-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 THA 		8-97355-154-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.67 THA 		8-97355-154-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 THA 		8-97355-155-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.68 THA 		8-97355-155-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 THA 		8-97355-156-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.69 THA 		8-97355-156-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 THA 		8-97355-157-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.70 THA 		8-97355-157-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 THA 		8-97355-158-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.71 THA 		8-97355-158-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 THA 		8-97355-159-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.72 THA 		8-97355-159-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 THA 		8-97355-160-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.73 THA 		8-97355-160-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 THA 		8-97355-161-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.74 THA 		8-97355-161-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 THA 		8-97355-162-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.75 THA 		8-97355-162-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 THA 		8-97355-163-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.76 THA 		8-97355-163-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 THA 		8-97355-164-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.77 THA 		8-97355-164-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 THA 		8-97355-165-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.78 THA 		8-97355-165-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 THA 		8-97355-166-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.79 THA 		8-97355-166-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 THA 		8-97355-167-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.80 THA 		8-97355-167-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 THA 		8-97355-168-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.81 THA 		8-97355-168-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 THA 		8-97355-169-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.82 THA 		8-97355-169-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 THA 		8-97355-170-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.83 THA 		8-97355-170-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 THA 		8-97355-171-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.84 THA 		8-97355-171-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 THA 		8-97355-172-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.85 THA 		8-97355-172-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 THA 		8-97355-173-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.86 THA 		8-97355-173-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 THA 		8-97355-174-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.87 THA 		8-97355-174-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 THA 		8-97355-175-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.88 THA 		8-97355-175-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 THA 		8-97355-176-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.89 THA 		8-97355-176-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 THA 		8-97355-177-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.90 THA 		8-97355-177-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 THA 		8-97355-178-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.91 THA 		8-97355-178-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 THA 		8-97355-179-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.92 THA 		8-97355-179-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 THA 		8-97355-180-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.93 THA 		8-97355-180-0 04 1 0409-0412 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 THA 		8-97355-182-0 04 1 0204-0408 ●
45 ROD; PUSH,NOZZLE HOLDER
L=38.94 THA 		8-97355-182-0 04 1 0409-0412 ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER
THA 		8-97223-340-0 04 1 0204-0408 ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER
THA 		8-97223-340-0 04 1 0409-0412 ●
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0204-0408 ● ●
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0204-0408 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0608 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0609-0708 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
THA 		8-97920-028-0 04 1 0204-0408 ● ●
61 BOLT; CLAMP NOZZLE HOLDER
THA 		8-97920-028-0 04 1 0409-0412 ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97920-247-0 01 1 0204-0408 ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97920-247-0 01 1 0409-0412 ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0204-0408 ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0609 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501-0608 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0609-0708 ● ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0709-0709 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0710- ● ● ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER THA 		0-50551-020-0 02 1 0204-0408 ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER THA 		0-50551-020-0 02 1 0409-0412 ●
72 BOLT; BRKT TO INJ PUMP
M8X25 FLANGE THA 		0-28650-825-0 02 1 0204-0408 ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0204-0408 ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0409-0412 ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE THA 		0-28650-820-0 02 1 0204-0408 ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE THA 		0-28650-820-0 02 1 0409-0412 ●
78 BOLT; BRKT TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 02 1 0204-0408 ●
80 BRACKET; PUMP
(B) THA 		8-97942-899-0 01 1 0204-0408 ●
80 BRACKET; PUMP
(B) THA 		8-97942-899-0 01 1 0409-0412 ●
80 BRACKET; PUMP
(A) THA 		8-97942-900-0 01 1 0204-0408 ●
80 BRACKET; PUMP
(A) THA 		8-97942-900-0 01 1 0409-0412 ●
80 BRACKET; PUMP
(C) THA 		8-97920-065-0 01 1 0204-0408 ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 THA 		9-09164-708-0 02 1 0204-0408 ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 THA 		9-09164-708-0 02 1 0409-0412 ●
103 WASHER; LK,CLIP,INJ PIPE
ID=6.1 THA 		9-09150-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0608 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER
THA 		8-94174-141-0 04 1 0204-0408 ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER
THA 		8-94174-141-0 04 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 THA 		1-15349-004-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 THA 		1-15349-004-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 THA 		1-15349-044-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 THA 		1-15349-044-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 THA 		1-15349-045-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 THA 		1-15349-045-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 THA 		1-15349-046-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 THA 		1-15349-046-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 THA 		1-15349-047-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 THA 		1-15349-047-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 THA 		1-15349-048-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.60 THA 		1-15349-048-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 THA 		1-15349-049-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.70 THA 		1-15349-049-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 THA 		8-97116-029-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 THA 		8-97116-029-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 THA 		8-97116-032-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 THA 		8-97116-032-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 THA 		8-97116-033-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 THA 		8-97116-033-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 THA 		8-97116-034-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 THA 		8-97116-034-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 THA 		8-97116-035-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 THA 		8-97116-035-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 THA 		8-97116-036-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 THA 		8-97116-036-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 THA 		8-97116-037-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 THA 		8-97116-037-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 THA 		8-97116-038-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 THA 		8-97116-038-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 THA 		8-97116-039-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 THA 		8-97116-039-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 THA 		8-97116-040-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 THA 		8-97116-040-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 THA 		8-97116-041-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 THA 		8-97116-041-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 THA 		8-97116-042-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 THA 		8-97116-042-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 THA 		8-97116-043-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 THA 		8-97116-043-0 AR 1 0409-0412 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 THA 		8-97116-044-0 AR 1 0204-0408 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 THA 		8-97116-044-0 AR 1 0409-0412 ●
158 NUT; INJ PUMP
M14 THA 		8-94226-565-0 01 1 0204-0408 ●
158 NUT; INJ PUMP
M14 THA 		8-94226-565-0 01 1 0409-0412 ●
186 GEAR; INJ PUMP
THA 		8-97322-652-0 01 1 0204-0408 ●
186 GEAR; INJ PUMP
THA 		8-97322-652-0 01 1 0409-0412 ●
186 GEAR; INJ PUMP
THA 		8-97322-651-0 01 1 0204-0408 ●
272 NOZZLE KIT; INJ
THA 		8-97362-572-0 04 1 0204-0408 ●
272 NOZZLE KIT; INJ
THA 		8-97362-572-0 04 1 0409-0412 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97287-511-2 01 1 0204-0408 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97287-511-2 01 1 0409-0412 ●
341 BRACKET; CLIP,INJ PIPE
(A) INJ PIPE NO.3,4 THA 		8-97920-070-0 01 1 0204-0408 ● ●
341 BRACKET; CLIP,INJ PIPE
(A) INJ PIPE NO.3,4 THA 		8-97920-070-0 01 1 0409-0412 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97920-071-1 01 1 0204-0408 ●

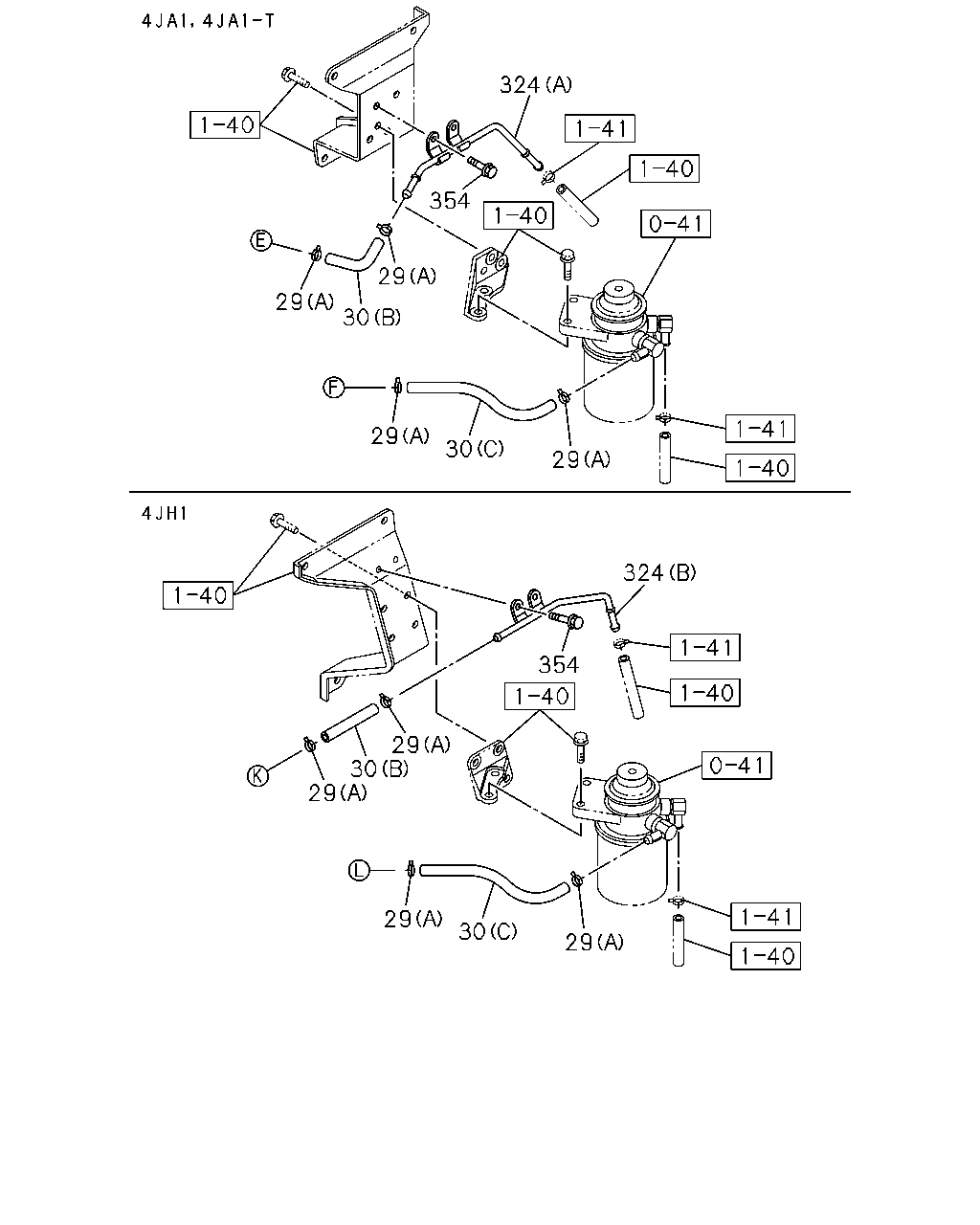

çizim 116303
324 354 29 29 30 29 30 29 324 354 29 30 29 29 30 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0204-0408 ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0409-0412 ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0204-0408 ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0409-0412 ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0204-0302 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501-0608 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0609-0708 ● ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0609-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ● ●
324 PIPE; FUEL RETURN
(A) THA 		8-97287-516-3 01 1 0204-0408 ●
324 PIPE; FUEL RETURN
(A) THA 		8-97287-516-3 01 1 0409-0412 ●
324 PIPE; FUEL RETURN
(B) THA 		8-97287-515-2 01 1 0204-0408 ●
354 BOLT; FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 02 1 0204-0408 ● ●
354 BOLT; FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
çizim 116304
341 68 31 103 110 341 68 68 32 34 34 36 36 19 18 36 31 63 17 36 16 80 72 50 66 77 78 139 1 44 236 29 340 30 141 29 139 44 43 146 345 46 236 363 186 340 275 33 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PUMP ASM; INJ
COOLER WO/HEATER<YL1> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97288-268-4 01 1 0204-0408 ●
1 PUMP ASM; INJ
COOLER WO/HEATER<C65> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97288-268-4 01 1 0409-0412 ●
1 PUMP ASM; INJ
EXC. COOLER WO/HEATER<YL1> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97287-505-4 01 1 0204-0408 ●
1 PUMP ASM; INJ
VENTILATION RAM AIR<6TN> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THA 		8-97287-505-4 01 1 0409-0412 ●
1 PUMP ASM; INJ
IMA 		8-97214-093-5 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607-0608 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0609-0708 ● ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ● ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607-0608 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0609-0708 ● ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ● ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607-0608 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0609-0708 ● ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ● ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607-0608 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0609-0708 ● ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ● ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0204-0408 ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0409-0412 ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0204-0408 ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0409-0412 ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0204-0302 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501-0608 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0609-0708 ● ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0609-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0409-0412 ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0608 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0609-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0710-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
32 HOLDER ASM; NOZZLE
THA 		8-97217-835-0 04 1 0204-0408 ●
32 HOLDER ASM; NOZZLE
THA 		8-97217-835-0 04 1 0409-0412 ●
32 HOLDER ASM; NOZZLE
IMA 		8-97289-581-0 04 1 0204-0408 ●
33 NOZZLE; INJ
IMA 		8-97228-407-0 04 1 0204-0408 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-94320-307-0 04 1 0204-0408 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-94320-307-0 04 1 0409-0412 ●
34 BOLT; EYE,NOZZLE HOLDER
THA 		8-97238-601-0 04 1 0204-0408 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
THA 		1-15349-041-0 04 1 0204-0408 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
THA 		1-15349-041-0 04 1 0409-0412 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER
IMA 		8-97300-529-0 04 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97084-347-0 08 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97238-599-0 08 1 0204-0408 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
THA 		8-97084-347-0 08 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 THA 		8-97223-343-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 THA 		8-97223-343-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 THA 		8-97223-344-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.02 THA 		8-97223-344-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 THA 		8-97223-345-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.04 THA 		8-97223-345-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 THA 		8-97223-346-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.06 THA 		8-97223-346-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 THA 		8-97223-347-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.08 THA 		8-97223-347-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 THA 		8-97223-348-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 THA 		8-97223-348-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 THA 		8-97223-349-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.12 THA 		8-97223-349-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 THA 		8-97223-350-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.14 THA 		8-97223-350-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 THA 		8-97223-351-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.16 THA 		8-97223-351-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 THA 		8-97223-352-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.18 THA 		8-97223-352-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 THA 		8-97223-353-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.20 THA 		8-97223-353-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 THA 		8-97223-354-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.22 THA 		8-97223-354-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 THA 		8-97223-355-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.24 THA 		8-97223-355-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 THA 		8-97223-356-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.26 THA 		8-97223-356-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 THA 		8-97223-357-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.28 THA 		8-97223-357-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 THA 		8-97223-358-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.30 THA 		8-97223-358-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 THA 		8-97223-359-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.32 THA 		8-97223-359-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 THA 		8-97223-360-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.34 THA 		8-97223-360-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 THA 		8-97223-361-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.36 THA 		8-97223-361-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 THA 		8-97223-362-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.38 THA 		8-97223-362-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 THA 		8-97223-363-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.40 THA 		8-97223-363-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 THA 		8-97223-364-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.42 THA 		8-97223-364-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 THA 		8-97223-365-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.44 THA 		8-97223-365-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 THA 		8-97223-366-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.46 THA 		8-97223-366-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 THA 		8-97223-367-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.48 THA 		8-97223-367-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 THA 		8-97223-368-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.50 THA 		8-97223-368-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 THA 		8-97223-369-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.52 THA 		8-97223-369-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 THA 		8-97223-370-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.54 THA 		8-97223-370-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 THA 		8-97223-371-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.56 THA 		8-97223-371-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 THA 		8-97223-372-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.58 THA 		8-97223-372-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 THA 		8-97223-373-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.60 THA 		8-97223-373-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 THA 		8-97223-374-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.62 THA 		8-97223-374-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 THA 		8-97223-375-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.64 THA 		8-97223-375-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 THA 		8-97223-376-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.66 THA 		8-97223-376-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 THA 		8-97223-377-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.68 THA 		8-97223-377-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 THA 		8-97223-378-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.70 THA 		8-97223-378-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 THA 		8-97223-379-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.72 THA 		8-97223-379-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 THA 		8-97223-380-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.74 THA 		8-97223-380-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 THA 		8-97223-381-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.76 THA 		8-97223-381-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 THA 		8-97223-382-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.78 THA 		8-97223-382-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 THA 		8-97223-383-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.80 THA 		8-97223-383-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 THA 		8-97223-384-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.82 THA 		8-97223-384-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 THA 		8-97223-385-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.84 THA 		8-97223-385-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 THA 		8-97223-386-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.86 THA 		8-97223-386-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 THA 		8-97223-387-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.88 THA 		8-97223-387-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 THA 		8-97223-388-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.90 THA 		8-97223-388-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 THA 		8-97223-389-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.92 THA 		8-97223-389-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 THA 		8-97223-390-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.94 THA 		8-97223-390-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 THA 		8-97223-391-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.96 THA 		8-97223-391-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 THA 		8-97223-392-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.98 THA 		8-97223-392-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 THA 		8-97223-393-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) T=3.00 THA 		8-97223-393-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) THA 		8-97361-697-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) THA 		8-97361-697-0 04 1 0409-0412 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.66 IMA 		8-97288-027-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.67 IMA 		8-97288-028-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.68 IMA 		8-97288-029-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.69 IMA 		8-97288-031-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.70 IMA 		8-97288-032-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.71 IMA 		8-97288-033-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.72 IMA 		8-97288-034-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.73 IMA 		8-97288-035-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.74 IMA 		8-97288-036-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.75 IMA 		8-97288-037-0 04 1 0204-0408 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(C) L=2.76 IMA 		8-97288-038-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(C) THA 		1-15343-003-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(C) THA 		1-15343-003-0 04 1 0409-0412 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(B) IMA 		8-97300-503-0 04 1 0204-0408 ●
44 SPRING; NOZZLE,NOZZLE HOLDER
(A) IMA 		8-97300-504-0 04 1 0204-0408 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
IMA 		8-97300-651-0 08 1 0204-0408 ●
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0204-0408 ● ●
50 GASKET; NOZZLE HOLDER
THA 		8-97912-615-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0204-0408 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0608 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0609-0708 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
THA 		8-97920-028-0 04 1 0204-0408 ● ●
61 BOLT; CLAMP NOZZLE HOLDER
THA 		8-97920-028-0 04 1 0409-0412 ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97920-247-0 01 1 0204-0408 ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97920-247-0 01 1 0409-0412 ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0204-0408 ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0609 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501-0608 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0609-0708 ● ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0709-0709 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0710- ● ● ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER THA 		0-50551-020-0 02 1 0204-0408 ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER THA 		0-50551-020-0 02 1 0409-0412 ●
72 BOLT; BRKT TO INJ PUMP
M8X25 FLANGE THA 		0-28650-825-0 02 1 0204-0408 ●
77 RUBBER; SPACE,INJ PUMP
THA 		8-97942-632-0 01 1 0204-0308 ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE THA 		0-28650-820-0 02 1 0204-0408 ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE THA 		0-28650-820-0 02 1 0409-0412 ●
78 BOLT; BRKT TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 02 1 0204-0408 ●
80 BRACKET; PUMP
(B) THA 		8-97942-899-0 01 1 0204-0408 ●
80 BRACKET; PUMP
(B) THA 		8-97942-899-0 01 1 0409-0412 ●
80 BRACKET; PUMP
(A) THA 		8-97942-900-0 01 1 0204-0408 ●
80 BRACKET; PUMP
(A) THA 		8-97942-900-0 01 1 0409-0412 ●
80 BRACKET; PUMP
(C) THA 		8-97920-065-0 01 1 0204-0408 ●
103 WASHER; LK,CLIP,INJ PIPE
ID=6.1 THA 		9-09150-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0608 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ● ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.85 IMA 		8-97288-049-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.90 IMA 		8-97288-050-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.95 IMA 		8-97288-051-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.00 IMA 		8-97288-052-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.05 IMA 		8-97288-053-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.10 IMA 		8-97288-054-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.15 IMA 		8-97288-055-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.20 IMA 		8-97288-056-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.25 IMA 		8-97288-057-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.30 IMA 		8-97288-058-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.35 IMA 		8-97288-059-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.40 IMA 		8-97288-060-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.45 IMA 		8-97288-061-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.50 IMA 		8-97288-062-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.55 IMA 		8-97288-063-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.60 IMA 		8-97288-064-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.65 IMA 		8-97288-065-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.70 IMA 		8-97288-066-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.75 IMA 		8-97288-067-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.80 IMA 		8-97288-068-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.85 IMA 		8-97288-069-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.90 IMA 		8-97288-070-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=1.95 IMA 		8-97288-071-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.00 IMA 		8-97288-072-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.05 IMA 		8-97288-073-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.10 IMA 		8-97288-074-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.15 IMA 		8-97288-075-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(A) T=2.20 IMA 		8-97288-076-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.00 IMA 		8-97288-077-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.05 IMA 		8-97288-078-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.10 IMA 		8-97288-079-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.15 IMA 		8-97288-080-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.20 IMA 		8-97288-081-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.25 IMA 		8-97288-082-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.30 IMA 		8-97288-083-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.35 IMA 		8-97288-084-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.40 IMA 		8-97288-085-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.45 IMA 		8-97288-086-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.50 IMA 		8-97288-087-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.55 IMA 		8-97288-088-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.60 IMA 		8-97288-089-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.65 IMA 		8-97288-090-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.70 IMA 		8-97288-091-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.75 IMA 		8-97288-092-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.80 IMA 		8-97288-093-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.85 IMA 		8-97288-094-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.90 IMA 		8-97288-095-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.95 IMA 		8-97288-096-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.00 IMA 		8-97288-097-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.05 IMA 		8-97288-098-0 04 1 0204-0408 ●
139 WASHER; NOZZLE SPRING,NOZZLE HOLDER
(B) T=2.10 IMA 		8-97288-099-0 04 1 0204-0408 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
IMA 		8-97300-502-0 04 1 0204-0408 ●
146 SPACER; NOZZLE
IMA 		8-97300-650-0 04 1 0204-0408 ●
186 GEAR; INJ PUMP
THA 		8-97322-652-0 01 1 0204-0408 ●
186 GEAR; INJ PUMP
THA 		8-97322-652-0 01 1 0409-0412 ●
186 GEAR; INJ PUMP
THA 		8-97322-651-0 01 1 0204-0408 ●
236 BOLT; COVER
(A) M6X30 FLANGE THA 		0-28650-630-0 02 1 0204-0408 ●
236 BOLT; COVER
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 0204-0408 ●
275 COVER; INJ PUMP
THA 		8-97287-510-3 01 1 0204-0408 ●
340 RUBBER; MTG
(A) OD=22 THA 		8-94140-428-1 02 1 0204-0408 ●
340 RUBBER; MTG
(B) IMA 		8-97168-200-1 02 1 0204-0408 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97287-511-2 01 1 0204-0408 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97287-511-2 01 1 0409-0412 ●
341 BRACKET; CLIP,INJ PIPE
(A) INJ PIPE NO.3,4 THA 		8-97920-070-0 01 1 0204-0408 ● ●
341 BRACKET; CLIP,INJ PIPE
(A) INJ PIPE NO.3,4 THA 		8-97920-070-0 01 1 0409-0412 ●
341 BRACKET; CLIP,INJ PIPE
(B) INJ PIPE NO.1,2 THA 		8-97920-071-1 01 1 0204-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.400 IMA 		8-97288-041-0 04 1 0204-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.425 IMA 		8-97288-043-0 04 1 0204-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.450 IMA 		8-97288-044-0 04 1 0204-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.475 IMA 		8-97288-045-0 04 1 0204-0408 ●
345 WASHER; NOZZLE HOLDER
T=2.500 IMA 		8-97288-046-0 04 1 0204-0408 ●
363 GUIDE
OD=13 T=9.5 THA 		8-94140-427-1 02 1 0204-0408 ●
çizim 116305
411 290 410 411 290 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ● ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0409-0412 ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0607- ● ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501- ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0607-0608 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ● ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710- ● ● ●
çizim 116307
137 29 122 122 137 30 29 29 31 166 122 30 9 110 137 122 29 313 137 68 68 29 30 29 29 59 347 66 19 18 30 17 29 137 16 127 29 30 282 29 211 283 137 410 411 290 205 219 210 283 409 424 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0409-0412 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0501-0608 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0609-0708 ● ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0709-0709 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0710- ● ● ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607-0608 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0609-0708 ● ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ● ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607-0608 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0609-0708 ● ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ● ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607-0608 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0609-0708 ● ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ● ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607-0608 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0609-0708 ● ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ● ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0204-0408 ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0409-0412 ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0204-0408 ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0409-0412 ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0204-0302 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501-0608 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0609-0708 ● ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0609-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0409-0412 ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0608 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0609-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0710-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0204-0408 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0608 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0609-0708 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0204-0408 ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0609 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501-0608 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0609-0708 ● ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0709-0709 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0710- ● ● ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0608 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0409-0412 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0501-0608 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0609-0708 ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0709-0709 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0710- ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0608 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0710- ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0409-0412 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0501-0608 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0609-0708 ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0709-0709 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0710- ● ● ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0508-0608 ● ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0609-0611 ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0612-0708 ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0709-0709 ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0710- ● ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0409-0412 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0501-0608 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0609-0708 ● ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0709-0709 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0710- ● ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-1 01 1 0409-0412 ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0501-0606 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0607-0608 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0609-0708 ● ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0710- ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0409-0412 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0501-0608 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0609-0708 ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0709-0709 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0710- ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0409-0412 ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0501-0606 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0607-0608 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0609-0708 ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0709-0709 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0710- ● ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501-0608 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0609-0708 ● ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0709-0709 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0710- ● ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0501-0608 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0609-0708 ● ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0709-0709 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0710- ● ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0409-0412 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0501-0608 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0609-0707 ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708-0708 ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0709-0709 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0710- ● ● ●
347 PIN
THA 		8-97383-286-0 04 1 0409-0412 ●
347 PIN
THA 		8-97383-286-0 04 1 0501-0608 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0609-0708 ● ● ●
347 PIN
THA 		8-97383-286-0 04 1 0709-0709 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0710-1012 ● ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-4 01 1 0409-0412 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-5 01 1 0501-0608 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0609-0708 ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0709-0709 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0710-1008 ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-1 01 1 1009- ● ● ●
409 PLATE; SENSOR
THA 		8-97377-206-0 01 1 0409-0412 ●
409 PLATE; SENSOR
THA 		8-97377-206-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0409-0412 ●
410 BRACKET; SENSOR
THA 		8-97374-929-0 01 1 0501-0606 ● ●
410 BRACKET; SENSOR
THA 		8-98013-801-1 01 1 0607- ● ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
411 BOLT; SENSOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501- ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0607-0608 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ● ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0709-0709 ● ●
411 BOLT; SENSOR
M6X20 FLANGE THA 		0-28650-620-0 02 1 0710- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0409-0412 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0501-0608 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0609-0708 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0709-0709 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0710-0808 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0809-0905 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0906- ● ● ●
çizim 116308
122 137 29 122 137 30 122 313 29 59 66 347 30 29 29 137 122 29 137 29 29 30 31 166 68 68 9 110 30 29 137 29 30 29 127 282 16 17 18 19 211 216 199 199 290 288 289 283 137 210 283 408 216 175 175 329 205 424 382 219 445
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0409-0412 ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-0 02 1 0501-0608 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0609-0708 ● ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0709-0709 ● ●
9 STUD; CLIP
M6X25 L=36 THA 		8-97214-234-1 02 1 0710- ● ● ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97287-521-0 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97920-022-2 01 1 0204-0408 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0409-0412 ●
16 PIPE; INJ NO.1
THA 		8-97312-099-2 01 1 0501-0606 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0607-0608 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0609-0708 ● ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0709-0709 ● ●
16 PIPE; INJ NO.1
THA 		8-98011-606-0 01 1 0710- ● ● ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97287-522-0 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97920-023-2 01 1 0204-0408 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0409-0412 ●
17 PIPE; INJ NO.2
THA 		8-97312-100-2 01 1 0501-0606 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0607-0608 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0609-0708 ● ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0709-0709 ● ●
17 PIPE; INJ NO.2
THA 		8-98043-684-0 01 1 0710- ● ● ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97287-523-0 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97920-024-2 01 1 0204-0408 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0409-0412 ●
18 PIPE; INJ NO.3
THA 		8-97312-101-2 01 1 0501-0606 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0607-0608 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0609-0708 ● ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0709-0709 ● ●
18 PIPE; INJ NO.3
THA 		8-98011-608-0 01 1 0710- ● ● ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97287-524-0 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97920-025-2 01 1 0204-0408 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0409-0412 ●
19 PIPE; INJ NO.4
THA 		8-97312-102-2 01 1 0501-0606 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0607-0608 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0609-0708 ● ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0709-0709 ● ●
19 PIPE; INJ NO.4
THA 		8-98011-609-0 01 1 0710- ● ● ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0204-0408 ●
29 CLIP; HOSE
(B) ID=13.8 IMA 		8-97306-552-0 02 1 0409-0412 ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0204-0408 ● ●
29 CLIP; HOSE
(A) ID=12 IMA 		8-94238-610-0 04 1 0409-0412 ●
29 CLIP; HOSE
(B) ID=19 IMA 		8-94238-569-0 02 1 0204-0302 ●
29 CLIP; HOSE
(B) ID=17.1 IMA 		8-94122-679-0 02 1 0303-0408 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0409-0412 ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0501-0608 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0609-0708 ● ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0709-0709 ● ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 10 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=90 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(C) IMA 		8-97328-162-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) IRC THA 		8-97912-624-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0204-0408 ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) PCR THA 		8-97912-625-1 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 THA 		0-01256-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 IMA 		0-01804-130-0 01 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=130 THA 		8-98053-692-0 01 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=270 SERVICED BY L=3000 IMA 		0-01262-300-0 01 1 0204-0408 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=98 IMA 		8-97354-652-0 03 1 0609-0611 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0612-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=96 THA 		8-98053-693-0 03 1 0710- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0409-0412 ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0501-0608 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0609-0708 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0709-0709 ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=150 IMA 		8-97362-306-2 01 1 0710-0810 ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) THA 		8-98112-034-0 01 1 0811- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97217-642-0 04 1 0409-0412 ●
31 NOZZLE ASM; INJ
THA 		8-97354-811-1 04 1 0501-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-0 04 1 0607-0704 ●
31 NOZZLE ASM; INJ
THA 		8-98055-863-3 04 1 0705-1306 ●
31 NOZZLE ASM; INJ
THA 		8-98011-605-5 04 1 1307- ●
31 NOZZLE ASM; INJ
IMA 		8-97226-335-2 04 1 0204-0408 ●
31 NOZZLE ASM; INJ
THA 		8-97311-372-4 04 1 0409-0606 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0607-0608 ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-0 04 1 0609-0704 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0705-0708 ● ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-0 04 1 0709-0709 ●
31 NOZZLE ASM; INJ
THA 		8-98055-862-3 04 1 0710-1306 ● ●
31 NOZZLE ASM; INJ
THA 		8-98011-604-5 04 1 1307- ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0204-0408 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97920-006-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0409-0412 ●
59 CLAMP; NOZZLE HOLDER
THA 		8-97374-468-0 04 1 0501-0606 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0607-0608 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0609-0708 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0709-0709 ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98011-528-2 04 1 0710-0710 ● ● ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 0711- ● ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0204-0408 ● ●
66 GASKET; INJ NOZZLE
ID=7.2 OD=15.0 T=6.6 THA 		8-97171-331-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0409-0412 ●
66 GASKET; INJ NOZZLE
THA 		8-97251-334-0 04 1 0501-0608 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0609 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98057-731-0 04 1 0609-0701 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0702-0708 ● ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0709-0709 ● ●
66 GASKET; INJ NOZZLE
THA 		8-98077-165-0 04 1 0710-1012 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1101- ● ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(A) THA 		1-09701-132-1 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0204-0408 ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97224-041-1 01 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0409-0412 ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0501-0608 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0609-0708 ● ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0709-0709 ● ●
68 CLIP; INJ PIPE
(C) THA 		8-97213-481-0 04 1 0710- ● ● ●
110 NUT; CLIP
M6 IMA 		0-91110-506-0 02 1 0204-0406 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0407-0408 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0409-0412 ●
110 NUT; CLIP
M6 FLANGE THA 		0-91150-106-0 02 1 0501-0605 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0606-0608 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0609-0708 ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0709-0709 ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 0710- ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0409-0412 ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0501-0608 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0609-0708 ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0709-0709 ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 0710- ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0501-0608 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0609-0708 ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0709-0709 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE THA 		0-28050-812-0 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-1 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-97315-230-2 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-1 03 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-97315-231-2 03 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-3 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-97357-916-4 01 1 0710- ● ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0409-0412 ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-2 01 1 0501-0608 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0609-0708 ● ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0709-0709 ● ●
137 PIPE ASM; LEAK OFF
(D) THA 		8-97372-938-3 01 1 0710- ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0409-0412 ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0501-0608 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0609-0708 ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0709-0709 ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 0710- ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0612-0707 ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0709-0709 ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 0710- ● ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0607-0608 ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0609-0708 ● ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0709-0709 ● ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 0710- ● ● ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0508-0608 ● ●
205 SENSOR; FUEL TEMP
THA 		8-97216-283-0 01 1 0609-0611 ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0612-0708 ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0709-0709 ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 0710- ● ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0409-0412 ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0501-0608 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0609-0708 ● ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0709-0709 ● ●
210 PIPE; INJ,C/R
THA 		8-97388-902-0 01 1 0710- ● ● ●
211 RAIL ASM; COMMON
THA 		8-97311-370-1 01 1 0409-0412 ●
211 RAIL ASM; COMMON
THA 		8-97311-370-2 01 1 0501-0606 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0607-0608 ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-0 01 1 0609-0708 ● ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-0 01 1 0709-0709 ● ●
211 RAIL ASM; COMMON
THA 		8-98052-238-1 01 1 0710- ● ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0612-0707 ● ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0709-0709 ● ●
216 BOLT; EYE
(B) THA 		8-98056-937-0 01 1 0710-0808 ● ● ●
216 BOLT; EYE
(B) THA 		9-88130-088-0 01 1 0809- ● ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0607-0608 ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0609-0708 ● ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0709-0709 ● ●
216 BOLT; EYE
(A) IMA 		8-98043-033-0 01 1 0710- ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0409-0412 ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0501-0608 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0609-0708 ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0709-0709 ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 0710- ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0409-0412 ●
282 BRACKET; COMMON RAIL
THA 		8-97312-104-4 01 1 0501-0606 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0607-0608 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0609-0708 ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0709-0709 ● ●
282 BRACKET; COMMON RAIL
THA 		8-98011-890-1 01 1 0710- ● ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501-0608 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0609-0708 ● ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0709-0709 ● ●
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 0710- ● ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0409-0412 ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0501-0608 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0609-0708 ● ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0709-0709 ● ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE THA 		8-97354-584-0 02 1 0710- ● ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0607-0608 ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0609-0708 ● ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0709-0709 ● ●
288 GASKET
ID=11 OD=16.3 IMA 		1-15641-046-0 01 1 0710- ● ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0607-0608 ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0609-0708 ● ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0709-0709 ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 0710- ● ● ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0409-0412 ●
290 SENSOR; PRESS
(A) THA 		8-09350-899-1 01 1 0501-0606 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 0710- ● ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0607-0608 ● ●
290 SENSOR; PRESS
(C) IMA 		8-97318-684-0 01 1 0609-0708 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0709-0709 ● ●
290 SENSOR; PRESS
(C) THA 		8-98014-320-0 01 1 0710-1208 ● ● ●
290 SENSOR; PRESS
(C) THA 		8-98181-616-0 01 1 1209- ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0409-0412 ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0501-0608 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-97372-144-0 04 1 0609-0707 ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0708-0708 ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0709-0709 ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER THA 		8-98095-575-0 04 1 0710- ● ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 0709-0709 ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 0710- ● ● ●
347 PIN
THA 		8-97383-286-0 04 1 0409-0412 ●
347 PIN
THA 		8-97383-286-0 04 1 0501-0608 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0609-0708 ● ● ●
347 PIN
THA 		8-97383-286-0 04 1 0709-0709 ● ●
347 PIN
THA 		8-97383-286-0 04 1 0710-1012 ● ● ●
347 PIN
THA 		8-98165-035-0 04 1 1101- ● ● ●
382 KEY; DRIVE SHAFT
THA 		8-97375-384-0 01 1 1009- ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-4 01 1 0409-0412 ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-5 01 1 0501-0608 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0609-0708 ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-7 01 1 0709-0709 ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-97311-373-9 01 1 0710-1008 ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-1 01 1 1009- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0409-0412 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0501-0608 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0609-0708 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0709-0709 ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER THA 		8-98145-453-0 01 1 0710-0808 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0809-0905 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-0 01 1 0906- ● ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
