◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#72802) — 625 parça

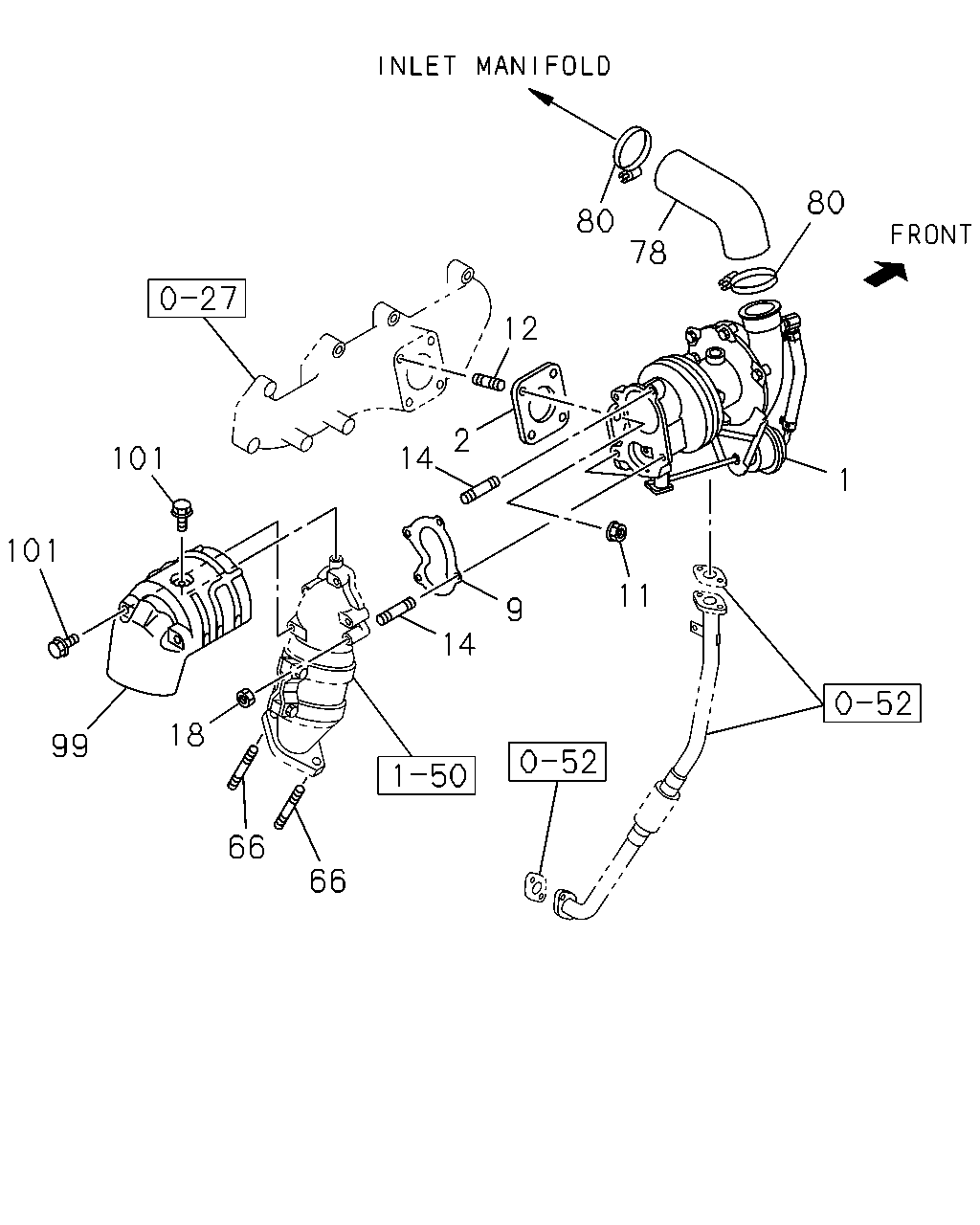

çizim 116296
80 80 78 12 2 101 14 1 101 11 9 14 18 99 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
1 TURBOCHARGER ASM
THA 		8-97240-210-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0409-0412 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97226-338-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-3 01 1 0609-0708 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-7 01 1 0710-1008 ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-98132-073-0 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501-0608 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0609-0708 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0709-0709 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0710-1008 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-697-0 01 1 1009- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-775-0 01 1 0204-0408 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-775-0 01 1 0409-0412 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-694-0 01 1 0204-0408 ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0710- ● ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0204-0408 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0710- ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0710- ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 THA 		8-97104-507-1 04 1 0204-0408 ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 THA 		8-97104-507-1 04 1 0409-0409 ●
18 NUT; EXH PIPE
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
18 NUT; EXH PIPE
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0204-0408 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511-0608 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0609-0708 ● ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0709-0709 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0710- ● ● ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97096-628-3 01 1 0204-0408 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97096-628-3 01 1 0409-0412 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97254-750-0 01 1 0204-0302 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97942-956-0 01 1 0303-0408 ●
80 CLIP; CONN HOSE,TURBOCHARGER
ID=44-60 THA 		8-94175-940-0 02 1 0204-0408 ● ●
80 CLIP; CONN HOSE,TURBOCHARGER
ID=44-60 THA 		8-94175-940-0 02 1 0409-0412 ●
99 PROTECTOR; HEAT
THA 		8-97318-472-0 01 1 0204-0408 ●
99 PROTECTOR; HEAT
THA 		8-97318-472-0 01 1 0409-0412 ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0204-0408 ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0409-0412 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0609-0708 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0710- ●

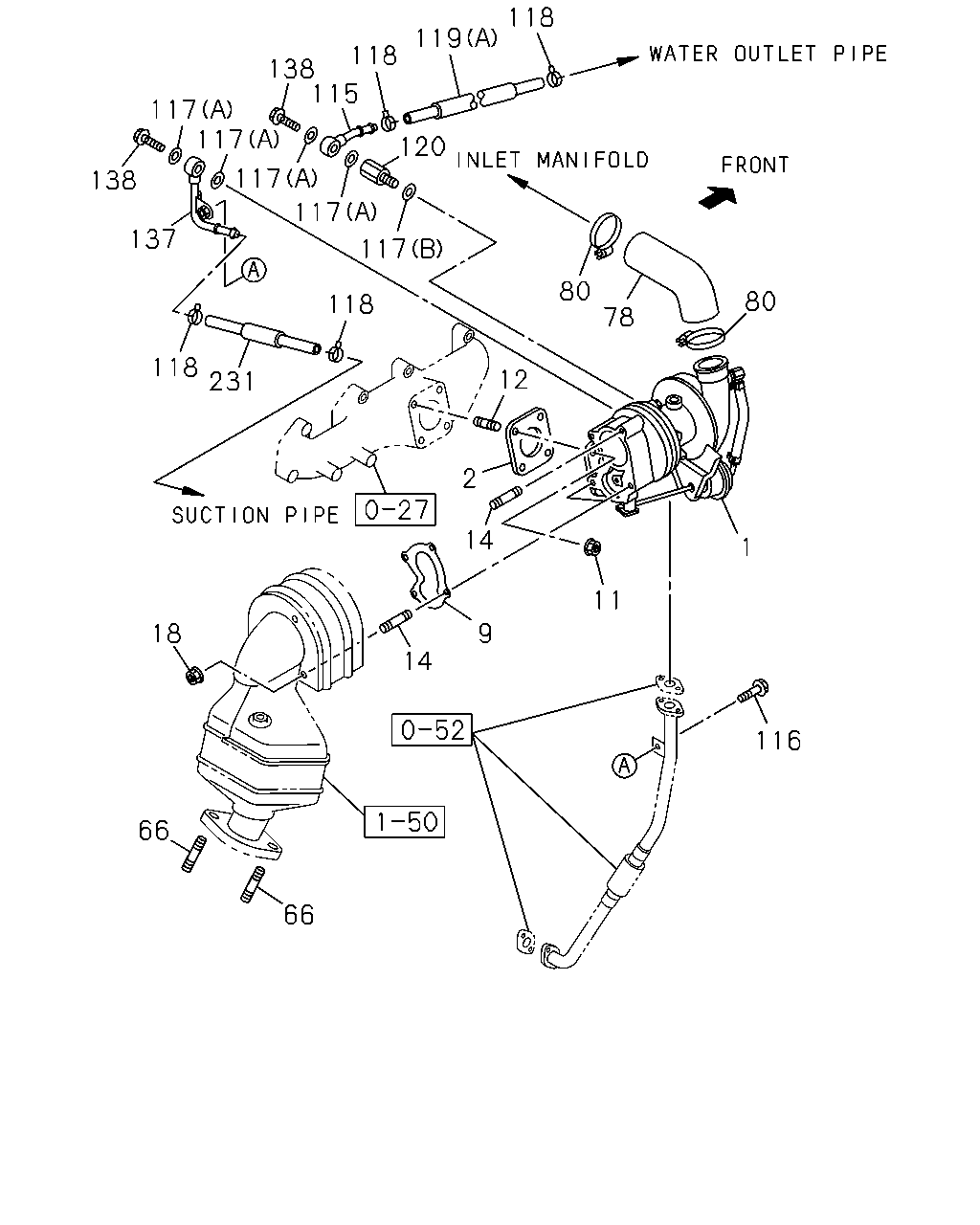

çizim 116297
118 119 118 138 115 117 117 120 117 138 117 137 117 80 80 118 78 118 231 12 2 14 1 11 18 9 14 116 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
1 TURBOCHARGER ASM
THA 		8-97240-210-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0409-0412 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97226-338-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-3 01 1 0609-0708 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-7 01 1 0710-1008 ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-98132-073-0 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501-0608 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0609-0708 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0709-0709 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0710-1008 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-697-0 01 1 1009- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-775-0 01 1 0204-0408 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-775-0 01 1 0409-0412 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
THA 		8-97912-694-0 01 1 0204-0408 ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0710- ● ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0204-0408 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0710- ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0710- ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 THA 		8-97104-507-1 04 1 0204-0408 ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 THA 		8-97104-507-1 04 1 0409-0409 ●
18 NUT; EXH PIPE
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
18 NUT; EXH PIPE
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0204-0408 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511-0608 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0609-0708 ● ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0709-0709 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0710- ● ● ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97096-628-3 01 1 0204-0408 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97096-628-3 01 1 0409-0412 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97254-750-0 01 1 0204-0302 ●
78 HOSE; INL PIPE,TURBOCHARGER
THA 		8-97942-956-0 01 1 0303-0408 ●
80 CLIP; CONN HOSE,TURBOCHARGER
ID=44-60 THA 		8-94175-940-0 02 1 0204-0408 ● ●
80 CLIP; CONN HOSE,TURBOCHARGER
ID=44-60 THA 		8-94175-940-0 02 1 0409-0412 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97920-034-0 01 1 0204-0408 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0409-0412 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0501-0606 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98011-902-0 01 1 0607- ● ●
116 BOLT; WATER PIPE
M6X12 W/LK WASHER THA 		0-50540-612-0 01 1 0204-0408 ●
117 GASKET; WATER PIPE
(B) T=2.5 THA 		8-97920-063-0 01 1 0204-0408 ●
117 GASKET; WATER PIPE
(A) ID=12.2 IMA 		9-09571-412-0 04 1 0204-0408 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0409-0412 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0501- ● ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0609-0708 ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0710-1008 ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0204-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501-0608 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0609-0708 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0609-0708 ● ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0709-0709 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0710-1008 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ● ●
118 CLIP; WATER HOSE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1107- ● ●
118 CLIP; WATER HOSE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1107- ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0710- ● ● ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0609-0708 ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0710-1008 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0204-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710-1008 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0710- ● ● ●
120 ADAPTER; WATER
THA 		8-97920-062-0 01 1 0204-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97920-035-0 01 1 0204-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0409-0412 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0501-0606 ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98011-903-0 01 1 0607- ● ●
138 BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0204-0408 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0409-0412 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0501-0606 ● ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 0607- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0204-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710- ● ● ●

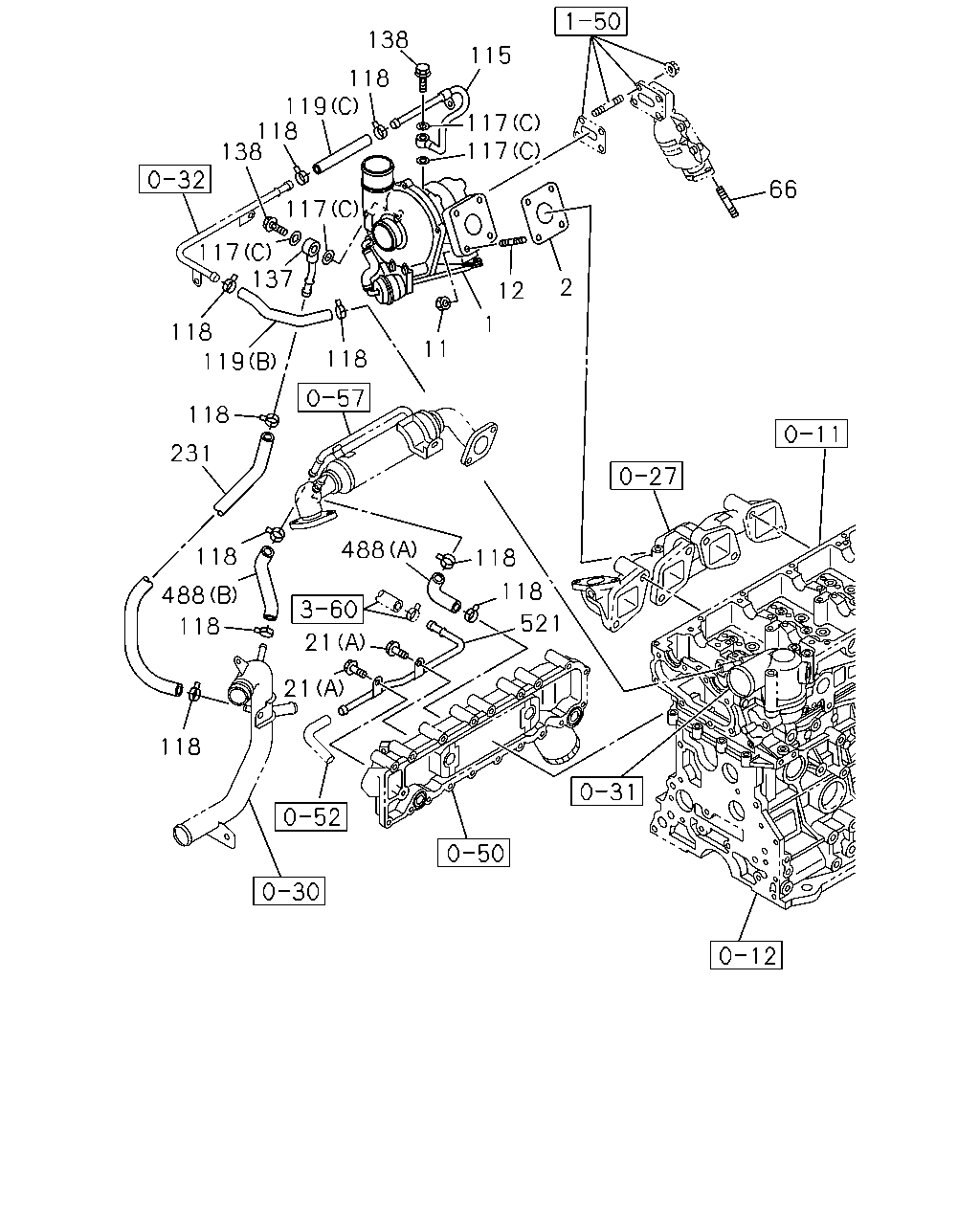

çizim 116298
138 115 118 119 118 138 117 117 66 117 117 137 2 12 1 118 11 118 119 118 231 488 118 118 118 488 521 118 21 21 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
1 TURBOCHARGER ASM
THA 		8-97240-210-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0409-0412 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97226-338-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-3 01 1 0609-0708 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-7 01 1 0710-1008 ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-98132-073-0 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501-0608 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0609-0708 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0709-0709 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0710-1008 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-697-0 01 1 1009- ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0710- ● ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0204-0408 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0710- ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0710- ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0609-0708 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0609-0708 ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0710-1008 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1008 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0710-1008 ●
21 BOLT; PIPE
(D) M6X45 FLANGE THA 		0-28050-645-0 02 1 1009- ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0204-0408 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511-0608 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0609-0708 ● ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0709-0709 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0710- ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97920-034-0 01 1 0204-0408 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0409-0412 ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-97312-288-1 01 1 0501-0606 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98011-902-0 01 1 0607- ● ●
117 GASKET; WATER PIPE
(B) T=2.5 THA 		8-97920-063-0 01 1 0204-0408 ●
117 GASKET; WATER PIPE
(A) ID=12.2 IMA 		9-09571-412-0 04 1 0204-0408 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0409-0412 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0501- ● ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0609-0708 ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0710-1008 ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0204-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501-0608 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0609-0708 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0609-0708 ● ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0709-0709 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0710-1008 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ● ●
118 CLIP; WATER HOSE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1107- ● ●
118 CLIP; WATER HOSE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1107- ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0710- ● ● ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0609-0708 ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0710-1008 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0204-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710-1008 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0710- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97920-035-0 01 1 0204-0408 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0409-0412 ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-97312-289-2 01 1 0501-0606 ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98011-903-0 01 1 0607- ● ●
138 BOLT; EYE,WATER PIPE
M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 0204-0408 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0409-0412 ●
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT IMA 		1-09675-193-0 02 1 0501-0606 ● ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 0607- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0204-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710- ● ● ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ● ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0609-0708 ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(B) L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0710-1008 ●
521 PIPE; VAC
THA 		8-97357-847-3 01 1 0409-0412 ●
521 PIPE; VAC
THA 		8-97357-847-3 01 1 0501-0606 ● ●

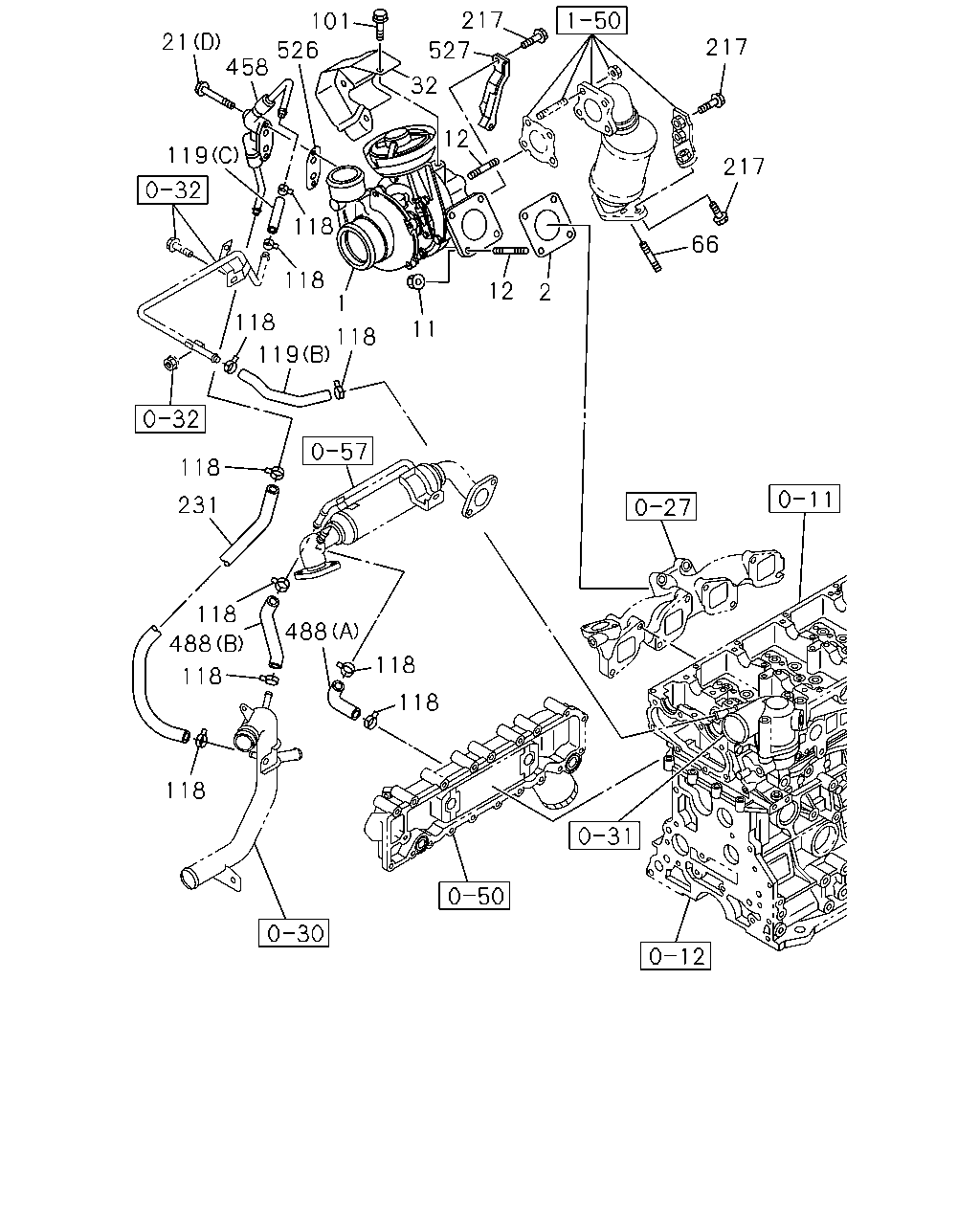

çizim 116299
217 101 21 526 458 217 527 32 12 119 217 118 66 118 12 2 1 118 11 118 119 118 231 118 488 488 118 118 118 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
1 TURBOCHARGER ASM
THA 		8-97240-210-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0409-0412 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97226-338-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-3 01 1 0609-0708 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-7 01 1 0710-1008 ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-98132-073-0 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501-0608 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0609-0708 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0709-0709 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0710-1008 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-697-0 01 1 1009- ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0710- ● ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0204-0408 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0710- ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0710- ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0609-0708 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0609-0708 ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0710-1008 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1008 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0710-1008 ●
21 BOLT; PIPE
(D) M6X45 FLANGE THA 		0-28050-645-0 02 1 1009- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98057-857-0 01 1 0609-0708 ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98057-857-0 01 1 0710-1008 ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1009- ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0204-0408 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511-0608 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0609-0708 ● ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0709-0709 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0710- ● ● ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0204-0408 ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0409-0412 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0609-0708 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0710- ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0204-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501-0608 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0609-0708 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0609-0708 ● ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0709-0709 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0710-1008 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ● ●
118 CLIP; WATER HOSE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1107- ● ●
118 CLIP; WATER HOSE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1107- ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0710- ● ● ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0609-0708 ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0710-1008 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0204-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710-1008 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0710- ● ● ●
217 BOLT; BRKT
M8X60 FLANGE THA 		0-28050-860-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ●
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X28 FLANGE THA 		8-98041-363-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X60 FLANGE THA 		0-28050-860-0 01 1 0710-1008 ●
217 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 1009- ●
217 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ●
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 0710- ●
217 BOLT; BRKT
M8X28 FLANGE THA 		8-98041-363-0 01 1 0710- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0204-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710- ● ● ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98031-001-0 01 1 0609-0708 ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98031-001-0 01 1 0710-1008 ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98132-035-2 01 1 1009- ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ● ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0609-0708 ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(B) L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0710-1008 ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 0609-0708 ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 0710- ●
527 BRACKET; TURBOCHARGER
THA 		8-98011-536-1 01 1 0609-0708 ●
527 BRACKET; TURBOCHARGER
THA 		8-98011-536-1 01 1 0710-1008 ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1009- ●

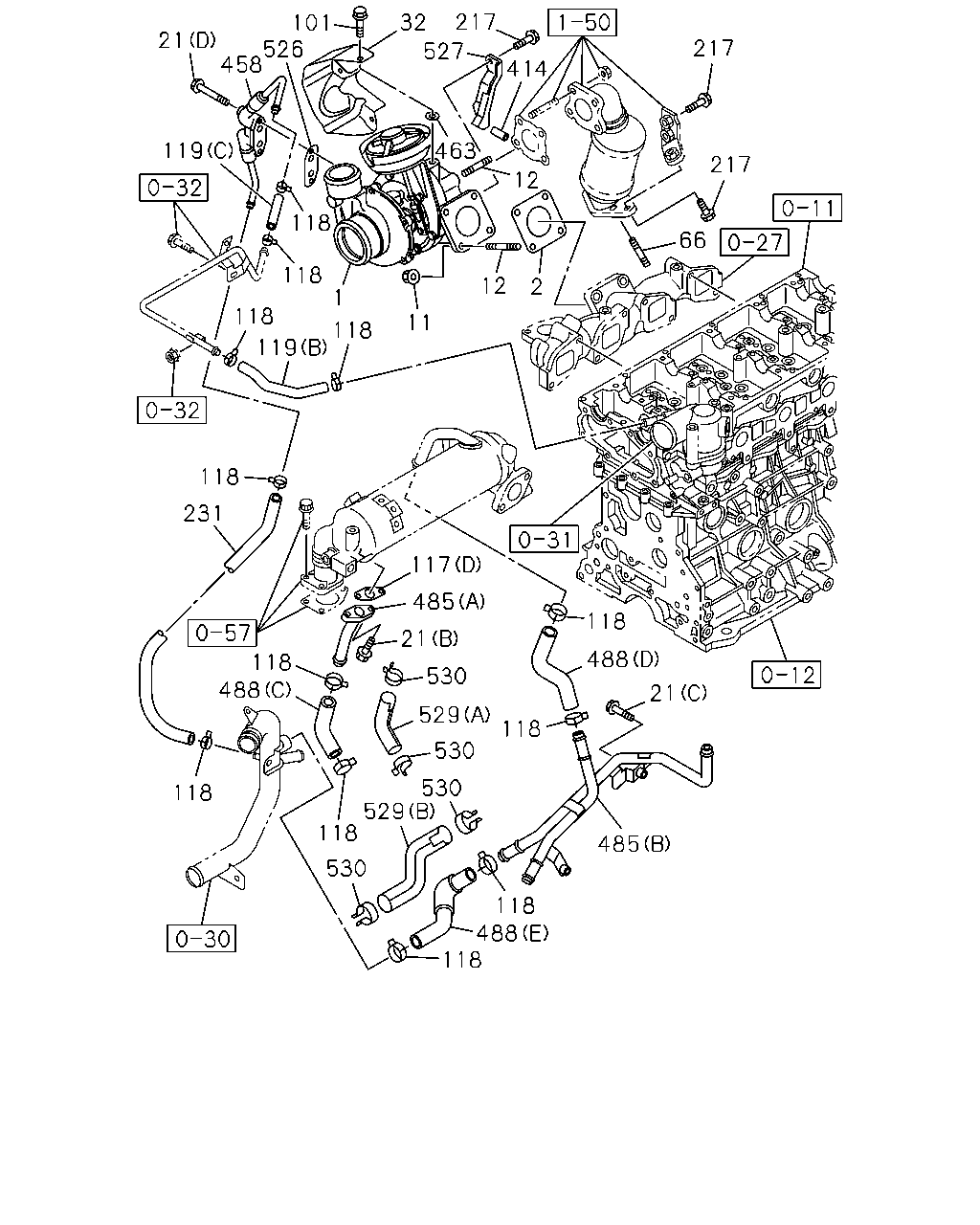

çizim 116300
217 32 101 21 526 458 217 527 414 119 463 12 217 118 66 118 12 2 1 118 11 118 119 118 231 117 485 118 21 488 118 488 530 21 529 118 530 530 529 118 118 485 530 118 488 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-892-3 01 1 0607- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98011-893-4 01 1 0607- ●
1 TURBOCHARGER ASM
THA 		8-97240-210-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
THA 		8-97943-195-1 01 1 0409-0412 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97373-777-1 01 1 0501-0606 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97226-338-1 01 1 0204-0211 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97943-196-1 01 1 0212-0408 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97355-408-3 01 1 0409-0606 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-3 01 1 0609-0708 ●
1 TURBOCHARGER ASM
THA 		8-98011-529-7 01 1 0710-1008 ●
1 TURBOCHARGER ASM
THA 		8-98132-069-2 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-98132-073-0 01 1 1009- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-716-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0204-0408 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0409-0412 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0501-0608 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0609-0708 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0709-0709 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-97912-697-0 01 1 0710-1008 ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97912-697-0 01 1 1009- ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0204-0408 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97161-607-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0409-0412 ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0501-0608 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0609-0708 ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0709-0709 ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 0710- ● ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0204-0408 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97104-508-1 04 1 0409-0409 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0410-0412 ● ●
12 STUD; TURBOCHARGER
M8X20 L=31 THA 		8-97378-060-0 04 1 0501- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0609-0708 ●
12 STUD; TURBOCHARGER
M8X25 L=36 THA 		8-97378-062-0 02 1 0710- ●
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 0710- ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0409-0412 ●
21 BOLT; PIPE
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 0501-0606 ● ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0609-0708 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0609-0708 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0609-0708 ●
21 BOLT; PIPE
(D) M6X40 FLANGE IMA 		0-28050-640-0 02 1 0710-1008 ●
21 BOLT; PIPE
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0710-1008 ●
21 BOLT; PIPE
(C) M8X40 FLANGE THA 		0-28650-840-0 02 1 0710-1008 ●
21 BOLT; PIPE
(D) M6X45 FLANGE THA 		0-28050-645-0 02 1 1009- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98057-857-0 01 1 0609-0708 ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98057-857-0 01 1 0710-1008 ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1009- ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0204-0408 ● ●
66 STUD; EXH PIPE
M10X30 L=45 THA 		0-49241-030-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0409-0412 ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0501-0509 ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0510-0510 ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0511-0608 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0609-0708 ● ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0709-0709 ● ●
66 STUD; EXH PIPE
M10X22 L=43 THA 		0-43211-022-0 02 1 0710- ● ● ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0204-0408 ●
101 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 03 1 0409-0412 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0609-0708 ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0710- ●
117 GASKET; WATER PIPE
(B) T=2.5 THA 		8-97920-063-0 01 1 0204-0408 ●
117 GASKET; WATER PIPE
(A) ID=12.2 IMA 		9-09571-412-0 04 1 0204-0408 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0409-0412 ●
117 GASKET; WATER PIPE
(C) ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 0501- ● ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0609-0708 ●
117 GASKET; WATER PIPE
(D) IMA 		8-97262-117-0 01 1 0710-1008 ●
118 CLIP; WATER HOSE
ID=12.8 IMA 		8-94367-943-0 04 1 0204-0408 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0409-0412 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0501-0608 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0609-0708 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0609-0708 ● ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 10 1 0709-0709 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 0710-1008 ● ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ● ●
118 CLIP; WATER HOSE
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> ID=12.8 THA 		8-97944-125-0 04 1 1009-1106 ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 04 1 1107- ● ●
118 CLIP; WATER HOSE
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> ID=12.8 THA 		8-97944-125-0 04 1 1107- ●
118 CLIP; WATER HOSE
ID=12.8 THA 		8-97944-125-0 06 1 0710- ● ● ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0609-0708 ●
118 CLIP; WATER HOSE
ID=20.8 THA 		8-97944-127-0 06 1 0710-1008 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
119 HOSE; WATER,TURBOCHARGER
(A) L=250 W/INSULATOR THA 		8-97912-688-1 01 1 0204-0408 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(C) L=100 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710-1008 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(C) L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0409-0412 ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0501-0608 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0609-0708 ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0709-0709 ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-97369-590-1 01 1 0710- ● ● ●
217 BOLT; BRKT
M8X60 FLANGE THA 		0-28050-860-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ●
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X28 FLANGE THA 		8-98041-363-0 01 1 0609-0708 ●
217 BOLT; BRKT
M8X60 FLANGE THA 		0-28050-860-0 01 1 0710-1008 ●
217 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 1009- ●
217 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ●
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 0710- ●
217 BOLT; BRKT
M8X28 FLANGE THA 		8-98041-363-0 01 1 0710- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR THA 		8-97912-684-0 01 1 0204-0408 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-0606 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0607-0608 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0609-0708 ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0709-0709 ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0710- ● ● ●
414 SPACER
THA 		8-98059-266-0 01 1 0609-0708 ●
414 SPACER
THA 		8-98059-266-0 01 1 0710-1008 ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98031-001-0 01 1 0609-0708 ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98031-001-0 01 1 0710-1008 ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98132-035-2 01 1 1009- ●
463 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=22 THA 		0-91614-708-0 01 1 0609-0708 ●
463 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=22 THA 		0-91614-708-0 01 1 0710-1008 ●
485 PIPE; WATER EGR
(A) THA 		8-98011-517-0 01 1 0609-0708 ●
485 PIPE; WATER EGR
(B) THA 		8-98020-208-2 01 1 0609-0708 ●
485 PIPE; WATER EGR
(A) THA 		8-98011-517-0 01 1 0710-1008 ●
485 PIPE; WATER EGR
(B) THA 		8-98020-208-2 01 1 0710-1008 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ● ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> 4X4 DOUBLE CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (A) L=150 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0409-0412 ●
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 0501-1008 ● ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009-1106 ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> (B) L=170 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1107- ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0609-0708 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0609-0708 ●
488 HOSE; RUBBER
(C) THA 		8-98011-632-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(B) L=220 SERVICED BY L=3000 IMA 		0-03559-300-0 01 1 1009- ●
488 HOSE; RUBBER
(D) THA 		8-98011-633-1 01 1 0710-1008 ●
488 HOSE; RUBBER
(E) THA 		8-98031-860-0 01 1 0710-1008 ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 0609-0708 ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 0710- ●
527 BRACKET; TURBOCHARGER
THA 		8-98011-536-1 01 1 0609-0708 ●
527 BRACKET; TURBOCHARGER
THA 		8-98011-536-1 01 1 0710-1008 ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1009- ●
529 INSULATOR; HOSE
(A) THA 		8-98031-883-0 01 1 0609-0708 ●
529 INSULATOR; HOSE
(B) THA 		8-98031-884-0 01 1 0609-0708 ●
529 INSULATOR; HOSE
(A) THA 		8-98031-883-0 01 1 0710-1008 ●
529 INSULATOR; HOSE
(B) THA 		8-98031-884-0 01 1 0710-1008 ●
530 CLIP; INSULATOR
IMA 		8-97101-337-0 04 1 0609-0708 ●
530 CLIP; INSULATOR
IMA 		8-97101-337-0 04 1 0710-1008 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
