0-33 — FAN AND FAN BELT (#72800) — 134 parça
çizim 116291
109 1 8 36 15 14 230 80 88 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING
THA 		8-97318-963-0 01 1 0204-0408 ● ●
1 FAN; COOLING
THA 		8-97318-963-0 01 1 0409-0412 ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0409-0412 ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0501-0608 ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0609-0708 ● ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0709-0709 ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0710- ● ● ●
8 CLUTCH; COOLING FAN
THA 		8-97302-291-0 01 1 0204-0408 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97302-291-0 01 1 0409-0412 ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0409-0412 ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0501-0608 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0609-0708 ● ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0709-0709 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0710- ● ● ●
14 NUT; FAN TO CLU
M6 THA 		9-09110-506-0 04 1 0204-0408 ● ●
14 NUT; FAN TO CLU
M6 THA 		9-09110-506-0 04 1 0409-0412 ●
15 WASHER; LK,COOLING FAN
ID=6.1 THA 		9-09150-506-0 04 1 0204-0408 ● ●
15 WASHER; LK,COOLING FAN
ID=6.1 THA 		9-09150-506-0 04 1 0409-0412 ●
36 BELT; COOLING FAN
L=1027 THA 		8-97910-219-0 01 1 0204-0408 ●
36 BELT; COOLING FAN
L=1027 THA 		8-97910-219-0 01 1 0409-0412 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI THA 		8-97141-514-0 01 1 0204-0306 ●
36 BELT; COOLING FAN
L=1025 BANDO THA 		8-97943-022-0 01 1 0307-0408 ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0409-0412 ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0501-0608 ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0609-0708 ● ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0709-0709 ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0710- ● ● ●
36 BELT; COOLING FAN
L=1025 MITSUBOSHI THA 		8-97943-173-0 01 1 0307-0408 ●
80 PLATE; ADJ
(A) THA 		8-97306-546-0 01 1 0204-0206 ● ●
80 PLATE; ADJ
(A) THA 		8-97921-594-0 01 1 0207-0408 ● ●
80 PLATE; ADJ
(A) THA 		8-97921-594-0 01 1 0409-0412 ●
80 PLATE; ADJ
(B) THA 		8-97322-592-0 01 1 0409-0412 ●
80 PLATE; ADJ
(B) THA 		8-97322-592-0 01 1 0501-0608 ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0609-0708 ● ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0709-0709 ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0710- ● ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-0 01 1 0409-0412 ●
80 PLATE; ADJ
(C) THA 		8-97944-144-0 01 1 0501-0608 ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0609-0708 ● ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0709-0709 ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0710- ● ● ●
88 WASHER; PL,ADJ PLATE
ID=8.4 OD=22 THA 		9-09164-708-0 01 1 0204-0408 ● ●
88 WASHER; PL,ADJ PLATE
ID=8.4 OD=22 THA 		9-09164-708-0 01 1 0409-0412 ●
96 BOLT; ADJ PLATE
M8X45 W/LK WASHER THA 		0-50040-845-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
COOLER WO/HEATER<YL1> M8X45 W/LK WASHER THA 		0-50040-845-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
EXC. COOLER WO/HEATER<YL1> M8X25 W/LK WASHER THA 		0-50540-825-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0207-0408 ● ●
96 BOLT; ADJ PLATE
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0409-0412 ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0608 ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0609-0708 ● ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ●
109 STUD; FAN CLU
M6X18 L=27 THA 		0-41010-618-0 04 1 0204-0408 ● ●
109 STUD; FAN CLU
M6X18 L=27 THA 		0-41010-618-0 04 1 0409-0412 ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0409-0412 ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0501-0608 ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0609-0708 ● ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0709-0709 ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0710-1405 ● ● ●
109 STUD; FAN CLU
M6X20 L=31 THA 		8-98256-636-0 04 1 1406- ● ● ●
230 FAN; COOLING
THA 		8-97921-857-0 01 1 0204-0408 ● ●
230 FAN; COOLING
THA 		8-97921-857-0 01 1 0409-0412 ●

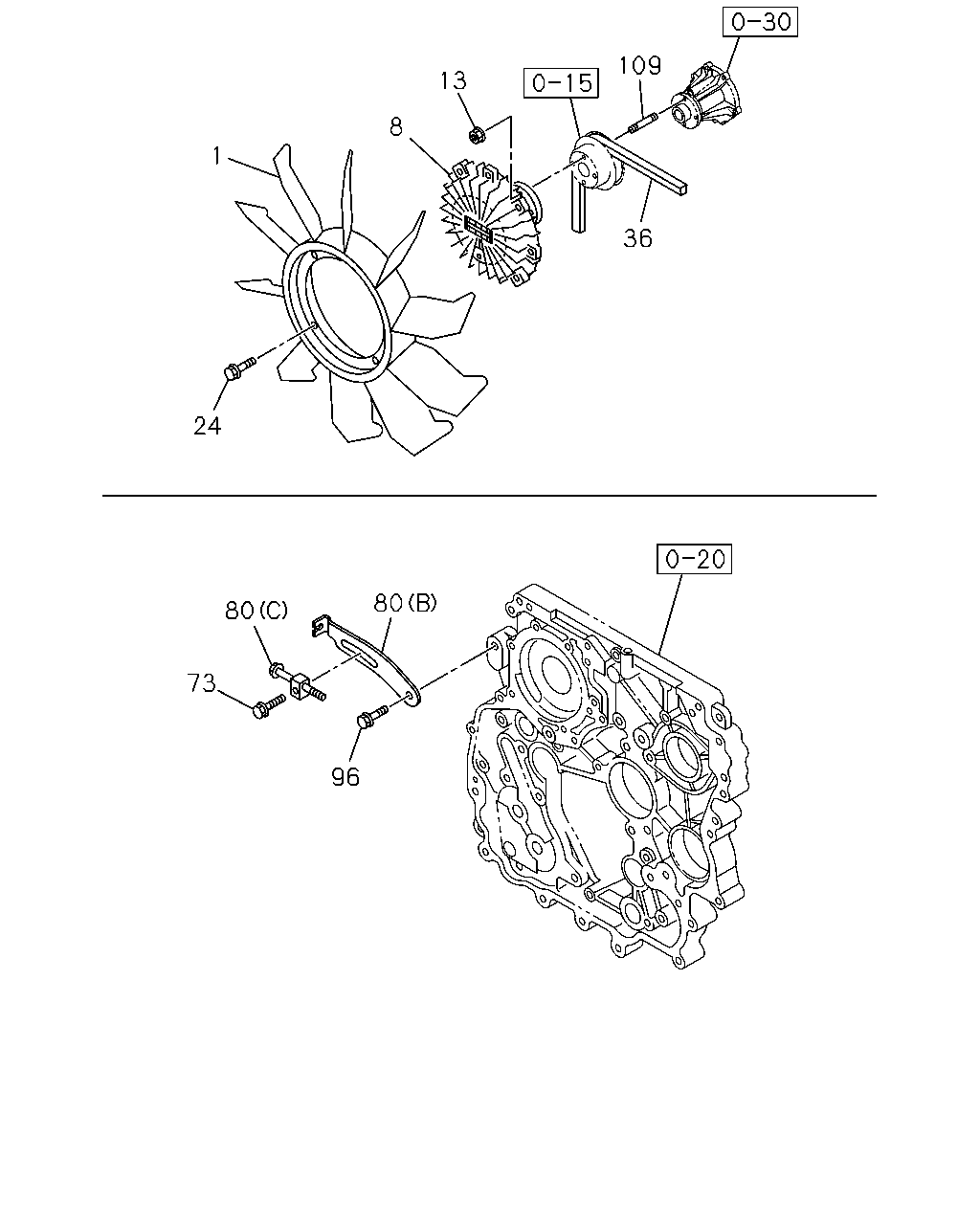

çizim 116294
109 13 8 1 36 24 80 80 73 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING
THA 		8-97318-963-0 01 1 0204-0408 ● ●
1 FAN; COOLING
THA 		8-97318-963-0 01 1 0409-0412 ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0409-0412 ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0501-0608 ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0609-0708 ● ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0709-0709 ● ●
1 FAN; COOLING
THA 		8-97944-150-0 01 1 0710- ● ● ●
8 CLUTCH; COOLING FAN
THA 		8-97302-291-0 01 1 0204-0408 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97302-291-0 01 1 0409-0412 ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0409-0412 ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0501-0608 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0609-0708 ● ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0709-0709 ● ●
8 CLUTCH; COOLING FAN
THA 		8-97944-149-1 01 1 0710- ● ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-97943-101-0 04 1 0409-0412 ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-97943-101-0 04 1 0501-0608 ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-97943-101-0 04 1 0609-0704 ● ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-98049-362-0 04 1 0705-0708 ● ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-98049-362-0 04 1 0709-0709 ● ●
13 NUT; COOLING FAN
M6 FLANGE THA 		8-98049-362-0 04 1 0710- ● ● ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 0409-0412 ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 0501-0608 ● ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 0609-0708 ● ● ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 0709-0709 ● ●
24 BOLT; FAN
M6X25 FLANGE THA 		0-28650-625-0 04 1 0710- ● ● ●
36 BELT; COOLING FAN
L=1027 THA 		8-97910-219-0 01 1 0204-0408 ●
36 BELT; COOLING FAN
L=1027 THA 		8-97910-219-0 01 1 0409-0412 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI THA 		8-97141-514-0 01 1 0204-0306 ●
36 BELT; COOLING FAN
L=1025 BANDO THA 		8-97943-022-0 01 1 0307-0408 ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0409-0412 ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0501-0608 ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0609-0708 ● ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0709-0709 ● ●
36 BELT; COOLING FAN
L=1006 THA 		8-97362-926-0 01 1 0710- ● ● ●
36 BELT; COOLING FAN
L=1025 MITSUBOSHI THA 		8-97943-173-0 01 1 0307-0408 ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0409-0412 ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0501-0608 ● ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0609-0708 ● ● ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0709-0709 ● ●
73 BOLT; GEN TO ADJ PLATE
M8X35 FLANGE THA 		0-28650-835-0 01 1 0710- ● ● ●
80 PLATE; ADJ
(A) THA 		8-97306-546-0 01 1 0204-0206 ● ●
80 PLATE; ADJ
(A) THA 		8-97921-594-0 01 1 0207-0408 ● ●
80 PLATE; ADJ
(A) THA 		8-97921-594-0 01 1 0409-0412 ●
80 PLATE; ADJ
(B) THA 		8-97322-592-0 01 1 0409-0412 ●
80 PLATE; ADJ
(B) THA 		8-97322-592-0 01 1 0501-0608 ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0609-0708 ● ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0709-0709 ● ●
80 PLATE; ADJ
(B) THA 		8-97322-592-1 01 1 0710- ● ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-0 01 1 0409-0412 ●
80 PLATE; ADJ
(C) THA 		8-97944-144-0 01 1 0501-0608 ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0609-0708 ● ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0709-0709 ● ●
80 PLATE; ADJ
(C) THA 		8-97944-144-1 01 1 0710- ● ● ●
96 BOLT; ADJ PLATE
M8X45 W/LK WASHER THA 		0-50040-845-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
COOLER WO/HEATER<YL1> M8X45 W/LK WASHER THA 		0-50040-845-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
EXC. COOLER WO/HEATER<YL1> M8X25 W/LK WASHER THA 		0-50540-825-0 01 1 0204-0206 ● ●
96 BOLT; ADJ PLATE
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0207-0408 ● ●
96 BOLT; ADJ PLATE
M8X25 W/LK WASHER THA 		0-50540-825-0 02 1 0409-0412 ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0409-0412 ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0501-0608 ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0609-0708 ● ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0709-0709 ● ●
96 BOLT; ADJ PLATE
M8X20 FLANGE THA 		0-28650-820-0 01 1 0710- ● ● ●
109 STUD; FAN CLU
M6X18 L=27 THA 		0-41010-618-0 04 1 0204-0408 ● ●
109 STUD; FAN CLU
M6X18 L=27 THA 		0-41010-618-0 04 1 0409-0412 ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0409-0412 ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0501-0608 ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0609-0708 ● ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0709-0709 ● ●
109 STUD; FAN CLU
M6X18 L=29 THA 		8-97373-779-0 04 1 0710-1405 ● ● ●
109 STUD; FAN CLU
M6X20 L=31 THA 		8-98256-636-0 04 1 1406- ● ● ●
