0-32 — WATER PIPING; ENGINE (#72799) — 116 parça

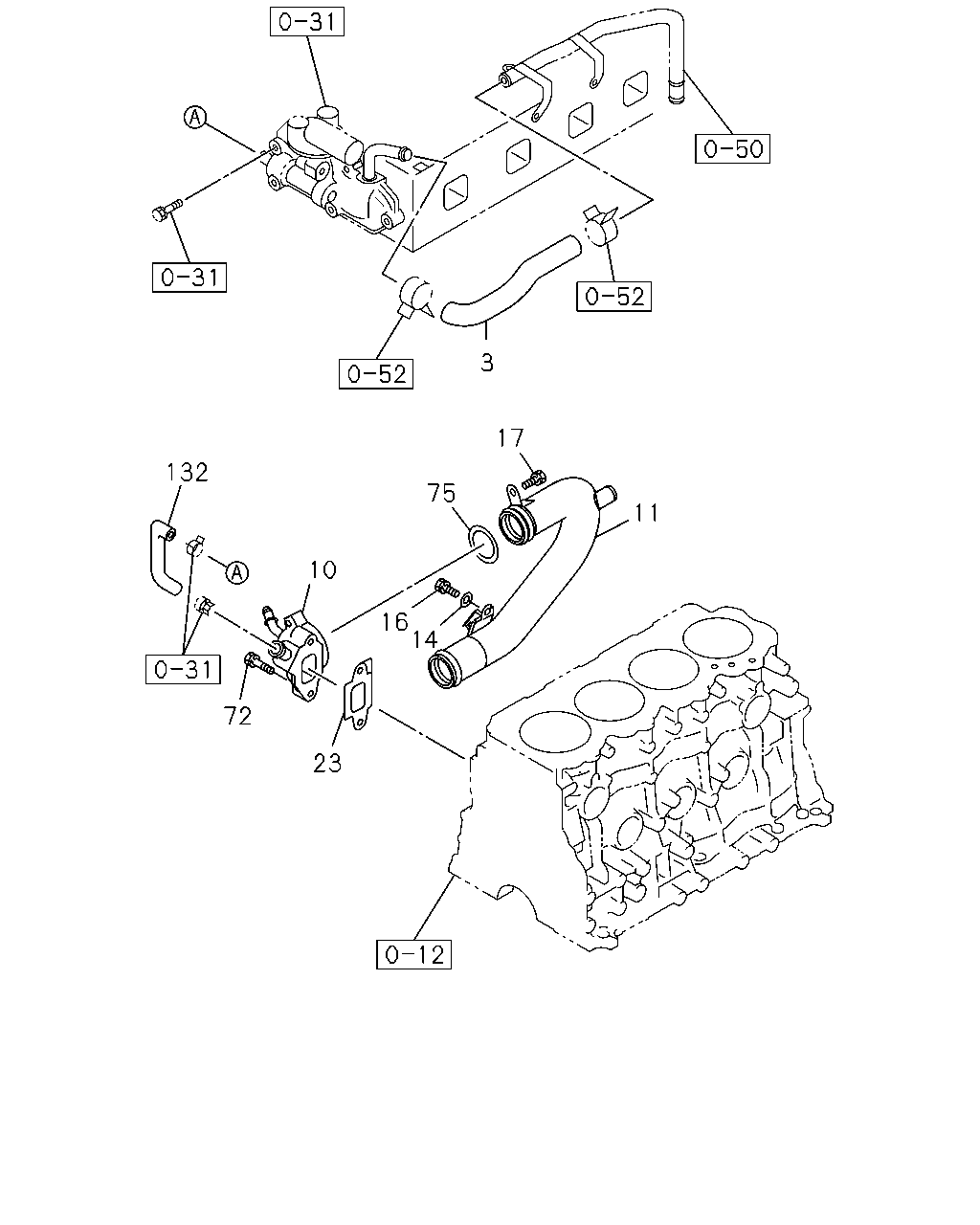

çizim 116288
3 17 132 75 11 10 16 14 72 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 HOSE; WATER,OIL COOLER
THA 		8-97942-765-0 01 1 0204-0408 ●
3 HOSE; WATER,OIL COOLER
THA 		8-97942-765-0 01 1 0409-0412 ●
3 HOSE; WATER,OIL COOLER
THA 		8-97920-060-0 01 1 0204-0401 ●
3 HOSE; WATER,OIL COOLER
THA 		8-97943-892-0 01 1 0402-0408 ●
10 PIPE; SUCTION
THA 		8-97910-590-0 01 1 0204-0408 ●
10 PIPE; SUCTION
THA 		8-97910-590-0 01 1 0409-0412 ●
10 PIPE; SUCTION
THA 		8-97910-379-0 01 1 0204-0408 ●
11 PIPE; INL,WATER PUMP
THA 		8-97288-269-1 01 1 0204-0408 ● ●
11 PIPE; INL,WATER PUMP
THA 		8-97288-269-1 01 1 0409-0412 ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 IMA 		8-94174-537-0 01 1 0204-0408 ● ●
14 WASHER; PL,INL PIPE TO BRKT
ID=8 OD=18 T=3 IMA 		8-94174-537-0 01 1 0409-0412 ●
16 BOLT; INL PIPE
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ● ●
16 BOLT; INL PIPE
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
17 BOLT; SUCTION PIPE
M8X20 FLANGE THA 		0-28050-820-0 01 1 0204-0408 ● ●
17 BOLT; SUCTION PIPE
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97912-602-0 01 1 0204-0205 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0206-0408 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0501-0608 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0609-0708 ● ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0709-0709 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0710- ● ● ●
72 BOLT; WATER PIPE
M8X50 W/LK WASHER THA 		0-50540-850-0 02 1 0204-0408 ● ●
72 BOLT; WATER PIPE
M8X50 W/LK WASHER THA 		0-50540-850-0 02 1 0409-0412 ●
72 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
72 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501-0606 ● ●
75 GASKET; INL PIPE TO WATER PUMP
ID=35.2 THA 		9-09565-335-0 01 1 0204-0408 ● ●
75 GASKET; INL PIPE TO WATER PUMP
ID=35.2 THA 		9-09565-335-0 01 1 0409-0412 ●
132 HOSE; WATER PIPE
THA 		8-97910-064-0 01 1 0204-0408 ●
132 HOSE; WATER PIPE
THA 		8-97910-064-0 01 1 0409-0412 ●
132 HOSE; WATER PIPE
THA 		8-97910-065-0 01 1 0204-0408 ●

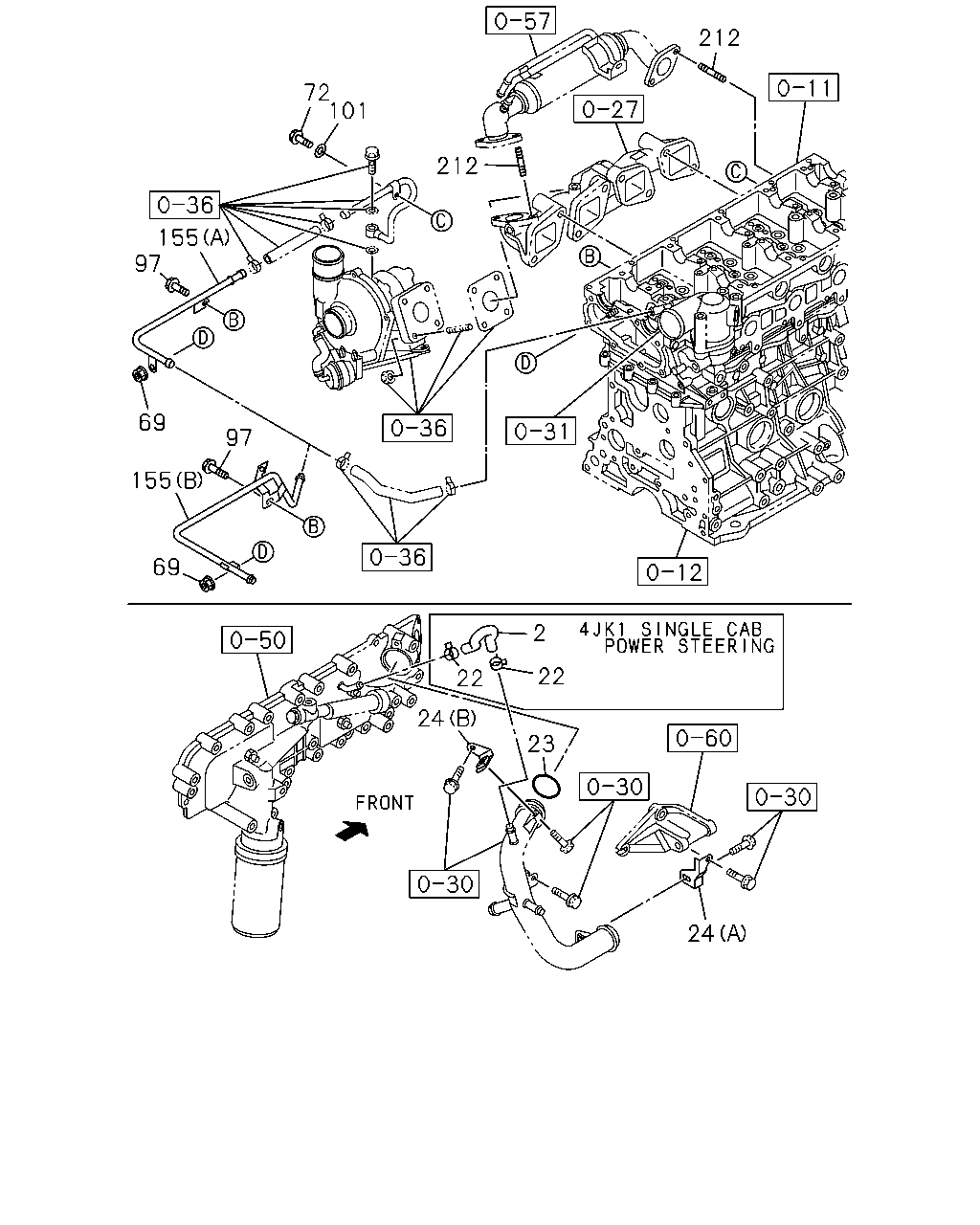

çizim 116292
212 72 101 212 155 97 69 97 155 69 2 22 22 24 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; WATER,BY-PASS
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-991-0 01 1 1009-1106 ●
2 HOSE; WATER,BY-PASS
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-991-0 01 1 1107- ●
22 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> ID=14.2 THA 		8-98035-873-0 02 1 1009-1106 ●
22 CLIP; WATER HOSE
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> ID=14.2 THA 		8-98035-873-0 02 1 1107- ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97912-602-0 01 1 0204-0205 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0206-0408 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0501-0608 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0609-0708 ● ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0709-0709 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0710- ● ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-1 01 1 0409-0412 ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-2 01 1 0501-1008 ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-2 01 1 1009- ● ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-0 01 1 0409-0412 ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-0 01 1 0501-0608 ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0609-0708 ● ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0709-0709 ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0710- ● ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-98039-450-0 01 1 0609-0708 ●
24 BRACKET; WATER PIPE
(A) THA 		8-98039-450-0 01 1 0710-1008 ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0409-0412 ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0501-0608 ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0609-0708 ● ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0709-0709 ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0710- ● ● ●
72 BOLT; WATER PIPE
M8X50 W/LK WASHER THA 		0-50540-850-0 02 1 0204-0408 ● ●
72 BOLT; WATER PIPE
M8X50 W/LK WASHER THA 		0-50540-850-0 02 1 0409-0412 ●
72 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
72 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501-0606 ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501-0608 ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0609-0708 ● ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0709-0709 ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0710- ● ● ●
101 WASHER; PL,WATER PIPE
ID=6.4 IMA 		0-91610-606-0 01 1 0409-0412 ●
101 WASHER; PL,WATER PIPE
ID=6.4 IMA 		0-91610-606-0 01 1 0501-0606 ● ●
155 PIPE ASM; WATER
(A) THA 		8-97312-072-2 01 1 0409-0412 ●
155 PIPE ASM; WATER
(A) THA 		8-97312-072-2 01 1 0501-0606 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0607-0608 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0609-0708 ● ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0709-0709 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0710- ● ● ●
212 STUD; PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0409-0412 ●
212 STUD; PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0501-0708 ● ●
212 STUD; PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●

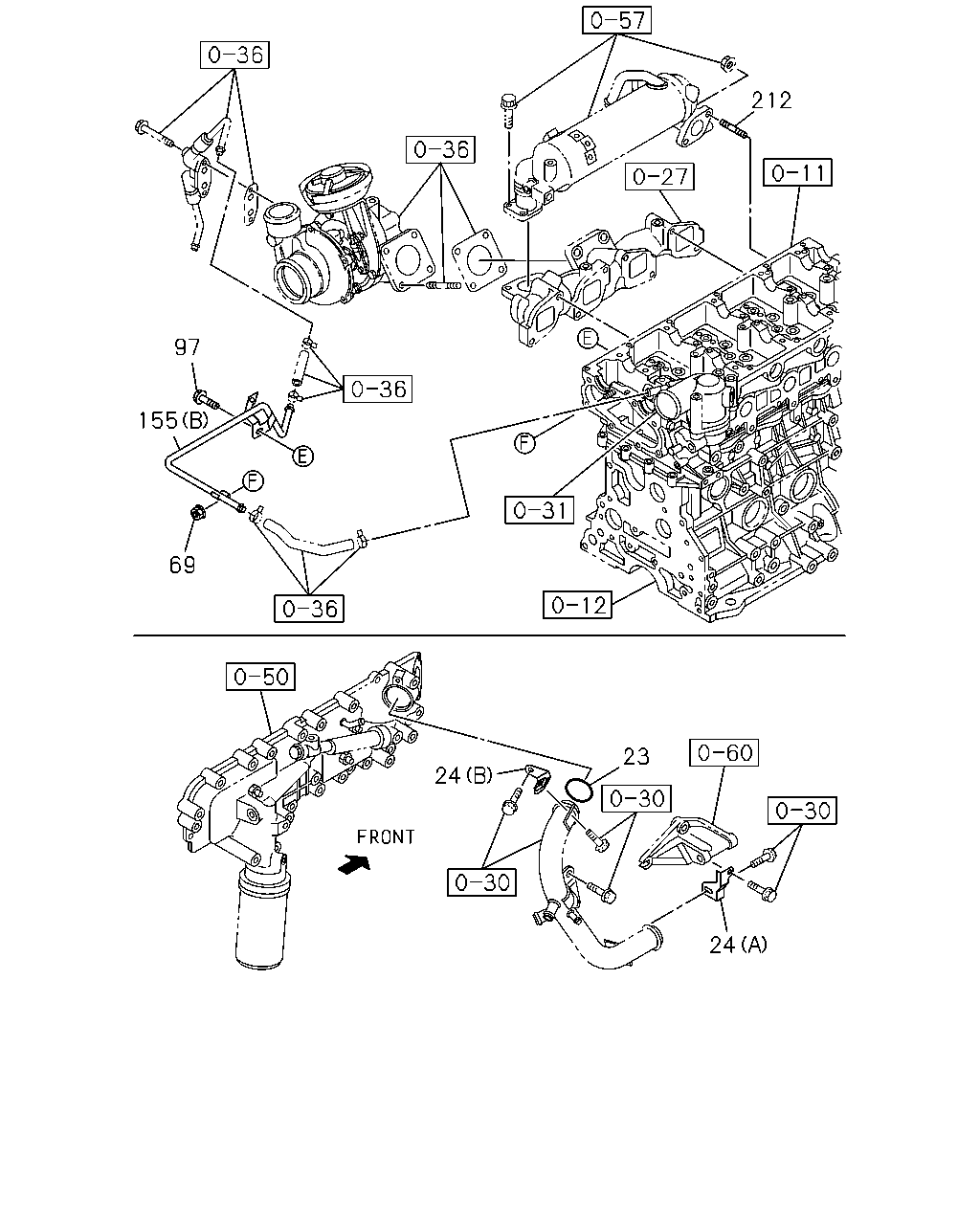

çizim 116293
212 97 155 69 23 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97912-602-0 01 1 0204-0205 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0206-0408 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		8-97943-089-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0409-0412 ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0501-0608 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0609-0708 ● ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0709-0709 ● ●
23 GASKET; SUCTION PIPE TO BLOCK
THA 		0-95690-338-0 01 1 0710- ● ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-1 01 1 0409-0412 ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-2 01 1 0501-1008 ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-97375-053-2 01 1 1009- ● ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-0 01 1 0409-0412 ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-0 01 1 0501-0608 ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0609-0708 ● ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0709-0709 ● ●
24 BRACKET; WATER PIPE
(B) THA 		8-97377-505-1 01 1 0710- ● ● ●
24 BRACKET; WATER PIPE
(A) THA 		8-98039-450-0 01 1 0609-0708 ●
24 BRACKET; WATER PIPE
(A) THA 		8-98039-450-0 01 1 0710-1008 ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0409-0412 ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0501-0608 ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0609-0708 ● ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0709-0709 ● ●
69 NUT; WATER PIPE
M6 FLANGE THA 		0-91180-206-0 01 1 0710- ● ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0501-0608 ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0609-0708 ● ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0709-0709 ● ●
97 BOLT; WATER PIPE
M6X12 FLANGE THA 		0-28050-612-0 01 1 0710- ● ● ●
155 PIPE ASM; WATER
(A) THA 		8-97312-072-2 01 1 0409-0412 ●
155 PIPE ASM; WATER
(A) THA 		8-97312-072-2 01 1 0501-0606 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0607-0608 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0609-0708 ● ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0709-0709 ● ●
155 PIPE ASM; WATER
(B) THA 		8-98011-508-1 01 1 0710- ● ● ●
212 STUD; PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0409-0412 ●
212 STUD; PIPE
M8X22 L=33 THA 		8-94257-319-0 03 1 0501-0708 ● ●
212 STUD; PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 0609-0708 ●
