0-31 — THERMOSTAT AND HOUSING (#72798) — 104 parça

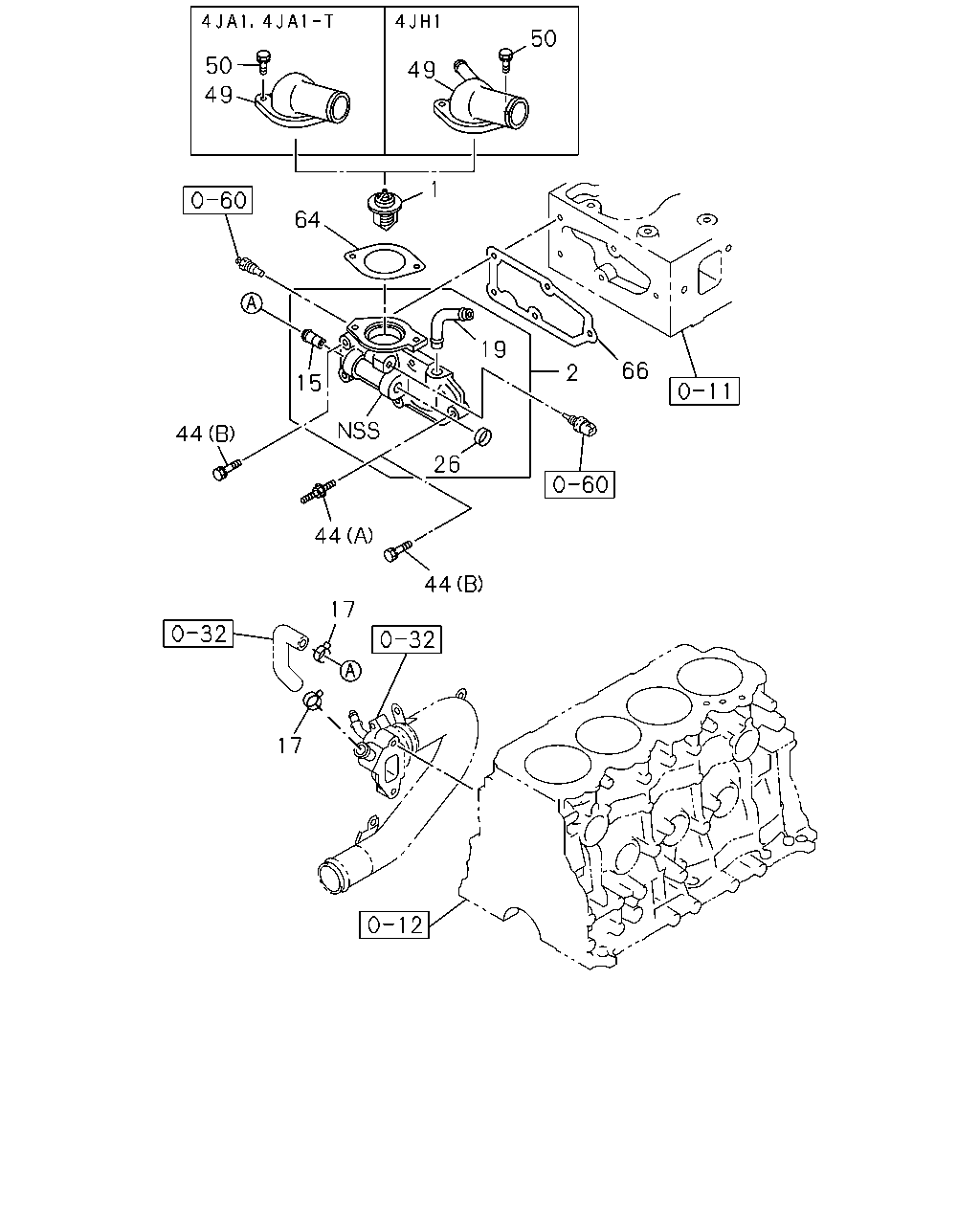

çizim 116287
50 50 49 49 1 64 19 66 2 15 44 26 44 44 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
82 CELSIUS THA 		8-97089-891-0 01 1 0204-0302 ● ●
1 THERMOSTAT
82 CELSIUS THA 		8-97361-770-0 01 1 0303-0408 ● ●
1 THERMOSTAT
82 CELSIUS THA 		8-97361-770-0 01 1 0409-0412 ●
1 THERMOSTAT
85 CELSIUS THA 		8-97312-158-0 01 1 0409-0412 ●
1 THERMOSTAT
85 CELSIUS THA 		8-97312-158-0 01 1 0501-0606 ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0607-0608 ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0609-0708 ● ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0709-0709 ● ●
1 THERMOSTAT
85 CELSIUS IMA 		8-98017-027-1 01 1 0710- ● ● ●
2 HOUSING; THERMOSTAT
THA 		8-97916-700-0 01 1 0204-0408 ●
2 HOUSING; THERMOSTAT
THA 		8-97916-700-0 01 1 0409-0412 ●
2 HOUSING; THERMOSTAT
THA 		8-97920-061-0 01 1 0204-0408 ●
15 PIPE; BYPASS
THA 		8-97910-083-0 01 1 0204-0408 ● ●
15 PIPE; BYPASS
THA 		8-97910-083-0 01 1 0409-0412 ●
15 PIPE; BYPASS
THA 		8-97318-732-1 01 1 0409-0412 ●
15 PIPE; BYPASS
THA 		8-97318-732-1 01 1 0501-0608 ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0609-0708 ● ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0709-0709 ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0710- ● ● ●
17 CLIP; WATER HOSE
ID=20.8 IMA 		8-94125-862-1 02 1 0204-0408 ● ●
17 CLIP; WATER HOSE
ID=20.8 IMA 		8-94125-862-1 02 1 0409-0412 ●
19 PIPE; HSG TO HTR
THA 		8-97910-082-0 01 1 0204-0408 ● ●
19 PIPE; HSG TO HTR
THA 		8-97910-082-0 01 1 0409-0412 ●
26 CUP; SEALING,VLV,VENTILATION
OD=18 IMA 		5-11219-008-0 01 1 0204-0408 ● ●
26 CUP; SEALING,VLV,VENTILATION
OD=18 IMA 		5-11219-008-0 01 1 0409-0412 ●
44 BOLT; HSG TO HD
(A) M8X28,M8X34 L=69 THA 		8-94479-011-1 01 1 0204-0206 ● ●
44 BOLT; HSG TO HD
POWER STEERING<N40> (A) M8X28,M8X34 L=69 THA 		8-94479-011-1 01 1 0207-0408 ● ●
44 BOLT; HSG TO HD
POWER STEERING<N40> (A) M8X28,M8X34 L=69 THA 		8-94479-011-1 01 1 0409-0412 ●
44 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X30 W/LK WASHER THA 		0-50540-830-0 04 1 0204-0408 ● ●
44 BOLT; HSG TO HD
POWER STEERING<N40> (B) M8X30 W/LK WASHER THA 		0-50540-830-0 04 1 0409-0412 ●
44 BOLT; HSG TO HD
EXC. POWER STEERING<N40> (B) M8X30 W/LK WASHER THA 		0-50540-830-0 05 1 0204-0408 ● ●
44 BOLT; HSG TO HD
EXC. POWER STEERING<N40> (B) M8X30 W/LK WASHER THA 		0-50540-830-0 05 1 0409-0412 ●
49 PIPE; WATER OUTLET
THA 		8-97288-271-2 01 1 0204-0408 ●
49 PIPE; WATER OUTLET
THA 		8-97288-271-2 01 1 0409-0412 ●
49 PIPE; WATER OUTLET
THA 		8-97306-461-2 01 1 0204-0408 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-4 01 1 0409-0412 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-5 01 1 0501-0608 ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0609-0708 ● ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0709-0709 ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0710-0809 ● ● ●
49 PIPE; WATER OUTLET
THA 		8-98120-945-0 01 1 0810- ● ● ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER IMA 		0-50640-830-0 02 1 0204-0408 ● ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER IMA 		0-50640-830-0 02 1 0409-0412 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0409-0412 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0501-0608 ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0609-0708 ● ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0709-0709 ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0710- ● ● ●
64 GASKET; OUTLET PIPE TO HSG
THA 		8-97912-604-0 01 1 0204-0205 ● ●
64 GASKET; OUTLET PIPE TO HSG
THA 		8-97943-088-0 01 1 0206-0408 ● ●
64 GASKET; OUTLET PIPE TO HSG
THA 		8-97943-088-0 01 1 0409-0412 ●
66 GASKET; THERMOSTAT HSG
IMA 		8-98114-587-0 01 1 0809- ● ● ●
66 GASKET; THERMOSTAT HSG
THA 		8-97920-513-1 01 1 0204-0408 ● ●
66 GASKET; THERMOSTAT HSG
THA 		8-97920-513-1 01 1 0409-0412 ●

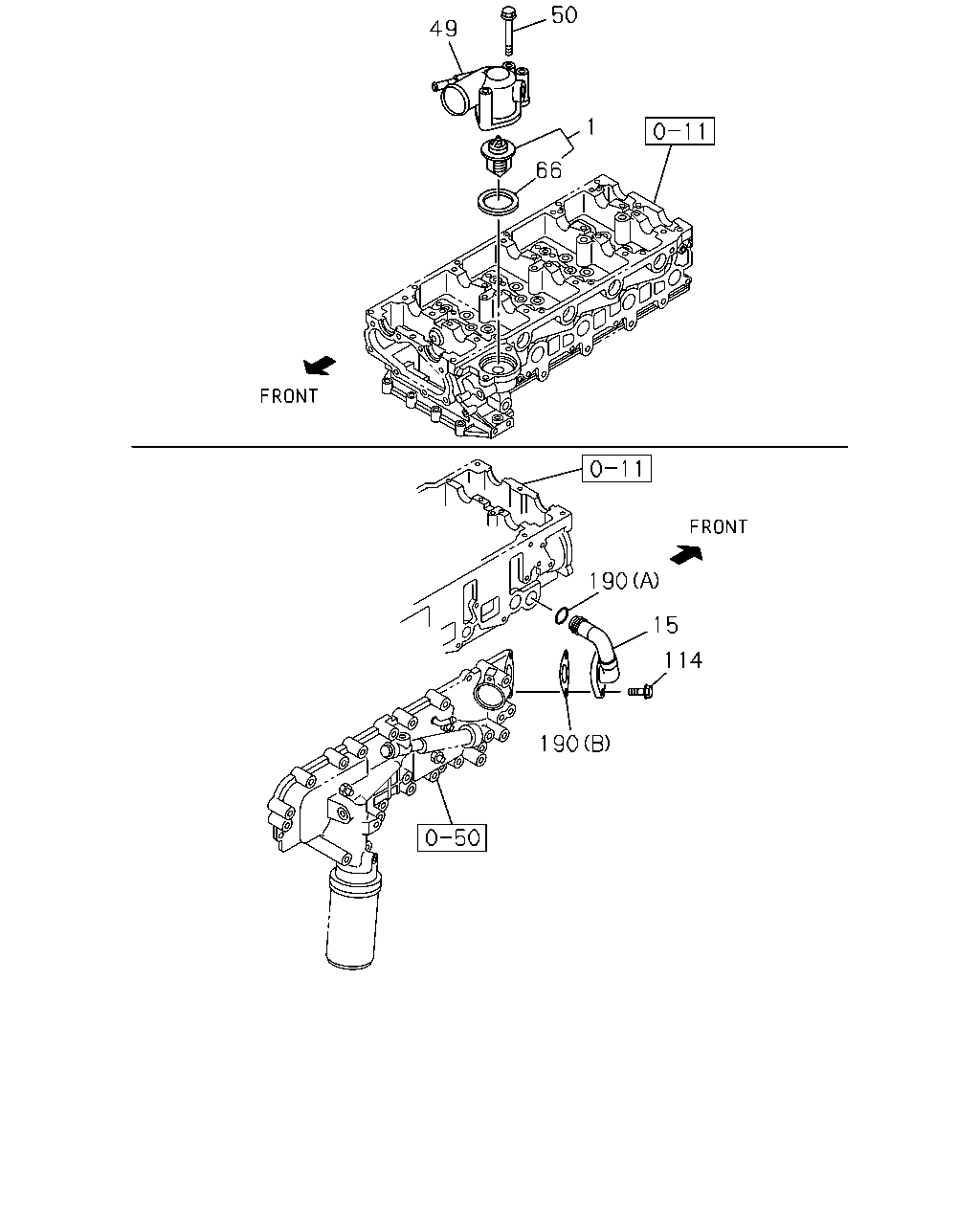

çizim 116289
50 49 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 THERMOSTAT
82 CELSIUS THA 		8-97089-891-0 01 1 0204-0302 ● ●
1 THERMOSTAT
82 CELSIUS THA 		8-97361-770-0 01 1 0303-0408 ● ●
1 THERMOSTAT
82 CELSIUS THA 		8-97361-770-0 01 1 0409-0412 ●
1 THERMOSTAT
85 CELSIUS THA 		8-97312-158-0 01 1 0409-0412 ●
1 THERMOSTAT
85 CELSIUS THA 		8-97312-158-0 01 1 0501-0606 ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0607-0608 ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0609-0708 ● ● ●
1 THERMOSTAT
85 CELSIUS THA 		8-98017-027-0 01 1 0709-0709 ● ●
1 THERMOSTAT
85 CELSIUS IMA 		8-98017-027-1 01 1 0710- ● ● ●
15 PIPE; BYPASS
THA 		8-97910-083-0 01 1 0204-0408 ● ●
15 PIPE; BYPASS
THA 		8-97910-083-0 01 1 0409-0412 ●
15 PIPE; BYPASS
THA 		8-97318-732-1 01 1 0409-0412 ●
15 PIPE; BYPASS
THA 		8-97318-732-1 01 1 0501-0608 ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0609-0708 ● ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0709-0709 ● ●
15 PIPE; BYPASS
THA 		8-97318-732-2 01 1 0710- ● ● ●
49 PIPE; WATER OUTLET
THA 		8-97288-271-2 01 1 0204-0408 ●
49 PIPE; WATER OUTLET
THA 		8-97288-271-2 01 1 0409-0412 ●
49 PIPE; WATER OUTLET
THA 		8-97306-461-2 01 1 0204-0408 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-4 01 1 0409-0412 ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-5 01 1 0501-0608 ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0609-0708 ● ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0709-0709 ● ●
49 PIPE; WATER OUTLET
THA 		8-97355-456-7 01 1 0710-0809 ● ● ●
49 PIPE; WATER OUTLET
THA 		8-98120-945-0 01 1 0810- ● ● ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER IMA 		0-50640-830-0 02 1 0204-0408 ● ●
50 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER IMA 		0-50640-830-0 02 1 0409-0412 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0409-0412 ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0501-0608 ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0609-0708 ● ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0709-0709 ● ●
50 BOLT; OUTLET PIPE
M8X80 FLANGE THA 		0-28050-880-0 02 1 0710- ● ● ●
66 GASKET; THERMOSTAT HSG
IMA 		8-98114-587-0 01 1 0809- ● ● ●
66 GASKET; THERMOSTAT HSG
THA 		8-97920-513-1 01 1 0204-0408 ● ●
66 GASKET; THERMOSTAT HSG
THA 		8-97920-513-1 01 1 0409-0412 ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0409-0412 ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0501-0608 ● ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0609-0708 ● ● ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0709-0709 ● ●
114 BOLT; BYPASS PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0710- ● ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0409-0412 ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0501-0608 ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0609-0708 ● ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0709-0709 ● ●
190 GASKET; BYPASS PIPE
(A) THA 		0-95690-226-0 01 1 0710- ● ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0409-0412 ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0501-0608 ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0609-0708 ● ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0709-0709 ● ●
190 GASKET; BYPASS PIPE
(B) THA 		8-97318-494-2 01 1 0710- ● ● ●
