◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#72795) — 377 parça

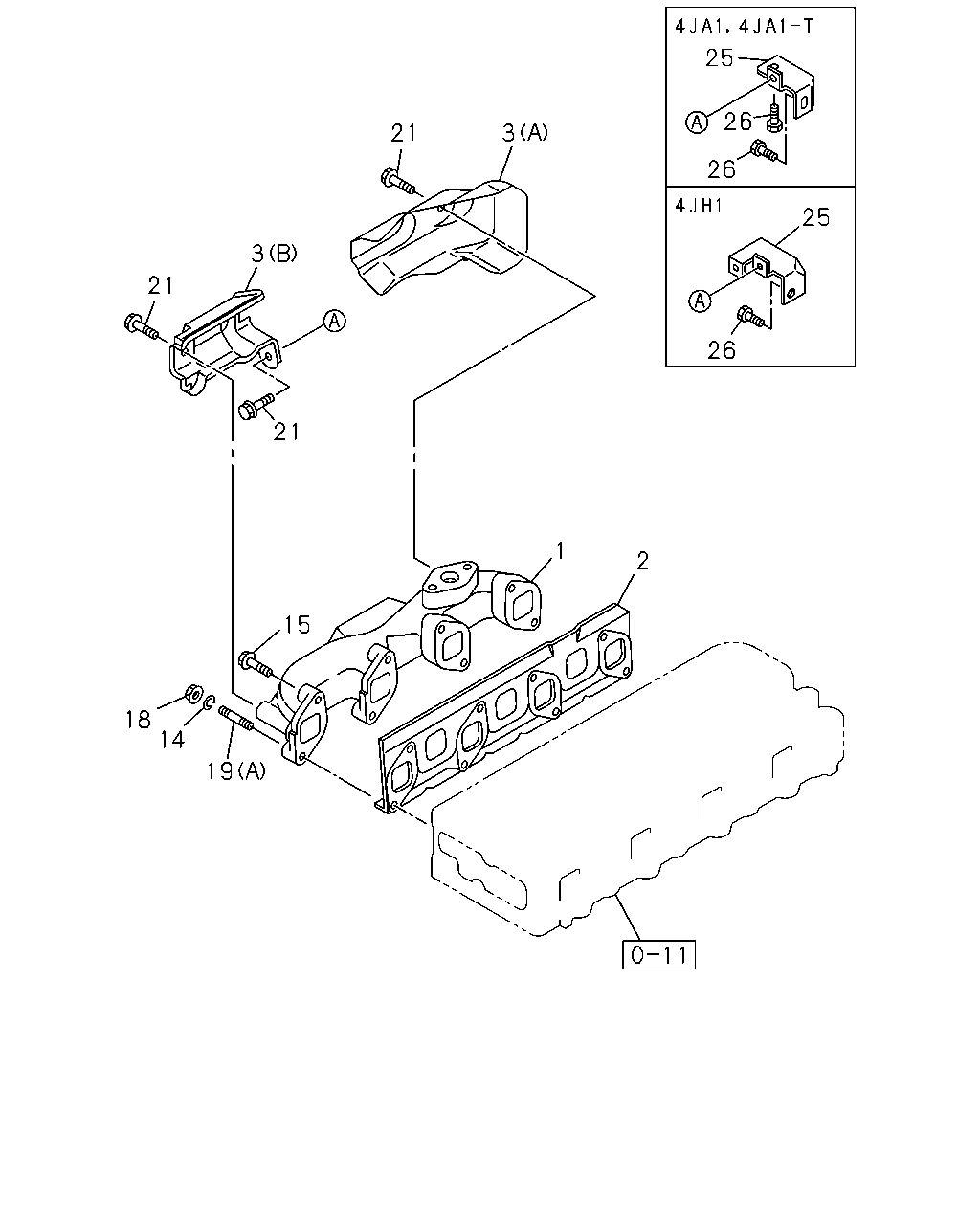

çizim 116279
25 26 21 3 26 25 3 21 26 21 1 2 15 18 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-265-0 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-265-0 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-767-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0501-1008 ● ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0609-0708 ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0710-1008 ●
1 MANIFOLD; EXHAUST
THA 		8-98132-040-2 01 1 1009- ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0204-0408 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0501-0608 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0609-0708 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0709-0709 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0710-1406 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-98229-782-0 01 1 1407- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-2 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-3 01 1 0501- ● ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0609-0708 ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0710-1008 ●
3 PROTECTOR; HEAT,EXH MANIF
(E) THA 		8-98156-384-0 01 1 1009- ●
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 THA 		8-97257-914-0 02 1 0204-0408 ● ●
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 THA 		8-97257-914-0 02 1 0409-0412 ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE THA 		8-97941-057-0 06 1 0204-0408 ● ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE THA 		8-97941-057-0 06 1 0409-0412 ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ● ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0501-0606 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0607-0608 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0609-0708 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0709-0709 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0710- ● ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0204-0408 ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0409-0409 ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97378-065-0 02 1 0410-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0501-0704 ● ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-98048-446-0 02 1 0705- ● ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0501- ● ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-94391-665-0 04 1 0609-0704 ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0705-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0609-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0710-1008 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 08 1 1009- ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0710-1008 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0609-0708 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0710- ●
25 BRACKET; EXH MANIF
THA 		8-97916-880-0 01 1 0204-0408 ●
25 BRACKET; EXH MANIF
THA 		8-97916-880-0 01 1 0409-0412 ●
25 BRACKET; EXH MANIF
THA 		8-97920-535-0 01 1 0204-0308 ●
25 BRACKET; EXH MANIF
THA 		8-97913-351-1 01 1 0309-0408 ●
26 BOLT; BRKT TO EXH MANIF
M8X30 FLANGE THA 		0-28050-830-0 01 1 0204-0308 ●
26 BOLT; BRKT TO EXH MANIF
M8X30 FLANGE THA 		0-28050-830-0 01 1 0309-0408 ● ●
26 BOLT; BRKT TO EXH MANIF
M8X30 FLANGE THA 		0-28050-830-0 01 1 0409-0412 ●
26 BOLT; BRKT TO EXH MANIF
M8X14 FLANGE THA 		8-94312-699-1 01 1 0204-0408 ● ●
26 BOLT; BRKT TO EXH MANIF
M8X14 FLANGE THA 		8-94312-699-1 01 1 0409-0409 ●
26 BOLT; BRKT TO EXH MANIF
M8X14 FLANGE IMA 		8-97378-075-0 01 1 0410-0412 ●

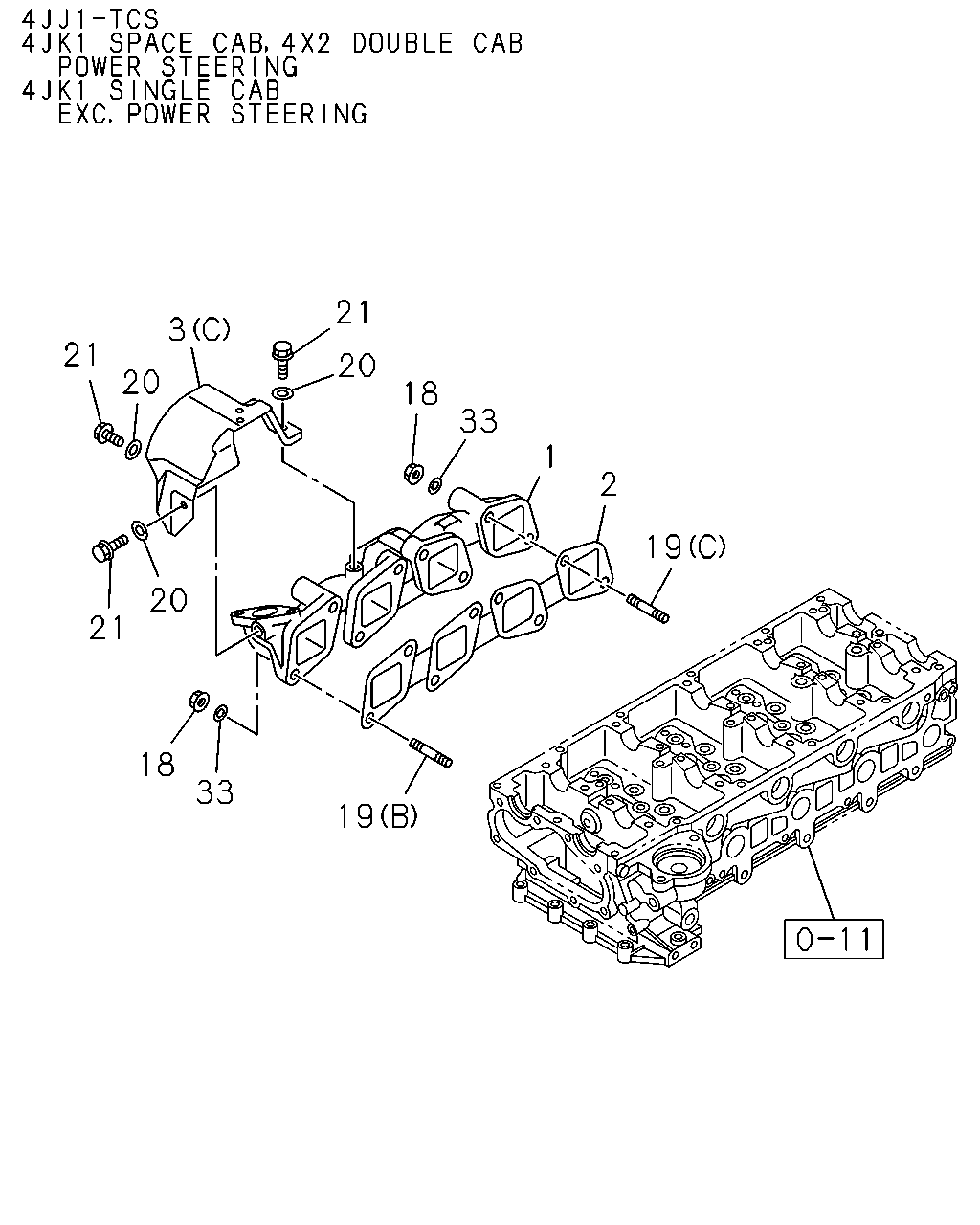

çizim 116280
1 3 21 20 20 18 33 1 2 19 20 21 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-265-0 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-265-0 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-767-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0501-1008 ● ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0609-0708 ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0710-1008 ●
1 MANIFOLD; EXHAUST
THA 		8-98132-040-2 01 1 1009- ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0204-0408 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0501-0608 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0609-0708 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0709-0709 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0710-1406 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-98229-782-0 01 1 1407- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-2 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-3 01 1 0501- ● ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0609-0708 ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0710-1008 ●
3 PROTECTOR; HEAT,EXH MANIF
(E) THA 		8-98156-384-0 01 1 1009- ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ● ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0501-0606 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0607-0608 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0609-0708 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0709-0709 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0710- ● ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0204-0408 ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0409-0409 ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97378-065-0 02 1 0410-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0501-0704 ● ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-98048-446-0 02 1 0705- ● ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0501- ● ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-94391-665-0 04 1 0609-0704 ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0705-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0609-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0710-1008 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 08 1 1009- ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0710-1008 ●
20 WASHER; PL,HEAT PROTECTOR
ID=6.4 IMA 		0-91610-606-0 03 1 0409-0412 ●
20 WASHER; PL,HEAT PROTECTOR
ID=6.4 IMA 		0-91610-606-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0609-0708 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0710- ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0409-0412 ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0501-0606 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0607-0608 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0609-0708 ● ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0709-0709 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0710- ● ● ●

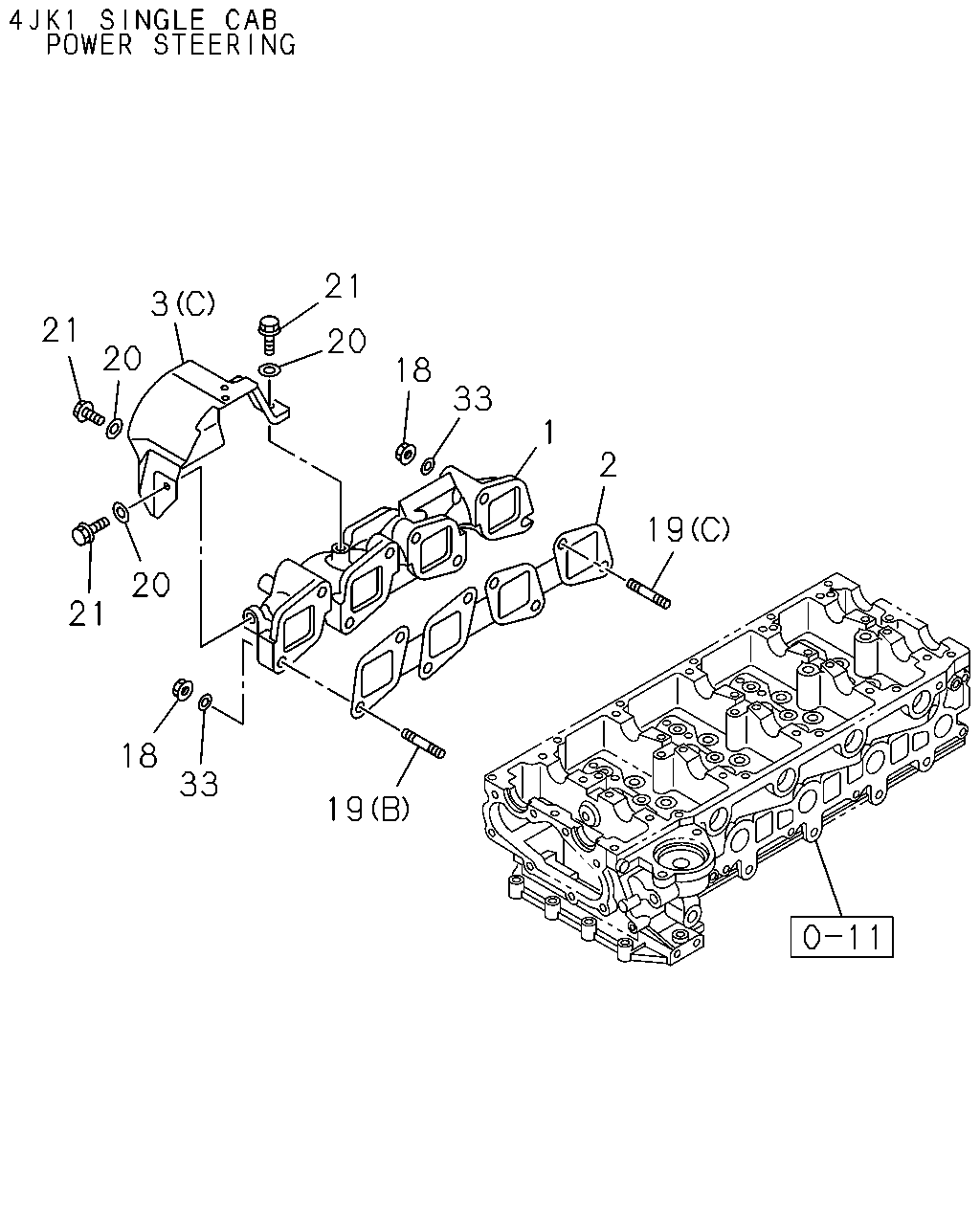

çizim 116282
21 3 21 20 20 18 33 1 2 19 20 21 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-265-0 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-265-0 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-767-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0501-1008 ● ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0609-0708 ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0710-1008 ●
1 MANIFOLD; EXHAUST
THA 		8-98132-040-2 01 1 1009- ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0204-0408 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0501-0608 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0609-0708 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0709-0709 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0710-1406 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-98229-782-0 01 1 1407- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-2 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-3 01 1 0501- ● ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0609-0708 ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0710-1008 ●
3 PROTECTOR; HEAT,EXH MANIF
(E) THA 		8-98156-384-0 01 1 1009- ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ● ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0501-0606 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0607-0608 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0609-0708 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0709-0709 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0710- ● ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0204-0408 ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0409-0409 ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97378-065-0 02 1 0410-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0501-0704 ● ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-98048-446-0 02 1 0705- ● ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0501- ● ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-94391-665-0 04 1 0609-0704 ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0705-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0609-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0710-1008 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 08 1 1009- ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0710-1008 ●
20 WASHER; PL,HEAT PROTECTOR
ID=6.4 IMA 		0-91610-606-0 03 1 0409-0412 ●
20 WASHER; PL,HEAT PROTECTOR
ID=6.4 IMA 		0-91610-606-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0609-0708 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0710- ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0409-0412 ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0501-0606 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0607-0608 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0609-0708 ● ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0709-0709 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0710- ● ● ●

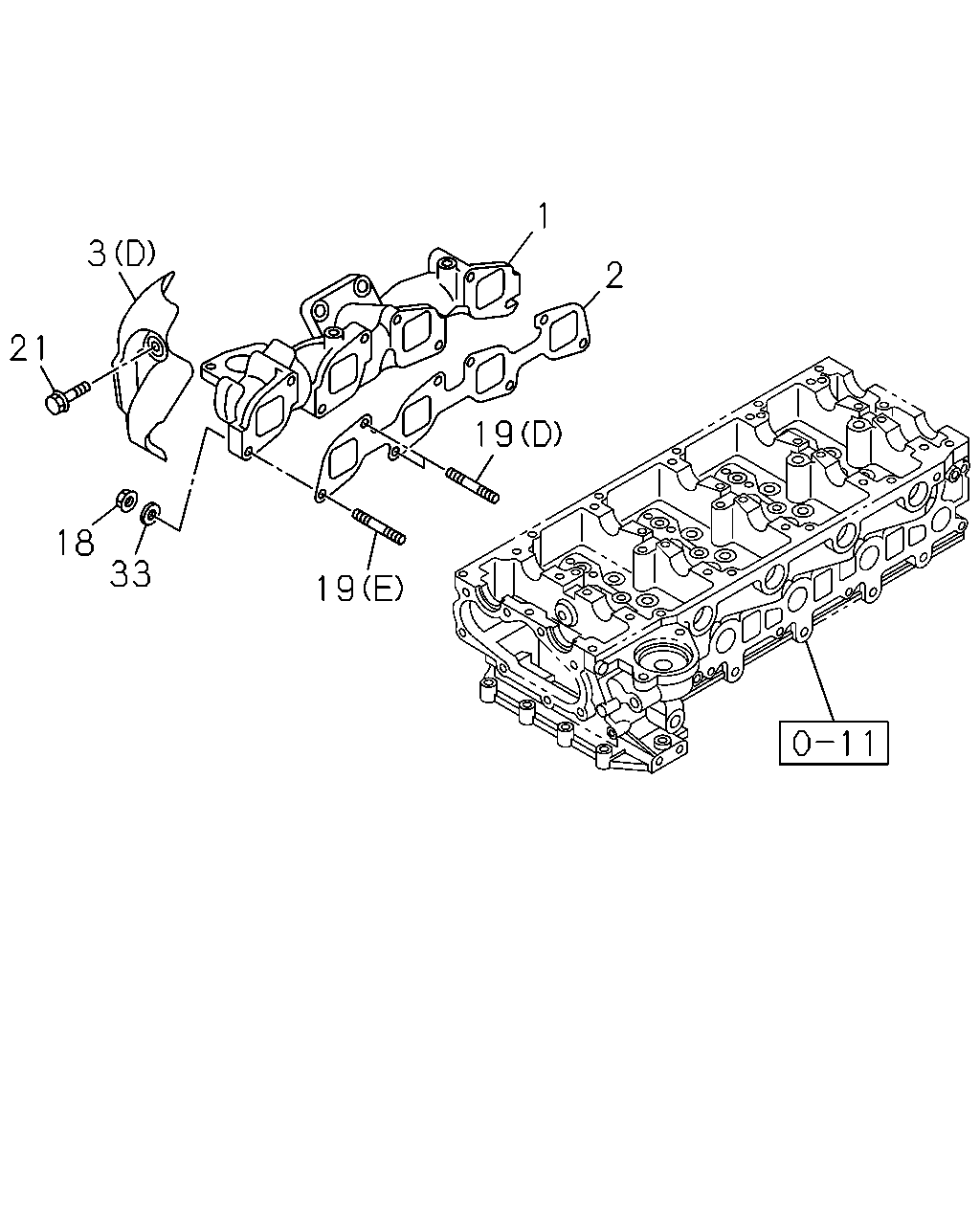

çizim 116283
1 3 2 21 19 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-265-0 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-265-0 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-767-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0501-1008 ● ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0609-0708 ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0710-1008 ●
1 MANIFOLD; EXHAUST
THA 		8-98132-040-2 01 1 1009- ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0204-0408 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0501-0608 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0609-0708 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0709-0709 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0710-1406 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-98229-782-0 01 1 1407- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-2 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-3 01 1 0501- ● ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0609-0708 ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0710-1008 ●
3 PROTECTOR; HEAT,EXH MANIF
(E) THA 		8-98156-384-0 01 1 1009- ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ● ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0501-0606 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0607-0608 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0609-0708 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0709-0709 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0710- ● ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0204-0408 ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0409-0409 ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97378-065-0 02 1 0410-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0501-0704 ● ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-98048-446-0 02 1 0705- ● ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0501- ● ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-94391-665-0 04 1 0609-0704 ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0705-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0609-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0710-1008 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 08 1 1009- ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0710-1008 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0609-0708 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0710- ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0409-0412 ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0501-0606 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0607-0608 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0609-0708 ● ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0709-0709 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0710- ● ● ●

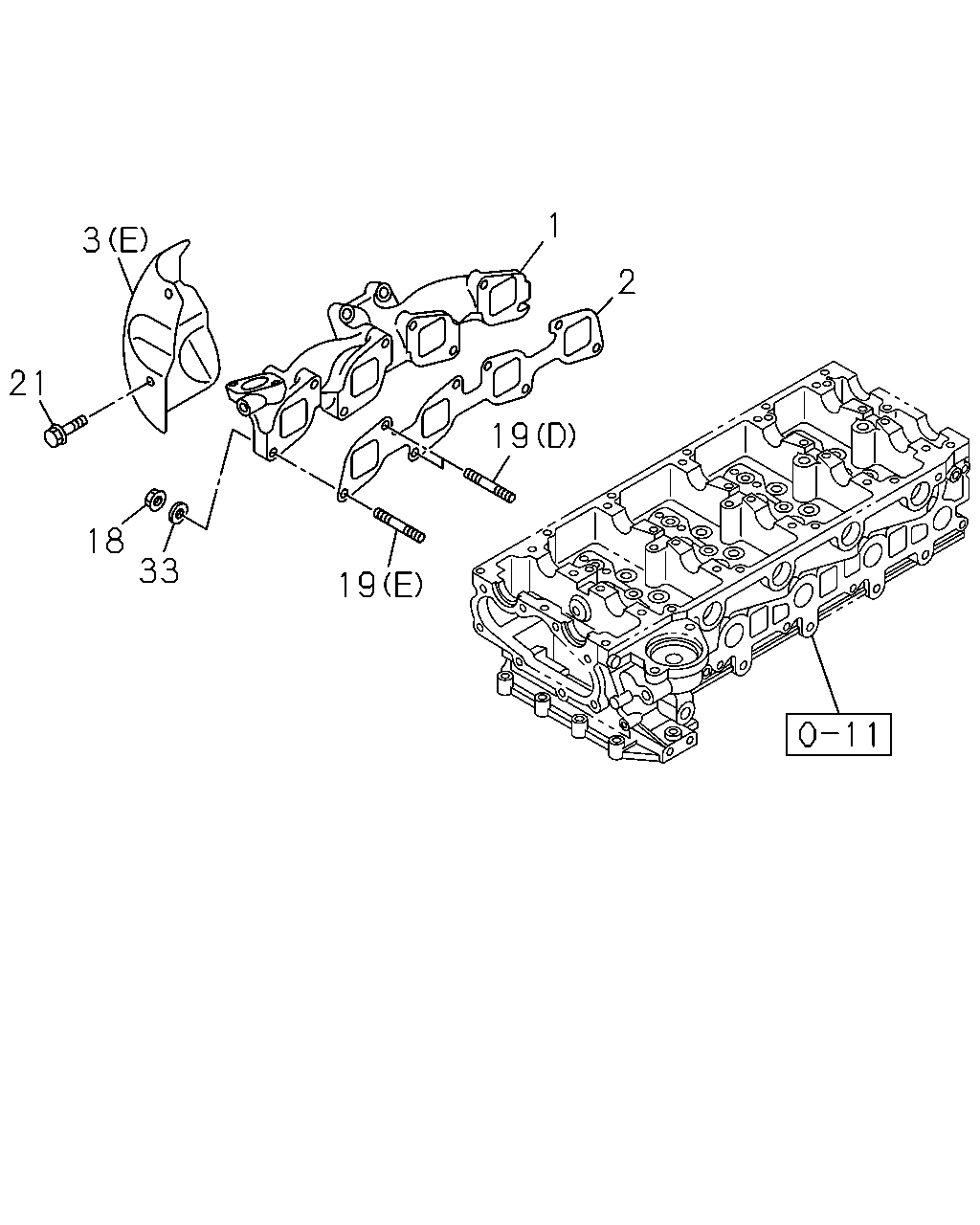

çizim 116284
1 3 2 21 19 18 33 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-265-0 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-265-0 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-750-0 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97942-767-0 01 1 0204-0408 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0409-0412 ●
1 MANIFOLD; EXHAUST
THA 		8-97372-786-1 01 1 0501-1008 ● ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1009-1106 ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97372-786-1 01 1 1107- ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0609-0708 ●
1 MANIFOLD; EXHAUST
THA 		8-98011-522-3 01 1 0710-1008 ●
1 MANIFOLD; EXHAUST
THA 		8-98132-040-2 01 1 1009- ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0204-0408 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97920-200-3 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0409-0412 ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0501-0608 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0609-0708 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0709-0709 ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-97356-028-2 01 1 0710-1406 ● ● ●
2 GASKET; EXH MANIF TO HD
THA 		8-98229-782-0 01 1 1407- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(A) THA 		8-97920-417-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0204-0408 ● ●
3 PROTECTOR; HEAT,EXH MANIF
(B) THA 		8-97920-418-1 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-2 01 1 0409-0412 ●
3 PROTECTOR; HEAT,EXH MANIF
(C) THA 		8-97360-036-3 01 1 0501- ● ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0609-0708 ●
3 PROTECTOR; HEAT,EXH MANIF
(D) THA 		8-98011-523-0 01 1 0710-1008 ●
3 PROTECTOR; HEAT,EXH MANIF
(E) THA 		8-98156-384-0 01 1 1009- ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0204-0408 ● ●
18 NUT; EXH MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0409-0412 ●
18 NUT; EXH MANIF
M10 FLANGE THA 		0-91180-210-0 08 1 0501-0606 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0607-0608 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0609-0708 ● ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0709-0709 ● ●
18 NUT; EXH MANIF
M10 FLANGE IMA 		8-97381-617-0 08 1 0710- ● ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0204-0408 ● ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97048-055-1 02 1 0409-0409 ●
19 STUD; MANIF TO CYL HD
(A) M8X35 L=46 THA 		8-97378-065-0 02 1 0410-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-94391-665-0 02 1 0501-0704 ● ●
19 STUD; MANIF TO CYL HD
(C) M10X70 L=83 THA 		8-98048-446-0 02 1 0705- ● ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0409-0412 ●
19 STUD; MANIF TO CYL HD
(B) M10X33 L=48 THA 		8-97379-383-0 06 1 0501- ● ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-94391-665-0 04 1 0609-0704 ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0705-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0609-0708 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 04 1 0710-1008 ●
19 STUD; MANIF TO CYL HD
(E) M10X33 L=48 THA 		8-97379-383-0 08 1 1009- ●
19 STUD; MANIF TO CYL HD
(D) M10X70 L=83 THA 		8-98048-446-0 04 1 0710-1008 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0204-0408 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE IMA 		0-28450-816-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M6X12 FLANGE THA 		0-28050-612-0 01 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0204-0408 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0409-0412 ●
21 BOLT; HEAT PROTECTOR
M6X10 FLANGE THA 		0-28050-610-0 03 1 0501- ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0609-0708 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 0710- ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0409-0412 ●
33 WASHER; EXH MANIF
ID=11 THA 		8-97380-674-0 08 1 0501-0606 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0607-0608 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0609-0708 ● ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0709-0709 ● ●
33 WASHER; EXH MANIF
ID=10.5 THA 		5-09500-013-0 08 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
