◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#72794) — 381 parça

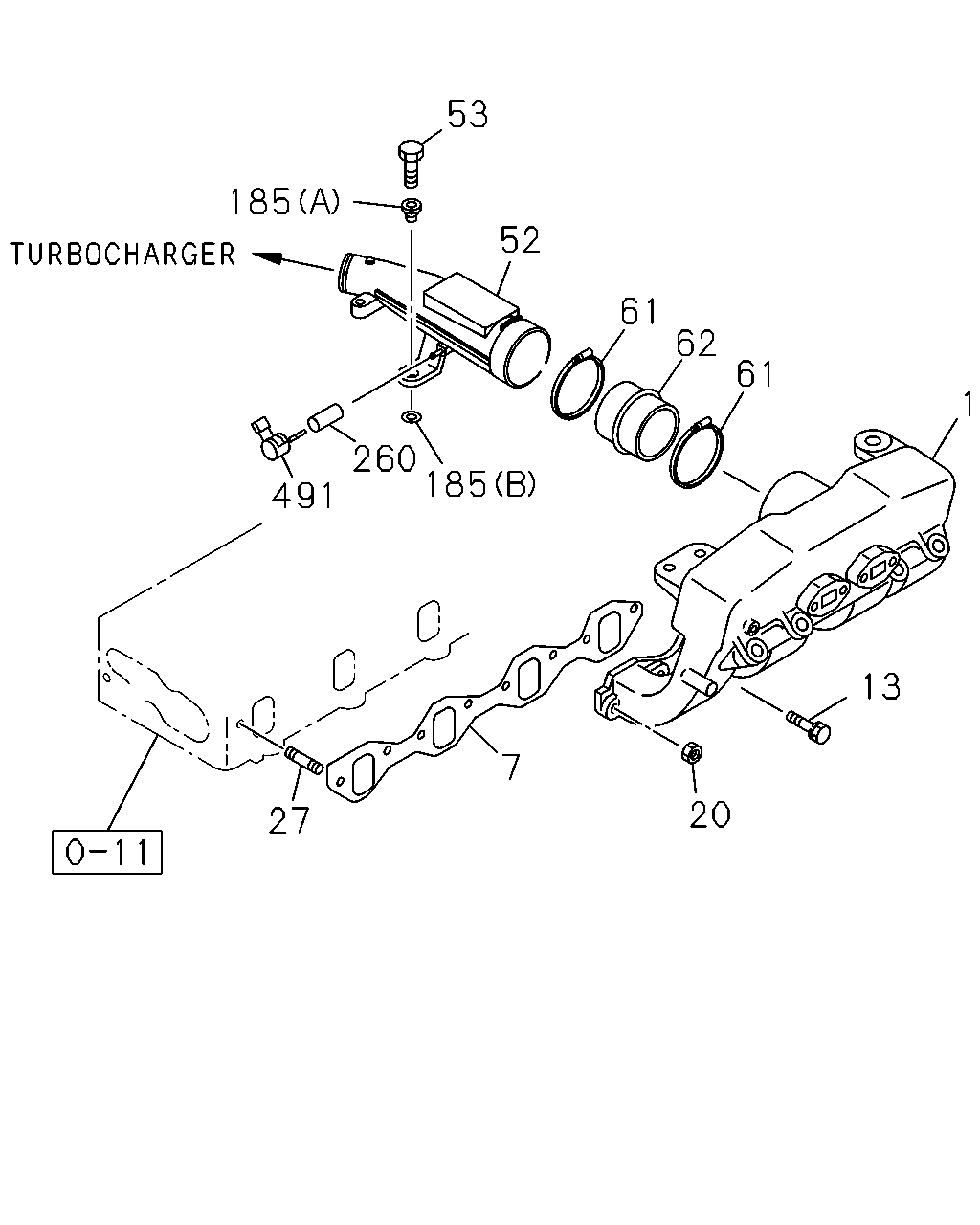

çizim 116273
53 185 52 61 62 61 1 260 185 491 13 7 20 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-264-0 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-264-0 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97287-499-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0501-1008 ● ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0609-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0204-0408 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0501-0608 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0609-0708 ● ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0501-0608 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0609-0708 ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ● ●
52 PIPE; INL
THA 		8-97916-935-1 01 1 0204-0206 ●
52 PIPE; INL
THA 		8-97942-925-0 01 1 0207-0408 ●
52 PIPE; INL
THA 		8-97942-925-0 01 1 0409-0412 ●
52 PIPE; INL
THA 		8-97214-098-3 01 1 0204-0206 ●
52 PIPE; INL
THA 		8-97942-926-0 01 1 0207-0408 ●
53 BOLT; INL PIPE
M8X30 W/LK WASHER THA 		0-50540-830-0 02 1 0204-0408 ●
53 BOLT; INL PIPE
M8X30 W/LK WASHER THA 		0-50540-830-0 02 1 0409-0412 ●
61 CLIP; CONNECTOR HOSE
ID=65-82 THA 		8-97131-942-0 02 1 0204-0408 ●
61 CLIP; CONNECTOR HOSE
ID=65-82 THA 		8-97131-942-0 02 1 0409-0412 ●
62 HOSE; CONNECTOR
THA 		8-97137-018-1 01 1 0204-0405 ●
62 HOSE; CONNECTOR
THA 		8-94386-164-1 01 1 0406-0408 ●
62 HOSE; CONNECTOR
THA 		8-94386-164-1 01 1 0409-0412 ●
185 RUBBER; MTG,INL MANIF,UPR
(A) THA 		8-97910-200-0 02 1 0204-0408 ●
185 RUBBER; MTG,INL MANIF,UPR
(A) THA 		8-97910-200-0 02 1 0409-0412 ●
185 RUBBER; MTG,INL MANIF,UPR
(B) ID=12 OD=24 T=4.5 THA 		8-97912-693-1 02 1 0204-0408 ●
185 RUBBER; MTG,INL MANIF,UPR
(B) ID=12 OD=24 T=4.5 THA 		8-97912-693-1 02 1 0409-0412 ●
260 CAP; RUBBER
ID=4 THA 		8-94217-809-0 01 1 0204-0206 ●
491 CLIP; CONNECTOR
IMA 		8-97031-674-0 01 1 0204-0206 ●

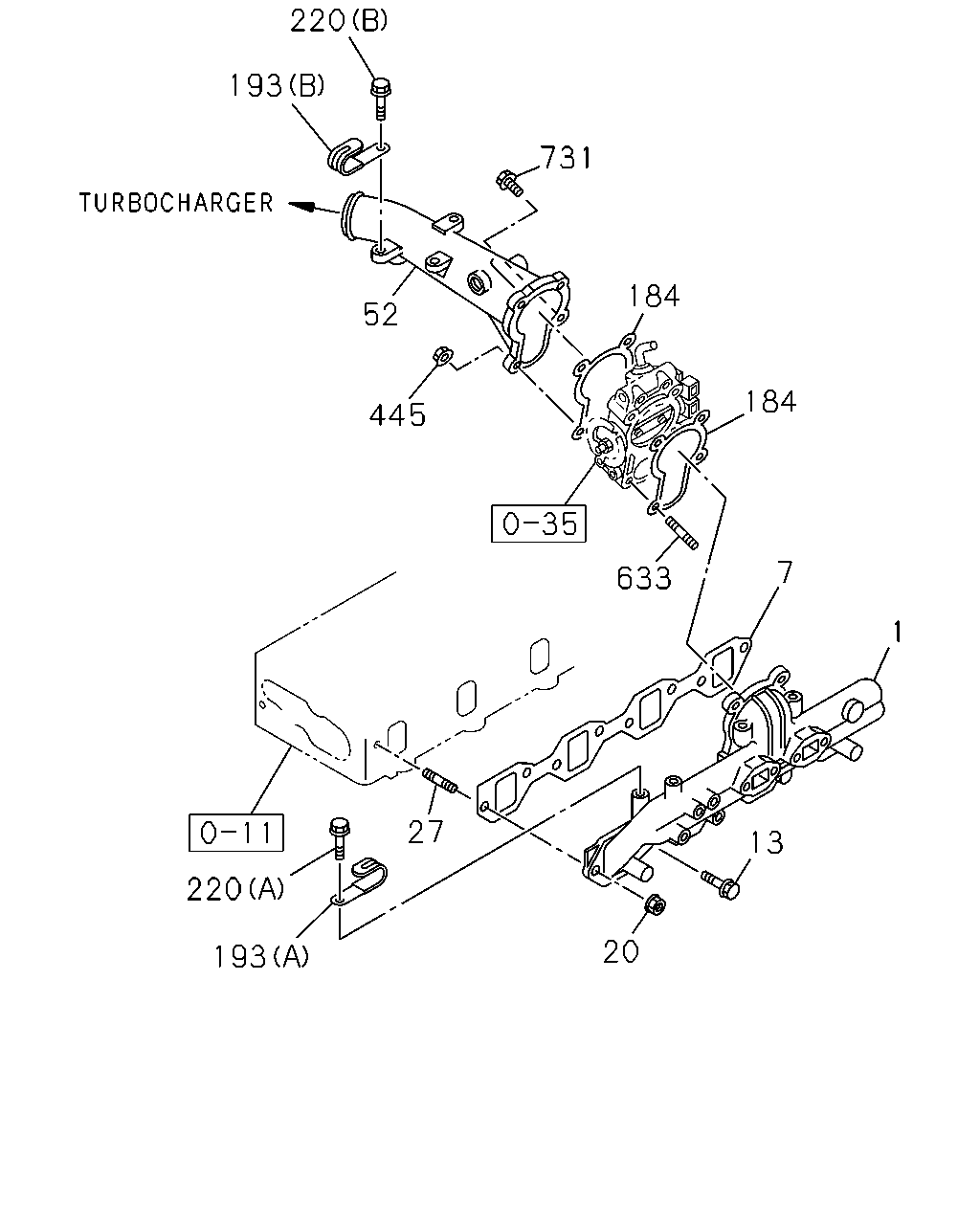

çizim 116274
220 193 731 184 52 184 445 7 633 1 27 13 220 20 193
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-264-0 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-264-0 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97287-499-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0501-1008 ● ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0609-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0204-0408 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0501-0608 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0609-0708 ● ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0501-0608 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0609-0708 ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ● ●
52 PIPE; INL
THA 		8-97916-935-1 01 1 0204-0206 ●
52 PIPE; INL
THA 		8-97942-925-0 01 1 0207-0408 ●
52 PIPE; INL
THA 		8-97942-925-0 01 1 0409-0412 ●
52 PIPE; INL
THA 		8-97214-098-3 01 1 0204-0206 ●
52 PIPE; INL
THA 		8-97942-926-0 01 1 0207-0408 ●
184 GASKET; T/V
THA 		8-97942-730-0 02 1 0204-0408 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0409-0412 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0501-0608 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0609-0708 ● ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ● ●
193 CLIP; VAC HOSE
(B) ID=18 L=44 THA 		8-94225-185-0 01 1 0204-0408 ●
193 CLIP; VAC HOSE
(A) ID=8.5 THA 		8-97912-612-0 01 1 0204-0408 ●
220 BOLT; CLIP,RUBBER HOSE
(A) M6X10 FLANGE THA 		0-28050-610-0 01 1 0204-0408 ●
220 BOLT; CLIP,RUBBER HOSE
(B) M8X10 FLANGE THA 		0-28050-810-0 01 1 0204-0408 ●
445 NUT; THROTTLE BODY TO MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0204-0408 ●
633 STUD; THROTTLE BODY
M8X55 L=71 THA 		0-40210-855-0 02 1 0204-0408 ●
731 BOLT; THROTTLE ASM
M8X60 FLANGE THA 		0-28050-860-0 02 1 0204-0408 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0409-0412 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0501-0608 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0609-0708 ● ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ● ●

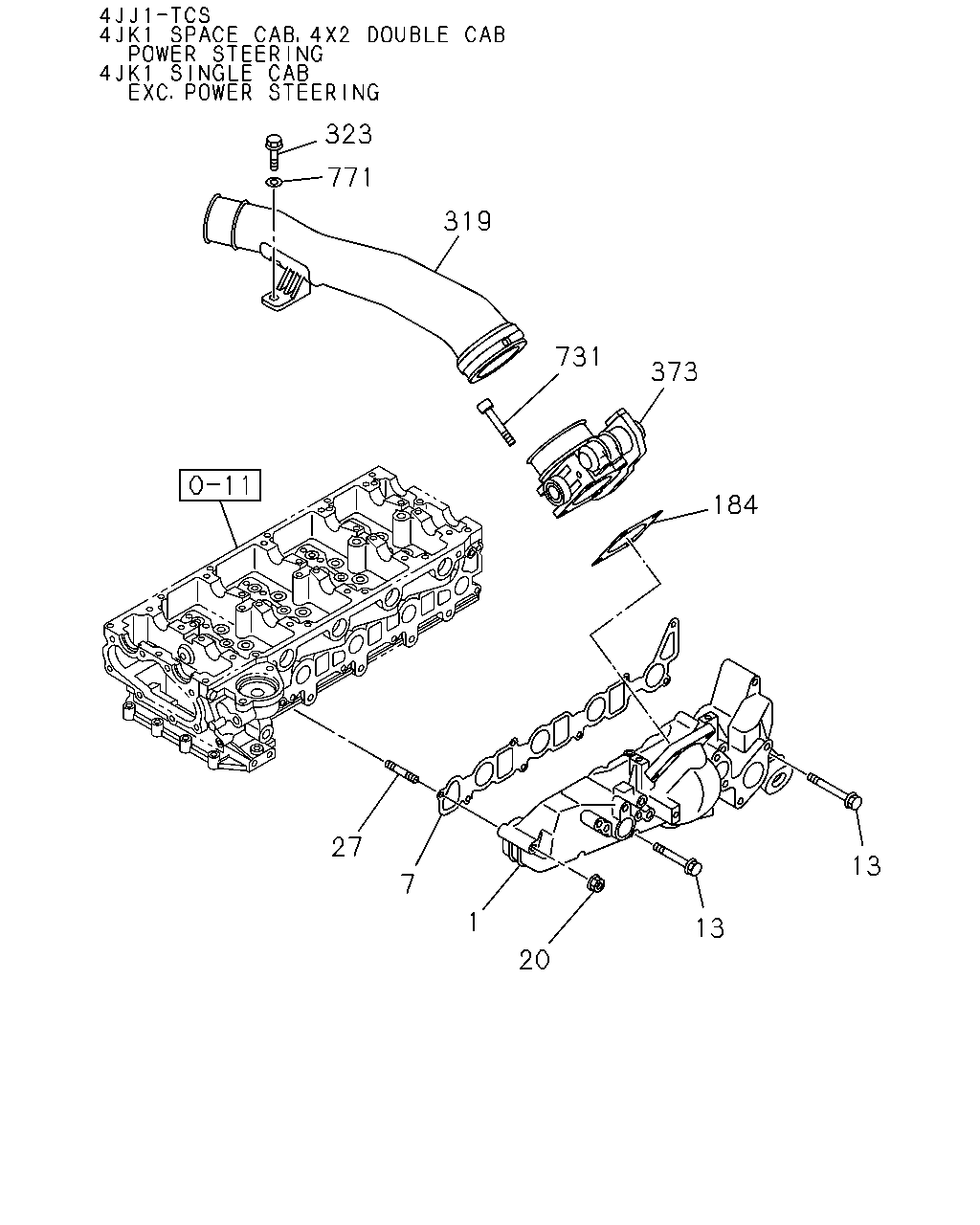

çizim 116276
323 771 319 731 373 184 27 13 7 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-264-0 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-264-0 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97287-499-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0501-1008 ● ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0609-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0204-0408 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0501-0608 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0609-0708 ● ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0501-0608 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0609-0708 ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ● ●
184 GASKET; T/V
THA 		8-97942-730-0 02 1 0204-0408 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0409-0412 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0501-0608 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0609-0708 ● ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97356-891-2 01 1 0409-0412 ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97356-891-2 01 1 0501-0602 ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97945-196-0 01 1 0603-1111 ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-98209-860-0 01 1 1112- ● ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0409-0412 ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0501- ● ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0409-0412 ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0501-0509 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-347-0 01 1 0510-0606 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0607-0608 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0609-0708 ● ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0709-0709 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-4 01 1 0710- ● ● ●
731 BOLT; THROTTLE ASM
M8X60 FLANGE THA 		0-28050-860-0 02 1 0204-0408 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0409-0412 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0501-0608 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0609-0708 ● ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ● ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0409-0412 ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0501- ● ●

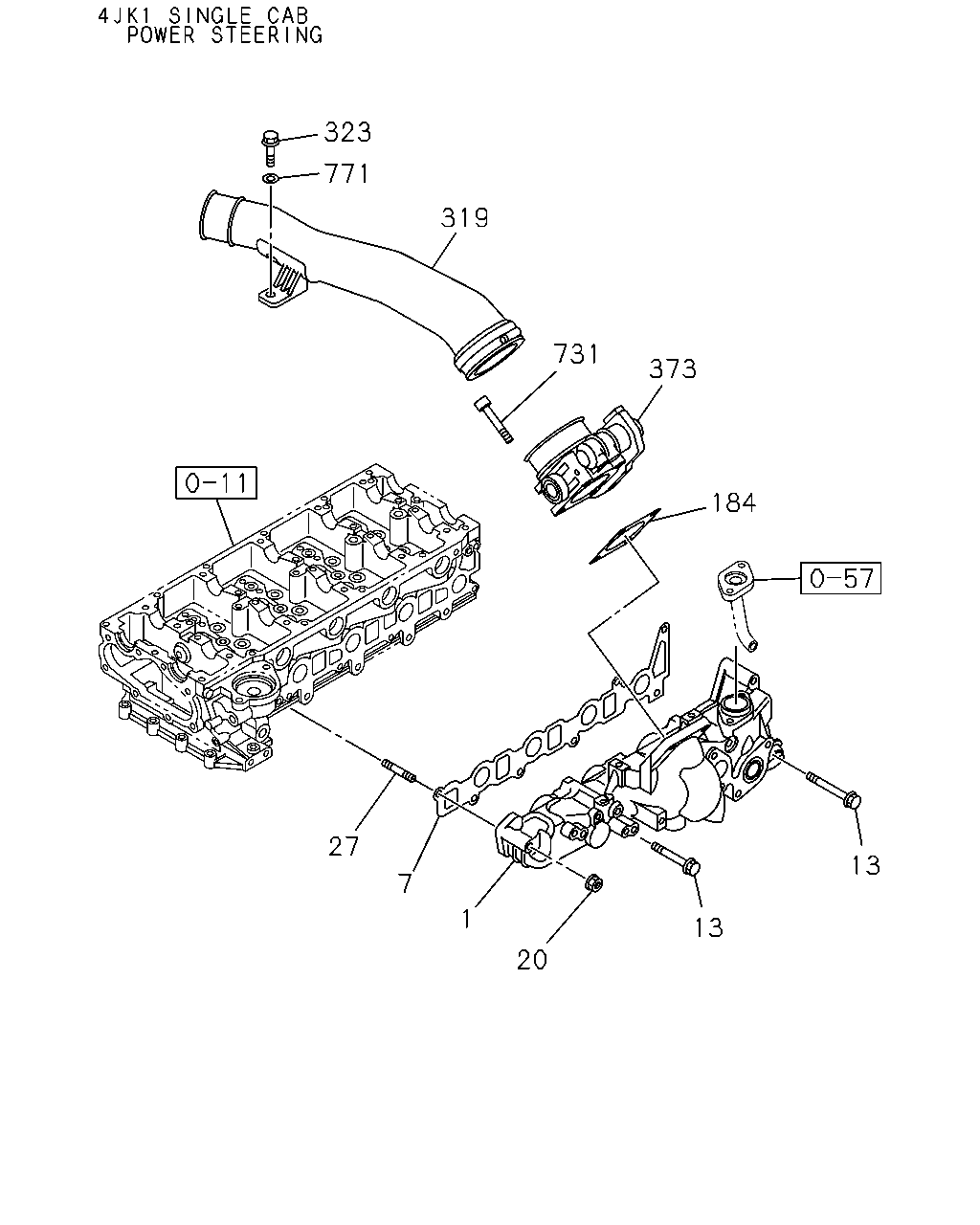

çizim 116277
323 771 319 731 373 184 27 13 7 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-264-0 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-264-0 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97287-499-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0501-1008 ● ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0609-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0204-0408 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0501-0608 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0609-0708 ● ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0501-0608 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0609-0708 ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ● ●
184 GASKET; T/V
THA 		8-97942-730-0 02 1 0204-0408 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0409-0412 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0501-0608 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0609-0708 ● ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97356-891-2 01 1 0409-0412 ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97356-891-2 01 1 0501-0602 ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-97945-196-0 01 1 0603-1111 ● ●
319 DUCT; INL,TURBOCHARGER
THA 		8-98209-860-0 01 1 1112- ● ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0409-0412 ●
323 BOLT; DUCT
M8X20 FLANGE THA 		0-28050-820-0 02 1 0501- ● ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0409-0412 ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0501-0509 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-347-0 01 1 0510-0606 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0607-0608 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0609-0708 ● ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0709-0709 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-4 01 1 0710- ● ● ●
731 BOLT; THROTTLE ASM
M8X60 FLANGE THA 		0-28050-860-0 02 1 0204-0408 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0409-0412 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0501-0608 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0609-0708 ● ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ● ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0409-0412 ●
771 WASHER; DUCT
ID=8.4 OD=16 THA 		0-91610-508-0 02 1 0501- ● ●

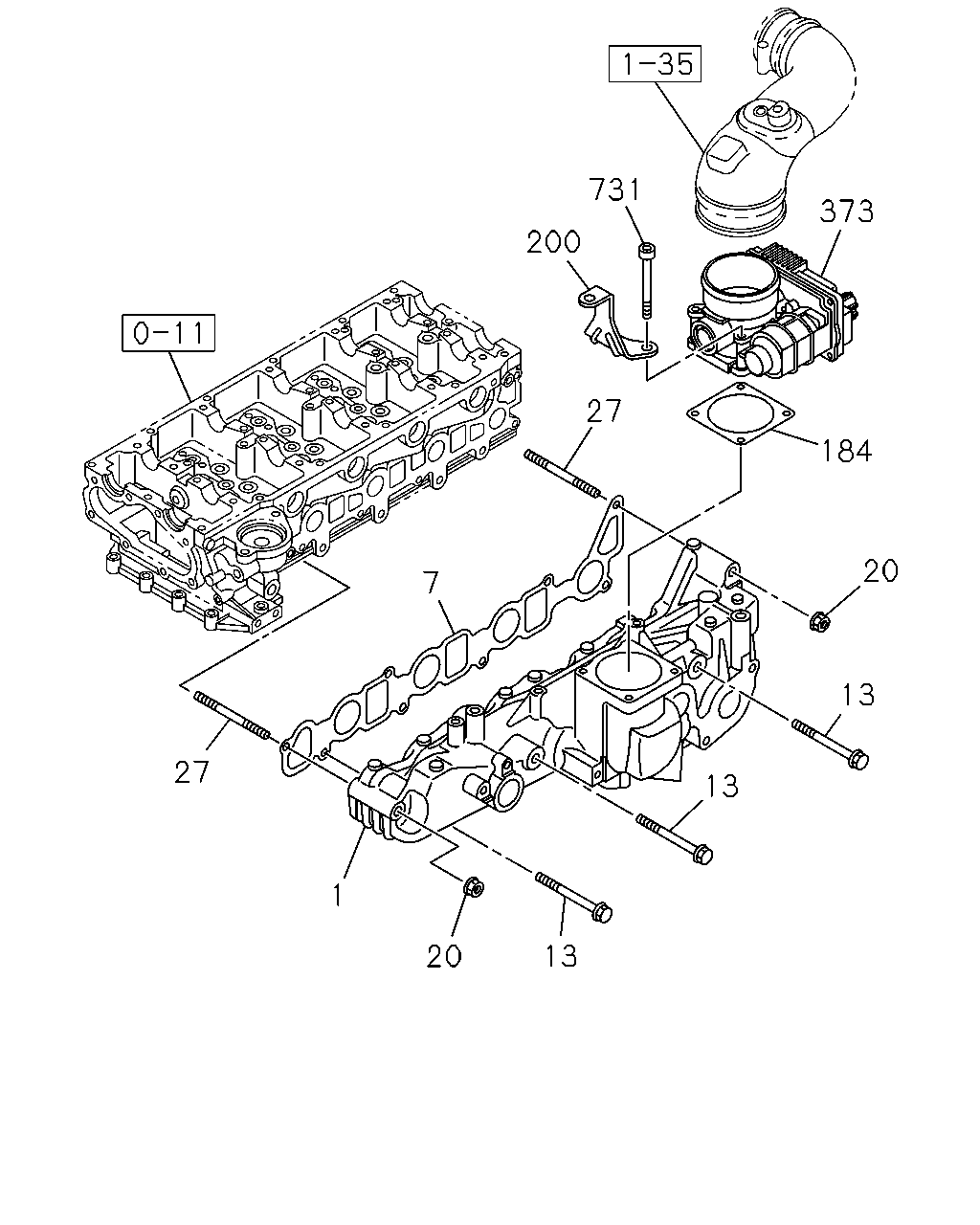

çizim 116281
731 373 200 27 184 20 7 13 27 13 1 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> POWER STEERING<N40> THA 		8-98096-264-0 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> THA 		8-98096-264-0 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97253-952-0 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97287-499-0 01 1 0204-0408 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0409-0412 ●
1 MANIFOLD; INL
THA 		8-97312-063-5 01 1 0501-1008 ● ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SPACE CAB<TF**C*> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
SINGLE CAB<TF**S*> M/T MUA 5 SPEED 5H<MWQ> COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> EXC. POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 DOUBLE CAB<TFB*W*> M/T MUA 5 SPEED 5H<MWQ> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1009-1106 ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> POWER STEERING<N40> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
4X2 SPACE CAB<TFB5CF> 4X2 DOUBLE CAB<TFB5WF> 4X4 SPACE CAB<TFS5CF> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97312-063-5 01 1 1107- ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0609-0708 ●
1 MANIFOLD; INL
THA 		8-98011-521-0 01 1 0710- ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0204-0408 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97920-514-1 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0409-0412 ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0501-0608 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0609-0708 ● ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-0 01 1 0709-0709 ● ●
7 GASKET; INL MANIF TO HD
THA 		8-97312-067-1 01 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X25 FLANGE THA 		0-28050-825-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0204-0408 ● ●
13 BOLT; INL MANIF
M8X30 FLANGE THA 		0-28050-830-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0409-0412 ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X110 FLANGE THA 		0-28055-811-0 02 1 0710- ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0409-0412 ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0501-0608 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0609-0708 ● ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0709-0709 ● ●
13 BOLT; INL MANIF
M8X70 12-POINT HEAD THA 		8-97101-065-0 04 1 0710- ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0204-0207 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0208-0408 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97943-102-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0204-0408 ● ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0409-0412 ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0501-0608 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0609-0708 ● ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0709-0709 ● ●
27 STUD; INL MANIF
M8X71 L=83 THA 		8-97367-083-0 02 1 0710- ● ● ●
184 GASKET; T/V
THA 		8-97942-730-0 02 1 0204-0408 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0409-0412 ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0501-0608 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0609-0708 ● ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0709-0709 ● ●
184 GASKET; T/V
THA 		8-97366-784-1 01 1 0710- ● ● ●
200 BRACKET; AIR DUCT
THA 		8-98031-444-0 01 1 0609-0708 ●
200 BRACKET; AIR DUCT
THA 		8-98031-444-0 01 1 0710- ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0409-0412 ●
373 THROTTLE ASM; INT
THA 		8-97370-833-2 01 1 0501-0509 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-347-0 01 1 0510-0606 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0607-0608 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0609-0708 ● ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-0 01 1 0709-0709 ● ●
373 THROTTLE ASM; INT
THA 		8-97945-522-4 01 1 0710- ● ● ●
731 BOLT; THROTTLE ASM
M8X60 FLANGE THA 		0-28050-860-0 02 1 0204-0408 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0409-0412 ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0501-0608 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0609-0708 ● ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0709-0709 ● ●
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA 		0-58330-650-0 04 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
