0-22 — ENGINE MOUNTING (#72793) — 327 parça

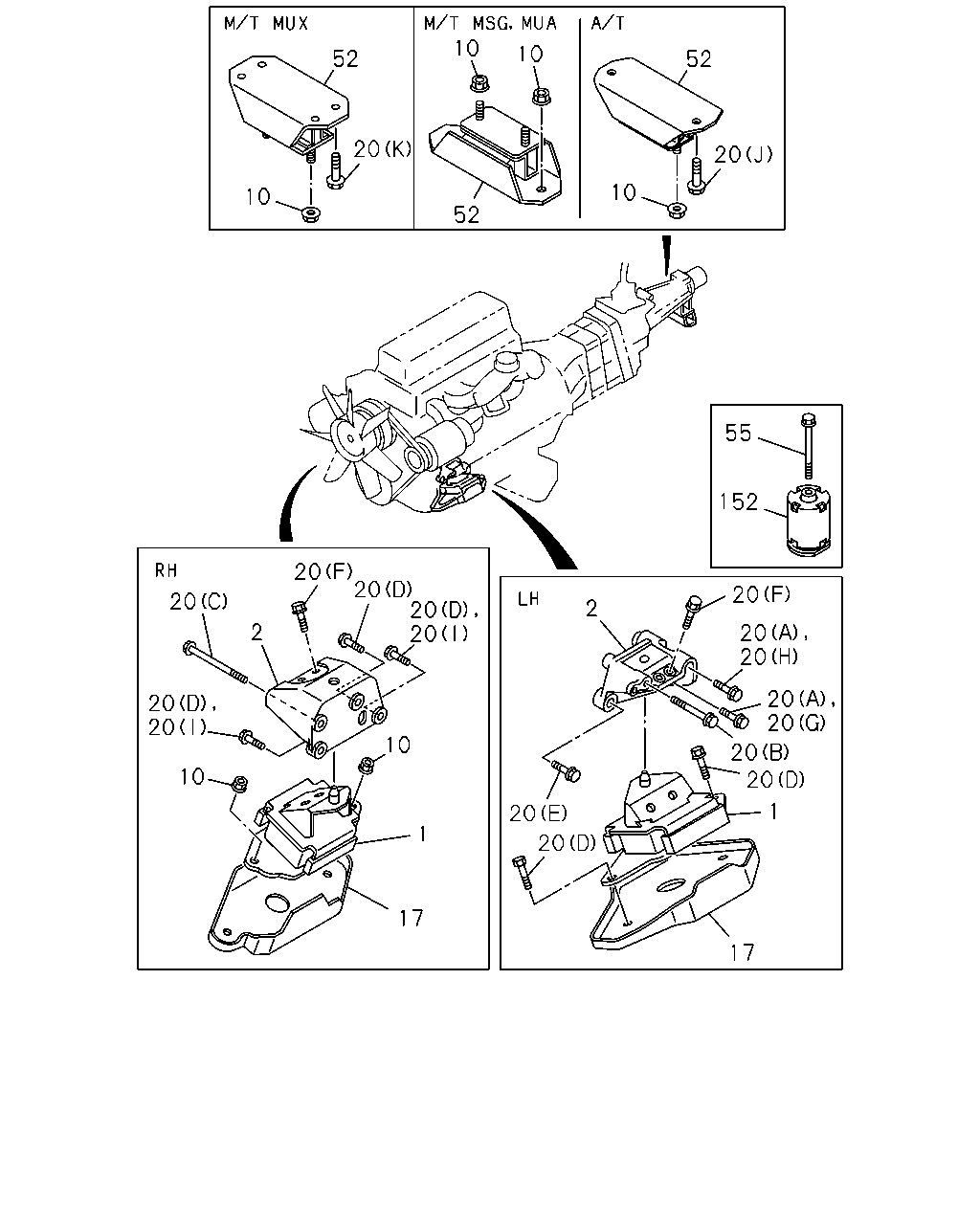

çizim 116270
10 10 52 52 20 20 10 10 52 55 152 20 20 20 20 20 20 2 2 20 20 20 20 20 20 10 20 20 10 1 20 1 20 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-272-0 01 1 0409-0412 ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0409-0412 ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0501-0608 ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0609-0708 ● ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0709-0709 ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97367-273-0 01 1 0710- ● ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0409-0412 ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0501-0608 ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0609-0708 ● ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0709-0709 ● ●
1 RUBBER; ENG FOOT,FRT
THA 		8-97363-543-0 01 1 0710- ● ● ●
2 FOOT; ENG
THA 		8-97308-036-2 01 1 0204-0408 ● ●
2 FOOT; ENG
THA 		8-97308-036-2 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97245-727-0 01 1 0204-0301 ● ●
2 FOOT; ENG
THA 		8-97943-686-0 01 1 0302-0408 ● ●
2 FOOT; ENG
THA 		8-97943-686-0 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0501-0608 ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0609-0708 ● ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0709-0709 ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0710- ● ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0501-0608 ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0609-0708 ● ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0709-0709 ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0710- ● ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 04 1 0204-0408 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10 FLANGE THA 		0-91180-210-0 02 1 0204-0408 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0409-0412 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0501-0608 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0609-0708 ● ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0709-0709 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97385-745-0 01 1 0710- ● ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0409-0412 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0501-0608 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0609-0708 ● ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0709-0709 ● ●
17 COVER; CUSHION RUBBER,FRT
THA 		8-97381-228-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0710- ● ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(A) M10X25 W/LK WASHER THA 		0-50041-025-0 02 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(A) M10X25 W/LK WASHER THA 		0-50041-025-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0710- ● ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0507 ● ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0507 ● ●
20 BOLT; ENG FOOT
A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0508-0606 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607-0608 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607-0608 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ●
20 BOLT; ENG FOOT
A/T AISIN<RMD> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0709-0709 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ● ●
20 BOLT; ENG FOOT
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ● ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T AISIN<RMD> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0710- ● ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
M/T MUX 5 SPEED 5S<MZJ> (K) M8X35 FLANGE THA 		0-28650-835-0 04 1 0609-0708 ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> (K) M8X35 FLANGE THA 		0-28650-835-0 04 1 0710- ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97247-681-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97247-681-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-278-0 01 1 0304-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-278-0 01 1 0304-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED<RMN> THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED<RMN> THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0501-0606 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0501-0606 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97367-632-0 01 1 0607-0610 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0607-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98051-338-0 01 1 0611-0709 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98051-338-0 01 1 0611-0709 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-338-0 01 1 0710- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98051-338-0 01 1 0710- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97367-281-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97373-164-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97373-164-0 01 1 0409-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-98051-342-0 01 1 0611- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97234-982-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-276-0 01 1 0304-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-630-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-630-0 01 1 0409-0606 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97367-630-0 01 1 0607-0608 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97367-630-0 01 1 0609-0610 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0611-0708 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0709-0709 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0710- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MSG 5 SPEED<M75> THA 		8-97371-778-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98048-963-0 01 1 0609-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-349-0 01 1 0611-0708 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-349-0 01 1 0710- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD> THA 		8-98051-348-0 01 1 0710- ●
55 BOLT; BRKT,ENG MTG,RR
4X4 DOUBLE CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-97134-968-0 01 1 0409-0608 ●
55 BOLT; BRKT,ENG MTG,RR
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-97134-968-0 01 1 0609-0610 ● ●
55 BOLT; BRKT,ENG MTG,RR
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-98051-536-0 01 1 0611-0708 ● ●
55 BOLT; BRKT,ENG MTG,RR
4X4 DOUBLE CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-98051-536-0 01 1 0709-0709 ●
55 BOLT; BRKT,ENG MTG,RR
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> M10X120 THA 		8-98051-536-0 01 1 0710- ● ●
152 DAMPER; DYNAMIC,ENG MTG
4X4 DOUBLE CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0409-0608 ●
152 DAMPER; DYNAMIC,ENG MTG
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0609-0708 ● ●
152 DAMPER; DYNAMIC,ENG MTG
4X4 DOUBLE CAB<TFS*W*> A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0709-0709 ●
152 DAMPER; DYNAMIC,ENG MTG
4X4 DOUBLE CAB<TFS*W*> A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97373-873-0 01 1 0710- ● ●

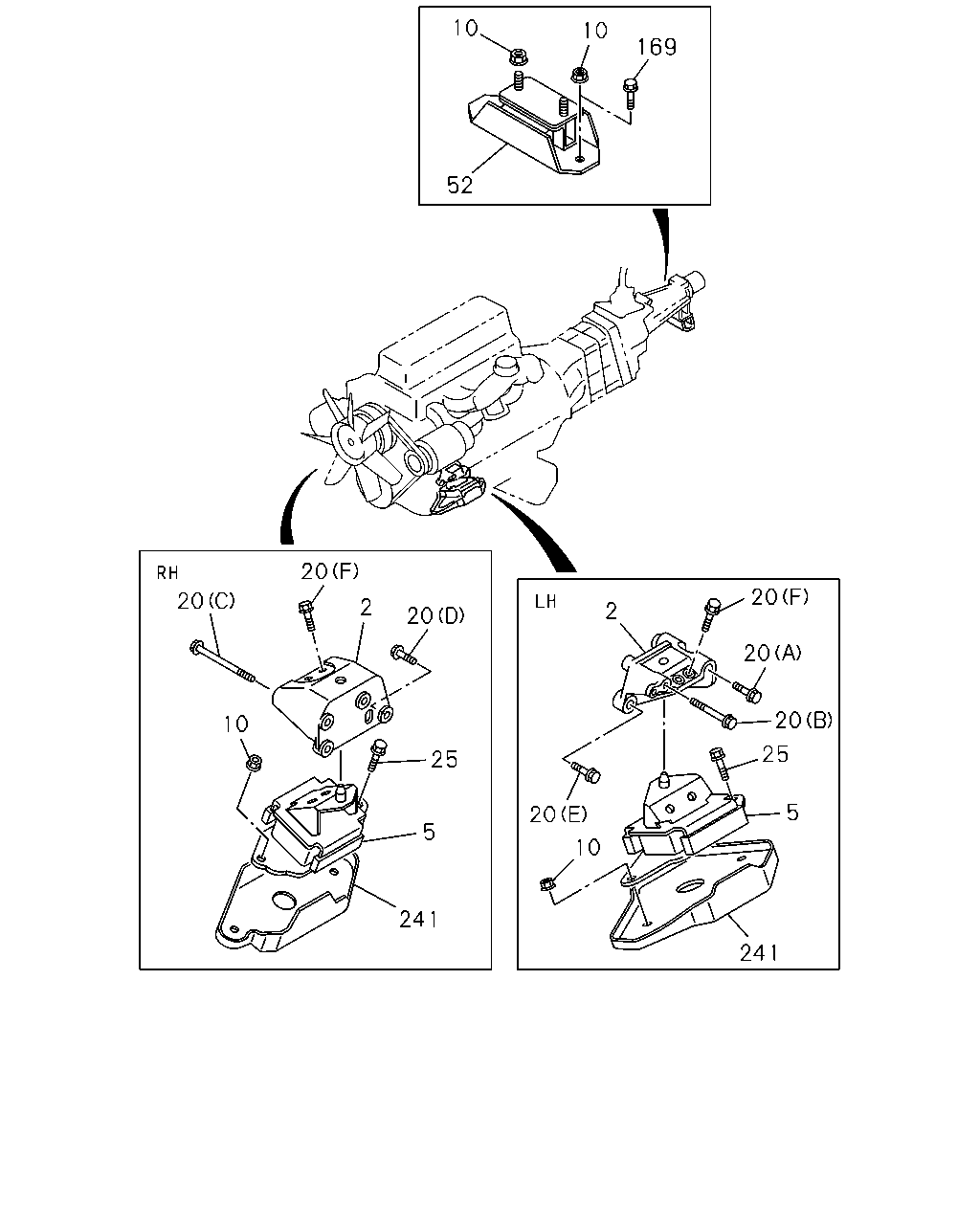

çizim 116271
10 10 169 52 20 20 20 2 2 20 20 20 10 25 25 5 20 5 10 241 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 FOOT; ENG
THA 		8-97308-036-2 01 1 0204-0408 ● ●
2 FOOT; ENG
THA 		8-97308-036-2 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97245-727-0 01 1 0204-0301 ● ●
2 FOOT; ENG
THA 		8-97943-686-0 01 1 0302-0408 ● ●
2 FOOT; ENG
THA 		8-97943-686-0 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0501-0608 ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0609-0708 ● ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0709-0709 ● ●
2 FOOT; ENG
THA 		8-97355-478-1 01 1 0710- ● ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0409-0412 ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0501-0608 ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0609-0708 ● ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0709-0709 ● ●
2 FOOT; ENG
THA 		8-97355-476-0 01 1 0710- ● ● ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97234-977-2 01 1 0204-0304 ● ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97367-273-0 01 1 0305-0408 ● ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97234-976-2 01 1 0204-0304 ● ●
5 RUBBER; SUPPORT,ENG FOOT
THA 		8-97367-272-0 01 1 0305-0408 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 04 1 0204-0408 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M10 FLANGE THA 		0-91180-210-0 02 1 0204-0408 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0409-0412 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		0-91180-210-0 02 1 0501-0606 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0607-0608 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0609-0708 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0709-0709 ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ● ●
10 NUT; MTG RUBBER
M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-210-0 02 1 0710- ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE THA 		0-28051-000-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE THA 		0-28051-080-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE THA 		0-28651-030-0 04 1 0710- ● ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE THA 		0-28851-445-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(A) M10X25 W/LK WASHER THA 		0-50041-025-0 02 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(A) M10X25 W/LK WASHER THA 		0-50041-025-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0204-0408 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 03 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0409-0412 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 02 1 0710- ● ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0507 ● ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0409-0507 ● ●
20 BOLT; ENG FOOT
A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0508-0606 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607-0608 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0607-0608 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ●
20 BOLT; ENG FOOT
A/T AISIN<RMD> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0609-0708 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0709-0709 ●
20 BOLT; ENG FOOT
4X4<TFS***> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ● ●
20 BOLT; ENG FOOT
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ● ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T AISIN<RMD> (J) M10X35 FLANGE THA 		0-28751-035-0 02 1 0710- ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE THA 		0-28051-020-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE THA 		0-28651-025-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0409-0412 ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(I) M10X30 FLANGE THA 		0-28651-030-0 02 1 0710- ● ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0409-0412 ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0501-0608 ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0609-0708 ● ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0709-0709 ● ●
20 BOLT; ENG FOOT
(H) M10X40 FLANGE THA 		0-28651-040-0 01 1 0710- ● ● ●
20 BOLT; ENG FOOT
M/T MUX 5 SPEED 5S<MZJ> (K) M8X35 FLANGE THA 		0-28650-835-0 04 1 0609-0708 ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> (K) M8X35 FLANGE THA 		0-28650-835-0 04 1 0710- ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0204-0408 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97247-681-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97247-681-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-278-0 01 1 0304-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-278-0 01 1 0304-0307 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED<RMN> THA 		8-97367-278-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED<RMN> THA 		8-97367-632-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-632-0 01 1 0501-0606 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0501-0606 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97367-632-0 01 1 0607-0610 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97367-632-0 01 1 0607-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98051-338-0 01 1 0611-0709 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98051-338-0 01 1 0611-0709 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-338-0 01 1 0710- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98051-338-0 01 1 0710- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97367-281-0 01 1 0308-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97373-164-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-97373-164-0 01 1 0409-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> HIGH RIDE SUSPENSION<7YC> THA 		8-98051-342-0 01 1 0611- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97234-982-1 01 1 0204-0303 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-276-0 01 1 0304-0404 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> THA 		8-97367-630-0 01 1 0405-0408 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97367-630-0 01 1 0409-0606 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-97367-630-0 01 1 0607-0608 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97367-630-0 01 1 0609-0610 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0611-0708 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0709-0709 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98051-336-0 01 1 0710- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MSG 5 SPEED<M75> THA 		8-97371-778-0 01 1 0409-0412 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98048-963-0 01 1 0609-0610 ●
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-349-0 01 1 0611-0708 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98051-349-0 01 1 0710- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 DOUBLE CAB<TFB*W*> A/T AISIN<RMD> THA 		8-98051-348-0 01 1 0710- ●
169 BOLT; SUPPORT
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> M10X35 FLANGE THA 		0-28751-035-0 02 1 0204-0408 ● ●
169 BOLT; SUPPORT
4X4<TFS***> M10X35 FLANGE THA 		0-28751-035-0 02 1 0204-0408 ● ●
241 COVER; ENG MTG
THA 		8-97350-437-1 01 1 0204-0402 ●
241 COVER; ENG MTG
THA 		8-97350-437-1 01 1 0403-0404 ● ●
241 COVER; ENG MTG
THA 		8-97381-228-0 01 1 0405-0408 ● ●
241 COVER; ENG MTG
THA 		8-97247-950-3 01 1 0204-0210 ● ●
241 COVER; ENG MTG
THA 		8-97361-154-0 01 1 0211-0301 ● ●
241 COVER; ENG MTG
THA 		8-97365-235-0 01 1 0302-0407 ● ●
241 COVER; ENG MTG
THA 		8-97385-745-0 01 1 0408-0408 ● ●
241 COVER; ENG MTG
THA 		8-97247-949-4 01 1 0204-0402 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
