0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#72792) — 712 parça

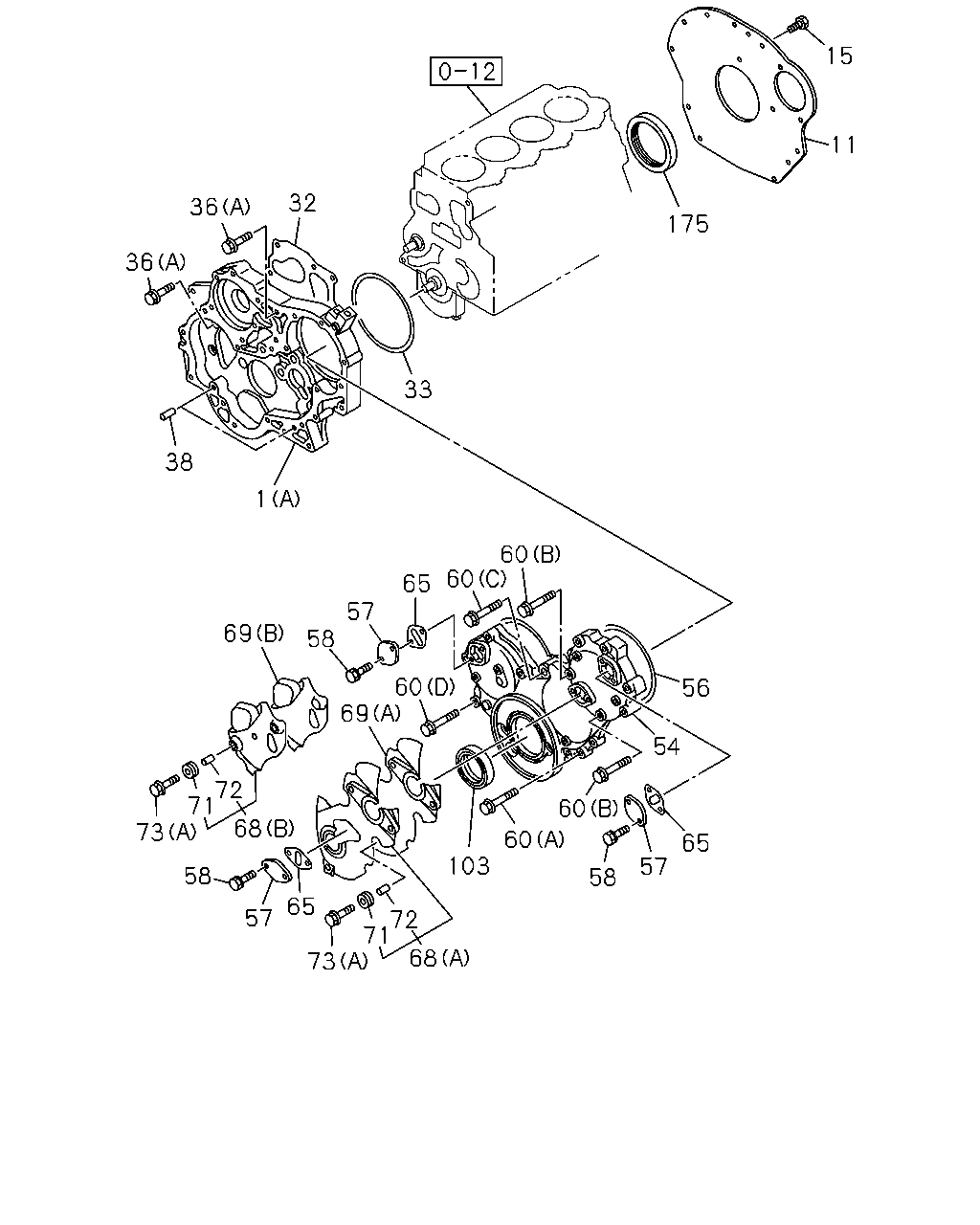

çizim 116257
15 11 32 36 175 36 33 38 1 60 60 65 57 69 58 60 56 69 54 72 71 60 68 73 60 65 103 57 58 58 65 57 72 71 68 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0204-0408 ● ●
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-1 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THA 		8-98074-747-1 01 1 1009- ● ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0204-0408 ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0607-0608 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0609-0708 ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-0 01 1 0609-0708 ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0709-0709 ● ●
11 PLATE; RR,C/BL
M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98020-515-1 01 1 0710-1106 ● ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 1107- ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-1 01 1 1107- ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-1 01 1 0609-0708 ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-2 01 1 0710- ●
15 BOLT; RR PLATE TO C/BL
M12X25 THA 		8-97916-324-0 03 1 0204-0408 ● ●
15 BOLT; RR PLATE TO C/BL
M12X25 THA 		8-97916-324-0 03 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501-0608 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0609-0708 ● ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0709-0709 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0710- ● ● ●
33 GASKET; BRKT TO CASE
THA 		8-97912-581-0 01 1 0204-0408 ● ●
33 GASKET; BRKT TO CASE
THA 		8-97912-581-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0409-0412 ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0710- ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0710- ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		8-97135-423-0 02 1 0204-0210 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0211-0408 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501-0608 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0609-0708 ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0709-0709 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0710- ● ● ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-0608 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0609-0708 ● ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0709-0709 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0710-1201 ● ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ● ●
56 GASKET; GEAR CASE TO COVER
THA 		8-97287-694-0 01 1 0204-0408 ● ●
56 GASKET; GEAR CASE TO COVER
THA 		8-97287-694-0 01 1 0409-0412 ●
57 COVER; TIMING CHECK HOLE
THA 		8-97912-582-0 03 1 0204-0408 ● ●
57 COVER; TIMING CHECK HOLE
THA 		8-97912-582-0 03 1 0409-0412 ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE THA 		0-28050-612-0 06 1 0204-0408 ● ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE THA 		0-28050-612-0 06 1 0409-0412 ●
60 BOLT; COVER TO CASE
(A) M8X30 FLANGE THA 		0-28050-830-0 08 1 0204-0408 ● ●
60 BOLT; COVER TO CASE
(A) M8X30 FLANGE THA 		0-28050-830-0 08 1 0409-0412 ●
60 BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER THA 		0-50540-870-0 06 1 0204-0408 ● ●
60 BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER THA 		0-50540-870-0 06 1 0409-0412 ●
60 BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET THA 		0-58331-255-0 01 1 0204-0408 ● ●
60 BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET THA 		0-58331-255-0 01 1 0409-0412 ●
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE THA 		8-97920-481-0 01 1 0204-0408 ● ●
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE THA 		8-97920-481-0 01 1 0409-0412 ●
65 GASKET; COVER,TIMING CHECK HOLE
THA 		8-97922-242-0 03 1 0204-0408 ● ●
65 GASKET; COVER,TIMING CHECK HOLE
THA 		8-97922-242-0 03 1 0409-0412 ●
68 COVER ASM; GEAR CASE COVER
(A) THA 		8-97255-034-1 01 1 0204-0205 ● ●
68 COVER ASM; GEAR CASE COVER
(A) THA 		8-97943-085-0 01 1 0206-0408 ● ●
68 COVER ASM; GEAR CASE COVER
(A) THA 		8-97943-085-0 01 1 0409-0412 ●
68 COVER ASM; GEAR CASE COVER
(B) THA 		8-97306-547-1 01 1 0204-0205 ● ●
68 COVER ASM; GEAR CASE COVER
(B) THA 		8-97943-086-0 01 1 0206-0408 ● ●
68 COVER ASM; GEAR CASE COVER
(B) THA 		8-97943-086-0 01 1 0409-0412 ●
69 SEAL; RUBBER,COVER TO COVER
(A) THA 		8-97942-720-0 01 1 0204-0408 ● ●
69 SEAL; RUBBER,COVER TO COVER
(A) THA 		8-97942-720-0 01 1 0409-0412 ●
69 SEAL; RUBBER,COVER TO COVER
(B) THA 		8-97306-548-1 01 1 0204-0408 ● ●
69 SEAL; RUBBER,COVER TO COVER
(B) THA 		8-97306-548-1 01 1 0409-0412 ●
71 RUBBER; MTG,COVER
THA 		5-19389-002-0 06 1 0204-0205 ● ●
71 RUBBER; MTG,COVER
THA 		8-97914-631-0 06 1 0206-0408 ● ●
71 RUBBER; MTG,COVER
THA 		8-97914-631-0 06 1 0409-0412 ●
72 BUSHING; SPACER,COVER TO COVER
THA 		5-19389-009-0 06 1 0204-0205 ● ●
72 BUSHING; SPACER,COVER TO COVER
THA 		8-97914-630-0 06 1 0206-0408 ● ●
72 BUSHING; SPACER,COVER TO COVER
THA 		8-97914-630-0 06 1 0409-0412 ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0204-0408 ● ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0608 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ● ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0709-0709 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0710-1008 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97049-145-0 01 1 0204-0208 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0209-0408 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501-0608 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0609-0708 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0709-0709 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0710- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0204-0408 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501-0608 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0609-0708 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0709-0709 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0710- ● ● ●

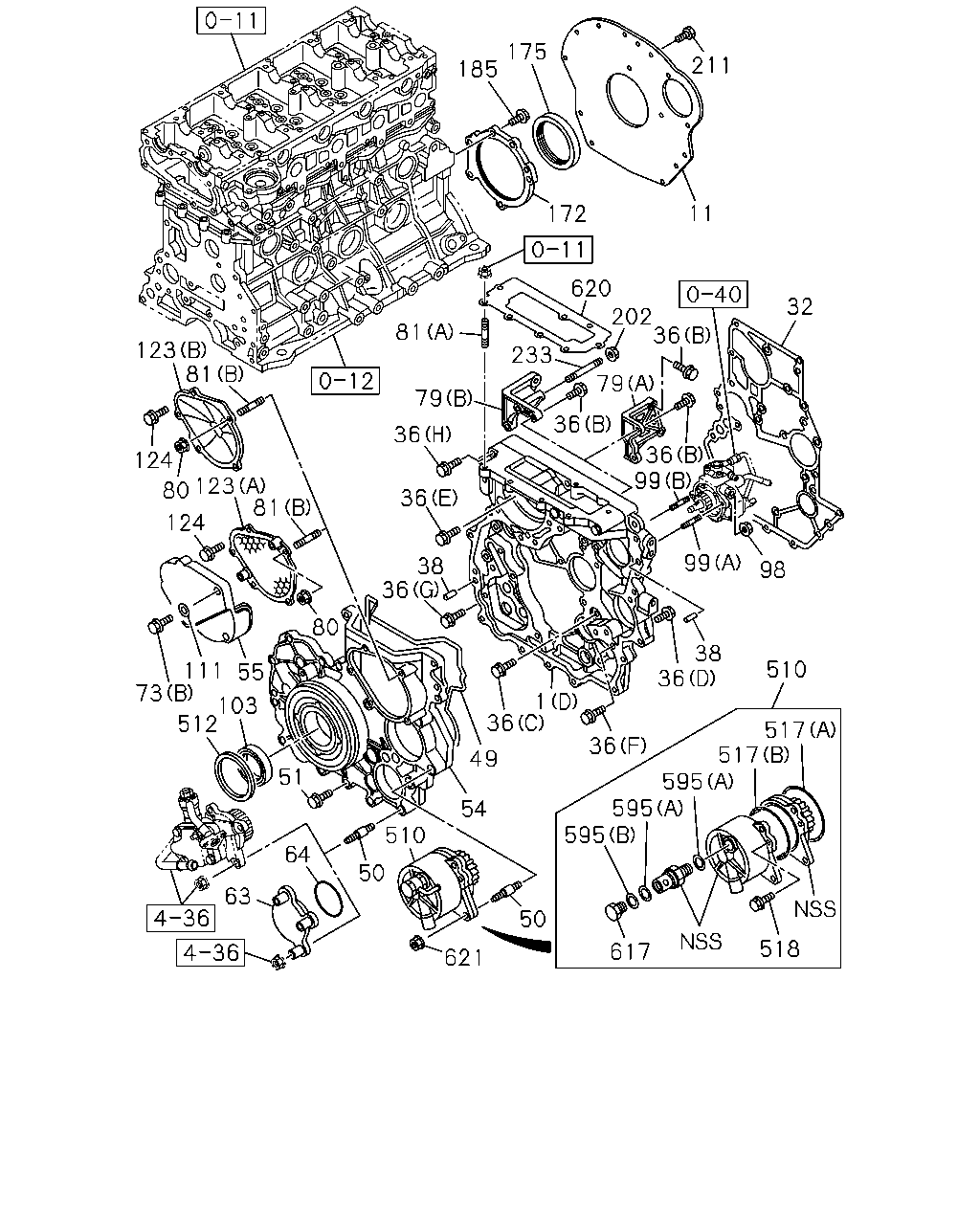

çizim 116275
517 517 595 595 595 617 518 175 185 172 211 11 32 36 202 620 233 36 99 36 79 99 98 510 38 36 36 36 1 49 54 510 50 621 64 63 512 55 103 111 73 124 81 123 80 124 123 81 79 36 36 38 36 80 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0204-0408 ● ●
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-1 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THA 		8-98074-747-1 01 1 1009- ● ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0204-0408 ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0607-0608 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0609-0708 ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-0 01 1 0609-0708 ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0709-0709 ● ●
11 PLATE; RR,C/BL
M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98020-515-1 01 1 0710-1106 ● ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 1107- ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-1 01 1 1107- ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-1 01 1 0609-0708 ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-2 01 1 0710- ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501-0608 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0609-0708 ● ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0709-0709 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0409-0412 ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0710- ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0710- ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		8-97135-423-0 02 1 0204-0210 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0211-0408 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501-0608 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0609-0708 ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0709-0709 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0710- ● ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0409-0412 ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0501-0511 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0512-0608 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0609-0708 ● ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0709-0709 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0710- ● ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0409-0412 ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0501-0608 ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0609-0708 ● ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0709-0709 ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0710- ● ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0409-0412 ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0501-0608 ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0609-0708 ● ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0709-0709 ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0710- ● ● ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-0608 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0609-0708 ● ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0709-0709 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0710-1201 ● ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0409-0412 ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0501-0608 ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0609-0708 ● ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0709-0709 ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0710-1008 ● ● ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0409-0412 ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0501-0606 ● ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0607- ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0409-0412 ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0501-0606 ● ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0607- ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0204-0408 ● ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0608 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ● ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0709-0709 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0710-1008 ● ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0409-0412 ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0501-0608 ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0609-0708 ● ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0709-0709 ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0710-1008 ● ● ●
79 BRACKET; GEAR CASE COVER
(B) THA 		8-98107-106-0 01 1 1009- ● ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0501-0608 ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0609-0708 ● ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0709-0709 ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0710- ● ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0501-0608 ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0609-0708 ● ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0709-0709 ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0710- ● ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0501-0608 ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0609-0708 ● ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0709-0709 ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0710- ● ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0501-0507 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0508-0608 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0609-0708 ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0709-0709 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0710-1008 ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 1009- ● ● ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0501-0507 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0508-0608 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0609-0708 ● ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0709-0709 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0710-1008 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97049-145-0 01 1 0204-0208 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0209-0408 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501-0608 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0609-0708 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0709-0709 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0710- ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0409-0412 ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0501-0608 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0609-0705 ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0706-0708 ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0709-0709 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0710-1008 ● ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0409-0412 ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0501-0608 ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0609-0708 ● ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0709-0709 ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0710-1008 ● ● ●
123 COVER; TIMING,LWR
(B) THA 		8-98158-145-0 01 1 1009- ● ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0409-0412 ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0501-0608 ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0609-0708 ● ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0709-0709 ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0710- ● ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0409-0412 ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0501-0608 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0609-0708 ● ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0709-0709 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0710- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0204-0408 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501-0608 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0609-0708 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0709-0709 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0710- ● ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0409-0412 ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0501-0608 ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0609-0708 ● ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0709-0709 ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0710- ● ● ●
202 NUT; BRKT
M8 FLANGE THA 		0-91180-208-0 01 1 1009- ● ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0409-0412 ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0501-0608 ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0609-0708 ● ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0709-0709 ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0710- ● ● ●
233 STUD; BRKT
M8X71 L=83 THA 		8-97367-083-0 01 1 1009- ● ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0409-0412 ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0501-0608 ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-4 01 1 0609-0708 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-4 01 1 0709-0709 ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-5 01 1 0710-1004 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98162-749-0 01 1 1005-1009 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98178-027-2 01 1 1010-1302 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98211-157-0 01 1 1303-1312 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98251-765-0 01 1 1401- ● ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0409-0412 ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0501-0608 ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0609-0708 ● ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0709-0709 ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0710- ● ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0501-0608 ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0609-0708 ● ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0709-0709 ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0710- ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0501-0608 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0609-0708 ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0709-0709 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0710-1312 ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-98251-768-0 01 1 1401- ● ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0409-0412 ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0501-0608 ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0609-0708 ● ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0709-0709 ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0710- ● ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0409-0412 ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0501-0608 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0609-0708 ● ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0709-0709 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0710- ● ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0409-0412 ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0501-0608 ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0609-0708 ● ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0709-0709 ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0710- ● ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0409-0412 ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0501-0608 ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0609-0708 ● ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0709-0709 ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0710- ● ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0501-0608 ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0609-0708 ● ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0709-0709 ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0710- ● ● ●

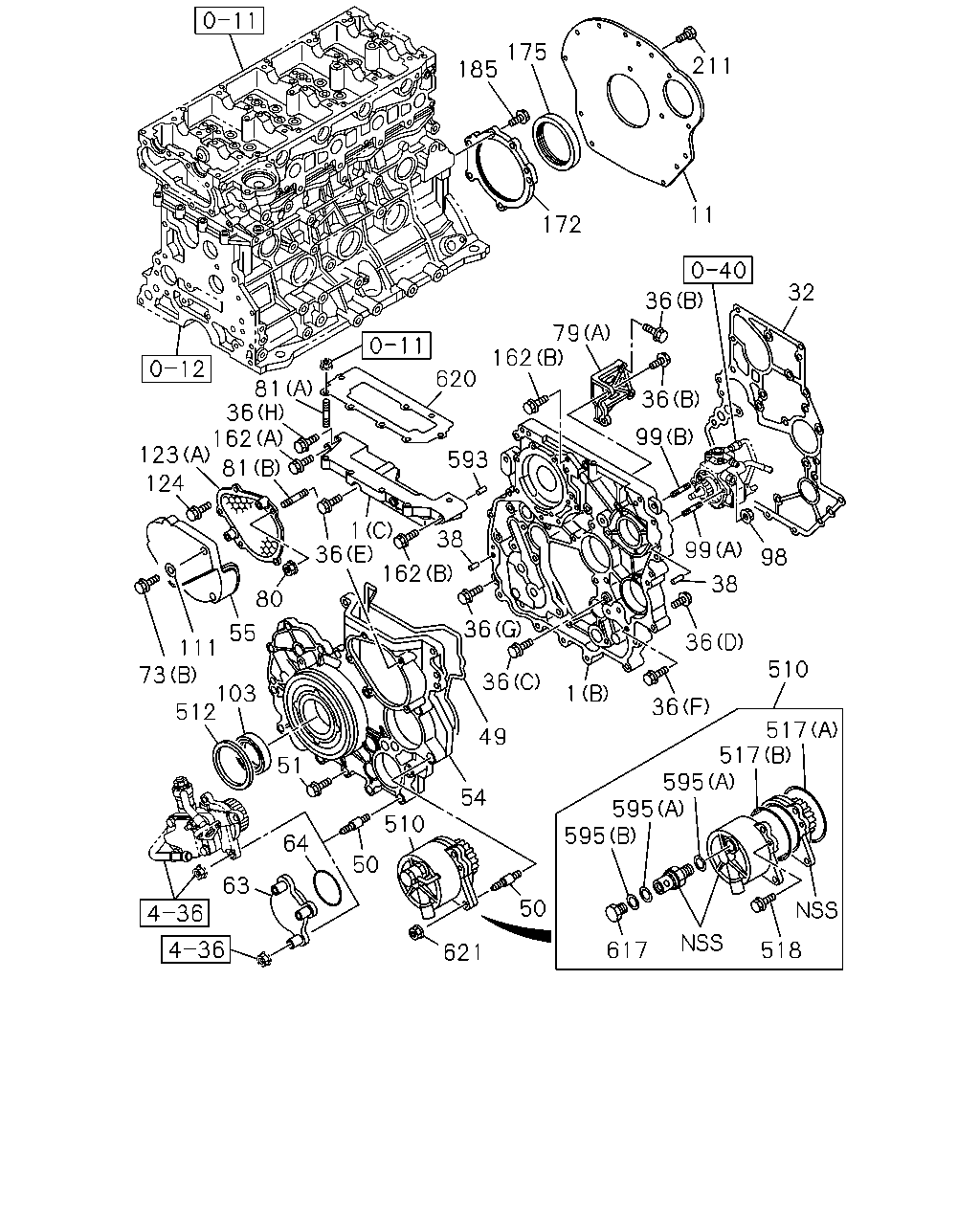

çizim 116278
175 211 185 172 11 32 36 79 162 620 36 99 99 98 38 36 510 36 595 595 595 517 517 518 617 1 36 49 54 510 50 621 36 162 593 1 36 80 55 111 73 512 51 103 64 63 124 123 162 38 81 81 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0204-0408 ● ●
1 CASE; TIMING GEAR
(A) THA 		8-97306-429-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(B) THA 		8-97367-310-3 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0409-0412 ●
1 CASE; TIMING GEAR
(C) THA 		8-97367-311-1 01 1 0501-0507 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-0 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) SW & SONS CO.,LTD. THA 		8-97945-261-1 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0508-0602 ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0603-0608 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0609-0708 ● ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0709-0709 ● ●
1 CASE; TIMING GEAR
(D) THAI ENGINEERING PRO 15X5.50F STAMP, BLACK THA 		8-97367-309-3 01 1 0710-1008 ● ● ●
1 CASE; TIMING GEAR
(D) THA 		8-98074-747-1 01 1 1009- ● ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0204-0408 ● ●
11 PLATE; RR,C/BL
THA 		8-97912-556-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0409-0412 ●
11 PLATE; RR,C/BL
THA 		8-97350-496-0 01 1 0501-0606 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0607-0608 ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0609-0708 ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-0 01 1 0609-0708 ●
11 PLATE; RR,C/BL
THA 		8-98020-515-0 01 1 0709-0709 ● ●
11 PLATE; RR,C/BL
M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98020-515-1 01 1 0710-1106 ● ● ●
11 PLATE; RR,C/BL
THA 		8-98020-515-1 01 1 1107- ● ●
11 PLATE; RR,C/BL
A/T AISIN<RMD> THA 		8-98020-515-1 01 1 1107- ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-1 01 1 0609-0708 ●
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-507-2 01 1 0710- ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-345-1 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97920-346-1 01 1 0204-0408 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0409-0412 ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0501-0608 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0609-0708 ● ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0709-0709 ● ●
32 GASKET; GEAR CASE TO C/BL
THA 		8-97312-221-2 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X20 W/LK WASHER THA 		0-50040-820-0 06 1 0409-0412 ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0204-0408 ● ●
36 BOLT; GEAR CASE
(A) M8X45 W/LK WASHER THA 		0-50040-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE THA 		0-28050-835-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0409-0412 ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE THA 		0-28050-845-0 02 1 0710- ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0409-0412 ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(H) M8X60 FLANGE THA 		0-28050-860-0 01 1 0710- ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0409-0412 ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE THA 		0-28650-825-0 15 1 0710- ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0409-0412 ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0501-0608 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0609-0708 ● ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0709-0709 ● ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 0710- ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		8-97135-423-0 02 1 0204-0210 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0211-0408 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0409-0412 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0501-0608 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0609-0708 ● ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0709-0709 ● ●
38 PIN; GEAR CASE COVER
OD=10 L=20 THA 		9-08151-020-0 02 1 0710- ● ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0409-0412 ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97354-057-1 01 1 0501-0511 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0512-0608 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0609-0708 ● ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0709-0709 ● ●
49 GASKET; GEAR CASE TO COVER
THA 		8-97945-298-0 01 1 0710- ● ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0409-0412 ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0501-0608 ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0609-0708 ● ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0709-0709 ● ●
50 STUD
M8X27,M8X14 L=64.5 THA 		8-97354-808-2 06 1 0710- ● ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0409-0412 ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-0 14 1 0501-0608 ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0609-0708 ● ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0709-0709 ● ●
51 BOLT; GEAR CASE COVER
THA 		8-97354-697-1 14 1 0710- ● ● ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97306-431-2 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97306-430-2 01 1 0204-0408 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0409-0412 ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0501-0608 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0609-0708 ● ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0709-0709 ● ●
54 COVER; GEAR CASE
THA 		8-97367-312-4 01 1 0710-1201 ● ● ●
54 COVER; GEAR CASE
THA 		8-98170-215-0 01 1 1202- ● ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0409-0412 ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0501-0608 ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0609-0708 ● ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0709-0709 ● ●
55 COVER; NOISE SHIELD
THA 		8-97375-190-1 01 1 0710-1008 ● ● ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0409-0412 ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0501-0606 ● ●
63 COVER; P/S
EXC. POWER STEERING<N40> THA 		8-97367-336-2 01 1 0607- ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0409-0412 ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0501-0606 ● ●
64 GASKET; COVER,P/S
EXC. POWER STEERING<N40> ID=59.6 THA 		8-97109-679-0 01 1 0607- ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0204-0408 ● ●
73 BOLT; COVER FIX
(A) M6X16 FLANGE THA 		0-28050-616-0 05 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0409-0412 ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0501-0608 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0609-0708 ● ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0709-0709 ● ●
73 BOLT; COVER FIX
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 0710-1008 ● ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0409-0412 ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0501-0608 ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0609-0708 ● ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0709-0709 ● ●
79 BRACKET; GEAR CASE COVER
(A) THA 		8-97370-390-2 01 1 0710-1008 ● ● ●
79 BRACKET; GEAR CASE COVER
(B) THA 		8-98107-106-0 01 1 1009- ● ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0409-0412 ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0501-0608 ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0609-0708 ● ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0709-0709 ● ●
80 NUT; COVER
M6 FLANGE THA 		0-91180-206-0 02 1 0710- ● ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0501-0608 ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0609-0708 ● ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0709-0709 ● ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 THA 		0-41010-616-0 02 1 0710- ● ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0409-0412 ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0501-0608 ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0609-0708 ● ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0709-0709 ● ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 0710- ● ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
98 NUT; STUD,INJ PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(A) M8X30 L=41 THA 		8-97369-449-0 01 1 0501-0507 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0508-0608 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0609-0708 ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0709-0709 ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 01 1 0710-1008 ● ● ●
99 STUD; INJ PUMP
(A) M8X30 L=48 THA 		0-49140-830-0 02 1 1009- ● ● ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0409-0412 ●
99 STUD; INJ PUMP
(B) M8X45 L=56 THA 		8-97369-450-0 01 1 0501-0507 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0508-0608 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0609-0708 ● ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0709-0709 ● ●
99 STUD; INJ PUMP
(B) M8X45 L=63 THA 		0-49140-845-0 01 1 0710-1008 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97049-145-0 01 1 0204-0208 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0209-0408 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97351-704-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0409-0412 ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0501-0608 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0609-0708 ● ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0709-0709 ● ●
103 SEAL; OIL,CR/SHF,FRT
THA 		8-97943-951-0 01 1 0710- ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0409-0412 ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0501-0608 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		9-09164-806-0 02 1 0609-0705 ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0706-0708 ● ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0709-0709 ● ●
111 WASHER; PL
ID=6.4 OD=22 THA 		0-91614-806-0 02 1 0710-1008 ● ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0409-0412 ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0501-0608 ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0609-0708 ● ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0709-0709 ● ●
123 COVER; TIMING,LWR
(A) THA 		8-97371-720-1 01 1 0710-1008 ● ● ●
123 COVER; TIMING,LWR
(B) THA 		8-98158-145-0 01 1 1009- ● ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0409-0412 ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0501-0608 ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0609-0708 ● ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0709-0709 ● ●
124 BOLT; TIMING COVER
M6X16 FLANGE THA 		0-28050-616-0 03 1 0710- ● ● ●
162 BOLT; FRT PLATE
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 0409-0412 ●
162 BOLT; FRT PLATE
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 0501-0507 ● ●
162 BOLT; FRT PLATE
(B) M8X70 FLANGE THA 		0-28050-870-0 02 1 0409-0412 ●
162 BOLT; FRT PLATE
(B) M8X70 FLANGE THA 		0-28050-870-0 02 1 0501-0507 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0409-0412 ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0501-0608 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0609-0708 ● ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0709-0709 ● ●
172 RETAINER; CR/SHF
THA 		8-97379-826-0 01 1 0710- ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0204-0408 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0409-0412 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0501-0608 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0609-0708 ● ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0709-0709 ● ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 0710- ● ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0409-0412 ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0501-0608 ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0609-0708 ● ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0709-0709 ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE THA 		0-28650-825-0 05 1 0710- ● ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0409-0412 ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-0 03 1 0501-0608 ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0609-0708 ● ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0709-0709 ● ●
211 BOLT; HSG
M12X25 THA 		8-97916-324-1 03 1 0710- ● ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0409-0412 ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-3 01 1 0501-0608 ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-4 01 1 0609-0708 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-4 01 1 0709-0709 ● ●
510 PUMP ASM; VACUUM
THA 		8-97312-081-5 01 1 0710-1004 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98162-749-0 01 1 1005-1009 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98178-027-2 01 1 1010-1302 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98211-157-0 01 1 1303-1312 ● ● ●
510 PUMP ASM; VACUUM
THA 		8-98251-765-0 01 1 1401- ● ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0409-0412 ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0501-0608 ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0609-0708 ● ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0709-0709 ● ●
512 RUBBER; SPACE
THA 		8-97373-716-0 01 1 0710- ● ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0501-0608 ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0609-0708 ● ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0709-0709 ● ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 0710- ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0409-0412 ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0501-0608 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0609-0708 ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0709-0709 ● ●
517 GASKET; VAC PUMP
(B) THA 		8-97184-175-0 01 1 0710-1312 ● ● ●
517 GASKET; VAC PUMP
(B) THA 		8-98251-768-0 01 1 1401- ● ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0409-0412 ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0501-0608 ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0609-0708 ● ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0709-0709 ● ●
518 BOLT; VAC PUMP
THA 		8-97184-180-0 03 1 0710- ● ● ●
593 PIN; STRAIGHT
ID=6 L=12 THA 		9-08160-612-0 02 1 0409-0412 ●
593 PIN; STRAIGHT
ID=6 L=12 THA 		9-08160-612-0 02 1 0501-0507 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0409-0412 ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0501-0608 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0609-0708 ● ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0709-0709 ● ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 0710- ● ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0409-0412 ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0501-0608 ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0609-0708 ● ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0709-0709 ● ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 0710- ● ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0409-0412 ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0501-0608 ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0609-0708 ● ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0709-0709 ● ●
617 BOLT; CHECK VLV
THA 		8-97376-402-0 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH THA 		8-97328-828-2 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH THA 		8-97331-631-2 01 1 0710- ● ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0409-0412 ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-1 01 1 0501-0608 ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0609-0708 ● ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0709-0709 ● ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH THA 		8-97331-632-2 01 1 0710- ● ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0409-0412 ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0501-0608 ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0609-0708 ● ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0709-0709 ● ●
621 NUT; VAC PUMP
M8 FLANGE THA 		0-91180-208-0 03 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
