Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#72790) — 446 parça

85 87 86 84 78 78 78 56 55 78 78 78 85 86 95 86 83 53 54 81 54 78 84 78 55 56 65 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	VALVE; INL THA	8-97940-024-0	04	1	0204-0408	●
4	VALVE; INL THA	8-97940-024-0	04	1	0409-0412		●
4	VALVE; INL THA	8-97940-026-0	04	1	0204-0408			●
4	VALVE; INL THA	8-97309-675-1	08	1	0409-0412				●
4	VALVE; INL THA	8-97309-675-1	08	1	0501-0608				●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0609-0708				●	●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0709-0709				●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0710-				●	●	●
5	VALVE; EXH THA	8-97940-025-0	04	1	0204-0408	●
5	VALVE; EXH THA	8-97940-025-0	04	1	0409-0412		●
5	VALVE; EXH THA	8-97940-027-0	04	1	0204-0408			●
5	VALVE; EXH THA	8-97309-677-1	08	1	0409-0412				●
5	VALVE; EXH THA	8-97309-677-1	08	1	0501-0608				●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0609-0708				●	●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0709-0709				●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0710-				●	●	●
53	SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0204-0408	●		●
53	SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0409-0412		●
53	SHAFT; ROCKER ARM INLET THA	8-97364-809-1	04	1	0409-0412				●
53	SHAFT; ROCKER ARM INLET THA	8-97364-809-1	04	1	0501-0608				●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0609-0708				●	●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0709-0709				●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0710-				●	●	●
53	SHAFT; ROCKER ARM EXHAUST THA	8-97364-811-1	04	1	0409-0412				●
53	SHAFT; ROCKER ARM EXHAUST THA	8-97364-811-1	04	1	0501-0608				●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0609-0708				●	●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0709-0709				●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0710-				●	●	●
54	WASHER; ROCKER SPR ID=19.1 OD=23 THA	8-97915-840-0	06	1	0204-0408	●		●
54	WASHER; ROCKER SPR ID=19.1 OD=23 THA	8-97915-840-0	06	1	0409-0412		●
55	PLUG; ROCKER SHAFT END THA	8-97915-834-0	02	1	0204-0408	●		●
55	PLUG; ROCKER SHAFT END THA	8-97915-834-0	02	1	0409-0412		●
56	RING; SNAP,ROCKER ARM IMA	8-98109-470-0	16	1	0803-				●	●	●
56	RING; SNAP,ROCKER ARM ID=17.5 THA	9-09180-019-0	02	1	0204-0408	●		●
56	RING; SNAP,ROCKER ARM ID=17.5 THA	9-09180-019-0	02	1	0409-0412		●
65	COLLAR; SPLIT IMA	5-12565-004-0	16	1	0204-0408	●		●
65	COLLAR; SPLIT IMA	5-12565-004-0	16	1	0409-0412		●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0409-0412				●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0501-0608				●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0609-0708				●	●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0709-0709				●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0710-				●	●	●
68	SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0204-0408	●		●
68	SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0409-0412		●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0409-0412				●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0501-0608				●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0609-0708				●	●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0709-0709				●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0710-				●	●	●
71	SEAT; SPR (A) THA	8-94133-731-2	08	1	0204-0408	●		●
71	SEAT; SPR (A) OD=32.8 THA	8-94133-731-2	08	1	0409-0412		●
71	SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0204-0408	●		●
71	SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0409-0412		●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0409-0412				●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0501-0608				●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0609-0708				●	●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0709-0709				●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0710-				●	●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0409-0412				●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0501-0608				●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0609-0708				●	●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0709-0709				●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0710-				●	●	●
72	SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0204-0408	●		●
72	SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0409-0412		●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0409-0412				●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0501-0608				●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0609-0708				●	●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0709-0709				●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0710-				●	●	●
78	ARM; ROCKER THA	8-97915-831-0	08	1	0204-0408	●		●
78	ARM; ROCKER THA	8-97915-831-0	08	1	0409-0412		●
78	ARM; ROCKER THA	8-97364-808-2	16	1	0409-0412				●
78	ARM; ROCKER THA	8-97364-808-3	16	1	0501-0606				●	●
78	ARM; ROCKER THA	8-98029-537-0	16	1	0607-0608				●	●
78	ARM; ROCKER THA	8-98029-537-1	16	1	0609-0708				●	●	●
78	ARM; ROCKER THA	8-98029-537-1	16	1	0709-0709				●	●
78	ARM; ROCKER IMA	8-98029-537-6	16	1	0710-				●	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=22 IMA	8-98029-893-0	16	1	1103-				●	●	●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0204-0408	●		●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0409-0412		●
83	NUT; ADJ SCREW,LK M8 THA	9-09111-508-0	08	1	0204-0408	●		●
83	NUT; ADJ SCREW,LK M8 THA	9-09111-508-0	08	1	0409-0412		●
84	BRACKET; ROCKER SHAFT,INTER THA	8-97915-836-0	04	1	0204-0408	●		●
84	BRACKET; ROCKER SHAFT,INTER THA	8-97915-836-0	04	1	0409-0412		●
85	BOLT; BRKT (A) M10X60 L=82 THA	8-97915-839-0	02	1	0204-0408	●		●
85	BOLT; BRKT (A) M10X60 L=82 THA	8-97915-839-0	02	1	0409-0412		●
85	BOLT; BRKT (B) M10X60 L=104 THA	8-97915-841-0	01	1	0204-0408	●		●
85	BOLT; BRKT (B) M10X60 L=104 THA	8-97915-841-0	01	1	0409-0412		●
86	WASHER; ROCKER ARM FIX ID=10.5 THA	9-09164-010-0	04	1	0204-0408	●		●
86	WASHER; ROCKER ARM FIX ID=10.5 THA	9-09164-010-0	04	1	0409-0412		●
87	BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0204-0408	●		●
87	BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0409-0412		●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0409-0412				●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0501-0608				●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0609-0708				●	●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0709-0709				●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0710-				●	●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0409-0412				●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0501-0608				●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0609-0708				●	●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0709-0709				●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0710-				●	●	●
88	ROD; PUSH THA	8-94143-203-0	08	1	0204-0407	●
88	ROD; PUSH THA	8-97378-496-0	08	1	0408-0408	●
88	ROD; PUSH THA	8-97378-496-0	08	1	0409-0412		●
88	ROD; PUSH THA	8-97071-673-0	08	1	0204-0408			●
89	TAPPET; VLV THA	8-94438-305-1	08	1	0204-0408	●		●
89	TAPPET; VLV THA	8-94438-305-1	08	1	0409-0412		●
95	SPRING; ROCKER SHAFT THA	8-97915-837-0	03	1	0204-0408	●		●
95	SPRING; ROCKER SHAFT THA	8-97915-837-0	03	1	0409-0412		●

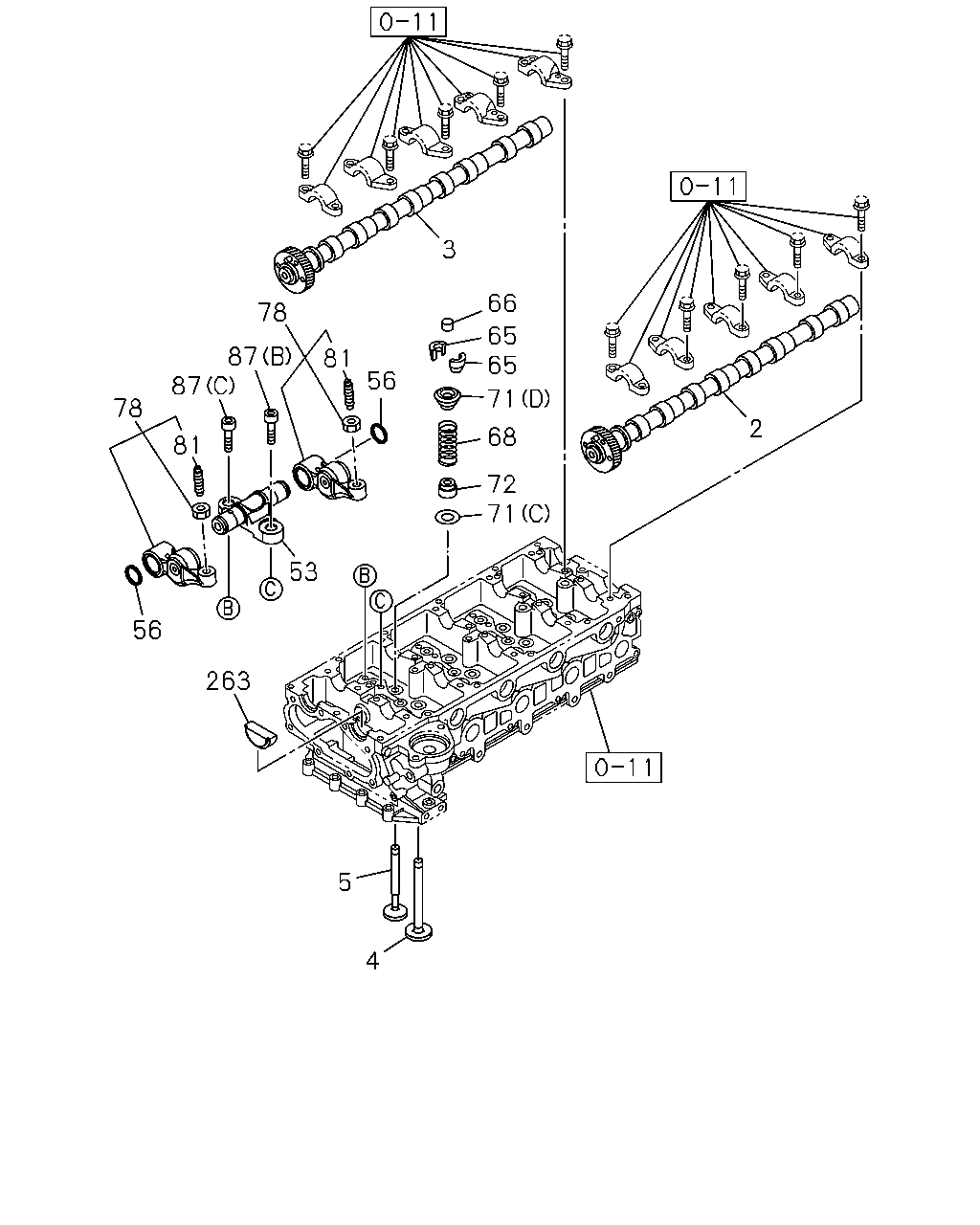

11 11 3 66 78 65 65 87 87 81 56 71 78 2 68 81 72 71 53 56 263 11 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	CAMSHAFT; INL THA	8-97328-642-4	01	1	0409-0412				●
2	CAMSHAFT; INL THA	8-97328-642-6	01	1	0501-0608				●	●
2	CAMSHAFT; INL THA	8-97328-642-6	01	1	0609-0708				●	●	●
2	CAMSHAFT; INL THA	8-97328-642-6	01	1	0709-0709				●	●
2	CAMSHAFT; INL THA	8-97328-642-8	01	1	0710-				●	●	●
3	CAMSHAFT; EXH THA	8-97328-644-4	01	1	0409-0412				●
3	CAMSHAFT; EXH THA	8-97328-644-6	01	1	0501-0608				●	●
3	CAMSHAFT; EXH THA	8-97328-644-6	01	1	0609-0708				●	●	●
3	CAMSHAFT; EXH THA	8-97328-644-6	01	1	0709-0709				●	●
3	CAMSHAFT; EXH THA	8-97328-644-8	01	1	0710-				●	●	●
4	VALVE; INL THA	8-97940-024-0	04	1	0204-0408	●
4	VALVE; INL THA	8-97940-024-0	04	1	0409-0412		●
4	VALVE; INL THA	8-97940-026-0	04	1	0204-0408			●
4	VALVE; INL THA	8-97309-675-1	08	1	0409-0412				●
4	VALVE; INL THA	8-97309-675-1	08	1	0501-0608				●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0609-0708				●	●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0709-0709				●	●
4	VALVE; INL THA	8-97309-675-1	08	1	0710-				●	●	●
5	VALVE; EXH THA	8-97940-025-0	04	1	0204-0408	●
5	VALVE; EXH THA	8-97940-025-0	04	1	0409-0412		●
5	VALVE; EXH THA	8-97940-027-0	04	1	0204-0408			●
5	VALVE; EXH THA	8-97309-677-1	08	1	0409-0412				●
5	VALVE; EXH THA	8-97309-677-1	08	1	0501-0608				●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0609-0708				●	●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0709-0709				●	●
5	VALVE; EXH THA	8-97309-677-1	08	1	0710-				●	●	●
11	BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0204-0408	●		●
11	BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0409-0412		●
53	SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0204-0408	●		●
53	SHAFT; ROCKER ARM THA	8-97915-833-0	01	1	0409-0412		●
53	SHAFT; ROCKER ARM INLET THA	8-97364-809-1	04	1	0409-0412				●
53	SHAFT; ROCKER ARM INLET THA	8-97364-809-1	04	1	0501-0608				●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0609-0708				●	●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0709-0709				●	●
53	SHAFT; ROCKER ARM INLET IMA	8-97364-809-2	04	1	0710-				●	●	●
53	SHAFT; ROCKER ARM EXHAUST THA	8-97364-811-1	04	1	0409-0412				●
53	SHAFT; ROCKER ARM EXHAUST THA	8-97364-811-1	04	1	0501-0608				●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0609-0708				●	●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0709-0709				●	●
53	SHAFT; ROCKER ARM EXHAUST IMA	8-97364-811-2	04	1	0710-				●	●	●
56	RING; SNAP,ROCKER ARM IMA	8-98109-470-0	16	1	0803-				●	●	●
56	RING; SNAP,ROCKER ARM ID=17.5 THA	9-09180-019-0	02	1	0204-0408	●		●
56	RING; SNAP,ROCKER ARM ID=17.5 THA	9-09180-019-0	02	1	0409-0412		●
65	COLLAR; SPLIT IMA	5-12565-004-0	16	1	0204-0408	●		●
65	COLLAR; SPLIT IMA	5-12565-004-0	16	1	0409-0412		●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0409-0412				●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0501-0608				●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0609-0708				●	●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0709-0709				●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	0710-				●	●	●
66	CAP; VLV STEM END THA	8-97310-693-0	16	1	0409-0412				●
66	CAP; VLV STEM END THA	8-97310-693-0	16	1	0501-0606				●	●
66	CAP; VLV STEM END THA	8-98029-870-1	16	1	0607-0608				●	●
66	CAP; VLV STEM END THA	8-98029-870-1	16	1	0609-0708				●	●	●
66	CAP; VLV STEM END THA	8-98029-870-1	16	1	0709-0709				●	●
66	CAP; VLV STEM END THA	8-98029-870-1	16	1	0710-0910				●	●	●
66	CAP; VLV STEM END THA	8-98147-945-0	16	1	0911-				●	●	●
68	SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0204-0408	●		●
68	SPRING; VLV OD=30.6 THA	8-97912-651-0	08	1	0409-0412		●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0409-0412				●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0501-0608				●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0609-0708				●	●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0709-0709				●	●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	0710-				●	●	●
71	SEAT; SPR (A) THA	8-94133-731-2	08	1	0204-0408	●		●
71	SEAT; SPR (A) OD=32.8 THA	8-94133-731-2	08	1	0409-0412		●
71	SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0204-0408	●		●
71	SEAT; SPR (B) OD=34 THA	8-97912-652-0	08	1	0409-0412		●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0409-0412				●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0501-0608				●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0609-0708				●	●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0709-0709				●	●
71	SEAT; SPR (C) OD=31 THA	8-97144-584-0	16	1	0710-				●	●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0409-0412				●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0501-0608				●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0609-0708				●	●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0709-0709				●	●
71	SEAT; SPR (D) OD=29.5 THA	8-97311-668-0	16	1	0710-				●	●	●
72	SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0204-0408	●		●
72	SEAL; VLV GUIDE THA	8-97921-229-0	08	1	0409-0412		●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0409-0412				●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0501-0608				●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0609-0708				●	●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0709-0709				●	●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	0710-				●	●	●
78	ARM; ROCKER THA	8-97915-831-0	08	1	0204-0408	●		●
78	ARM; ROCKER THA	8-97915-831-0	08	1	0409-0412		●
78	ARM; ROCKER THA	8-97364-808-2	16	1	0409-0412				●
78	ARM; ROCKER THA	8-97364-808-3	16	1	0501-0606				●	●
78	ARM; ROCKER THA	8-98029-537-0	16	1	0607-0608				●	●
78	ARM; ROCKER THA	8-98029-537-1	16	1	0609-0708				●	●	●
78	ARM; ROCKER THA	8-98029-537-1	16	1	0709-0709				●	●
78	ARM; ROCKER IMA	8-98029-537-6	16	1	0710-				●	●	●
81	SCREW; ADJ,ROCKER ARM M8 L=22 IMA	8-98029-893-0	16	1	1103-				●	●	●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0204-0408	●		●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-97915-832-0	08	1	0409-0412		●
87	BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0204-0408	●		●
87	BOLT; ROCKER SHAFT (A) M10X60 THA	8-97915-838-0	01	1	0409-0412		●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0409-0412				●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0501-0608				●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0609-0708				●	●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0709-0709				●	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	0710-				●	●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0409-0412				●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0501-0608				●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0609-0708				●	●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0709-0709				●	●
87	BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	0710-				●	●	●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97947-079-0	04	1	0409-0412				●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97947-079-0	04	1	0501-0608				●	●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97947-079-0	04	1	0609-0708				●	●	●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97947-079-0	04	1	0709-0709				●	●
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97947-079-0	04	1	0710-				●	●	●

307 308 10 44 9 45 11 308 111 114 107 109 112 113 106 104 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT THA	8-97912-633-0	01	1	0204-0408	●		●
1	CAMSHAFT THA	8-97912-633-0	01	1	0409-0412		●
9	GEAR; CM/SHF Z=60 THA	8-97942-764-0	01	1	0204-0408	●		●
9	GEAR; CM/SHF Z=60 THA	8-97942-764-0	01	1	0409-0412		●
10	PLATE; THRUST THA	8-94110-480-1	01	1	0204-0408	●		●
10	PLATE; THRUST THA	8-94110-480-1	01	1	0409-0412		●
11	BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0204-0408	●		●
11	BOLT; THRUST PLATE TO C/BL M12X47 THA	8-97916-384-0	01	1	0409-0412		●
14	KEY; CM/SHF THA	9-08000-718-0	01	1	0204-0408	●		●
14	KEY; CM/SHF THA	9-08000-718-0	01	1	0409-0412		●
44	BOLT M8X12 FLANGE THA	0-28050-812-0	02	1	0204-0408	●		●
44	BOLT M8X12 FLANGE THA	0-28050-812-0	02	1	0409-0412		●
45	WASHER; GEAR CAM THA	8-97915-110-0	01	1	0204-0408	●		●
45	WASHER; GEAR CAM THA	8-97915-110-0	01	1	0409-0412		●
104	BOLT; SHAFT IDLE M12X77 THA	8-94129-384-1	01	1	0204-0408	●		●
104	BOLT; SHAFT IDLE M12X77 THA	8-94129-384-1	01	1	0409-0412		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36 THA	8-97918-881-0	01	1	0204-0408	●		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36 THA	8-97918-881-0	01	1	0409-0412		●
107	SHAFT; IDLE GEAR (A) THA	8-97240-021-0	01	1	0204-0209	●		●
107	SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0210-0408	●		●
107	SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0409-0412		●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0409-0412				●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0501-0608				●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0609-0708				●	●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0709-0709				●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0710-				●	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0409-0412				●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0501-0608				●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0609-0708				●	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0709-0709				●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0710-				●	●	●
109	SHAFT; IDLE GEAR THA	8-97240-023-1	01	1	0204-0209	●		●
109	SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0210-0408	●		●
109	SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0409-0412		●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0409-0412				●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0501-0608				●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0609-0708				●	●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0709-0709				●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0710-				●	●	●
111	COLLAR; THRUST,IDLE GEAR THA	8-97942-734-0	01	1	0204-0408	●		●
111	COLLAR; THRUST,IDLE GEAR THA	8-97942-734-0	01	1	0409-0412		●
112	GEAR; IDLE (A) Z=43 THA	8-97942-752-0	01	1	0204-0408	●		●
112	GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0409-0412		●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0409-0412				●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0501-0608				●	●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0609-0611				●	●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-1	01	1	0612-0708				●	●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-1	01	1	0709-0709				●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-2	01	1	0710-				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0409-0412				●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0501-0608				●	●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0609-0610				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-1	01	1	0611-0708				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-1	01	1	0709-0709				●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-3	01	1	0710-				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0409-0412				●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0501-0608				●	●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0609-0612				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0701-0708				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0709-0709				●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0710-				●	●	●
113	GEAR; IDLE THA	8-97942-755-1	01	1	0204-0408	●		●
113	GEAR; IDLE THA	8-97942-755-1	01	1	0409-0412		●
114	BOLT; IDLE GEAR (A) M8X53 FLANGE THA	8-97223-999-0	02	1	0204-0408	●		●
114	BOLT; IDLE GEAR (A) M8X53 FLANGE THA	8-97223-999-0	02	1	0409-0412		●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0409-0412				●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0501-0608				●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0609-0708				●	●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0709-0709				●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0710-				●	●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0409-0412				●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0501-0608				●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0609-0708				●	●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0709-0709				●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0710-				●	●	●
307	ROTOR; CAM ANGLE SENSOR IMA	8-97226-359-1	01	1	0204-0408			●
308	PIN; ROTOR OD=3 L=6 THA	9-08160-306-0	02	1	0204-0408			●

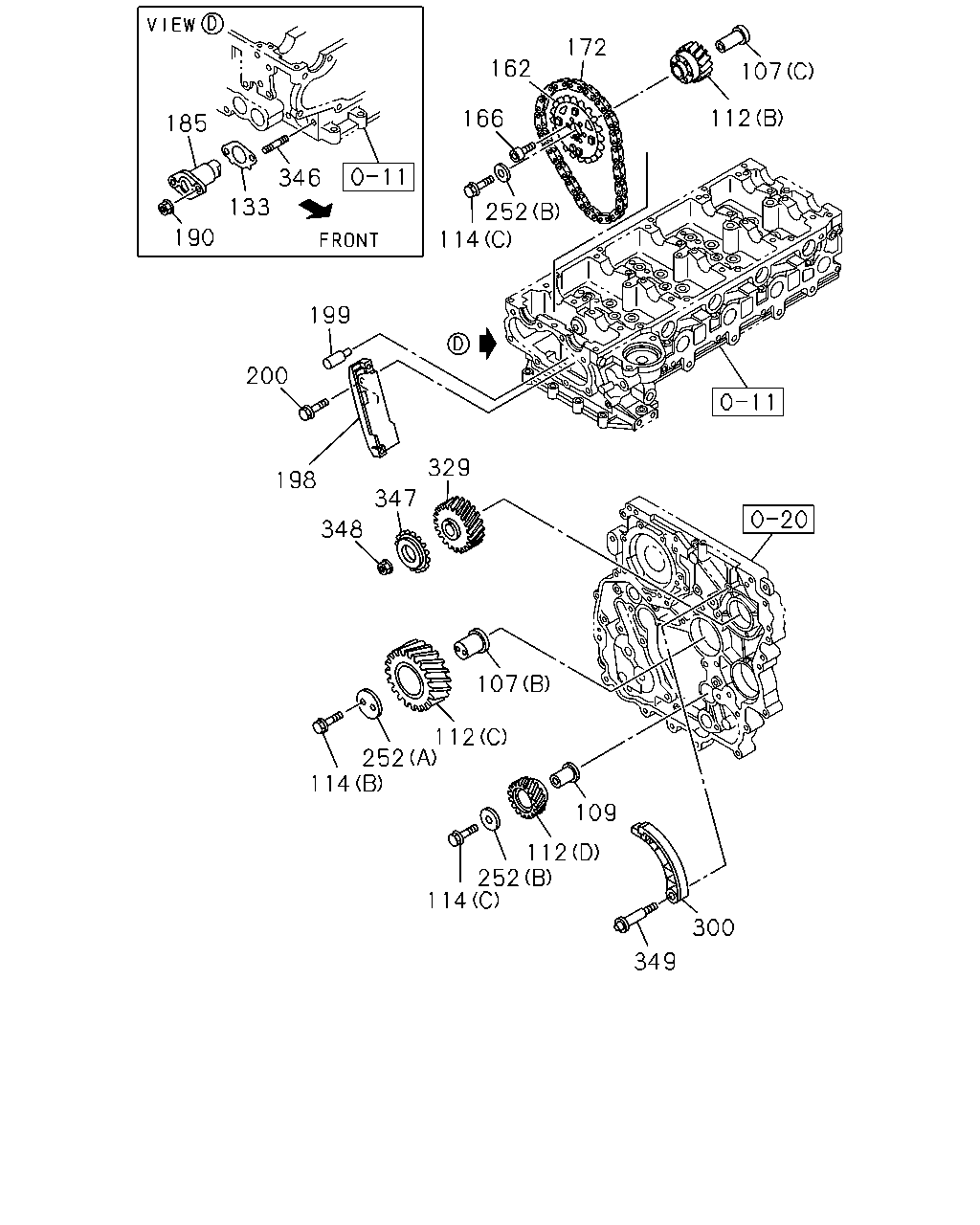

114 252 166 162 172 112 107 107 112 252 114 348 198 199 200 133 346 190 185 112 252 114 109 300 349 329 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	SHAFT; IDLE GEAR (A) THA	8-97240-021-0	01	1	0204-0209	●		●
107	SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0210-0408	●		●
107	SHAFT; IDLE GEAR (A) THA	8-97943-224-0	01	1	0409-0412		●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0409-0412				●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0501-0608				●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0609-0708				●	●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0709-0709				●	●
107	SHAFT; IDLE GEAR (B) THA	8-97312-315-2	01	1	0710-				●	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0409-0412				●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0501-0608				●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0609-0708				●	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0709-0709				●	●
107	SHAFT; IDLE GEAR (C) THA	8-97312-322-1	01	1	0710-				●	●	●
109	SHAFT; IDLE GEAR THA	8-97240-023-1	01	1	0204-0209	●		●
109	SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0210-0408	●		●
109	SHAFT; IDLE GEAR THA	8-97943-225-0	01	1	0409-0412		●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0409-0412				●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0501-0608				●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0609-0708				●	●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0709-0709				●	●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	0710-				●	●	●
112	GEAR; IDLE (A) Z=43 THA	8-97942-752-0	01	1	0204-0408	●		●
112	GEAR; IDLE (A) Z=43 THA	8-97942-752-1	01	1	0409-0412		●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0409-0412				●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0501-0608				●	●
112	GEAR; IDLE (C) Z=80 THA	8-97312-200-1	01	1	0609-0611				●	●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-1	01	1	0612-0708				●	●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-1	01	1	0709-0709				●	●
112	GEAR; IDLE (C) Z=80 THA	8-98021-050-2	01	1	0710-				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0409-0412				●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0501-0608				●	●
112	GEAR; IDLE (B) Z=35 THA	8-97312-306-2	01	1	0609-0610				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-1	01	1	0611-0708				●	●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-1	01	1	0709-0709				●	●
112	GEAR; IDLE (B) Z=35 THA	8-98021-053-3	01	1	0710-				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0409-0412				●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0501-0608				●	●
112	GEAR; IDLE (D) Z=34 THA	8-97312-470-1	01	1	0609-0612				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0701-0708				●	●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0709-0709				●	●
112	GEAR; IDLE (D) Z=34 THA	8-98021-052-1	01	1	0710-				●	●	●
114	BOLT; IDLE GEAR (A) M8X53 FLANGE THA	8-97223-999-0	02	1	0204-0408	●		●
114	BOLT; IDLE GEAR (A) M8X53 FLANGE THA	8-97223-999-0	02	1	0409-0412		●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0409-0412				●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0501-0608				●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0609-0708				●	●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0709-0709				●	●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	0710-				●	●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0409-0412				●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0501-0608				●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0609-0708				●	●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0709-0709				●	●
114	BOLT; IDLE GEAR (C) M12X60 FLANGE THA	0-28161-260-0	02	1	0710-				●	●	●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	0409-0412				●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	0501-0608				●	●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	0609-0708				●	●	●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	0709-0709				●	●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	0710-				●	●	●
162	SPROCKET; IDLE THA	8-97312-331-0	01	1	0409-0412				●
162	SPROCKET; IDLE THA	8-97312-331-0	01	1	0501-0608				●	●
162	SPROCKET; IDLE THA	8-97312-331-0	01	1	0609-0708				●	●	●
162	SPROCKET; IDLE THA	8-97312-331-0	01	1	0709-0709				●	●
162	SPROCKET; IDLE THA	8-97312-331-1	01	1	0710-				●	●	●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0409-0412				●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0501-0608				●	●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0609-0708				●	●	●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0709-0709				●	●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	0710-				●	●	●
172	CHAIN; TIMING,CM/SHF THA	8-97312-325-0	01	1	0409-0412				●
172	CHAIN; TIMING,CM/SHF THA	8-97312-325-0	01	1	0501-0507				●	●
172	CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0508-0608				●	●
172	CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0609-0708				●	●	●
172	CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0709-0709				●	●
172	CHAIN; TIMING,CM/SHF THA	8-97945-067-0	01	1	0710-0908				●	●	●
172	CHAIN; TIMING,CM/SHF THA	8-98119-279-1	01	1	0909-				●	●	●
185	TENSIONER; CHAIN THA	8-97312-329-0	01	1	0409-0412				●
185	TENSIONER; CHAIN THA	8-97312-329-1	01	1	0501-0507				●	●
185	TENSIONER; CHAIN THA	8-97945-068-1	01	1	0508-0608				●	●
185	TENSIONER; CHAIN THA	8-97945-068-1	01	1	0609-0708				●	●	●
185	TENSIONER; CHAIN THA	8-97945-068-1	01	1	0709-0709				●	●
185	TENSIONER; CHAIN THA	8-97945-068-1	01	1	0710-				●	●	●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	0409-0412				●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	0501-0608				●	●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	0609-0708				●	●	●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	0709-0709				●	●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	0710-				●	●	●
198	GUIDE; TIMING CHAIN THA	8-97312-326-1	01	1	0409-0412				●
198	GUIDE; TIMING CHAIN THA	8-97312-326-1	01	1	0501-0507				●	●
198	GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0508-0608				●	●
198	GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0609-0708				●	●	●
198	GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0709-0709				●	●
198	GUIDE; TIMING CHAIN THA	8-97945-069-0	01	1	0710-1009				●	●	●
198	GUIDE; TIMING CHAIN THA	8-98173-188-0	01	1	1010-				●	●	●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0409-0412				●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0501-0608				●	●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0609-0708				●	●	●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0709-0709				●	●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	0710-				●	●	●
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-0	02	1	0409-0412				●
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-0	02	1	0501-0608				●	●
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-1	02	1	0609-0708				●	●	●
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-1	02	1	0709-0709				●	●
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-1	02	1	0710-				●	●	●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0409-0412				●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0501-0608				●	●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0609-0708				●	●	●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0709-0709				●	●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	0710-				●	●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0409-0412				●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0501-0608				●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0609-0708				●	●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0709-0709				●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	02	1	0710-				●	●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-97312-327-1	01	1	0409-0412				●
300	LEVER; TENSION,TIMING CHAIN THA	8-97312-327-1	01	1	0501-0507				●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0508-0608				●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0609-0708				●	●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0709-0709				●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-97945-070-0	01	1	0710-0809				●	●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-98119-278-1	01	1	0810-				●	●	●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0409-0412				●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0501-0608				●	●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0609-0708				●	●	●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0709-0709				●	●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	0710-				●	●	●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	0409-0412				●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	0501-0608				●	●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	0609-0708				●	●	●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	0709-0709				●	●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	0710-				●	●	●
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0409-0412				●
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0501-0608				●	●
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0609-0708				●	●	●
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0709-0709				●	●
347	SPROCKET; I/PUMP THA	8-97312-330-1	01	1	0710-				●	●	●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0409-0412				●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0501-0608				●	●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0609-0708				●	●	●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0709-0709				●	●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	0710-				●	●	●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0409-0412				●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0501-0608				●	●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0609-0708				●	●	●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0709-0709				●	●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	0710-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
