Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#7279) — 284 parça

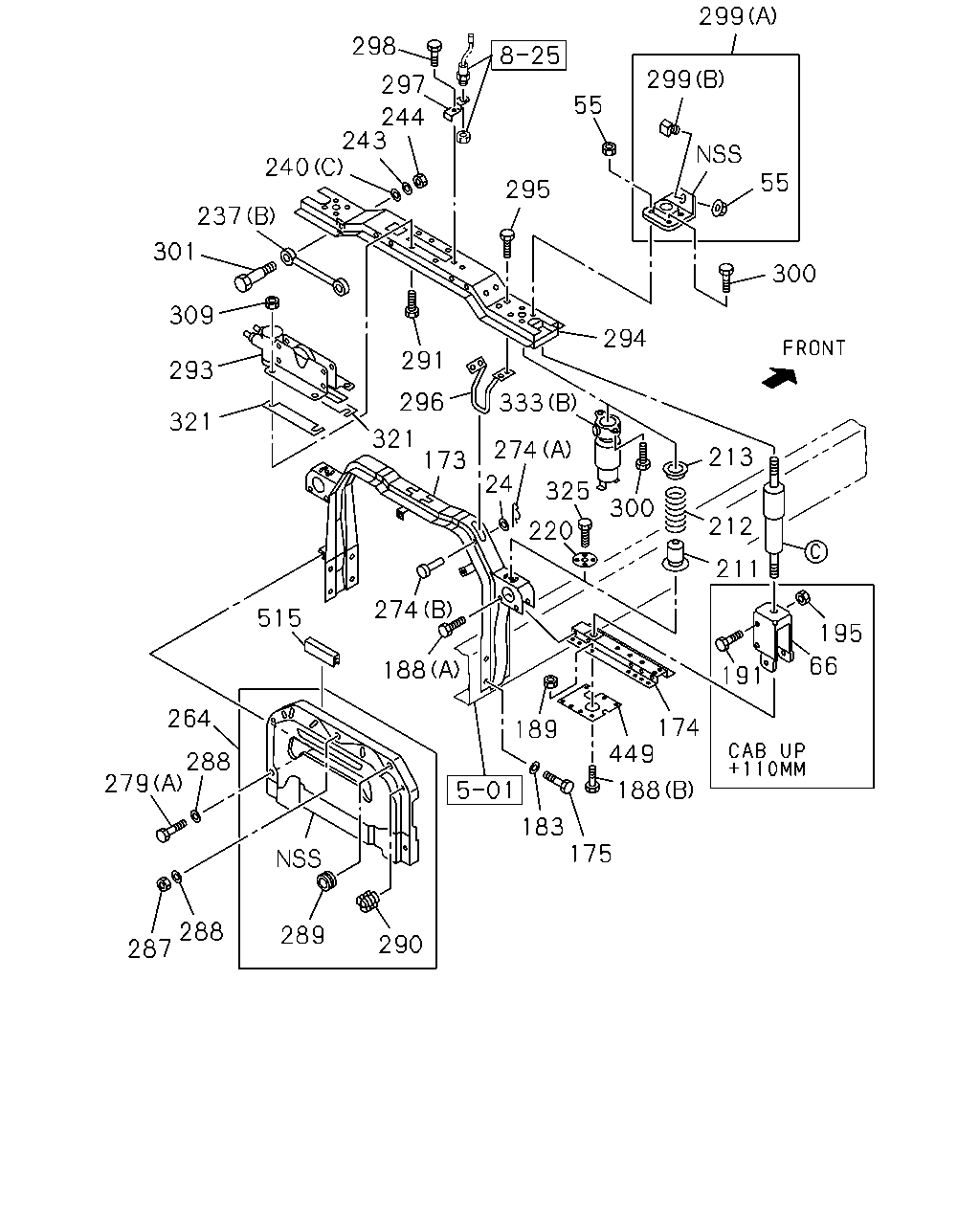

299 298 299 297 55 244 243 240 55 295 237 301 300 309 294 291 293 296 333 321 321 274 213 173 24 325 300 212 220 211 274 515 195 174 449 191 66 188 264 189 288 279 188 183 175 288 287 289 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9906-
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	9906-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	9906-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	9906-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-563-5	01	1	9906-9906
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-560-8	01	1	9907-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9906-
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-622-2	01	1	9906-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-620-1	01	1	9906-
174	OUTRIGGER	1-53456-277-3	01	1	9906-
174	OUTRIGGER	1-53456-278-3	01	1	9906-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9906-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9906-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	9906-
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28681-020-0	04	1	9906-
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9906-
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	9906-
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9906-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	9906-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	9906-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	9906-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9906-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9906-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9906-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9906-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9906-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9906-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9906-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-0	01	1	9906-
274	PIN (A)	1-09987-158-1	01	1	9906-
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9906-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9906-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	9906-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9906-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9906-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9906-

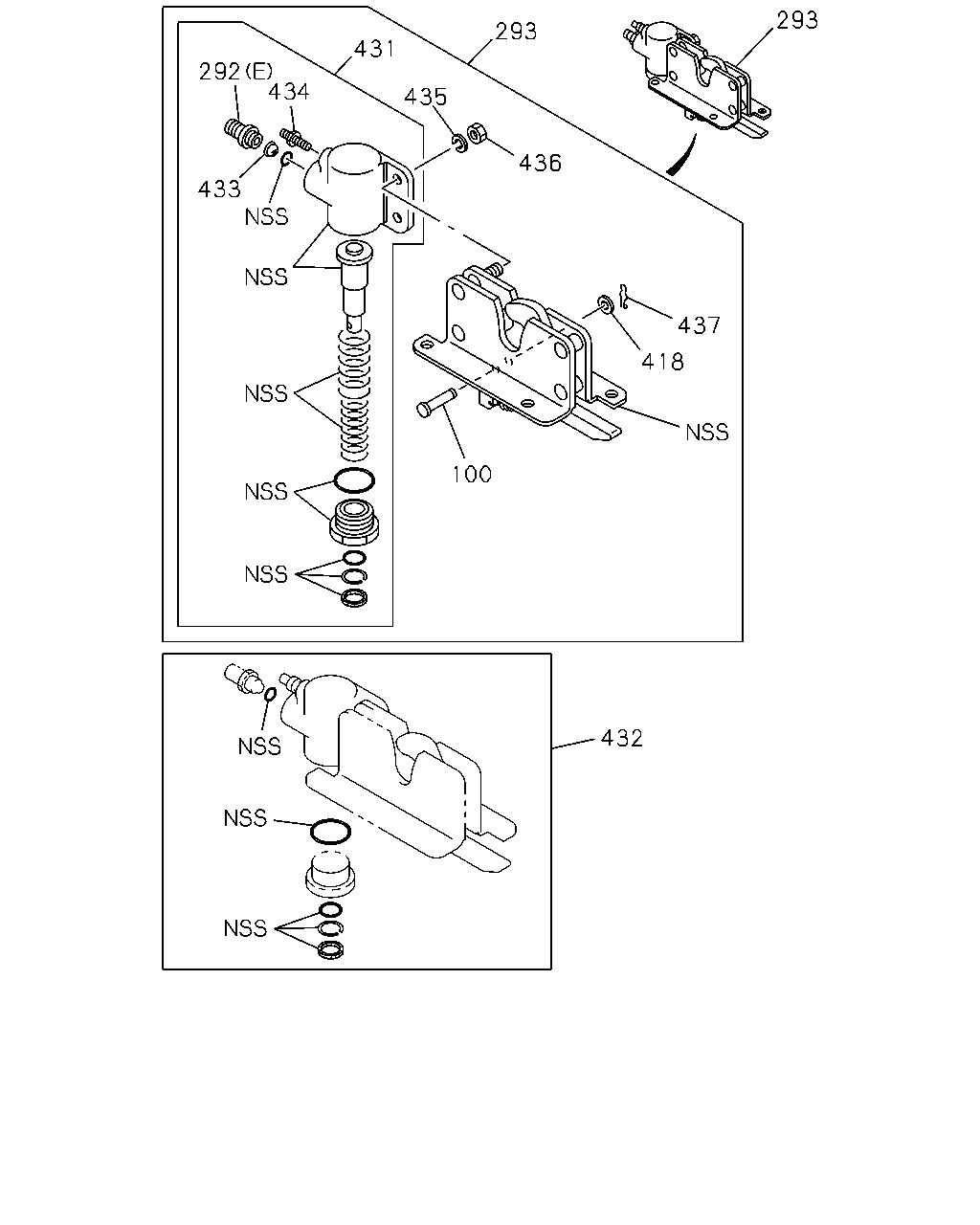

293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9906-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9906-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9906-
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9906-
296	STOPPER; UPR	1-53458-382-0	01	1	9906-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	9906-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9906-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	9906-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	9906-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	9906-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9906-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9906-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9906-
309	NUT M10 FLANGE	0-91150-210-0	04	1	9906-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9906-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9906-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-142-1	02	1	9906-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-143-1	02	1	9906-
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	01	1	9906-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	02	1	9906-0103
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	01	1	0104-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=300	1-76710-006-0	01	1	0104-

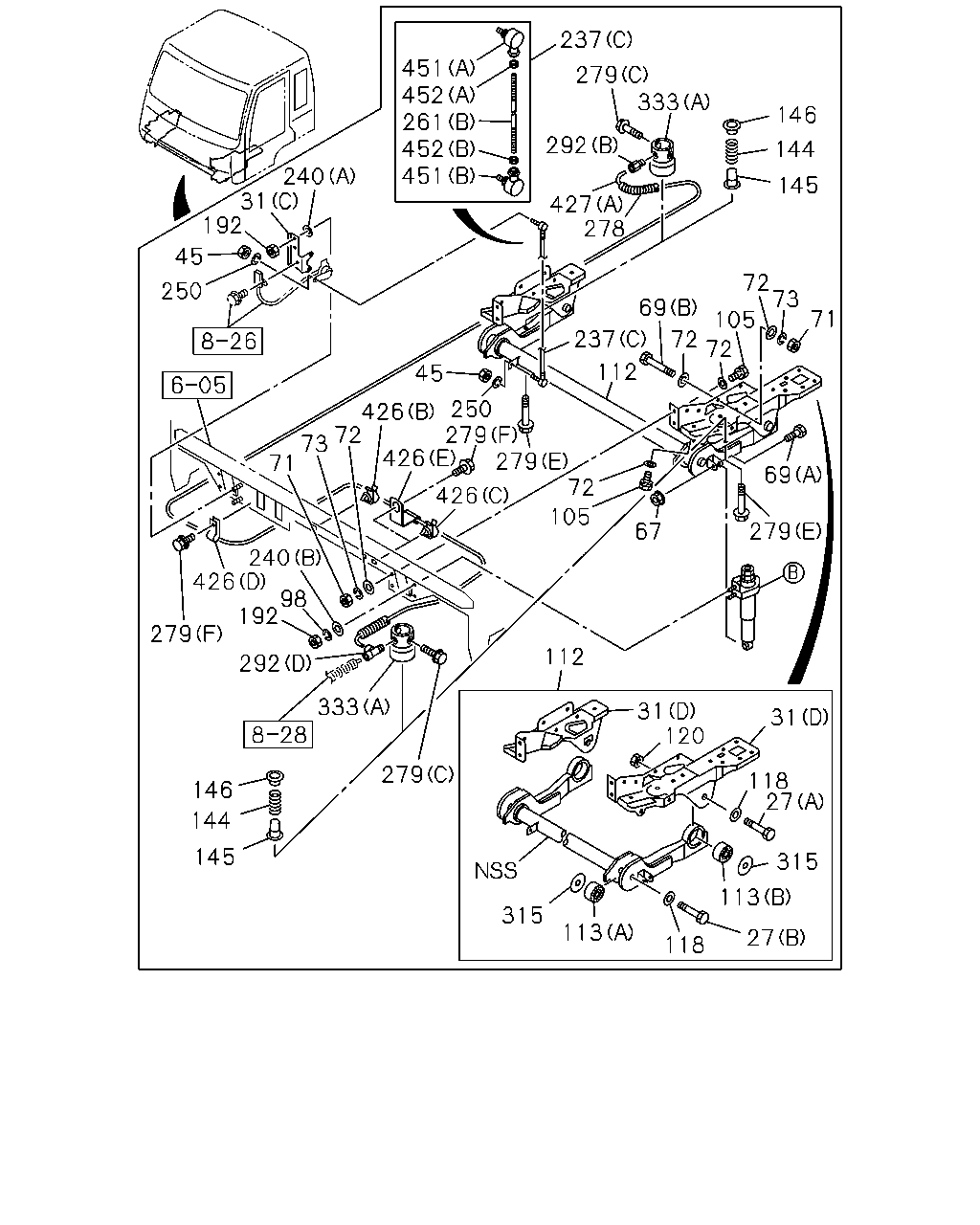

237 451 452 261 452 451 279 333 146 292 144 240 31 192 145 427 278 45 72 73 250 69 71 105 237 72 72 112 45 250 279 426 279 72 426 72 73 71 69 426 105 279 67 240 426 98 192 279 292 112 333 31 120 31 279 118 27 146 144 145 315 113 315 113 27 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9906-
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9906-0104
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-0105
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0105-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-3	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-0	01	1	9906-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9906-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9906-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9906-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9906-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9906-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9906-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9906-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9906-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	9906-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-568-4	01	1	9906-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	9906-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	9906-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	9906-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9906-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9906-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	9906-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	9906-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	9906-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	9906-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9906-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9906-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9906-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9906-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9906-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9906-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9906-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9906-
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-9906
278	COVER DELUXE CAB(W14) FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
278	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-9906
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-

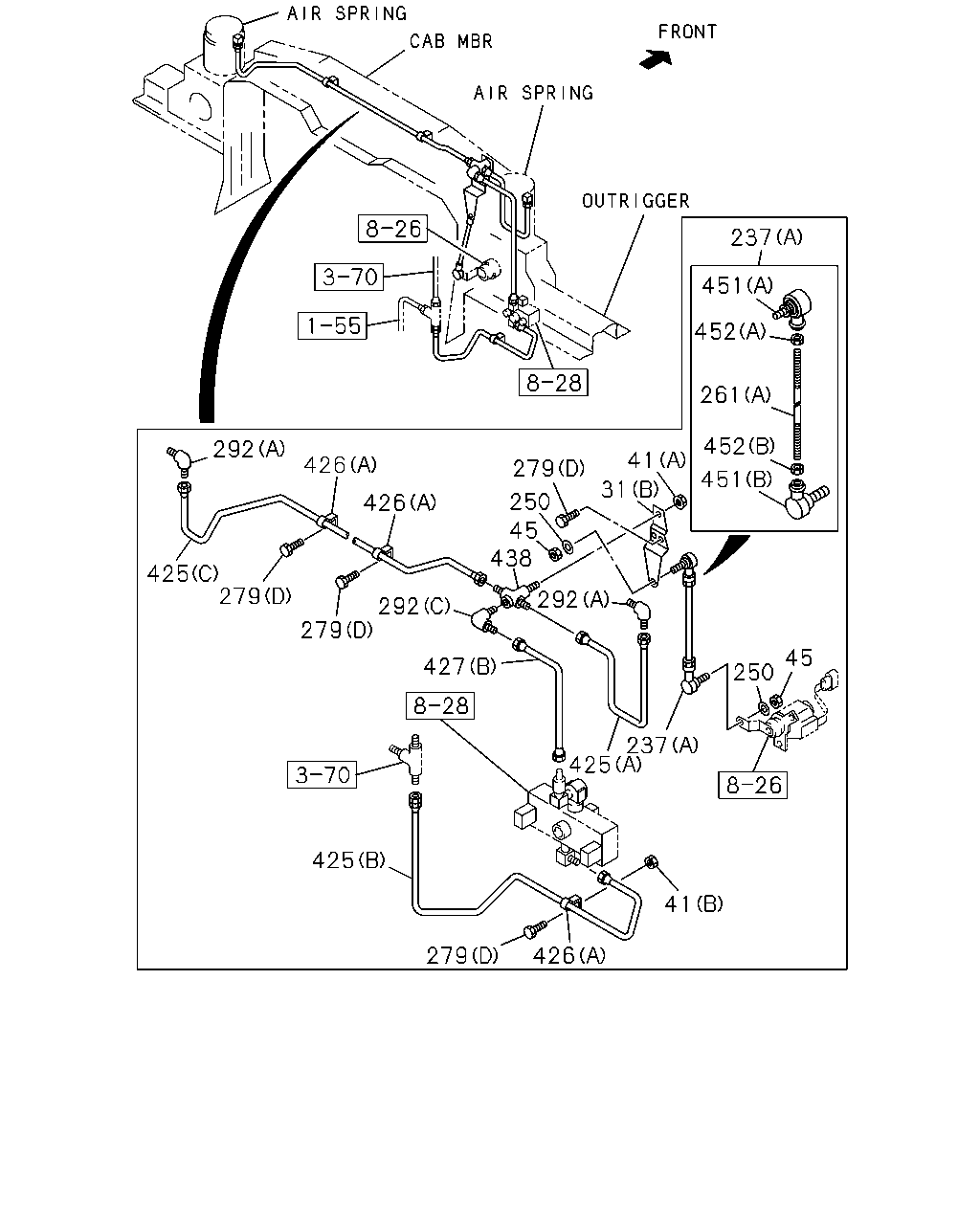

292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9906-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-142-1	02	1	9906-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-143-1	02	1	9906-
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	03	1	9906-9906
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-9912
426	CLIP FULL FLOATING CAB(W16) (A) ID=7 L=32	9-09524-665-0	01	1	0001-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-9906
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9906-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9906-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9906-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9906-

202 202 203 204 205 204 203 201 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9906-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9906-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9906-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9906-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9906-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9906-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9906-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9906-

202 204 69 72 205 70 65 204 203 202 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9906-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9906-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9906-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9906-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9906-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9906-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9906-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9906-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9906-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9906-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9906-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9906-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9906-

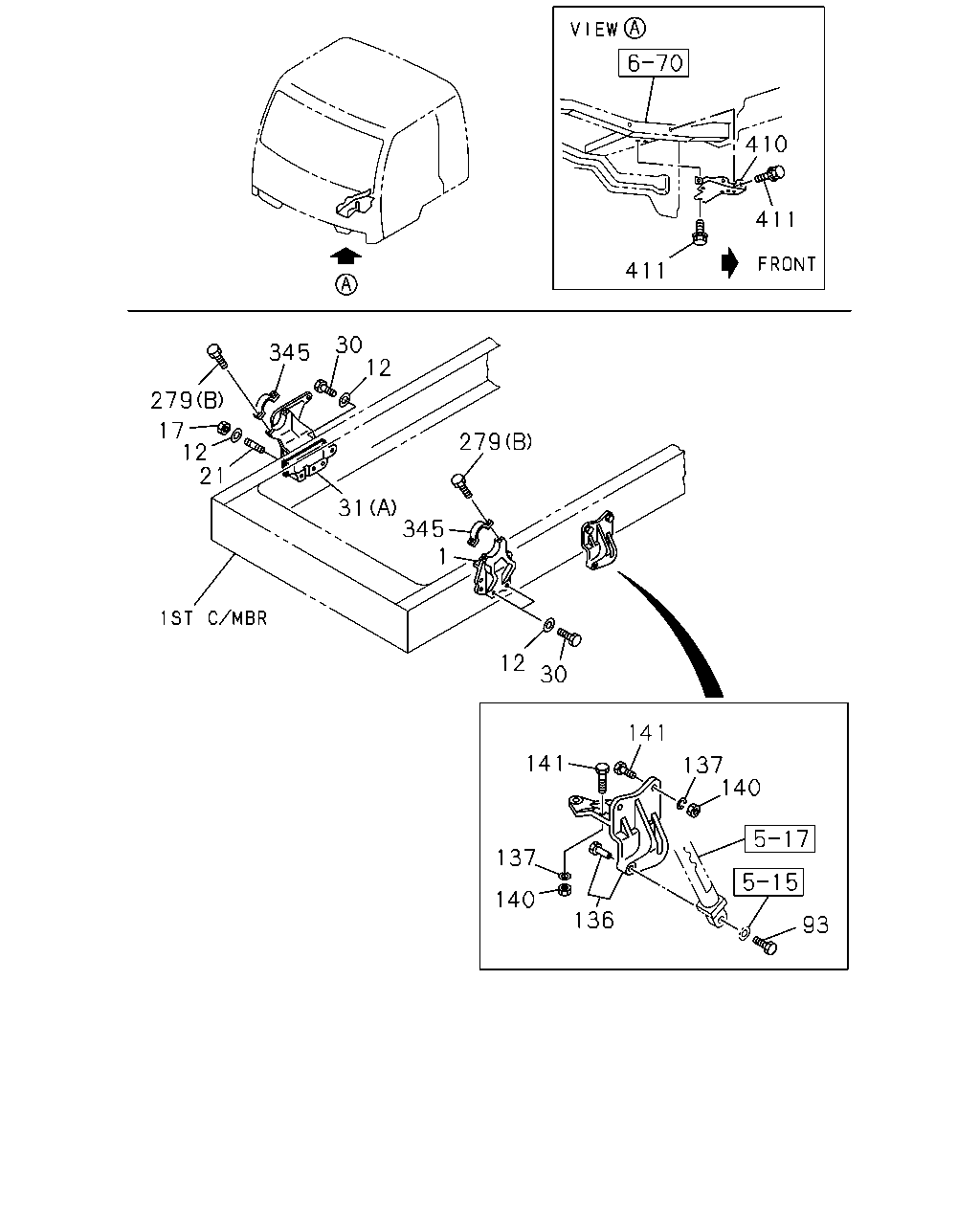

410 411 411 30 12 345 279 17 12 21 279 31 345 1 12 30 141 141 137 140 137 140 136 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-246-1	01	1	9906-
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-214-2	01	1	9906-
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9906-
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9906-
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9906-
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9906-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> M16X50 L=74	1-09300-117-0	01	1	9906-
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14X48 L=75	1-09300-094-0	01	1	9906-
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> M16X45	9-92061-645-0	10	1	9906-
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	9906-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-3	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-0	01	1	9906-
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9906-
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9906-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	9906-9909
136	BRACKET; OIL CYL 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W)	1-53458-829-0	01	1	9910-9912
136	BRACKET; OIL CYL 6WA1 TC-C(55L),6WG1 TC-N(71L)	1-53458-829-0	01	1	0001-0007
136	BRACKET; OIL CYL 6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG>	1-53458-829-0	01	1	0008-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9906-9909
137	WASHER; PL,BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ID=15	9-09651-069-0	04	1	9910-9912
137	WASHER; PL,BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) ID=15	9-09651-069-0	04	1	0001-0007
137	WASHER; PL,BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ID=15	9-09651-069-0	04	1	0008-
140	NUT; BRKT M14	9-99110-514-0	02	1	9906-9909
140	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M14	9-99110-514-0	02	1	9910-9912
140	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) M14	9-99110-514-0	02	1	0001-0007
140	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> M14	9-99110-514-0	02	1	0008-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9906-9909
141	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) M14X50	9-92061-450-0	04	1	9910-9912
141	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) M14X50	9-92061-450-0	04	1	0001-0007
141	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> M14X50	9-92061-450-0	04	1	0008-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
345	CAP; CAB	1-53458-336-3	02	1	9906-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9906-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9906-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	9906-

293 293 431 292 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9906-
418	WASHER; PL,PIN	1-53458-059-0	01	1	9906-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9906-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9906-
433	FILTER; AIR CYL	1-53458-048-0	01	1	9906-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9906-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9906-
436	NUT; AIR CYL	1-53458-528-0	02	1	9906-
437	PIN; SNAP	1-53458-526-0	01	1	9906-

237 451 452 261 452 292 41 426 279 451 31 250 426 45 438 425 279 292 292 279 45 427 250 237 425 425 41 279 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-2	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-3	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-0	01	1	9906-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-0	01	1	9906-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9906-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9906-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9906-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9906-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9906-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9906-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9906-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9906-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	9906-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49119-371-0	01	1	9906-9912
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-425-0	01	1	0001-0004
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-659-0	01	1	0005-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	9906-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-47499-071-0	01	1	9906-9912
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0001-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-49113-541-0	01	1	9906-
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	03	1	9906-9906
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (C) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-9912
426	CLIP FULL FLOATING CAB(W16) (A) ID=7 L=32	9-09524-665-0	01	1	0001-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-9906
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (E) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9906-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9906-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9906-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9906-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
