◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#72789) — 238 parça

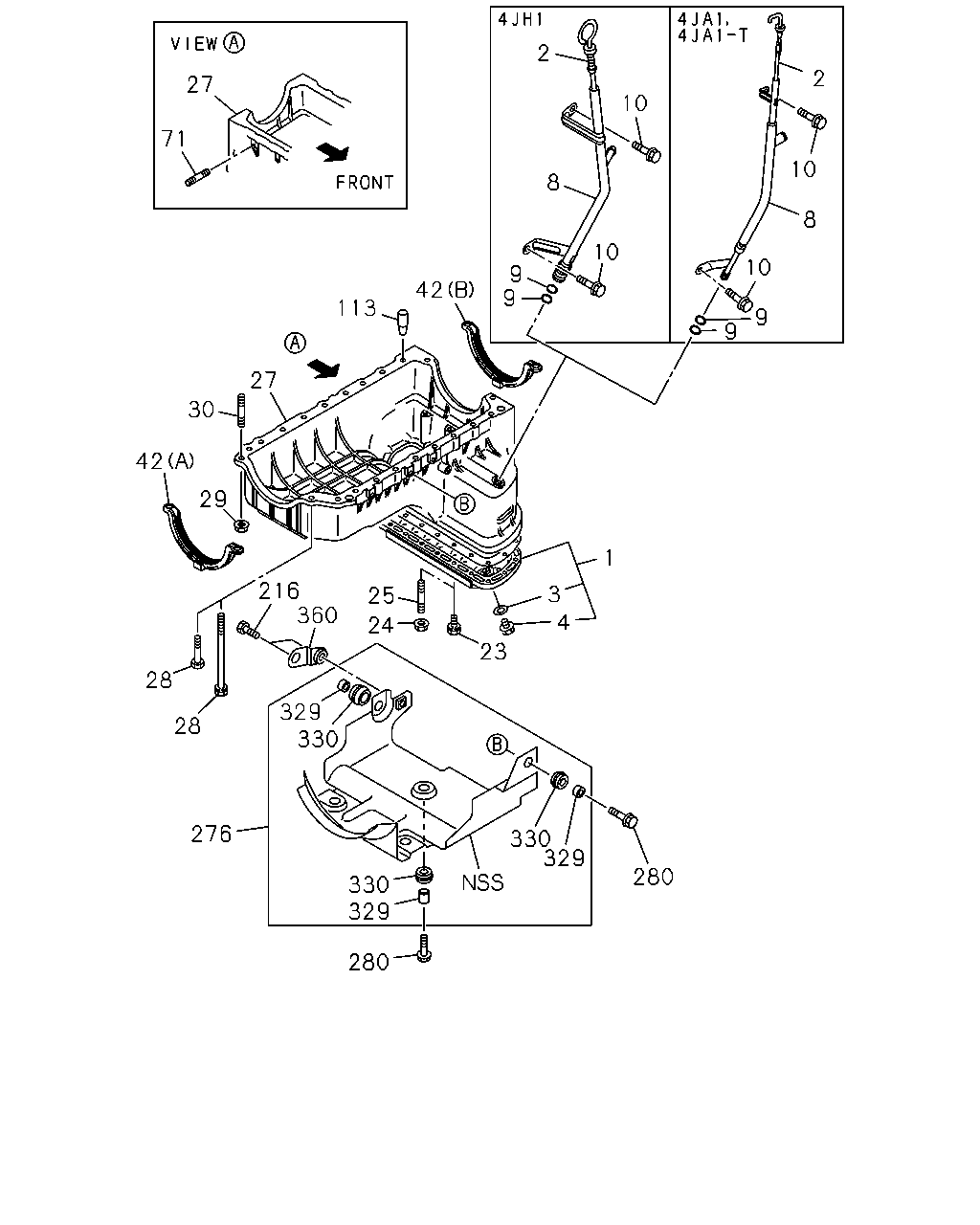

çizim 116254
2 2 27 10 71 10 8 8 10 10 9 9 42 113 9 9 27 30 42 29 1 216 360 3 25 4 24 23 28 329 330 28 276 330 329 280 330 329 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97920-578-0 01 1 0204-0408 ● ●
1 PAN ASM; OIL
THA 		8-97920-578-0 01 1 0409-0412 ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-97920-576-0 01 1 0204-0408 ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97354-749-1 01 1 0409-0412 ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97354-749-2 01 1 0501-0606 ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98011-499-0 01 1 0607-0709 ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98011-499-0 01 1 0710-1008 ● ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98156-371-0 01 1 1009- ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-97354-747-2 01 1 0409-0606 ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0607-0608 ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0609-0708 ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0709-0709 ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-1 01 1 0710-1008 ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98156-373-0 01 1 1009- ● ● ●
2 GAUGE; OIL LEVEL
THA 		8-97912-722-0 01 1 0204-0408 ●
2 GAUGE; OIL LEVEL
THA 		8-97912-722-0 01 1 0409-0412 ●
2 GAUGE; OIL LEVEL
THA 		8-97288-454-0 01 1 0204-0408 ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-97374-978-0 01 1 0409-0412 ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-97374-978-0 01 1 0501-0606 ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98053-833-0 01 1 0607-0709 ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98053-833-1 01 1 0710- ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-97374-979-0 01 1 0409-0606 ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0607-0608 ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0609-0708 ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0709-0709 ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-1 01 1 0710- ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 THA 		8-97912-531-0 01 1 0204-0408 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 THA 		8-97912-531-0 01 1 0409-0412 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0409-0412 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0501-0608 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0609-0708 ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0709-0709 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0710- ● ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-97912-530-0 01 1 0204-0408 ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-97912-530-0 01 1 0409-0412 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 0409-0412 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 0501-0606 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0607-0608 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0609-0708 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0709-0709 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0710- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97910-172-3 01 1 0204-0408 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97910-172-3 01 1 0409-0412 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97245-773-2 01 1 0204-0408 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97358-357-3 01 1 0409-0412 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97358-357-3 01 1 0501-0606 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0607-0608 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0609-0708 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0709-0709 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0710- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 02 1 0204-0408 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 02 1 0409-0412 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 01 1 0409-0412 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 01 1 0501-0606 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0607-0608 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0609-0708 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0709-0709 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0710- ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0204-0408 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0409-0412 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
23 BOLT; OIL PAN
M6X13 THA 		8-97916-379-0 16 1 0204-0408 ● ●
23 BOLT; OIL PAN
M6X13 THA 		8-97916-379-0 16 1 0409-0412 ●
24 NUT; OIL PAN
M6 W/LK WASHER THA 		8-97137-836-0 02 1 0204-0408 ● ●
24 NUT; OIL PAN
M6 W/LK WASHER THA 		8-97137-836-0 02 1 0409-0412 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
25 STUD; OIL PAN
M6X12 L=21 IMA 		0-41010-612-0 02 1 0204-0408 ● ●
25 STUD; OIL PAN
M6X12 L=21 IMA 		0-41010-612-0 02 1 0409-0412 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0409-0412 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0501-0608 ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0609-0708 ● ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0709-0709 ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0710- ● ● ●
27 CRANKCASE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97920-000-0 01 1 0204-0408 ● ●
27 CRANKCASE
THA 		8-97920-000-0 01 1 0409-0412 ●
27 CRANKCASE
A/T 4 SPEED-JATCO<RMK> THA 		8-97920-001-0 01 1 0204-0408 ●
27 CRANKCASE
4X2<TFB***> THA 		8-97370-513-4 01 1 0409-0412 ●
27 CRANKCASE
4X2<TFB***> THA 		8-97370-513-4 01 1 0501-0606 ● ●
27 CRANKCASE
4X2<TFB***> THA 		8-98013-794-1 01 1 0607-0709 ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98013-794-1 01 1 0710- ● ● ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0409-0606 ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0607-0608 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97370-514-3 01 1 0609-0708 ● ● ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0709-0709 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97370-514-3 01 1 0710- ● ● ●
27 CRANKCASE
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> THA 		8-98011-497-2 01 1 0710- ●
27 CRANKCASE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0609-0708 ●
27 CRANKCASE
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0710- ●
28 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE IMA 		0-28055-812-0 02 1 0204-0408 ● ●
28 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE IMA 		0-28055-812-0 02 1 0409-0412 ●
28 BOLT; CRANKCASE TO C/BL
M8X35 FLANGE THA 		0-28650-835-0 18 1 0204-0408 ● ●
28 BOLT; CRANKCASE TO C/BL
M8X35 FLANGE THA 		0-28650-835-0 18 1 0409-0412 ●
29 NUT; CRANKCASE
M8 FLANGE THA 		0-91180-108-0 02 1 0204-0408 ● ●
29 NUT; CRANKCASE
M8 FLANGE THA 		0-91180-108-0 02 1 0409-0412 ●
30 STUD; CRANKCASE
M8X35 L=47 THA 		0-41010-835-0 02 1 0204-0408 ● ●
30 STUD; CRANKCASE
M8X35 L=47 THA 		0-41010-835-0 02 1 0409-0412 ●
42 GASKET; CRANKCASE TO C/BL
(A) FRONT THA 		8-97120-933-0 01 1 0204-0408 ● ●
42 GASKET; CRANKCASE TO C/BL
(A) FRONT THA 		8-97120-933-0 01 1 0409-0412 ●
42 GASKET; CRANKCASE TO C/BL
(B) REAR THA 		8-97123-342-0 01 1 0204-0408 ● ●
42 GASKET; CRANKCASE TO C/BL
(B) REAR THA 		8-97123-342-0 01 1 0409-0412 ●
71 STUD; OIL DRAIN PIPE
M8X18 L=30 THA 		0-41010-818-0 02 1 0204-0408 ● ●
71 STUD; OIL DRAIN PIPE
M8X18 L=30 THA 		0-41010-818-0 02 1 0409-0412 ●
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0204-0408 ● ●
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0409-0412 ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0609-0708 ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0710- ●
216 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0204-0408 ● ●
216 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0409-0412 ●
216 BOLT; BRKT
M8X22 W/LK&PL WASHER THA 		8-94329-953-1 01 1 0204-0408 ● ●
216 BOLT; BRKT
M8X22 W/LK&PL WASHER THA 		8-94329-953-1 01 1 0409-0412 ●
276 COVER; CRANKCASE
THA 		8-97942-961-1 01 1 0204-0311 ● ●
276 COVER; CRANKCASE
THA 		8-97943-903-0 01 1 0312-0408 ● ●
276 COVER; CRANKCASE
THA 		8-97943-903-0 01 1 0409-0412 ●
280 BOLT; COVER
M8X22 W/LK&PL WASHER THA 		8-94329-953-1 04 1 0204-0402 ● ●
280 BOLT; COVER
M8X22 W/LK&PL WASHER THA 		8-94329-953-1 03 1 0312-0408 ● ●
280 BOLT; COVER
M8X22 W/LK&PL WASHER THA 		8-94329-953-1 03 1 0409-0412 ●
329 GUIDE; COVER,CRANKCASE
THA 		8-97916-668-0 04 1 0204-0311 ● ●
329 GUIDE; COVER,CRANKCASE
THA 		8-97916-668-0 03 1 0312-0408 ● ●
329 GUIDE; COVER,CRANKCASE
THA 		8-97916-668-0 03 1 0409-0412 ●
330 RUBBER; MTG,CRANKCASE COVER
THA 		8-97916-666-1 04 1 0204-0311 ● ●
330 RUBBER; MTG,CRANKCASE COVER
THA 		8-97916-666-1 03 1 0312-0408 ● ●
330 RUBBER; MTG,CRANKCASE COVER
THA 		8-97916-666-1 03 1 0409-0412 ●
360 BRACKET; CRANK CASE
THA 		8-97328-483-0 01 1 0204-0408 ● ●
360 BRACKET; CRANK CASE
THA 		8-97328-483-0 01 1 0409-0412 ●

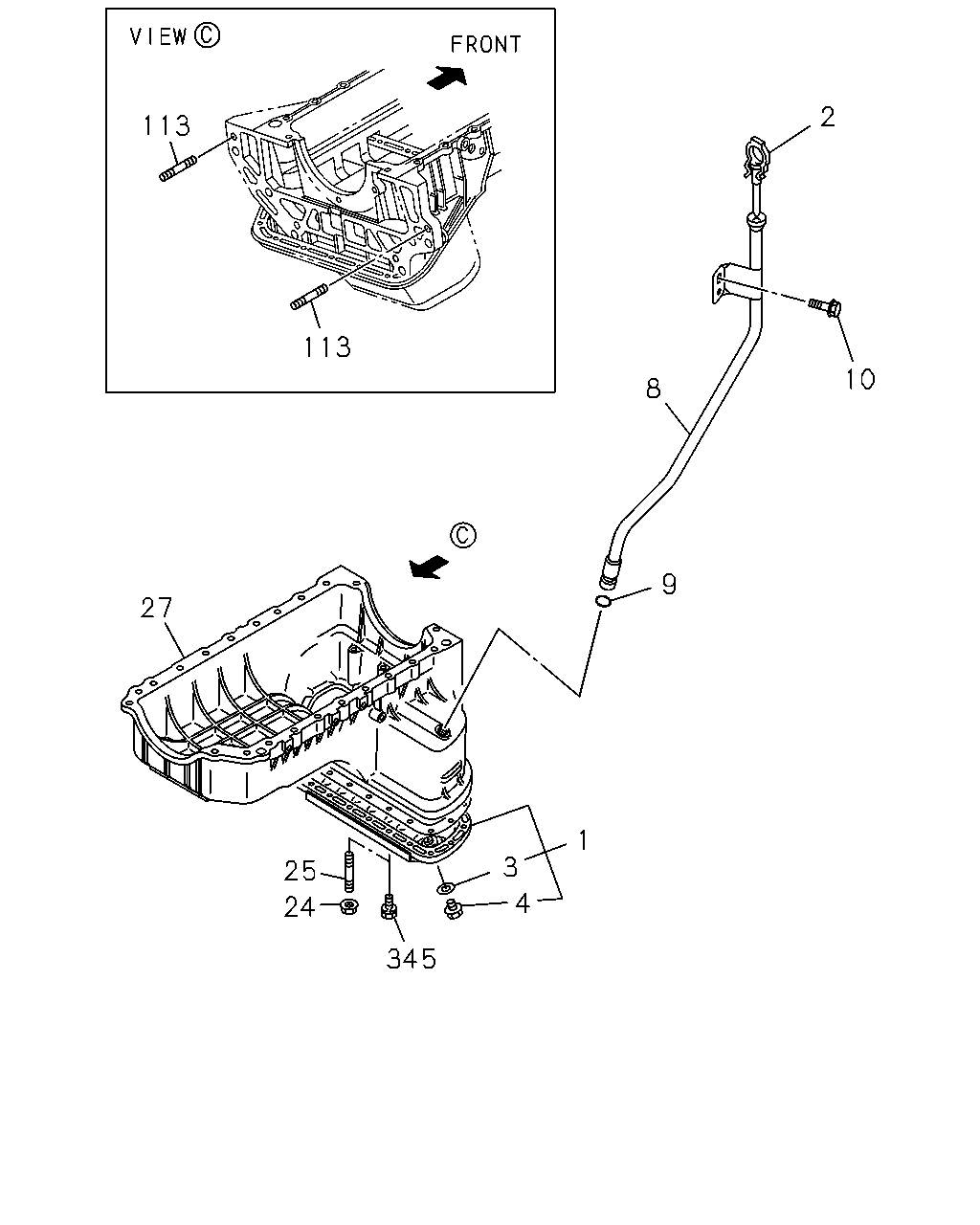

çizim 116266
2 113 113 10 8 9 27 1 3 25 4 24 345
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97920-578-0 01 1 0204-0408 ● ●
1 PAN ASM; OIL
THA 		8-97920-578-0 01 1 0409-0412 ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-97920-576-0 01 1 0204-0408 ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97354-749-1 01 1 0409-0412 ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-97354-749-2 01 1 0501-0606 ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98011-499-0 01 1 0607-0709 ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98011-499-0 01 1 0710-1008 ● ● ●
1 PAN ASM; OIL
4X2<TFB***> THA 		8-98156-371-0 01 1 1009- ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-97354-747-2 01 1 0409-0606 ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0607-0608 ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0609-0708 ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-0 01 1 0709-0709 ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98013-383-1 01 1 0710-1008 ● ● ●
1 PAN ASM; OIL
4X4<TFS***> THA 		8-98156-373-0 01 1 1009- ● ● ●
2 GAUGE; OIL LEVEL
THA 		8-97912-722-0 01 1 0204-0408 ●
2 GAUGE; OIL LEVEL
THA 		8-97912-722-0 01 1 0409-0412 ●
2 GAUGE; OIL LEVEL
THA 		8-97288-454-0 01 1 0204-0408 ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-97374-978-0 01 1 0409-0412 ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-97374-978-0 01 1 0501-0606 ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98053-833-0 01 1 0607-0709 ● ●
2 GAUGE; OIL LEVEL
4X2<TFB***> THA 		8-98053-833-1 01 1 0710- ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-97374-979-0 01 1 0409-0606 ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0607-0608 ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0609-0708 ● ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-0 01 1 0709-0709 ● ●
2 GAUGE; OIL LEVEL
4X4<TFS***> THA 		8-98053-834-1 01 1 0710- ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 THA 		8-97912-531-0 01 1 0204-0408 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 THA 		8-97912-531-0 01 1 0409-0412 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0409-0412 ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0501-0608 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0609-0708 ● ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0709-0709 ● ●
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 0710- ● ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-97912-530-0 01 1 0204-0408 ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-97912-530-0 01 1 0409-0412 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 0409-0412 ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-94152-613-0 01 1 0501-0606 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0607-0608 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0609-0708 ● ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0709-0709 ● ●
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 0710- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97910-172-3 01 1 0204-0408 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97910-172-3 01 1 0409-0412 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97245-773-2 01 1 0204-0408 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97358-357-3 01 1 0409-0412 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-97358-357-3 01 1 0501-0606 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0607-0608 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0609-0708 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0709-0709 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98011-973-1 01 1 0710- ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 02 1 0204-0408 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 02 1 0409-0412 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 01 1 0409-0412 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
THA 		8-97912-535-0 01 1 0501-0606 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0607-0608 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0609-0708 ● ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0709-0709 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 0710- ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0204-0408 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 02 1 0409-0412 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0409-0412 ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0501-0608 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0609-0708 ● ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0709-0709 ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 0710- ● ● ●
24 NUT; OIL PAN
M6 W/LK WASHER THA 		8-97137-836-0 02 1 0204-0408 ● ●
24 NUT; OIL PAN
M6 W/LK WASHER THA 		8-97137-836-0 02 1 0409-0412 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0409-0412 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0501-0608 ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0609-0708 ● ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0709-0709 ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 0710- ● ● ●
25 STUD; OIL PAN
M6X12 L=21 IMA 		0-41010-612-0 02 1 0204-0408 ● ●
25 STUD; OIL PAN
M6X12 L=21 IMA 		0-41010-612-0 02 1 0409-0412 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0409-0412 ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0501-0608 ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0609-0708 ● ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0709-0709 ● ●
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 0710- ● ● ●
27 CRANKCASE
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97920-000-0 01 1 0204-0408 ● ●
27 CRANKCASE
THA 		8-97920-000-0 01 1 0409-0412 ●
27 CRANKCASE
A/T 4 SPEED-JATCO<RMK> THA 		8-97920-001-0 01 1 0204-0408 ●
27 CRANKCASE
4X2<TFB***> THA 		8-97370-513-4 01 1 0409-0412 ●
27 CRANKCASE
4X2<TFB***> THA 		8-97370-513-4 01 1 0501-0606 ● ●
27 CRANKCASE
4X2<TFB***> THA 		8-98013-794-1 01 1 0607-0709 ● ●
27 CRANKCASE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-98013-794-1 01 1 0710- ● ● ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0409-0606 ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0607-0608 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97370-514-3 01 1 0609-0708 ● ● ●
27 CRANKCASE
4X4<TFS***> THA 		8-97370-514-3 01 1 0709-0709 ● ●
27 CRANKCASE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ>,A/T AISIN<RMD>,A/T 4 SPEED-JATCO<RMK> THA 		8-97370-514-3 01 1 0710- ● ● ●
27 CRANKCASE
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> POWER STEERING<N40> THA 		8-98011-497-2 01 1 0710- ●
27 CRANKCASE
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0609-0708 ●
27 CRANKCASE
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> THA 		8-98011-498-2 01 1 0710- ●
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0204-0408 ● ●
113 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 0409-0412 ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0609-0708 ●
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=10 L=32 THA 		9-08161-032-0 02 1 0710- ●
345 BOLT; SENSOR,OIL LEVEL
4X2<TFB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 0409-0412 ●
345 BOLT; SENSOR,OIL LEVEL
4X2<TFB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 0501-0709 ● ●
345 BOLT; SENSOR,OIL LEVEL
4X2<TFB***> M8X12 FLANGE THA 		0-28050-812-0 21 1 0710- ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0409-0606 ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0607-0608 ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0609-0708 ● ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0709-0709 ● ●
345 BOLT; SENSOR,OIL LEVEL
4X4<TFS***> M8X12 FLANGE THA 		0-28050-812-0 17 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
