Sayfa 0-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

0-10 — CYLINDER HEAD COVER (#72786) — 208 parça

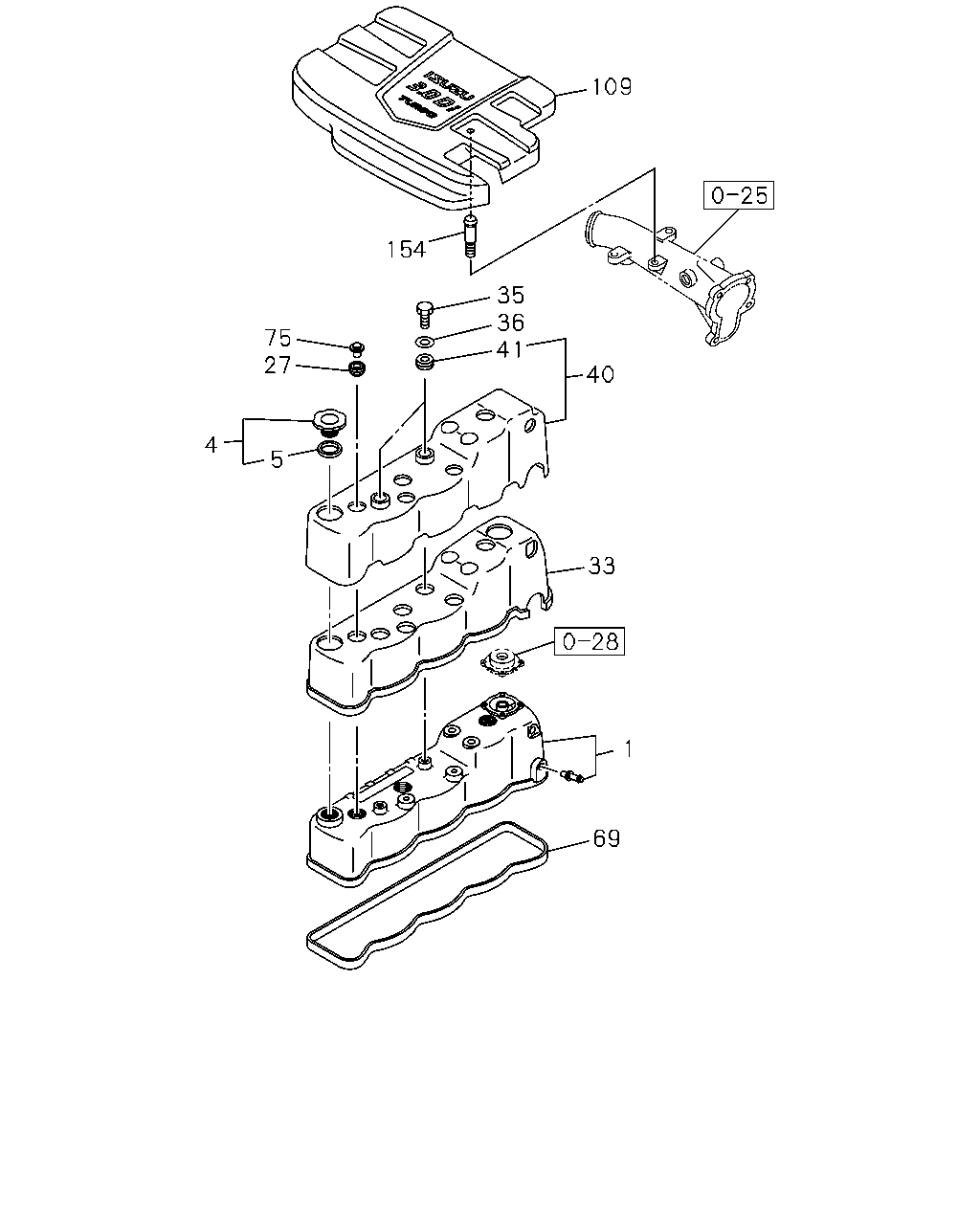

109 154 35 36 41 75 27 40 4 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COVER; CYL HD THA	8-97910-604-1	01	1	0204-0408	●
1	COVER; CYL HD THA	8-97910-604-1	01	1	0409-0412		●
1	COVER; CYL HD THA	8-97943-017-0	01	1	0204-0408			●
1	COVER; CYL HD THA	8-97366-527-3	01	1	0409-0412				●
1	COVER; CYL HD THA	8-97366-527-4	01	1	0501-0606				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0607-0608				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0609-0708				●	●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0709-0709				●	●
1	COVER; CYL HD THA	8-98051-196-2	01	1	0710-1008				●	●	●
1	COVER; CYL HD THA	8-98156-392-0	01	1	1009-				●	●	●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0204-0408	●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0409-0412		●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0501-0606				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0607-0608				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0609-0708				●	●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0709-0709				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0710-				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0204-0408	●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0409-0412		●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0501-0608				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0609-0708				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0709-0709				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0710-				●	●	●
27	GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0204-0408	●		●
27	GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0409-0412		●
33	RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0204-0306	●		●
33	RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0409-0412		●
35	BOLT; NOISE SHIELD COVER M8X12 FLANGE THA	0-28050-812-0	02	1	0204-0408	●		●
35	BOLT; NOISE SHIELD COVER M8X12 FLANGE THA	0-28050-812-0	02	1	0409-0412		●
36	WASHER; PL,NOISE SHIELD COVER ID=8.5 OD=30 T=2.6 THA	9-09651-112-0	02	1	0204-0408	●		●
36	WASHER; PL,NOISE SHIELD COVER ID=8.5 OD=30 T=2.6 THA	9-09651-112-0	02	1	0409-0412		●
40	COVER THA	8-97911-573-2	01	1	0204-0408	●
40	COVER THA	8-97911-573-2	01	1	0409-0412		●
40	COVER THA	8-97920-051-1	01	1	0204-0408			●
41	GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0204-0408	●		●
41	GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0409-0412		●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0204-0408	●		●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0409-0412		●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0409-0412				●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0501-0511				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0608				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0609-0708				●	●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0709-0709				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0710-1008				●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98156-394-0	01	1	1009-				●	●	●
75	NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0204-0408	●		●
75	NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0409-0412		●
109	COVER; ENG THA	8-97316-476-2	01	1	0204-0408			●
109	COVER; ENG THA	8-97364-387-2	01	1	0409-0602				●
109	COVER; ENG THA	8-98031-429-0	01	1	0603-0606				●
109	COVER; ENG THA	8-98019-065-0	01	1	0607-0802				●
109	COVER; ENG THA	8-98097-019-0	01	1	0803-0808				●
109	COVER; ENG THA	8-98102-515-0	01	1	0809-				●
109	COVER; ENG THA	8-97370-448-2	01	1	0501-0602					●
109	COVER; ENG THA	8-98031-430-0	01	1	0603-0606					●
109	COVER; ENG THA	8-98031-174-0	01	1	0607-0802					●
109	COVER; ENG THA	8-98097-018-0	01	1	0803-0808					●
109	COVER; ENG THA	8-98102-514-0	01	1	0809-					●
109	COVER; ENG THA	8-98061-175-0	01	1	0609-0708						●
109	COVER; ENG THA	8-98061-175-0	01	1	0710-0808						●
109	COVER; ENG THA	8-98102-513-0	01	1	0809-1006						●
109	COVER; ENG THA	8-98175-666-0	01	1	1007-						●
154	PIN; COVER IMA	8-97172-106-0	04	1	0204-0408			●

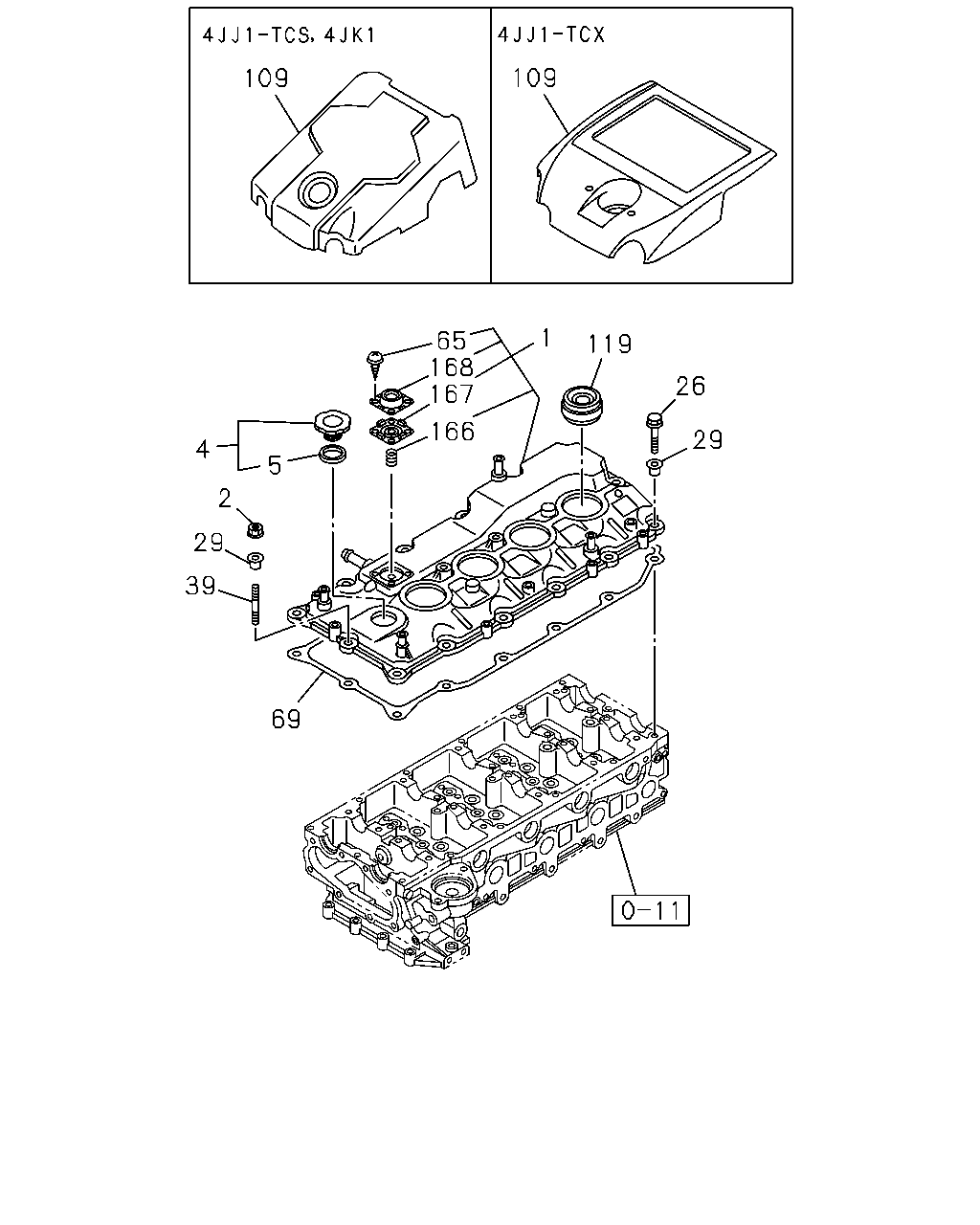

109 109 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COVER; CYL HD THA	8-97910-604-1	01	1	0204-0408	●
1	COVER; CYL HD THA	8-97910-604-1	01	1	0409-0412		●
1	COVER; CYL HD THA	8-97943-017-0	01	1	0204-0408			●
1	COVER; CYL HD THA	8-97366-527-3	01	1	0409-0412				●
1	COVER; CYL HD THA	8-97366-527-4	01	1	0501-0606				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0607-0608				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0609-0708				●	●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0709-0709				●	●
1	COVER; CYL HD THA	8-98051-196-2	01	1	0710-1008				●	●	●
1	COVER; CYL HD THA	8-98156-392-0	01	1	1009-				●	●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0409-0412				●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0501-0608				●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0609-0708				●	●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0709-0709				●	●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	0710-				●	●	●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0204-0408	●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0409-0412		●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0501-0606				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0607-0608				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0609-0708				●	●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0709-0709				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0710-				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0204-0408	●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0409-0412		●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0501-0608				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0609-0708				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0709-0709				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0710-				●	●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0409-0412				●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0501-0608				●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0609-0708				●	●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0709-0709				●	●
26	BOLT; CYL HD COVER M6X30 FLANGE THA	0-28650-630-0	13	1	0710-1008				●	●	●
26	BOLT; CYL HD COVER M6X25 FLANGE THA	0-28650-625-0	13	1	1009-				●	●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0409-0412				●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0501-0608				●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0609-0708				●	●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0709-0709				●	●
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	0710-1008				●	●	●
39	STUD; COVER,HD M6X30 L=38 THA	8-97372-795-0	01	1	0409-0412				●
39	STUD; COVER,HD M6X30 L=38 THA	8-97372-795-0	01	1	0501-0507				●	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0508-0608				●	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0609-0708				●	●	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0709-0709				●	●
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	0710-1008				●	●	●
39	STUD; COVER,HD M6X25 L=34 THA	0-41010-625-0	01	1	1009-				●	●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0409-0412				●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0501-0608				●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0609-0708				●	●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0709-0709				●	●
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	0710-				●	●	●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0204-0408	●		●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0409-0412		●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0409-0412				●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0501-0511				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0608				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0609-0708				●	●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0709-0709				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0710-1008				●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98156-394-0	01	1	1009-				●	●	●
109	COVER; ENG THA	8-97316-476-2	01	1	0204-0408			●
109	COVER; ENG THA	8-97364-387-2	01	1	0409-0602				●
109	COVER; ENG THA	8-98031-429-0	01	1	0603-0606				●
109	COVER; ENG THA	8-98019-065-0	01	1	0607-0802				●
109	COVER; ENG THA	8-98097-019-0	01	1	0803-0808				●
109	COVER; ENG THA	8-98102-515-0	01	1	0809-				●
109	COVER; ENG THA	8-97370-448-2	01	1	0501-0602					●
109	COVER; ENG THA	8-98031-430-0	01	1	0603-0606					●
109	COVER; ENG THA	8-98031-174-0	01	1	0607-0802					●
109	COVER; ENG THA	8-98097-018-0	01	1	0803-0808					●
109	COVER; ENG THA	8-98102-514-0	01	1	0809-					●
109	COVER; ENG THA	8-98061-175-0	01	1	0609-0708						●
109	COVER; ENG THA	8-98061-175-0	01	1	0710-0808						●
109	COVER; ENG THA	8-98102-513-0	01	1	0809-1006						●
109	COVER; ENG THA	8-98175-666-0	01	1	1007-						●
119	COVER; SEAL,NOZZLE THA	8-97317-168-1	04	1	0409-0412				●
119	COVER; SEAL,NOZZLE THA	8-97317-168-1	04	1	0501-0606				●	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0607-0608				●	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0609-0708				●	●	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0709-0709				●	●
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	0710-				●	●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0409-0412				●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0501-0507				●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0508-0608				●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0609-0708				●	●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0709-0709				●	●
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	0710-				●	●	●
167	DIAPHRAGM; VENTILATOR THA	8-97365-915-1	01	1	0409-0412				●
167	DIAPHRAGM; VENTILATOR THA	8-97365-915-1	01	1	0501-0505				●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0506-0608				●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0609-0708				●	●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0709-0709				●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	0710-				●	●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0409-0412				●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0501-0608				●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0609-0708				●	●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0709-0709				●	●
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	0710-				●	●	●

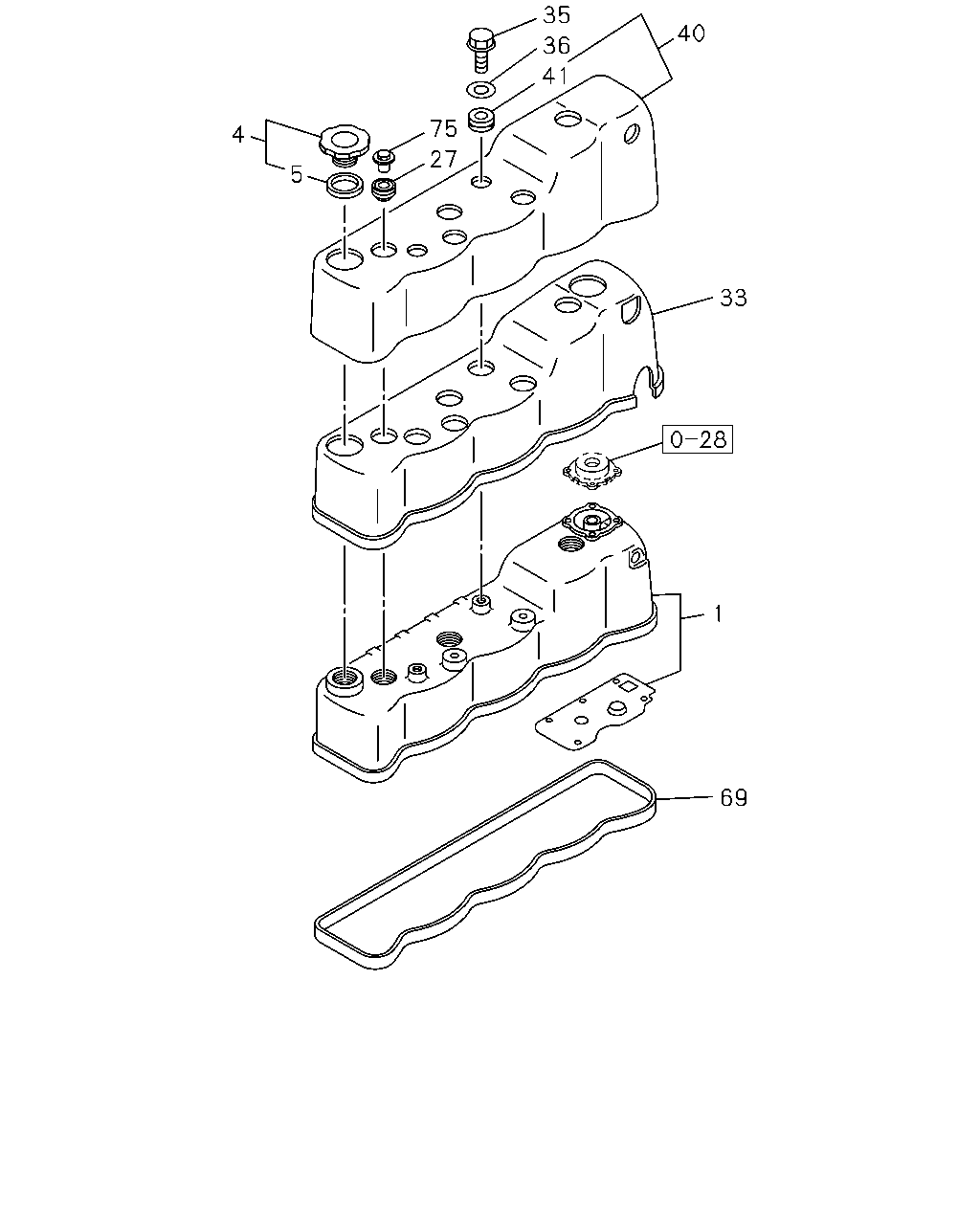

35 40 36 41 75 4 27 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	COVER; CYL HD THA	8-97910-604-1	01	1	0204-0408	●
1	COVER; CYL HD THA	8-97910-604-1	01	1	0409-0412		●
1	COVER; CYL HD THA	8-97943-017-0	01	1	0204-0408			●
1	COVER; CYL HD THA	8-97366-527-3	01	1	0409-0412				●
1	COVER; CYL HD THA	8-97366-527-4	01	1	0501-0606				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0607-0608				●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0609-0708				●	●	●
1	COVER; CYL HD THA	8-98051-196-1	01	1	0709-0709				●	●
1	COVER; CYL HD THA	8-98051-196-2	01	1	0710-1008				●	●	●
1	COVER; CYL HD THA	8-98156-392-0	01	1	1009-				●	●	●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0204-0408	●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0409-0412		●		●
4	CAP; OIL FILLER THA	8-97912-543-0	01	1	0501-0606				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0607-0608				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0609-0708				●	●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0709-0709				●	●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	0710-				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0204-0408	●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0409-0412		●		●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0501-0608				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0609-0708				●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0709-0709				●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	0710-				●	●	●
27	GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0204-0408	●		●
27	GASKET; HD COVER ID=19.5 THA	8-97912-653-0	03	1	0409-0412		●
33	RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0204-0306	●		●
33	RUBBER; SPACE,CYL HD COVER THA	8-97920-049-1	01	1	0409-0412		●
35	BOLT; NOISE SHIELD COVER M8X12 FLANGE THA	0-28050-812-0	02	1	0204-0408	●		●
35	BOLT; NOISE SHIELD COVER M8X12 FLANGE THA	0-28050-812-0	02	1	0409-0412		●
36	WASHER; PL,NOISE SHIELD COVER ID=8.5 OD=30 T=2.6 THA	9-09651-112-0	02	1	0204-0408	●		●
36	WASHER; PL,NOISE SHIELD COVER ID=8.5 OD=30 T=2.6 THA	9-09651-112-0	02	1	0409-0412		●
40	COVER THA	8-97911-573-2	01	1	0204-0408	●
40	COVER THA	8-97911-573-2	01	1	0409-0412		●
40	COVER THA	8-97920-051-1	01	1	0204-0408			●
41	GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0204-0408	●		●
41	GROMMET; HD COVER,OUTER THA	8-97915-830-0	02	1	0409-0412		●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0204-0408	●		●
69	GASKET; HD TO COVER THA	8-97912-741-0	01	1	0409-0412		●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0409-0412				●
69	GASKET; HD TO COVER THA	8-97312-088-0	01	1	0501-0511				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0512-0608				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0609-0708				●	●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0709-0709				●	●
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	0710-1008				●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-98156-394-0	01	1	1009-				●	●	●
75	NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0204-0408	●		●
75	NUT; CAP,HD COVER M8 OD=19 THA	8-97912-654-0	03	1	0409-0412		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
