8-90 — RADIO AND TV (#72782) — 92 parça

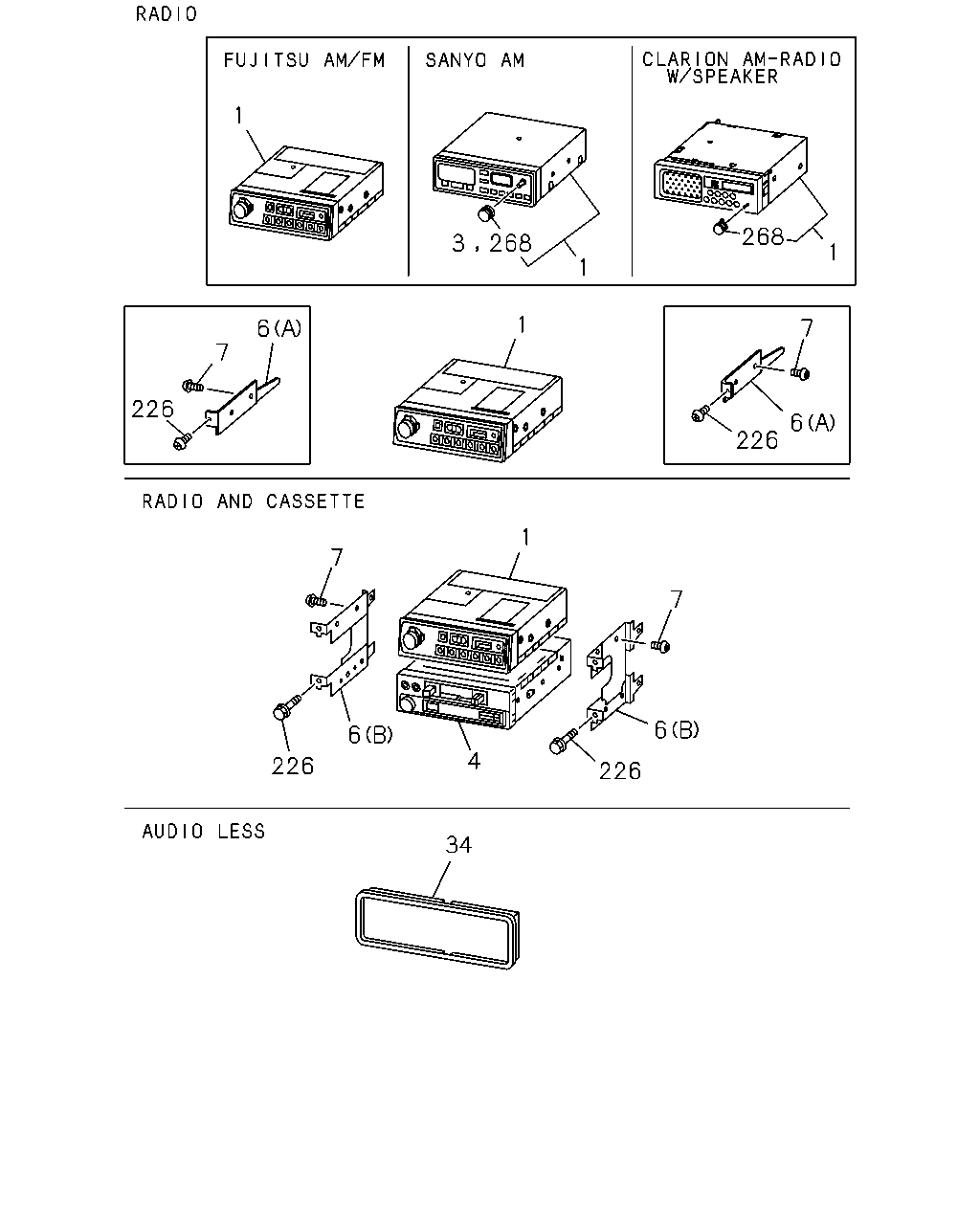

1 268 3 268 1 1 1 7 6 7 226 6 226 1 7 7 6 6 4 226 226 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97088-264-0	01	1	9704-0004	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0209	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0210-0307	●	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-357-0	01	1	0308-0312	●	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
1	RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> FUJITSU AM/FM	8-97088-266-0	01	1	9704-0209	●
1	RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> FUJITSU AM/FM	8-97088-266-0	01	1	0210-0307	●	●
3	ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	9704-0004	●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FUJITSU	8-97088-290-0	01	1	9704-0209	●
4	CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FUJITSU	8-97088-290-0	01	1	0210-0307	●	●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9704-0209	●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	0210-	●	●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9704-0209	●
6	BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	0210-	●	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	9704-0209	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	0210-	●	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	9704-0209	●
6	BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	0210-	●	●
7	SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9704-0209	●
7	SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0210-0604	●	●
7	SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-	●	●
7	SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9704-0209	●
7	SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	0210-0604	●	●
7	SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X10 W/LK+PL WASHER	0-36230-510-0	08	1	0605-	●	●
34	COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9704-0209	●
34	COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0210-	●	●
226	BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9704-0209	●
226	BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0210-1210	●	●
226	BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●
226	BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9704-0209	●
226	BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0210-1210	●	●
226	BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M6X19.5 W/LK&PL WASHER	8-97360-226-0	04	1	1211-	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0005-0209	●
268	KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO	8-97093-557-0	01	1	0210-0312	●	●
268	KNOB; VOL RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION	8-97331-589-0	01	1	0401-	●	●

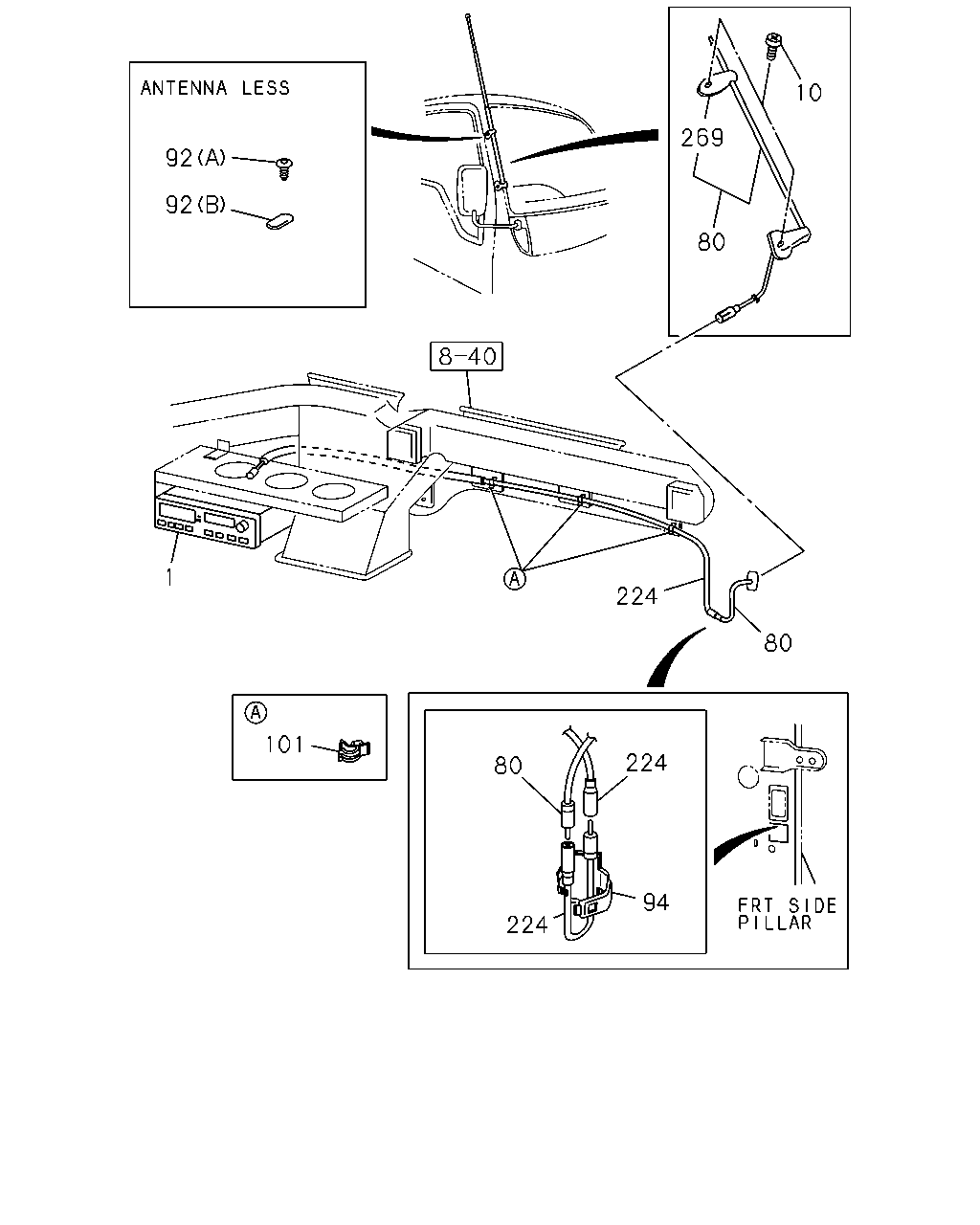

10 269 92 92 80 1 224 80 101 224 80 94 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97088-264-0	01	1	9704-0004	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0005-0209	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-543-0	01	1	0210-0307	●	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO AM	8-97241-357-0	01	1	0308-0312	●	●
1	RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER	8-97316-996-0	01	1	0401-	●	●
1	RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> FUJITSU AM/FM	8-97088-266-0	01	1	9704-0209	●
1	RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> FUJITSU AM/FM	8-97088-266-0	01	1	0210-0307	●	●
10	SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97120-686-0	01	1	9704-0209	●
10	SCREW; ANTENNA CABLE ANTENNA<U73> M6X20	8-97120-686-0	01	1	0210-	●	●
10	SCREW; ANTENNA CABLE ANTENNA<U73> M6X16	8-97123-696-0	01	1	9704-0209	●
10	SCREW; ANTENNA CABLE ANTENNA<U73> M6X16	8-97123-696-0	01	1	0210-	●	●
80	ANTENNA ANTENNA<U73>	8-97070-022-2	01	1	9704-9809	●
80	ANTENNA ANTENNA<U73>	8-97210-546-0	01	1	9810-9903	●
80	ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	9904-0209	●
80	ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0210-	●	●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (A) OD=12 L=14.8	8-94279-921-0	01	1	9704-0209	●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (A) OD=12 L=14.8	8-94279-921-0	01	1	0210-	●	●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9704-0209	●
92	COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0210-	●	●
94	CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	9704-0209	●
94	CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0210-	●	●
101	CLIP; FEEDER TO BRKT ANTENNA<U73> ID=7	5-09707-053-0	03	1	9704-0209	●
101	CLIP; FEEDER TO BRKT ANTENNA<U73> ID=7	5-09707-053-0	03	1	0210-	●	●
224	CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9704-9811	●
224	CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	9812-0209	●
224	CABLE; EXT,FEEDER ANTENNA<U73>	8-97213-766-0	01	1	0210-	●	●
269	SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-183-0	01	1	9704-9903	●
269	SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	9904-0209	●
269	SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0210-	●	●

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9704-0209	●
5	HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	0210-	●	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97130-575-0	02	1	9704-9809	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-696-0	02	1	9810-9901	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97223-099-0	02	1	9902-0204	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-000-0	02	1	0205-0209	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-000-0	02	1	0210-0805	●	●
48	SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97317-001-1	02	1	0806-	●	●
49	SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14	8-94279-325-0	06	1	9704-0209	●
49	SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14	8-94279-325-0	06	1	0210-0612	●	●
49	SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	0701-	●	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9704-0209	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	0210-	●	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9704-0209	●
116	PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	0210-	●	●
117	SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14	8-94279-325-0	06	1	9704-0209	●
117	SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14	8-94279-325-0	06	1	0210-	●	●
171	COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9704-0209	●
171	COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	0210-	●	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9704-0209	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-5	02	1	0210-	●	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9704-0209	●
221	SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-2	02	1	0210-	●	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	1-09987-144-0	02	1	9704-0209	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	1-09987-144-0	02	1	0210-	●	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9704-9705	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-0209	●
222	GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0210-	●	●
