8-80 — WINDSHIELD WIPER AND WASHER (#72781) — 157 parça

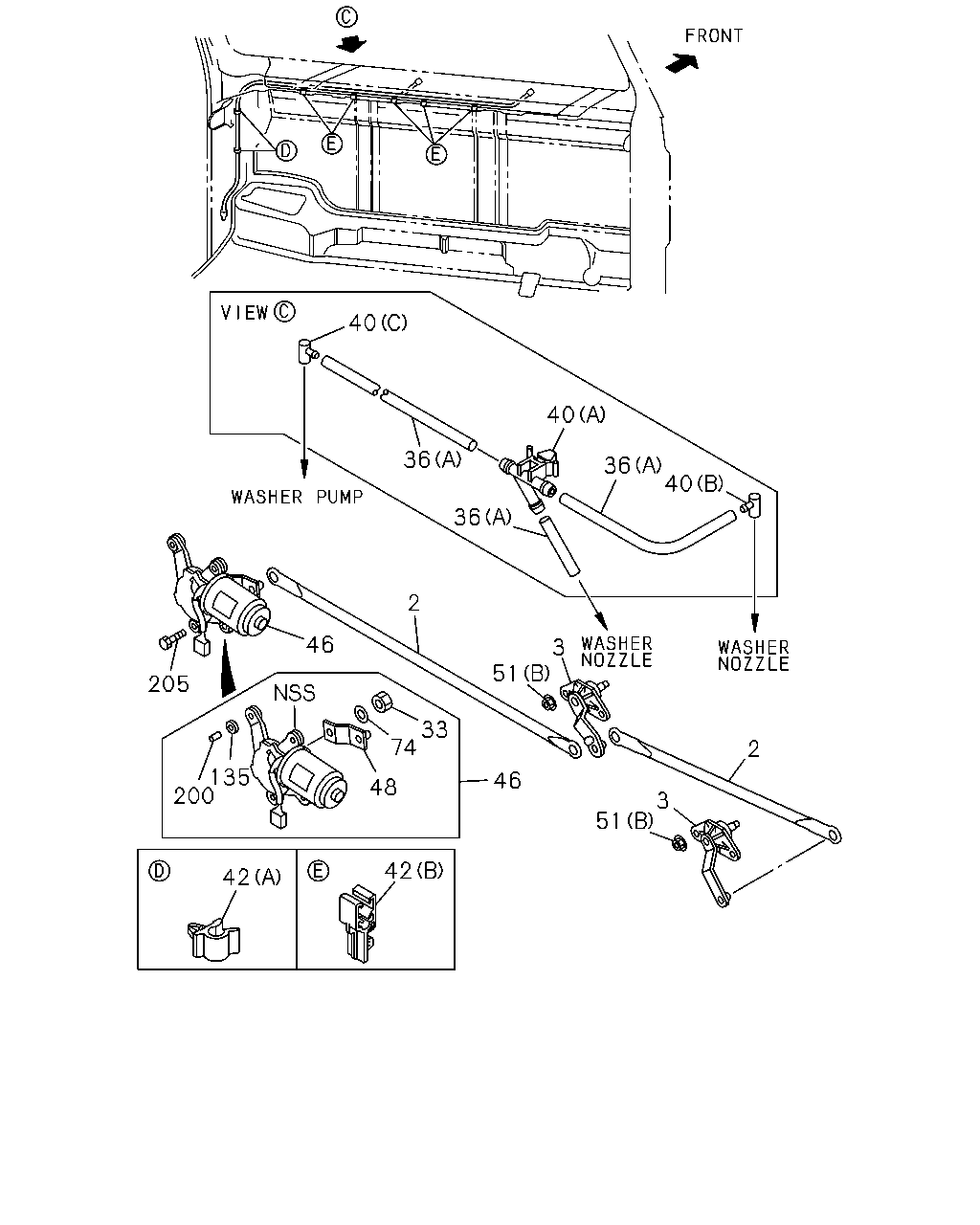

çizim 74153
40 40 36 36 40 36 2 46 3 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
MOTOR TO PIVOT L=424 W/CAP 		8-97855-149-0 01 1 9704-0209 ●
2 LINK; FRT WIPER
MOTOR TO PIVOT L=424 W/CAP 		8-97855-149-0 01 1 0210- ● ●
2 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 9704-0209 ●
2 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 0210- ● ●
3 PIVOT ASM; FRT WIPER
CENTER 		8-97855-144-0 01 1 9704-0209 ●
3 PIVOT ASM; FRT WIPER
CENTER 		8-97855-144-2 01 1 0210- ● ●
3 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-97855-148-0 01 1 9704-0209 ●
3 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-97855-148-2 01 1 0210- ● ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9704-0209 ●
33 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0210- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9704-0209 ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0210- ● ●
36 HOSE; WASHER
(B) 		8-97216-110-0 01 1 0308-1111 ● ●
36 HOSE; WASHER
(B) 		8-97216-110-0 01 1 1112- ●
36 HOSE; WASHER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97216-110-0 01 1 1112- ●
36 HOSE; WASHER
(B) 		8-97216-109-0 01 1 0308-1111 ● ●
36 HOSE; WASHER
(B) 		8-97216-109-0 01 1 1112- ●
36 HOSE; WASHER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97216-109-0 01 1 1112- ●
40 JOINT; WASHER HOSE
FACE LIFT MODEL<TX7> (B) 		5-83363-006-0 01 1 1112- ●
40 JOINT; WASHER HOSE
FACE LIFT MODEL<TX7> (A) 		8-97855-163-0 01 1 1112- ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9704-0209 ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0210-0307 ● ●
40 JOINT; WASHER HOSE
(D) 		8-97216-115-0 02 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(D) 		8-97216-115-0 02 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (D) 		8-97216-115-0 02 1 1112- ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0307-0307 ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (A) 		8-97167-258-0 01 1 1112- ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (C) 		8-97307-026-0 01 1 1112- ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9704-0209 ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0210- ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 9704-0209 ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 0210- ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0308-1111 ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 1112- ●
42 CLIP; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (C) 		8-97216-114-0 02 1 1112- ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97855-011-4 01 1 9704-9811 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97216-347-0 01 1 9812-0209 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97216-347-0 01 1 0210-0210 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-373-2 01 1 0211- ● ●
48 ARM; WIPER MOTOR 8-97855-156-0 01 1 9704-9811 ●
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 9812-0209 ●
48 ARM; WIPER MOTOR 8-97218-924-0 01 1 0210- ● ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		5-09440-005-0 04 1 9704-0209 ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		5-09440-005-0 04 1 0210-0611 ● ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ●
51 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9704-0209 ●
51 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0210- ● ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9704-0209 ●
74 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0210- ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9704-0209 ●
135 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 0210- ● ●
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 9704-0209 ●
200 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 0210- ● ●
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 9704-0209 ●
205 BOLT; WIPER MOTOR
M6X28 W/PL WASHER 		8-94148-420-0 03 1 0210- ● ●

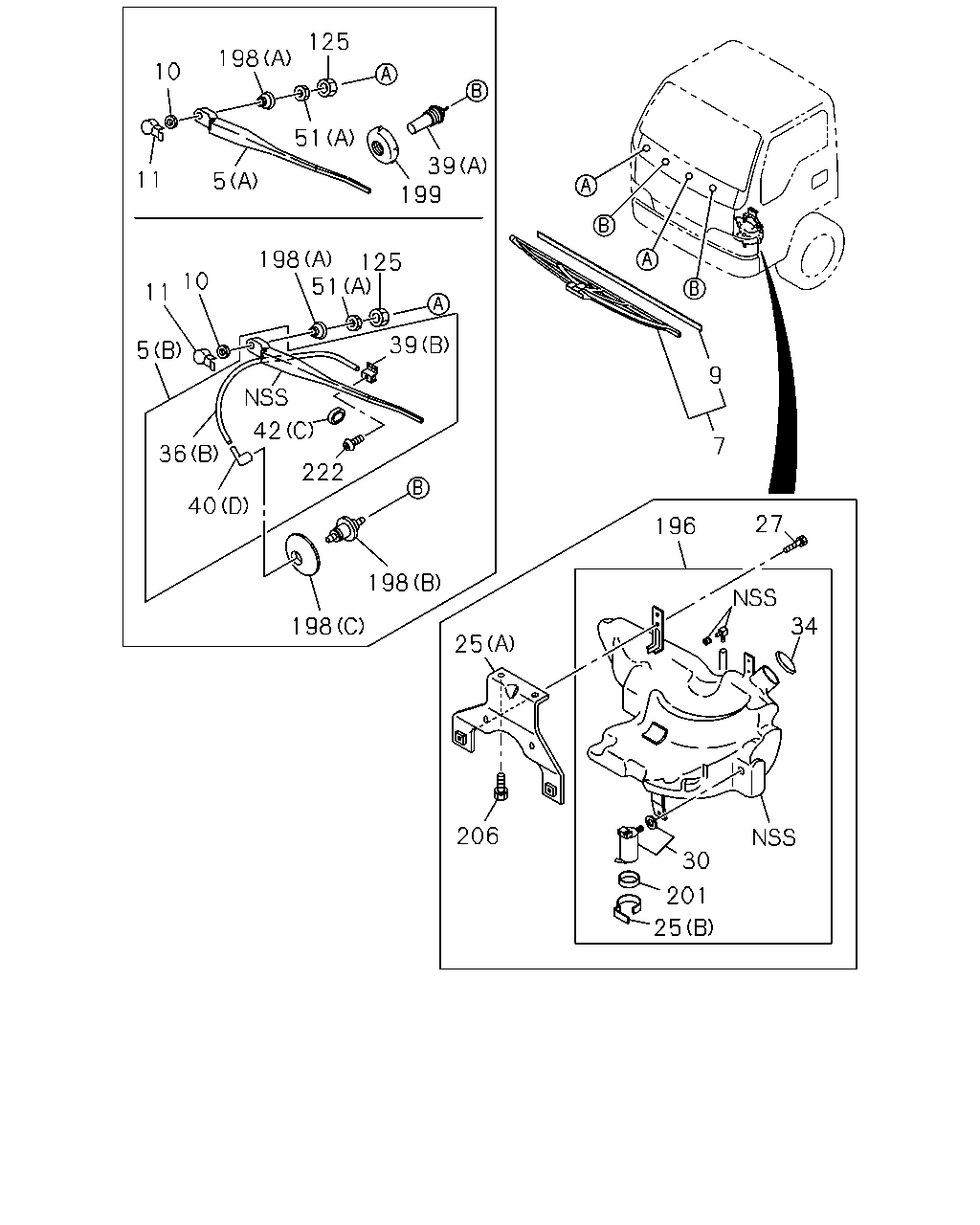

çizim 74182
125 198 10 51 39 199 11 5 198 51 125 10 11 39 5 9 42 7 36 222 40 27 196 198 34 198 25 206 30 201 25
BalonParca AdiParca NoAdetTipApplied Date A B
5 ARM; WIPER
FACE LIFT MODEL<TX7> (A) 		8-97223-296-0 01 1 1112- ●
5 ARM; WIPER
FACE LIFT MODEL<TX7> (A) 		8-97223-297-0 01 1 1112- ●
5 ARM; WIPER
(A) 		8-97093-563-0 01 1 9704-9901 ●
5 ARM; WIPER
(A) 		8-97223-297-0 01 1 9902-0209 ●
5 ARM; WIPER
(A) 		8-97223-297-0 01 1 0210-0307 ● ●
5 ARM; WIPER
(B) 		8-97168-984-2 01 1 0308-1111 ● ●
5 ARM; WIPER
(B) 		8-97168-984-2 01 1 1112- ●
5 ARM; WIPER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97168-984-2 01 1 1112- ●
5 ARM; WIPER
(A) 		8-97093-561-0 01 1 9704-9901 ●
5 ARM; WIPER
(A) 		8-97223-296-0 01 1 9902-0209 ●
5 ARM; WIPER
(A) 		8-97223-296-0 01 1 0210-0307 ● ●
5 ARM; WIPER
(B) 		8-97168-982-2 01 1 0308-1111 ● ●
5 ARM; WIPER
(B) 		8-97168-982-2 01 1 1112- ●
5 ARM; WIPER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97168-982-2 01 1 1112- ●
7 BLADE; WIPER 8-97137-468-2 02 1 9704-0209 ●
7 BLADE; WIPER 8-97137-468-2 02 1 0210- ● ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97142-093-1 02 1 9704-0209 ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97142-093-1 02 1 0210- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 9704-0209 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		9-09110-408-0 02 1 0210-0512 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M8 		0-91110-508-0 02 1 0601- ● ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9704-0209 ●
11 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 0210- ● ●
25 BRACKET; WASHER TANK
(A) 		8-97855-023-2 01 1 9704-0209 ●
25 BRACKET; WASHER TANK
(A) 		8-97855-023-2 01 1 0210- ● ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9704-0209 ●
25 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 0210- ● ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9704-0209 ●
27 BOLT; WASHER TANK
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 0210- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 9704-0209 ●
30 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 0210- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 9704-0209 ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0210- ● ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 9704-0209 ●
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-94389-303-0 01 1 0210- ● ●
36 HOSE; WASHER
(B) 		8-97216-110-0 01 1 0308-1111 ● ●
36 HOSE; WASHER
(B) 		8-97216-110-0 01 1 1112- ●
36 HOSE; WASHER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97216-110-0 01 1 1112- ●
36 HOSE; WASHER
(B) 		8-97216-109-0 01 1 0308-1111 ● ●
36 HOSE; WASHER
(B) 		8-97216-109-0 01 1 1112- ●
36 HOSE; WASHER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97216-109-0 01 1 1112- ●
39 NOZZLE; WINDSHIELD WASHER
FACE LIFT MODEL<TX7> (A) 		8-98010-172-0 02 1 1112- ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		8-97855-025-2 02 1 9704-0209 ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		8-97855-025-2 02 1 0210-0307 ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		8-97216-107-1 02 1 0308-1111 ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		8-97216-107-1 02 1 1112- ●
39 NOZZLE; WINDSHIELD WASHER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97216-107-1 02 1 1112- ●
40 JOINT; WASHER HOSE
FACE LIFT MODEL<TX7> (B) 		5-83363-006-0 01 1 1112- ●
40 JOINT; WASHER HOSE
FACE LIFT MODEL<TX7> (A) 		8-97855-163-0 01 1 1112- ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9704-0209 ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0210-0307 ● ●
40 JOINT; WASHER HOSE
(D) 		8-97216-115-0 02 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(D) 		8-97216-115-0 02 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (D) 		8-97216-115-0 02 1 1112- ●
40 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 0307-0307 ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (A) 		8-97167-258-0 01 1 1112- ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0308-1111 ● ●
40 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 1112- ●
40 JOINT; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (C) 		8-97307-026-0 01 1 1112- ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9704-0209 ●
42 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 0210- ● ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 9704-0209 ●
42 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 0210- ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 0308-1111 ● ●
42 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 1112- ●
42 CLIP; WASHER HOSE
EXC. FACE LIFT MODEL<TX7> (C) 		8-97216-114-0 02 1 1112- ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		5-09440-005-0 04 1 9704-0209 ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		5-09440-005-0 04 1 0210-0611 ● ●
51 NUT; WIPER MOTOR LINK
(A) M8 FLANGE 		8-97581-233-0 04 1 0612- ● ●
51 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9704-0209 ●
51 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 0210- ● ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9704-0209 ●
125 SPACER; WIPER PIVOT 8-97135-434-0 02 1 0210- ● ●
196 TANK; WASHER 8-97855-016-8 01 1 9704-0209 ●
196 TANK; WASHER 8-97855-016-8 01 1 0210- ● ●
198 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9704-0209 ●
198 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 0210-0305 ● ●
198 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306- ● ●
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 0308-1111 ● ●
198 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 1112- ●
198 COVER; PIVOT,WIPER
EXC. FACE LIFT MODEL<TX7> (B) 		8-97855-134-1 02 1 1112- ●
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 0308-1111 ● ●
198 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 1112- ●
198 COVER; PIVOT,WIPER
EXC. FACE LIFT MODEL<TX7> (C) 		8-97855-135-0 02 1 1112- ●
199 COVER; NOZZLE,WIPER
FACE LIFT MODEL<TX7> 		8-97855-022-1 02 1 1112- ●
199 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 9704-0209 ●
199 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 0210-0307 ● ●
201 LINING; WIPER MOTOR 8-97855-141-0 01 1 9704-0207 ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0208-0209 ●
201 LINING; WIPER MOTOR 8-97352-826-0 01 1 0210- ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 9704-0209 ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28680-616-0 02 1 0210-0512 ● ●
206 BOLT; BRKT,WASHER TANK
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 0308-1111 ● ●
222 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 1112- ●
222 SCREW; WASHER NOZZLE
EXC. FACE LIFT MODEL<TX7> 		8-97216-113-0 02 1 1112- ●
