5-01 — FRAME AND OTHER PARTS (#7278) — 91 parça

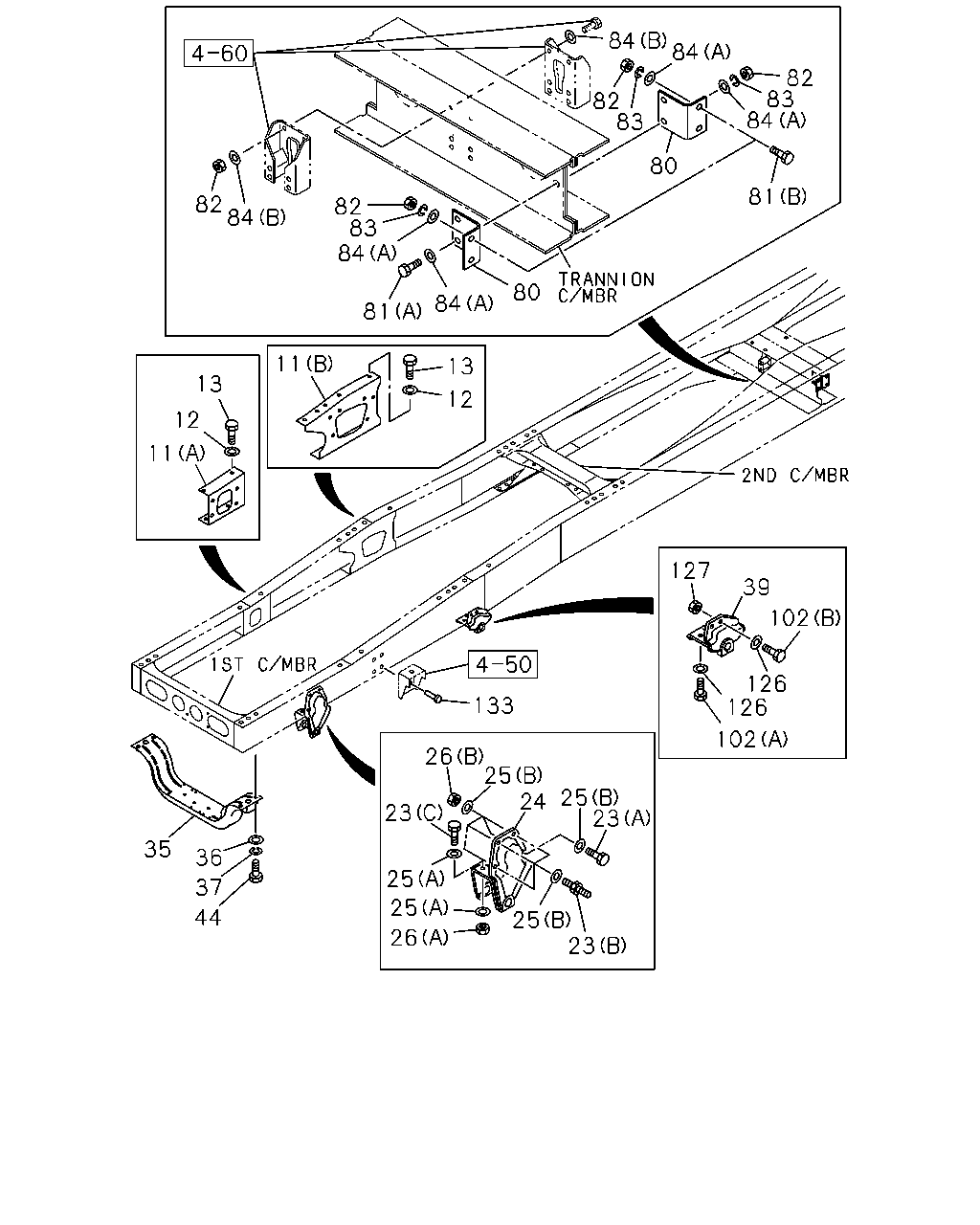

çizim 6812
84 84 82 83 84 82 83 80 81 82 84 82 83 84 80 84 81 11 13 13 12 12 11 127 39 102 126 126 133 102 26 25 24 25 23 23 35 36 25 37 25 23 25 44 26
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG
(A) 		1-53219-778-0 01 1 9906-9909 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 9910- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-942-0 01 1 9906-9909 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (B) 		1-53219-942-1 01 1 9910- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-777-0 01 1 9906-9909 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 9910- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-941-0 01 1 9906-9909 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (B) 		1-53219-941-0 01 1 9910- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 02 1 9906-9909 ● ●
12 WASHER; PL,BRKT,ENG MTG
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 02 1 9910-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 0001- ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 02 1 9906-9909 ● ●
13 BOLT; BRKT,ENG MTG
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 02 1 9910-9912 ● ●
13 BOLT; BRKT,ENG MTG
CAB UP +110MM<TGG> M14X40 		9-92061-440-0 04 1 0001- ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9906-9909 ● ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (B) M12X35,M14X45 L=100 		1-09029-075-0 04 1 9910- ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 04 1 9906-9909 ● ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (A) M14X40 		9-92061-440-0 04 1 9910- ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 04 1 9906-9909 ● ●
23 BOLT; BRKT,SPR
CAB UP +110MM<TGG> (C) M16X50 		9-92061-650-0 04 1 9910- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9906-9909 ● ●
24 BRACKET; FRT SPR,FRT
CAB UP +110MM<TGG> 		1-53351-220-0 01 1 9910- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9906-9909 ● ●
24 BRACKET; FRT SPR,FRT
CAB UP +110MM<TGG> 		1-53351-219-0 01 1 9910- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9906-9909 ● ●
25 WASHER; PL,BRKT
CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 08 1 9910- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 9906-9909 ● ●
25 WASHER; PL,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 16 1 9910- ● ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 08 1 9906-9909 ● ●
26 NUT; BRKT,SPR
CAB UP +110MM<TGG> (B) M14 		9-99110-514-0 08 1 9910- ● ●
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 04 1 9906-9909 ● ●
26 NUT; BRKT,SPR
CAB UP +110MM<TGG> (A) M16 		9-99110-516-0 04 1 9910- ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 9906- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 9906- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 9906- ● ●
39 BRACKET; FRT SPR,RR 1-53352-147-0 01 1 9906-9909 ● ●
39 BRACKET; FRT SPR,RR
CAB UP +110MM<TGG> 		1-53352-147-0 01 1 9910- ● ●
39 BRACKET; FRT SPR,RR 1-53352-146-0 01 1 9906-9909 ● ●
39 BRACKET; FRT SPR,RR
CAB UP +110MM<TGG> 		1-53352-146-0 01 1 9910- ● ●
44 BOLT; UNDER MBR
M16X45 		9-92061-645-0 04 1 9906- ● ●
80 BRACKET; C/MBR 1-53167-081-5 04 1 9906-9912 ● ●
80 BRACKET; C/MBR 1-53167-610-0 04 1 0001- ● ●
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 04 1 9906- ● ●
81 BOLT; BRKT
(B) M14X38 		9-92061-438-0 08 1 9906- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 04 1 9906-9909 ● ●
82 NUT; BRKT
CAB UP +110MM<TGG> M14 		9-99110-514-0 04 1 9910- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 12 1 9906- ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 12 1 9906- ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 16 1 9906- ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 08 1 9906-9909 ● ●
84 WASHER; PL,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 08 1 9910- ● ●
102 BOLT; BRKT,RR SPR
(B) M14X40 		9-92061-440-0 04 1 9906-9909 ● ●
102 BOLT; BRKT,RR SPR
CAB UP +110MM<TGG> (B) M14X40 		9-92061-440-0 04 1 9910- ● ●
102 BOLT; BRKT,RR SPR
(A) M14X50 		9-92061-450-0 04 1 9906-9909 ● ●
102 BOLT; BRKT,RR SPR
CAB UP +110MM<TGG> (A) M14X50 		9-92061-450-0 04 1 9910- ● ●
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 9906-9909 ● ●
126 WASHER; PL,BRKT
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910- ● ●
127 NUT; BRKT
CAB UP +110MM<TGG> M14 		9-99110-514-0 02 1 0001- ● ●
133 RIVET; BRKT
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9906-9909 ● ●
133 RIVET; BRKT
CAB UP +110MM<TGG> D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9910- ● ●

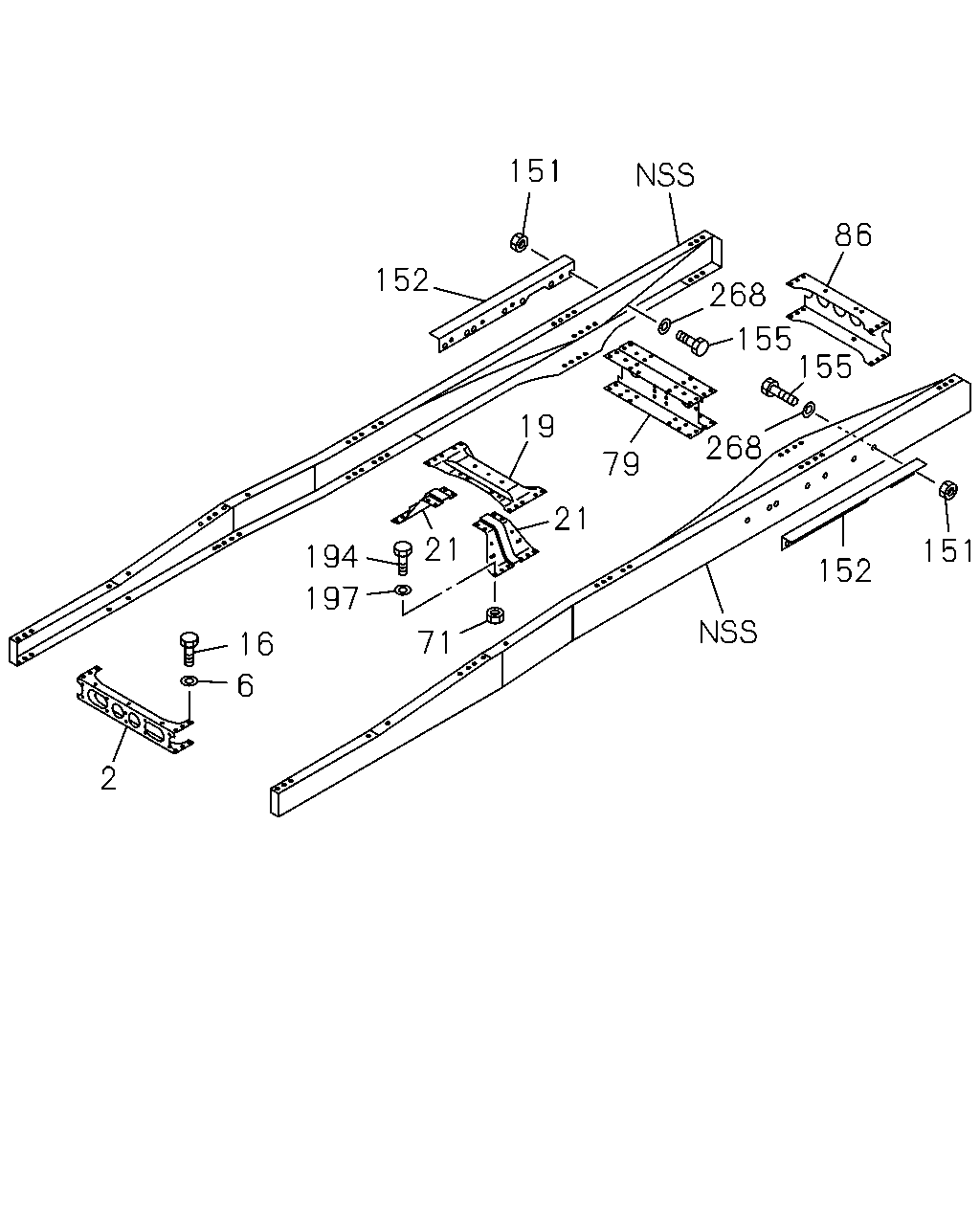

çizim 45084
151 86 152 268 155 155 268 19 79 21 21 151 194 152 197 71 16 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9906-9909 ● ●
2 MEMBER; CROSS,1ST
CAB UP +110MM<TGG> 		1-53181-526-4 01 1 9910- ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9906- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9906- ● ●
19 MEMBER; CROSS,2ND 1-53174-231-1 01 1 9906-9909 ● ●
19 MEMBER; CROSS,2ND
CAB UP +110MM<TGG> 		1-53174-231-1 01 1 9910- ● ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 9906-9909 ● ●
21 GUSSET; 2ND CROSS
CAB UP +110MM<TGG> 		1-53164-227-0 01 1 9910- ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 9906-9909 ● ●
21 GUSSET; 2ND CROSS
CAB UP +110MM<TGG> 		1-53164-226-0 01 1 9910- ● ●
71 NUT; 2ND C/MBR
M14 		9-99110-514-0 08 1 9906-9909 ● ●
71 NUT; 2ND C/MBR
CAB UP +110MM<TGG> M14 		9-99110-514-0 08 1 9910- ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-738-0 01 1 9906-9907 ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-923-0 01 1 9908-9909 ● ●
79 MEMBER; CROSS,TRUNNION ASM
CAB UP +110MM<TGG> 		1-53181-923-0 01 1 9910- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53171-651-5 01 1 9906-9909 ● ●
86 MEMBER; CROSS,RR SUSP RR
CAB UP +110MM<TGG> 		1-53171-651-5 01 1 9910- ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 14 1 9906-9908 ● ●
151 NUT; OUTRIGGER
M16 		9-99110-516-0 28 1 9909- ● ●
152 OUTRIGGER 1-53456-303-0 01 1 9906-9908 ● ●
152 OUTRIGGER 1-53456-356-0 01 1 9909- ● ●
152 OUTRIGGER 1-53456-302-0 01 1 9906-9908 ● ●
152 OUTRIGGER 1-53456-355-0 01 1 9909- ● ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 14 1 9906-9908 ● ●
155 BOLT; OUTRIGGER
M16X50 		9-92061-650-0 28 1 9909- ● ●
194 BOLT; 2ND C/MBR
M14X50 		9-92061-450-0 08 1 9906-9909 ● ●
194 BOLT; 2ND C/MBR
CAB UP +110MM<TGG> M14X50 		9-92061-450-0 08 1 9910- ● ●
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 9906-9909 ● ●
197 WASHER; PL,2ND C/MBR
CAB UP +110MM<TGG> ID=15 		9-09651-069-0 08 1 9910- ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 14 1 9906-9908 ● ●
268 WASHER; PL,OUTRIGGER
ID=17 OD=30 		9-09851-935-0 28 1 9909- ● ●
