Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

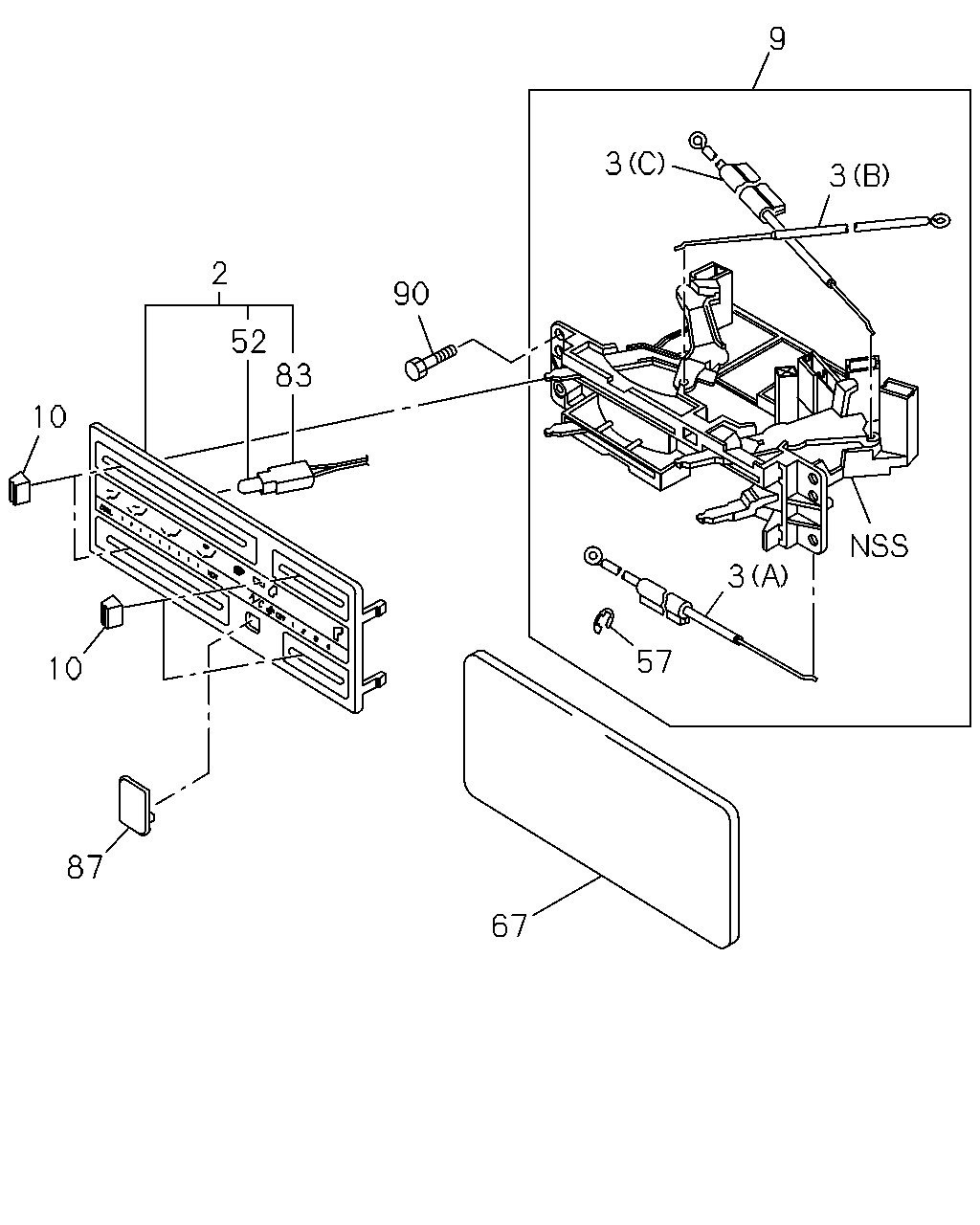

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#72779) — 26 parça
Tümü
A - NHB5SF
B - NHB5WF
9
3
3
2
90
52
83
10
3
57
10
87
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
PANEL ASM; CONT,ILLUMINATION
8-97048-330-1
01
1
9704-0209
●
2
PANEL ASM; CONT,ILLUMINATION
8-97048-330-1
01
1
0210-
●
●
3
CABLE; HTR CONT LVR
(B) MODE
8-97085-618-1
01
1
9704-0209
●
3
CABLE; HTR CONT LVR
(B) MODE
8-97085-618-1
01
1
0210-
●
●
3
CABLE; HTR CONT LVR
(C) FRESH
8-97087-578-0
01
1
9704-0209
●
3
CABLE; HTR CONT LVR
(C) FRESH
8-97087-578-0
01
1
0210-
●
●
3
CABLE; HTR CONT LVR
(A) MIX
8-97085-617-2
01
1
9709-0209
●
3
CABLE; HTR CONT LVR
(A) MIX
8-97085-617-2
01
1
0210-
●
●
9
LEVER ASM; HTR & A/C CONT
8-97069-832-0
01
1
9704-9708
●
9
LEVER ASM; HTR & A/C CONT
8-97048-456-4
01
1
9709-0209
●
9
LEVER ASM; HTR & A/C CONT
8-97048-456-4
01
1
0210-
●
●
10
KNOB; CONT LEVER
8-97114-430-0
03
1
9704-9708
●
10
KNOB; CONT LEVER
8-97114-430-0
04
1
9709-0209
●
10
KNOB; CONT LEVER
8-97114-430-0
04
1
0210-
●
●
52
BULB; PANEL ILLUMINATION
14V 140MA
8-97100-290-0
01
1
9704-0209
●
52
BULB; PANEL ILLUMINATION
14V 140MA
8-97100-290-0
01
1
0210-
●
●
57
RING; SNAP,HTR CONT LVR
8-97262-535-0
01
1
0005-0209
●
57
RING; SNAP,HTR CONT LVR
8-97262-535-0
01
1
0210-
●
●
67
CAP; BEZEL,CONT LEVER
8-97071-228-0
01
1
9704-9709
●
83
HARNESS; CONT PANEL
8-97308-566-0
01
1
9704-0209
●
83
HARNESS; CONT PANEL
8-97308-566-0
01
1
0210-
●
●
87
CAP; A/C SWITCH
8-97065-448-2
01
1
9704-0209
●
87
CAP; A/C SWITCH
8-97065-448-2
01
1
0210-
●
●
90
BOLT; CONT PANEL
M6X16 W/LK&PL WASHER
8-94139-963-0
03
1
9704-0209
●
90
BOLT; CONT PANEL
M6X16 W/LK&PL WASHER
8-94139-963-0
03
1
0210-1210
●
●
90
BOLT; CONT PANEL
M6X19.5 W/LK&PL WASHER
8-97360-226-0
03
1
1211-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
