◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#72777) — 60 parça

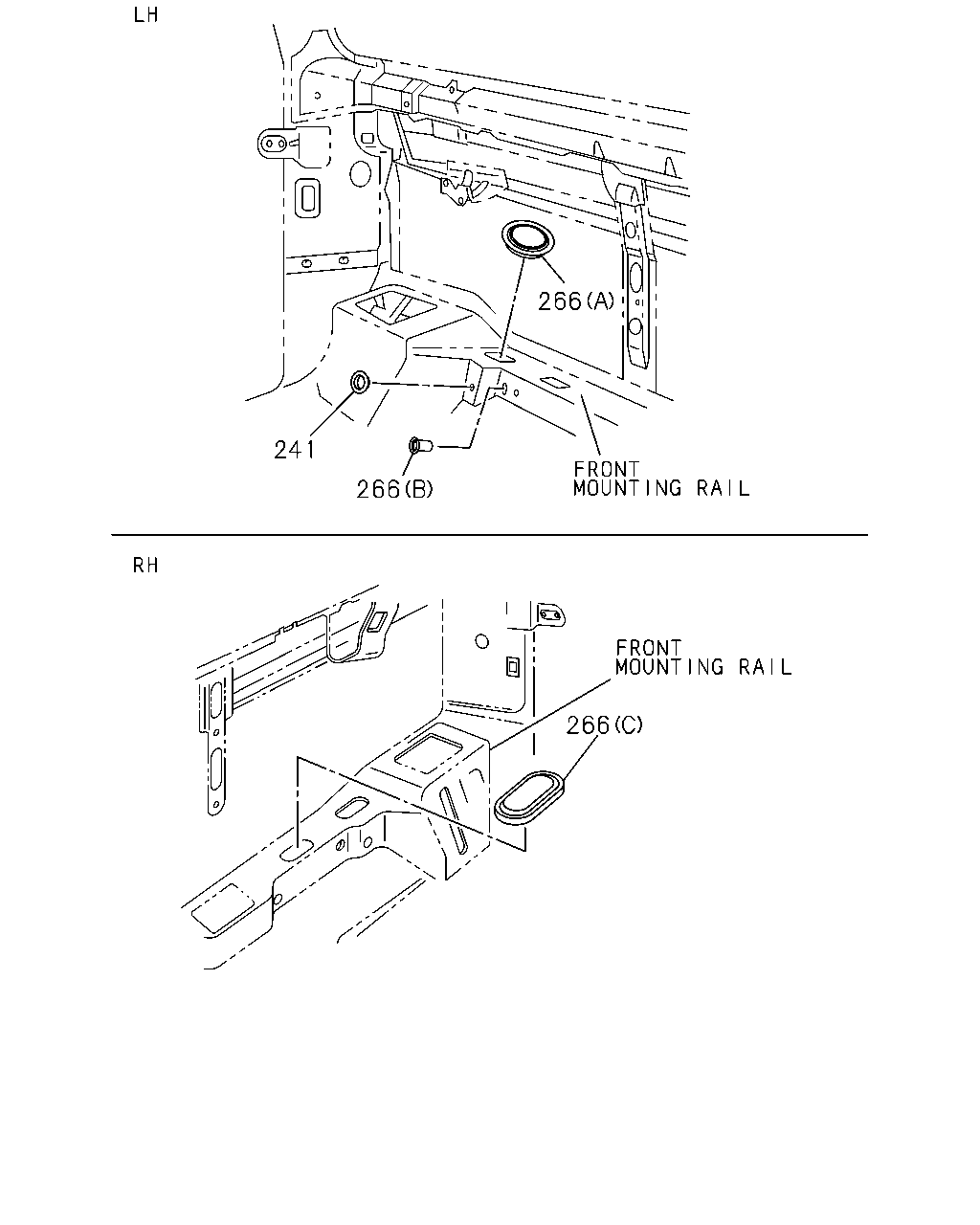

çizim 73816
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date A B
241 PLUG; RUBBER,EVAP DRAIN HOLE 8-97037-392-0 01 1 9704-0209 ●
241 PLUG; RUBBER,EVAP DRAIN HOLE 8-97037-392-0 01 1 0210- ● ●
266 PLUG; HTR HOLE
(A) H=78 B=37 		8-97036-019-0 01 1 9704-0209 ●
266 PLUG; HTR HOLE
(A) H=78 B=37 		8-97036-019-0 01 1 0210- ● ●
266 PLUG; HTR HOLE
(C) H=69.5 B=29.5 		8-97036-020-0 01 1 9704-0209 ●
266 PLUG; HTR HOLE
(C) H=69.5 B=29.5 		8-97036-020-0 01 1 0210- ● ●
266 PLUG; HTR HOLE
(B) OD=13 		9-09756-019-0 01 1 9704-0209 ●
266 PLUG; HTR HOLE
(B) OD=13 		9-09756-019-0 01 1 0210- ● ●

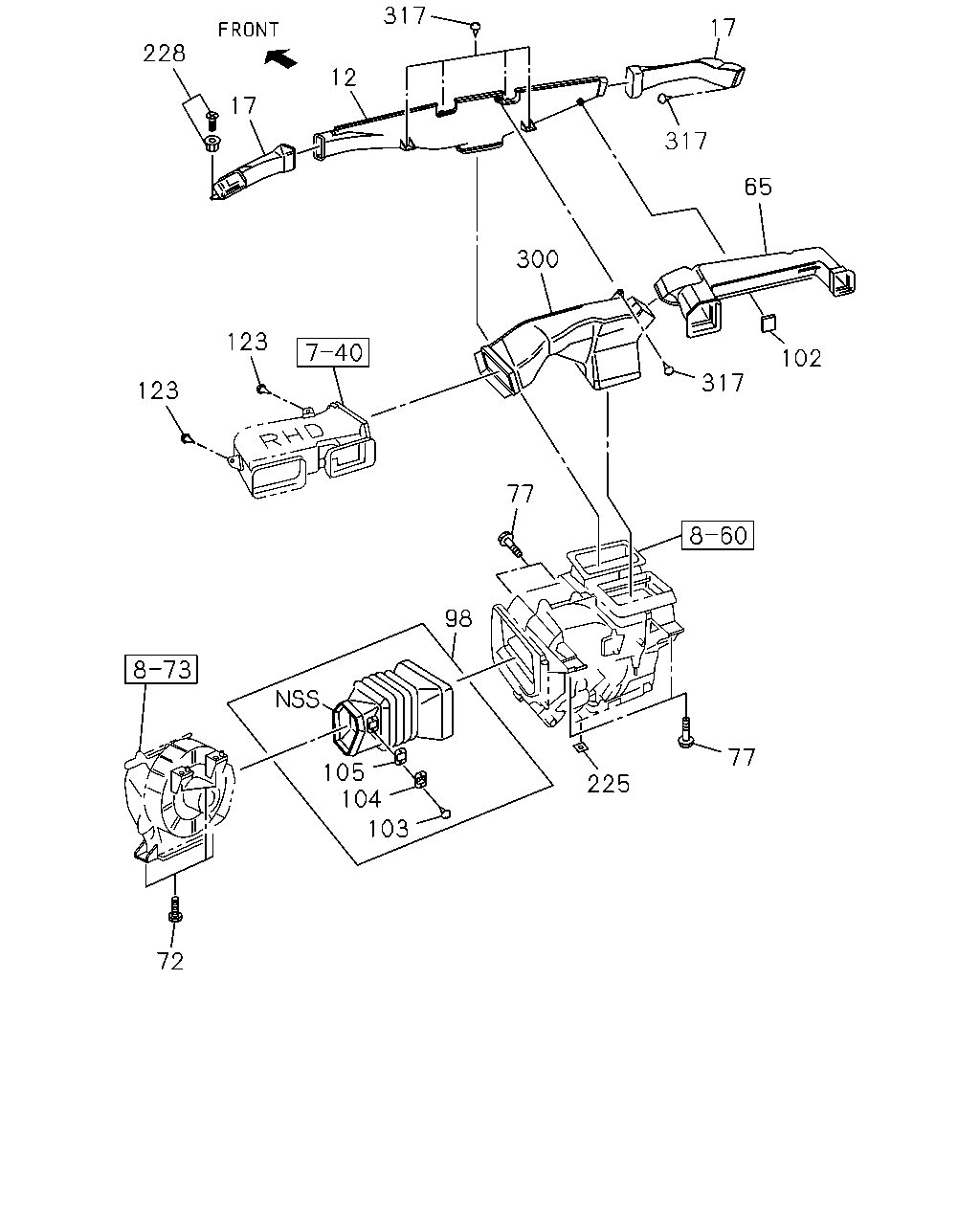

çizim 74239
317 17 228 12 17 317 65 300 123 102 317 123 77 98 77 105 104 225 103 72
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 8-97035-235-1 01 1 9704-9901 ●
12 NOZZLE; DEFROSTER 8-97223-176-0 01 1 9902-0003 ●
12 NOZZLE; DEFROSTER 8-97251-627-0 01 1 0004-0209 ●
12 NOZZLE; DEFROSTER 8-97251-627-0 01 1 0210- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-97035-237-1 01 1 9704-0007 ●
17 NOZZLE; DEFROSTER,SIDE 8-97262-690-0 01 1 0008-0209 ●
17 NOZZLE; DEFROSTER,SIDE 8-97262-690-0 01 1 0210- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-97035-236-1 01 1 9704-0007 ●
17 NOZZLE; DEFROSTER,SIDE 8-97262-689-0 01 1 0008-0209 ●
17 NOZZLE; DEFROSTER,SIDE 8-97262-689-0 01 1 0210- ● ●
65 DUCT; VENT,DRIVER SIDE 8-97035-232-1 01 1 9704-0007 ●
65 DUCT; VENT,DRIVER SIDE 8-97262-686-0 01 1 0008-0209 ●
65 DUCT; VENT,DRIVER SIDE 8-97262-686-0 01 1 0210- ● ●
72 BOLT; BLOWER UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 9704-0209 ●
72 BOLT; BLOWER UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 0210-0512 ● ●
72 BOLT; BLOWER UNIT
M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ●
72 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 9704-0209 ●
72 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 0210- ● ●
77 BOLT; HTR UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 9704-0209 ●
77 BOLT; HTR UNIT
M6X20 FLANGE 		0-28680-620-0 02 1 0210-0512 ● ●
77 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ●
77 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 9704-0209 ●
77 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 0210- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT 8-97035-223-4 01 1 9704-0007 ●
98 DUCT; BLOWER UNIT TO HTR UNIT 8-97262-791-0 01 1 0008-0209 ●
98 DUCT; BLOWER UNIT TO HTR UNIT 8-97262-791-0 01 1 0210- ● ●
102 LINING; HTR DUCT 8-97145-038-0 01 1 9704-0209 ●
102 LINING; HTR DUCT 8-97145-038-0 01 1 0210- ● ●
103 SCREW; TAPPING,RESISTOR FIX
M4X16 TAPPING 		1-83579-114-0 02 1 9704-0209 ●
103 SCREW; TAPPING,RESISTOR FIX
M4X16 TAPPING 		1-83579-114-0 02 1 0210- ● ●
104 RESISTOR; HTR DUCT 8-97083-136-0 01 1 9704-9802 ●
104 RESISTOR; HTR DUCT 8-97177-238-0 01 1 9803-0003 ●
104 RESISTOR; HTR DUCT 8-97234-546-0 01 1 0004-0209 ●
104 RESISTOR; HTR DUCT 8-97234-546-0 01 1 0210-0307 ● ●
104 RESISTOR; HTR DUCT 8-97234-545-0 01 1 0308- ● ●
105 PLATE; HTR DUCT 8-97020-761-0 01 1 9704-0209 ●
105 PLATE; HTR DUCT 8-97020-761-0 01 1 0210- ● ●
123 SCREW; DUCT
M5X12 W/PL WASHER 		8-97147-069-0 02 1 9704-0209 ●
123 SCREW; DUCT
M5X12 W/PL WASHER 		8-97147-069-0 02 1 0210-0612 ● ●
123 SCREW; DUCT
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 02 1 0701- ● ●
225 SEAL; WATER 8-97856-616-0 04 1 9704-0209 ●
225 SEAL; WATER 8-97856-616-0 04 1 0210- ● ●
228 CLIP; DEFROSTER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9704-0209 ●
228 CLIP; DEFROSTER
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 0210- ● ●
300 DUCT; VENT,CENTER 8-97035-233-5 01 1 9704-0007 ●
300 DUCT; VENT,CENTER 8-97262-687-0 01 1 0008-0209 ●
300 DUCT; VENT,CENTER 8-97262-687-0 01 1 0210- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 05 1 9704-0209 ●
317 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 05 1 0210-0612 ● ●
317 SCREW; DEFROSTER NOZZLE
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 05 1 0701- ● ●
çizim 102771
368
BalonParca AdiParca NoAdetTipApplied Date A B
368 RELAY; HEATER AND A/C
12V 20A 		8-97060-926-1 01 1 9704-0209 ●
368 RELAY; HEATER AND A/C
12V 20A 		8-97060-926-1 01 1 0210- ● ●
