8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#72774) — 105 parça

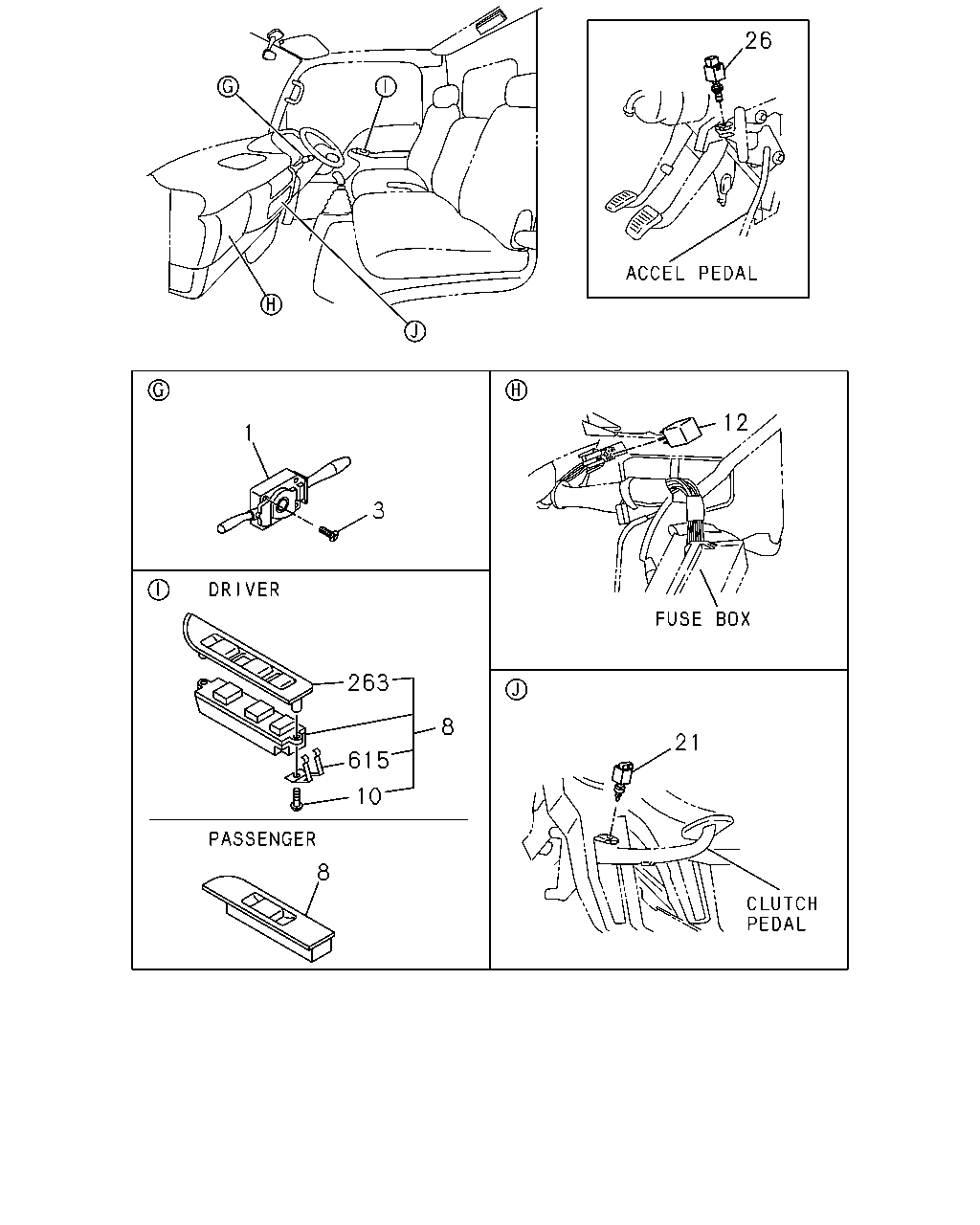

26 12 1 3 263 8 21 615 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-97071-217-1	01	1	9704-0101	●
1	SWITCH; COMB EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-97287-886-2	01	1	0102-0209	●
1	SWITCH; COMB EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-97287-886-2	01	1	0210-0301	●	●
1	SWITCH; COMB EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>	8-97364-072-0	01	1	0302-	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>	8-97071-215-1	01	1	9704-0101	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>	8-97287-884-2	01	1	0102-0209	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>	8-97287-884-2	01	1	0210-0307	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>	8-97364-076-0	01	1	0308-	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>	8-97071-216-1	01	1	9704-0101	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>	8-97287-885-2	01	1	0102-0209	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>	8-97287-885-2	01	1	0210-0307	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>	8-97364-077-0	01	1	0308-	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-97071-218-1	01	1	9704-0101	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-97287-887-2	01	1	0102-0209	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-97287-887-2	01	1	0210-0301	●	●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-97364-073-0	01	1	0302-	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	9704-0209	●
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	0210-0604	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	0-36220-520-0	04	1	0605-0612	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	04	1	0701-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97043-748-2	01	1	9704-9805	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97207-668-0	01	1	9806-9901	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97214-400-0	01	1	9902-0209	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97214-400-0	01	1	0210-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97214-398-0	01	1	0308-0703	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98075-445-0	01	1	0704-0907	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98147-235-0	01	1	0908-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97166-337-0	01	1	9704-9811	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97214-605-0	01	1	9812-9905	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97222-597-0	01	1	9906-0004	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97249-342-0	01	1	0005-0106	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97315-183-0	01	1	0107-0209	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97315-183-0	01	1	0210-0307	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-97364-112-0	01	1	0308-0907	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98147-227-0	01	1	0908-	●	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-239-0	02	1	9704-0209	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-239-0	02	1	0210-	●	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 12V 20A	8-97060-926-1	01	1	9704-0209	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 12V 20A	8-97060-926-1	01	1	0210-	●	●
21	SWITCH; CLU EXHAUST BRAKE<NF8>	8-94331-723-1	01	1	9704-0209	●
21	SWITCH; CLU EXHAUST BRAKE<NF8>	8-94331-723-1	01	1	0210-0212	●	●
21	SWITCH; CLU EXHAUST BRAKE<NF8>	8-97358-248-0	01	1	0301-	●	●
26	SWITCH; ACCEL EXHAUST BRAKE<NF8>	8-94368-343-0	01	1	9704-0209	●
26	SWITCH; ACCEL EXHAUST BRAKE<NF8>	8-94368-343-0	01	1	0210-0212	●	●
26	SWITCH; ACCEL EXHAUST BRAKE<NF8>	8-97358-315-0	01	1	0301-	●	●
263	COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-235-0	01	1	9704-0209	●
263	COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-235-0	01	1	0210-0307	●	●
263	COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-234-0	01	1	0308-	●	●
615	SPRING; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-238-0	01	1	9704-0209	●
615	SPRING; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-97219-238-0	01	1	0210-	●	●

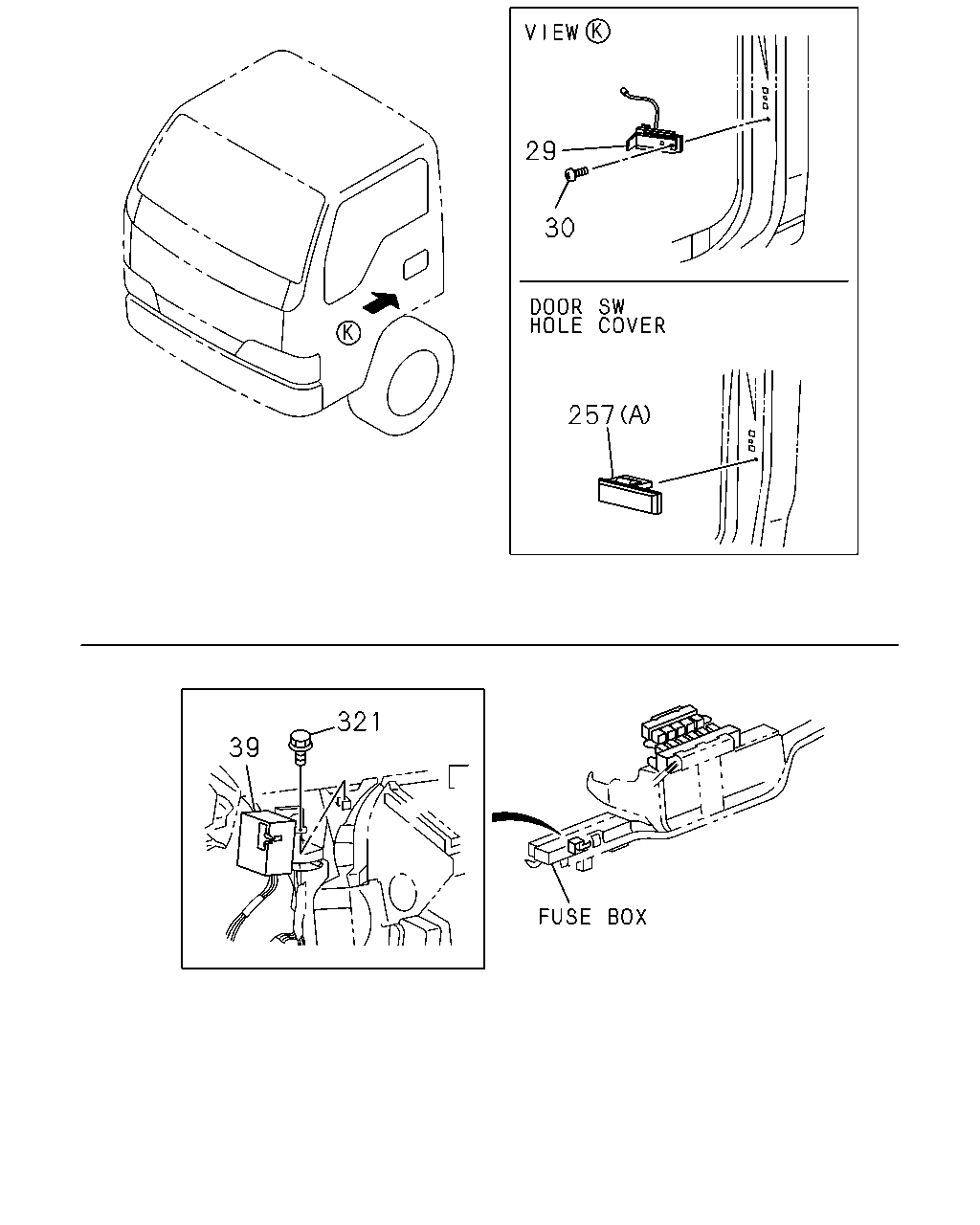

29 30 257 321 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR	8-97855-032-3	01	1	9704-	●
29	SWITCH; DOOR	8-97855-032-3	02	1	0210-		●
30	SCREW; DOOR SW M5X16	8-94279-341-0	01	1	9704-	●
30	SCREW; DOOR SW M5X16	8-94279-341-0	02	1	0210-		●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97063-658-0	01	1	9704-9705	●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-215-0	01	1	9706-0209	●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-215-0	01	1	0210-0212	●	●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97359-591-0	01	1	0301-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9704-	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97047-694-1	01	1	9704-0209	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97047-694-1	01	1	0210-0307	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97136-694-0	01	1	0308-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	02	1	0210-		●
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	9704-0209	●
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X20	8-94436-927-0	01	1	0210-0612	●	●
321	BOLT; RELAY AUTO DOOR LOCK<AU4> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-	●	●

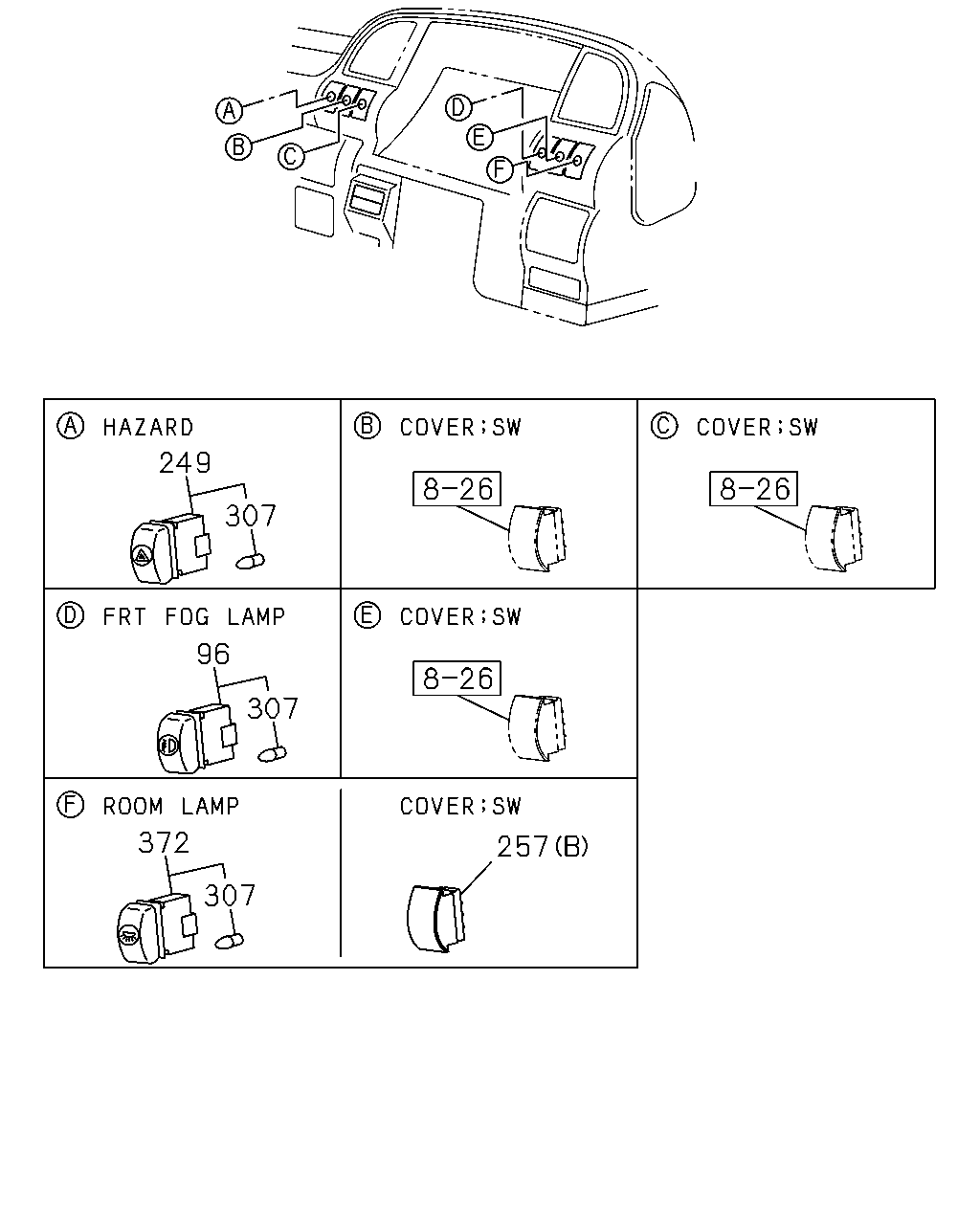

249 307 96 307 372 257 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	SWITCH; FOG LAMP	8-97076-350-4	01	1	9704-0209	●
96	SWITCH; FOG LAMP	8-97076-350-4	01	1	0210-0307	●	●
96	SWITCH; FOG LAMP	8-97140-964-0	01	1	0308-	●	●
249	SWITCH; HAZARD	8-97076-344-2	01	1	9704-9704	●
249	SWITCH; HAZARD	8-97117-657-0	01	1	9704-9807	●
249	SWITCH; HAZARD	8-97202-479-0	01	1	9808-0209	●
249	SWITCH; HAZARD	8-97202-479-0	01	1	0210-0307	●	●
249	SWITCH; HAZARD	8-97202-476-0	01	1	0308-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9704-	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97047-694-1	01	1	9704-0209	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97047-694-1	01	1	0210-0307	●	●
257	COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> (B)	8-97136-694-0	01	1	0308-	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	02	1	0210-		●
307	BULB ASM; SW 14V 60MA	8-97116-328-0	01	1	9704-9704	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 14V 60MA	8-97116-328-0	01	1	9704-9704	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	9704-9704	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	9704-9807	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 14V 60MA	8-97116-329-0	01	1	9704-9807	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	9704-9807	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 14V 60MA	8-97116-329-0	01	1	9808-0209	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	9808-0209	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 14V 60MA	8-97116-329-0	01	1	0210-0307	●	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	0210-0307	●	●
307	BULB ASM; SW ROOM LAMP SWITCH<7KL> 14V 60MA	8-97116-329-0	01	1	0308-	●	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	01	1	0308-	●	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	02	1	9808-0209	●
307	BULB ASM; SW 14V 60MA	8-97116-329-0	02	1	0210-	●	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97076-360-2	01	1	9704-9704	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97117-660-0	01	1	9704-0209	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97117-660-0	01	1	0210-0307	●	●
372	SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-692-0	01	1	0308-	●	●

85 315 311 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	9704-0209	●
85	RELAY; HEADLAMP 12V 20A	8-97060-926-1	01	1	0210-	●	●
191	RELAY; EXH BRK CUT EXHAUST BRAKE<NF8> 12V 20A	8-97060-926-1	01	1	9704-0209	●
191	RELAY; EXH BRK CUT EXHAUST BRAKE<NF8> 12V 20A	8-97060-926-1	01	1	0210-	●	●
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	9704-0209	●
311	RELAY; CORNERING LAMP 12V 20A	8-97060-926-1	01	1	0210-	●	●
315	RELAY; EXH BRAKE CONT EXHAUST BRAKE<NF8> 12V 20A	8-97060-926-1	01	1	9704-0209	●
315	RELAY; EXH BRAKE CONT EXHAUST BRAKE<NF8> 12V 20A	8-97060-926-1	01	1	0210-	●	●
