8-21 — METER ASM (#72773) — 152 parça

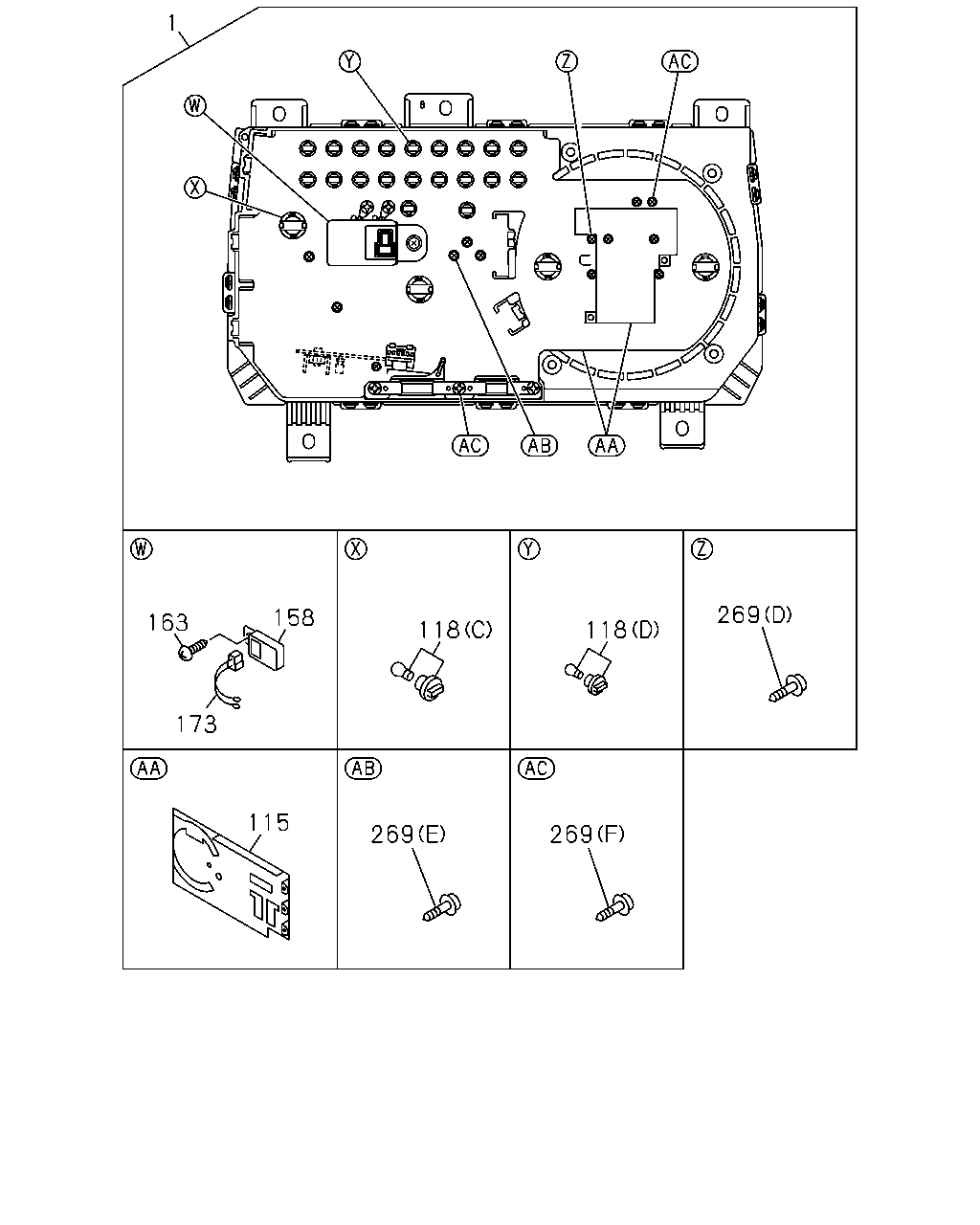

çizim 73818
1 269 158 163 118 118 173 115 269 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 9704-0209 ●
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 0210-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-585-2 01 1 0308- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-114-0 01 1 9704-0209 ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-114-0 01 1 0210-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97185-499-0 01 1 0308- ● ●
118 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 9704-0209 ●
118 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(C) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0308- ● ●
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97031-178-0 01 1 9704-0209 ●
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97031-178-0 01 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(D) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0308- ● ●
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 04 1 9704-0209 ●
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 04 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(D) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0308- ● ●
158 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 9704-0209 ●
158 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 0210-0307 ● ●
158 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 0308- ● ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 9704-0209 ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 0210-0307 ● ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0308- ● ●
173 WIRE; LEAD 8-97108-141-0 01 1 9704-0209 ●
173 WIRE; LEAD 8-97108-141-0 01 1 0210-0307 ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0308- ● ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9704-0209 ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-524-0 07 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9704-0209 ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(E) 		8-97185-525-0 06 1 0308- ● ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 9704-0209 ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(F) 		8-97185-528-0 02 1 0308- ● ●

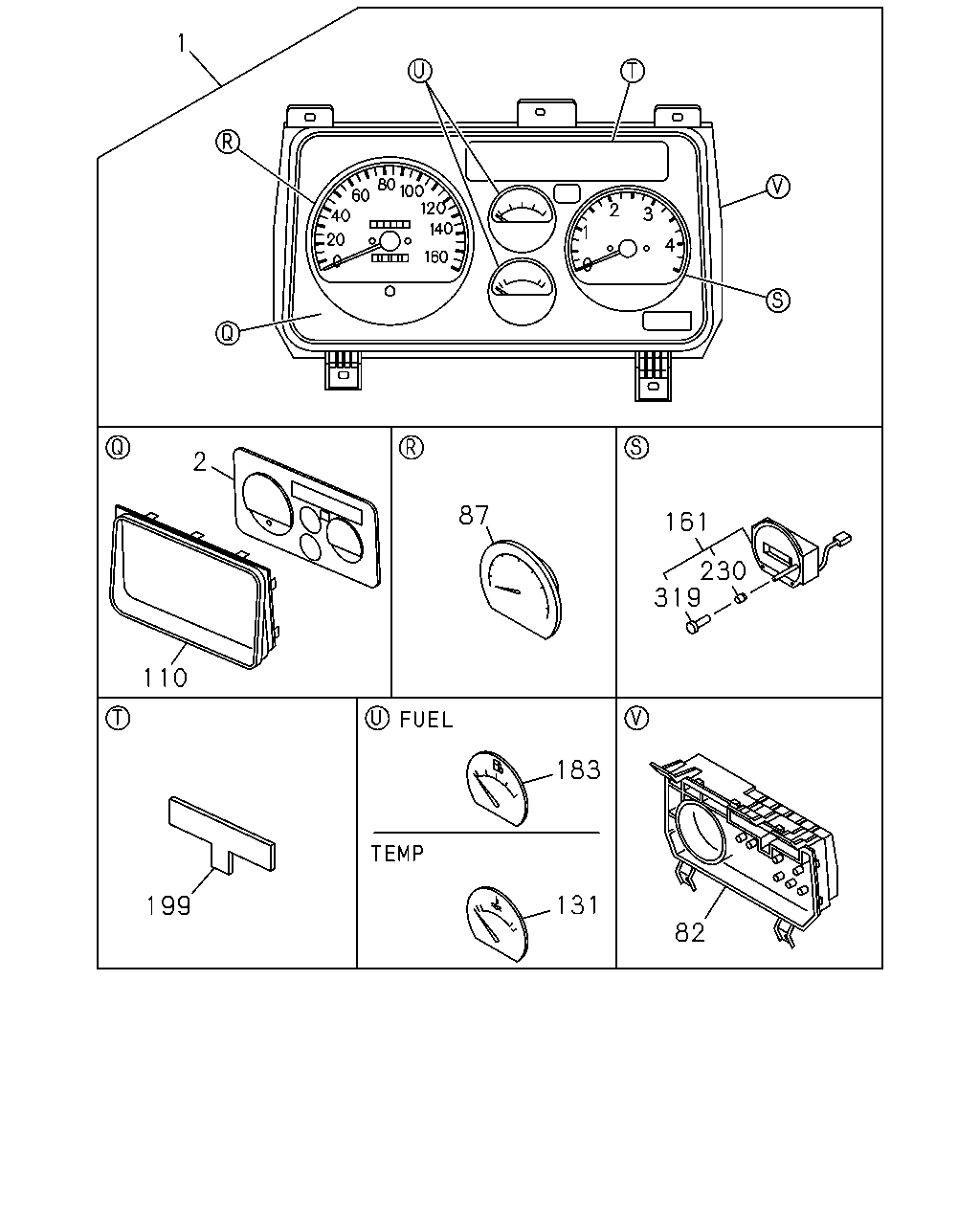

çizim 73844
1 2 87 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 9704-0209 ●
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 0210-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-585-2 01 1 0308- ● ●
2 PANEL; CLUSTER 8-97185-443-0 01 1 0308- ● ●
82 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 9704-0209 ●
82 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 0210-0307 ● ●
82 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0308- ● ●
87 SPEEDOMETER 8-97108-126-0 01 1 9704-0209 ●
87 SPEEDOMETER 8-97108-126-0 01 1 0210-0307 ● ●
87 SPEEDOMETER 8-97185-457-0 01 1 0308- ● ●
110 GLASS; CLUSTER METER 8-97108-121-0 01 1 9704-0209 ●
110 GLASS; CLUSTER METER 8-97108-121-0 01 1 0210-0307 ● ●
110 GLASS; CLUSTER METER 8-97185-451-0 01 1 0308- ● ●
131 GAUGE; TEMP,CLUSTER METER 8-97185-476-0 01 1 0308- ● ●
161 CLOCK; CLUSTER METER 8-97105-398-0 01 1 9704-0209 ●
161 CLOCK; CLUSTER METER 8-97105-398-0 01 1 0210-0307 ● ●
161 CLOCK; CLUSTER METER 8-97185-462-0 01 1 0308- ● ●
183 GAUGE; FUEL 8-97185-473-0 01 1 0308- ● ●
199 LENS; WARNING LAMP 8-97108-123-0 01 1 9704-0209 ●
199 LENS; WARNING LAMP 8-97108-123-0 01 1 0210-0307 ● ●
199 LENS; WARNING LAMP 8-97185-481-0 01 1 0308- ● ●
230 KNOB; DIGITAL CLOCK,SUB METER 8-97185-644-0 01 1 0308- ● ●
319 SCREW; KNOB,CLUSTER METER 8-97185-522-0 01 1 0308- ● ●

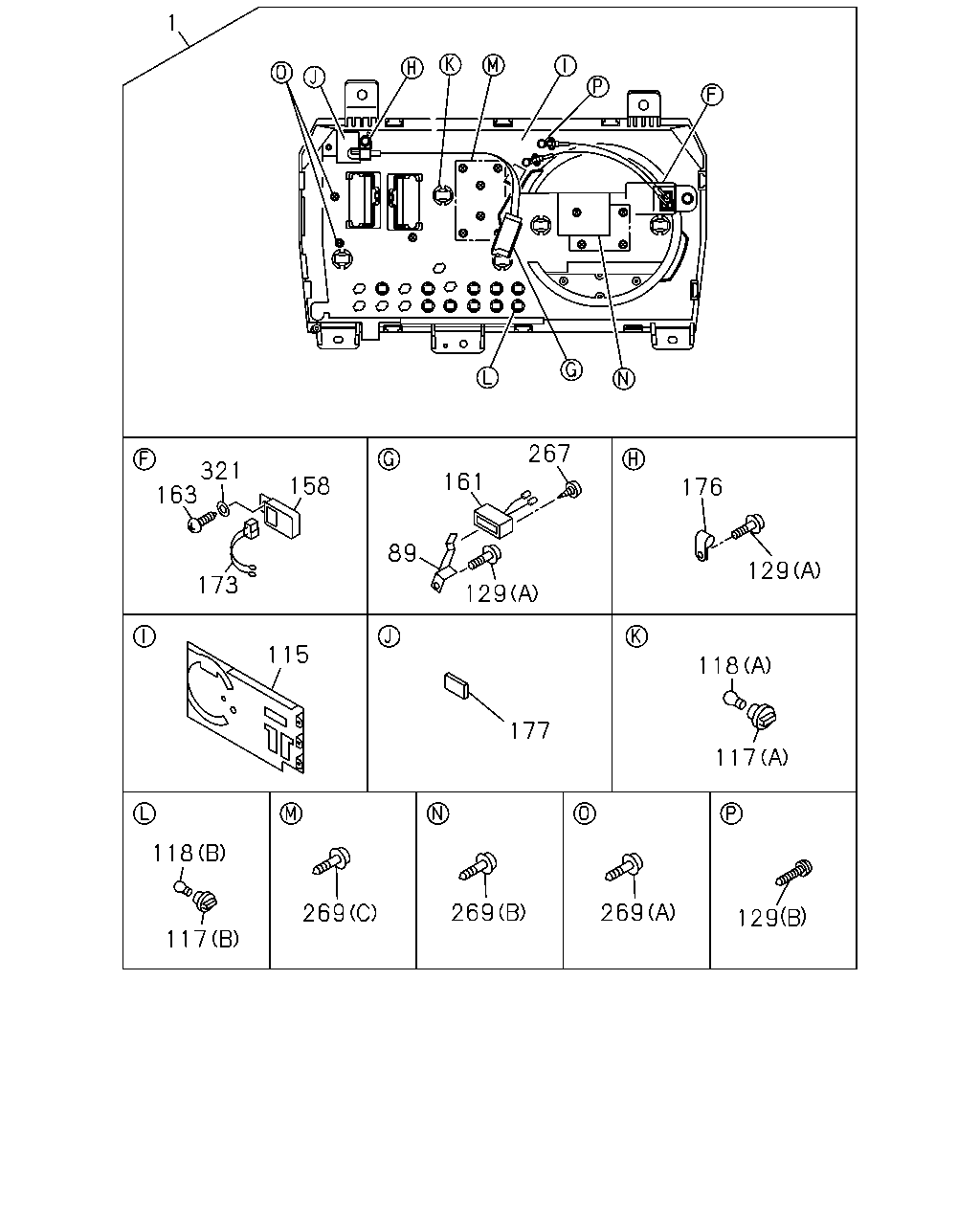

çizim 74271
1 267 321 163 161 158 176 89 129 173 129 115 118 177 117 118 269 269 269 129 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 9704-0209 ●
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 0210-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-585-2 01 1 0308- ● ●
89 CLIP; HARNESS 8-97088-531-1 01 1 9704-0209 ●
89 CLIP; HARNESS 8-97088-531-1 01 1 0210-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-114-0 01 1 9704-0209 ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97108-114-0 01 1 0210-0307 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 8-97185-499-0 01 1 0308- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 1.4W BLACK 		8-94114-138-0 09 1 9704-0209 ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 1.4W BLACK 		8-94114-138-0 09 1 0210-0307 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 2W GRAY 		8-97031-180-0 01 1 9704-0209 ●
117 SOCKET; BULB,GAUGE & CLOCK
(B) 12V 2W GRAY 		8-97031-180-0 01 1 0210-0307 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 12V 3W GREEN 		8-97092-901-0 04 1 9704-0209 ●
117 SOCKET; BULB,GAUGE & CLOCK
(A) 12V 3W GREEN 		8-97092-901-0 04 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 9704-0209 ●
118 BULB; CLUSTER METER
(B) 12V 1.4W 		8-94152-313-0 09 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(C) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0308- ● ●
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97031-178-0 01 1 9704-0209 ●
118 BULB; CLUSTER METER
(B) 12V 2W 		8-97031-178-0 01 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(D) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0308- ● ●
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 04 1 9704-0209 ●
118 BULB; CLUSTER METER
(A) 12V 3.4W 		8-97092-898-0 04 1 0210-0307 ● ●
118 BULB; CLUSTER METER
(D) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0308- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M4X16 		1-09140-005-0 02 1 9704-0209 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M4X16 		1-09140-005-0 02 1 0210-0307 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) 		8-97092-908-0 02 1 9704-0209 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) 		8-97092-908-0 02 1 0210-0307 ● ●
158 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 9704-0209 ●
158 BUZZER; VAC WARNING
12V 		5-83460-006-0 01 1 0210-0307 ● ●
158 BUZZER; VAC WARNING
12V 		8-97185-520-0 01 1 0308- ● ●
161 CLOCK; CLUSTER METER 8-97105-398-0 01 1 9704-0209 ●
161 CLOCK; CLUSTER METER 8-97105-398-0 01 1 0210-0307 ● ●
161 CLOCK; CLUSTER METER 8-97185-462-0 01 1 0308- ● ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 9704-0209 ●
163 SCREW; BUZZER
M4X20 		8-94246-136-0 01 1 0210-0307 ● ●
163 SCREW; BUZZER 8-97185-527-0 01 1 0308- ● ●
173 WIRE; LEAD 8-97108-141-0 01 1 9704-0209 ●
173 WIRE; LEAD 8-97108-141-0 01 1 0210-0307 ● ●
173 WIRE; LEAD 8-97185-643-0 01 1 0308- ● ●
176 CLAMP; CORD,METER 8-97088-532-0 01 1 9704-0209 ●
176 CLAMP; CORD,METER 8-97088-532-0 01 1 0210-0307 ● ●
177 COVER; WIRE HOLE 8-97092-911-0 01 1 9704-0209 ●
177 COVER; WIRE HOLE 8-97092-911-0 01 1 0210-0307 ● ●
267 SCREW; CLOCK 8-97107-891-0 03 1 9704-0209 ●
267 SCREW; CLOCK 8-97107-891-0 03 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 9704-0209 ●
269 SCREW; METER CLUSTER
(B) 		8-97092-904-0 04 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(D) 		8-97185-524-0 07 1 0308- ● ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 9704-0209 ●
269 SCREW; METER CLUSTER
(C) 		8-97092-907-0 06 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(E) 		8-97185-525-0 06 1 0308- ● ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 9704-0209 ●
269 SCREW; METER CLUSTER
(A) 		8-97115-808-0 03 1 0210-0307 ● ●
269 SCREW; METER CLUSTER
(F) 		8-97185-528-0 02 1 0308- ● ●
321 WASHER; BUZZER 8-97108-140-0 01 1 9704-0209 ●
321 WASHER; BUZZER 8-97108-140-0 01 1 0210-0307 ● ●

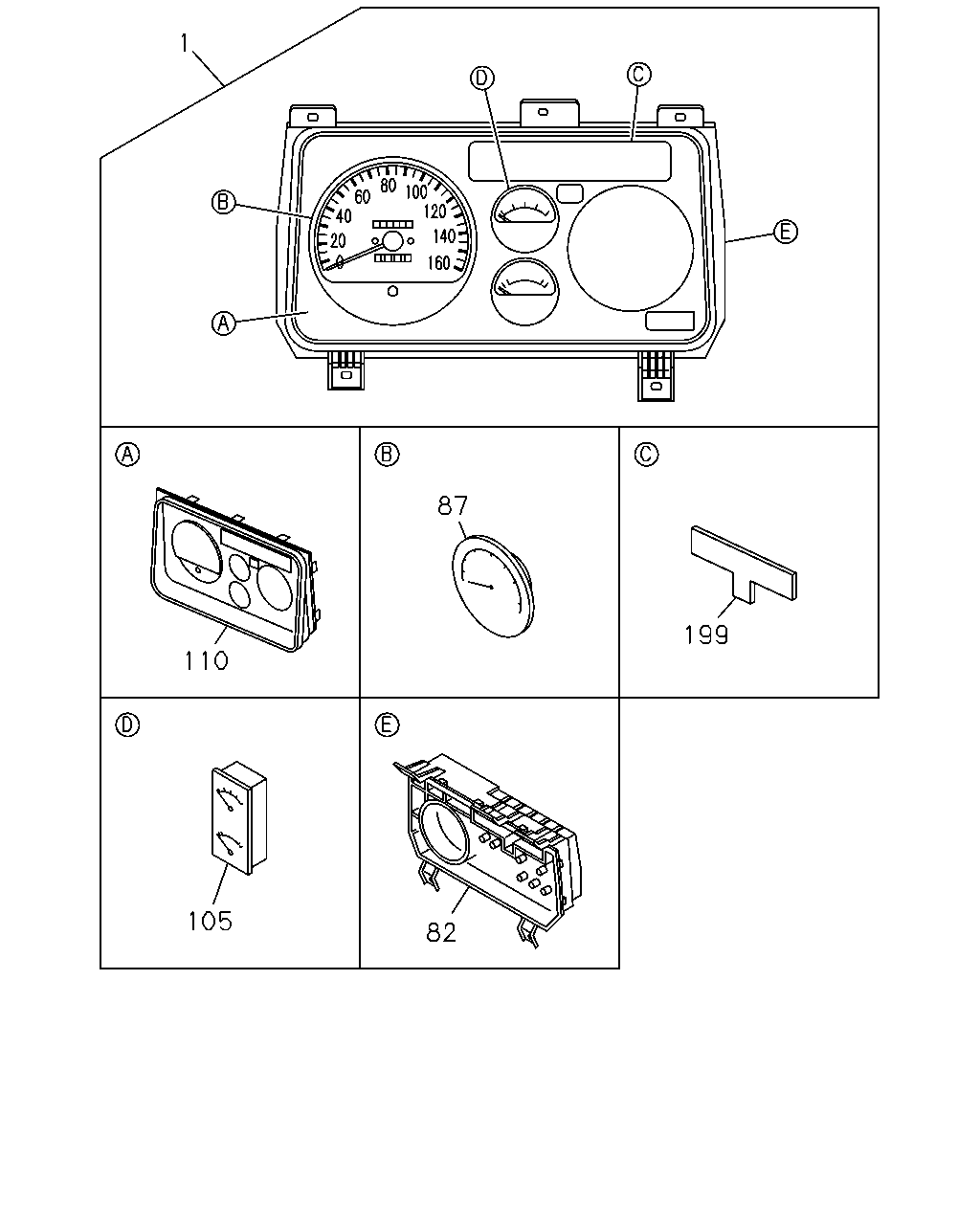

çizim 102769
1 87 199 110 105 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 9704-0209 ●
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 0210-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-585-2 01 1 0308- ● ●
82 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 9704-0209 ●
82 CASE ASM; CLUSTER METER 8-97088-505-0 01 1 0210-0307 ● ●
82 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0308- ● ●
87 SPEEDOMETER 8-97108-126-0 01 1 9704-0209 ●
87 SPEEDOMETER 8-97108-126-0 01 1 0210-0307 ● ●
87 SPEEDOMETER 8-97185-457-0 01 1 0308- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-97117-461-0 01 1 9704-0209 ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-97117-461-0 01 1 0210-0307 ● ●
110 GLASS; CLUSTER METER 8-97108-121-0 01 1 9704-0209 ●
110 GLASS; CLUSTER METER 8-97108-121-0 01 1 0210-0307 ● ●
110 GLASS; CLUSTER METER 8-97185-451-0 01 1 0308- ● ●
199 LENS; WARNING LAMP 8-97108-123-0 01 1 9704-0209 ●
199 LENS; WARNING LAMP 8-97108-123-0 01 1 0210-0307 ● ●
199 LENS; WARNING LAMP 8-97185-481-0 01 1 0308- ● ●

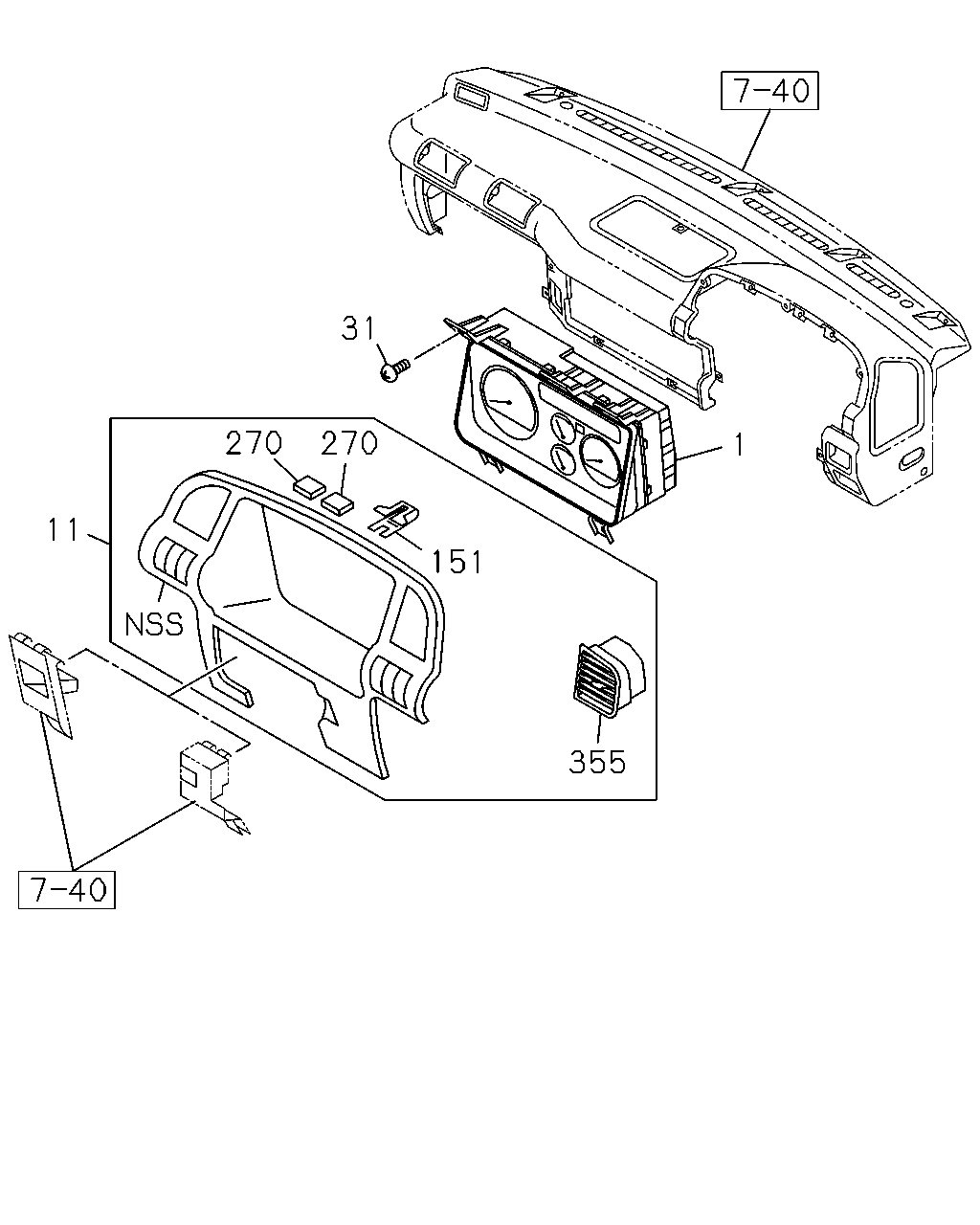

çizim 102770
31 270 270 1 11 151 355
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 9704-0209 ●
1 METER COMPL; CLUSTER 8-97129-291-0 01 1 0210-0307 ● ●
1 METER COMPL; CLUSTER 8-97170-585-2 01 1 0308- ● ●
11 CLUSTER ASM; METER
DARK BEIGE 		8-97859-352-2 01 1 9704-0209 ●
11 CLUSTER ASM; METER
DARK BEIGE 		8-97859-352-2 01 1 0210-0307 ● ●
11 CLUSTER ASM; METER
BLACK 		8-97195-964-2 01 1 0308- ● ●
31 SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9704-0209 ●
31 SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0210-1210 ● ●
31 SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
151 CLIP; METER CLUSTER 8-97853-939-4 07 1 9704-9902 ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 9903-0209 ●
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0210- ● ●
270 CUSHION; METER CLUSTER
15X30 T=5 		8-94270-366-2 01 1 0401- ● ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 9704-0209 ●
270 CUSHION; METER CLUSTER
6X30 T=2 		8-94270-378-1 02 1 0210- ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97853-872-3 01 1 9704-0002 ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-488-0 01 1 0003-0209 ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-488-0 01 1 0210-0307 ● ●
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0308- ● ●
355 GRILLE; VENT
DARK BEIGE 		8-97853-871-3 01 1 9704-0002 ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-487-0 01 1 0003-0209 ●
355 GRILLE; VENT
DARK BEIGE 		8-97898-487-0 01 1 0210-0307 ● ●
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0308- ● ●
