8-15 — FIXING PARTS; WIRING HARNESS (#72772) — 217 parça
çizim 73845
16 16 16 48 514 514 504 178 178
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) L=170 		5-09707-054-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(B) L=175 		8-97110-167-0 AR 1 9704-9904 ● ●
16 CLIP; HARNESS
(O) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=135 		1-09987-143-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(P) L=100 		8-94442-388-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(Q) L=60 		8-94457-053-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=22 & 22 		8-94464-837-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(J) ID=25 L=60 		1-09701-041-1 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 		5-09700-321-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(D) T=5.5 		5-09709-047-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-893-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(L) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 AR 1 0308- ● ●
178 GROMMET; HARNESS
(C) ID=17 		8-94128-319-2 01 1 9704-0209 ●
178 GROMMET; HARNESS
(C) ID=17 		8-94128-319-2 01 1 0210-0307 ● ●
178 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9704-0209 ●
178 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 0210- ● ●
178 GROMMET; HARNESS
(B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9704-0307 ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 9704-0209 ●
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0210- ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 9704-0209 ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0210-0307 ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0308- ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 9704-0209 ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0210-0307 ● ●
514 FINISHER; HARNESS
(A) L=120 SERVICED BY L=500 		1-79937-746-0 02 1 0308- ● ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 9704-0209 ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0210-0307 ● ●
514 FINISHER; HARNESS
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0308- ● ●
çizim 73897
48 48 48 48 208 208 16 48 48 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) L=170 		5-09707-054-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(B) L=175 		8-97110-167-0 AR 1 9704-9904 ● ●
16 CLIP; HARNESS
(O) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=135 		1-09987-143-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(P) L=100 		8-94442-388-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(Q) L=60 		8-94457-053-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=22 & 22 		8-94464-837-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(J) ID=25 L=60 		1-09701-041-1 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 		5-09700-321-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(D) T=5.5 		5-09709-047-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-893-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(L) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 AR 1 0308- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (A) L=140 		5-09707-031-1 01 1 9704-0209 ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (A) L=140 		5-09707-031-1 01 1 0210- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9704-0209 ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 0210-0307 ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (C) ID=10 		5-09700-318-0 02 1 0308- ● ●
çizim 74145
16 208 14 16 483 16 16 16 16 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 9704-0209 ●
14 CLIP; BAND,HARNESS
L=200 		8-94464-835-0 01 1 0210- ● ●
16 CLIP; HARNESS
(C) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) L=170 		5-09707-054-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(B) L=175 		8-97110-167-0 AR 1 9704-9904 ● ●
16 CLIP; HARNESS
(O) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=135 		1-09987-143-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(P) L=100 		8-94442-388-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(Q) L=60 		8-94457-053-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=22 & 22 		8-94464-837-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(J) ID=25 L=60 		1-09701-041-1 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 		5-09700-321-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(D) T=5.5 		5-09709-047-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-893-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(L) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 AR 1 0308- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (A) L=140 		5-09707-031-1 01 1 9704-0209 ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (A) L=140 		5-09707-031-1 01 1 0210- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 9704-0209 ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (B) ID=6 		5-09700-316-0 02 1 0210-0307 ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE<NF8> (C) ID=10 		5-09700-318-0 02 1 0308- ● ●
483 CLIP; ENG HARNESS
L=197 		1-83574-032-0 01 1 9704-0209 ●
483 CLIP; ENG HARNESS
L=197 		1-83574-032-0 01 1 0210- ● ●

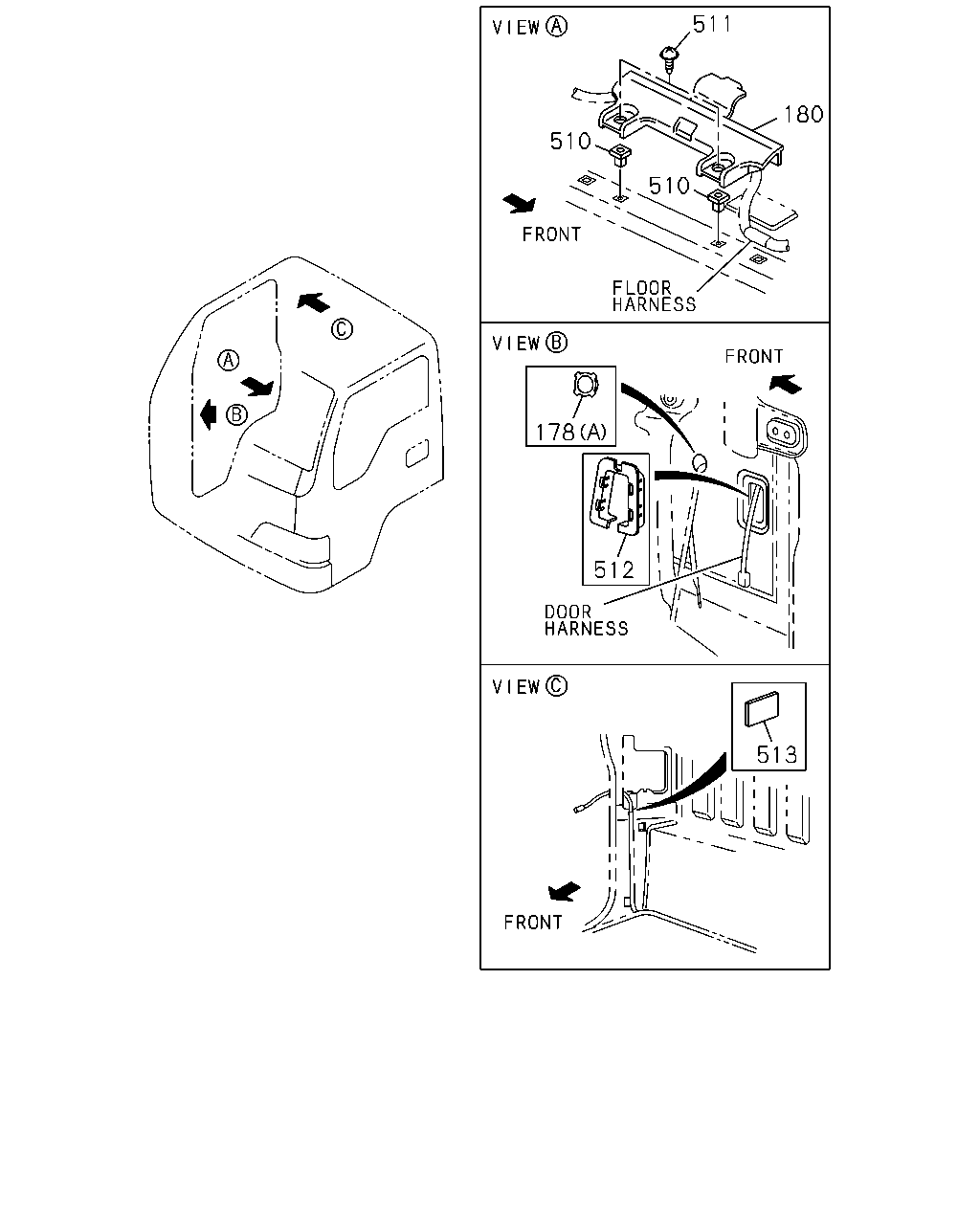

çizim 74146
511 180 510 510 178 512 513
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
(C) ID=17 		8-94128-319-2 01 1 9704-0209 ●
178 GROMMET; HARNESS
(C) ID=17 		8-94128-319-2 01 1 0210-0307 ● ●
178 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 9704-0209 ●
178 GROMMET; HARNESS
(A) ID=47 		8-94279-735-0 01 1 0210- ● ●
178 GROMMET; HARNESS
(B) ID=20 OD=31 T=10.5 		9-09575-620-0 01 1 9704-0307 ●
180 COVER; HARNESS 8-97856-130-4 02 1 9704-0209 ●
180 COVER; HARNESS 8-97856-130-4 02 1 0210- ● ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 9704-0209 ●
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0210- ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 9704-0209 ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0210-0604 ● ●
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605- ● ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 9704-0209 ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 9704-0209 ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 9704-0209 ●
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 9704-0209 ●
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0210- ● ●
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0210- ● ●
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0210- ● ●
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0210- ● ●
513 TAPE; SOFT,HARNESS
50X45 		8-94232-630-0 01 1 9704-0307 ●
çizim 74178
8 38 38 139 377 38 19 386 386 159 219 294 219 469 519 55 64
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; BRKT,CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-9704 ●
8 BOLT; BRKT,CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308-1210 ● ●
8 BOLT; BRKT,CONNECTOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
19 BOLT; PROTECTOR
M8X35 FLANGE 		0-28080-835-0 01 1 9704-0209 ●
19 BOLT; PROTECTOR
M8X35 FLANGE 		0-28080-835-0 01 1 0210-0512 ● ●
19 BOLT; PROTECTOR
M8X35 FLANGE 		0-28050-835-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0209 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(C) M6X20 FLANGE 		0-28080-620-0 01 1 9704-0209 ●
38 BOLT; CLIP,HARNESS
(C) M6X20 FLANGE 		0-28080-620-0 01 1 0210-0512 ● ●
38 BOLT; CLIP,HARNESS
(C) M6X20 FLANGE 		0-28050-620-0 01 1 0601- ● ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE 		0-28080-625-0 02 1 9704-0209 ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE 		0-28080-625-0 02 1 0210-0512 ● ●
38 BOLT; CLIP,HARNESS
(A) M6X25 FLANGE 		0-28050-625-0 02 1 0601- ● ●
55 WASHER; PL,CLIP
ID=6.4 OD=18 		9-09160-706-0 01 1 9704-0209 ●
55 WASHER; PL,CLIP
ID=6.4 OD=18 		9-09160-706-0 01 1 0210-0605 ● ●
55 WASHER; PL,CLIP
ID=6.4 OD=18 		0-91610-706-0 01 1 0606- ● ●
64 SCREW; CLIP
M4X16 TAPPING 		1-09981-477-0 01 1 0210- ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 9704-0209 ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 0210-0512 ● ●
139 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ●
159 BOLT; GRAND ENG ELEC
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9704-0209 ●
159 BOLT; GRAND ENG ELEC
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0210- ● ●
219 NUT
(B) M6 FLANGE 		0-91150-106-0 AR 1 9704- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 AR 1 9704- ● ●
294 NUT
M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
294 NUT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9704-0209 ●
377 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0210- ● ●
386 BOLT; GRAND HARNESS
FACE LIFT MODEL<TX7> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1112- ●
386 BOLT; GRAND HARNESS
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9704-0209 ●
386 BOLT; GRAND HARNESS
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0210- ● ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
469 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
519 NUT; EARTH CABLE
M12 FLANGE 		0-91150-112-0 01 1 9704-0209 ●
519 NUT; EARTH CABLE
M12 FLANGE 		0-91150-112-0 01 1 0210-0602 ● ●
519 NUT; EARTH CABLE
M12 FLANGE 		0-91180-112-0 01 1 0603- ● ●
çizim 102757
31 31
BalonParca AdiParca NoAdetTipApplied Date A B
31 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 9704-0209 ●
31 BRACKET; HARNESS CLIP,PIPE
(A) L=20 		8-94165-263-1 01 1 0210- ● ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 9704-0209 ●
31 BRACKET; HARNESS CLIP,PIPE
(B) 		8-97077-845-0 02 1 0210- ● ●
çizim 102758
397 48 16 16 16 16 16 264 16 464 183
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(C) 1 SET=5 PIECE 		1-09987-214-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(D) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 AR 1 9704- ● ●
16 CLIP; HARNESS
(E) L=170 		5-09707-054-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(F) ID=10 & 16 		8-94413-325-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(G) ID=16.5 & 16.5 		8-94468-380-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(H) ID=6 & 10-13 		8-97069-515-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(I) ID=12.5-14.5 		8-97087-726-0 AR 1 9704-0307 ● ●
16 CLIP; HARNESS
(B) L=175 		8-97110-167-0 AR 1 9704-9904 ● ●
16 CLIP; HARNESS
(O) L=155 		8-97173-307-0 AR 1 9704- ● ●
16 CLIP; HARNESS
(M) L=135 		1-09987-143-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(A) L=100 		8-94327-067-1 AR 1 0308- ● ●
16 CLIP; HARNESS
(P) L=100 		8-94442-388-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(Q) L=60 		8-94457-053-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(L) ID=22 & 22 		8-94464-837-0 AR 1 0308- ● ●
16 CLIP; HARNESS
(N) ID=15-32 		8-97174-404-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(J) ID=25 L=60 		1-09701-041-1 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(E) ID=31 L=30 		1-09700-969-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(F) L=170.3 		1-09987-182-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 		5-09700-321-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(D) T=5.5 		5-09709-047-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(H) ID=9 		8-97063-874-0 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(C) ID=30 W/STUD 		8-97078-642-2 AR 1 9704- ● ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-893-0 AR 1 9704-0307 ● ●
48 CLIP; FRAME HARNESS
(L) ID=19 H=70 L=25 		1-09700-773-0 AR 1 0308- ● ●
48 CLIP; FRAME HARNESS
(K) ID=24 		8-94149-610-0 AR 1 0308- ● ●
183 CLIP; CONNECTOR
L=15 		8-94315-436-1 02 1 0210- ●
264 CLIP; HARNESS,HEADLAMP
FACE LIFT MODEL<TX7> ID=6 & 10-13 		8-97069-515-0 01 1 1112- ●
264 CLIP; HARNESS,HEADLAMP
ID=10 & 16 		8-94413-325-0 03 1 9704-0209 ●
264 CLIP; HARNESS,HEADLAMP
ID=10 & 16 		8-94413-325-0 03 1 0210- ● ●
397 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> ID=7 		8-97014-713-0 02 1 0210- ●
464 CLIP; SEDIMENTER HARNESS
ID=6.5 		8-94257-639-0 01 1 9704-0209 ●
464 CLIP; SEDIMENTER HARNESS
ID=6.5 		8-94257-639-0 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
