◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#72771) — 225 parça

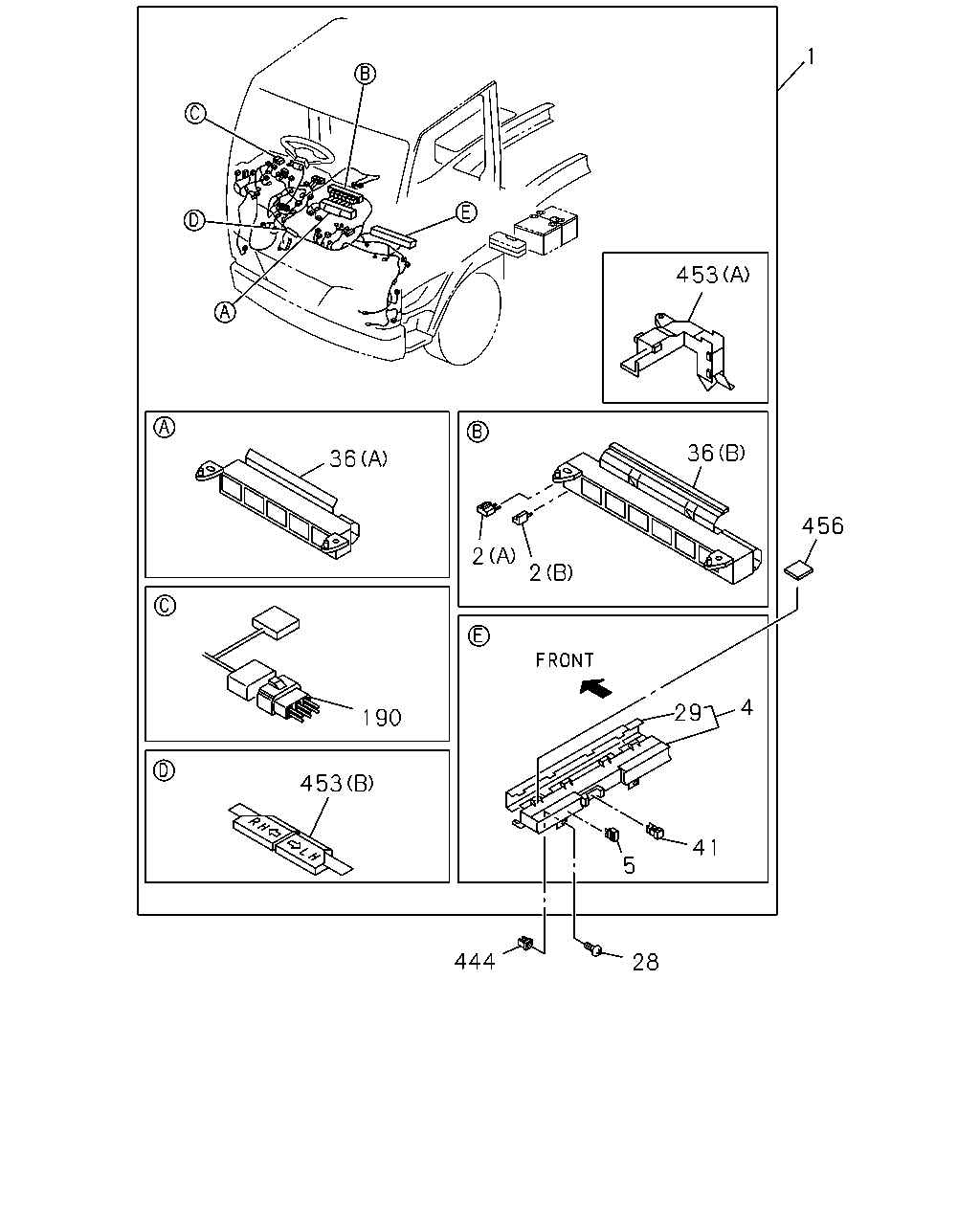

çizim 73813
1 453 36 36 456 2 2 4 29 190 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1112- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1111 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 1112- ●
1 HARNESS; CAB
EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1112- ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0209 ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0210-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9704- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0209 ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 9704-0209 ●
29 COVER; FUSE BOX 8-97074-955-0 01 1 0210-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0209 ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 0210-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-0209 ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 0210- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-0209 ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0210- ● ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9704-0209 ●
190 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0210-0307 ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704-0209 ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0210- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0308-1110 ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0210- ● ●
453 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0308- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704-0209 ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0210- ● ●

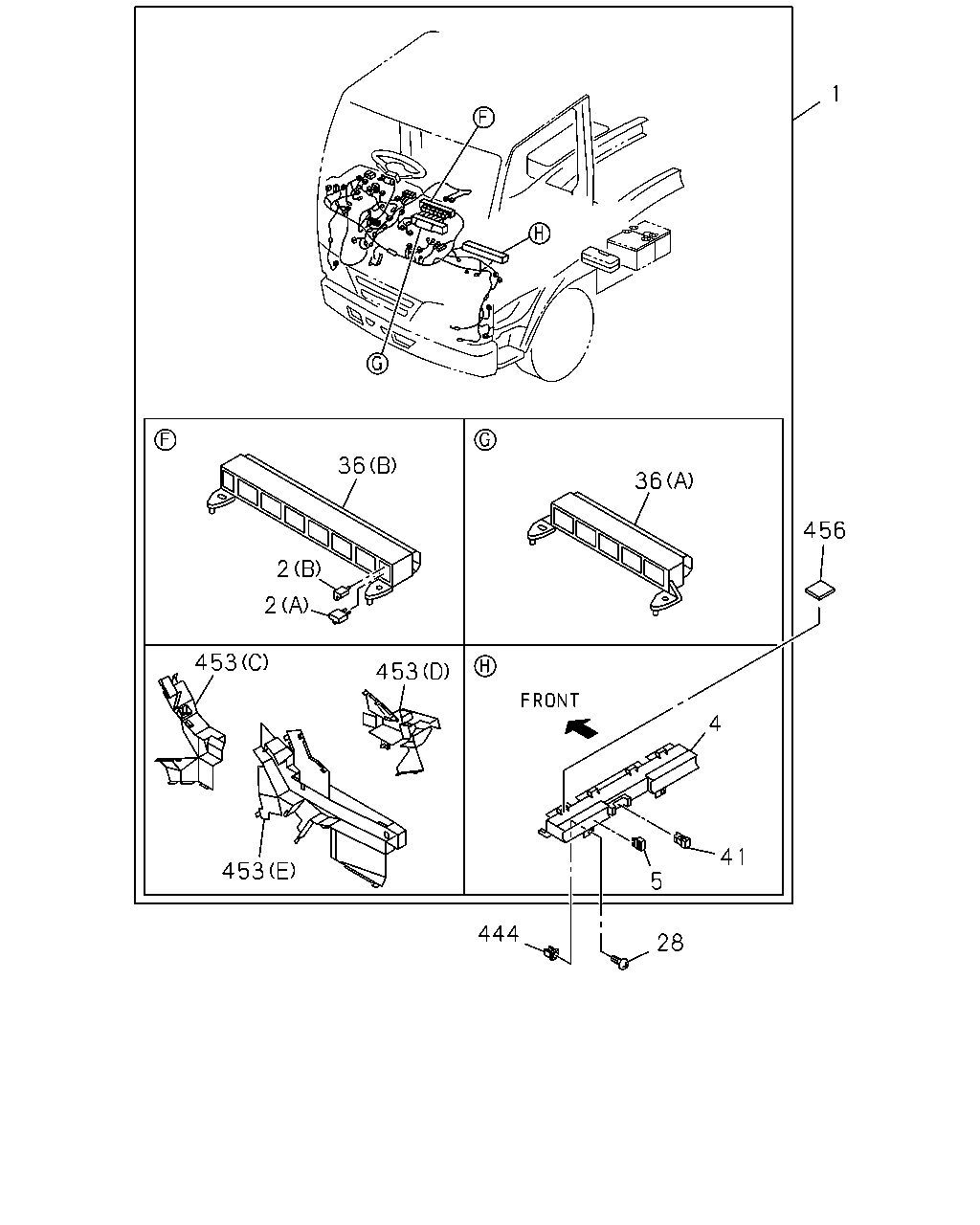

çizim 73876
1 36 36 456 2 2 453 453 4 41 453 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1112- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1111 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 1112- ●
1 HARNESS; CAB
EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1112- ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9704- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9704- ● ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9704-0209 ●
4 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0210-0307 ● ●
4 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0308- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9704- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9704- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0209 ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210-0604 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 9704-0209 ●
36 BOX; RELAY
(A) 		8-97087-638-1 01 1 0210-0307 ● ●
36 BOX; RELAY
(A) 		8-97087-640-1 01 1 0308- ● ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 9704-0209 ●
36 BOX; RELAY
(B) 		8-97087-639-1 01 1 0210- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9704-0209 ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0210- ● ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704-0209 ●
444 GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0210- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0308-1110 ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0210- ● ●
453 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0308- ● ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 9704-0209 ●
456 CUSHION; FUSE BOX
15X30 T=5 		8-94270-366-2 01 1 0210- ● ●

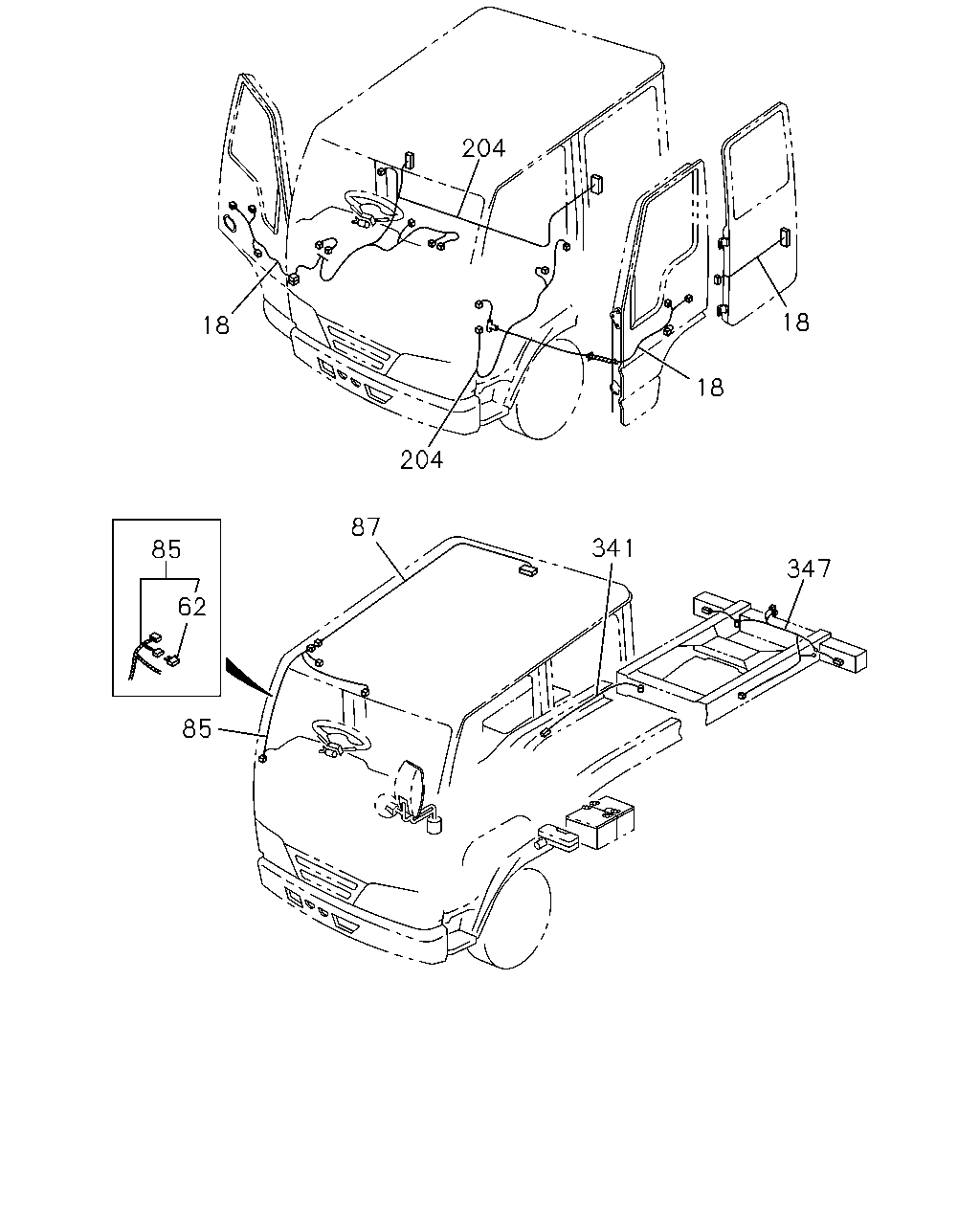

çizim 74209
204 18 18 18 204 87 341 85 347 62 85
BalonParca AdiParca NoAdetTipApplied Date A B
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT 		8-97226-669-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97100-295-1 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-144-1 01 1 9709-9904 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-669-0 01 1 9905-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-669-0 01 1 0210-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-820-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-820-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97100-293-0 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-142-1 01 1 9709-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-142-1 01 1 0210- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR 		8-97075-738-2 02 1 0210- ●
62 DIODE; HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0210- ●
85 HARNESS; ROOM LAMP 8-97145-825-0 01 1 9704-0307 ●
85 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0308- ●
85 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0210- ●
87 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 0210- ●
204 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9704-0307 ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0308- ●
204 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0210- ●
204 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0210- ●
341 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9704-0209 ●
341 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0210- ● ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 9704-0209 ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 0210-0307 ● ●
347 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0308- ● ●

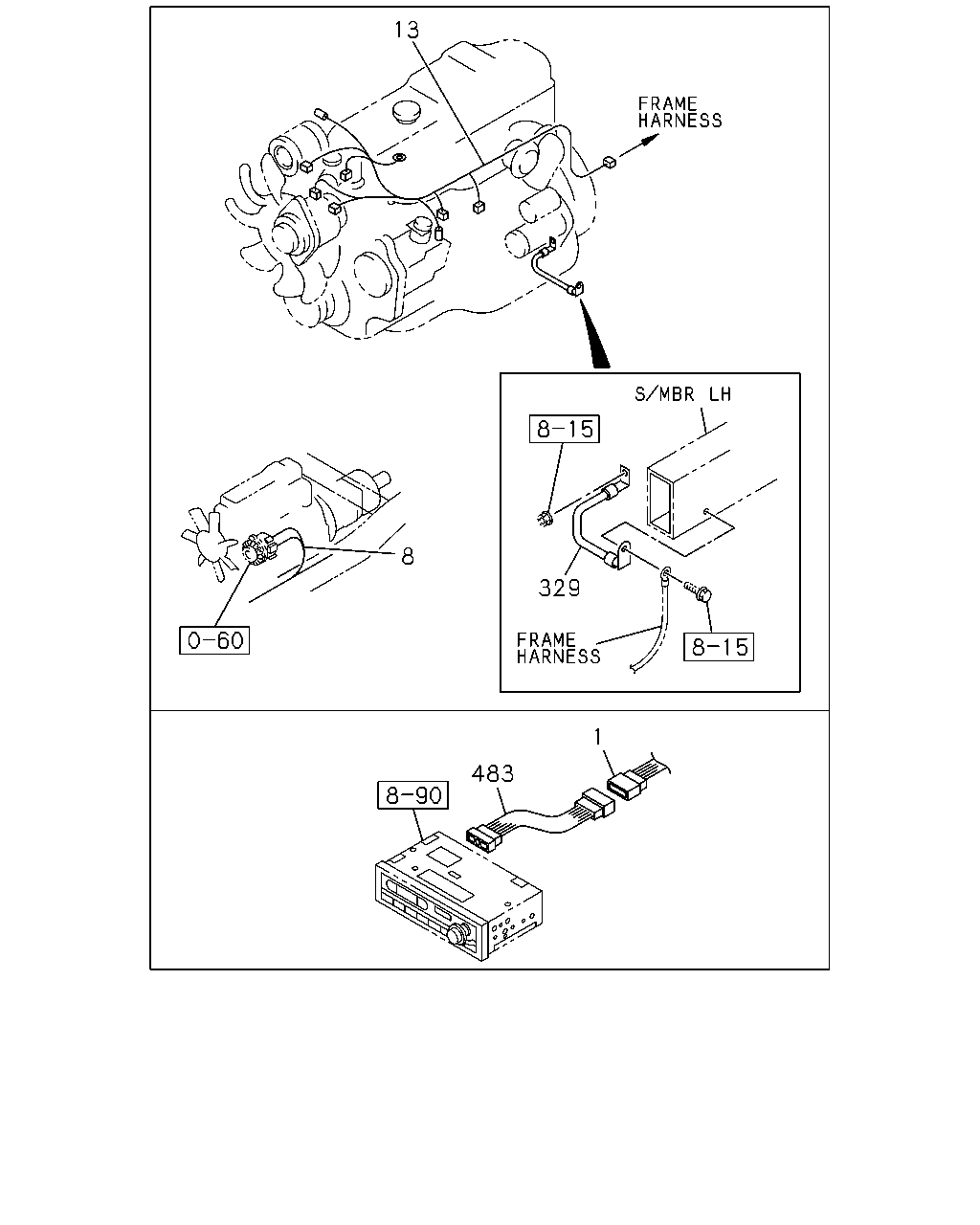

çizim 74238
13 8 329 1 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
FACE LIFT MODEL<TX7> 		8-98158-643-0 01 1 1112- ●
1 HARNESS; CAB 8-97132-917-0 01 1 9704-0209 ●
1 HARNESS; CAB 8-97132-917-0 01 1 0210-0307 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 0308-1111 ● ●
1 HARNESS; CAB 8-97309-082-2 01 1 1112- ●
1 HARNESS; CAB
EXC. FACE LIFT MODEL<TX7> 		8-97309-082-2 01 1 1112- ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 9704-0209 ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-798-0 01 1 0308- ● ●
13 HARNESS; ENG 8-97121-895-0 01 1 9704-9707 ●
13 HARNESS; ENG 8-97184-155-0 01 1 9708-0209 ●
13 HARNESS; ENG 8-97184-155-1 01 1 0210- ● ●
329 CABLE; ENG TO FRAME 8-94375-342-2 01 1 9704-0209 ●
329 CABLE; ENG TO FRAME 8-94375-342-2 01 1 0210-0307 ● ●
329 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0308- ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97372-297-0 01 1 0308-0310 ● ●
483 HARNESS; EXT,RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> 		8-97373-419-0 01 1 0311- ● ●

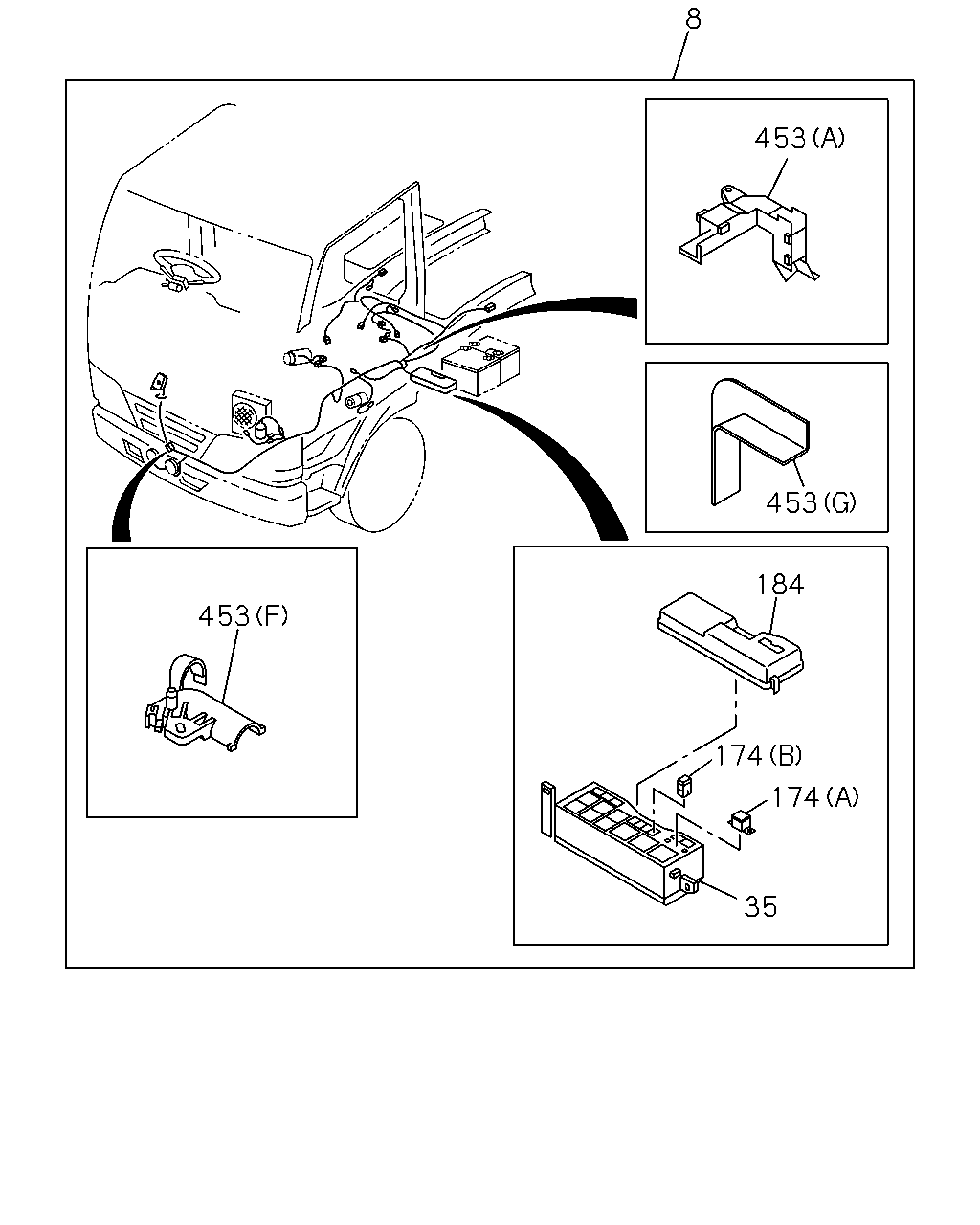

çizim 102759
8 453 453 184 453 174 174 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 9704-0209 ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-798-0 01 1 0308- ● ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 9704-0209 ●
35 BOX; RELAY & FUSE 8-97063-150-1 01 1 0210- ● ●
174 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 9704- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED 		8-94468-663-0 AR 1 9704- ● ●
174 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-94468-664-0 AR 1 9704- ● ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9704-0209 ●
184 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0210- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 02 1 0308-1110 ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ● ●
453 PROTECTOR; HARNESS
(G) 		8-94452-553-0 01 1 1111- ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0210-0307 ● ●
453 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 9704-0209 ●
453 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0210- ● ●
453 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0308- ● ●
453 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0308- ● ●

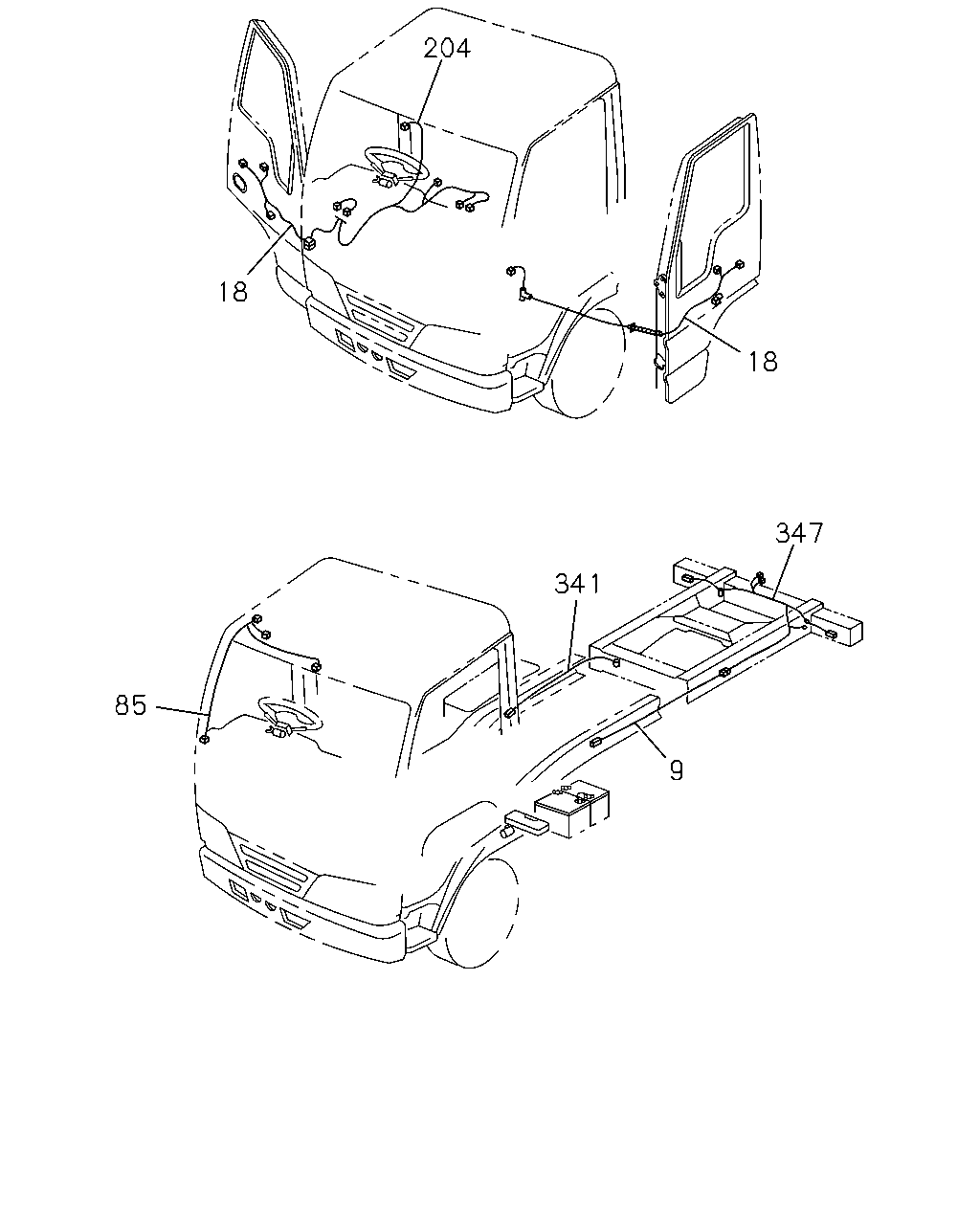

çizim 102768
204 18 8 347 341 85 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 9704-0209 ●
8 HARNESS; FRAME,FRT 8-97131-762-0 01 1 0210-0307 ● ●
8 HARNESS; FRAME,FRT 8-97368-798-0 01 1 0308- ● ●
9 HARNESS; FRAME,RR 8-97126-399-1 01 1 9704-0209 ●
9 HARNESS; FRAME,RR 8-97126-399-1 01 1 0210-0307 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> FRONT 		8-97226-669-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 1406- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-572-1 01 1 9704-9904 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-0 01 1 9905-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-671-1 01 1 0210-1009 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-819-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-0 01 1 9704-0209 ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> FRONT 		8-97105-571-1 01 1 0210- ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97100-295-1 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-144-1 01 1 9709-9904 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-669-0 01 1 9905-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97226-669-0 01 1 0210-1009 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-820-0 01 1 1010-1010 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FRONT 		8-98166-820-0 01 1 1011-1405 ● ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97100-293-0 01 1 9704-9708 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-142-1 01 1 9709-0209 ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-97185-142-1 01 1 0210- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR 		8-97075-738-2 02 1 0210- ●
85 HARNESS; ROOM LAMP 8-97145-825-0 01 1 9704-0307 ●
85 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0308- ●
85 HARNESS; ROOM LAMP 8-97162-624-3 01 1 0210- ●
204 HARNESS; CABLE,FLOOR 8-97095-382-2 01 1 9704-0307 ●
204 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0308- ●
204 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0210- ●
204 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0210- ●
341 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9704-0209 ●
341 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 0210- ● ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 9704-0209 ●
347 HARNESS; CABLE,RR BODY 8-97147-856-2 01 1 0210-0307 ● ●
347 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
