Sayfa 4-80 - Isuzu EPC

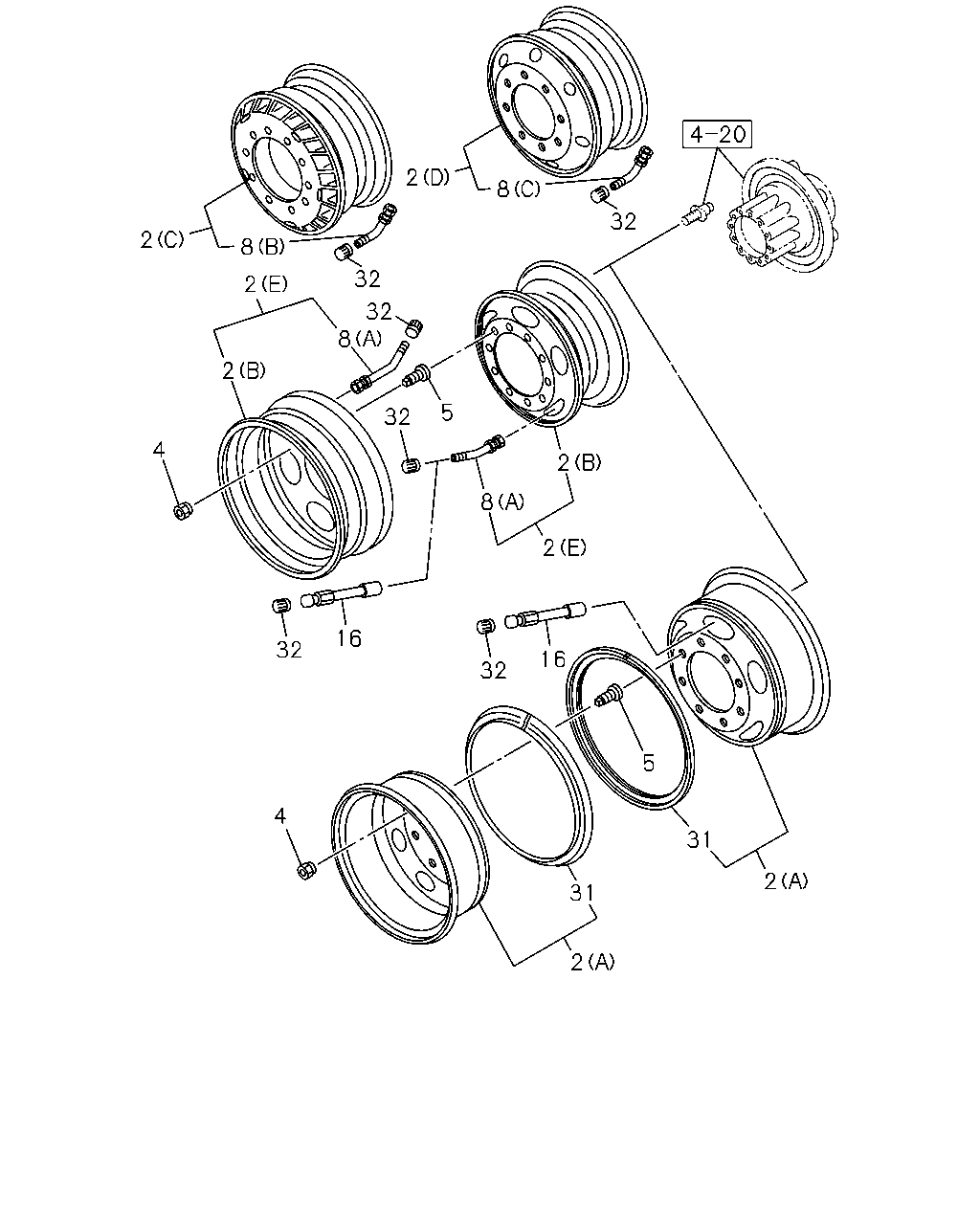

4-80 — ROAD WHEEL (#7277) — 152 parça

2 8 32 2 8 32 2 32 8 2 5 32 4 2 8 2 16 32 16 32 5 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SPARE	1-42350-470-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SPARE	1-42350-470-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-590-0	01	1	9906-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-590-0	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.50VX20(RG9) (B) SPARE	1-42350-617-0	01	1	0001-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20(RG9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) SPARE	1-42350-617-0	01	1	0001-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6) WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-414-1	01	1	9906-
2	WHEEL; DISC WHEEL 8.25X22.5 165-13(QM6) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-414-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-512-0	01	1	9906-0105
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-512-0	01	1	9906-0105
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-635-0	01	1	0106-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-635-0	01	1	0106-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42350-470-1	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-469-0	01	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-469-0	01	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE	1-42350-538-0	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE	1-42350-538-0	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-450-1	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-450-1	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B)	1-42350-469-0	10	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E)	1-42350-538-0	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	9906-0009
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0010-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0010-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-467-1	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-450-1	10	1	9906-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	9906-0009
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	0010-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	0010-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-590-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D)	1-42350-211-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (C)	1-42350-196-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-196-0	01	1	9906-0009
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (C) SPARE	1-42350-196-0	01	1	0010-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-196-0	01	1	0010-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20(RG9) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B)	1-42350-617-0	10	1	0001-
2	WHEEL; DISC WHEEL 8.25X22.5 165-13(QM6) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-414-1	10	1	9906-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-512-0	10	1	9906-0105
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-635-0	10	1	0106-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22	1-42333-043-0	40	1	9906-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 RH THREAD	1-42333-048-1	40	1	9906-
4	NUT; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M30	1-42333-023-0	16	1	9906-
4	NUT; WHEEL,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M30 LH THREAD	1-42334-023-0	16	1	9906-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) OUTER M30,INNER M20 RH THREAD	1-42335-005-0	16	1	9906-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) OUTER M30,INNER M20 LH THREAD	1-42336-005-0	16	1	9906-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	01	1	9906-9906
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A)	1-42370-020-3	01	1	9906-9906
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	9906-0009
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	0010-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	0010-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	10	1	9906-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (B)	1-42370-009-0	10	1	9906-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-009-0	01	1	9906-0009
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (B)	1-42370-009-0	01	1	0010-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-009-0	01	1	0010-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	10	1	9906-9906
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	10	1	9906-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	10	1	9906-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	9906-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	01	1	9906-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	01	1	9906-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	10	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	10	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	10	1	9906-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	9906-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	10	1	9906-

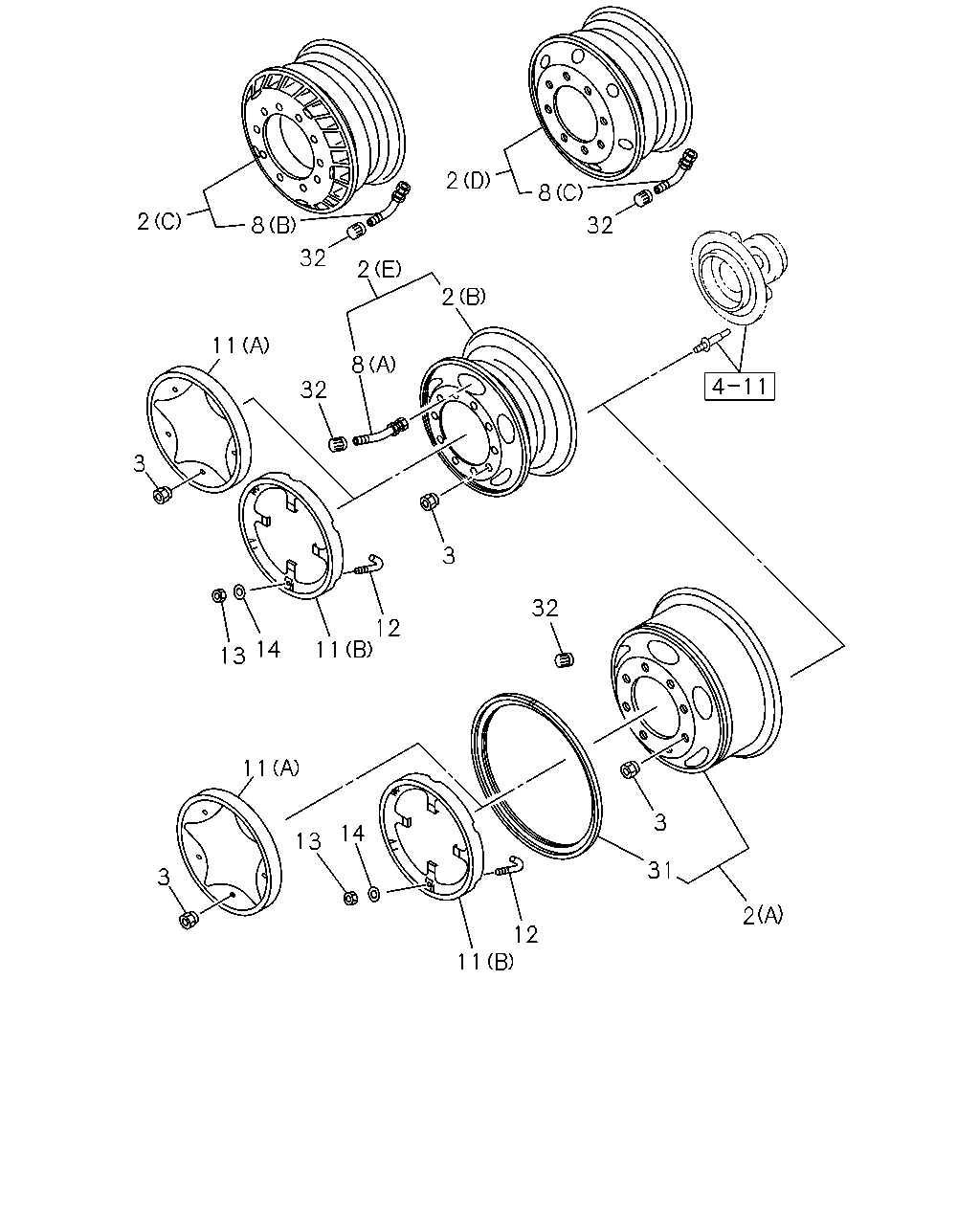

2 8 2 8 32 32 2 2 11 8 32 3 3 32 12 11 14 13 11 3 14 13 31 3 2 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SPARE	1-42350-470-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) SPARE	1-42350-470-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-590-0	01	1	9906-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-590-0	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.50VX20(RG9) (B) SPARE	1-42350-617-0	01	1	0001-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20(RG9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) SPARE	1-42350-617-0	01	1	0001-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6) WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-414-1	01	1	9906-
2	WHEEL; DISC WHEEL 8.25X22.5 165-13(QM6) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-414-1	01	1	9906-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-512-0	01	1	9906-0105
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-512-0	01	1	9906-0105
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-635-0	01	1	0106-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-635-0	01	1	0106-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42350-470-1	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-469-0	01	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE	1-42350-469-0	01	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE	1-42350-538-0	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE	1-42350-538-0	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-450-1	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) SPARE	1-42350-450-1	01	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B)	1-42350-469-0	10	1	9906-9906
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E)	1-42350-538-0	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	9906-0009
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0010-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-467-1	01	1	0010-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-467-1	10	1	9906-
2	WHEEL; DISC INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-450-1	10	1	9906-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	9906-0009
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	0010-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D) SPARE	1-42350-211-0	01	1	0010-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-590-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (D)	1-42350-211-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (C)	1-42350-196-0	10	1	9906-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-196-0	01	1	9906-0009
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (C) SPARE	1-42350-196-0	01	1	0010-
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-196-0	01	1	0010-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20(RG9) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B)	1-42350-617-0	10	1	0001-
2	WHEEL; DISC WHEEL 8.25X22.5 165-13(QM6) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-414-1	10	1	9906-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-512-0	10	1	9906-0105
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-635-0	10	1	0106-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22	1-42333-043-0	20	1	9906-
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 RH THREAD	1-42333-048-1	20	1	9906-
3	NUT; WHEEL,FRT AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24 LH THREAD	1-42334-022-0	08	1	9906-
3	NUT; WHEEL,FRT AXLE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24	1-42333-022-0	08	1	9906-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	01	1	9906-9906
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A)	1-42370-020-3	01	1	9906-9906
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A)	1-42370-020-3	01	1	9906-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	9906-0009
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	0010-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	01	1	0010-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (C)	1-42370-008-0	10	1	9906-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (B)	1-42370-009-0	10	1	9906-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-009-0	01	1	9906-0009
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) (B)	1-42370-009-0	01	1	0010-
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-23 AL FIN TOPY(QM9) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-009-0	01	1	0010-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	10	1	9906-9906
8	VALVE; TIRE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A)	1-42370-020-3	10	1	9906-
8	VALVE; TIRE WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42370-020-3	10	1	9906-
11	STEP; DISC WHEEL SIDE DISC WHEEL STEP<W66> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-43139-034-0	02	1	9906-
11	STEP; DISC WHEEL SIDE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEP<W66> (A)	1-43139-012-2	02	1	9906-
11	STEP; DISC WHEEL SIDE WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL STEP<W66> (B)	1-43139-028-0	02	1	9906-
12	U-BOLT; STEP DISC WHEEL 8.25X22.5 165-13(QM6) DISC WHEEL STEP<W66> L=60	1-43139-016-0	06	1	9906-
12	U-BOLT; STEP DISC WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL STEP<W66> L=44	9-43139-023-1	06	1	9906-
13	NUT; STEP DISC WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL STEP<W66> M10	9-09110-510-0	06	1	9906-
14	WASHER; LK,STEP DISC WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) DISC WHEEL STEP<W66> ID=10.2	9-09150-510-0	06	1	9906-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	01	1	9906-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	01	1	9906-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	01	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-044-0	10	1	9906-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-033-1	10	1	9906-
31	RING; SIDE,DISC WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. WHEEL 8.25X22.5 165-13(QM6),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	10	1	9906-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	11	1	9906-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	10	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
