8-01 — LAMP; FRONT AND FRONT SIDE (#72768) — 235 parça

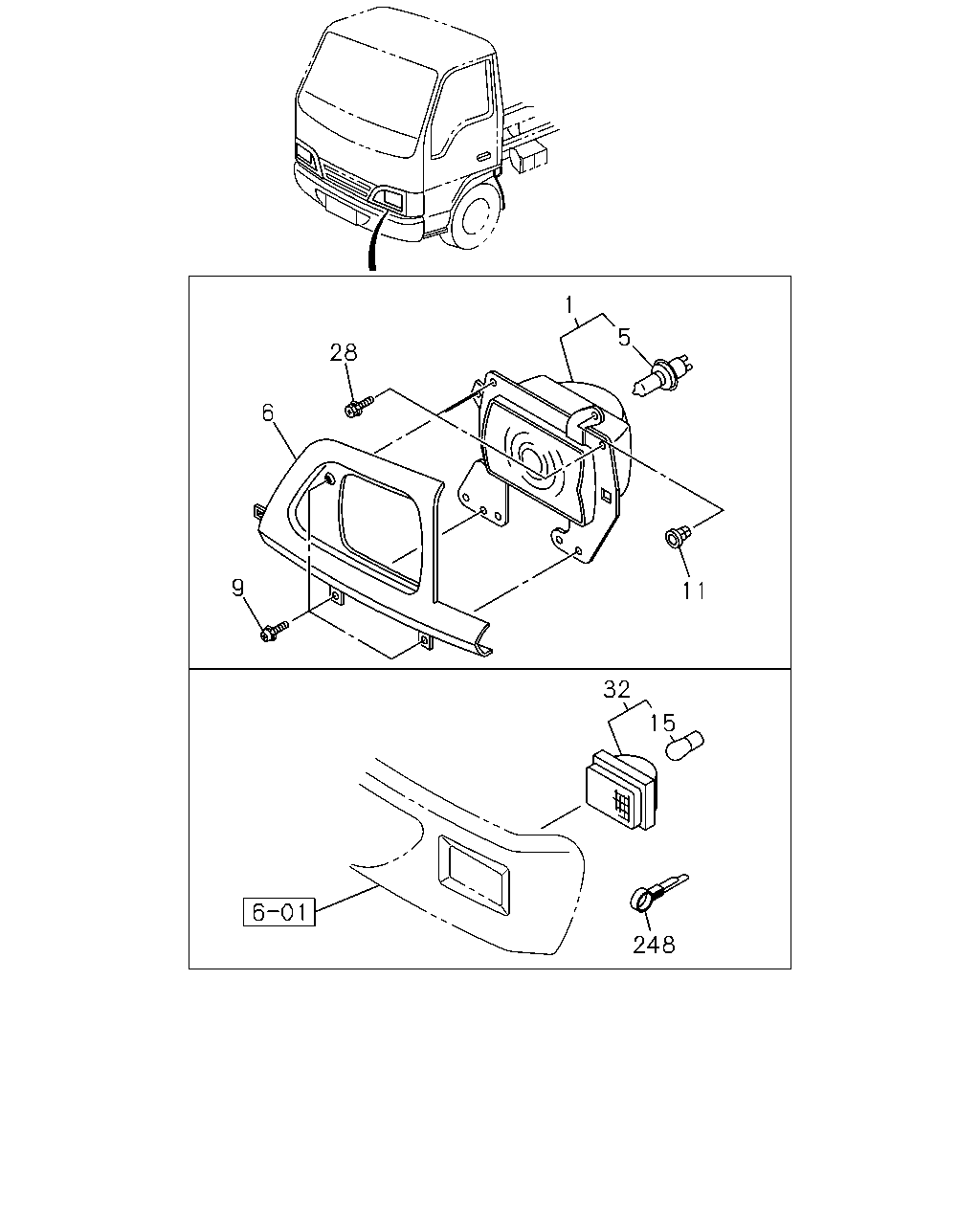

çizim 73810
1 5 28 6 9 11 32 15 248
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97372-526-5 01 1 1112- ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97372-527-5 01 1 1112- ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 9704-0209 ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 0210-1111 ● ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 1112- ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-809-0 01 1 1112- ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 9704-0209 ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 0210-1111 ● ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 1112- ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-808-0 01 1 1112- ●
5 BULB; HEADLAMP
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97106-708-0 02 1 1112- ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 9704-0209 ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 0210-1111 ● ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 1112- ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 12V 55/60W 		8-97180-366-0 02 1 1112- ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 9704-0209 ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 9704-0209 ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-099-1 01 1 0210- ● ●
6 RIM; HEADLAMP
PLEASE PAINT TO MATCH BODY COLOR 		8-97869-098-1 01 1 0210- ● ●
9 SCREW; HEADLAMP RIM
M5X16 W/LK&PL WASHER 		8-94279-400-0 06 1 9704-0209 ●
9 SCREW; HEADLAMP RIM
M5X16 W/LK&PL WASHER 		8-94279-400-0 06 1 0210- ● ●
11 GROMMET; SCREW,HEADLAMP RIM 8-94452-095-0 02 1 9704-0209 ●
11 GROMMET; SCREW,HEADLAMP RIM 8-94452-095-0 02 1 0210-1111 ● ●
11 GROMMET; SCREW,HEADLAMP RIM 8-94452-095-0 02 1 1112- ●
11 GROMMET; SCREW,HEADLAMP RIM
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 02 1 1112- ●
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> 12V 55W 		8-97093-859-0 02 1 1112- ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 9704-0209 ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 0210-1111 ● ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 1112- ●
15 BULB; FOG LAMP
EXC. FACE LIFT MODEL<TX7> 12V 55W 		8-97180-368-0 02 1 1112- ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1112-1401 ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9704-0209 ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0210-1111 ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1112- ●
28 BOLT; HEADLAMP
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1112- ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-093-0 01 1 1112- ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-094-0 01 1 1112- ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 9704-0209 ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 0210-1111 ● ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 1112- ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-345-0 01 1 1112- ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 9704-0209 ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 0210-1111 ● ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 1112- ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-344-0 01 1 1112- ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 9704-0209 ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 0210- ● ●
çizim 73848
60 70 241 75 60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-889-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-890-0 01 1 1112- ●
60 LAMP ASM; FRT COMB 8-97855-006-2 01 1 9704-0209 ●
60 LAMP ASM; FRT COMB 8-97855-006-2 01 1 0210-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-978-0 01 1 0702-1111 ● ●
60 LAMP ASM; FRT COMB 8-98053-978-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-978-0 01 1 1112- ●
60 LAMP ASM; FRT COMB 8-97855-005-2 01 1 9704-0209 ●
60 LAMP ASM; FRT COMB 8-97855-005-2 01 1 0210-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-977-0 01 1 0702-1111 ● ●
60 LAMP ASM; FRT COMB 8-98053-977-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-977-0 01 1 1112- ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-948-0 02 1 1112- ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9704-0209 ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0210-1111 ● ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 1112- ●
67 GASKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97855-121-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) 12V 21/5W 		8-94125-959-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (D) 12V 21W 		8-97304-590-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 9704-0209 ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0210-1111 ● ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (B) 12V 21W 		8-94124-074-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 9704-0209 ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 0210-1111 ● ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) 12V 27/8W 		8-97094-889-0 02 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		1-09983-081-0 02 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9704-0209 ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0210-1111 ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97030-792-0 04 1 1112- ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (B) M6X16 TAPPING 		8-97374-995-0 02 1 1112- ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) M4X12 		8-97378-944-0 14 1 1112- ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9704-0209 ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0210-1111 ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1112- ●
75 SCREW; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1112- ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-965-0 01 1 1112- ●
76 LENS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-966-0 01 1 1112- ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-943-0 01 1 1112- ●
93 BRACKET; SIDE COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-945-0 01 1 1112- ●
241 GROMMET; FRT LAMP
FACE LIFT MODEL<TX7> 		8-97380-030-0 02 1 1112- ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 9704-0209 ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 0210-1111 ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 1112- ●
241 GROMMET; FRT LAMP
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 04 1 1112- ●
315 HARNESS; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-98010-916-0 02 1 1112- ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-946-0 01 1 1112- ●
419 LENS; INNER,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-947-0 01 1 1112- ●

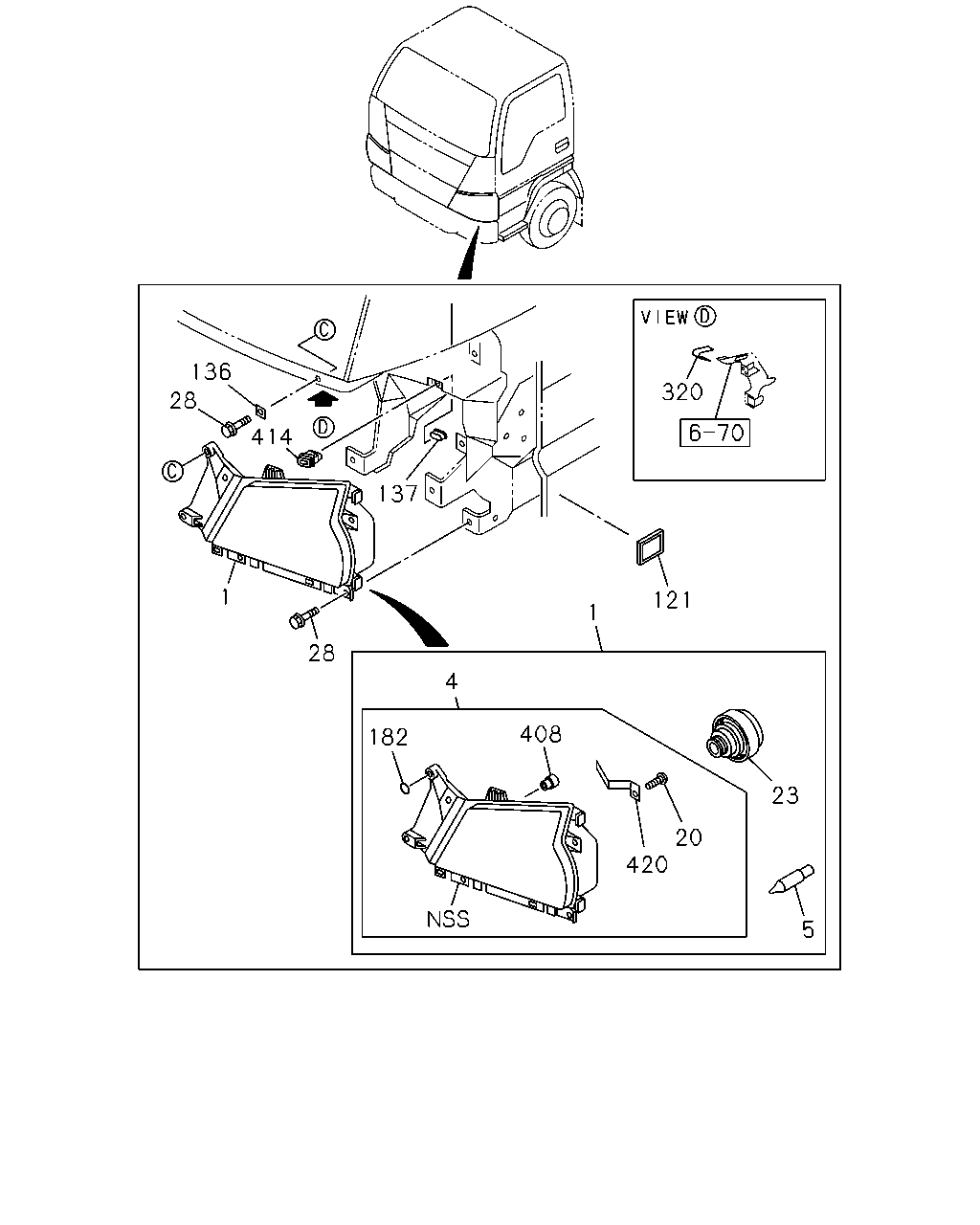

çizim 74149
136 320 28 414 137 1 121 1 28 4 408 182 23 20 420 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97372-526-5 01 1 1112- ●
1 LAMP ASM; HEAD
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97372-527-5 01 1 1112- ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 9704-0209 ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 0210-1111 ● ●
1 LAMP ASM; HEAD 8-97161-809-0 01 1 1112- ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-809-0 01 1 1112- ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 9704-0209 ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 0210-1111 ● ●
1 LAMP ASM; HEAD 8-97161-808-0 01 1 1112- ●
1 LAMP ASM; HEAD
EXC. FACE LIFT MODEL<TX7> 		8-97161-808-0 01 1 1112- ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> 		8-98009-820-0 01 1 1112- ●
4 HEADLAMP UNIT
FACE LIFT MODEL<TX7> 		8-98009-821-0 01 1 1112- ●
5 BULB; HEADLAMP
FACE LIFT MODEL<TX7> 12V 60/55W 		8-97106-708-0 02 1 1112- ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 9704-0209 ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 0210-1111 ● ●
5 BULB; HEADLAMP
12V 55/60W 		8-97180-366-0 02 1 1112- ●
5 BULB; HEADLAMP
EXC. FACE LIFT MODEL<TX7> 12V 55/60W 		8-97180-366-0 02 1 1112- ●
20 SCREW; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-871-0 02 1 1112- ●
23 COVER; BULB,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97232-491-0 02 1 1112- ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 1112-1401 ●
28 BOLT; HEADLAMP
FACE LIFT MODEL<TX7> M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402- ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9704-0209 ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0210-1111 ● ●
28 BOLT; HEADLAMP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1112- ●
28 BOLT; HEADLAMP
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1112- ●
121 REFLECTOR; REFLEX
FACE LIFT MODEL<TX7> 		8-98013-990-1 02 1 1112- ●
136 SEAL; HEADLAMP
FACE LIFT MODEL<TX7> 25X25 		8-94272-533-0 02 1 1112- ●
137 GROMMET; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97581-666-0 02 1 1112- ●
182 GASKET; HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-869-0 02 1 1112- ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9704-0209 ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0210- ● ●
408 CAP; BREATHER,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-874-0 02 1 1112- ●
414 PIN; HEADLAMP,RIM
FACE LIFT MODEL<TX7> 		8-97581-667-0 02 1 1112- ●
420 SPRING; BULB,HEADLAMP
FACE LIFT MODEL<TX7> 		8-97378-875-0 02 1 1112- ●

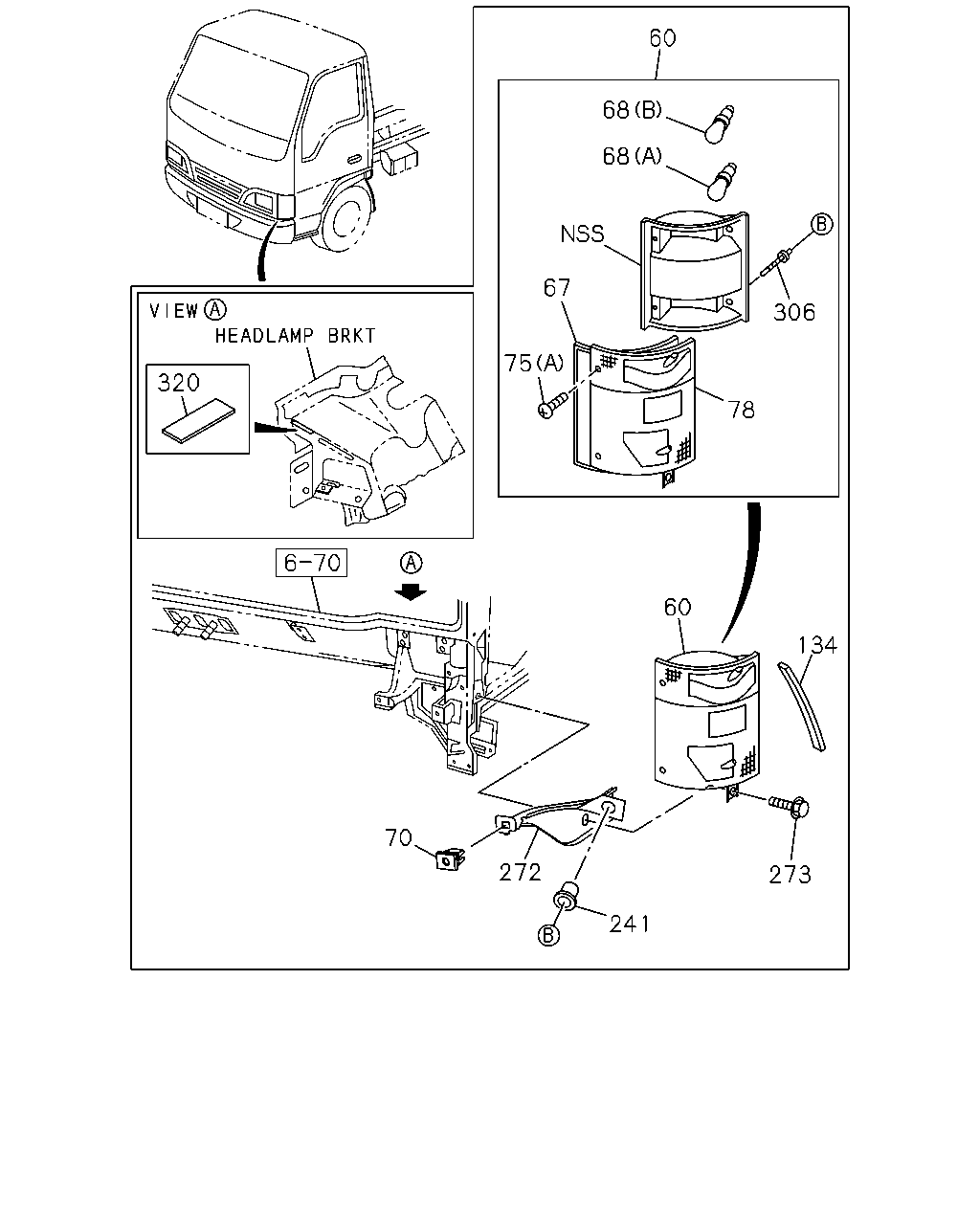

çizim 74210
60 68 68 67 306 75 320 78 60 134 70 272 273 241
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-889-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
FACE LIFT MODEL<TX7> 		8-98010-890-0 01 1 1112- ●
60 LAMP ASM; FRT COMB 8-97855-006-2 01 1 9704-0209 ●
60 LAMP ASM; FRT COMB 8-97855-006-2 01 1 0210-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-978-0 01 1 0702-1111 ● ●
60 LAMP ASM; FRT COMB 8-98053-978-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-978-0 01 1 1112- ●
60 LAMP ASM; FRT COMB 8-97855-005-2 01 1 9704-0209 ●
60 LAMP ASM; FRT COMB 8-97855-005-2 01 1 0210-0701 ● ●
60 LAMP ASM; FRT COMB 8-98053-977-0 01 1 0702-1111 ● ●
60 LAMP ASM; FRT COMB 8-98053-977-0 01 1 1112- ●
60 LAMP ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-98053-977-0 01 1 1112- ●
67 GASKET; FRT COMB LAMP
FACE LIFT MODEL<TX7> 		8-97378-948-0 02 1 1112- ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9704-0209 ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0210-1111 ● ●
67 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 1112- ●
67 GASKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97855-121-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) 12V 21/5W 		8-94125-959-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
FACE LIFT MODEL<TX7> (D) 12V 21W 		8-97304-590-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 9704-0209 ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 0210-1111 ● ●
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (B) 12V 21W 		8-94124-074-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 9704-0209 ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 0210-1111 ● ●
68 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 1112- ●
68 BULB; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) 12V 27/8W 		8-97094-889-0 02 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP
FACE LIFT MODEL<TX7> 		1-09983-081-0 02 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9704-0209 ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0210-1111 ● ●
70 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 1112- ●
70 GROMMET; SCREW,FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97030-792-0 04 1 1112- ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (B) M6X16 TAPPING 		8-97374-995-0 02 1 1112- ●
75 SCREW; FRT COMB LAMP
FACE LIFT MODEL<TX7> (C) M4X12 		8-97378-944-0 14 1 1112- ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9704-0209 ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0210-1111 ● ●
75 SCREW; FRT COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1112- ●
75 SCREW; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1112- ●
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 9704-0209 ●
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 0210-1111 ● ●
78 LENS ASM; FRT COMB 8-97855-131-0 01 1 1112- ●
78 LENS ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-97855-131-0 01 1 1112- ●
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 9704-0209 ●
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 0210-1111 ● ●
78 LENS ASM; FRT COMB 8-97855-128-0 01 1 1112- ●
78 LENS ASM; FRT COMB
EXC. FACE LIFT MODEL<TX7> 		8-97855-128-0 01 1 1112- ●
134 FINISHER; HEADLAMP RIM 8-97890-583-0 01 1 9706-9706 ●
134 FINISHER; HEADLAMP RIM 8-97890-583-0 02 1 9707-0209 ●
134 FINISHER; HEADLAMP RIM 8-97890-583-0 02 1 0210- ● ●
241 GROMMET; FRT LAMP
FACE LIFT MODEL<TX7> 		8-97380-030-0 02 1 1112- ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 9704-0209 ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 0210-1111 ● ●
241 GROMMET; FRT LAMP 8-94452-095-0 04 1 1112- ●
241 GROMMET; FRT LAMP
EXC. FACE LIFT MODEL<TX7> 		8-94452-095-0 04 1 1112- ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9704-0209 ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0210-1111 ● ●
272 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 1112- ●
272 BRACKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97853-237-2 01 1 1112- ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9704-0209 ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0210-1111 ● ●
272 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 1112- ●
272 BRACKET; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97853-236-2 01 1 1112- ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9704-0209 ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0210-1111 ● ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1112-1210 ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1112-1210 ●
273 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ●
273 BOLT; BRKT
EXC. FACE LIFT MODEL<TX7> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ●
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9704-0209 ●
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0210-1111 ● ●
306 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 1112- ●
306 PIVOT; FRT COMB LAMP
EXC. FACE LIFT MODEL<TX7> 		8-97219-053-0 04 1 1112- ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9704-0209 ●
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0210- ● ●

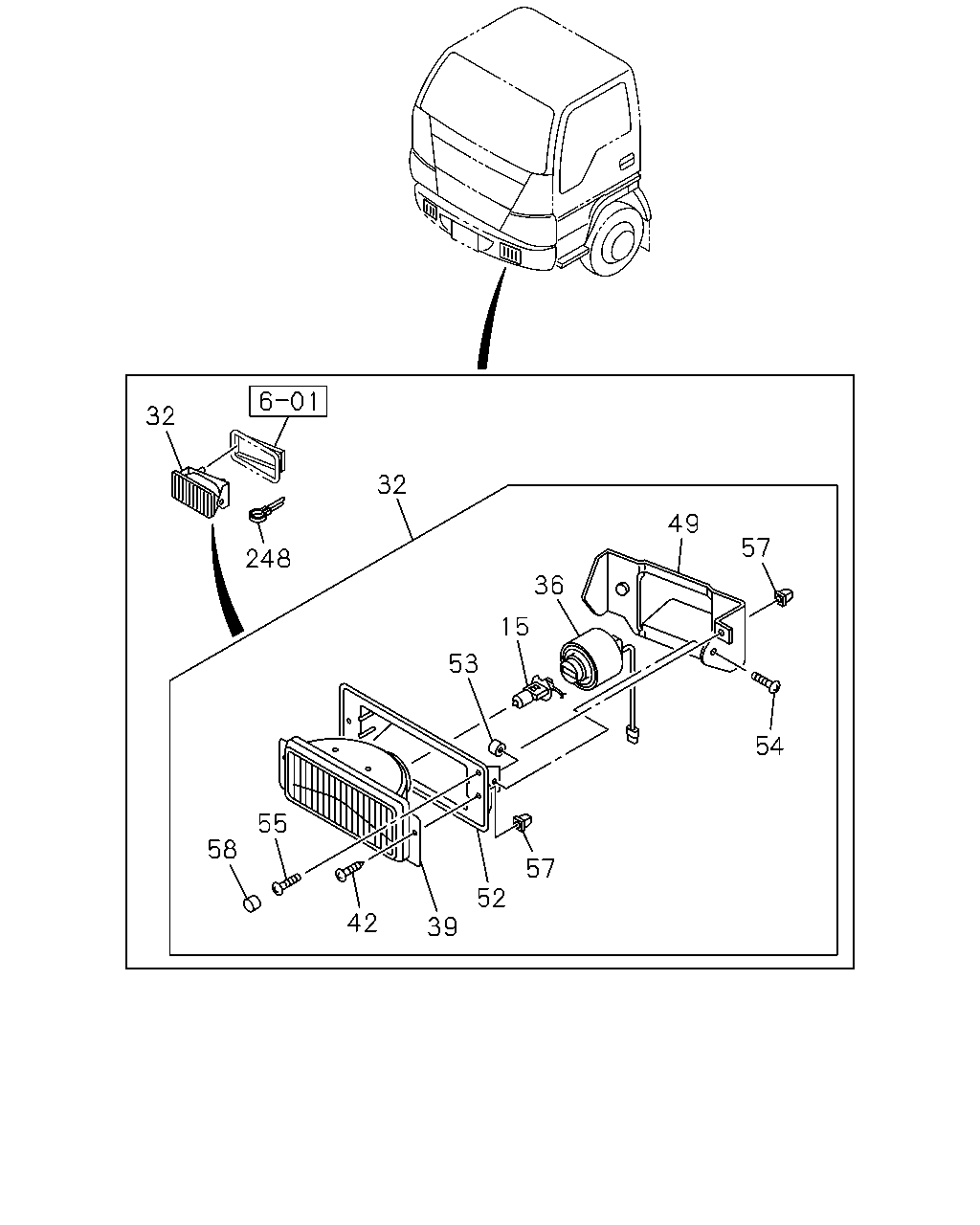

çizim 102786
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FACE LIFT MODEL<TX7> 12V 55W 		8-97093-859-0 02 1 1112- ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 9704-0209 ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 0210-1111 ● ●
15 BULB; FOG LAMP
12V 55W 		8-97180-368-0 02 1 1112- ●
15 BULB; FOG LAMP
EXC. FACE LIFT MODEL<TX7> 12V 55W 		8-97180-368-0 02 1 1112- ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-093-0 01 1 1112- ●
32 LAMP ASM; FOG
FACE LIFT MODEL<TX7> 		8-98054-094-0 01 1 1112- ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 9704-0209 ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 0210-1111 ● ●
32 LAMP ASM; FOG 8-97164-345-0 01 1 1112- ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-345-0 01 1 1112- ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 9704-0209 ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 0210-1111 ● ●
32 LAMP ASM; FOG 8-97164-344-0 01 1 1112- ●
32 LAMP ASM; FOG
EXC. FACE LIFT MODEL<TX7> 		8-97164-344-0 01 1 1112- ●
36 CORD; FOG LAMP
FACE LIFT MODEL<TX7> 		8-97095-518-0 02 1 1112- ●
39 UNIT; FOG LAMP
FACE LIFT MODEL<TX7> 		8-98063-678-0 01 1 1112- ●
39 UNIT; FOG LAMP
FACE LIFT MODEL<TX7> 		8-98063-679-0 01 1 1112- ●
42 SCREW; LENS,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-089-0 04 1 1112- ●
49 BRACKET; LAMP
FACE LIFT MODEL<TX7> 		8-97104-090-0 01 1 1112- ●
49 BRACKET; LAMP
FACE LIFT MODEL<TX7> 		8-97104-091-0 01 1 1112- ●
52 RING; MTG,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-062-0 02 1 1112- ●
53 NUT; MTG RING,FOG LAMP
FACE LIFT MODEL<TX7> 		8-94379-802-0 04 1 1112- ●
54 BOLT; MTG RING,FOG LAMP
FACE LIFT MODEL<TX7> M5X12 		8-94379-803-0 04 1 1112- ●
55 SCREW; ADJ,FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-087-0 02 1 1112- ●
57 NUT; UNIT TO SCREW,FOG LAMP
FACE LIFT MODEL<TX7> 		8-94379-806-0 06 1 1112- ●
58 HOLDER; FOG LAMP
FACE LIFT MODEL<TX7> 		8-97104-088-0 02 1 1112- ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 9704-0209 ●
248 CLIP; HARNESS
ID=20 		5-09700-321-0 02 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
