◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#72767) — 151 parça

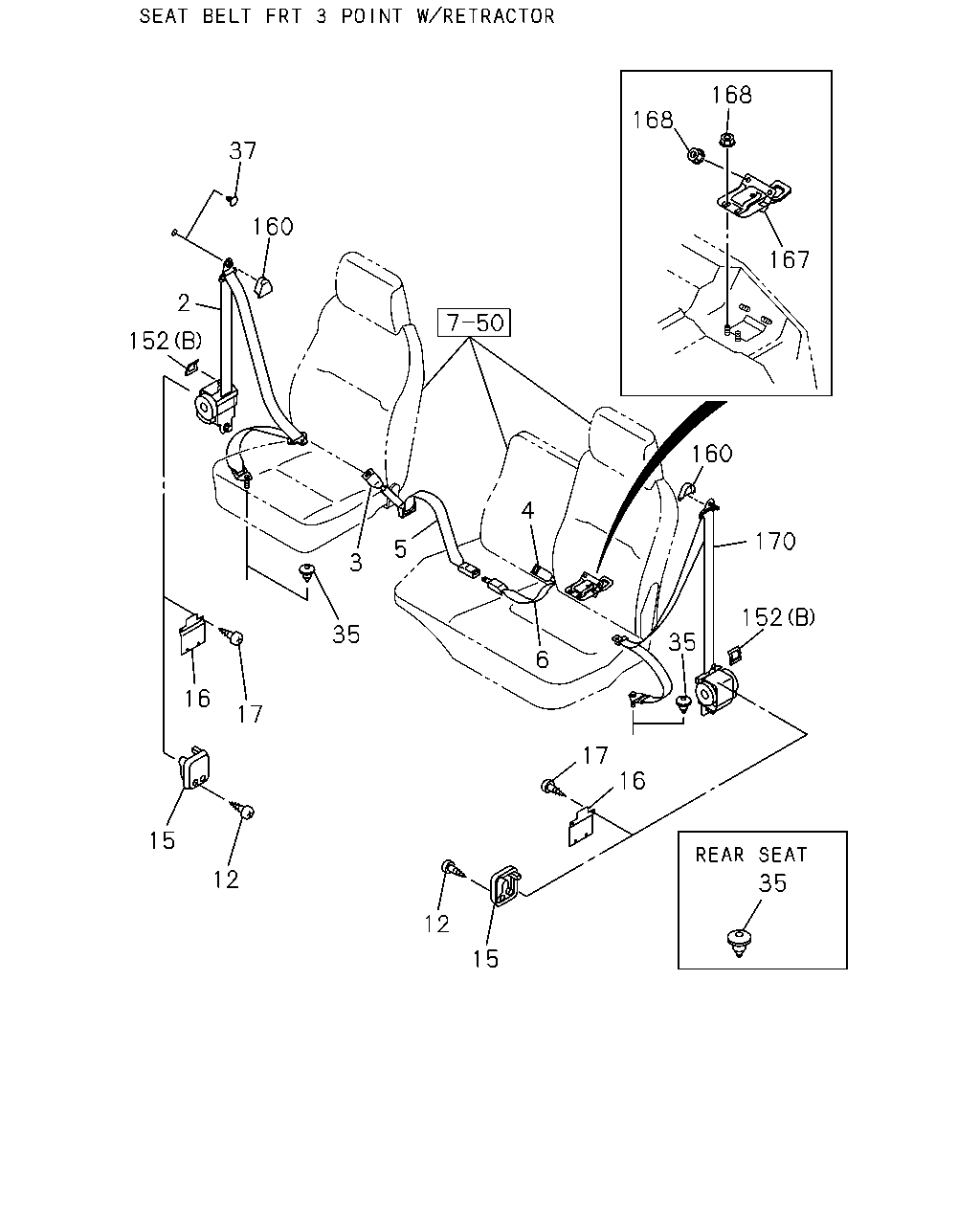

çizim 73899
168 168 37 160 167 2 152 160 4 170 5 3 152 35 35 6 16 17 17 16 15 12 35 12 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9704-9708 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9704-9708 ●
2 BELT; SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-143-0 01 1 9709-9712 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9801-0209 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 0210-0307 ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0308- ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0308- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 9704-9708 ●
3 BELT; SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-760-0 01 1 9709-9712 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 9801-0209 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 0210-0307 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-701-0 01 1 0308- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-759-0 01 1 9801-0209 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-759-0 01 1 0210-0307 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-509-0 01 1 0308- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 9704-9708 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-146-1 01 1 9709-9712 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 9801-0209 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 0210-0307 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0308- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 9801-0209 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 0210-0307 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0308- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-147-1 01 1 9704-9712 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 9801-0209 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 0210-0307 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0308-0409 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0503 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0504-0512 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97406-749-0 01 1 0601- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-148-0 01 1 9704-9712 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-148-0 01 1 9801-0209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-148-0 01 1 0210-0307 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-1 01 1 0308- ● ●
12 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M6X13 		5-09981-074-0 04 1 0210-0611 ●
12 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 04 1 0612- ●
15 COVER; DUST,FRT SEAT BELT RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-154-3 02 1 0210-0307 ●
15 COVER; DUST,FRT SEAT BELT RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0308- ●
16 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-868-1 02 1 0210- ●
17 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M6X13 		5-09981-074-0 08 1 0210-0611 ●
17 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 08 1 0612- ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9704-9708 ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9801-0209 ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0210-0307 ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0308- ● ●
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 0210- ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9704-9708 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9801-0209 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0210-0307 ● ●
37 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0210-0307 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0308- ● ●
37 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0308- ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9704-9708 ●
152 PROTECTOR
(A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9709-9712 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9801-0011 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0209 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0210- ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 02 1 9704-9708 ●
160 COVER; THROUGH ANCHOR
DARK BEIGE 		8-97854-145-0 02 1 9709-9712 ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 02 1 9801-0209 ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-145-0 02 1 0210-0307 ● ●
160 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0308- ● ●
167 PLATE; ANCHOR 8-97853-700-5 01 1 9704-9710 ●
167 PLATE; ANCHOR 8-97869-412-0 01 1 9711-0209 ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0210- ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		5-09440-005-0 04 1 9704-0209 ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		5-09440-005-0 04 1 0210-0712 ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9704-9708 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9704-9708 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-143-0 01 1 9709-9712 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9801-0209 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 0210-0307 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0308- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0308- ● ●
çizim 74237
168 168 37 8 167 2 5 4 3 35 170 6 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9704-9708 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9704-9708 ●
2 BELT; SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-143-0 01 1 9709-9712 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9801-0209 ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 0210-0307 ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0308- ● ●
2 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0308- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 9704-9708 ●
3 BELT; SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-760-0 01 1 9709-9712 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 9801-0209 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-760-0 01 1 0210-0307 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-701-0 01 1 0308- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-759-0 01 1 9801-0209 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-759-0 01 1 0210-0307 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-509-0 01 1 0308- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 9704-9708 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-146-1 01 1 9709-9712 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 9801-0209 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-146-1 01 1 0210-0307 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-220-0 01 1 0308- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 9801-0209 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-766-0 01 1 0210-0307 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0308- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
DARK BEIGE 		8-97854-147-1 01 1 9704-9712 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 9801-0209 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-147-1 01 1 0210-0307 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0308-0409 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0503 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-501-0 01 1 0504-0512 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97406-749-0 01 1 0601- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-148-0 01 1 9704-9712 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-148-0 01 1 9801-0209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK BEIGE 		8-97854-148-0 01 1 0210-0307 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-224-1 01 1 0308- ● ●
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 9704-9708 ●
8 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0308- ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9704-9708 ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 9801-0209 ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0210-0307 ● ●
35 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0308- ● ●
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 0210- ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9704-9708 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 9801-0209 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0210-0307 ● ●
37 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0210-0307 ●
37 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0308- ● ●
37 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0308- ●
167 PLATE; ANCHOR 8-97853-700-5 01 1 9704-9710 ●
167 PLATE; ANCHOR 8-97869-412-0 01 1 9711-0209 ●
167 PLATE; ANCHOR 8-97869-412-2 01 1 0210- ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		5-09440-005-0 04 1 9704-0209 ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		5-09440-005-0 04 1 0210-0712 ● ●
168 NUT; ANCHOR PLATE
M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK BEIGE 		8-97854-768-1 01 1 9704-9708 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9704-9708 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DARK BEIGE 		8-97854-143-0 01 1 9709-9712 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 9801-0209 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK BEIGE 		8-97854-143-0 01 1 0210-0307 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-2 01 1 0308- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-1 01 1 0308- ● ●
çizim 102756
152 177 161 166 165 166
BalonParca AdiParca NoAdetTipApplied Date A B
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9704-9708 ●
152 PROTECTOR
(A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9709-9712 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (A) L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9801-0011 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0012-0209 ●
152 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> (B) 		8-97287-563-0 02 1 0210- ● ●
161 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 9704-0209 ●
161 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-462-3 01 1 0210- ● ●
165 HOOK; SEAT BELT ANCHOR 8-97850-288-5 01 1 9704-9710 ●
165 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 9711-0209 ●
165 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0210- ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 04 1 9704-0209 ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28680-825-0 04 1 0210-0512 ● ●
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
177 NUT
M8 W/LK WASHER 		8-94327-073-0 01 1 9704-0209 ●
177 NUT
M8 W/LK WASHER 		8-94327-073-0 01 1 0210-0805 ● ●
177 NUT
M8 W/LK WASHER 		8-97581-234-0 01 1 0806- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
