Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#72764) — 175 parça

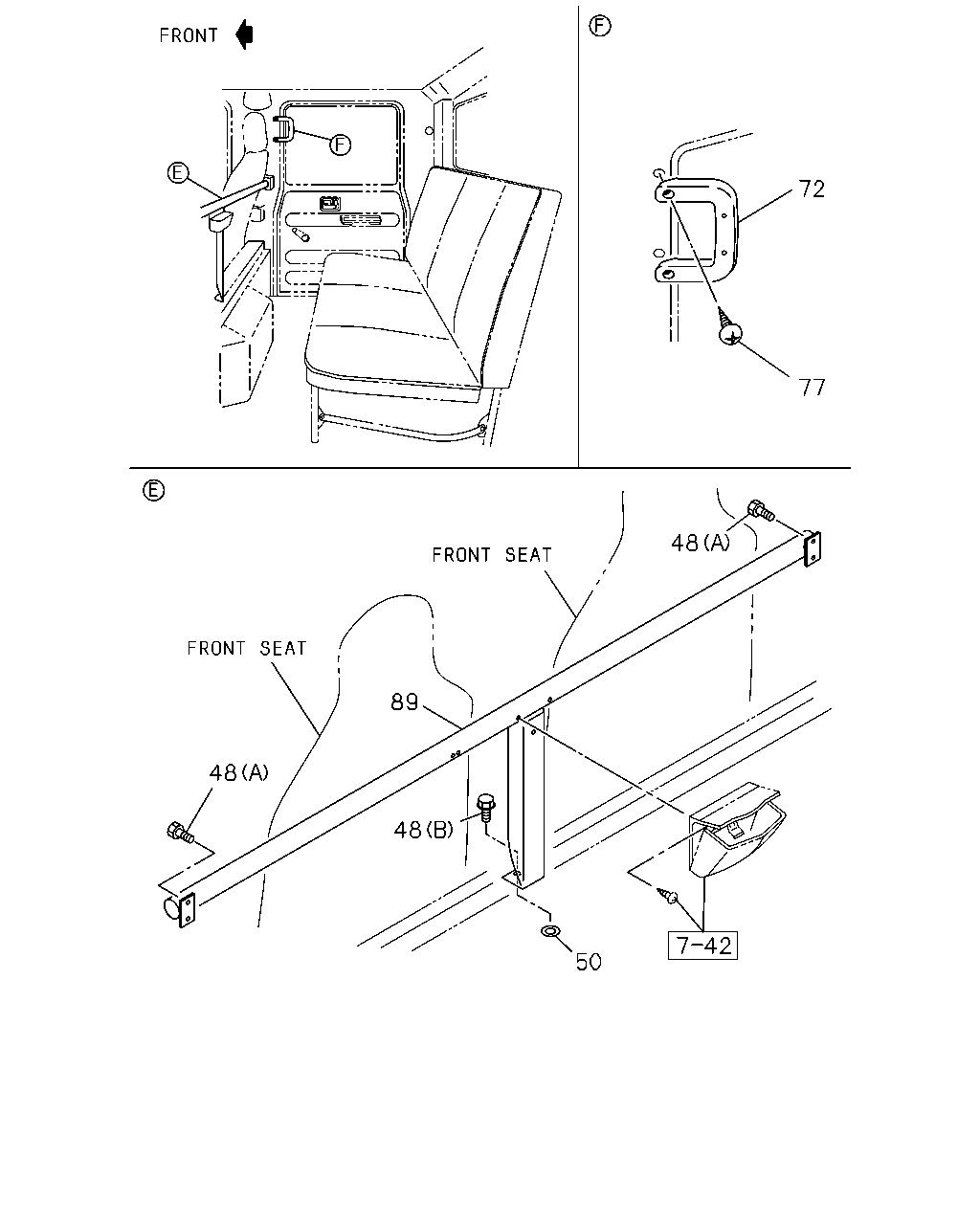

72 77 48 89 48 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0210-	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	0210-	●
50	WASHER; PL,ASSIST GRIP ID=8.4	9-09160-508-0	01	1	0210-0605	●
50	WASHER; PL,ASSIST GRIP ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
72	GRIP; ASSIST,CAB ENTRY,BACK DARK BEIGE	8-97867-883-0	02	1	0210-0307	●
72	GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97867-209-1	02	1	0308-	●
77	SCREW; ASSIST GRIP M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0210-	●
89	HANDLE; ASSIST	8-97853-446-5	01	1	0210-	●

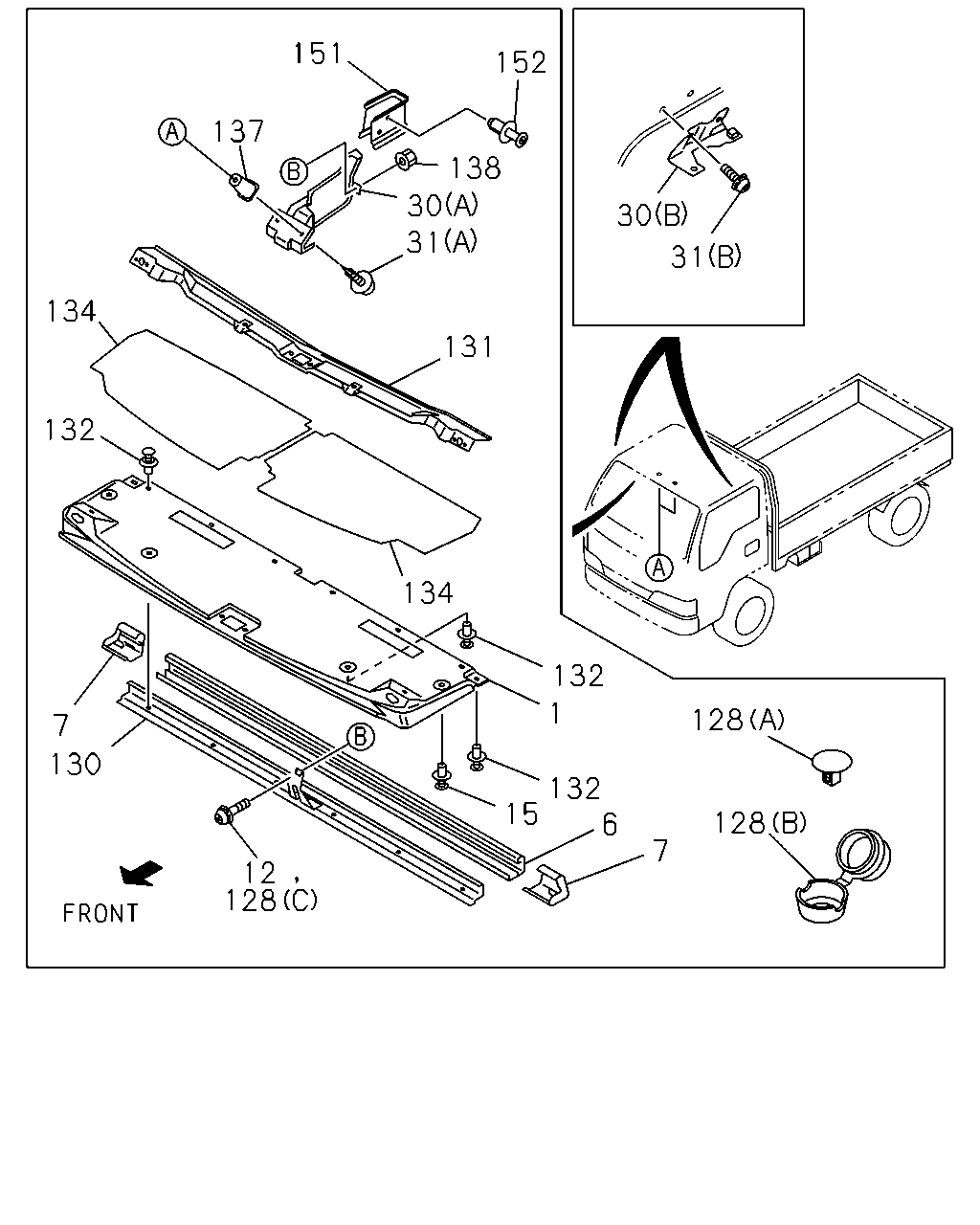

151 152 137 138 30 31 30 31 134 131 132 134 132 1 128 7 130 132 6 15 128 7 12 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9704-0004		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97892-464-5	01	1	0005-0105		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97994-817-0	01	1	0106-0209		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97994-817-0	01	1	0210-0307	●	●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-1	01	1	0308-	●	●
6	FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-055-1	01	1	9704-0004		●
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9704-0004		●
7	FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9704-0004		●
12	SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9704-9810		●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97856-755-0	02	1	9704-9810		●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97892-697-0	02	1	9811-0209		●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97892-697-0	02	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) CENTER	8-97859-388-1	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) CENTER	8-97859-388-4	01	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0210-	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9704-0209		●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0210-0405	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0406-	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9704-0209		●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0210-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	9811-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0210-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) GRAY	8-97892-538-2	02	1	0005-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) GRAY	8-97892-538-2	02	1	0210-0307	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0308-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97853-998-2	01	1	9704-0004		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97892-465-0	01	1	0005-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97892-465-0	01	1	0210-0307	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0308-	●	●
130	REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-531-1	01	1	9704-0004		●
131	REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-742-6	01	1	9704-0004		●
132	FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9704-0004		●
134	SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-478-0	02	1	9704-0004		●
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	9704-0209		●
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0210-0405	●	●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	9704-0209		●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	1-73318-553-1	01	1	9704-0209		●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	1-73318-553-1	01	1	0210-0307	●	●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0308-	●	●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9704-0209		●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	0210-0307	●	●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0308-	●	●

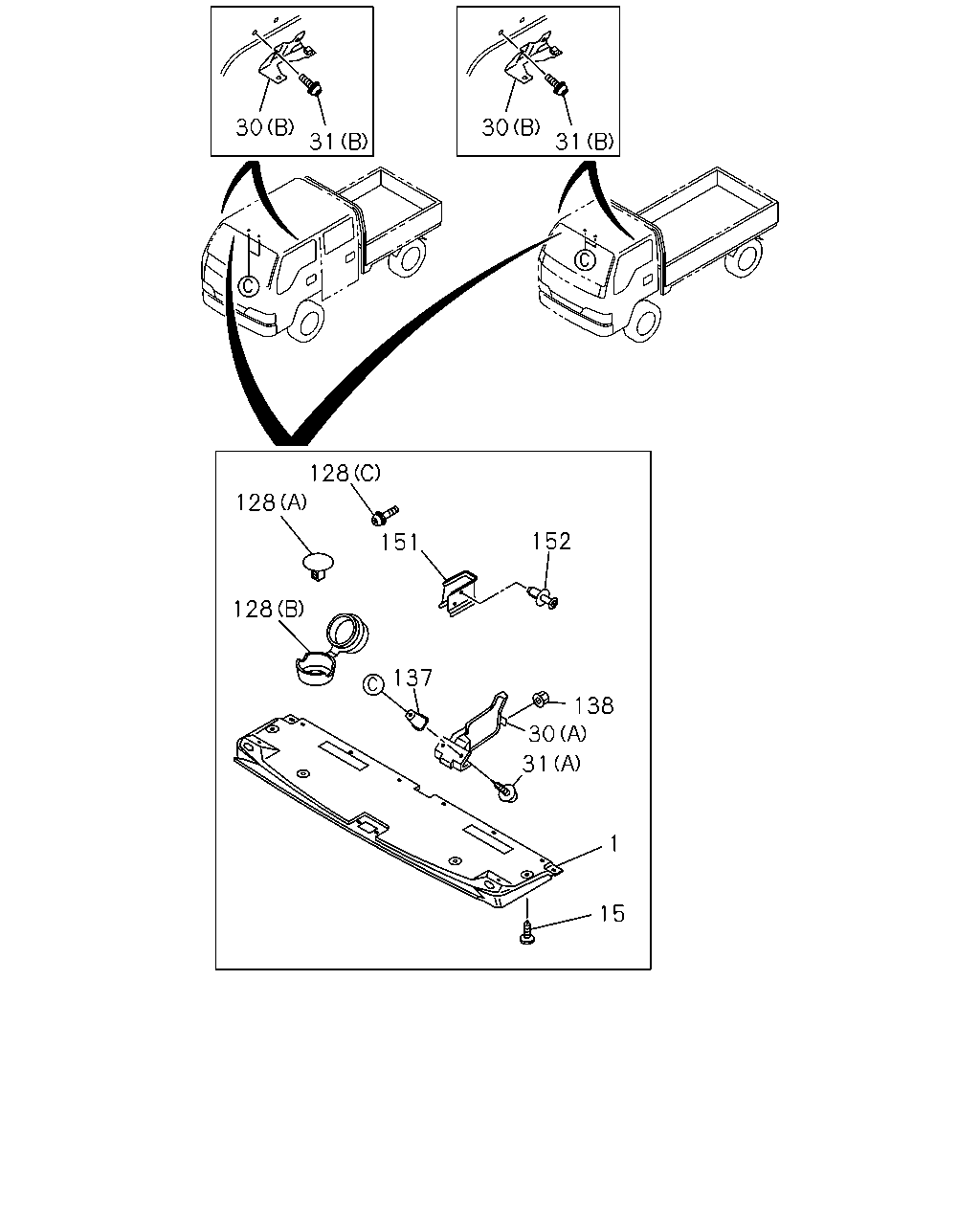

30 30 31 31 128 128 152 151 128 137 138 30 31 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97869-050-0	01	1	9704-0004		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97892-464-5	01	1	0005-0105		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97994-817-0	01	1	0106-0209		●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97994-817-0	01	1	0210-0307	●	●
1	BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-1	01	1	0308-	●	●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97856-755-0	02	1	9704-9810		●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97892-697-0	02	1	9811-0209		●
15	FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ>	8-97892-697-0	02	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) CENTER	8-97859-388-1	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) CENTER	8-97859-388-4	01	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0210-	●	●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9704-0209		●
30	BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0210-	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9704-0209		●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0210-0405	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (A) M5X16	8-94279-341-0	02	1	0406-	●	●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9704-0209		●
31	SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0210-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	9811-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0210-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) GRAY	8-97892-538-2	02	1	0005-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) GRAY	8-97892-538-2	02	1	0210-0307	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	0308-	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97853-998-2	01	1	9704-0004		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97892-465-0	01	1	0005-0209		●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) GRAY	8-97892-465-0	01	1	0210-0307	●	●
128	FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	0308-	●	●
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	9704-0209		●
137	GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0210-0405	●	●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	9704-0209		●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
138	NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	1-73318-553-1	01	1	9704-0209		●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	1-73318-553-1	01	1	0210-0307	●	●
151	COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0308-	●	●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	9704-0209		●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97857-053-0	02	1	0210-0307	●	●
152	CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0308-	●	●

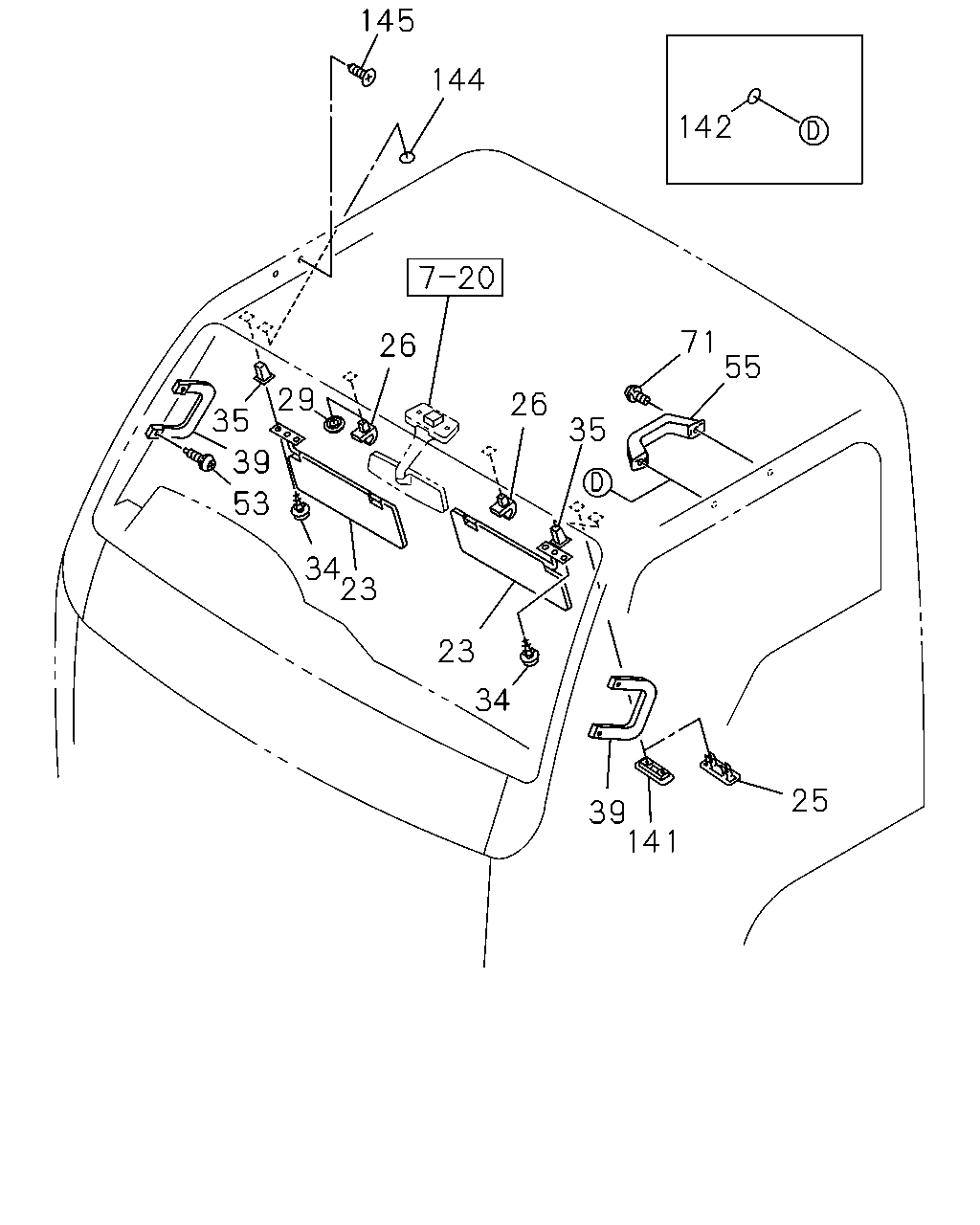

145 144 142 71 55 26 29 26 35 35 39 53 34 23 23 34 25 39 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97856-034-3	01	1	9704-0209		●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97856-034-3	01	1	0210-0307	●	●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-503-1	01	1	0308-0509	●	●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-400-0	01	1	0510-	●	●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-236-3	01	1	9704-0209		●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-236-3	01	1	0210-0307	●	●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-505-1	01	1	0308-0509	●	●
23	SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-398-0	01	1	0510-	●	●
23	SUN VISOR TRAY ROOF HEAD<7EJ> GRAY	8-97856-237-2	01	1	9704-0209		●
23	SUN VISOR TRAY ROOF HEAD<7EJ> GRAY	8-97856-237-2	01	1	0210-0307	●	●
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-947-1	01	1	0308-0509	●	●
23	SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-452-0	01	1	0510-	●	●
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-3	01	1	9704-0209		●
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-235-3	01	1	0210-0307	●	●
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-946-1	01	1	0308-0509	●	●
23	SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-450-0	01	1	0510-	●	●
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9704-0209		●
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	0210-0307	●	●
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	0308-0610	●	●
25	COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	9704-0209		●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97853-966-2	02	1	0210-0307	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0308-0610	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9704-0209		●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	0210-0307	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0308-0610	●	●
26	HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-	●	●
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9704-0209		●
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	0210-0307	●	●
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0308-0610	●	●
26	HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-	●	●
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	9704-0209		●
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-966-2	01	1	0210-0307	●	●
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0308-0610	●	●
26	HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-	●	●
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0	8-94279-040-0	01	1	9704-0209		●
29	HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0	8-94279-040-0	01	1	0210-	●	●
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	9704-0209		●
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	9704-0209		●
34	SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	0210-	●	●
34	SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> M5X20	5-09981-059-0	04	1	0210-	●	●
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	9704-0209		●
34	SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0210-	●	●
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	9704-0209		●
35	GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	9704-0209		●
35	GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0210-	●	●
35	GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>	8-94279-039-0	04	1	0210-	●	●
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ>	8-94279-039-0	02	1	9704-0209		●
35	GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ>	8-94279-039-0	02	1	0210-	●	●
39	HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9704-0209		●
39	HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	0210-0307	●	●
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-1	02	1	0308-	●	●
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9704-0209		●
53	SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0210-	●	●
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9704-0209		●
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	0210-0307	●	●
55	GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97098-476-2	01	1	0308-	●	●
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9704-0209		●
71	SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	0210-	●	●
141	COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9704-0209		●
141	COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	0210-0307	●	●
141	COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	0308-	●	●
142	SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9704-0208		●
142	SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9704-0208		●
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9704-9810		●
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-0209		●
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-0209		●
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0210-0307	●	●
144	SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0210-0307	●	●
144	SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0308-	●	●
144	SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0308-	●	●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9704-9810		●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-0209		●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-0209		●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-2	02	1	0210-0610	●	●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-97856-832-2	02	1	0210-0610	●	●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-98059-421-0	02	1	0611-	●	●
144	SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE	8-98059-421-0	02	1	0611-	●	●
145	PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8	8-94279-921-0	04	1	9704-0209		●
145	PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> OD=12 L=14.8	8-94279-921-0	04	1	0210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
