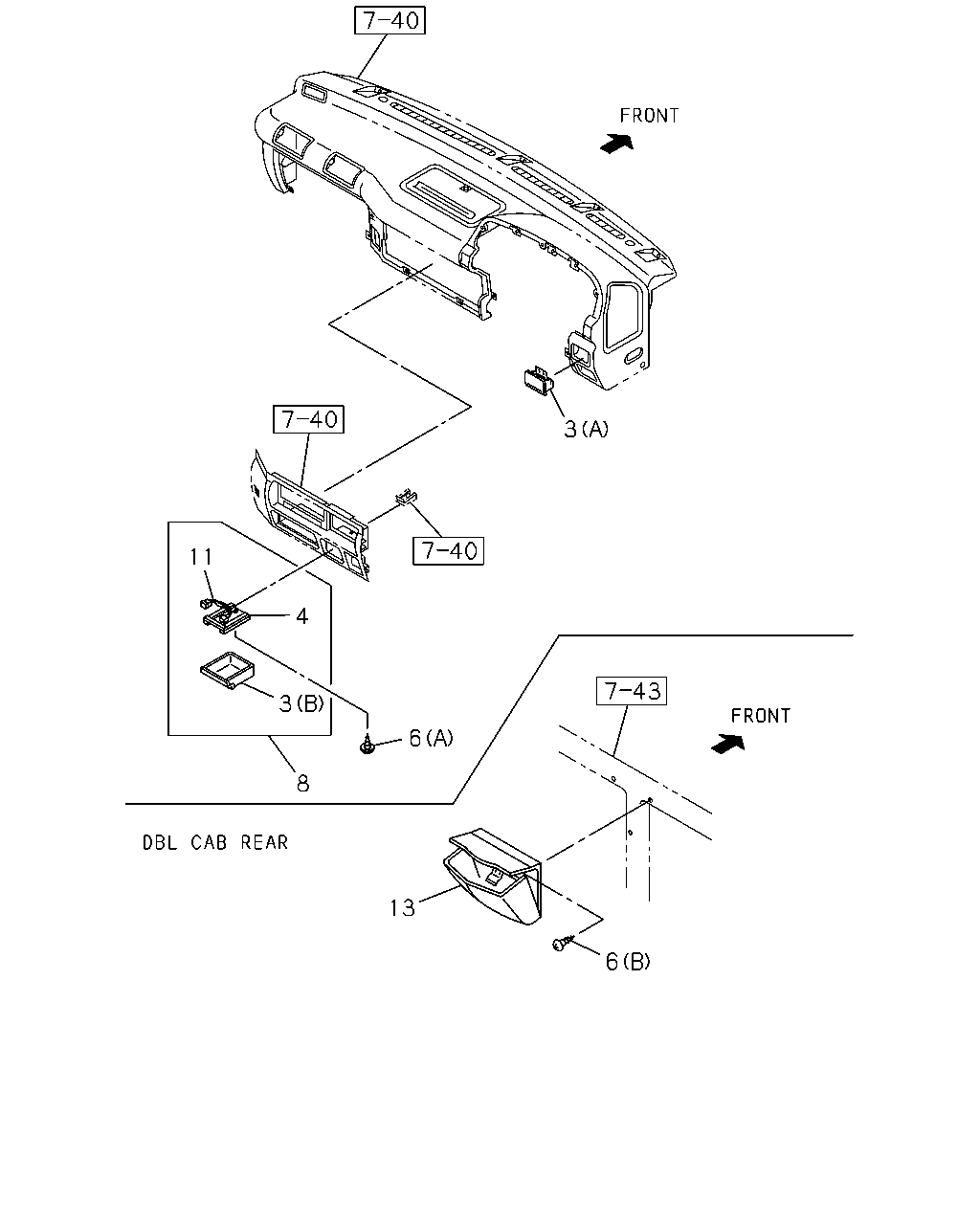

7-42 — ASH TRAY (#72763) — 23 parça

3 11 3 6 8 13 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CASE ASM; ASH TRAY INNER (B) DARK BEIGE	8-97857-997-1	01	1	9704-0009	●
3	CASE ASM; ASH TRAY INNER (B) DARK BEIGE	8-97993-297-0	01	1	0010-0209	●
3	CASE ASM; ASH TRAY INNER (B) DARK BEIGE	8-97993-297-0	01	1	0210-0307	●	●
3	CASE ASM; ASH TRAY INNER (B) DARK GRAY	8-97993-294-0	01	1	0308-	●	●
3	CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97853-892-3	01	1	9704-9809	●
3	CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97198-912-0	01	1	9810-0209	●
3	CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK BEIGE	8-97198-912-0	01	1	0210-0307	●	●
3	CASE ASM; ASH TRAY INNER ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY	8-97198-913-0	01	1	0308-	●	●
4	CASE ASM; ASH TRAY OUTER	8-97857-995-1	01	1	9704-0009	●
4	CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0010-0209	●
4	CASE ASM; ASH TRAY OUTER	8-97898-279-0	01	1	0210-	●	●
6	SCREW; ASH TRAY (A) M6X16 TRUSS-HEAD	8-94318-980-0	01	1	9704-0209	●
6	SCREW; ASH TRAY (A) M6X16 TRUSS-HEAD	8-94318-980-0	01	1	0210-	●	●
6	SCREW; ASH TRAY (B) M4X10 TAPPING OVAL-HEAD	0-70680-410-0	03	1	0210-0603		●
6	SCREW; ASH TRAY (B) M4X10 TAPPING OVAL-HEAD	0-70640-410-0	03	1	0604-		●
8	TRAY ASM; ASH DARK BEIGE	8-97853-866-2	01	1	9704-0009	●
8	TRAY ASM; ASH DARK BEIGE	8-97993-063-0	01	1	0010-0209	●
8	TRAY ASM; ASH DARK BEIGE	8-97993-063-0	01	1	0210-0307	●	●
8	TRAY ASM; ASH	8-97898-282-0	01	1	0308-	●	●
11	BULB; ASH TRAY	8-97858-977-0	01	1	9704-0009	●
11	BULB; ASH TRAY	8-97898-283-0	01	1	0010-0209	●
11	BULB; ASH TRAY	8-97898-283-0	01	1	0210-	●	●
13	TRAY ASM; ASH,RR	5-76457-001-0	01	1	0210-		●
