7-40 — INSTRUMENT PANEL AND BOX (#72761) — 164 parça

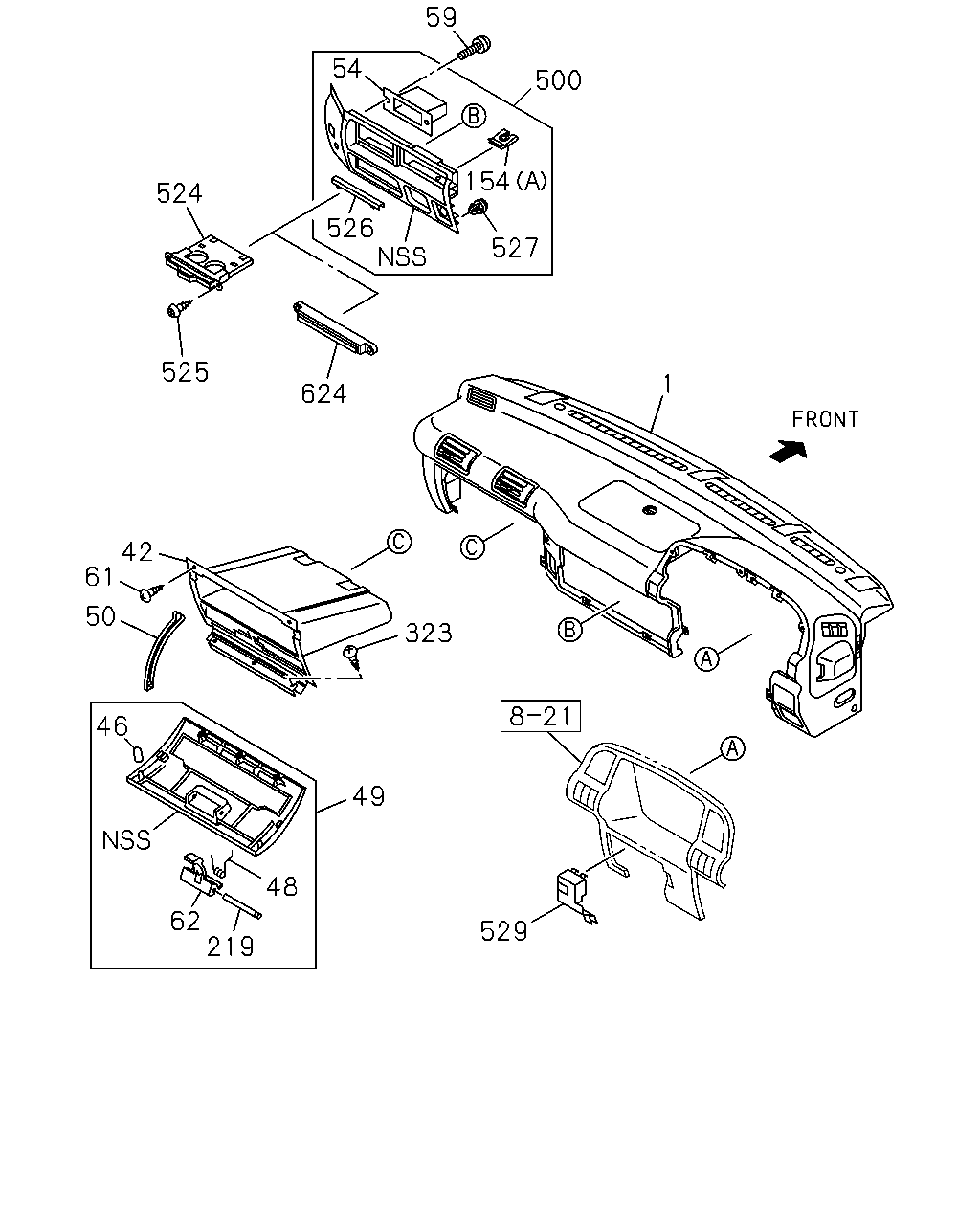

çizim 73814
59 54 500 154 524 526 527 525 1 624 42 61 50 323 46 49 48 62 219 529
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK BEIGE 		8-97855-243-6 01 1 9704-0209 ●
1 PANEL; INST
DARK BEIGE 		8-97855-243-6 01 1 0210-0307 ● ●
1 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 0308- ● ●
42 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9704-0209 ●
42 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 0210- ● ●
46 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9704-0208 ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9704-0209 ●
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0210- ● ●
49 LID; GLOVE BOX
DARK BEIGE 		8-97853-859-5 01 1 9704-0209 ●
49 LID; GLOVE BOX
DARK BEIGE 		8-97853-859-5 01 1 0210-0307 ● ●
49 LID; GLOVE BOX
DARK GRAY 		8-97859-798-5 01 1 0308- ● ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 9704-0209 ●
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0210- ● ●
54 POCKET; CENTER CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97196-294-2 01 1 9902-0209 ●
54 POCKET; CENTER CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97196-294-2 01 1 0210- ● ●
59 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X14 		8-94279-325-0 02 1 9902-0208 ●
59 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X14 		8-94148-576-1 02 1 0210-0401 ● ●
59 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) M5X14 		8-94279-325-0 02 1 0402- ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9704-0209 ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0210-0604 ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605- ● ●
62 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9704-0209 ●
62 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 0210-0307 ● ●
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0308- ● ●
154 NUT
(B) M6 SPIRE NUT 		8-94291-960-0 03 1 9704-9806 ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0209 ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0210- ● ●
154 NUT
(A) M6 SPIRE NUT 		8-94291-960-0 01 1 9704-9901 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ●
154 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0209-0209 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0210- ● ●
154 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9704-0209 ●
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0210- ● ●
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 9704-0209 ●
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 0210- ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97853-863-9 01 1 9704-9901 ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97199-871-0 01 1 9902-9902 ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97894-154-2 01 1 9902-0209 ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97894-154-2 01 1 0210-0307 ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97198-489-2 01 1 0308- ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97853-862-9 01 1 9704-9901 ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97199-869-0 01 1 9902-9902 ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97894-153-5 01 1 9902-0209 ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97894-153-5 01 1 0210-0307 ● ●
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97892-187-5 01 1 0308- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9704-0209 ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0210- ● ●
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 9704-0209 ●
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0210- ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97853-896-1 01 1 9704-0209 ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK BEIGE 		8-97853-896-1 01 1 0210-0307 ● ●
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-503-1 01 1 0308- ● ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 9704-9901 ●
527 CLIP; INST CLUSTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-169-0 08 1 9902-0208 ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0209-0209 ●
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0210- ● ●
527 CLIP; INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-169-0 04 1 9902-0208 ●
529 POCKET; COIN
DARK BEIGE 		8-97853-873-5 01 1 9704-0209 ●
529 POCKET; COIN
DARK BEIGE 		8-97853-873-5 01 1 0210-0307 ● ●
529 POCKET; COIN
BLACK 		8-97867-074-5 01 1 0308- ● ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9704-0209 ●
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0210- ● ●

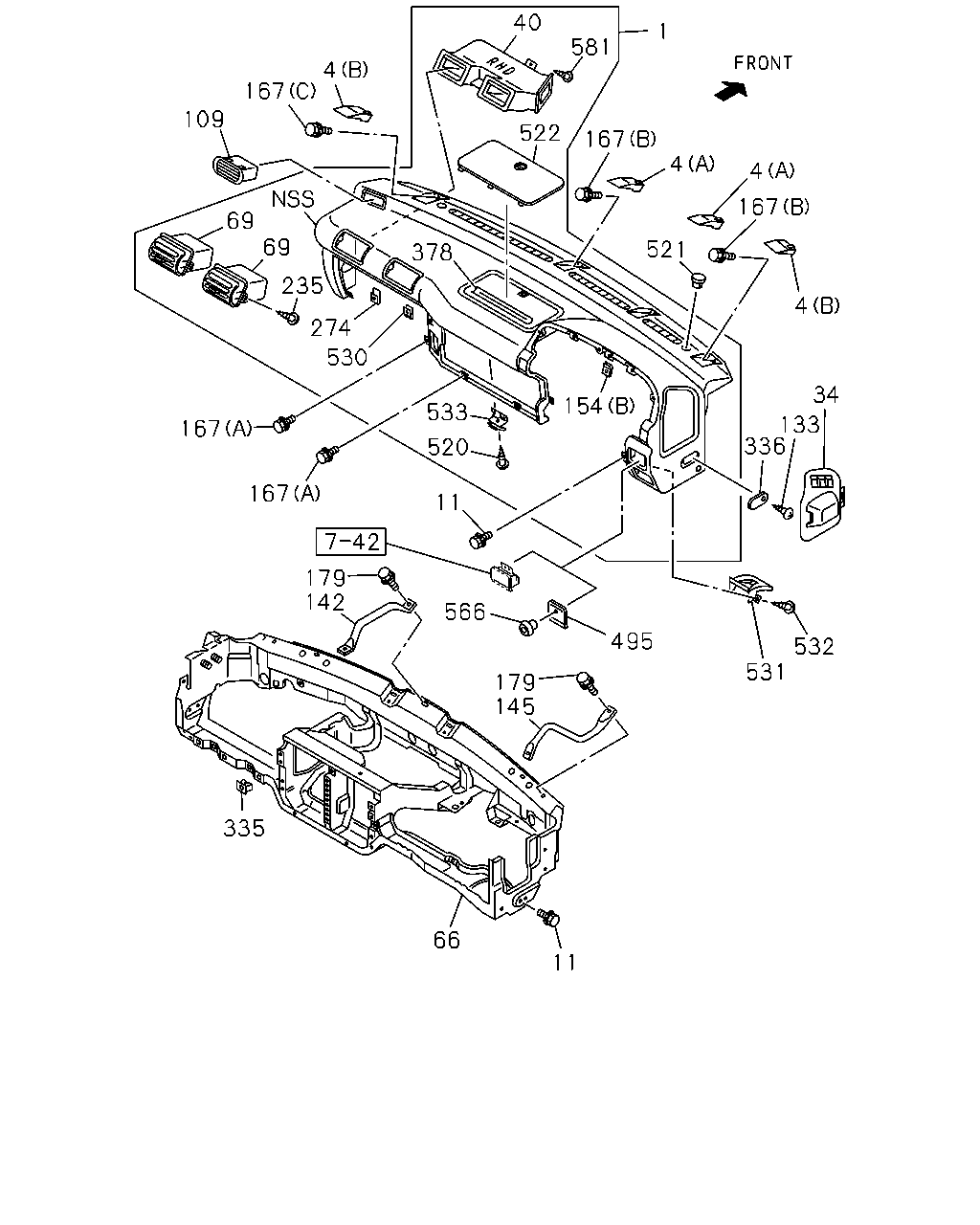

çizim 102749
40 1 581 4 167 109 522 167 4 4 167 69 69 521 378 235 4 274 530 34 154 533 133 336 167 520 167 11 179 142 566 495 532 531 179 145 335 66 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
DARK BEIGE 		8-97855-243-6 01 1 9704-0209 ●
1 PANEL; INST
DARK BEIGE 		8-97855-243-6 01 1 0210-0307 ● ●
1 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 0308- ● ●
4 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9704-0209 ●
4 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 0210-0307 ● ●
4 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0308- ● ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9704-0209 ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 0210-0307 ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0308- ● ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9704-0209 ●
4 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 0210-0307 ● ●
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0308- ● ●
11 BOLT; INST PNL
M8X20 FLANGE 		8-97114-431-0 04 1 9704-0106 ●
11 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0107-0209 ●
11 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0210- ● ●
34 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9704-0209 ●
34 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 0210-0307 ● ●
34 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 0308- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97035-234-0 01 1 9704-0007 ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-688-0 01 1 0008-0209 ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-688-0 01 1 0210- ● ●
66 REINFORCEMENT; INST PANEL 8-97857-590-8 01 1 9704-9802 ●
66 REINFORCEMENT; INST PANEL 8-97194-312-3 01 1 9803-9901 ●
66 REINFORCEMENT; INST PANEL 8-97892-865-0 01 1 9902-9909 ●
66 REINFORCEMENT; INST PANEL 8-97896-977-0 01 1 9910-9911 ●
66 REINFORCEMENT; INST PANEL 8-97898-307-0 01 1 9912-0005 ●
66 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0006-0209 ●
66 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0210-0505 ● ●
66 REINFORCEMENT; INST PANEL 8-98013-756-1 01 1 0506- ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9704-0209 ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 0210-0301 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97898-338-0 02 1 0302-0304 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 0305-0307 ● ●
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0308- ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9704-0209 ●
109 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 0210-0307 ● ●
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 0308- ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9704-0209 ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0210-0604 ● ●
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605- ● ●
142 STAY; INST PANEL 8-97853-637-2 01 1 9704-0209 ●
142 STAY; INST PANEL 8-97853-637-2 01 1 0210- ● ●
145 STAY; INST PANEL SIDE 8-97853-638-3 01 1 9704-0209 ●
145 STAY; INST PANEL SIDE 8-97853-638-3 01 1 0210- ● ●
154 NUT
(B) M6 SPIRE NUT 		8-94291-960-0 03 1 9704-9806 ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0209 ●
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0210- ● ●
154 NUT
(A) M6 SPIRE NUT 		8-94291-960-0 01 1 9704-9901 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ●
154 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0209-0209 ●
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0210- ● ●
154 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ●
167 BOLT; REINF TO INST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9704-0209 ●
167 BOLT; REINF TO INST
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0210-1210 ● ●
167 BOLT; REINF TO INST
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211- ● ●
167 BOLT; REINF TO INST
(B) M6X25 		8-94279-204-0 02 1 9704-0209 ●
167 BOLT; REINF TO INST
(B) M6X25 		8-94279-204-0 02 1 0210- ● ●
167 BOLT; REINF TO INST
(C) M6X24 FLANGE 		8-94279-231-1 02 1 9704-0209 ●
167 BOLT; REINF TO INST
(C) M6X24 FLANGE 		8-94279-231-1 02 1 0210- ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9704-0209 ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0210-0307 ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512 ● ●
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601- ● ●
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 9704-0209 ●
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 0210- ● ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 9704-0209 ●
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0210- ● ●
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9704-0209 ●
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0210- ● ●
336 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9704-0209 ●
336 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 0210-0307 ● ●
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0308- ● ●
378 SEAL; INST PANEL 8-97853-938-0 01 1 9704-9810 ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 9811-0209 ●
378 SEAL; INST PANEL 8-97209-399-0 01 1 0210- ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9704-0209 ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 0210-0307 ● ●
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 0308- ● ●
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 02 1 9704-0209 ●
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 02 1 0210- ● ●
521 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9704-0209 ●
521 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 0210-0307 ● ●
521 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0308- ● ●
522 LID; RELAY BOX
DARK BEIGE 		8-97853-876-6 01 1 9704-0209 ●
522 LID; RELAY BOX
DARK BEIGE 		8-97853-876-6 01 1 0210-0307 ● ●
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0308- ● ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 9704-0209 ●
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0210- ● ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9704-0209 ●
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0210- ● ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 		8-94279-325-0 02 1 9704-0209 ●
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 		8-94279-325-0 02 1 0210- ● ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9704-0209 ●
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0210- ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9704-0209 ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 0210-0307 ● ●
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 0308- ● ●
581 SCREW
M5X14 		8-94279-325-0 02 1 9704-0209 ●
581 SCREW
M5X14 		8-94279-325-0 02 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
