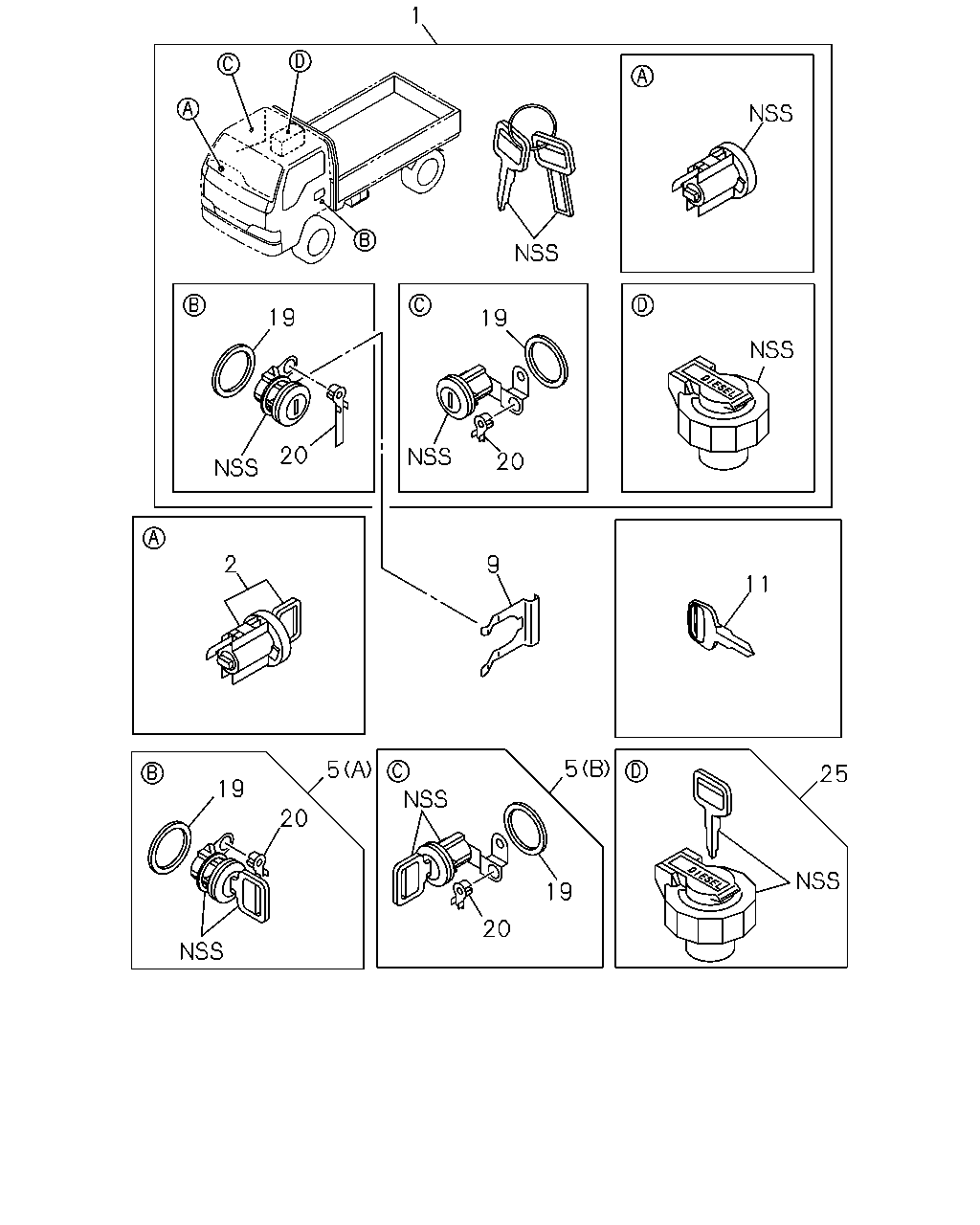

7-30 — LOCK CYLINDER SET (#72760) — 38 parça

1 19 19 20 20 2 9 11 5 5 25 19 20 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK FACE LIFT MODEL<TX7>	8-97035-293-1	01	1	1112-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05>	8-97868-331-0	01	1	9704-		●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97868-927-0	01	1	9704-0209		●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97868-927-0	01	1	0210-1111		●
1	CYLINDER SET; CAR LOCK	8-97868-927-0	01	1	0210-1111	●
1	CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97868-927-0	01	1	1112-		●
1	CYLINDER SET; CAR LOCK EXC. FACE LIFT MODEL<TX7>	8-97868-927-0	01	1	1112-	●
2	BARREL ASM; W/KEY,STRG LOCK FACE LIFT MODEL<TX7>	8-97095-682-2	01	1	1112-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-97868-929-0	01	1	9704-0209		●
2	BARREL ASM; W/KEY,STRG LOCK	8-97868-929-0	01	1	0210-1111	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-97868-929-0	01	1	1112-		●
2	BARREL ASM; W/KEY,STRG LOCK EXC. FACE LIFT MODEL<TX7>	8-97868-929-0	01	1	1112-	●
5	CYLINDER ASM; DOOR LOCK FACE LIFT MODEL<TX7> (B)	8-97095-684-2	01	1	1112-	●
5	CYLINDER ASM; DOOR LOCK FACE LIFT MODEL<TX7> (A)	8-97095-685-2	01	1	1112-	●
5	CYLINDER ASM; DOOR LOCK (A)	8-97868-931-0	01	1	9704-0209		●
5	CYLINDER ASM; DOOR LOCK (A)	8-97868-931-0	01	1	0210-1111	●	●
5	CYLINDER ASM; DOOR LOCK (A)	8-97868-931-0	01	1	1112-		●
5	CYLINDER ASM; DOOR LOCK EXC. FACE LIFT MODEL<TX7> (A)	8-97868-931-0	01	1	1112-	●
5	CYLINDER ASM; DOOR LOCK (B)	8-97868-930-0	01	1	9704-0209		●
5	CYLINDER ASM; DOOR LOCK (B)	8-97868-930-0	01	1	0210-1111	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-97868-930-0	01	1	1112-		●
5	CYLINDER ASM; DOOR LOCK EXC. FACE LIFT MODEL<TX7> (B)	8-97868-930-0	01	1	1112-	●
9	CLIP; DOOR LOCK	8-94278-105-0	02	1	9704-9910		●
9	CLIP; DOOR LOCK	8-97898-277-0	02	1	9911-0209		●
9	CLIP; DOOR LOCK	8-97898-277-0	02	1	0210-0610	●	●
9	CLIP; DOOR LOCK	8-97410-786-0	02	1	0611-	●	●
11	KEY; BLANK FACE LIFT MODEL<TX7> WO/NOTCH	8-97076-337-0	AR	1	1112-	●
11	KEY; BLANK	8-97868-526-0	AR	1	9704-0209		●
11	KEY; BLANK	8-97868-526-0	AR	1	0210-1111	●	●
11	KEY; BLANK	8-97868-526-0	AR	1	1112-		●
11	KEY; BLANK EXC. FACE LIFT MODEL<TX7>	8-97868-526-0	AR	1	1112-	●
19	GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	9704-0209		●
19	GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0210-	●	●
20	SNAP; DOOR LOCK CYL BROWN	8-97040-453-0	01	1	9704-0209		●
20	SNAP; DOOR LOCK CYL BROWN	8-97040-453-0	01	1	0210-	●	●
20	SNAP; DOOR LOCK CYL YELLOW	8-97040-452-0	01	1	9704-0209		●
20	SNAP; DOOR LOCK CYL YELLOW	8-97040-452-0	01	1	0210-	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97868-932-0	01	1	9704-		●
