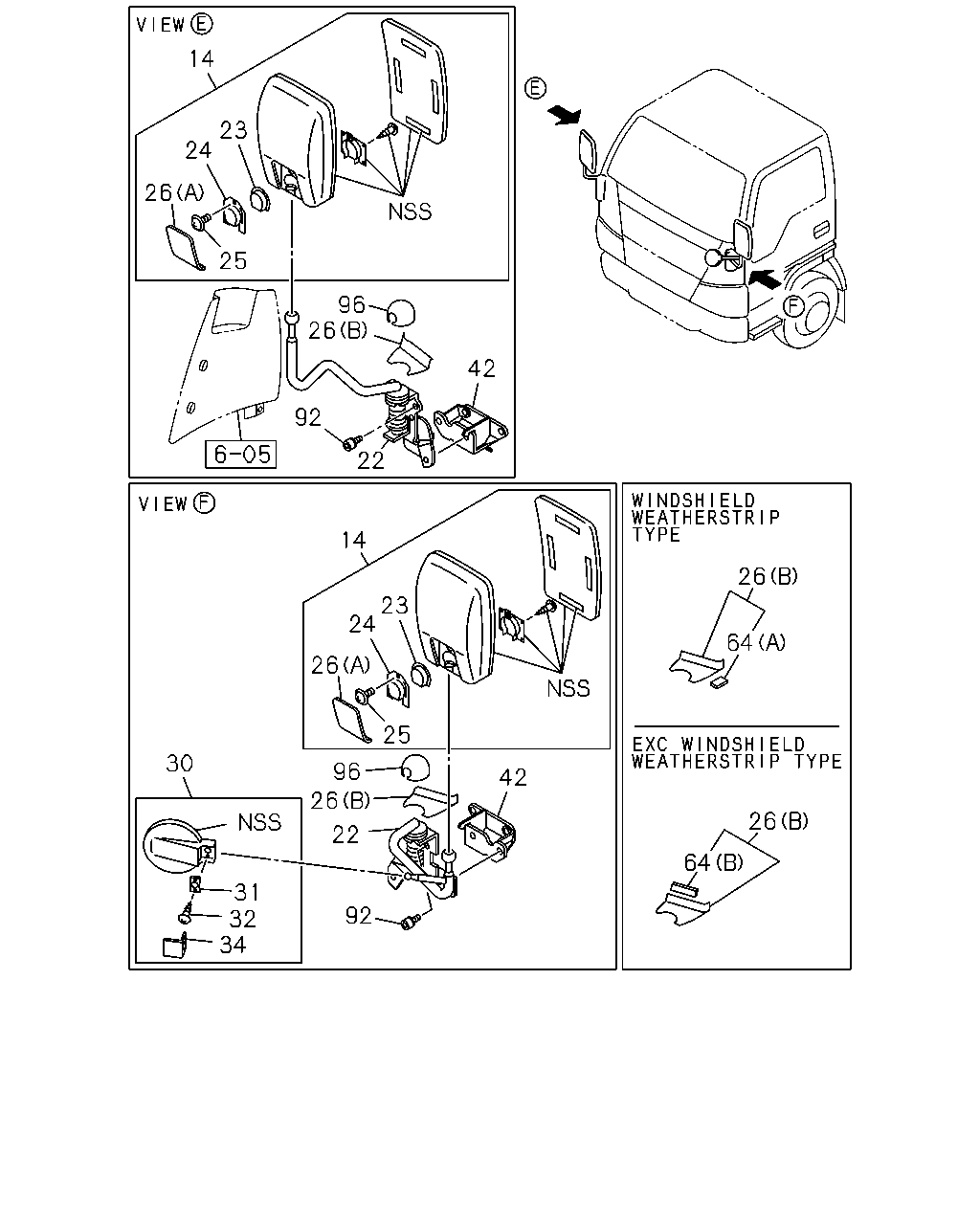

7-20 — MIRROR AND MIRROR STAY (#72759) — 134 parça

14 23 24 26 25 96 26 42 92 22 14 26 23 24 64 26 25 30 96 26 42 26 22 64 31 32 34 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9704-0209	●
14	MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	0210-	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7>	8-98039-583-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-98039-581-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. UNDER MIRROR<RR9>	8-98039-585-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	1112-	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>	8-97868-237-2	01	1	1112-		●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	1112-	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. FACE LIFT MODEL<TX7>	8-97866-942-2	01	1	1112-		●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-7	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-9	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-9	01	1	1112-	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-739-9	01	1	1112-		●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9704-0209	●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	0210-	●	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9704-0209	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	0210-	●	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9704-0209	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	0210-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1112-		●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	9704-0209	●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	0210-1111	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	9704-0209	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	0210-	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	9704-0209	●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0210-	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	9704-0209	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0210-	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	9704-0209	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0210-	●	●
42	ATTACHMENT; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-97581-625-2	01	1	1112-		●
42	ATTACHMENT; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-97581-755-2	01	1	1112-		●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	02	1	1112-		●
64	SEAL; MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	1112-		●
92	BOLT; STAY BRKT,MIRROR FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-98020-347-0	10	1	1112-		●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9704-0209	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0210-1111	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	1112-	●
92	BOLT; STAY BRKT,MIRROR EXC. FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-94279-183-1	06	1	1112-		●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7>	8-97581-631-2	02	1	1112-		●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9704-0209	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	0210-1111	●	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	1112-	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1112-		●

23 14 25 24 26 96 22 92 183 30 96 14 23 24 26 31 25 32 183 34 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	9704-0209	●
14	MIRROR ASM; OUTSIDE	8-94262-542-3	02	1	0210-	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> FACE LIFT MODEL<TX7>	8-98039-583-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7>	8-98039-581-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. UNDER MIRROR<RR9>	8-98039-585-1	01	1	1112-		●
22	STAY; OUTSIDE MIRROR	8-97868-237-0	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR	8-97868-237-2	01	1	1112-	●
22	STAY; OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>	8-97868-237-2	01	1	1112-		●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-1	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97866-942-2	01	1	1112-	●
22	STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> EXC. FACE LIFT MODEL<TX7>	8-97866-942-2	01	1	1112-		●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-7	01	1	9704-0209	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-9	01	1	0210-1111	●	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97856-739-9	01	1	1112-	●
22	STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>,FACE LIFT MODEL<TX7>	8-97856-739-9	01	1	1112-		●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	9704-0209	●
23	WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	02	1	0210-	●	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	9704-0209	●
24	HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	02	1	0210-	●	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	9704-0209	●
25	SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	02	1	0210-	●	●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	1112-		●
26	COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	1112-		●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	9704-0209	●
26	COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	02	1	0210-1111	●	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	9704-0209	●
30	MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	0210-	●	●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	9704-0209	●
31	PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0210-	●	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	9704-0209	●
32	SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0210-	●	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	9704-0209	●
34	CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0210-	●	●
92	BOLT; STAY BRKT,MIRROR FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-98020-347-0	10	1	1112-		●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	9704-0209	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0210-1111	●	●
92	BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	1112-	●
92	BOLT; STAY BRKT,MIRROR EXC. FACE LIFT MODEL<TX7> M8X30 W/LK WASHER	8-94279-183-1	06	1	1112-		●
96	CAP; MIRROR STAY FACE LIFT MODEL<TX7>	8-97581-631-2	02	1	1112-		●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	9704-0209	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	02	1	0210-1111	●	●
96	CAP; MIRROR STAY OD=40	8-97853-206-2	01	1	1112-	●
96	CAP; MIRROR STAY EXC. FACE LIFT MODEL<TX7> OD=40	8-97853-206-2	01	1	1112-		●
183	FINISHER; MIRROR	8-97857-925-0	01	1	0308-1111	●	●
183	FINISHER; MIRROR	8-97857-925-0	01	1	1112-	●
183	FINISHER; MIRROR EXC. FACE LIFT MODEL<TX7>	8-97857-925-0	01	1	1112-		●

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97853-835-2	01	1	9704-0208	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97859-200-1	01	1	0209-0209	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> GRAY	8-97859-200-1	01	1	0210-0307	●	●
1	MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-663-1	01	1	0308-	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-772-2	01	1	9704-0209	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-772-2	01	1	0210-0307	●	●
1	MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-348-2	01	1	0308-	●	●
2	SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16	8-94279-341-0	02	1	0406-	●	●
2	SCREW; MIRROR TO BODY M5X20	5-09981-059-0	02	1	9704-0209	●
2	SCREW; MIRROR TO BODY M5X20	5-09981-059-0	02	1	0210-0405	●	●
2	SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> M5X20	5-09981-059-0	02	1	0406-	●	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	9704-0209	●
3	STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0210-	●	●
3	STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	9704-0209	●
3	STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	0210-	●	●
4	GROMMET; SCREW,ROOM MIRROR	8-94279-039-0	01	1	9704-0209	●
4	GROMMET; SCREW,ROOM MIRROR	8-94279-039-0	01	1	0210-0405	●	●
4	GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ>	8-94279-039-0	01	1	0406-	●	●
158	LENS; ROOM LAMP	5-73117-108-1	01	1	9704-0209	●
158	LENS; ROOM LAMP	5-73117-108-1	01	1	0210-	●	●
159	BULB; ROOM LAMP 12V 10W	5-82194-015-0	01	1	9704-9907	●
159	BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	9908-0209	●
159	BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	0210-	●	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0209-0209	●
162	SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0210-	●	●
