Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#72753) — 35 parça
Tümü
A - NHB5SF
B - NHB5WF
◀

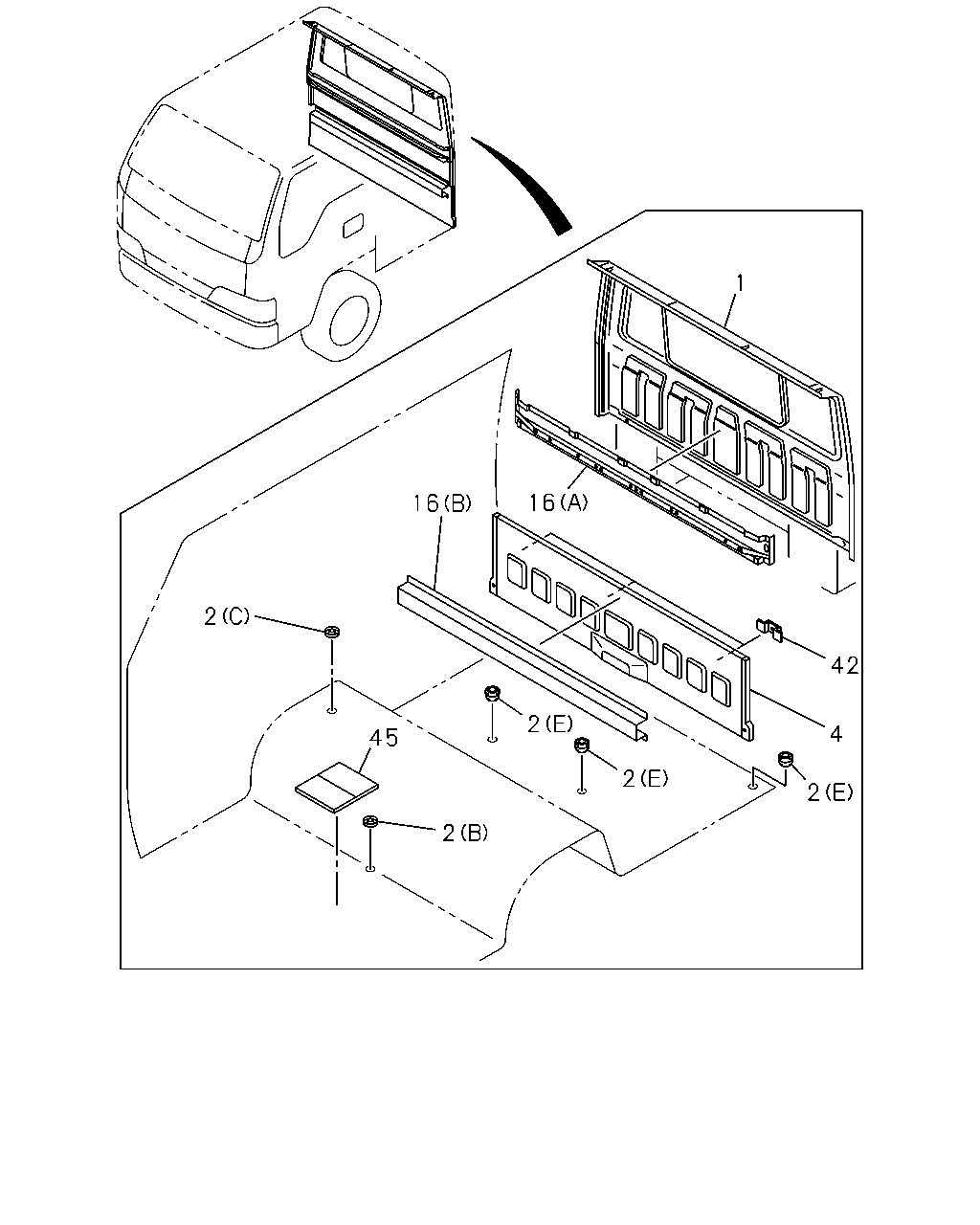

[680A] DBL CAB (19 parça)
[680A] SGL CAB (16 parça)
▶
1
16
16
2
42
2
45
4
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; BACK OUTER
8-97851-352-2
01
1
9704-
●
1
PANEL; BACK OUTER
8-97851-273-5
01
1
0210-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 BLACK
1-76798-018-0
02
1
9704-9810
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9811-0710
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=32 BLACK
8-98031-126-0
02
1
0711-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
04
1
9704-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5
8-94279-711-0
02
1
9704-0209
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5
8-94279-711-0
02
1
0210-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2
8-94492-493-0
02
1
9704-0209
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2
8-94492-493-0
02
1
0210-0512
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=15.0
8-94279-040-0
02
1
0601-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35
8-94122-971-0
04
1
0210-
●
4
PANEL; CAB BACK LWR
8-97851-145-6
01
1
0210-
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97851-055-5
01
1
9704-9704
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
9704-0209
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
0210-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(B)
8-97851-300-1
01
1
0210-
●
42
BRACKET; HEAT PROTECTOR
8-94265-170-1
03
1
0210-
●
45
SHEET; MELTING,BACK PANEL
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
02
1
0210-
●
2
1
2
2
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; BACK OUTER
8-97851-352-2
01
1
9704-
●
1
PANEL; BACK OUTER
8-97851-273-5
01
1
0210-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 BLACK
1-76798-018-0
02
1
9704-9810
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9811-0710
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=32 BLACK
8-98031-126-0
02
1
0711-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK
1-76798-019-0
04
1
9704-
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5
8-94279-711-0
02
1
9704-0209
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=28.5
8-94279-711-0
02
1
0210-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2
8-94492-493-0
02
1
9704-0209
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=16.2
8-94492-493-0
02
1
0210-0512
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=15.0
8-94279-040-0
02
1
0601-
●
●
2
GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35
8-94122-971-0
04
1
0210-
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97851-055-5
01
1
9704-9704
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
9704-0209
●
16
REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
0210-
●
●
16
REINFORCEMENT; BACK OUTER PNL
(B)
8-97851-300-1
01
1
0210-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
