◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#72751) — 88 parça

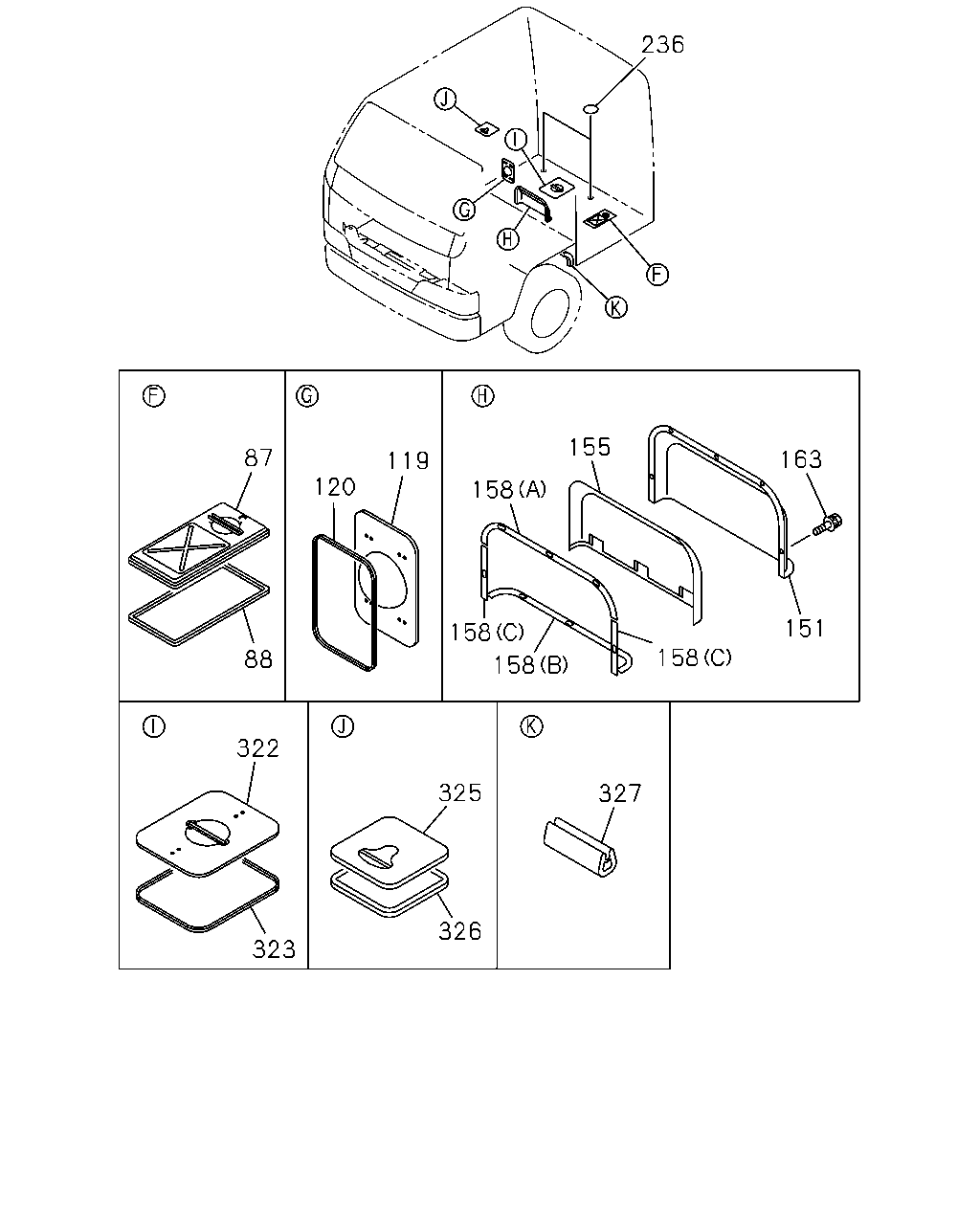

çizim 73441
236 155 87 163 119 120 158 151 158 158 88 158 322 325 327 326 323
BalonParca AdiParca NoAdetTipApplied Date A B
87 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0210- ●
88 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0210- ●
119 LID; P/S OIL TANK 8-97853-440-2 01 1 0210- ●
120 SEAL; LID,P/S 8-97853-441-1 01 1 0210- ●
151 COVER ASM; ENG 8-97850-285-0 01 1 0210- ●
155 INSULATOR; RR,ENG COVER 8-97853-433-1 01 1 0210- ●
158 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-434-0 01 1 0210- ●
158 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-435-0 01 1 0210- ●
158 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 02 1 0210- ●
163 BOLT; RR,ENG COVER,FRT
M6X16 FLANGE 		0-28680-616-0 08 1 0210-0512 ●
163 BOLT; RR,ENG COVER,FRT
M6X16 FLANGE 		0-28650-616-0 08 1 0601- ●
236 SEAL; CHECK HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0210- ●
322 COVER; A/T OIL 8-97853-442-2 01 1 0210- ●
323 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 0210- ●
325 COVER; LLC 8-97856-974-0 01 1 0210- ●
326 SEAL; COVER 8-97856-975-1 01 1 0210- ●
327 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0210- ●

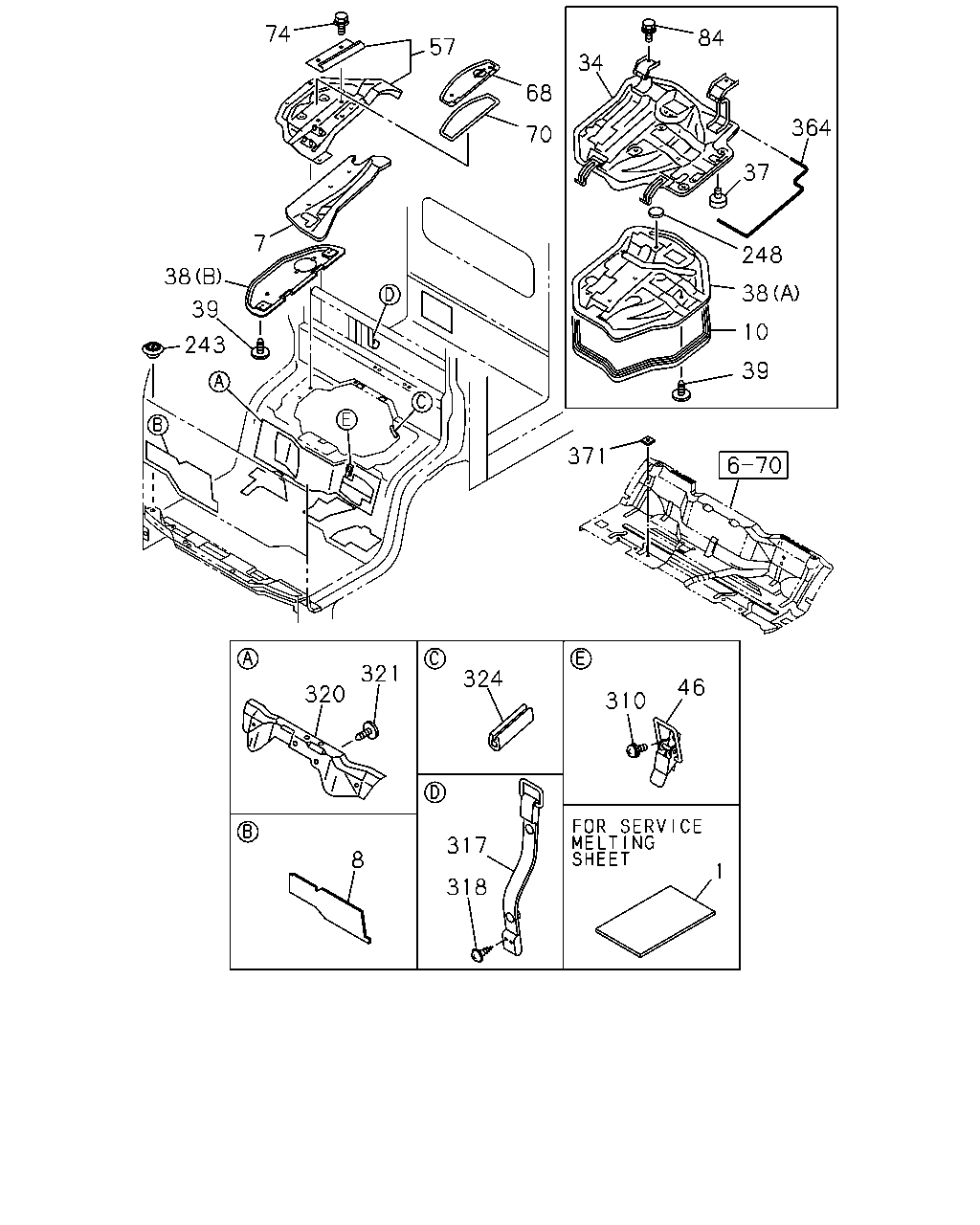

çizim 73895
74 84 57 34 68 364 70 37 7 248 38 38 39 10 243 39 371 321 324 46 320 310 317 8 1 318
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 9704- ● ●
7 INSULATOR; SUPPORT COVER 8-97853-544-3 01 1 9704-0209 ●
7 INSULATOR; SUPPORT COVER 8-97853-544-3 01 1 0210- ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9704-0209 ●
8 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 0210-0506 ● ●
8 MAT; SILENCER,FRT PANEL 8-97581-659-3 01 1 0507-0606 ● ●
8 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9704-0209 ●
8 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 0210-0506 ● ●
8 MAT; SILENCER,FRT PANEL 8-97581-658-3 01 1 0507-0606 ● ●
8 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 0607- ● ●
10 SEAL; ENG COVER 8-97853-010-3 01 1 9704-0209 ●
10 SEAL; ENG COVER 8-97853-010-4 01 1 0210- ● ●
34 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 9704-0209 ●
34 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 0210- ● ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 9704-0209 ●
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 0210- ● ●
38 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9704-0209 ●
38 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0210- ● ●
38 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9704-0209 ●
38 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 0210- ● ●
39 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 02 1 9704-9904 ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 9905-0209 ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0210- ● ●
39 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 10 1 9704-9904 ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 10 1 9905-0209 ●
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 10 1 0210- ● ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9704-0209 ●
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0210- ● ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-688-1 01 1 9704-0209 ●
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-688-1 01 1 0210- ● ●
68 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 9704-0209 ●
68 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0210-0312 ● ●
68 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0608 ● ●
68 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ● ●
70 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 9704-0209 ●
70 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0210- ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 04 1 9704-0209 ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512 ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0209 ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28680-825-0 01 1 0210-0512 ● ●
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 9704-0209 ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28680-820-0 04 1 0210-0512 ● ●
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-94279-716-0 01 1 9704-0002 ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003-0209 ●
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0210- ● ●
248 SEAL; EXT,FRT & RR
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-1111 ● ●
248 SEAL; EXT,FRT & RR
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 1112- ●
248 SEAL; EXT,FRT & RR
EXC. FACE LIFT MODEL<TX7> OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 1112- ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9704-0209 ●
310 SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0210- ● ●
317 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-3 01 1 9704-0209 ●
317 BAND; ENGINE COVER
L=535 DARK BEIGE 		8-97853-607-4 01 1 0210- ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9704-0209 ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210-0604 ● ●
318 SCREW; BAND
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
320 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 9704-0209 ●
320 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 0210- ● ●
321 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9704-9904 ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9905-0209 ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 0210-0304 ● ●
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 0305- ● ●
324 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9704-9812 ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 9901-0209 ●
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0210- ● ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9709-9812 ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 9901-0209 ●
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0210- ● ●
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK 		8-94279-714-0 02 1 0304- ● ●
