6-75 — MAT AND CARPET (#72750) — 60 parça

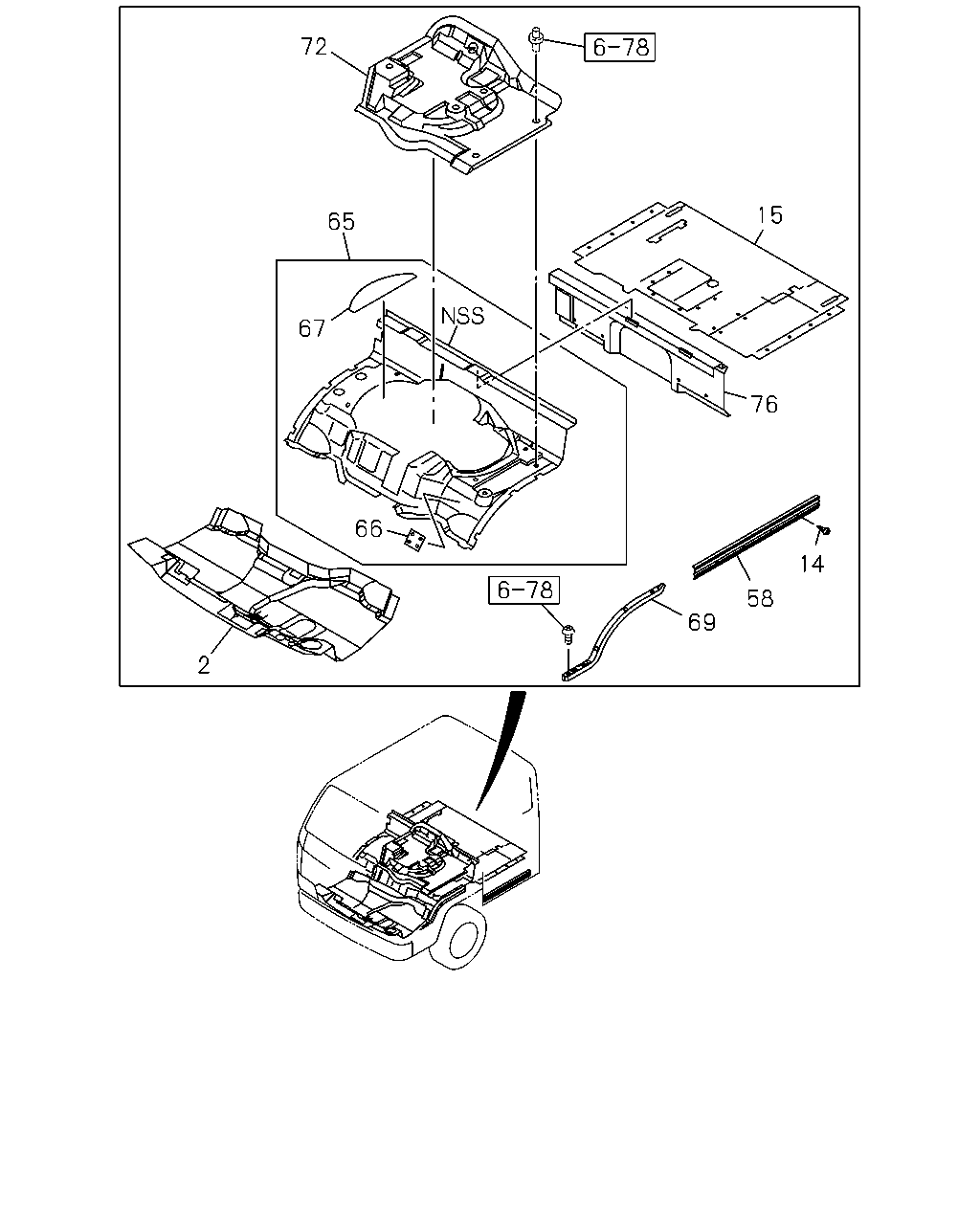

72 15 65 67 76 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DARK BEIGE	8-97097-011-4	01	1	9704-0203	●
2	MAT; FLOOR DARK BEIGE	8-97996-649-1	01	1	0204-0209	●
2	MAT; FLOOR DARK BEIGE	8-97996-649-1	01	1	0210-0307	●	●
2	MAT; FLOOR DARK GRAY	8-97996-650-4	01	1	0308-	●	●
14	SCREW; PLATE M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0210-		●
15	MAT; FLOOR REAR DARK BEIGE	8-97996-667-1	01	1	0210-0307		●
15	MAT; FLOOR REAR DARK GRAY	8-97996-668-2	01	1	0308-		●
58	PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	0210-		●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97855-272-1	01	1	9704-0203	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-695-0	01	1	0204-0307	●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-1	01	1	0308-	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-774-0	01	1	0210-0307		●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-1	01	1	0308-		●
66	HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9704-0203	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0204-0209	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0210-0307	●	●
66	HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0308-	●	●
67	LID; COVER DARK BEIGE	8-97857-193-0	01	1	9704-0203	●
67	LID; COVER DARK BEIGE	8-97997-585-0	01	1	0204-0209	●
67	LID; COVER DARK BEIGE	8-97997-585-0	01	1	0210-0307	●	●
67	LID; COVER DARK GRAY	8-97997-586-0	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0308-	●	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97859-933-0	01	1	9704-0203	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0204-0209	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0210-0307	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-1	01	1	0308-	●	●
76	MAT; FLOOR,REINF,CAB RR MTG DARK BEIGE	8-97996-781-0	01	1	0210-0307		●
76	MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97996-782-2	01	1	0308-		●

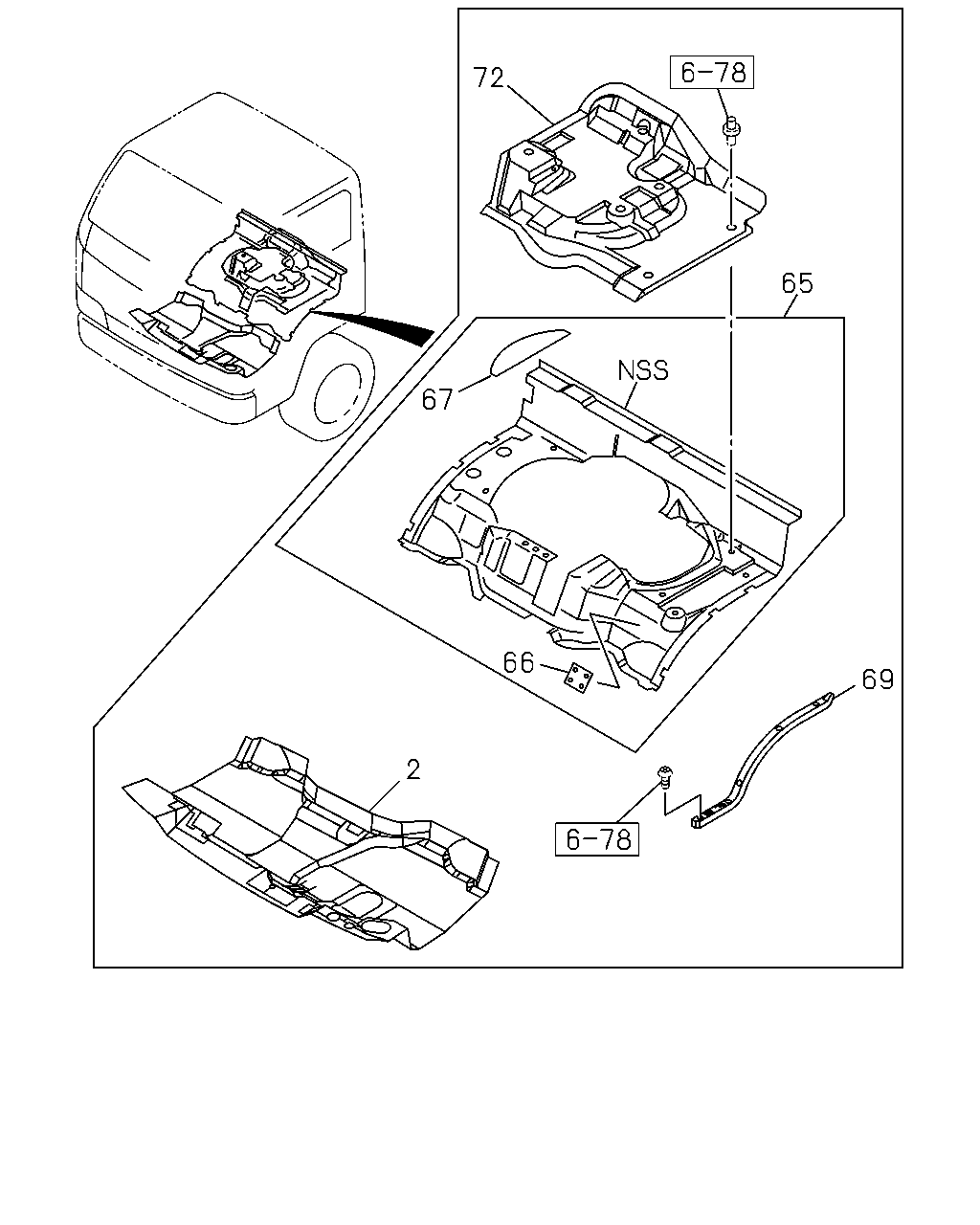

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DARK BEIGE	8-97097-011-4	01	1	9704-0203	●
2	MAT; FLOOR DARK BEIGE	8-97996-649-1	01	1	0204-0209	●
2	MAT; FLOOR DARK BEIGE	8-97996-649-1	01	1	0210-0307	●	●
2	MAT; FLOOR DARK GRAY	8-97996-650-4	01	1	0308-	●	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97855-272-1	01	1	9704-0203	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-695-0	01	1	0204-0307	●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-1	01	1	0308-	●
65	MAT ASM; SILENCER,CAB FLOOR DARK BEIGE	8-97996-774-0	01	1	0210-0307		●
65	MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-1	01	1	0308-		●
66	HOOK; COVER DARK BEIGE	8-97857-192-0	02	1	9704-0203	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0204-0209	●
66	HOOK; COVER DARK BEIGE	8-97997-581-0	02	1	0210-0307	●	●
66	HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0308-	●	●
67	LID; COVER DARK BEIGE	8-97857-193-0	01	1	9704-0203	●
67	LID; COVER DARK BEIGE	8-97997-585-0	01	1	0204-0209	●
67	LID; COVER DARK BEIGE	8-97997-585-0	01	1	0210-0307	●	●
67	LID; COVER DARK GRAY	8-97997-586-0	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-958-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0308-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	9704-0209	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK BEIGE	8-97853-957-0	01	1	0210-0307	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0308-	●	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97859-933-0	01	1	9704-0203	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0204-0209	●
72	MAT; SILENCER,ENG COVER DARK BEIGE	8-97996-714-0	01	1	0210-0307	●	●
72	MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-1	01	1	0308-	●	●
