6-70 — FLOOR PANEL (#72749) — 178 parça

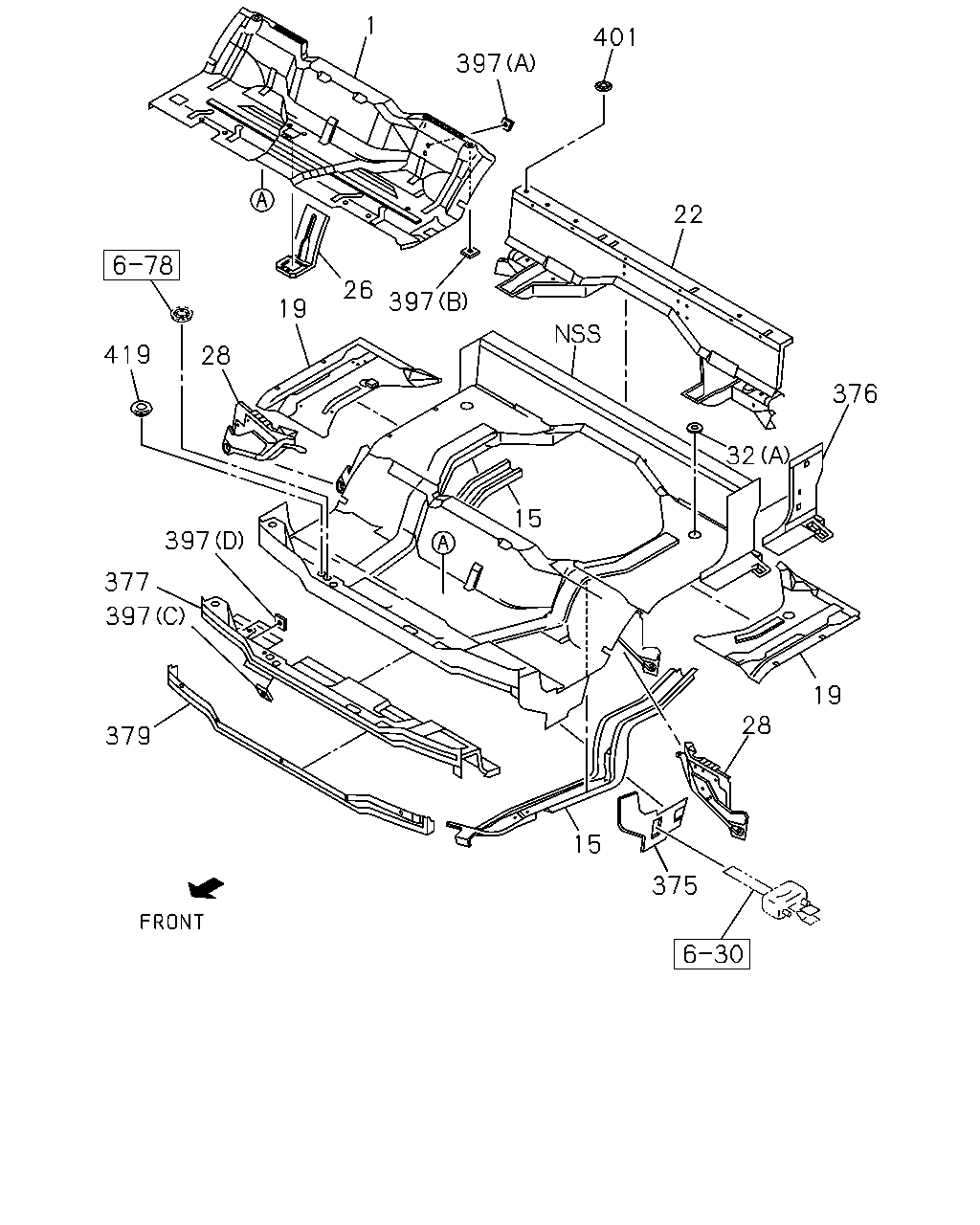

çizim 73808
1 401 397 22 26 397 19 419 28 376 32 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97850-004-7 01 1 9704-0209 ●
1 PANEL; FLOOR 8-97850-004-7 01 1 0210-0303 ● ●
1 PANEL; FLOOR 8-97581-770-0 01 1 0304- ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 9704-0209 ●
15 FRAME; UNDER 8-97850-060-9 01 1 0210- ● ●
15 FRAME; UNDER 8-97850-059-9 01 1 9704-0209 ●
15 FRAME; UNDER 8-97850-059-9 01 1 0210-0505 ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9704-0209 ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0210- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 9704-0209 ●
19 PANEL; FLOOR SIDE,REAR 8-97850-002-7 01 1 0210- ● ●
22 FRAME; FLOOR REAR 8-97850-519-7 01 1 9704-0612 ●
22 FRAME; FLOOR REAR 8-98036-434-0 01 1 0701-0701 ●
22 FRAME; FLOOR REAR 8-97850-519-9 01 1 0701-0712 ●
22 FRAME; FLOOR REAR 8-98110-275-3 01 1 0801- ●
22 FRAME; FLOOR REAR 8-97850-763-2 01 1 0210-0612 ●
22 FRAME; FLOOR REAR 8-98036-075-0 01 1 0701-0701 ●
22 FRAME; FLOOR REAR 8-97850-763-6 01 1 0701- ●
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9704-0209 ●
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 0210- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9704-0209 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0210-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9704-0209 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0210-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=53.5 		8-94356-253-0 02 1 9704-0209 ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=53.5 		8-94356-253-0 02 1 0210- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=35 		8-94122-971-0 04 1 0210- ●
375 CLOSING; PILLAR 8-97850-087-3 01 1 9704-0209 ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0210- ● ●
375 CLOSING; PILLAR 8-97850-086-4 01 1 9704-0209 ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0210- ● ●
376 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9704-9811 ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9704- ●
376 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 0210- ●
376 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 0210- ●
377 RAIL ASM; MTG,FRT 8-97850-049-7 01 1 9704-0209 ●
377 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0210-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-547-1 01 1 0304- ● ●
379 PANEL 8-97850-050-2 01 1 9704-0209 ●
379 PANEL 8-97850-050-2 01 1 0210-0306 ● ●
379 PANEL 8-97581-639-0 01 1 0307- ● ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9704-0209 ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0210- ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9704-0209 ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0210- ● ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 9704-0209 ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 0210- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 9704-0307 ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 0308- ● ●
401 GROMMET; HOLE
OD=26.1 T=7.8 		8-94279-963-0 01 1 9704-9902 ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 9903- ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 9704-0209 ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 0210- ● ●
çizim 74150
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
377 RAIL ASM; MTG,FRT 8-97850-049-7 01 1 9704-0209 ●
377 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0210-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-547-1 01 1 0304- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-827-2 01 1 1112- ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-828-2 01 1 1112- ●
378 GASSET; LWR 8-97867-916-1 01 1 9704-0209 ●
378 GASSET; LWR 8-97867-916-1 01 1 0210-0305 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 0306-1111 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 1112- ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-834-0 01 1 1112- ●
378 GASSET; LWR 8-97867-915-1 01 1 9704-0209 ●
378 GASSET; LWR 8-97867-915-1 01 1 0210-0305 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 0306-1111 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 1112- ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-833-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-090-2 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-705-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-087-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-088-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-924-0 01 1 9704- ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 9704-0209 ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 0210-1111 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 1112- ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-921-1 01 1 1112- ●
380 BRACKET; HEAD LAMP
(A) 		8-97994-708-0 01 1 0210-1111 ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97994-708-0 01 1 1112- ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9711-0209 ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0210- ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9704-0209 ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0210- ● ●

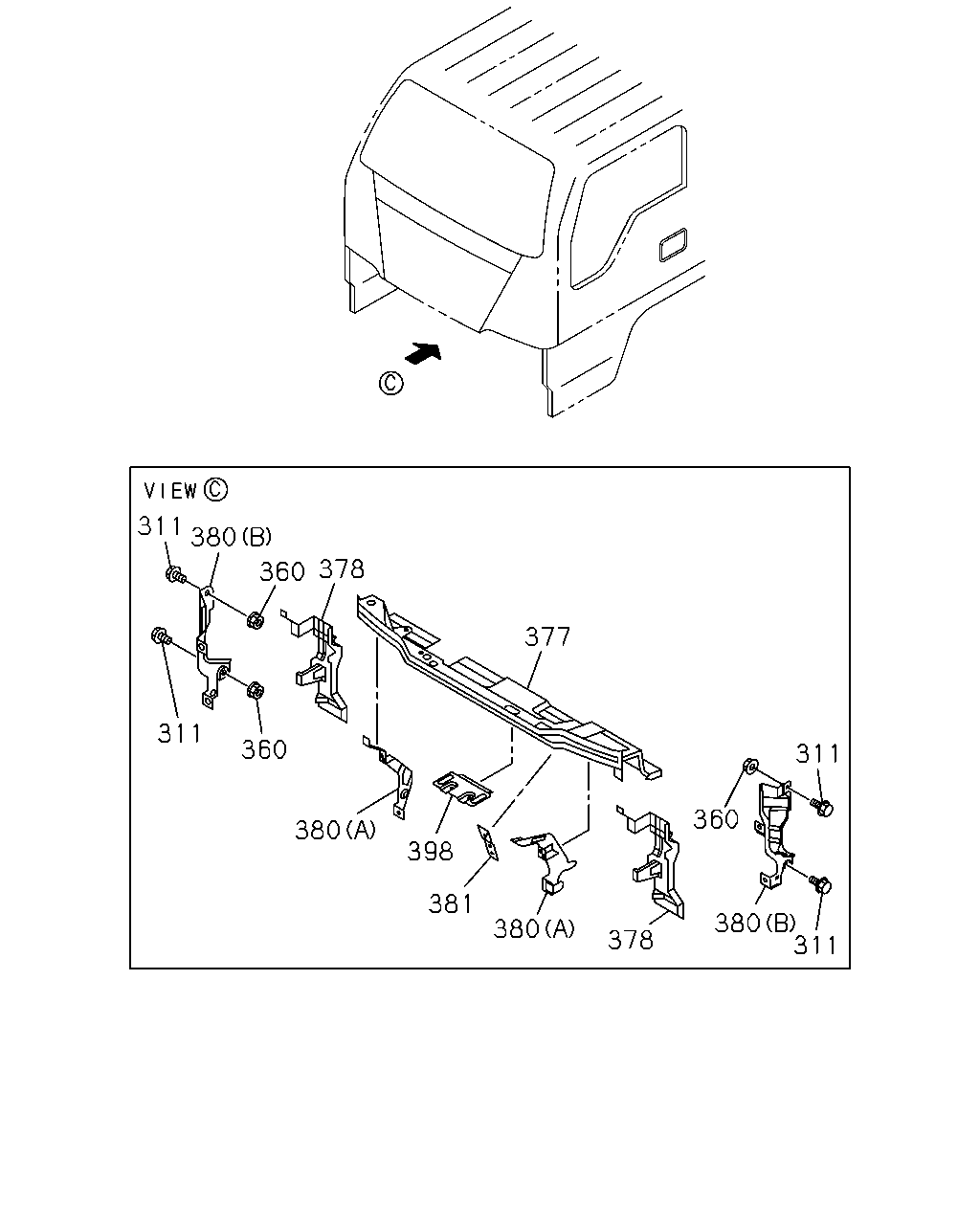

çizim 74264
311 380 378 360 377 311 360 311 360 380 398 381 380 311 380 378
BalonParca AdiParca NoAdetTipApplied Date A B
311 BOLT; BRKT
FACE LIFT MODEL<TX7> M6X16 FLANGE 		0-28650-616-0 04 1 1112- ●
360 NUT; BRKT
FACE LIFT MODEL<TX7> M6 POP NUT 		8-98013-752-0 02 1 1112- ●
377 RAIL ASM; MTG,FRT 8-97850-049-7 01 1 9704-0209 ●
377 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0210-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-547-1 01 1 0304- ● ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-827-2 01 1 1112- ●
378 GASSET; LWR
FACE LIFT MODEL<TX7> 		8-97581-828-2 01 1 1112- ●
378 GASSET; LWR 8-97867-916-1 01 1 9704-0209 ●
378 GASSET; LWR 8-97867-916-1 01 1 0210-0305 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 0306-1111 ● ●
378 GASSET; LWR 8-97581-834-0 01 1 1112- ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-834-0 01 1 1112- ●
378 GASSET; LWR 8-97867-915-1 01 1 9704-0209 ●
378 GASSET; LWR 8-97867-915-1 01 1 0210-0305 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 0306-1111 ● ●
378 GASSET; LWR 8-97581-833-0 01 1 1112- ●
378 GASSET; LWR
EXC. FACE LIFT MODEL<TX7> 		8-97581-833-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-090-2 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (A) 		8-97850-705-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-087-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
FACE LIFT MODEL<TX7> (B) 		8-98006-088-0 01 1 1112- ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-924-0 01 1 9704- ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 9704-0209 ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 0210-1111 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97867-921-1 01 1 1112- ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97867-921-1 01 1 1112- ●
380 BRACKET; HEAD LAMP
(A) 		8-97994-708-0 01 1 0210-1111 ●
380 BRACKET; HEAD LAMP
EXC. FACE LIFT MODEL<TX7> (A) 		8-97994-708-0 01 1 1112- ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 9711-0209 ●
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0210- ● ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9704-0209 ●
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0210- ● ●

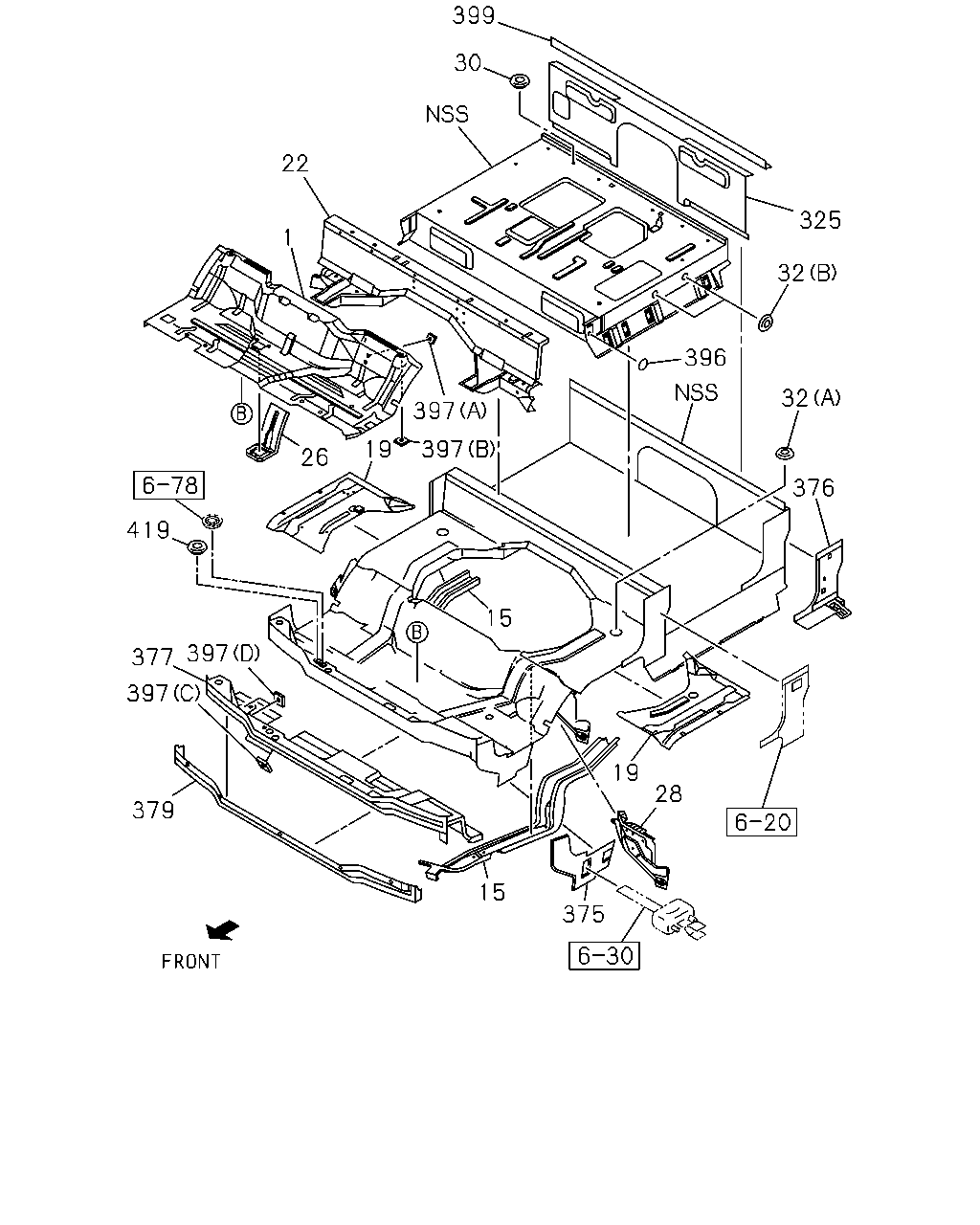

çizim 74268
399 30 22 325 1 32 396 32 397 397 19 26 376 419 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97850-004-7 01 1 9704-0209 ●
1 PANEL; FLOOR 8-97850-004-7 01 1 0210-0303 ● ●
1 PANEL; FLOOR 8-97581-770-0 01 1 0304- ● ●
15 FRAME; UNDER 8-97850-060-9 01 1 9704-0209 ●
15 FRAME; UNDER 8-97850-060-9 01 1 0210- ● ●
15 FRAME; UNDER 8-97850-059-9 01 1 9704-0209 ●
15 FRAME; UNDER 8-97850-059-9 01 1 0210-0505 ● ●
15 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-4 01 1 9704-0209 ●
19 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0210- ● ●
19 PANEL; FLOOR SIDE,REAR 8-97850-002-6 01 1 9704-0209 ●
19 PANEL; FLOOR SIDE,REAR 8-97850-002-7 01 1 0210- ● ●
22 FRAME; FLOOR REAR 8-97850-519-7 01 1 9704-0612 ●
22 FRAME; FLOOR REAR 8-98036-434-0 01 1 0701-0701 ●
22 FRAME; FLOOR REAR 8-97850-519-9 01 1 0701-0712 ●
22 FRAME; FLOOR REAR 8-98110-275-3 01 1 0801- ●
22 FRAME; FLOOR REAR 8-97850-763-2 01 1 0210-0612 ●
22 FRAME; FLOOR REAR 8-98036-075-0 01 1 0701-0701 ●
22 FRAME; FLOOR REAR 8-97850-763-6 01 1 0701- ●
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 9704-0209 ●
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 0210- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9704-0209 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0210-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9704-0209 ●
28 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0210-1106 ● ●
28 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
30 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 0210- ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=53.5 		8-94356-253-0 02 1 9704-0209 ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=53.5 		8-94356-253-0 02 1 0210- ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=35 		8-94122-971-0 04 1 0210- ●
325 REINFORCEMENT ASM; RR MTG 8-97850-652-2 01 1 0210- ●
375 CLOSING; PILLAR 8-97850-087-3 01 1 9704-0209 ●
375 CLOSING; PILLAR 8-97850-087-4 01 1 0210- ● ●
375 CLOSING; PILLAR 8-97850-086-4 01 1 9704-0209 ●
375 CLOSING; PILLAR 8-97850-086-5 01 1 0210- ● ●
376 CLOSING; PILLAR,LWR 8-97850-024-6 01 1 9704-9811 ●
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 9812- ●
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 9704- ●
376 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 0210- ●
376 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 0210- ●
377 RAIL ASM; MTG,FRT 8-97850-049-7 01 1 9704-0209 ●
377 RAIL ASM; MTG,FRT 8-97850-049-8 01 1 0210-0303 ● ●
377 RAIL ASM; MTG,FRT 8-97997-547-1 01 1 0304- ● ●
379 PANEL 8-97850-050-2 01 1 9704-0209 ●
379 PANEL 8-97850-050-2 01 1 0210-0306 ● ●
379 PANEL 8-97581-639-0 01 1 0307- ● ●
396 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 0210- ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9704-0209 ●
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0210- ● ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9704-0209 ●
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0210- ● ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 9704-0209 ●
397 NUT; PIERCE
(C) M8 		9-09114-048-0 04 1 0210- ● ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 9704-0307 ●
397 NUT; PIERCE
(B) M8 		9-09114-048-0 05 1 0308- ● ●
399 PANEL; EXTENSION,RR MTG RAIL 8-97850-170-2 01 1 0210- ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 9704-0209 ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 0210- ● ●
