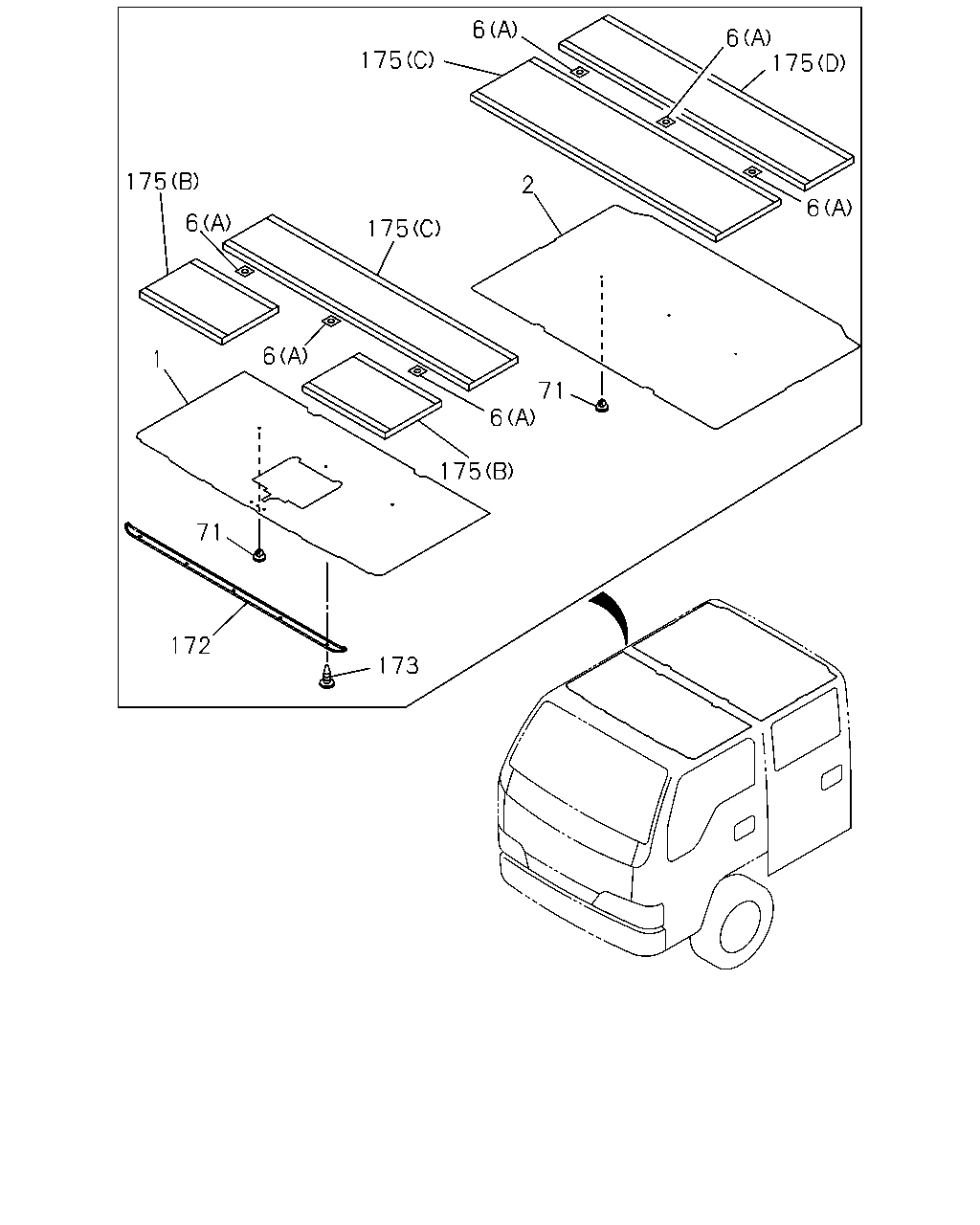

6-66 — HEAD LINING AND TRIM (#72747) — 76 parça

6 6 175 175 175 2 6 6 175 6 1 71 6 175 71 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> GRAY	8-97856-776-2	01	1	9704-0307	●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-646-3	01	1	0308-	●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-775-2	01	1	9704-0307	●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0308-	●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-773-2	01	1	9704-0307	●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0308-	●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	8-97856-774-3	01	1	9704-0307	●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97859-861-4	01	1	0308-	●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> GRAY	8-97856-784-2	01	1	0210-0307		●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-651-3	01	1	0308-		●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-783-2	01	1	0210-0307		●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-650-3	01	1	0308-		●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-781-2	01	1	0210-0307		●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-648-3	01	1	0308-		●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97856-782-3	01	1	0210-0307		●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-649-4	01	1	0308-		●
2	LINING; HD,ROOF RR DARK BEIGE	8-97856-786-2	01	1	0210-0307		●
2	LINING; HD,ROOF RR LIGHT GRAY	8-97868-652-3	01	1	0308-		●
6	SPACER; HD LINING (A)	8-94353-014-0	03	1	9704-	●
6	SPACER; HD LINING (B) H=10 L=55	8-97857-444-0	02	1	9704-0410	●
6	SPACER; HD LINING (B) H=10 L=55	8-97410-832-0	02	1	0411-	●
6	SPACER; HD LINING (A)	8-94353-014-0	06	1	0210-		●
71	FASTENER; HD LINING GRAY	8-97853-998-2	03	1	9704-0307	●
71	FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	03	1	0308-0610	●
71	FASTENER; HD LINING DARK GRAY	8-97405-301-2	03	1	0611-	●
71	FASTENER; HD LINING GRAY	8-97853-998-2	06	1	0210-0307		●
71	FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	06	1	0308-0610		●
71	FASTENER; HD LINING DARK GRAY	8-97405-301-2	06	1	0611-		●
172	RETAINER; HEAD LINING GRAY	8-97856-615-4	01	1	9704-0209	●
172	RETAINER; HEAD LINING GRAY	8-97856-615-4	01	1	0210-0307	●	●
172	RETAINER; HEAD LINING LIGHT GRAY	8-97867-191-4	01	1	0308-	●	●
173	CLIP; RETAINER,HEAD LINING D6.8X11 PUSH RIVET	8-97856-755-0	04	1	9704-0209	●
173	CLIP; RETAINER,HEAD LINING D6.8X11 PUSH RIVET	8-97856-755-0	04	1	0210-0307	●	●
173	CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0308-	●	●
175	CUSHION; HEAD LINING (B)	8-97856-791-2	02	1	9704-0209	●
175	CUSHION; HEAD LINING (B)	8-97856-791-4	02	1	0210-	●	●
175	CUSHION; HEAD LINING (A)	8-97856-792-4	01	1	9704-	●
175	CUSHION; HEAD LINING (C)	8-97856-793-4	02	1	0210-		●
175	CUSHION; HEAD LINING (D)	8-97857-294-3	01	1	0210-		●

175 6 175 6 1 6 175 71 6 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> GRAY	8-97856-776-2	01	1	9704-0307	●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-646-3	01	1	0308-	●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-775-2	01	1	9704-0307	●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0308-	●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-773-2	01	1	9704-0307	●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0308-	●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>	8-97856-774-3	01	1	9704-0307	●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97859-861-4	01	1	0308-	●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> GRAY	8-97856-784-2	01	1	0210-0307		●
1	LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-651-3	01	1	0308-		●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-783-2	01	1	0210-0307		●
1	LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-650-3	01	1	0308-		●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-781-2	01	1	0210-0307		●
1	LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-648-3	01	1	0308-		●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> GRAY	8-97856-782-3	01	1	0210-0307		●
1	LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-649-4	01	1	0308-		●
6	SPACER; HD LINING (A)	8-94353-014-0	03	1	9704-	●
6	SPACER; HD LINING (B) H=10 L=55	8-97857-444-0	02	1	9704-0410	●
6	SPACER; HD LINING (B) H=10 L=55	8-97410-832-0	02	1	0411-	●
6	SPACER; HD LINING (A)	8-94353-014-0	06	1	0210-		●
71	FASTENER; HD LINING GRAY	8-97853-998-2	03	1	9704-0307	●
71	FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	03	1	0308-0610	●
71	FASTENER; HD LINING DARK GRAY	8-97405-301-2	03	1	0611-	●
71	FASTENER; HD LINING GRAY	8-97853-998-2	06	1	0210-0307		●
71	FASTENER; HD LINING LIGHT GRAY	8-97867-230-2	06	1	0308-0610		●
71	FASTENER; HD LINING DARK GRAY	8-97405-301-2	06	1	0611-		●
172	RETAINER; HEAD LINING GRAY	8-97856-615-4	01	1	9704-0209	●
172	RETAINER; HEAD LINING GRAY	8-97856-615-4	01	1	0210-0307	●	●
172	RETAINER; HEAD LINING LIGHT GRAY	8-97867-191-4	01	1	0308-	●	●
173	CLIP; RETAINER,HEAD LINING D6.8X11 PUSH RIVET	8-97856-755-0	04	1	9704-0209	●
173	CLIP; RETAINER,HEAD LINING D6.8X11 PUSH RIVET	8-97856-755-0	04	1	0210-0307	●	●
173	CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0308-	●	●
175	CUSHION; HEAD LINING (B)	8-97856-791-2	02	1	9704-0209	●
175	CUSHION; HEAD LINING (B)	8-97856-791-4	02	1	0210-	●	●
175	CUSHION; HEAD LINING (A)	8-97856-792-4	01	1	9704-	●
175	CUSHION; HEAD LINING (C)	8-97856-793-4	02	1	0210-		●
175	CUSHION; HEAD LINING (D)	8-97857-294-3	01	1	0210-		●
