◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#72746) — 38 parça

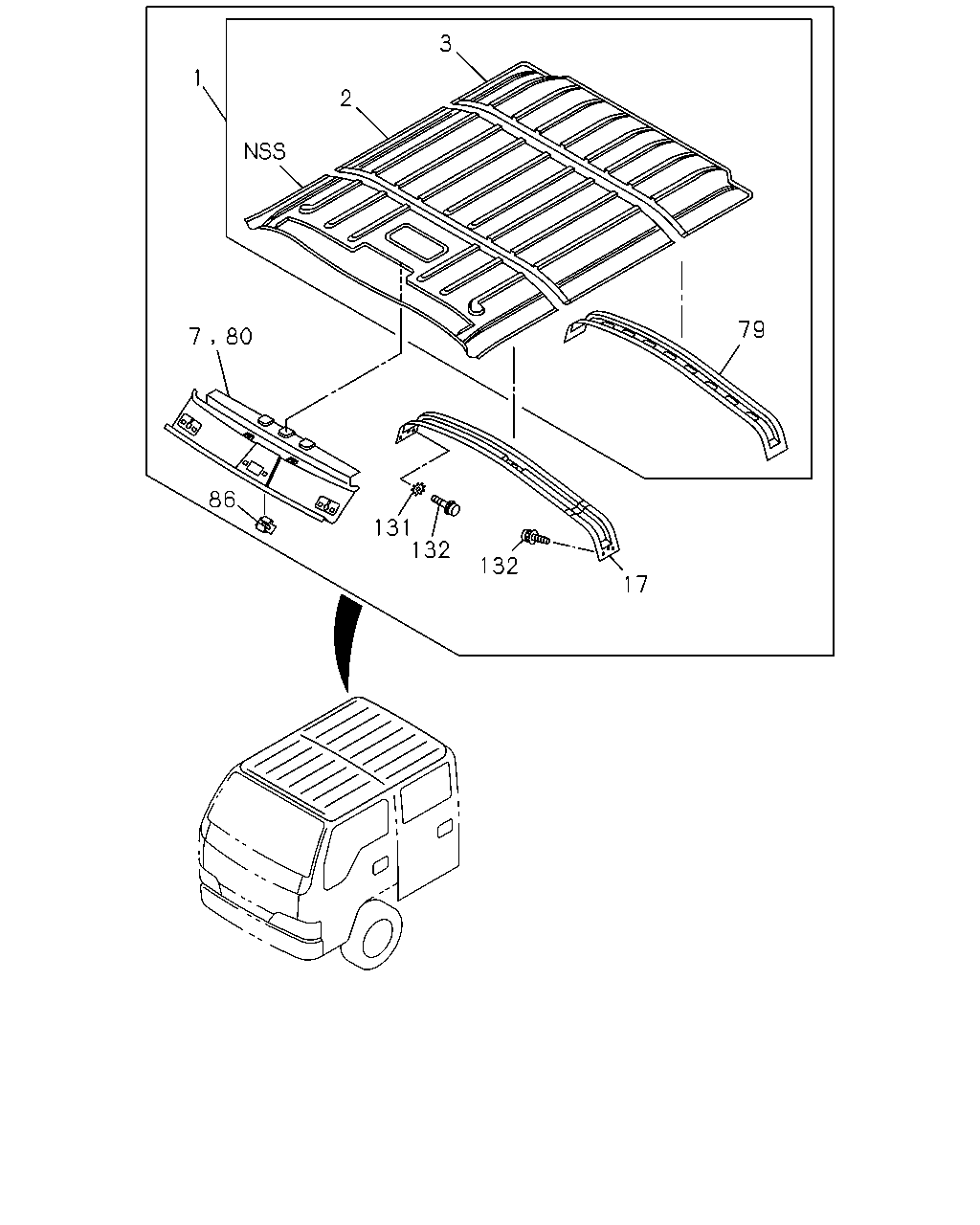

çizim 73984
3 1 2 79 7 80 86 131 132 132 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-109-2 01 1 9704- ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-1 01 1 9704- ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-1 01 1 9704- ●
1 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-7 01 1 0210- ●
1 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-7 01 1 0210- ●
1 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-7 01 1 0210- ●
1 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-2 01 1 0210- ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FORKD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-2 01 1 0210- ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FORKD<6UT> 		8-97892-932-2 01 1 0210- ●
2 PANEL; ROOF,CENTER 8-97851-264-3 01 1 0210- ●
3 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-265-4 01 1 0210- ●
3 PANEL; ROOF,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-942-0 01 1 0210- ●
7 PANEL; FRT WINDSHIELD UPR 8-97859-530-0 01 1 9704-9810 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 9811-0209 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 0210-0405 ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97853-628-2 01 1 0210- ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97851-410-0 01 1 0210- ●
80 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0406- ● ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 9704-0209 ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 0210-0405 ● ●
131 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0210-0603 ●
131 WASHER; LOCK,ROOF REINF
ID=6.4 TOOTH LK INT-EXT 		0-91542-206-0 01 1 0604- ●
132 FASTENER; HEADER SHELF 8-97892-737-0 04 1 0210- ●

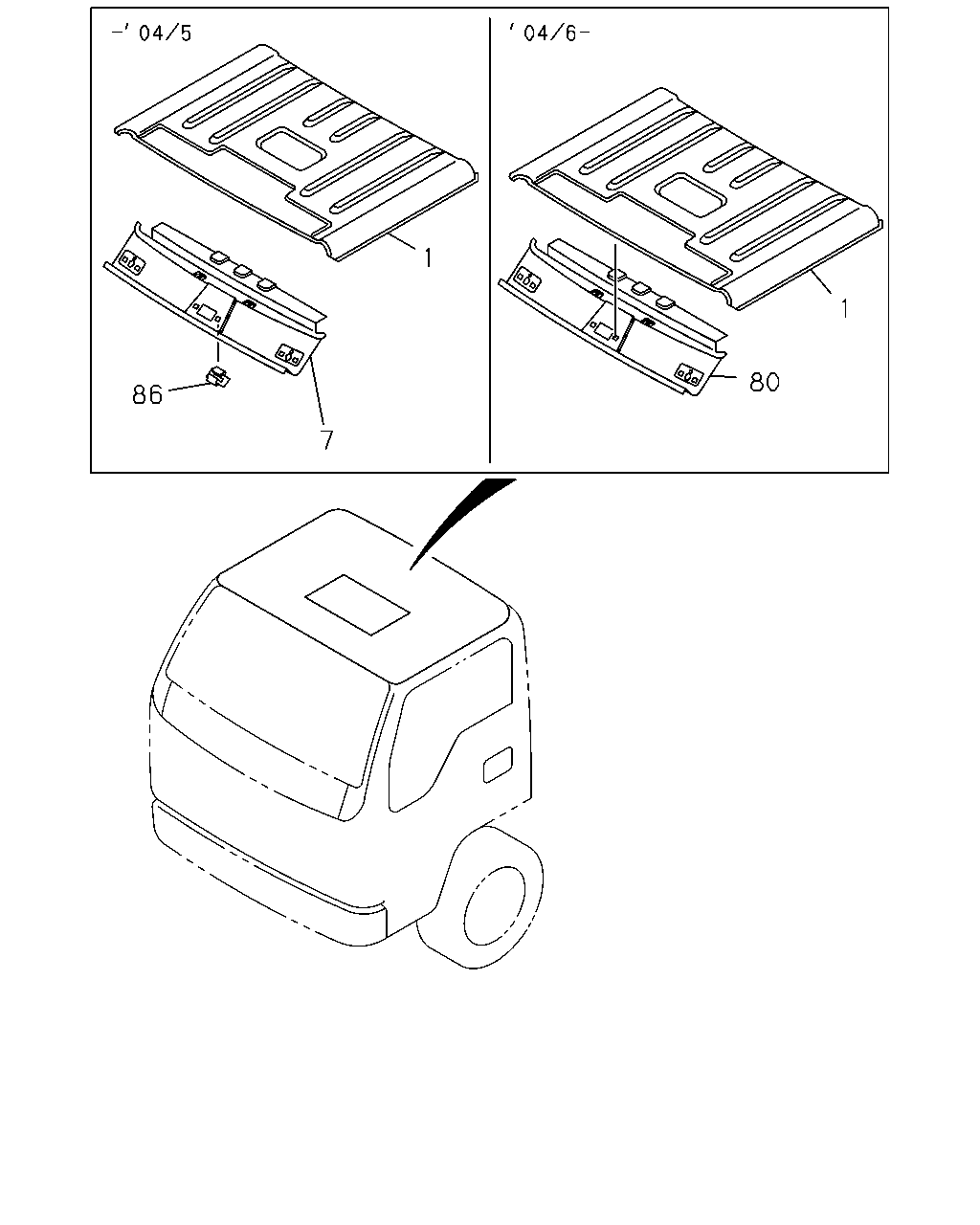

çizim 74039
1 1 80 86 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-109-2 01 1 9704- ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-369-1 01 1 9704- ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-1 01 1 9704- ●
1 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-7 01 1 0210- ●
1 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-7 01 1 0210- ●
1 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-7 01 1 0210- ●
1 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-2 01 1 0210- ●
1 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FORKD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-2 01 1 0210- ●
1 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FORKD<6UT> 		8-97892-932-2 01 1 0210- ●
7 PANEL; FRT WINDSHIELD UPR 8-97859-530-0 01 1 9704-9810 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 9811-0209 ●
7 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 0210-0405 ● ●
80 PANEL; HEADER,ROOF 8-97583-505-0 01 1 0406- ● ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 9704-0209 ●
86 NUT; ROOF
M5 		8-94279-075-1 01 1 0210-0405 ● ●
