Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-55 - REAR DOOR TRIM
▶

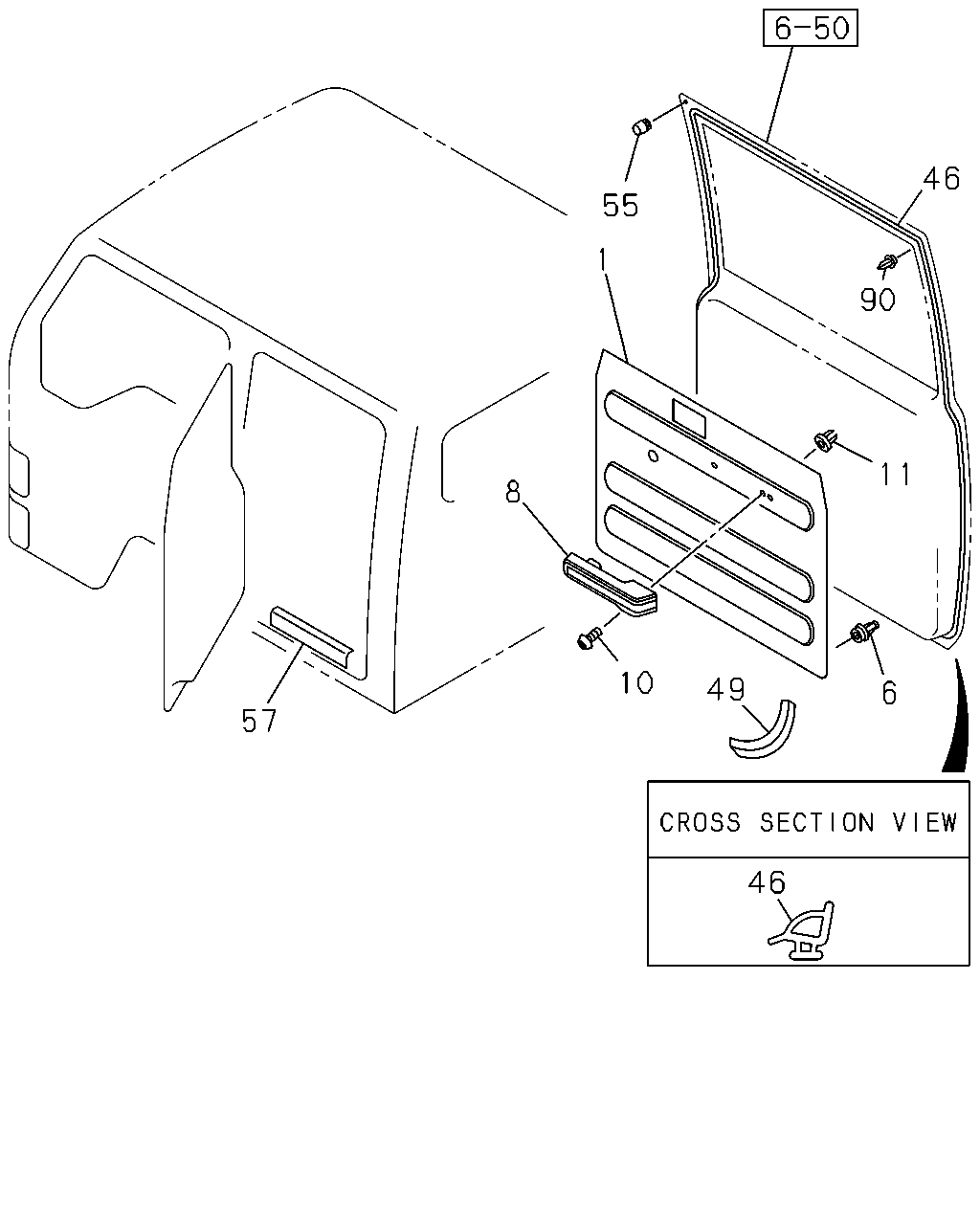

6-55 — REAR DOOR TRIM
(#72745) — 19 parça
46
55
1
90
8
10
49
6
57
46
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,RR DOOR
DARK BEIGE
8-97852-441-5
01
1
0210-0307
1
PAD; TRIM,RR DOOR
DARK GRAY
8-97867-203-6
01
1
0308-
1
PAD; TRIM,RR DOOR
DARK BEIGE
8-97852-440-5
01
1
0210-0307
1
PAD; TRIM,RR DOOR
DARK GRAY
8-97867-202-6
01
1
0308-
6
CLIP; DOOR PAD
8-94226-492-0
22
1
0210-
8
REST; ARM,RR DOOR
DARK BEIGE
8-94345-854-0
01
1
0210-0307
8
REST; ARM,RR DOOR
DARK GRAY
8-97867-207-2
01
1
0308-
8
REST; ARM,RR DOOR
DARK BEIGE
8-94345-852-0
01
1
0210-0307
8
REST; ARM,RR DOOR
DARK GRAY
8-97867-206-2
01
1
0308-
10
SCREW; ARM REST
M6X30 TAPPING
9-07066-630-0
04
1
0210-0603
10
SCREW; ARM REST
M6X30 TAPPING
0-71040-630-0
04
1
0604-
11
NUT; ARM REST
SCREW GROMMET
8-06698-938-1
04
1
0210-
46
SEAL; DOOR,UPR,CAB SIDE
8-97852-364-9
02
1
0210-0604
46
SEAL; DOOR,UPR,CAB SIDE
8-98039-384-1
02
1
0605-
49
SEAL; DOOR
8-97583-053-0
02
1
0308-
55
RUBBER; STOPPER,DOOR INNER
8-97852-022-1
04
1
0210-
57
PROTECTOR; STEP RR
8-97852-871-0
02
1
0210-0511
57
PROTECTOR; STEP RR
8-98027-817-0
02
1
0512-
90
CLIP; SEAL
8-98070-193-0
66
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
