◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-52 - REAR DOOR LOCK AND HANDLE ▶
6-52 — REAR DOOR LOCK AND HANDLE (#72744) — 51 parça
çizim 74037
52 15 17 27 16 20 17 29 16 20
BalonParca AdiParca NoAdetTipApplied Date
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> 		8-97857-913-1 01 1 0308-
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> 		8-97857-914-1 01 1 0308-
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-920-0 01 1 0210-0307
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97868-444-1 01 1 0308-
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97857-919-0 01 1 0210-0307
15 LINK; RR DOOR LK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97868-443-1 01 1 0308-
16 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		1-74517-134-1 05 1 0308-
16 CLIP; DOOR LK LINK
EXC. AUTO DOOR LOCK<AU4> 		1-74517-135-1 05 1 0308-
16 CLIP; DOOR LK LINK 8-97859-069-0 01 1 0210-
16 CLIP; DOOR LK LINK 8-97852-643-0 01 1 0210-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-443-5 01 1 0210-0307
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97867-801-6 01 1 0308-
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97852-442-5 01 1 0210-0307
17 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97867-800-6 01 1 0308-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-474-3 01 1 0210-
17 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97852-473-3 01 1 0210-
20 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 0210-0805
20 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 0806-
27 SCREW; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 0210-0305
27 SCREW; RR DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0306-
29 KNOB; LK LINK,RR DOOR
AUTO DOOR LOCK<AU4> 		8-97852-656-0 02 1 0210-0307
29 KNOB; LK LINK,RR DOOR
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 02 1 0308-
52 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-874-2 01 1 0210-
52 BELL CRANK ASM; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-873-2 01 1 0210-

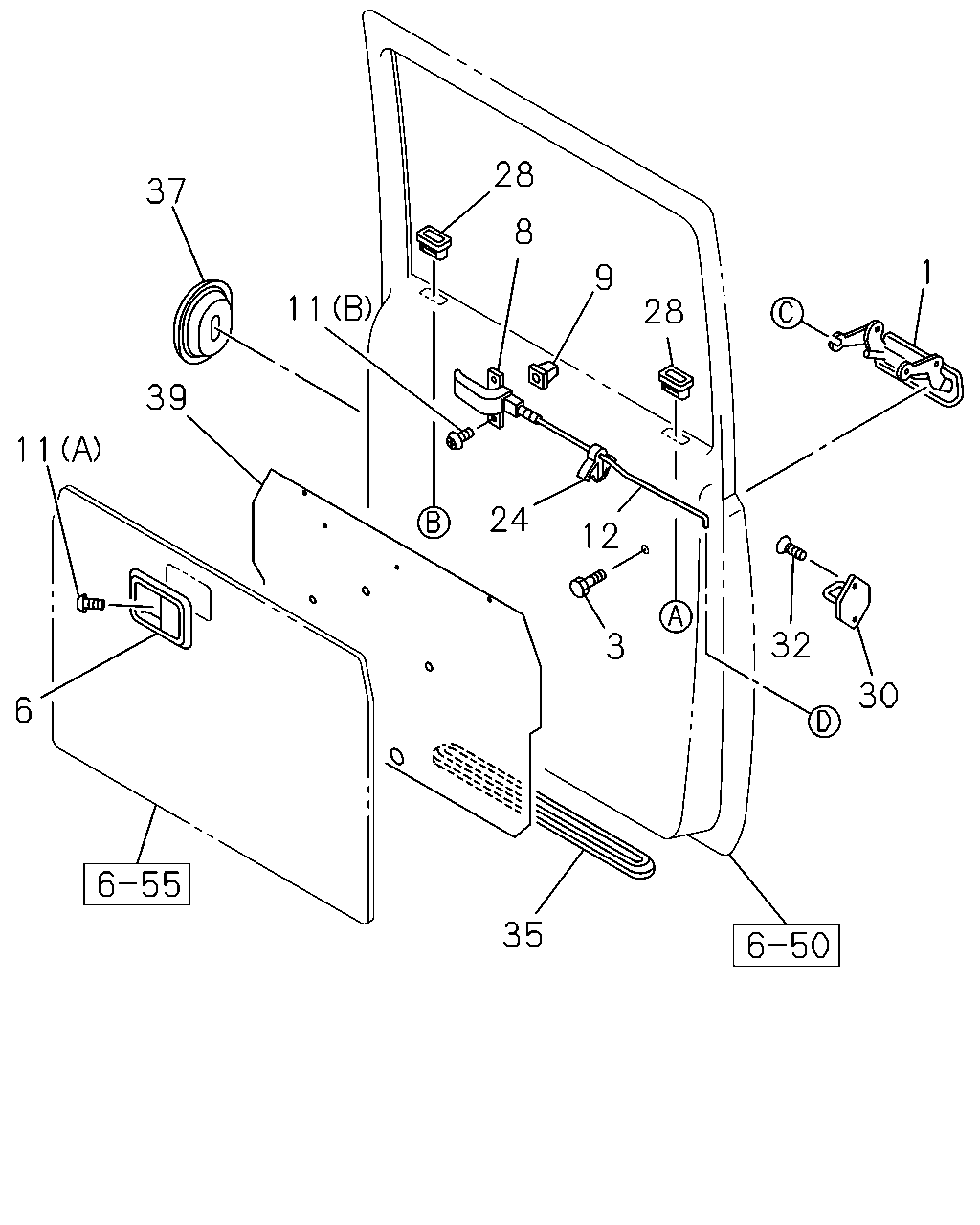

çizim 74173
28 37 8 1 9 11 28 39 11 24 12 32 3 30 6 35
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,RR DOOR 8-97867-722-1 01 1 0210-
1 HANDLE; OUTSIDE,RR DOOR 8-97867-721-1 01 1 0210-
3 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0210-
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-844-2 01 1 0210-0307
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97867-236-2 01 1 0308-
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK BEIGE 		8-94345-841-2 01 1 0210-0307
6 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97867-235-2 01 1 0308-
8 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-838-3 01 1 0210-0307
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97867-234-3 01 1 0308-
8 HANDLE; INSIDE,RR DOOR
DARK BEIGE 		8-94345-835-3 01 1 0210-0307
8 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97867-233-3 01 1 0308-
9 GROMMET; SCREW,INSIDE HANDLE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0210-
11 SCREW; INSIDE HANDLE
(A) M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 0210-0603
11 SCREW; INSIDE HANDLE
(A) M4X10 TAPPING OVAL-HEAD 		0-70640-410-0 02 1 0604-
11 SCREW; INSIDE HANDLE
(B) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0210-0604
11 SCREW; INSIDE HANDLE
(B) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-
12 ROD; DOOR LK RR 8-97852-226-1 01 1 0210-
12 ROD; DOOR LK RR 8-97852-225-1 01 1 0210-
24 ANTIRATTLER; DOOR INSIDE HANDLE
AUTO DOOR LOCK<AU4> ID=3.8 WHITE 		8-94217-699-0 02 1 0210-
24 ANTIRATTLER; DOOR INSIDE HANDLE
EXC. AUTO DOOR LOCK<AU4> ID=3.8 WHITE 		8-94217-699-0 06 1 0210-
28 ESCUTCHEON; LK BUTTON,RR DOOR
DARK BEIGE 		8-97852-453-1 02 1 0210-0307
28 ESCUTCHEON; LK BUTTON,RR DOOR
DARK GRAY 		8-97867-208-1 02 1 0308-
30 STRIKER; RR DOOR 8-97221-702-1 02 1 0210-
32 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0210-
35 PLUG; RR DOOR LWR HOLE 8-97852-222-1 02 1 0210-
37 GROMMET; RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94279-724-0 02 1 0210-
39 SEAL; INSIDE HANDLE,RR DOOR 8-94271-609-1 02 1 0210-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
