Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

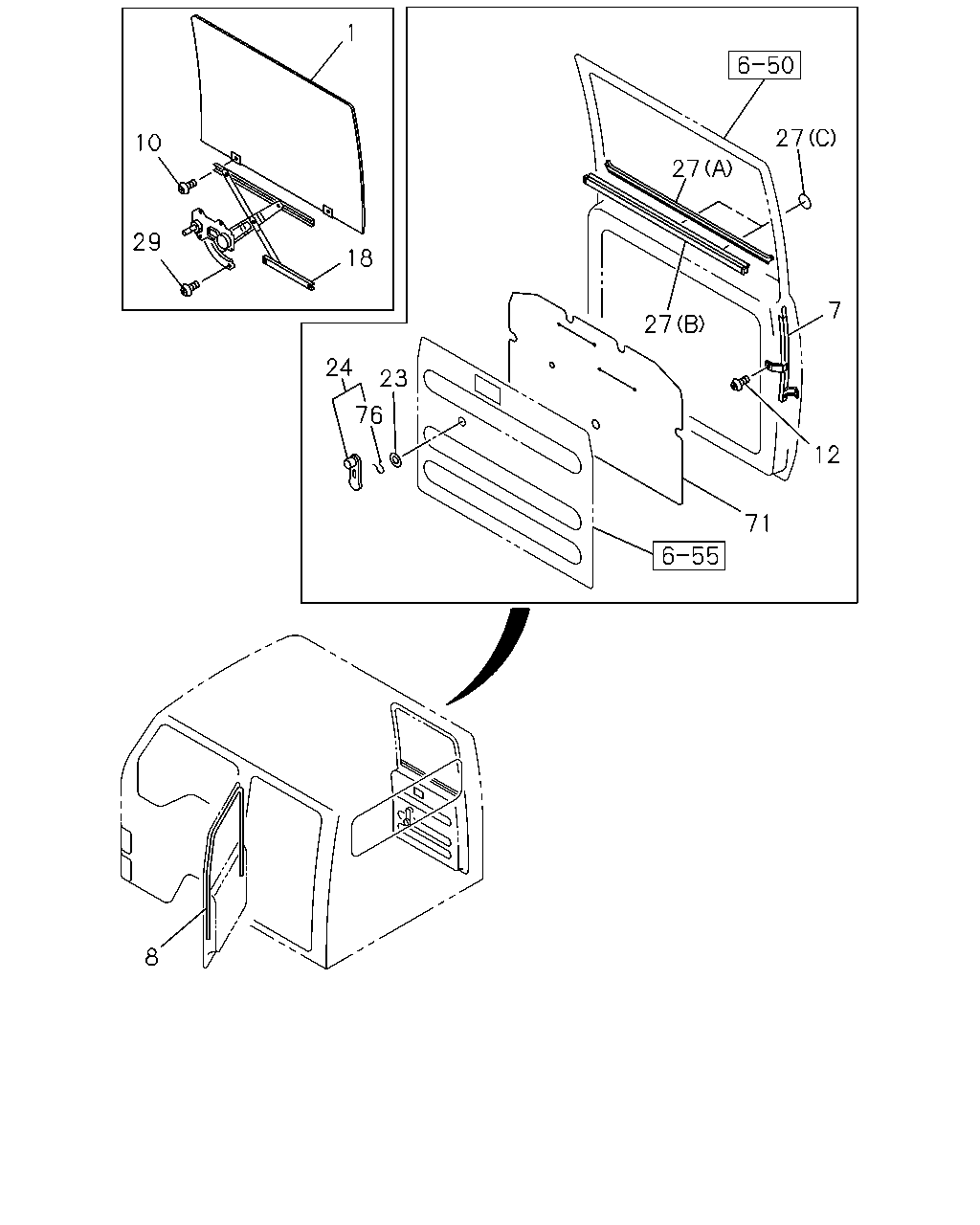

6-51 — REAR DOOR GLASS AND REGULATOR
(#72743) — 20 parça
1
27
10
27
29
18
7
27
24
23
76
12
71
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; RR DOOR
8-97867-410-0
01
1
0210-
1
GLASS; RR DOOR
8-97867-409-0
01
1
0210-
7
CHANNEL; GLASS RUN,RR DOOR
8-97852-207-6
01
1
0210-
7
CHANNEL; GLASS RUN,RR DOOR
8-97852-206-6
01
1
0210-
8
RUN; GLASS,RR DOOR
8-97852-363-4
02
1
0210-
10
SCREW; GLASS
M6X16 TAPPING W/PL WASHER
1-09981-452-0
04
1
0210-
12
SCREW; CHANNEL,GLASS RUN
M6X16 W/LK&PL WASHER
8-94279-402-0
04
1
0210-0305
12
SCREW; CHANNEL,GLASS RUN
M6X16 W/LK&PL WASHER
8-97582-826-0
04
1
0306-
18
REGULATOR; WINDOW,RR DOOR
8-97852-196-5
01
1
0210-
18
REGULATOR; WINDOW,RR DOOR
8-97852-195-5
01
1
0210-
23
ESCUTCHEON; HANDLE,WINDOW REG
8-94220-668-1
02
1
0210-
24
HANDLE; WINDOW REG,RR DOOR
DARK BEIGE
8-97852-452-0
02
1
0210-0307
24
HANDLE; WINDOW REG,RR DOOR
DARK GRAY
8-97098-453-0
02
1
0308-
27
SEAL; WAIST,RR DOOR
(C) OD=36 T=0.05 BLACK
5-76777-035-0
04
1
0210-
27
SEAL; WAIST,RR DOOR
(A)
8-97852-230-5
02
1
0210-
27
SEAL; WAIST,RR DOOR
(B)
8-97852-231-6
02
1
0210-
29
SCREW; WINDOW REG
M6X8 W/LK WASHER
1-09981-040-0
10
1
0210-0302
29
SCREW; WINDOW REG
M6X8 W/LK&PL WASHER
8-94279-401-0
10
1
0303-
71
SEAL; WATER,RR DOOR
8-97852-232-2
02
1
0210-
76
PIN
8-94220-591-0
02
1
0210-
