6-47 — MUD GUARD AND INSULATOR (#72741) — 120 parça

140 150 140 139 140 140 150 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	PANEL; SIDE	8-97083-093-1	01	1	9704-	●
139	PANEL; SIDE	8-97078-381-1	01	1	9704-0209	●
139	PANEL; SIDE	8-97078-381-1	01	1	0210-	●	●
139	PANEL; SIDE	8-97035-774-3	01	1	0210-		●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	04	1	9704-0209	●
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28480-820-0	04	1	0210-0307	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	03	1	9704-0209	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	03	1	0210-0307	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	07	1	0308-0512	●	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28650-825-0	07	1	0601-	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	03	1	9704-0209	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	03	1	0210-0307	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
150	NUT; SIDE PANEL M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

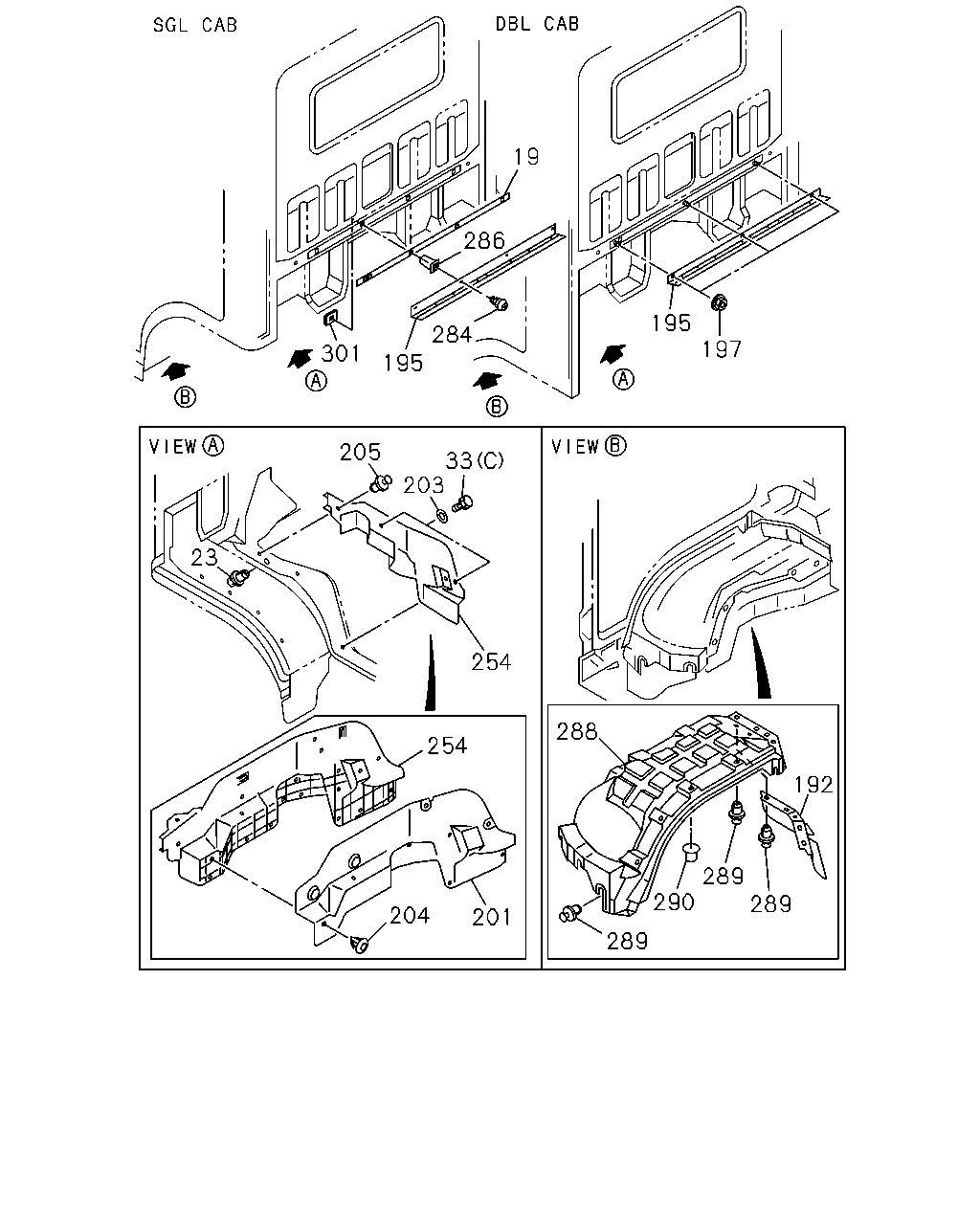

19 286 195 284 195 197 301 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9704-	●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	10	1	9704-9907	●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	06	1	9908-0207	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0208-0209	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	06	1	0210-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9704-0209	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0210-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9704-0209	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0210-0512	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9704-0209	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0210-0512	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-0209	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0210-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
192	SEAL; MUD COVER	8-97857-297-3	02	1	9704-0209	●
192	SEAL; MUD COVER	8-97857-297-4	02	1	0210-1106	●	●
192	SEAL; MUD COVER	8-98192-031-0	02	1	1107-	●	●
195	PROTECTOR; HEAT	8-97094-833-2	01	1	9704-	●
195	PROTECTOR; HEAT	8-94462-569-1	01	1	0210-		●
197	NUT; HEAT PROTECTOR,CAB BACK M6 FLANGE	8-94279-514-0	03	1	0210-		●
201	INSULATOR; VALANCE	8-97853-117-2	01	1	9704-0209	●
201	INSULATOR; VALANCE	8-97853-117-3	01	1	0210-	●	●
201	INSULATOR; VALANCE	8-97853-116-2	01	1	9704-0209	●
201	INSULATOR; VALANCE	8-97853-116-3	01	1	0210-	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9704-0209	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0210-0604	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9704-0209	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0210-0308	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9704-0209	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0210-	●	●
254	COVER; MUD,VALANCE	8-97853-072-4	01	1	9704-0209	●
254	COVER; MUD,VALANCE	8-97853-072-4	01	1	0210-	●	●
254	COVER; MUD,VALANCE	8-97853-071-4	01	1	9704-0209	●
254	COVER; MUD,VALANCE	8-97853-071-4	01	1	0210-	●	●
284	SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9704-	●
286	GROMMET; SCREW,HEAT PROTECTOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9704-0101	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●
288	LINER; TIRE HOUSE	8-97890-579-0	01	1	9704-9711	●
288	LINER; TIRE HOUSE	8-97853-716-6	01	1	9712-9803	●
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	9804-0209	●
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	0210-0212	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●
288	LINER; TIRE HOUSE	8-97890-578-0	01	1	9704-9711	●
288	LINER; TIRE HOUSE	8-97853-715-6	01	1	9712-9803	●
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	9804-0209	●
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	0210-0212	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	9704-0209	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	0210-0212	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0301-	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9704-0209	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0210-	●	●
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9704-0101	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●

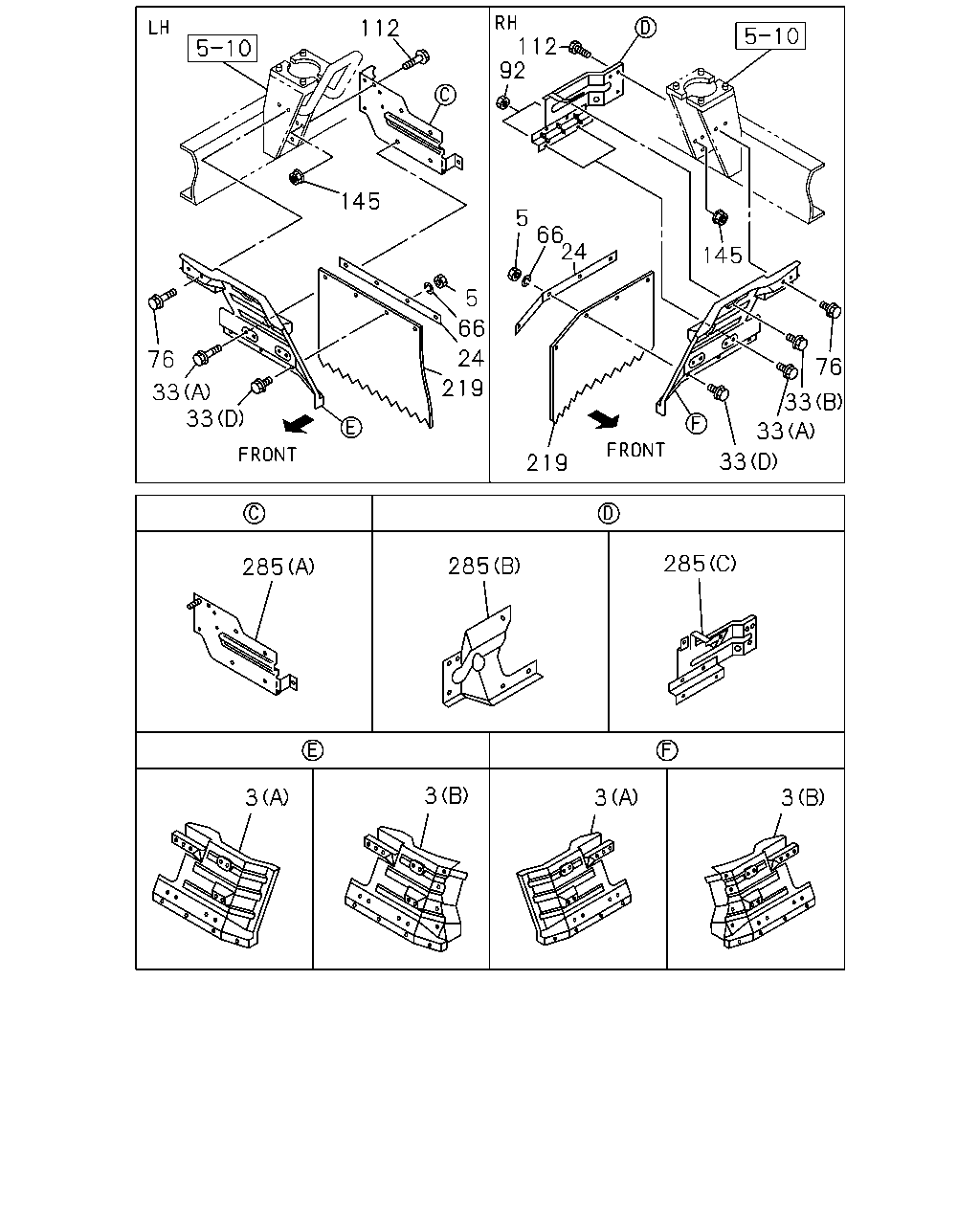

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR (A)	8-97048-729-1	01	1	9704-0312	●
3	GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-	●
3	GUARD; MUD,RR (A)	8-97048-728-3	01	1	9704-	●
3	GUARD; MUD,RR (B)	8-97081-735-3	01	1	0210-0312		●
3	GUARD; MUD,RR (B)	8-97366-989-1	01	1	0401-		●
3	GUARD; MUD,RR (B)	8-97081-734-5	01	1	0210-		●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	9704-0209	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0210-0512	●	●
5	NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●
24	PLATE; MUD COVER	8-97095-186-0	02	1	9704-0209	●
24	PLATE; MUD COVER	8-97095-186-0	02	1	0210-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	9704-0209	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0210-0512	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	9704-0209	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0210-0512	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	9704-0209	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0210-0512	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●
33	BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9704-0209	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0210-0805	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	9704-0209	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0210-0603	●	●
66	WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28480-820-0	02	1	9704-0209	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28480-820-0	02	1	0210-0512	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28450-820-0	02	1	0601-	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	9704-0209	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
92	NUT; MUD COVER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	9704-0209	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0210-0512	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9704-0209	●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0210-0602	●	●
145	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
219	FLAP; MUD GUARD	8-97036-107-2	02	1	9704-9903	●
219	FLAP; MUD GUARD	8-97218-078-0	02	1	9904-0209	●
219	FLAP; MUD GUARD	8-97218-078-0	02	1	0210-	●	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	9704-0209	●
285	BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0210-	●	●
285	BRACKET; MUD COVER (B)	8-97089-653-2	01	1	9704-	●
285	BRACKET; MUD COVER (C)	8-97103-463-0	01	1	0210-		●
